H4IMS8860Wireless Mouse

USER Manual SM-8860 Wireless Mouse Getting Started Thank you for choosing this 2.4G Wireless Mouse Kits. It operates with digital radio technology to ensure no hinder communication between the mouse and your computer without connecting cable. The transmission and receiving of mouse are free from angle restriction. Preparing mouse and Dongle Before working with your new mouse, look at the "Hardware Installation", and take a few one-time preparations. Hardware Installation ● Place the dongle at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance. ● The distance between the mouse and dongle should not exceed 10 M. ● Do not place the dongle on metal surfaces. ● Do not move optical mouse on following surface - Glass or any transparent materialMirror or reflecting surface; Mouse pad with too many colors; Rough surface. Step 1: Connect the USB transceiver ● Plug the dongle connector into an USB port. ● SYSTEM will take around 10 sec to find your keyboard and mouse automatically. Step 2: Insert batteries Inserting batteries in mouse The mouse requires one alkaline AAA battery. ● Open the battery compartment cover on the bottom of the mouse. ● First push the battery puller in then insert one AAA battery into battery compartment. ● Fix the battery compartment cover on the bottom of mouse again. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Use and replace only with correct size and type (alkaline or zinc-carbon)of battery. Working mouse USB Transceiver and mouse electrical specification Iin addition to two buttons, the mouse also has a wheel that can be used as follows: ● As a 3rd button: press on the wheel. ● For scrolling, e.g. in documents or on Internet pages: turn the wheel forward or back. The Transceiver will have one main function: translate radio communications from the mouse to the PC via USB Full Speed USB Specification Compliance., meets Universal Serial Bus Specification version 2.0. Support USB Suspend Mode. Designation Value Modulation GFSK Operating Frequency 2403MHz~2480MHz channel 78 channel 2.4GHz ISM Band Storage temperature –20 °C ... +60 °C Operating temperature 0 °C ... +40 °C Mouse Battery type One alkaline battery, type AAA Mouse Supply voltage 1.2~1.65V Mouse Current consumption max. 50 mA USB Transceiver Supply voltage DC 5.0 V ±5 % USB Transceiver Current consumption max..100 mA FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This Class B device complies with part 15 of the FCC rules,Canadian ICES-003,RSS-210.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Laser and LED Specifications: Laser Mouse: This device complies with International Standard IEC 60825-1: (1993), +A1+A2(IEC 60825-1:2001-8) for a class1. Class 1 Laser Device Beam description: Collimated (parallel)beam of infrared light(invisible to the user) Laser power output:<716 microwatts(at 832 nanometers) to 834 microwatts(at 865 nanometers) Emitted laser wavelength:nominal:850 nanometers, range:(832-865 nanometers) A Class 1 laser product is safe under reasonably foreseeable conditions of operation as described by IEC 60825-1. However,it is recommended that you not direct the laser beam(which is emitted from the bottom of the device)at anyone’s eyes. Optical(LED) Mouse: This device complies with International Standard IEC 60825-1: (1993), +A1+A2(IEC 60825-1:2001-8) . This product uses LEDs that are consider Class1 (IEC 60825-1:1993+A1+A2) LED power output:<67.8W (photochemical limit),< 4.2mW (thermal limit). LED nominal wavelength:470nm(blue),635nm(red). A Class 1 product is safe under reasonably foreseeable conditions of operation as described by IEC 60825-1. However, it is recommended that you not direct the light (which is emitted from the bottom of the device)at anyone’s eyes. IMPORTANT BATTERY INFORMATION ● Keep batteries out of reach of children. ● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery compartment. ● Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries). ● Always remove old, weak, or worn-out batteries promptly and recycle or proper disposal of them in accordance with Local and National Disposal Regulations. ● If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacture's instructions and Local and National Disposal Regulations. Before inserting new batteries, thoroughly clean the …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Lite-on Technology Corp. Address:90, Chien 1 Road, Chung Ho, Taipei Hsien Taiwan Country: Taiwan Declare that: Name Representative of agent: Mr. James Lee (1) Agent Company name: Compliance Certification Service Inc Address: No. 11, Wugong 6th., Wugu Township, Taipei Country 24891 City: Taipei Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: Lenovo Mini Wireless Optical Mouse N3901 Type designation: Trademark: Lenovo on our behalf. Date:July 16 2010. City:Taipei. Name: Ms. Shiry Kuo (2) Function: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

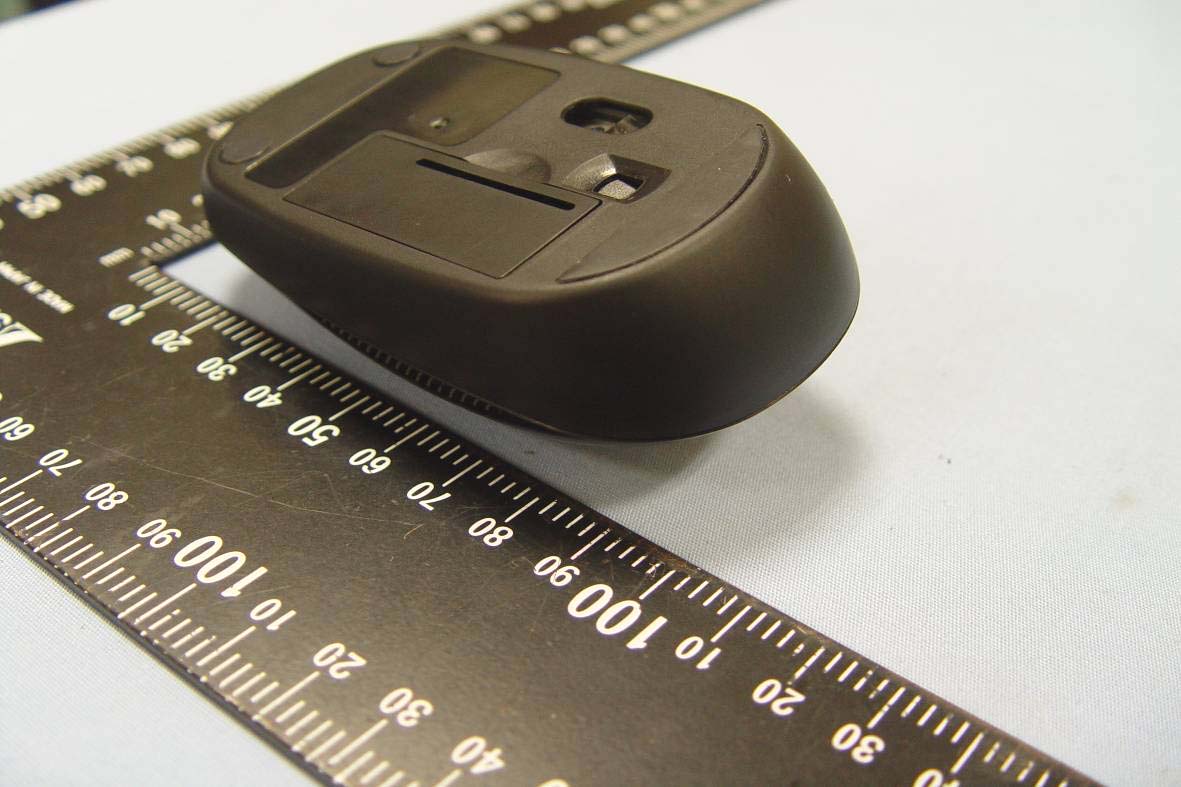

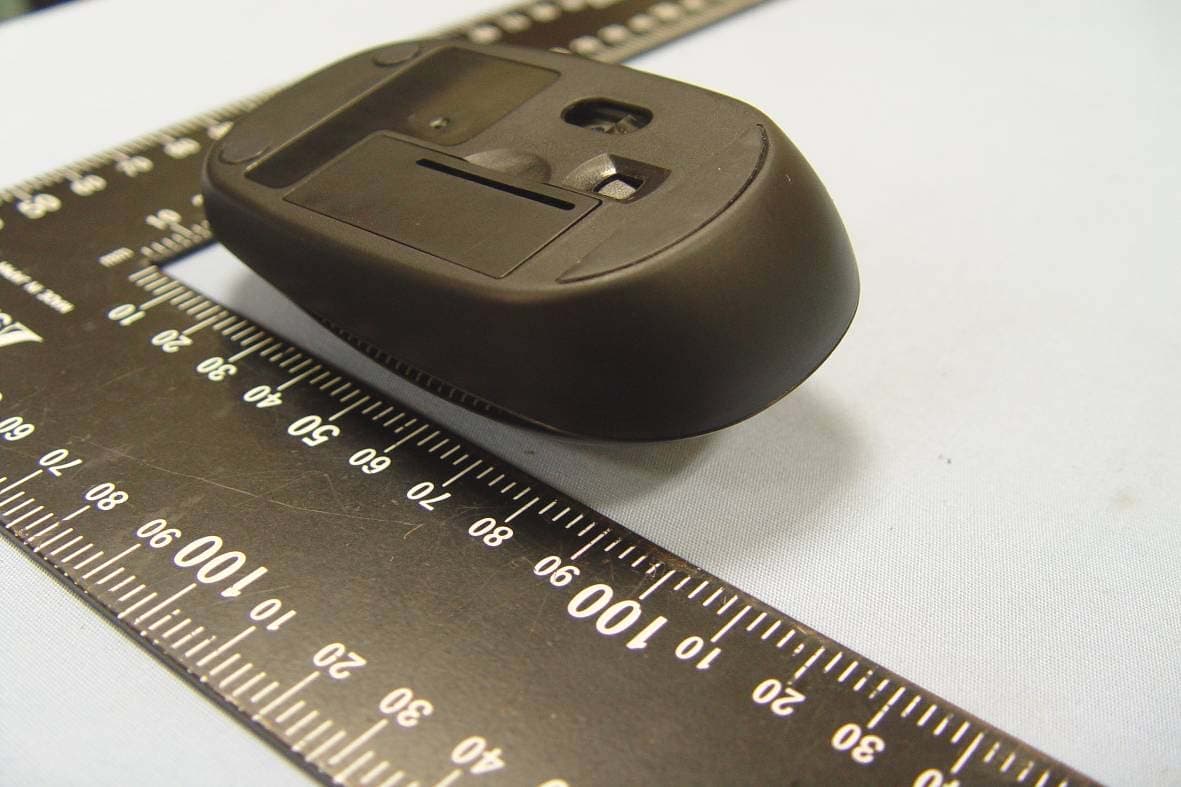

Compliance Certification Services Inc. Report No.: T100705003 Date of Issue: July 16, 2010 A1 - 1 Total Page: 5 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

836-00819-00A Class 1 LED Product Made in China E Power Rating1.5V 50mA Mode NameLenovo Mini Wireless Optical Mouse N3901 Mode No.SM-8860 FCC ID: H4IMS8860 IC ID:4491A-MS8860 Bar Code DSC05729.JPG

Compliance Certification Services Inc. Report No.: T100705003 Date of Issue: July 16, 2010 A1 - 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100705003 Date of Issue: July 16, 2010 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100705003 Date of Issue: July 16, 2010 A1 - 4 Rev. 00 Printed Antenna Compliance Certification Services Inc. Report No.: T100705003 Date of Issue: July 16, 2010 A1 - 5 Rev. 00

Report No: T100705003-D Page 1 / 25 FCC 47 CFR PART 15 SUBPART B & IC ICES-003 TEST REPORT for Wireless Mouse MODEL: SM-8860 Test Report Number: T100705003-D Issued for LITE-ON Technology Corp. No.90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C Issued By: Compliance Certification Services Inc. Wugu Laboratory No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) TEL: 886-2-2299-9720 FAX: 886-2-2299-9721 E-Mail: [email protected] Issued Date: July 16, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: T100705003-D Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 16, 2010 Initial Issue ALL Eunice Shen Report No: T100705003-D Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION.......................................................................................4 2 EUT DESCRIPTION...........................................................................................................5 3 TEST METHODOLOGY.....................................................................................................6 3.1. DECISION OF FINAL TEST MODE ...................................................................................6 3.2. EUT SYSTEM OPERATION...............................................................................................6 4 SETUP OF EQUIPMENT UNDER TEST............................................................................7 4.1. DESCRIPTION OF SUPPORT UNITS ...............................................................................7 4.2. CONFIGURATION OF SYSTEM UNDER TEST................................................................8 5 FACILITIES AND ACCREDITATIONS...............................................................................9 5.1. FACILITIES ........................................................................................................................9 5.2. ACCREDITATIONS............................................................................................................9 5.3. MEASUREMENT UNCERTAINTY ...................................................................................10 6 CONDUCTED EMISSION MEASUREMENT...................................................................11 6.1. LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................11 6.2. TEST INSTRUMENTS .....................................................................................................11 6.3. TEST PROCEDURES ......................................................................................................12 6.4. TEST SETUP ...................................................................................................................13 6.5. DATA SAMPLE: ...............................................................................................................13 6.6. TEST RESULTS...............................................................................................................13 7 RADIATED EMISSION MEASUREMENT........................................................................14 7.1. LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................14 7.2. TEST INSTRUMENTS .....................................................................................................16 7.3. TEST PROCEDURES ......................................................................................................17 7.4. TEST SETUP ...................................................................................................................18 7.5. DATA SAMPLE: ...............................................................................................................19 7.6. TEST RESULTS...............................................................................................................20 8 PHOTOGRAPHS OF THE TEST CONFIGURATION.......................................................24 APPENDIX 1 - PHOTOGRAPHS OF EUT Report No: T100705003-D Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Product: Wireless Mouse Model: SM-8860 Brand: lenovo Applicant: LITE-ON Technology Corp. No.90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C Manufacturer: Silitek Electronic (Dong Guan) Co., Ltd, The Mid. Of Keji Road, Shi Jie Town Dongguan City, Guangdong Province, P.R.China. Tested: July 12, 2010 Test Voltage: 120VAC, 60Hz EMISSION Standard Item ResultRemarks Conducted (Power Port) N/A Not applicable, because EUT does not connect to AC Main Source direct. FCC 47 CFR Part 15 Subpart B (July 10, 2008), ICES-003 Issue 4 ANSI C63.4-2003 Radiated PASS Meet Class B limit Note: 1. The statements of test result on the above are decided by the request of test standard only; the measurement uncertainties are not factored into this compliance determination. 2. The information of measurement uncertainty is available upon the customer’s request. Deviation from Applicable Standard None The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other simil…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100705003-RP1 FCC ID: H4IMS8860 Date of Issue: July 16, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 28 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Mouse Model Number: SM-8860 Trade Name: lenovo Issued to LITE-ON Technology Corp. No.90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100705003-RP1 FCC ID: H4IMS8860 Date of Issue: July 16, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION.................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 7 4.3 MEASUREMENT UNCERTAINTY ........................................................................................ 7 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 8 5.1 FACILITIES .................................................................................................................................. 8 5.2 EQUIPMENT................................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS................................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 10 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 10 6.2 SUPPORT EQUIPMENT ........................................................................................................ 10 7. FCC PART 15.249 REQUIREMENTS......................................................................................... 11 7.1 20 DB BANDWIDTH.............................................................................................................. 11 7.2 BAND EDGES MEASUREMENT ......................................................................................... 14 7.3 SPURIOUS EMISSION .......................................................................................................... 19 7.4 POWERLINE CONDUCTED EMISSIONS ........................................................................... 27 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 28 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100705003-RP1 FCC ID: H4IMS8860 Date of Issue: July 16, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: LITE-ON Technology Corp. No.90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Equipment Under Test: Wireless Mouse Trade Name: lenovo Model Number: SM-8860 Date of Test: July 8, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100705003-RP1 FCC ID: H4IMS8860 Date of Issue: July 16, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless Mouse Trade Name lenovo Model Number SM-8860 Model Discrepancy N/A Power Supply Powered by AAA batteries (DC: 1.5V) Frequency Range 2403 ~ 2480 MHz Frequency Spacing 1MHz Frequency Number 78 Channels Modulation Technique GFSK Antenna Gain -2.30 dBi Antenna Designation PCB Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: H4IMS8860 filing to comply with Section 15.107, 15.109, 15.207, 15.209, 15.249 (FCC Part …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100705003-RP1 FCC ID: H4IMS8860 Date of Issue: July 16, 2010 Page 28 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION SET UP PHOTOS
