H4IMS9661Wireless Mouse

SM-9661 Wireless Mouse /SD-9080 USB Transceiver Product Guide Getting Started Thank you for choosing this 2.4G Wireless Mouse Kits. It operates with digital radio technology to ensure no hinder communication between the mouse and your computer without connecting cable. The transmission and receiving of mouse are free from angle restriction. Preparing mouse and Dongle Before working with your new mouse, look at the "Hardware Installation", and take a few one-time preparations. Hardware Installation ● Place the dongle at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance. ● The distance between the mouse and dongle should not exceed 10 M. ● Do not place the dongle on metal surfaces. ● Do not move optical mouse on following surface - Glass or any transparent materials; Mirror or reflecting surface; Mouse pad with too many colors; Rough surface. Step 1: Connect the USB transceiver ● Plug the dongle connector into an USB port. ● SYSTEM will take around 10 sec to find your keyboard and mouse automatically. Step 2: Insert batteries Inserting batteries in mouse The mouse requires one alkaline AA battery. ● Open the battery compartment cover on the bottom of the mouse. ● First push the battery puller in then insert one AA battery into battery compartment. ● Fix the battery compartment cover on the bottom of mouse again. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Use and replace only with correct size and type (alkaline or zinc-carbon)of battery. Working mouse USB Transceiver and mouse electrical specification Iin addition to two buttons, the mouse also has a wheel that can be used as follows: ● As a 3rd button: press on the wheel. ● For scrolling, e.g. in documents or on Internet pages: turn the wheel forward or back. The Transceiver will have one main function: translate radio communications from the mouse to the PC via USB Full Speed USB Specification Compliance., meets Universal Serial Bus Specification version 2.0. Support USB Suspend Mode. Designation Value Modulation GFSK Operating Frequency 2403MHz~2480MHz channel 78 channel 2.4GHz ISM Band Storage temperature –20 °C ... +60 °C Operating temperature 0 °C ... +40 °C Mouse Battery type mouse One alkaline battery, type AA Mouse Supply voltage mouse 1.2~1.65V Mouse Current consumption mouse max. 50 mA USB Transceiver Supply voltage dongle DC 5.0 V ±5 % USB Transceiver Current consumption dongle max..100 mA FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Laser and LED Specifications: Laser Mouse: This device complies with International Standard IEC 60825-1: (1993), +A1+A2(IEC 60825-1:2001-8) for a class1. Class 1 Laser Device Beam description: Collimated (parallel)beam of infrared light(invisible to the user) Laser power output:<716 microwatts(at 832 nanometers) to 834 microwatts(at 865 nanometers) Emitted laser wavelength:nominal:850 nanometers, range:(832-865 nanometers) A Class 1 laser product is safe under reasonably foreseeable conditions of operation as described by IEC 60825-1. However,it is recommended that you not direct the laser beam(which is emitted from the bottom of the device)at anyone’s eyes. Optical(LED) Mouse: This device complies with International Standard IEC 60825-1: (1993), +A1+A2(IEC 60825-1:2001-8) . This product uses LEDs that are consider Class1 (IEC 60825-1:1993+A1+A2) LED power output:<67.8μW (photochemical limit),< 4.2mW (thermal limit). LED nominal wavelength:470nm(blue),635nm(red). A Class 1 product is safe under reasonably foreseeable conditions of operation as described by IEC 60825-1. However, it is recommended that you not direct the light (which is emitted from the bottom of the device)at anyone’s eyes. IMPORTANT BATTERY INFORMATION ● Keep batteries out of reach of children. ● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery compartment. ● Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries). ● Always remove old, weak, or worn-out batteries promptly and recycle or proper disposal of t…

Text truncated - open the document above for the full version.

Confidential Letter Date: 2010/10/18 Federal Communications Commission Authorization and Evaluation Division FCC IDH4IMS9661 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Lite-on Technology Corp. Applicant’s company address : 90, Chien 1 Road, Chung Ho, Taipei Hsien Taiwan Signature : Job Title and Dept. : Shiry Kuo / Engineer E-mail : [email protected] Te l . : 886-2-2222-6181 ex6115

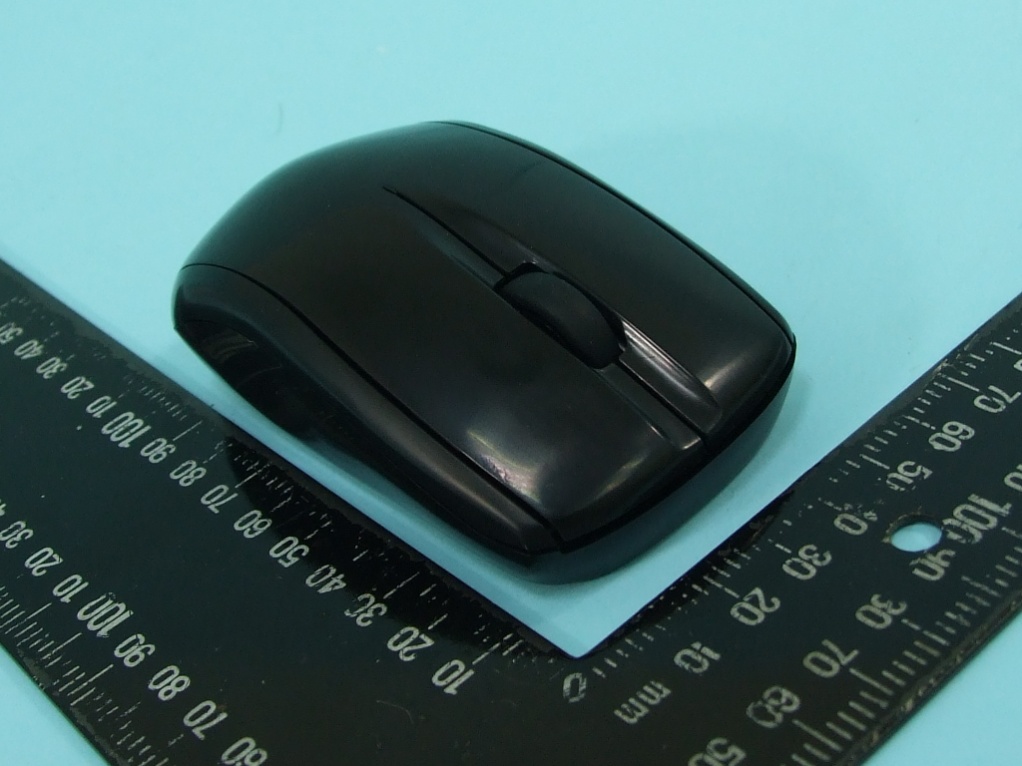

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT label location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR0O0115 SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C 15.249 Equipment : Wireless Mouse Model No. : SM-9661 Brand Name : acer Filin g Type : New Application Applicant : Lite-on Technology Corp. 90,Chien 1 Road,Chung Ho,Taipei Hsien 235, Taiwan ,R.O.C FCC ID : H4IMS9661 Manufacturer : Silitek Electronics (DongGuan) Co., LTD The Mid. Of Keji Road, Shi Jie Town, Dongguan City Guangdong Province, P.R. China Received Date : Oct. 04, 2010 Final Test Date : Oct. 05, 2010 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR0O0115 SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Oct. 12, 2010 FAX : 886-2-2696-2255 FCC ID : H4IMS9661 Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION ..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Table for Test Modes .............................................................................................................................................................................. 3 2.3 Table for Testing Locations ..................................................................................................................................................................... 3 2.4 Table for Supporting Units ....................................................................................................................................................................... 3 2.5 Test Configuration ................................................................................................................................................................................... 4 3 TEST RESULT ........................................................................................................................................................ 5 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................................. 5 3.2 Field Strength of Fundamental Emissions Measurement ........................................................................................................................ 8 3.3 20dB Spectrum Bandwidth Measurement ............................................................................................................................................. 11 3.4 Radiated Emissions Measurement ........................................................................................................................................................ 14 3.5 Band Edge Emissions Measurement .................................................................................................................................................... 26 3.6 Antenna Requirements .......................................................................................................................................................................... 28 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 29 5 TEST LOCATION .................................................................................................................................................. 31 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 32 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A4 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... B1 ~ B5 FCC TEST REPORT Report No.: FR0O0115 SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Oct. 12, 2010 FAX : 886-2-2696-2255 FCC ID : H4IMS9661 History of This Test Report Original Issue Date: Oct. 12, 2010 Report No.: FR0O0115 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 15.205(a) 15.209(a) 47 CFR FCC Part 15 Subpart C Further, this requirement does not apply to intentional radiators that must be professionally installed. FCC TEST REPORT Report No.: FR0O0115 SPORTON International Inc. Page No. : 1 of 32 TEL : 886-2-2696-2468 Issued Date : Oct. 12, 2010 FAX : 886-2-2696-2255 FCC ID : H4IMS9661 CERTIFICATE OF COMPLIANCE according to 47 CFR FCC Part 15 Subpart C § 15.249 Equipment : Wireless Mouse Model No. : SM-9661 Brand Name : acer Applicant : Lite-on Technology Corp. 90,Chien 1 Road,Chung Ho,Taipei Hsien 235, Taiwan ,R.O.C Sporton International as requested by the applicant to evaluate the EMC performance of the product sample received on Oct. 04, 2010 would like to declare that the tested sample has been evaluated and found to be in compliance with the tested rule parts. The data recorded as well as the test configuration …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR0O0115 Page No. : A1 of A4 FCC ID : H41MS9661 Appendix A. Test Photos FCC TEST REPORT Report No.: FR0O0115 Page No. : A2 of A4 FCC ID : H41MS9661 1 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR0O0115 Page No. : A3 of A4 FCC ID : H41MS9661 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR0O0115 Page No. : A4 of A4 FCC ID : H41MS9661 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
