H4IMS9662Wireless Mouse

SM-9662 Wireless Mouse /SD-9082 USB Dongle Product Guide Getting Started Thank you for choosing this 2.4G Wireless Mouse Kits. It operates with digital radio technology to ensure no hinder communication between the mouse and your computer without connecting cable. The transmission and receiving of mouse are free from angle restriction. Preparing mouse and Dongle Before working with your new mouse, look at the "Hardware Installation", and take a few one-time preparations. Hardware Installation ● Place the dongle at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance. ● The distance between the mouse and dongle should not exceed 10 M. ● Do not place the dongle on metal surfaces. ● Do not move optical mouse on following surface - Glass or any transparent materials; Mirror or reflecting surface; Mouse pad with too many colors; Rough surface. Step 1: Connect the Dongle ● Plug the dongle connector into an USB port. ● System will take around 10 sec to find your keyboard and mouse automatically. Step 2: Insert batteries Inserting batteries in mouse The mouse requires one alkaline AA battery. ● Open the battery compartment cover on the bottom of the mouse. ● First push the battery puller in then insert one AA battery into battery compartment. ● Fix the battery compartment cover on the bottom of mouse again. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Use and replace only with correct size and type (alkaline or zinc-carbon)of battery. Working mouse Dongle and mouse electrical specification Iin addition to two buttons, the mouse also has a wheel that can be used as follows: ● As a 3rd button: press on the wheel. ● For scrolling, e.g. in documents or on Internet pages: turn the wheel forward or back. The Dongle will have one main function: translate radio communications from the mouse to the PC via USB Full Speed USB Specification Compliance., meets Universal Serial Bus Specification version 2.0. Support USB Suspend Mode. Designation Value Modulation GFSK Operating Frequency 2403MHz~2480MHz channel 78 channel 2.4GHz ISM Band Storage temperature –20 °C ... +60 °C Operating temperature 0 °C ... +40 °C Mouse Battery type One alkaline battery, type AA Mouse Supply voltage 1.5V(1.2~1.65V) Mouse Current consumption max. 30 mA Dongle Supply voltage DC 5.0 V ±5 % Dongle Current consumption max..100 mA FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This Class B device complies with part 15 of the FCC rules, Canada ICES-003,RSS-210.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment Laser and LED Specifications: Laser Mouse: This device complies with International Standard IEC 60825-1: (1993), +A1+A2(IEC 60825-1:2001-8) for a class1. Class 1 Laser Device Beam description: Collimated (parallel)beam of infrared light(invisible to the user) Emitted laser wavelength:nominal:848 nanometers A Class 1 laser product is safe under reasonably foreseeable conditions of operation as described by IEC 60825-1. However, it is recommended that you not direct the laser beam(which is emitted from the bottom of the device)at anyone’s eyes. Optical(LED) Mouse: This device complies with International Standard IEC 62471: 2008 . LED nominal wavelength:470nm(blue),639nm(red). However, it is recommended that you not direct the light (which is emitted from the bottom of the device)at anyone’s eyes. IMPORTANT BATTERY INFORMATION ● Keep batteries out of reach of children. ● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery compartment. ● Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries). ● Always remove old, weak, or worn-out batteries promptly and recycle or proper disposal of them in accordance with Local and National Disposal Regulations. ● If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacture's instructions and Local and National Disposal Regulations. Before inserting new batteries, thoroughly clean the compartment with a damp paper towel, or follow the…

Text truncated - open the document above for the full version.

光寶科技股份有限公司 LITE-ON TECHNOLOGY CORP. 18F, 392,Ruey Kuang Road, Neihu, Taipei 11492,Taiwan, R.O.C Tel:886-2-87982888 Fax:886-2-8793-6852 http://www.liteon.com Declaration of Authorization We Name: LITE-ON TECHNOLOGY CORP. Address: 18F,392,Ruey Kuang Road,Neihu,Taipei 11492,Taiwan, R.O.C City: Taipei Country: Taiwan Declare that: Agent Company name: Neutron Engineering, Inc. Address: B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Wireless Mouse Type designation: SM-9662 Trademark: acer on our behalf. Date: 2013.1.11 City: Taipei Name: Shirly Kuo Function: Engineer Signature: Notes: (1): Required for FCC application

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: LITE-ON TECHNOLOGY CORP. Address: 18F,392,Ruey Kuang Road,Neihu,Taipei 11492,Taiwan, R.O.C City: Taipei Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: H4IMS9662 Reference number: SM-9662 Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2013-01-11 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

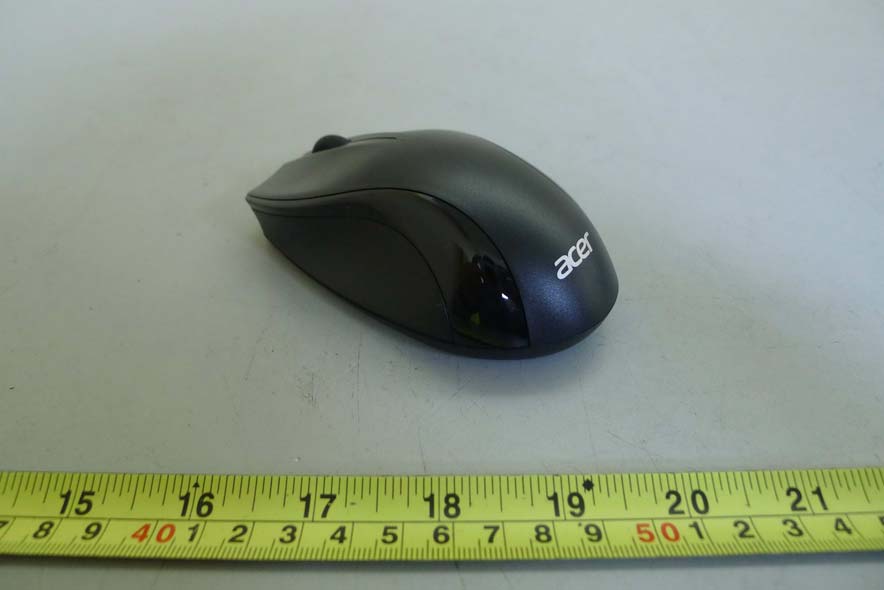

RV-0000000 Project No.: 1301015 Page 2 of 5 Neutron Engineering Inc. 1301015 1301015

SM9662 FCC label 11 OF mm FREE MATL' DRAWINGNO : 836-11610-00A 3 ABC D ANGLE APPROVED : CHECKED : DESIGER : DRAWN: . SHEET 0.25 0.5 + _ _ + TOLERANCE UNSPECIFIED DESCRIPTIONNO UNIT: SCALE: .X X .XXX .X QTY 0.15 0.05 0.1 + _ + _ _+ : 2 1 A BCD ISSUE A4 REV TITLE : TRETINGREMARK 3 2 1 REVER E DATE SPH R- &-3001-04D SA MARK logo NOTE: 1.MATERIAL P-SYNTHETI APER,THICKNESS:0.08mm. 2.Background and Serial number color:Black. 3.Text and Serial number background Color:White. 4.DAS IN O ACTORY SITRINTING. 5. PART NUMBER:836-11610-00A. 6. The part is according to the last version”HS-301” of LITEON. Made in China C3 E 1 4 56 1 4 M/N:SM-9662 Rating:1.5V 30mA FCC ID:H4IMS9662 IC:4491A-MS9662 CMIIT ID:2013DJXXXX Wireless Optical Mouse Acer Italy s.r.l Via Lepetit, 40,20020 Lainate (MI) Italy CNC:X-XXXXX N14939 TA-2011/1528 (01)07893552002515 XXXX-XX-XXXX COFETEL ID :XXXXXXXXX-XXXX

RV-0000000 Project No.: 1301015 Page 3 of 5 Neutron Engineering Inc. 1301015 1301015 RV-0000000 Project No.: 1301015 Page 4 of 5 Neutron Engineering Inc. 1301015 1301015 Antenna RV-0000000 Project No.: 1301015 Page 5 of 5 Neutron Engineering Inc. 1301015

RV-0000000 Report No.: NEI-FCCP-1-1301015 Page 1 of 43 Neutron Engineering Inc. Radio Test Report FCC ID: H4IMS9662 This report concerns (check one) : Original Grant Class II Change Issued Date : Jan. 24, 2013 Project No. : 1301015 Equipment : Wireless Mouse Model Name : SM-9662 Applicant : LITE-ON TECHNOLOGY CORP. Address : 18F, 392 , Ruey Kuang Road, Neihu, Taipei 11492, Taiwan, R.O.C Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jan. 08, 2013 Date of Test: Jan. 08, 2013 ~ Jan. 17, 2013 Testing Engineer : (Rush Kao) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 RV-0000000 Report No.: NEI-FCCP-1-1301015 Page 2 of 43 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. RV-0000000 Report No.: NEI-FCCP-1-1301015 Page 3 of 43 Neutron Engineering Inc. Table of Contents REPORT ISSUED HISTORY 4 1 CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 RADIATED SPURIOUS EMISSION (9 KHZ TO 1 GHZ) 13 4.1 LIMIT 13 4.2 MEASUREMENT INSTRUMENTS LIST 14 4.3 MEASURING INSTRUMENTS SETTING 14 4.4 TEST PROCEDURES 16 4.5 DEVIATION FROM TEST STANDARD 16 4.6 TEST SETUP LAYOUT 16 4.7 EUT OPERATING CONDITIONS 17 4.8 TEST RESULTS 18 5 RADIATED SPURIOUS EMISSION (ABOVE 1 GHZ) 20 5.1 LIMIT 20 5.2 MEASUREMENT INSTRUMENTS LIST 21 5.3 MEASURING INSTRUMENTS SETTING 21 5.4 TEST PROCEDURES 22 5.5 DEVIATION FROM TEST STANDARD 22 5.6 TEST SETUP LAYOUT 22 5.7 EUT OPERATING CONDITIONS 23 5.8 TEST RESULTS 24 5.9 TEST RESULTS (RESTRICTED BANDS) 36 5.10 TEST RESULTS - THE TENTH HARMONIC 40 6 EUT TEST PHOTO 42 RV-0000000 Report No.: NEI-FCCP-1-1301015 Page 4 of 43 Neutron Engineering Inc. REPORT ISSUED HISTORY Revised Version No. Description Issued Date - Initial Issue. Jan. 24, 2013 RV-0000000 Report No.: NEI-FCCP-1-1301015 Page 5 of 43 Neutron Engineering Inc. 1 CERTIFICATION Equipment : Wireless Mouse Brand Name : acer Model Name : SM-9662 A p p l i c a n t : LITE-ON TECHNOLOGY CORP. Date of Test : Jan. 08, 2013 ~ Jan. 17, 2013 Standards : FCC Part 15, Subpart C: 2011 ANSI C63.4: 2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1301015) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). RV-0000000 Report No.: NEI-FCCP-1-1301015 Page 6 of 43 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS FCC Part 15, Subpart C: 2011 Standard Clause Test Item Result 15.207 Conducted Emission N/A 15.249(d) or 15.209 Radiated Spurious Emission PASS 15.205 Restricted Bands PASS NOTE: (1) N/A: denotes test is not applicable in this Test Report RV-0000000 Report No.: NEI-FCCP-1-1301015 Page 7 of 43 Neutron Engineering Inc. 2.1 TEST FACILITY The test facilities used to collect the test data in this report: Radiated emission Test (Below 1 GHz): CB08: (FCC RN: 614388; FCC DN: TW1054; IC Assigned Code: 4428C-1) 1F., No. 61, Ln. 77, Sing-ai Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Radiated emission Test (Above 1 GHz): CB08: (VCCI RN: G-91; FCC RN: 614388; FCC DN: TW1054; IC Assigned Code: 4428C-1) 1F., No. 61, Ln. 77, Sing-ai Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) 2.2 MEASUREMENT UNCERTAINTY The measurement uncertainty is not specified by FCC rules and for reference only. The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95%. The measurement instrumentation uncertainty considerations contained in CISPR 16-4-2. Radiated emission test: Test Site Item Measurement Frequency Range Uncertainty NOTE CB08 Radiated emission at 3m Horizontal Polarization 30 - 200MHz 3.35 dB 200 - 1000MHz 3.11 dB 1 - 18GHz 3.97 dB 18 - 40GHz 4.01 dB Vertical Polarization 30 - 200MHz 3.22 dB 200 - 1000MHz 3.24 dB 1 - 18GHz 4.05 dB 18 - 40GHz 4.04 dB Our calculated Measurement Instrumentation Uncertainty is sh…

Text truncated - open the document above for the full version.

RV-0000000 Report No.: NEI-FCCP-1-1301015 Page 42 of 43 Neutron Engineering Inc. 6 EUT TEST PHOTO Radiated spurious emission test photos 1301015 1301015 RV-0000000 Report No.: NEI-FCCP-1-1301015 Page 43 of 43 Neutron Engineering Inc. Radiated spurious emission test photos 1301015
