H4ISMPJAMHL wireless adapter

MWA2 Wireless Adapter User Manual 3 Contents Product Features .............................................................................................. 4 Connecting to a Projector/Monitor/TV .............................................................. 5 Home Screen.................................................................................................... 6 Navigating the Home Screen ...................................................................... 7 Using eDisplay on a Mac or Windows PC ........................................................ 8 Using eDisplay on a Mobile Device .................................................................. 9 Displaying Media over DLNA .......................................................................... 10 Using Miracast .................................................................................................11 Using the Acer MWA Remote App .................................................................. 13 Setup .............................................................................................................. 15 About ......................................................................................................... 15 Network Settings ....................................................................................... 15 Changing the Language ............................................................................ 20 Upgrading the Firmware ............................................................................ 21 MHL Test Pattern ....................................................................................... 23 Regulatory Information ................................................................................... 24 Federal Communication Commission Interference Statement .................. 24 Industry Canada statement: ...................................................................... 25 4 Product Features 1 2 3 1. MHL connector ‡Connect to MHL port on compatible TV, monitor or projector. 2. Status LED 3. WPS (Wi-Fi Protected Setup)button ‡ 3UHVVEULHÀ\WRVZLWFKEHWZHHQGLVSOD\PRGHV ‡Press and hold to return to Home Screen. ‡ 3UHVVEULHÀ\GXULQJ0LUDFDVWVHWXSWRFRPSOHWHFRQQHFWLRQ 5 Connecting to a Projector/Monitor/TV 1. Power on the projector/monitor/TV. 2. Plug the MWA2 Wireless Adapter into an available MHL port. 3. Wait several seconds for Home Screen to appear. 6 Home Screen The Home Screen appears automatically once the projector/monitor/TV is switched on and correctly connected to the MWA2 Wireless Adapter. Four icons are shown, as described below: ‡eDisplay - Takes you to the eDisplay screen and provides details on how to connect your computer or mobile device using this method. For more information, see “Using eDisplay on a Mobile Device” on page 9. ‡DLNA - Takes you to the DLNA screen and provides details on how to connect your computer or mobile device using this method. For more information, see “Displaying Media over DLNA” on page 10. ‡Miracast - Takes you to the Miracast screen and provides details on how to connect your compatible device using this method. For more information, see “Using Miracast” on page 11. ‡Setup7DNHV\RXWRWKH6HWXSVFUHHQZKHUH\RXFDQ¿QGLQIRUPDWLRQ DERXWRUFRQ¿JXUHWKH0:$:LUHOHVV$GDSWHU)RUPRUHLQIRUPDWLRQVHH “Setup” on page 15. 7 Navigating the Home Screen There are several ways to select an icon from the Home Screen, as follows: ‡Using the projector/monitor/TV’s remote control - Use the remote control’s left/right/select buttons to move around the Home Screen and select an icon. Note that if an icon is highlighted, it will automatically be selected after approximately three seconds. To return to the Home Screen, press the remote control’s Back button. ‡Using the WPS button on the Wireless Adapter%ULHÀ\SUHVVWKH:36 button to move between the icons. When an icon is left highlighted for approximately three seconds, it will automatically be selected. To return to the Home Screen, press the WPS button for at least two seconds, then release. ‡Using your mobile device as a remote control - By downloading and installing the Acer MWA Remote app, you can use your mobile device as a remote control to control the MWA2 Wireless Adapter. For more information, see “Using the Acer MWA Remote App” on page 13. 8 Using eDisplay on a Mac or Windows PC 7RFRQQHFW\RXU0DFRU:LQGRZV3&WRWKH0:$:LUHOHVV$GDSWHU¿UVW install the driver, as follows: 1. On the projector/monitor/TV, go to the eDisplay screen by using that GHYLFH¶VUHPRWHFRQWURORUE\EULHÀ\SUHVVLQJWKH:36EXWWRQRQWKH0:$ Wireless Adapter. 2. Open Wi-Fi on your computer. 3. Connect it to the MWA2 (Acer_MWA2_XXXX). 4. Open your Internet Browser and key in the WiFi IP as shown on your projector/monitor/TV. 5. Download the driver for your Mac or Windows PC. 9 Using eDisplay on a Mobile Device 1. Download and install the Acer eDisplay app (shown above) from the Apple Store or Google Play. Alternatively, you can download this app directly if you have a QR barcode reader by scanning the QR barcode on the eDisplay screen shown on the previous page. 2. Open Wi-Fi Settings on your mobile device and connect to Acer_MWA2_ XXXX. The default password is 87654321. 3. Open the Acer eDisplay app on your mobile device. 4. Select the MWA2 device on the list that appears in order to connect to the MWA2 Wireless Adapter. 5. On the projector/monitor/TV, go to the eDisplay screen by using that GHYLFH¶VUHPRWHFRQWURORUE\EULHÀ\SUHVVLQJWKH:36EXWWRQRQWKH0:$ Wireless Adapter to switch between modes. 6. On your mobile device, input the 4 digit PassCode as displayed on eDisplay screen of the projector/monitor/TV. 7. &KRRVHZKLFKW\SHRI¿OHWRGLVSOD\IURPWKHRSWLRQVGLVSOD\HGDWWKHWRSRI the screen. Options available include Photo, Document, Internet, Dropbox, Camera, Video and Split Control. 8. 'HSHQGLQJRQWKHW\SHRI¿OHFKRVHQXVHWKHLF…

Text truncated - open the document above for the full version.

Lite-on Technology Corp. 18F, 392, Ruey Kuang Road, Neihu Taipei Taiwan Date: June 21, 2013 Subject: Ad Hoc Mode Function Declaration FCC ID: H4ISMPJA IC ID: 4491C-SMPJA To Whom it may concern, We, Lite-on Technology Corp. declare that the device does not support any non-US channels, country code selection in all the operational mode(s), like Ad-Hoc...etc. for the following product. Also, the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master and the device without support DFS detection capability. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. Regards, Applicant : Lite-on Technology Corp. Address : 18F, 392, Ruey Kuang Road, Neihu Taipei Taiwan Signature : Shirly Kuo _________________________________ Name and Job Title. : Shirly Kuo/Engineer E-mail : [email protected] Tel. : 886-2-87982888

Date : June 21, 2013 UNII Declaration Letter We have declared below featured for FCC equipment authorization, Device FCC ID: H4ISMPJA (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 Yes , No Yes , No Yes , No Yes , No 2422 - 2452 Yes , No Yes , No Yes , No Yes , No 5745 - 5825 Yes , No Yes , No Yes , No Yes , No 5765 - 5795 Yes , No Yes , No Yes , No Yes , No 5180 – 5240 Yes , No Yes , No Yes , No Yes , No 5190 – 5230 Yes , No Yes , No Yes , No Yes , No 5260 – 5320 Yes , No Yes , No Yes , No Yes , No 5270 – 5310 Yes , No Yes , No Yes , No Yes , No 5500 – 5700 Yes , No Yes , No Yes , No Yes , No 5510 - 5670 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : 8192DU-VS is fixed the country code in effuse. (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) You can suggest client to use below sentence if necessary: On DFS channels, the WLAN driver on the device operates under the control of an AP at all times, except when in ad-hoc mode, on US non-DFS channels. As described in the answer to question (2), the device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is locked by proprietary password and cannot be changed or modified by end user. Applicant : Lite-on Technology Corp. Address : 18F, 392, Ruey Kuang Road, Neihu Taipei Taiwan Signature : Shirly Kuo _________________________________ Name and Job Title. : Shirly Kuo/Engineer

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 3.0 Lite-on Technology Corp. 18F, 392, Ruey Kuang Road, Neihu Taipei Taiwan Date: 2013/6/21 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Lite-on Technology Corp. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description： model name：2A6G / MWA2 We affirm that between SIEMIC and Lite-on Technology Corp., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Applicant : Lite-on Technology Corp. Address : 18F, 392, Ruey Kuang Road, Neihu Taipei Taiwan Signature : Shirly Kuo _________________________________ Name and Job Title. : Shirly Kuo/Engineer E-mail : [email protected] Tel. : 886-2-87982888

Lite-on Technology Corp. 18F, 392, Ruey Kuang Road, Neihu Taipei Taiwan Date: 2013/6/21 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: H4ISMPJA Product name: MHL wireless adapter To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Lite-on Technology Corp. Address : 18F, 392, Ruey Kuang Road, Neihu Taipei Taiwan Signature : Shirly Kuo _________________________________ Name and Job Title. : Shirly Kuo/Engineer E-mail : [email protected] Te l . : 886-2-87982888

Confidentiality Request Letter Date: 2013/6/21 Federal Communications Commission Authorization and Evaluation Division FCC ID：H4ISMPJA Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant : Lite-on Technology Corp. Address : 18F, 392, Ruey Kuang Road, Neihu Taipei Taiwan Signature : Shirly Kuo _________________________________ Name and Job Title. : Shirly Kuo/Engineer E-mail : [email protected] Te l . : 886-2-87982888

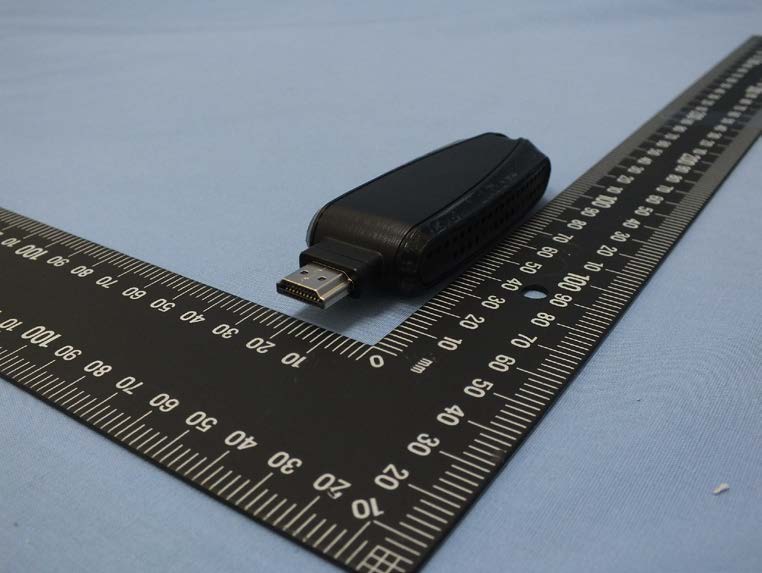

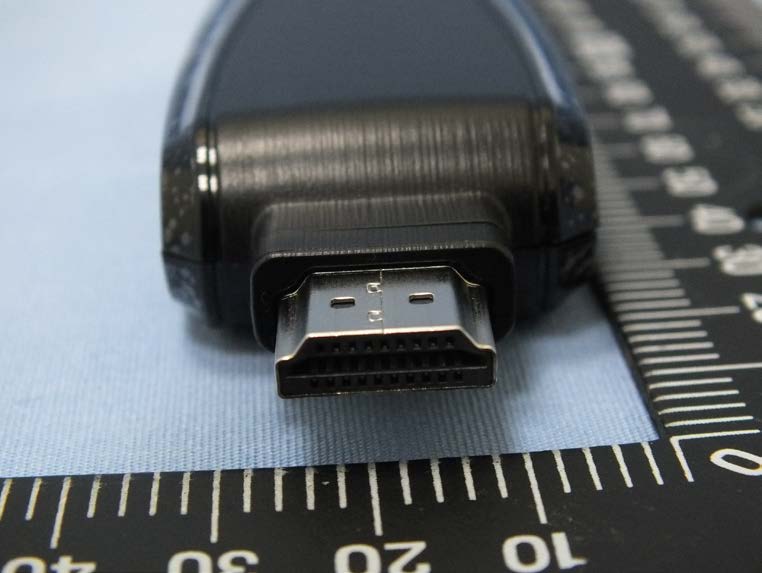

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Photographs of EUT Project No.: 351401 Page No. : 1 of 11 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 2 of 11

Brand Name: ACER Model: MWA2 FCC ID: H4ISMPJA IC: 4491C-SMPJA XXXXXXXX SIZE: 50*10mm CMIIT ID: XXXXXXX

Label Location

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 3 of 11 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 4 of 11 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 5 of 11 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 6 of 11 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 7 of 11 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 8 of 11 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 9 of 11 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 10 of 11 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 351401 Page No. : 11 of 11

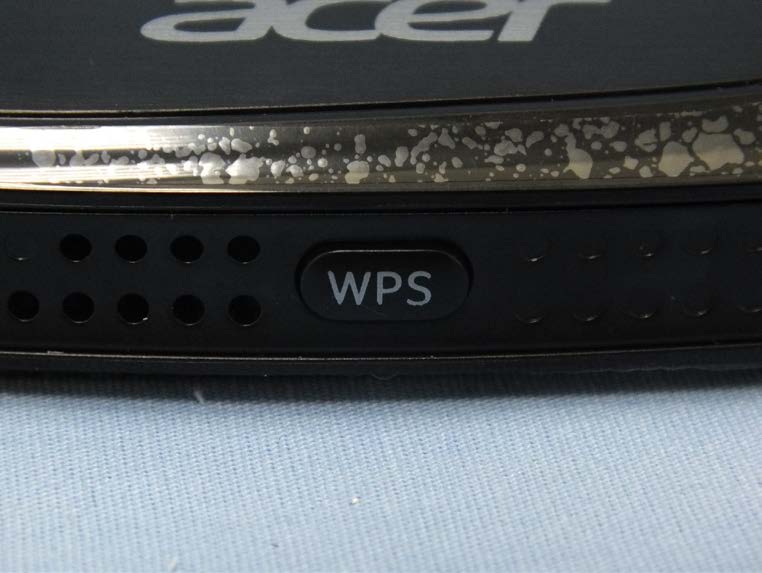

Operational Description Page 1 / 2 FCC ID : H4ISMPJA IC : 4491C-SMPJA The device is a Wireless Adapter which operates at 2.4 and 5GHz band and supports 11a/b/g/HT20/HT40 mode. A WPS button is embed to link up with other device easily. RF main chip is RTL8192DU RF ma i n chip RTL8192DU Os ci llating fre quency 40 MHz Ante nna type PCB Ope ra ting frequency ra nge 2412~2462 MHz 5180~5240 MHz 5260~5320 MHz 5500~5700 MHz 5745~5825 MHz Modul ation type DBPSK, DQPSK, CCK BPSK, QPSK, 16QAM, 64QAM,256QAM Worki ng voltage 5Vdc Cha nnel frequency of 2.4GHz band Mode Channel Frequency (MHz) Mode Channel Frequency (MHz) 11b/g/HT20 1 2412 HT40 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 9 2452 10 2457 11 2462 Operational Description Page 2 / 2 Cha nnel frequency of 5GHz band Mode Channel Frequency (MHz) Mode Channel Frequency (MHz) 11a HT20 36 5180 HT40 38 5190 40 5200 46 5230 44 5220 54 5270 48 5240 62 5310 52 5260 102 5510 56 5280 110 5550 60 5300 134 5670 64 5320 151 5755 100 5500 159 5795 104 5520 108 5540 112 5560 116 5580 132 5660 136 5680 140 5700 149 5745 153 5765 157 5785 161 5805 165 5825

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FA351401 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : H4ISMPJA Equipment : MHL wireless adapter Model No. : 2A6G / MWA2 Brand Name : Liteon / Acer Applicant : LITE-ON TECHNOLOGY CORP. Address : 18F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Standard : 47 CFR FCC Part 2.1091 Received Date : May 14, 2013 Tested Date : May 22 ~ Jun. 10, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FA351401 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FA351401 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA351401 Rev. 01 Initial issue Jun. 25, 2013 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FA351401 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FA351401 Page : 5 of 5 Report Version: Rev. 01 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Mode Maximum Conducted Average Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 11b 15.78 4.2 20 0.020 1 11g 19.68 4.2 20 0.049 1 HT20 20.45 3.91 20 0.054 1 HT40 20.30 3.91 20 0.052 1 5180~5240 11a 15.22 4.2 20 0.017 1 HT20 13.44 3.91 20 0.011 1 HT40 13.97 3.91 20 0.012 1 5260~5320 11a 15.36 4.2 20 0.018 1 HT20 13.27 3.91 20 0.010 1 HT40 13.33 3.91 20 0.011 1 5500~5700 11a 16.21 4.2 20 0.022 1 HT20 13.15 3.91 20 0.010 1 HT40 13.69 3.91 20 0.011 1 5745~5825 11a 13.72 4.2 20 0.012 1 HT20 12.94 3.91 20 0.010 1 HT40 13.51 3.91 20 0.011 1 Note: Antenna gain for HT20 / HT 40 = 10 log[(10 4.2 / 10 + 10 3.6 / 10 ) / 2]=3.91dBi ══END══

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR351401AN Page : 1 of 76 Report Version: Rev. 01 FCC Test Report FCC ID : H4ISMPJA Equipment : MHL wireless adapter Model No. : 2A6G / MWA2 Brand Name : Liteon / Acer Applicant : LITE-ON TECHNOLOGY CORP. Address : 18F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Standard : 47 CFR FCC Part 15.407 Received Date : May 14, 2013 Tested Date : May 22 ~ Jun. 10, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR351401AN Page : 2 of 76 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Testing Applied Standards ................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Condition ................................................................................................................................. 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ........................................................................................................ 13 3.1 Conducted Emissions ........................................................................................................................... 13 3.2 Emission Bandwidth ............................................................................................................................. 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Peak Power Spectral Density ............................................................................................................... 21 3.5 Peak Excursion..................................................................................................................................... 24 3.6 Transmitter Radiated and Band Edge Emissions ................................................................................ 27 3.7 Frequency Stability ............................................................................................................................... 75 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR351401AN Page : 3 of 76 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR351401AN Rev. 01 Initial issue Jun. 26, 2013 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR351401AN Page : 4 of 76 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.192MHz 51.49 (Margin -12.44dB) - QP Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 11400.00MHz 52.90 (Margin -1.10dB) - AV Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Power [dBm]: 5150~5250 MHz:15.22 5250~5350 MHz:15.36 5470~5725 MHz:16.21 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(a) Peak Excursion Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR351401AN Page : 5 of 76 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 5250-5350 5470-5725 a 5180-5240 5260-5320 5500-5700 36-48 [4] 52-64 [4] 100-140 [8] 1 6-54 Mbps 5150-5250 5250-5350 5470-5725 n (HT20) 5180-5240 5260-5320 5500-5700 36-48 [4] 52-64 [4] 100-140 [8] 2 MCS 0-15 5150-5250 5250-5350 5470-5725 n (HT40) 5190-5230 5270-5310 5510-5670 38-46 [2] 54-62 [2] 102-134 [3] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n us…

Text truncated - open the document above for the full version.

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FZ351401 Page : 1 of 14 Report Version: Rev. 01 FCC DFS Test Report FCC ID : H4ISMPJA Equipment : MHL wireless adapter Model No. : 2A6G / MWA2 Brand Name : Liteon / Acer Applicant : LITE-ON TECHNOLOGY CORP. Address : 18F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Standard : 47 CFR FCC Part 15.407 Received Date : May 14, 2013 Tested Date : Jul 04 ~ 05, 2013 Operating Mode : Client without radar detection We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FZ351401 Page : 2 of 14 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment List .......................................................................................................................... 5 1.3 The Equipment List ................................................................................................................................ 6 1.4 Testing Condition ................................................................................................................................... 6 1.5 Test Standards ....................................................................................................................................... 6 2 TECHNICAL REQUIREMENTS FOR DFS ............................................................................................ 7 2.1 Applicability of DFS Requirements ......................................................................................................... 7 2.2 DFS Detection Thresholds and Response Requirement ....................................................................... 8 2.3 Radar Test Waveforms .......................................................................................................................... 9 3 TEST RESULT ..................................................................................................................................... 12 3.1 Channel Closing Transmission and Channel Move Time .................................................................... 12 3.2 Non-Occupancy .................................................................................................................................... 14 International Certification Corp. No. 3-1, Lane …

Text truncated - open the document above for the full version.
