H79-NCX700NovoConnect Wireless collaboration System

1 User’s Guide 2 Contents 1. Safety Information, P3-4 1.1 Warning, P3 1.2 Precautions, P3-4 1.3 Handling Cautions, P4 2. Introduction, P5-7 2.1 Package Contents, P5 2.2 Product Features, P5 2.3 Remote Controller, P6 2.4 Setup Connection, P7 2.5 Display when Power Up, P7-8 3. Settings, P8-21 3.1 WiFi, P9 3.2 Bluetooth, P10 3.3 Ethernet, P10 3.4 More..., P11 3.5 Sound and notification, P12 3.6 Display, P13-15 3.7 Storage&USB, P16 3.8 Apps, P17 3.9 Memory, P17 3.10 Location, P18 3.11 Security, P18 3.12 Language & input, P19 3.13 Reset, P19 3.14 Accounts, P20 3.15 Google, P21 3.16 Date time, P21 3.17 About MediaBox, P22 4. Apps Install & Uninstall, P23 5. Firmware Update , P24 6. Trouble Shooting/FAQ , P25 7. Repairs , P26 8. Specification , P27 9. Trademark Notice , P28 3 1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product . To reduce the risk of fire or electric shock, keep this product away from exposed direct sunlight, naked flames or heat, large amounts of moisture, dust, and sand. FCC Note (for U.S.A) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Consult the dealer or an experienced radio/TV technician for help. - This class B digital product meets all requirements of the Canadian Interference - Causing Equipment Regulations. 1.2 Precautions Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. 1.2.1 Read these instructions. 1.2.2 Keep these instructions. 1.2.3 Heed all warnings. 1.2.4 Follow all instructions. 1.2.5 DO NOT use this apparatus near water. 1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth. 1.2.7 DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. 1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. 1.2.9 Protect the power cord from being walked on or pinched particularly at plugs, 4 convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over. 1.2.12 Unplug this apparatus during lightning storms or when unused for long period of time. 1.2.13 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 1.3 Handling Cautions 1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus. 1.3.2 To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times. 1.3.3 DO NOT plug multiple electric devices into the same wall socket. Overloading a socket can cause it to overheat, resulting in a fire. 1.3.4 Before connecting other components to this player, be sure to turn them off. 1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service center for technical assistance. Do not use the product. Using the product as it is may cause a fire or an electric shock. 5 2. Introduction 2.1 Package Contents Enjoy TV - ATV495X IR Remote Controller (IR RC) Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V, 2A 2.2 Product Features  Quad Core CPU,Penta GPU, frequency is 2.0GHz, RAM is 2G, built in 8G EMMC. Powered by Android 7.1 OS  Built in browser and support virtual private network access  RJ45 10/100M Ethernet interface  Support 4k2k video local media playback from SD card or USB HDD  Built in 802.11b/g/n AC WIFI module with antenna inside, WiFi frequency range is 2.4G/5.8G  Rj45:Wired internet connection  HDMI video output, connect to HDTV for HD video playback  2 external USB interface , support mobile HDD, support mouse and keyboard operating  Support weather, calendar, and desktop clock gadgets  Support USB mouse and keyboard operation  Support simple IR remote control with mouse function  Support music player, picture player and more family entertainment  Support Micro SD card  Support Google Chrome browser  App Installer for application installation from USB/SD card 6 2.4 Setup Connection Place ATV495X on a flat platform near the TV, and make sure nothing block the remote control signal. 2.5 Display when Power Up 2.6.1 After power up, the TV will first show Geniatech logo,starting with Enjoy TV…

Text truncated - open the document above for the full version.

Delta Electronic Incorporated Agent Authorization Company: Delta Electronic Incorporated Address: 3 Tungyung Road Chungli Industrial Zone, Taoyuan County 32063, Taiwan Product Name: NovoConnect Wireless collaboration System Model Number(s): NC-X700, WCS-X731, WCS-X732, WCS-X741, WCS-X742, WCS-X700 Product Description: NovoConnect Wireless collaboration System We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Mar. 05, 2020 Name: Ray Chen Title: Manager Company: Delta Electronic Incorporated

Delta Electronic Incorporated Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Mar. 05, 2020 Subject; Request for Confidentiality FCC ID: H79-NCX700 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure software security requirement It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ray Chen Title: Manager

Model Difference Declaration To Whom It May Concern, We, Delta Electronics Incorporated(NovoConnect Wireless collaboration System) Trademark:DELTA Vivitek; Model Number: NC- X700, WCS-X731, WCS-X732, WCS-X741, WCS-X742, WCS-X700; All model’s the function, software and electric circuit are the same, only with a product color and model named different for commercial purpose. Test sample model: NC-X700. Please contact me if you have any question. Name: Ray Chen Date: Mar. 05, 2020 Title: Manager Signature of applicant:

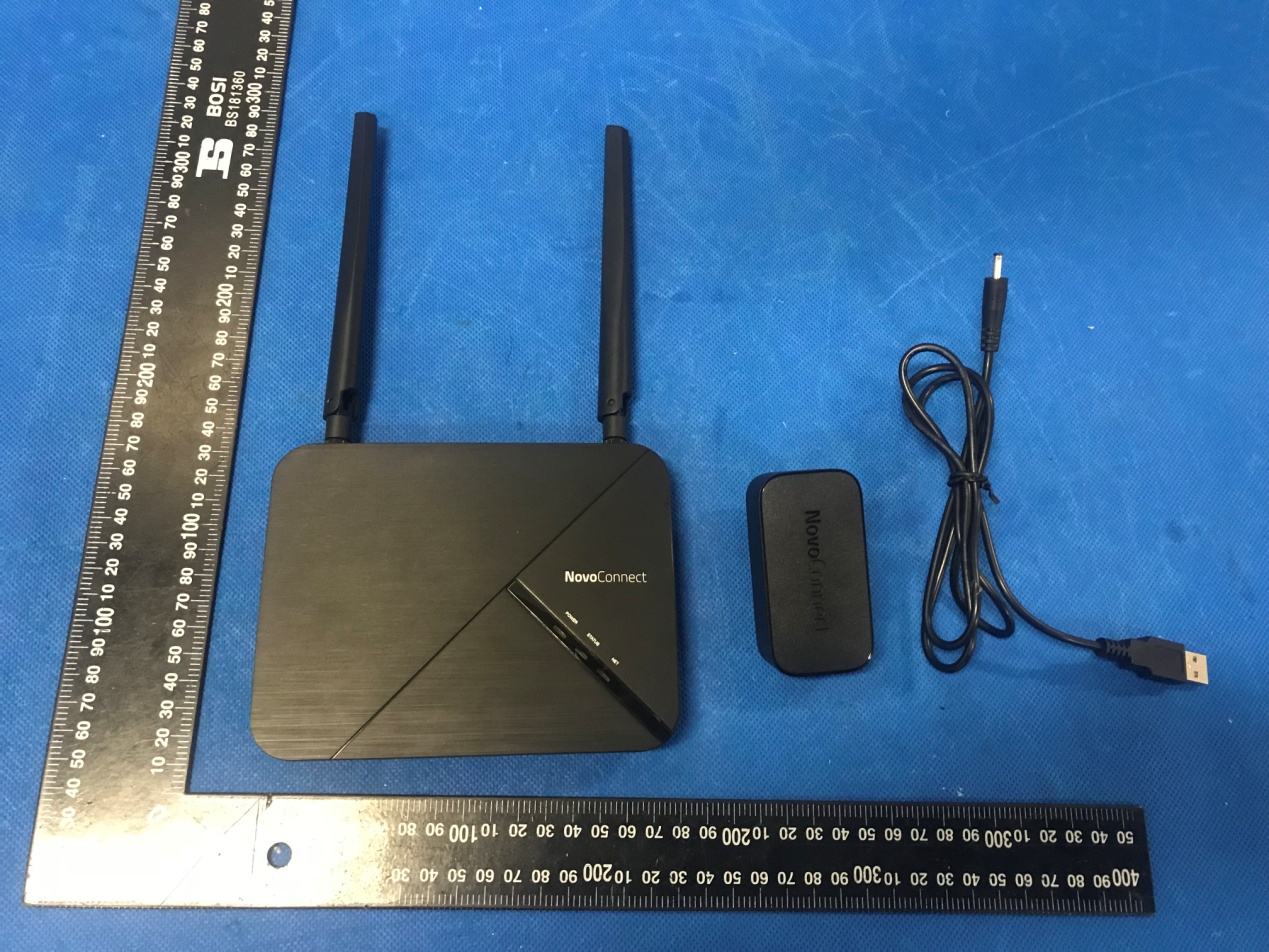

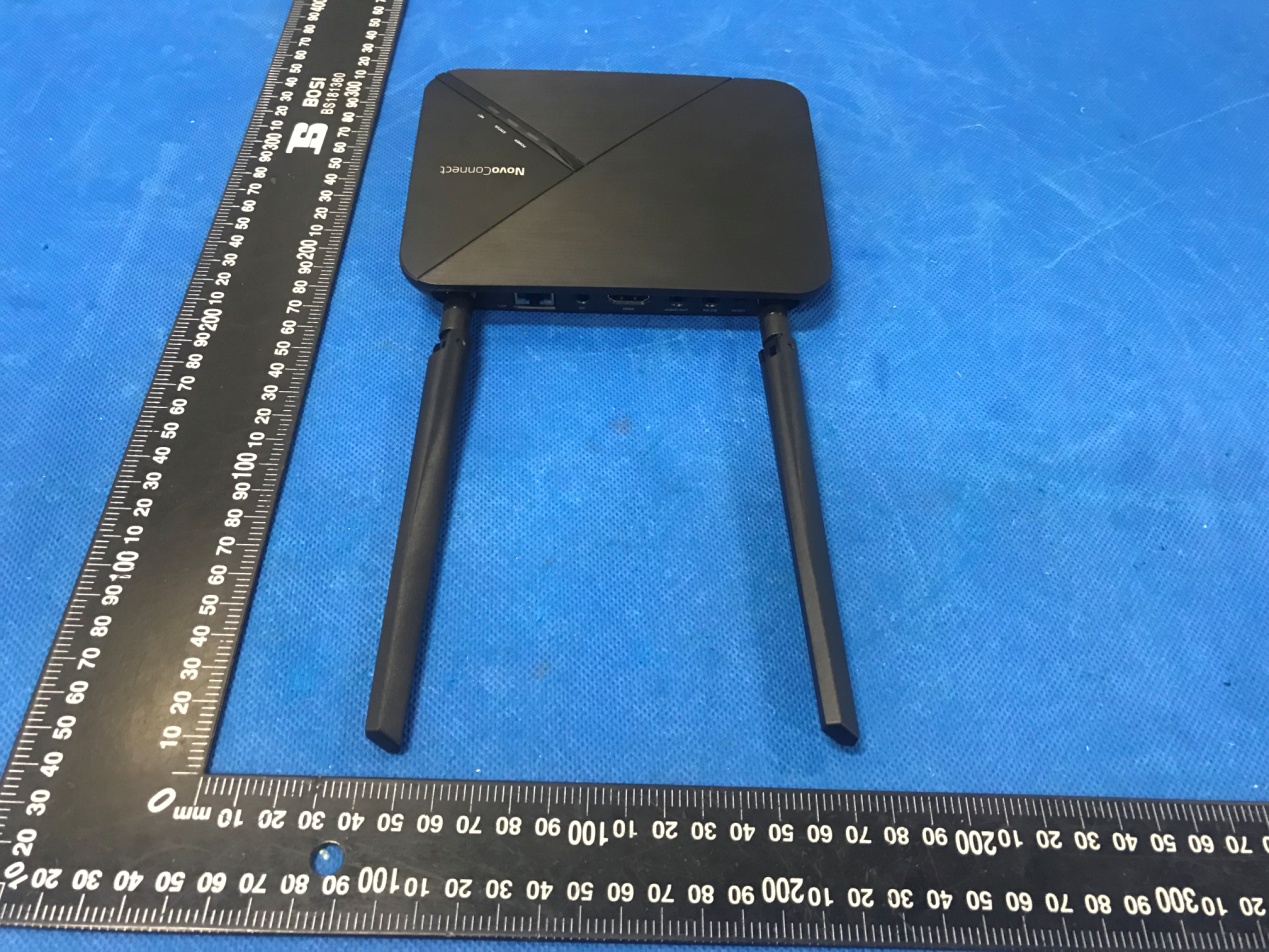

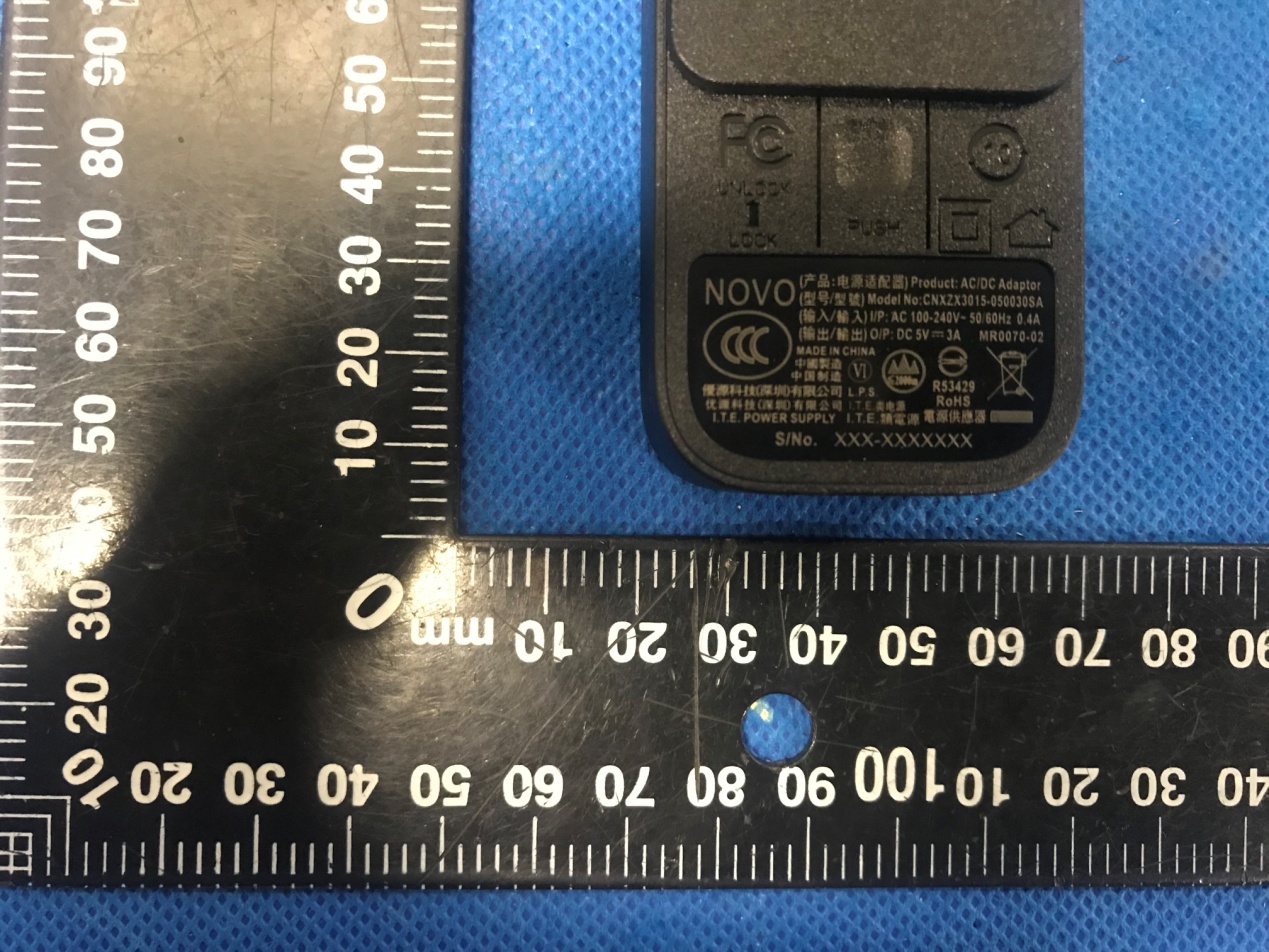

Annex A External Photos Report No.:HK1910232645‐1E/2E/3E/4E Page 1 of 5 Report No.:HK1910232645‐1E/2E/3E/4E Page 2 of 5 Report No.:HK1910232645‐1E/2E/3E/4E Page 3 of 5 Report No.:HK1910232645‐1E/2E/3E/4E Page 4 of 5 Report No.:HK1910232645‐1E/2E/3E/4E Page 5 of 5

FCC ID LABEL: Ca. 2cm x 4cm Label Location FCC ID: H79-NCX700

Annex B Internal Photo Report No.:HK1910232645‐1E/2E/3E/4E Page 1 of 3 Report No.HK1910232645‐1E/2E/3E/4E Page 2 of 3 Report No.HK1910232645‐1E/2E/3E/4E Page 3 of 3 2.4G/5G WIFI ANT. 2.4G/5GWIFI ANT. , BT ANT.

MPE ESTIMATION FCC ID: H79-NCX700 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result BT Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) GFSK 6.571 6 ±1(7) 5.01 1 1.2589 0.00126 π/4DQPSK 6.252 6±1(7) 5.01 1 1.2589 0.00126 8DPSK 6.522 6±1(7) 5.01 1 1.2589 0.00126 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-1E, antenna port 1 gain=1dBi For antenna 1: 2.4G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11b 14.74 14±1(15)31.62 1 1.2589 0.00792 11g 13.16 13 ±1(14)25.12 1 1.2589 0.00629 11n/HT20 10.45 10±1(11) 12.59 1 1.2589 0.00315 11n/HT40 9.74 10 ±1(11) 12.59 1 1.2589 0.00315 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-2E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi 5.2G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11a 10.48 10±1(11) 12.59 1 1.2589 0.00315 11n(HT20) 10.42 10±1(11) 12.59 1 1.2589 0.00315 11n(HT40) 9.77 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT20) 10.36 10±1(11) 12.59 1 1.2589 0.00315 11ac(HT40) 9.22 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT80) 9.37 9±1(10) 10.00 1 1.2589 0.00251 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-3E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi 5.8G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11a 9.48 9±1(10) 10.00 1 1.2589 0.00251 11n(HT20) 9.88 9±1(10) 10.00 1 1.2589 0.00251 11n(HT40) 9.45 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT20) 8.86 8±1(9) 7.94 1 1.2589 0.00199 11ac(HT40) 8.86 8±1(9) 7.94 1 1.2589 0.00199 11ac(HT80) 8.17 8±1(9) 7.94 1 1.2589 0.00199 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-4E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi For antenna 2: 2.4G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11b 14.63 14±1(15) 31.62 1 1.2589 0.00792 11g 12.66 12±1(13) 19.95 1 1.2589 0.00500 11n/HT20 10.48 10±1(11) 12.59 1 1.2589 0.00315 11n/HT40 10.12 10±1(11) 12.59 1 1.2589 0.00315 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-2E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi 5.2G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11a 10.66 10±1(11) 12.59 1 1.2589 0.00315 11n(HT20) 9.58 9±1(10) 10.00 1 1.2589 0.00251 11n(HT40) 9.47 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT20) 9.24 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT40) 8.65 8±1(9) 7.94 1 1.2589 0.00199 11ac(HT80) 9.76 9±1(10) 10.00 1 1.2589 0.00251 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-3E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi 5.8G WIFI Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 11a 9.56 9±1(10) 10.00 1 1.2589 0.00251 11n(HT20) 9.66 9±1(10) 10.00 1 1.2589 0.00251 11n(HT40) 9.35 9±1(10) 10.00 1 1.2589 0.00251 11ac(HT20) 8.67 8±1(9) 7.94 1 1.2589 0.00199 11ac(HT40) 8.89 8±1(9) 7.94 1 1.2589 0.00199 11ac(HT80) 8.65 8±1(9) 7.94 1 1.2589 0.00199 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-4E, antenna port 1 gain=1dBi, antenna port 2 gain=1dBi,MIMO gain=4.01dBi For MIMO: 2.4G WIFI Mode MPE ( mW/cm²) 11n/HT20 0.0063 11n/HT40 0.0063 Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-2E, The MIMO mode power is max, so only calculate max power mode and antenna port 1 gain=1dBi, antenna port 2 gain=1dBi. 5.2G WIFI Mode MPE ( mW/cm²) 11n(HT20) 0.00566 11n(HT40) 0.00502 11ac(HT20) 0.00566 11ac(HT40) 0.0045 11ac(HT80) 0.00502 Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-3E, The MIMO mode power is max, so only calculate max power mode and antenna port 1 gain=1dBi, antenna port 2 gain=1dBi. 5.8G WIFI Mode MPE ( mW/cm²) 11n(HT20) 0.00502 11n(HT40) 0.00502 11ac(HT20) 0.00398 11ac(HT40) 0.00398 11ac(HT80) 0.00398 Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK1910232645-4E, The MIMO mode power is max, so only calculate max power mode and antenna port 1 gain=1dBi, antenna port 2 gain=1dBi. when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine SAR test exclusion. The test exclusion threshold is 0.00792mW/cm² which is< 1.0mW/cm², SAR testing is not required. -------The End-------

Report No.: HK1910232645-2E FCC TEST REPORT Test report On Behalf of Delta Electronics Incorporated For NovoConnect Wireless collaboration System Model No.: NC-X700, WCS-X731, WCS-X732, WCS-X741, WCS-X742, WCS-X700 FCC ID: H79-NCX700 Prepared for : Delta Electronics Incorporated 3 Tungyung Road Chungli Industrial Zone, Taoyuan County 32063, Taiwan Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Nov. 22, 2019 ~Nov. 29, 2019 Date of Report: Nov. 29, 2019 Report Number: HK1910232645-2E Report No.: HK1910232645-2E Page 2 of 79 TEST RESULT CERTIFICATION Applicant’s name .................. : Delta Electronics Incorporated Address .................................. : 3 Tungyung Road Chungli Industrial Zone, Taoyuan County 32063, Taiwan Manufacture's Name ............. : Delta Electronics Incorporated Address .................................. : 3 Tungyung Road Chungli Industrial Zone, Taoyuan County 32063, Taiwan Product description Trade Mark: DELTA Vivitek Product name ............................ : NovoConnect Wireless collaboration System Model and/or type reference . : NC-X700, WCS-X731, WCS-X732, WCS-X741, WCS-X742, WCS-X700 Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Nov. 22, 2019 ~Nov. 29, 2019 Date of Issue ........................................... : Nov. 29, 2019 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Report No.: HK1910232645-2E Page 3 of 79 TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 4 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 4 1.2. TEST FACILITY .................................................................................................................................. 4 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 5 2. EUT Description ........................................................................................ 6 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 6 2.2. CARRIER FREQUENCY OF CHANNELS ..................................................................................................... 7 2.3. OPERATION OF EUT DURING TESTING .................................................................................................... 7 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 8 3. Genera Information ................................................................................... 9 3.1. TEST ENVIRONMENT AND MODE .............................................................................................................. 9 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 10 4. Test Results and Measurement Data .................................................... 11 4.1. CONDUCTED EMISSION ........................................................................................................................ 11 4.2. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 15 4.3. EMISSION BANDWIDTH ......................................................................................................................... 17 4.4. POWER SPECTRAL DENSITY ................................................................................................................ 28 4.5. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ..................................................... 40 4.6. RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................... 50 4.7. ANTENNA REQUIREMENT ............................................................................................................. 76 4.8. PHOTOS OF THE EUT ..................................................................................................................... 79 Report No.: HK1910232645-2E Page 4 of 79 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge 1§5.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. TEST FACILITY Test Firm : Shenzhen HUAK Testing Technology Co., Ltd. Address 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Report No.: HK1910232645-2E Page 5 of 79 1.3. Measurement Uncertainty The reported uncertainty of measurement y ± U, where expended …

Text truncated - open the document above for the full version.

Test Model：NC-X700
