H79DFBD-B4321Bluetooth USB Adapter

Bluetooth USB Adapter Quick Installation Guide Product Introduction The Bluetooth USB Dongle allows a computer with a USB port to communicate with other Bluetooth-enabled devices. When used with the Bluetooth application software, it can perform wireless network applications such as information exchange, file transfer, network access, dial-up networking, headset, audio gateway, printer application, and so on. Package Contents - Installation CD ROM - Bluetooth USB dongle -Quick Installation Guide System Requirements - IBM compatible PC with Pentium, Celeron processor or equivalent CPU or higher. - RAM 64M or above - Screen: 800*600 or above - Display: adapter True Color 16bits or above. -Microsoft Windows 98SE/ME/2000/XP/x64 Edition Installation Steps Step 1: Uninstall previous version of Widcomm Bluetooth software. Step 2: Plugged Bluetooth USB dongle in your PC. Insert the Installation software CD into the CD-ROM of your machine, an auto-install program will start to guide you to complete the installation step by step. You also can find Setup.exe from the given Widcomm Drive CD, double click on it the installshield wizard dialog box will open. Click Next. Step 3: Accept the software license agreement. Click Next. Step 4: Select destination folder, you can choose The default or change to your favorite. Step 5: Click Install to start the installation and Files coping in processing... Step 6: Installation is complete. My Bluetooth place should appear on your desktop and a similar icon alsoappears on the lower right corner of your screen. Select Bluetooth Service When the first time Widcomm driver is installed, and Bluetooth USB dongle is plugged to your system, you can configure your Bluetooth services for your system. Step 1: Double-click on the Bluetooth icon on the lower-right corner of the screen, you will see configuration wizard. Click Next bottom. Step 2: Assign computer name and specify Computer type, then click Next buttom. These can be defined by customer. Step 3: Click Next bottom to configure bluetooth services. Step 4: The default setting is that all services are available, you can check or uncheck one or more services, then click Next bottom. Step 5: Click Skip. Step 6: Configuration is completed. Click Finish. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. DELTA Bluetooth USB Adapter Model: DFBD-B4321 FCC ID: H79DFBD-B4321 Made in Taiwan DELTA Bluetooth USB Adapter Model: CN-514 FCC ID: H79DFBD-B4321 Made in Taiwan

Date: October 11, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Date: October 11, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: H79DFBD-B4321 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

Compliance Certification Services Inc. Report No.: 60828102 Date of Issue: October 20, 2006 Page 1 Total Page: 3 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

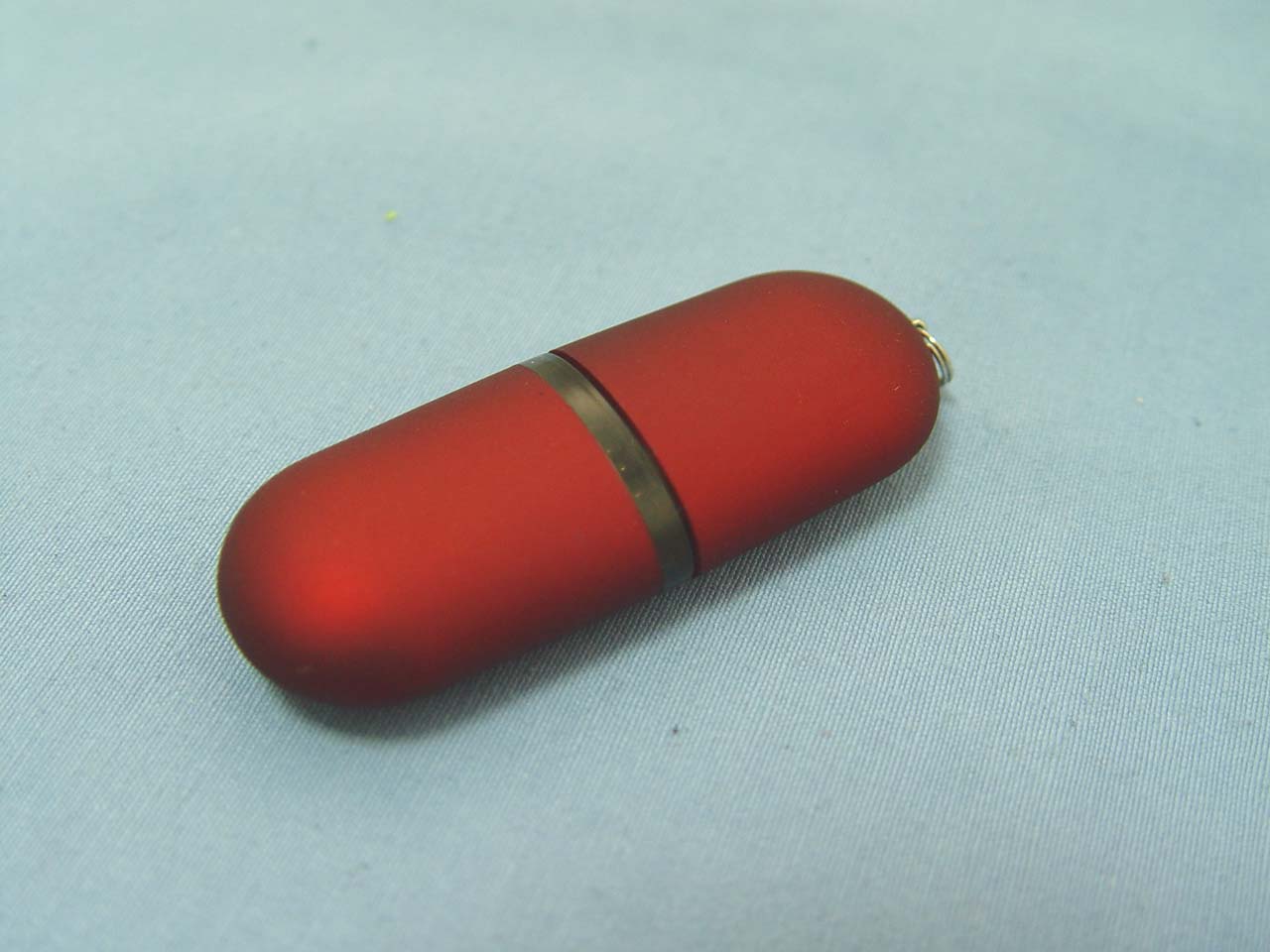

DELTA Bluetooth USB Adapter Model: DFBD-B4321 FCC ID: H79DFBD-B4321 Made in Taiwan DELTA Bluetooth USB Adapter Model: CN-514 FCC ID: H79DFBD-B4321 Made in Taiwan

Compliance Certification Services Inc. Report No.: 60828102 Date of Issue: October 20, 2006 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60828102 Date of Issue: October 20, 2006 Page 3 Rev.00

Antenna Specification September 11, 2006 Antenna Type: PCB Antenna Antenna Gain: -6.34dBi
