H79DFBM-CE321Bluetooth Module

U-TEL v. 050401 1 Bluetooth Module Quick Installation Guide FCC Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Notice: Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Introduction The Bluetooth Module allows a computer with a USB port to communicate with other Bluetooth-enabled devices. When used with the Bluetooth application software, it can perform wireless network applications such as information exchange, file transfer, network access, dial-up networking, headset, audio gateway, printer application, and so on. Package Contents - Installation CD ROM - Bluetooth Module interface USB - Quick Installation Guide System Requirements - IBM compatible PC with Pentium, Celeron™ processor or equivalent CPU or higher. - RAM 64M or above - Screen: 800*600 or above - Display: adapter True Color 16bits or above. - Microsoft® Windows® 98SE/ME/2000/XP Installation Steps Step 1: Uninstall previous version of BlueSoleil, IVT BSS or MiniBluelet. If a previous version of BlueSoleil, IVT BSS or MiniBluelet has been installed, it is recommended to uninstall it first and restart the computer before installation. You can use uninstall tools uninstall.exe” in the installation package. PDF created with pdfFactory trial version www.pdffactory.com U-TEL v. 050401 2 Step 2: Insert the Installation software CD into the CD-ROM of your machine. Step 3: Launch the Setup.exe program in the installation CD ROM. In normal cases, you can follow the instructions to finish the software installation. Step 4: Restart the Computer. After the BlueSoleil software package is installed, you will need to restart the computer. This is to make sure that the installed Bluetooth Device takes effect. Step 5: After you reboot your desktop or laptop, you can find that the BlueSoleil shortcut icon. is displayed on your Windows desktop. PDF created with pdfFactory trial version www.pdffactory.com U-TEL v. 050401 3 Note: 1. For Windows 98 and Windows ME, the Dial-up Adapter and Windows’s component direct cable connection and NETBEUI protocol needs to be installed to run the Dial-up Networking profile and LAN access profile. 2. You need configure Bluetooth Network Adapter IP to run PAN profile. 3. More details on how to use IVT BlueSoleil, please refer to Online Help, User Manual and any other support document. 4. If some system exceptions occur during the installation, please use uninstall.exe in the installation package to remove the remains of BlueSoleil before installing again. Notice On Windows 98SE/ME Expected Outcome 1. Installed Files & Directories (by default): - <Windows program files>\IVT Corporation\BlueSoleil BlueSoleil execution and support files. - <Current user>\My Documents\Bluetooth Support directory. This is the directory for Object Push and Synchronization. Received cards and other objects will be put here. 2. Installed Devices: - 6 Bluelet virtual COM ports - 3 Bluelet virtual Modem - BT Network Adapter - HID device Notice On Windows 2000/XP Expected Outcome: 1. Installed Files & Directories (by default): - <Windows program files>\IVT Corporation\BlueSoleil BlueSoleil execution and support files. - <Current user>\My Documents\Bluetooth Support directory. This is the directory for Object Push and Synchronization. Received cards and other objects will be put here. 2. Installed Devices: - 11 Bluelet virtual COM ports - 1 Vcomm Manager - 3 Bluelet virtual Modem - 1 BT Network Adapter - 1 Bluetooth HID Enum Device - 1 HID Device Manager PDF created with pdfFactory trial version www.pdffactory.com This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. TO OEM installer: 1. FCC ID label on the final system must be labeled with "Contains FCC ID: H79DFBM-CE321" or "Contains transmitter module FCC ID:H79DFBM-CE321". 2. In the user manual, final system integrator must be ensure that there is no instruction provided in the user manual to install or remove the transmitter module. 3. Transmitter module must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards. The user manual of the final host system must contain the following statements: USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Cl…

Text truncated - open the document above for the full version.

Date: July 28, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Helen Zhao Subject: FW: RE: DELTA ELECTRONICES, INC. , FCC ID: H79DFBM-CE321, Assessment NO.: AN06T6039, Notice#1 8/15/2006 From: kosame.lin Sent: Tuesday, August 15, 2006 12:00 AM To: Helen Zhao Subject: Re:RE: DELTA ELECTRONICES, INC. , FCC ID: H79DFBM-CE321, Assessment NO.: AN06T6039, Notice#1 Dear Helen: Please see my reply. Thank you. Best Regards, Kosame -----Original Message----- Sent: Thursday, August 10, 2006 4:28 PM Subject: DELTA ELECTRONICES, INC. , FCC ID: H79DFBM-CE321, Assessment NO.: AN06T6039, Notice#1 Question #1: The modular approval cover letter indicates "The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AME8801BEEV and AME8801JEEV." First this module does not have mini-PCI interface, secondly, the schematic diagram does not show above-mentioned regulators. Please update the cover letter and explain where 1.8VDC comes from. Ans: We have updated Modular Approval Request Letterd, please see the attachment. Question #2: The modular approval cover letter indicates "The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. " But the EUT does not have mini-PCI interface, instead it has USB interface. Please update the cover letter. Ans: We have updated Modular Approval Request Letterd, please see the attachment. Question #3: The modular approval cover letter indicates "For mobile configuration only. Refer to MPE calculation in the test report. RF Exposure is addressed in the RF exposure exhibition." MPE calculation is not provided in the test report, in the report the EUT is classifed as a portable device. Please update the modular approval cover letter. Ans: We have updated Modular Approval Request Letterd, please see the attachment. Question #4: The user manual does not include FCC15.105(b) statements, and required OEM installation instruction. Please add the following statements in the manual: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. TO OEM installer: 1. FCC ID label on the final system must be labeled with "Contains FCC ID: H79DFBM-CE321" or "Contains transmitter module FCC ID:H79DFBM-CE321". 2. In the user manual, final system integrator must be ensure that there is no instruction provided in the user manual to install or remove the transmitter module. 3. Transmitter module must be installed and used in strict accordance with the manufacturer¡¦s instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards. The user manual of the final host system must contain the following statements: USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user¡¦s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Caution: Exposure to Radio Frequency Radiation. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Ans: We have updated User Manual, please see the attachment. Question #5: The test report page 12 shows output power (W): 0.12218, etc, which is incorrect. It should be either output power (mW): 0.12218.... or output power (W): 0.00012218... Please update the test report. Ans: We have updated test report, please see the attachment. Best Regards, Helen Zhao The items indicated above must b…

Text truncated - open the document above for the full version.

Modular Approval Request Letter August 8, 2006 Compliance Certification Services 561F Monterey Rd., Morgan Hill, CA 95037, USA To Whom It May Concern: Please be advised that Bluetooth module, with the FCC ID: H79DFBM-CE321 would be certified as the Modular Approval with the Mobile device classification. User shall be informed that keeping at least 20cm safe separation away the device. We also assure the device complies with the requirements listed in the Public Notice DA-00-1407, details are listed as follows: 1. The modular transmitter must have its own RF shielding: Reply: The radio portion of this module has been shielded, please see exhibition External Photo. 2. The modular transmitter must have buffered modulation / data inputs: Reply: The EUT has buffered data inputs, it is integrated in chip RFANT5220110A0T. 3. The modular transmitter must have its own power supply regulation: Reply: The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 3 and 2.85V DC powered. The Control board provides 3.3VDC, there are regulators in front of these chips. 4. The modular transmitter must comply with the antenna requirements of the Section 15.203 and 15.204(c): Reply: The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the External and Internal Photos. 5. The modular transmitter must be tested in a stand-alone configuration: Reply: The EUT was tested in a stand-alone configuration via a control board. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. The modular transmitter must be labeled with its own FCC ID number: Reply: The host label show “Contains FCC ID: H79DFBM-CE321”. The module has its own label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: Reply: The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements: Reply: Complied. RF Exposure is addressed in the RF exposure exhibition. Should you have any question, please don’t hesitate to ask us.

Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 1 Total Page: 1 Rev. 00 PHOTOGRAPHS OF EUT

Contains RF module FCC ID:H79DFBM-CE321 Marketing label for Bluetooth Module Our Model name: DFBM-CE320, DFBM-CE321, DFBM-CE322 Bluetooth Module FCC ID:H79DFBM-CE321 S/N. Made in Taiwan

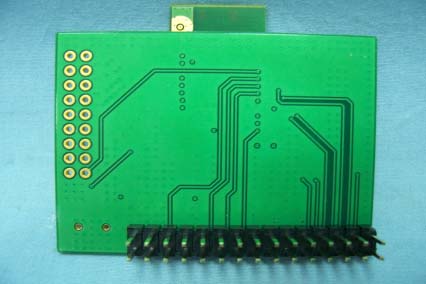

Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 1 Total Page: 2 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 2 Rev. 00

Compliance Certification Services Inc. Report No.: 60713102-RP1 FCC ID: H79DFBM-CE321 Date of Issue: July 24, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 48 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth Module Model: DFBM-CE32X (X=0-9) Trade Name: DELTA Issued to DELTA ELECTRONICES, INC. No. 252, Shang Ying Road, Kuei San Industrial Park, Taoyuan Hsieh 33341, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60713102-RP1 FCC ID: H79DFBM-CE321 Date of Issue: July 24, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................7 4.2 MEASUREMENT EQUIPMENT USED......................................................................................7 5. FACILITIES AND ACCREDITATIONS ...........................................................................................9 5.1 FACILITIES ......................................................................................................................................9 5.2 EQUIPMENT.....................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................11 6.1 SETUP CONFIGURATION OF EUT....................................................................................................11 6.2 SUPPORT EQUIPMENT ............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 PEAK POWER.................................................................................................................................12 7.2 BAND EDGES MEASUREMENT .............................................................................................13 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................18 7.4 FREQUENCY SEPARATION....................................................................................................21 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................23 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................25 7.7 SPURIO US EMISSIONS .............................................................................................................32 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX I RADIO FREQUENCY EXPOSURE ................................................................................45 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...............................................................................46 Compliance Certification Services Inc. Report No.: 60713102-RP1 FCC ID: H79DFBM-CE321 Date of Issue: July 24, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: DELTA ELECTRONICES, INC. No. 252, Shang Ying Road, Kuei San Industrial Park, Taoyuan Hsieh 33341, Taiwan, R.O.C. Equipment Under Test: Bluetooth Module Trade Name: DELTA Model: DFBM-CE32X (X=0-9) Date of Test: July 17 ~ 19, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Kurt Chen Susan Su Director of Linkou Laboratory Section Manager of Linkou Laboratory Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services In…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60713102-RP1 FCC ID: H79DFBM-CE321 Date of Issue: July 24, 2006 Page 46 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: 60713102-RP1 FCC ID: H79DFBM-CE321 Date of Issue: July 24, 2006 Page 47 Rev. 00 Radiated Emission Setup Photos Compliance Certification Services Inc. Report No.: 60713102-RP1 FCC ID: H79DFBM-CE321 Date of Issue: July 24, 2006 Page 48 Rev. 00 Power Line Conducted Emissions Setup Photos
