H79DFZM-E7220ZigBee Module

DFZM-E72xx Data Sheet Sheet 1 of 43 Sep 13, 2014 Proprietary Information and Specifications are Subject to Change Data sheet DFZM-E72xx An IEEE 802.15.4 System–On-Chip ZigBee module DFZM-E72xx Data Sheet Sheet 2 of 43 Sep 13, 2014 Proprietary Information and Specifications are Subject to Change Contents 1. Features ............................................................................................................................................... 5 2. ZigBee Model No. Definition ............................................................................................................. 7 3. Architecture ......................................................................................................................................... 8 3-1.Block Diagram .............................................................................................................................. 8 3-2.Block Diagram Description .......................................................................................................... 9 3-2-1.Overview........................................................................................................................... 9 3-2-2.CPU and Memory ............................................................................................................ 9 3-2-3.Clocks and Power Management ................................................................................... 11 3-2-4.Peripherals ..................................................................................................................... 13 4. Pin-out and Signal Description ......................................................................................................... 16 4-1.Device Pin-out Diagram (Module top view) .............................................................................. 16 4-2.Module Pins Description ............................................................................................................ 17 5. Electrical Characteristics .................................................................................................................. 24 5-1.Absolute Maximum Rating......................................................................................................... 24 5-2.Recommended Operating Conditions ......................................................................................... 24 5-3.Power Consumption.................................................................................................................... 24 5-4.Digital I/O and nRESET Pin Specifications ............................................................................... 26 5-5.Wake-up and Timing ................................................................................................................... 27 5-6.Radio Parameters ........................................................................................................................ 28 5-7.ADC Parameters ......................................................................................................................... 29 6. Package and Layout Guidelines ........................................................................................................ 30 6-1.Recommended PCB Footprint and Dimensions ......................................................................... 30 6-2.Layout Guidelines ....................................................................................................................... 32 6-2-1.Surface Mount Assembly ................................................................................................ 33 6-3.Recommended Stencil Aperture ................................................................................................. 35 7. Ordering Information ........................................................................................................................ 36 8. Package ............................................................................................................................................. 36 8-1.Information of carrier tape direction&packaging dimension ..................................................... 36 8-2.Reel dimension ........................................................................................................................... 38 8-3.Total Package .............................................................................................................................. 39 DFZM-E72xx Data Sheet Sheet 3 of 43 Sep 13, 2014 Proprietary Information and Specifications are Subject to Change 8-4. RF exposure warning statement................................................................................................. 40 DFZM-E72xx Data Sheet Sheet 4 of 43 Sep 13, 2014 Proprietary Information and Specifications are Subject to Change Revision History Version Date Reason of change Maker 0.1 2013/9/5 Initial release Fred 0.2 2013/9/16 1. Change the DFZM-E722x module size, and modify all mechine drawing 2. Add package information Fred 0.3 2014/2/15 1. Add RF exposure warning statement including FCC statement. 2. Modify 5.6 Radio Parameter for DFZM-E721x . Monch 0.4 2014/03/21 1. Modify the 5.2 Recommend operating condition . 2. Modify 5.6 Radio Parameters : DFZM-E721x / Tx power. Monch 0.5 2014/06/27 1. Add IC ID warning Monch 0.6 2014/08/04 1. Revise IC ID warning Monch DFZM-E72xx Data Sheet Sheet 5 of 43 Sep 13, 2014 Proprietary Information and Specifications are Subject to Change DFZM-E72xx IEEE802.15.4 System-On-Chip ZigBee Module HIS DOCUMENT describes the DFZM-E72xx ZigBee module hardware specification. The EM357 based modules provide cost effective, low power, and flexible platform to add ZigBee connectivity for embedded devices for a variety of applications, such as wireless sensors and energy monitoring. It combines 32-bit ARM Cortex-M3 processor, in-system programable flash memory, 12-KB RAM, 192KB flash memory and off module certified antenna optio…

Text truncated - open the document above for the full version.

FCC ID: H79DFZM-E7220 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24703/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT FCC ID: H79DFZM-E7220 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24703/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group All View of EUT Front View of EUT FCC ID: H79DFZM-E7220 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24703/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Back View of EUT

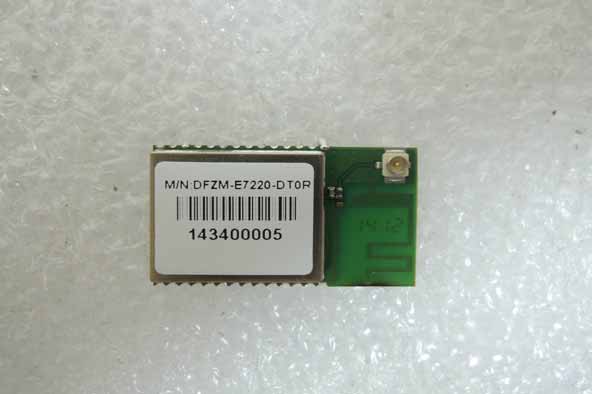

DFZM-E7220-DT0R 外觀尺寸圖 台達電子工業股份有限公司 DELTA ELECTRONICS, INC. Description： 外觀尺寸圖 THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF DELTA ELECTRONICS, INC. AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION. Document Name： DFZM-E7220-DT0R-PD REV. 00 Date 09/18/2014 Drawn 徐園珍 FRAME NAME: DF-PSLA4V-1R01.DOC SHEET 1 OF 14 Mechanical Dimensions M/N : DFZM-E7220-DT0R FCC ID : H79DFZM-E7220 XXXXXXXX IC : 4259B-DFZME7220 YYWW00NNNNN DFZM-E7220-DT0R 外觀尺寸圖 台達電子工業股份有限公司 DELTA ELECTRONICS, INC. Description： 外觀尺寸圖 THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF DELTA ELECTRONICS, INC. AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION. Document Name： DFZM-E7220-DT0R-PD REV. 00 Date 09/18/2014 Drawn 徐園珍 FRAME NAME: DF-PSLA4V-1R01.DOC SHEET 2 OF 14 Product Label : (3263974900) M/N : DFZM-E7220-DT0R FCC ID : H79DFZM-E7220 YYWW00NNNNN Note.7 Note.8 Note.10 IC : 4259B-DFZME7220 Note.9 XXXXXXXX Note.11 Note.12 4. THE LABEL STICKY LOCATION OF MATERIAL : SS (NI-PLTED / TIN-PLATED) 3. LABEL MUST BE UL RECOGNIZED AND CSA CERTIFIED OR UL/CUL CERTIFIED. 耐高溫 1. MATERIAL: POLYIMIDE , (260°C) , t=0.1mm 2. BACKGROUNDS COLOR : WHITE. WORD COLOR : BLACK NOTES : 6. MATERIAL MUST MEET DELTA GENERAL SPEC,10000-0162 5. LABEL MUST BE WITHSTAND OPERATING TEMPERATURE Min. 85°C 72-HOUR HIGH TEMPERATURE TEST. COPPER(NI-PLATED / TIN-PLATED) ; LCP ; SPTE(NI-PLATED) 7. PRODUCT PART NUMBER : M/N : DFZM-E7220-DT0R 8. FCC ID NUMBER : H79DFZM-E7220 10. DATE CODE ; LOT NUMBER :YYWW00NNNNN 9. IC NUMBER : 4259B-DFZME7220 11. THE BARCODE TYPE : CODE128 ; THE WORD TYPE : ARIAL NARROW/SIZE:MUST BE 6 YYWW 00 NNNNN NNNNN FOR PRODUCTION SEQUENTIAL LOT NUMBER(00001~99999) YY=YEAR ; WW=WEEK 00=PRODUCT CODE (FOR P/N : DFZM-E7220-DT0R) 12. XXXXXXXX : IS FIRMWARE VERSION WHICH IS DEFINED BY CUSTOMER FIRMWARE FILE NAME. PLEASE LET IT EMPTY WHEN CUSTOMER DON'T HAVE THE REQUIREMENT.

DFZM-E7221-DT0R 外觀尺寸圖 台達電子工業股份有限公司 DELTA ELECTRONICS, INC. Description： 外觀尺寸圖 THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF DELTA ELECTRONICS, INC. AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION. Document Name： DFZM-E7221-DT0R-PD REV. 00 Date 09/18/2014 Drawn 徐園珍 FRAME NAME: DF-PSLA4V-1R01.DOC SHEET 1 OF 14 Mechanical Dimensions M/N : DFZM-E7221-DT0RFCC ID : H79DFZM-E7220 YYWW01NNNNN IC : 4259B-DFZME7220 XXXXXXXX DFZM-E7221-DT0R 外觀尺寸圖 台達電子工業股份有限公司 DELTA ELECTRONICS, INC. Description： 外觀尺寸圖 THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF DELTA ELECTRONICS, INC. AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION. Document Name： DFZM-E7221-DT0R-PD REV. 00 Date 09/18/2014 Drawn 徐園珍 FRAME NAME: DF-PSLA4V-1R01.DOC SHEET 2 OF 14 Product Label : (3263974900) M/N : DFZM-E7221-DT0R FCC ID : H79DFZM-E7220 YYWW01NNNNN Note.7 Note.8 Note.9 Note.11 IC : 4259B-DFZME7220 Note.10 XXXXXXXX Note.12 4. THE LABEL STICKY LOCATION OF MATERIAL : SS (NI-PLTED / TIN-PLATED) 3. LABEL MUST BE UL RECOGNIZED AND CSA CERTIFIED OR UL/CUL CERTIFIED. 耐高溫 1. MATERIAL: POLYIMIDE , (260°C) , t=0.1mm 2. BACKGROUNDS COLOR : WHITE. WORD COLOR : BLACK NOTES : 6. MATERIAL MUST MEET DELTA GENERAL SPEC,10000-0162 5. LABEL MUST BE WITHSTAND OPERATING TEMPERATURE Min. 85°C 72-HOUR HIGH TEMPERATURE TEST. COPPER(NI-PLATED / TIN-PLATED) ; LCP ; SPTE(NI-PLATED) 7. PRODUCT PART NUMBER : M/N : DFZM-E7221-DT0R 8. FCC ID NUMBER : H79DFZM-E7220 10. DATE CODE ; LOT NUMBER :YYWW01NNNNN 9. IC NUMBER : 4259B-DFZME7220 11. THE BARCODE TYPE : CODE128 ; THE WORD TYPE : ARIAL NARROW/SIZE:MUST BE 6 YYWW 01 NNNNN NNNNN FOR PRODUCTION SEQUENTIAL LOT NUMBER(00001~99999) YY=YEAR ; WW=WEEK 01=PRODUCT CODE (FOR P/N : DFZM-E7221-DT0R) 12. XXXXXXXX : IS FIRMWARE VERSION WHICH IS DEFINED BY CUSTOMER FIRMWARE FILE NAME. PLEASE LET IT EMPTY WHEN CUSTOMER DON'T HAVE THE REQUIREMENT.

FCC ID: H79DFZM-E7220 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24703/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT FCC ID: H79DFZM-E7220 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24703/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Open View of EUT – 1 Internal View of EUT – 1 FCC ID: H79DFZM-E7220 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24703/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group External Dipole Antenna Internal Printed Antenna ~ End of Report ~ 2.4GHz Antenna 2.4 GHz Antenna

FCC ID: H79DFZM-E7220 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24703/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group 13 Maximum Permissible Exposure (MPE) Evaluation 13.1 Standard Applicable According to 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Com- mission’s guideline. This is a Mobile device, the MPE is required. According to 1.1310 and 2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100.000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density FCC ID: H79DFZM-E7220 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24703/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group 13.2 Maximum Permissible Exposure (MPE) Evaluation Frequency (MHz) Peak Power Output (dBm) Required Limit 2405 8.32 1 Watt = 30 dBm 2440 8.29 1 Watt = 30 dBm 2480 -4.81 1 Watt = 30 dBm *Note: Measured by power meter, cable loss as 11dB that offsets on the power meter. MPE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4R 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Internal Antenna-DFZM-E7221-DT0R Maximum peak output power at antenna input terminal: 8.32 (dBm) Maximum peak output power at antenna input terminal: 6.792036326 (mW) Duty cycle: 99 (%) Maximum Pav : 6.724115963 (mW) Antenna gain (typical): 0.68 (dBi) Maximum antenna gain: 1.169499391 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2405 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.001565 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.001565mW/cm 2 . This is below the uncontrolled exposure limit of 1mW/cm 2 at 2405MHz. FCC ID: H79DFZM-E7220 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without pr…

Text truncated - open the document above for the full version.

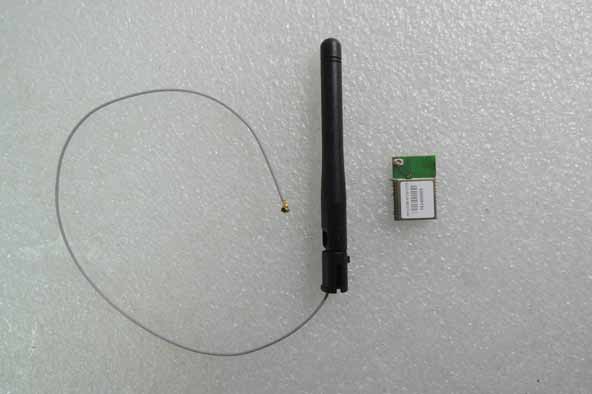

Rev. 3.0 AR007 WLAN Antenna Specification 1 / 3 Wellshow ® For more information, contact [email protected] TEL: +886 2-2427-0488 FAX: +886 2-2426-0387 9F., No.181, Nanrong Rd., Ren-ai Dist., Keelung City 200, Taiwan (R.O.C.) www.Wellshow.com www.wellshow.com www.rfcoaxcable.com For more information, contact [email protected] TEL: +886 2-2423-9376 FAX: +886 2-2426-0387 9F., No.181, Nanrong Rd., Ren-ai Dist., Keelung City 200, Taiwan (R.O.C.) 2.4GHz WLAN Antenna Swivel type with extended 1.13mm Cable and I-PEX Plug Product No. AR007WSW01A03 Structure Figure DescriptionSpecification Frequency Range2.4GHz Impedance50 Ω VSWR2.0 Max Return Loss- 10 dB Max Certain directionOmin Gain2 dBi DescriptionSpecification Antenna CoverTPEE (Black) Antenna HolderPC (Black) Antenna Base PBT (Black) Captive latchABS (Black) Operating Temperature-20°C~+65°C Storage Temperature -30°C~+75°C ConnectorI-PEX MHF Plug 20278-112R-13 (U.FL) Cable Type 1.13mm RF coaxial cable (Gray) L=100mm Electrical SpecificationMechanical Specification AR007 Antenna Captive latch for AR007 Antenna P/N W0V0054R007-01 Option CoverHolderBase Rev. 3.0 AR007 WLAN Antenna Specification 2 / 3 Wellshow ® For more information, contact [email protected] TEL: +886 2-2427-0488 FAX: +886 2-2426-0387 9F., No.181, Nanrong Rd., Ren-ai Dist., Keelung City 200, Taiwan (R.O.C.) www.Wellshow.com www.wellshow.com www.rfcoaxcable.com For more information, contact [email protected] TEL: +886 2-2423-9376 FAX: +886 2-2426-0387 9F., No.181, Nanrong Rd., Ren-ai Dist., Keelung City 200, Taiwan (R.O.C.) Test results Reture Loss VSWR Radiation Pattern of H Plane 2.4~2.5GHzRadiation Pattern of V Plane 2.4~2.5GHz

Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,Wu Kung Road, New Taipei Industrial Park, Wuku District, New Taipei City, Taiwan 24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group LAB CODE 20050712-00 Report No.: EO/2014/20005 Issued Date: April 03, 2014 Page : 1 of 9 Antenna Test Report Report No.: EO/2014/20005 Test Plan: Non-compliance with ISO17025 Applicant Name: Delta Electronics, INC. Manufacturer Name: Delta Electronics, INC. Product Name: ZigBee Module Model Number: DFZM-E7211-DT0R Measurements performed at SGS Taiwan Ltd. Taipei, Taiwan Issued Date: April 03, 2014 Name Date & Signature Distribution Prepared by: Jose Ho Sr. Engineer April 03, 2014 Approved by: Nick Hsu Asst. Manager April 03, 2014 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,Wu Kung Road, New Taipei Industrial P…

Text truncated - open the document above for the full version.
