H79ESS1310NovoConnect A Wireless Presentation & Conference System

Hardware Specification CPU (SoC) DDR3 Storage WiFi Input/Output LED Indicator Button/Switch • ARM Cortex A9 • Video Decoder/Encoder (H.264, VC-1, VP8) 1024MB (512MB x 2) • Internal: 4GB (eMMC Flash) • External: Micro SD-Card slot 802.11 b/g/n (2.4GHz & 5GHz) USB Input USB Type A x 1 Video Output Mini HDMI x 1 Wi-Fi 2.4G/5G Dual Band Card reader Micro SD Card slot x 1 Power Input Micro USB 5V 1A Audio x 1 Green=Power on Reset Application Requirement PC Software: DesktopStreamer Tablet Apps: NovoPresenter Android Tablets Minimum requirement OS Resolution Android 3.2 and above Recommended: 1024x768, 1280x800, or Higher Minimum requirement CPU OS RAM Intel Pentium, 2GHz (i3 and above are preferred) Windows XP, Windows 7, Win8 (32 bits and 64 bits) 4GB iOS Minimum requirement OS Device Type iOS 5.1 and above iPad, iPad 2, iPad 3, iPad 4, iPad mini NovoConnect™ Taiwan Delta Electronics Inc. Education Solutions and Service Department 186, Ruey Kuang Road, Neihu, Taipei 11491, Taiwan R.O.C. T +886-2-8797-2088 / F +886-2-8797-2120 www.deltaww.com A Wireless Presentation & Conference System B360 Product Introduction Key Characteristics PC Free Presentation Equipped with a powerful CPU, file storage, WiFi, SD card reader, and ample pre-loaded APPs, the NovoConnect turns your projector into a presentation and collaboration system without a PC. Simply upload the presentation file to the NovoConnect device ahead of the meeting you can deliver a presentation while in conference room or on the go. During and after the meeting, the presentation file can be printed, saved, and emailed when Internet access is available. One-Click Presentation Management The presentation coordination and management software allows a meeting host (or teacher) to manage the presentation with the following functions: 1. One-click display hand-over between up to 64 participants, 2. Presenter screen previews, 3. Secured meeting login. Cloud based Resource Access Cloud based storage, printer, documents, and applications can be accessed seamlessly and directly from the NovoConnect device. Presenters can access documents saved in such as Google Drive, Dropbox, SkyDrive, SlideShare ...etc or utilize other cloud-based resources through the NovoConnect device and make their presenta- tion anytime, anywhere. HD Display Quality NovoConnect supports wireless presentation with 1080P HD display over WiFi link. The fine resolution provided via 1080P video is ideal for zoom-in, spot-light operations, and relaying HD quality video. Multi-Platform Wireless Presentation The following device types are supported by the NovoConnect wireless presentation system: - iOS tablets/phone/device, - Android tablet/phone/device, - Windows PC, and - MAC PC. The coordination and management for transitioning between devices is facilitated by the simple and intuitive cross-platform presentation management software - DesktopStreamer. NovoConnect™ is a new generation wireless presentation and conference system. From classrooms to conference rooms, it allows participants to seamlessly hand-over display between PC, Mac, Tablet, and Smartphone devices to conduct interactive presentations with dynamic content sources and HD display quality. iOS/Android phoneiOS/Android Tablet WIFI MacBook / Notebook NovoConnect TV HDMI HDMI MacBook / Notebook NovoConnect Interactive Collaboration Interactive Presentation can be done via NovoConnect pairing with interactive white board (IWB) devices in the classroom or the conference room. Up to four devices can apply to join a split-screen display. This feature provides the meeting participants a convenient way to share, compare, and collaborate with each other either locally or remotely from the meeting site. iPad80% + Google iPad80% + Google 80% + Google iOS/Android phoneiOS/Android Tablet iPad80% + Google 80% + Google TV HDMI HDMI Two Configurations Supported: 1. Connect to NovoConnect through Wi-Fi AP 2. NovoConnect function as a WiFi Hot Spot Information InformationInformationInformation to the user. to the user.to the user.to the user. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditio ns: (1) this device may not cause harmful interference, and (2) this device must accept any interference receiv ed, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Note: This equipment has been tested and found to c omply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a reside ntial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to rad io communications. However, there is no guarantee t hat interference will not occur in a particular ins tallation. If this equipment does cause harmful interference to radio or television recepti on, which can be determined by turning the equipmen t off and on, the user is encouraged to try to corr ect the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and r eceiver. Connect the equipment into an outlet on a circuit d ifferent from that to which the receiver is connect ed. Consult the dealer or an experienced radio/TV techn ician for help. 1. This Transmitter must not be co–located or opera ting in conjunction with any other antenna or trans mitter. 2. This equipment complies with FCC RF radiation ex posure limits set forth for an uncontrolled environ ment. This equipment should be installed and operated with a m inimum distance of 20 centimeters between the radia tor and your body. Operations in the 5.155.25Ghz band are restricted t o indoor usage only.(5G…

Text truncated - open the document above for the full version.

Delta Electronics Incorporated Company Address : 3 Tungyuan Road, Chungli Industrial Zone, Taoyuan County 32063 Taiwan Date: 2013/11/15 UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: H79ESS1310 (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (GHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2.412~2.462 Yes , No Yes , No Yes , No Yes , No 5.18~5.24 Yes , No Yes , No Yes , No Yes , No 5.745~5.825 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If no, pls explain how it was implemented: We implement it base on initial file (tiwlan.INI), we would set up what channel should disable and what channel should used on our initial file. We would modify it base on different country. (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non- DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply No Apply, (If apply, pls help to provide explanation on it was implement, and how software was controlled) This mechanism apply on TI firmware and WLAN driver, we don’t provide API to Application. It can not be modified by end user or an installer (6) Operation on the 5.15‐5.25 GHz frequency band is restricted to indoor use only. The FCC requires indoor use for the 5.15‐5.25 GHz band to reduce the potential for harmful interference to co‐channel Mobile Satellite Systems. NovoConnect A Wireless Presentation & Conference System Ray Chen

D elta Electronics Incorporated Da te: (2013/11/15) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Delta Electronics Incorporated; 3 Tungyuan Road, Chungli Industrial Zone, Taoyuan County 32063 Ta iwan , hereby authorize A Test Lab Techno Corp., address: No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C., phone: +886-3-2710188 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (2014/5/30). Sincerely, Ray Chen / Manager Tel: 03-4526107 E-mail: [email protected]

Date: 11. 15, 2013 S ubject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: H79ESS1310, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name and Model Name of the specified radio equipment: DELTA / VIVITEK / B360 FCC ID: H79ESS1310 Product Name: NovoConnect A Wireless Presentation & Conference System Regards, Signature Name/Title: Ray Chen / Manger Company Name: Delta Electronics Incorporated TEL: 03-4526107 FAX: 03-4528707 Email: [email protected]

Delta Electronics Incorporated Date (11/15/2013) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: H79ESS1310 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Delta Electronics, Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operational Description Tune-Up Procedure Antenna Specification Delta Electronics, Inc. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of up to 180 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Ray Chen Telephone Number: 03-4526107 Email: [email protected]

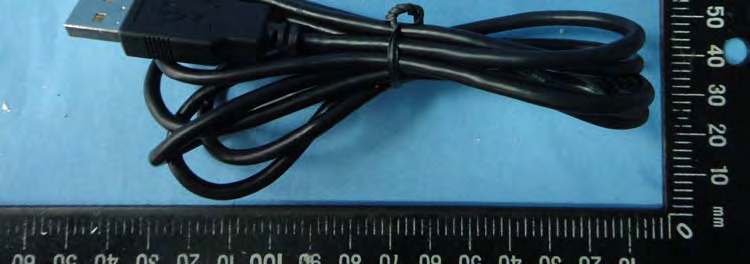

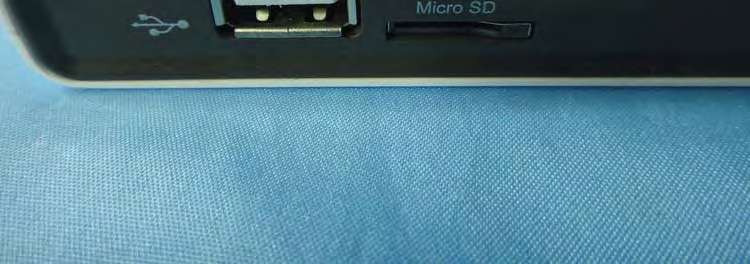

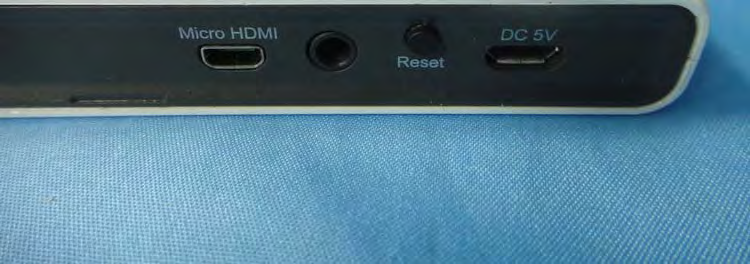

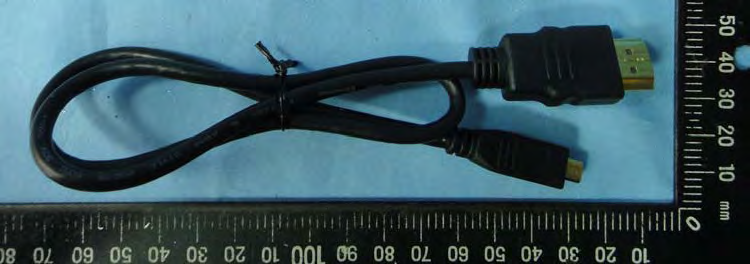

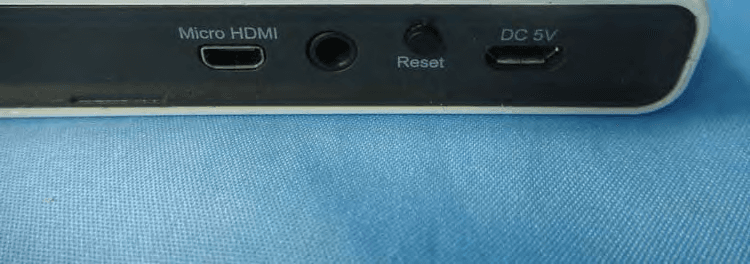

1 of 8 External Photos Model Number: B360 FCC ID: H79ESS1310 2 of 8 EUT Photo 1 ) EUT Photo 2 ) 3 of 8 EUT Photo 3 ) EUT Photo 4 ) 4 of 8 EUT Photo 5 ) EUT Photo 6 ) 5 of 8 EUT Photo 7 ) EUT Photo 8 ) 6 of 8 EUT Photo 9 ) EUT Photo 10 ) 7 of 8 EUT Photo 11 ) EUT Photo 12 ) 8 of 8 EUT Photo 13 ) EUT Photo 14 )

KB3603450001

1 of 6 Internal Photos Model Number: B360 FCC ID: H79ESS1310 2 of 6 EUT Photo 1 ) EUT Photo 2 ) Wi-Fi ANT 3 of 6 EUT Photo 3 ) EUT Photo 4 ) 4 of 6 EUT Photo 5 ) EUT Photo 6 ) 5 of 6 EUT Photo 7 ) EUT Photo 8 ) 6 of 6 EUT Photo 9 ) EUT Photo 10 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1310FS13 Applicant ： Delta Electronics Incorporated Manufacturer ： AMPAK Technology Product Type ： NovoConnect A Wireless Presentation & Conference System Trade Name ： DELTA, VIVITEK Model Number ： B360 Date of Received ： Sep. 14, 2013 Test Period ： Oct. 03, 2013 Date of Issued ： Nov. 13, 2013 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1992 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Bill Hu) (Sky Chou) Report Number: 1310FS13Page 1 of 7 ©2013 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT)............................................................... 3 2. Human Exposure Assessment .................................................................................... 4 3. RF Output Power........................................................................................................... 5 4. Test Result.....................................................................................................................7 Report Number: 1310FS13Page 2 of 7 ©2013 A Test Lab Techno Corp. 1. Description of Equipment under Test (EUT) Applicant Delta Electronics Incorporated Applicant Address 3 Tungyuan Road, Chungli Industrial Zone, Taoyuan County 32063 Taiwan Manufacturer AMPAK Technology Manufacturer Address NO.1 Jen Ai Road, Hsinchu Industrial Park, Hukou, HsinChu, Taiwan Product Type NovoConnect A Wireless Presentation & Conference System Trade Name DELTA, VIVITEK (Those trade names differ from each other in selling region.) Model Number B360 FCC ID H79ESS1310 Frequency Range IEEE 802.11b / 802.11g / 802.11n 2.4GHz (20MHz): 2412 ~ 2462 MHz IEEE 802.11a / 802.11n 5GHz (20MHz) U-NII Band I: 5180 ~ 5240 MHz IEEE 802.11a / 802.11n 5GHz (20MHz) U-NII Band IV: 5745 ~ 5825 MHz Transmit Power IEEE 802.11b: 0.032 W / 15.04 dBm (conducted power) IEEE 802.11g: 0.027 W / 14.34 dBm IEEE 802.11n 2.4GHz (20MHz): 0.021 W / 13.15 dBm IEEE 802.11a U-NII Band I: 0.022 W / 13.33 dBm IEEE 802.11a U-NII Band IV: 0.027 W / 14.34 dBm IEEE 802.11n 5GHz (20MHz) U-NII Band I: 0.019 W / 12.87 dBm IEEE 802.11n 5GHz (20MHz) U-NII Band IV: 0.026 W / 14.12 dBm Antenna Specification IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 2.4GHz (20MHz): 1.78594 dBi IEEE 802.11a U-NII Band I: 2.32536 dBi IEEE 802.11a U-NII Band IV: 3.74794 dBi IEEE 802.11n 5GHz (20MHz) U-NII Band I: 2.32536 dBi IEEE 802.11n 5GHz (20MHz) U-NII Band IV: 3.74794 dBi Antenna Designation Chip Antenna Temperature Range -30 ~ +70°C RF Evaluation 0.13 W/m 2 The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Report Number: 1310FS13Page 3 of 7 ©2013 A Test Lab Techno Corp. 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Report Number: 1310FS13Page 4 of 7 ©2013 A Test Lab Techno Corp. 3. RF Output Power Band Date Rate CH Frequency (MHz) Conducted power Time-Avg. (dBm) 1 2412.0 15.04 6 2437.0 14.91 1M 11 2462.0 14.61 2M 6 2437.0 14.85 5.5M 6 2437.0 14.84 IEEE 802.11b 11M 6 2437.0 14.76 1 2412.0 14.34 6 2437.0 14.21 6M 11 2462.0 13.93 9M 6 2437.0 14.16 12M 6 2437.0 14.07 18M 6 2437.0 13.95 24M 6 2437.0 13.88 36M 6 2437.0 13.76 48M 6 2437.0 13.82 IEEE 802.11g 54M 6 2437.0 13.67 1 2412.0 13.15 6 2437.0 13.10…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： NovoConnect A Wireless Presentation & Conference System Applicant ： Delta Electronics Incorporated Address ： 3 Tungyuan Road, Chungli Industrial Zone, Taoyuan County 32063 Taiwan Trade Name ： DELTA, VIVITEK Model Number ： B360 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2012 ANSI C63.4:2009 Receive Date ： Sep. 14, 2013 Test Period ： Sep. 23 ~ Oct. 03, 2013 Issue Date ： Nov. 13, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1310FR14 1 of 79 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Nov. 13, 2013 Initial Issue Report Number: 1310FR14 2 of 79 A Test Lab Techno Corp. Verification of Compliance Issued Date: 11/13/2013 Product Type : NovoConnect A Wireless Presentation & Conference System Applicant : Delta Electronics Incorporated Address : 3 Tungyuan Road, Chungli Industrial Zone, Taoyuan County 32063 Taiwan Trade Name : DELTA, VIVITEK Model Number : B360 FCC ID : H79ESS1310 EUT Rated Voltage : DC 5V, 2.0A Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2012 ANSI C63.4:2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Cran Yang) (Testing Engineer) (Fly Lu) Report Number: 1310FR14 3 of 79 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information .........................................................................................................6 2 EUT Description................................................................................................................7 3 Test Methodology.............................................................................................................9 3.1. Mode of Operation......................................................................................................9 3.2. EUT Exercise Software ..............................................................................................9 3.3. Configuration of Test System Details........................................................................10 3.4. Test Site Environment............................................................................................... 11 4 Conducted Emission Measurement..............................................................................11 4.1. Limit.......................................................................................................................... 11 4.2. Test Instruments ....................................................................................................... 11 4.3. Test Setup ................................................................................................................11 4.4. Test Procedure .........................................................................................................12 4.5. Test Result................................................................................................................13 5 Radiated Emission Measurement .................................................................................15 5.1. Limit..........................................................................................................................15 5.2. Test Instruments .......................................................................................................15 5.3. Setup ........................................................................................................................16 5.4. Test Procedure .........................................................................................................17 5.5. Test Result................................................................................................................19 6 Maximum Conducted Output Power Measurement.....................................................28 6.1. Limit..........................................................................................................................28 6.2. Test Setup ................................................................................................................28 6.3. Test Instruments .......................................................................................................28 6.4. Test Procedure .........................................................................................................28 6.5. Test Result................................................................................................................29 7 6dB RF Bandwidth & 99 % Occupied Bandwidth Measurement ................................32 7.1. Limit.............................................................................................................…

Text truncated - open the document above for the full version.

Part 15C Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View Report Number: 1310FR14 1 of 3 A Test Lab Techno Corp. Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: 1310FR14 2 of 3 A Test Lab Techno Corp. Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: 1310FR14 3 of 3 A Test Lab Techno Corp.
