H79VFRU-19-05BTBluetooth Speaker

MODEL: VFRU-19-05BT OPERATING INSTRUCTIONS BLUETOOTH SPEAKER READ AND SAVE THESE INSTRUCTIONS DIMENSIONS: unit:mm Label Mark: Label Location: Operation: Connecting Micro USB plug as following. Bluetooth Speaker Mode: Pairing and connecting with the Bluetooth device First pairing with the device 1. Place the Bluetooth device within 1 meter of this unit. 2. Turn ON the Speaker. The LED flashes fast in pairing mode. 3. Perform the pairing procedure on the Bluetooth device to detect this unit. When the list of detected devices appears on the display of the Bluetooth device, select “DeltaBreez ITG v0.1” If passkey input is required on the display of a Bluetooth device, input”0000”. 4. Make the Bluetooth connection from the Bluetooth device. 5. Play the music. Connecting with the paired device 1. Turn ON the Speaker. 2. Make the Bluetooth connection from the Bluetooth device. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. WARRANTY DELTA ELECTRONICS THREE YEAR LIMITED WARRANTY Delta Electronics Inc.(“Delta Electronics”) warrants to the original consumer purchaser in the USA that the Breez ventilation fan products will be free from defects in material or workmanship. This warranty is limited to three (3) years from the original date of purchase. Limitations and Exclusions 1. During the warranty period, a replacement for any defective product will be supplied free of charge for installation by the consumer. The warranty provided herein does not cover charges for labor or other costs incurred in the troubleshooting, repair, removal, and installation service. 2. All returns of defective parts or products must include the product model number, and must be made through an authorized Delta Electronics distributor. Authorized returns must be shipped prepaid. Repaired or replacement products will be shipped by Delta Electronics F.O.B. shipping point. 3. Delta Electronics shall not be liable for any indirect, incidental, consequential, punitive, or special damages arising out of or in connection with products use or performance, regardless of the form of action whether in contract, tort (including negligence), strict product liability or otherwise. 4. This warranty does not extend to fluorescent lamp starters and tubes. 5. The warranty does not cover if user does not comply with manufacture’s installation manual. 6. To qualify for warranty service, you must notify Delta Electronics at the address or telephone number below. 7. Delta Electronics shall have no liability to the original owner-user with respect to any defect caused by abuse, misuse, neglect, improper transportation or storage, improper testing, improper installation, improper operation, improper use, improper maintenance, improper repair, improper alteration, improper modification, tampering or accident of products or parts thereof, or unusual deterioration or degradation of products or parts thereof due to a physical environment beyond the requirements of products’ specifications. Address: 46101 Fremont Boulevard, Fremont, CA 94538 US Toll Free Number: 1-888-979-9889

Confidentiality Request Letter Confidentiality Request regarding application for certification of FCC ID: H79VFRU-19-05BT Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, and IC RSP-100, Section 6.4, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________ Ray Chen

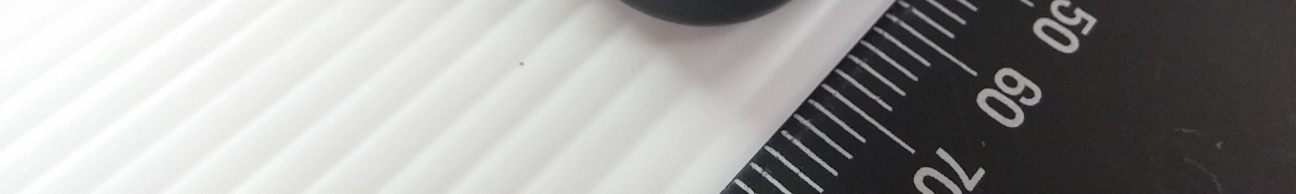

Appendix P Photo Documentation Page 1 of 1 10052384 001 Product: Bluetooth Speaker Type Identification: VFRU-19-05BT

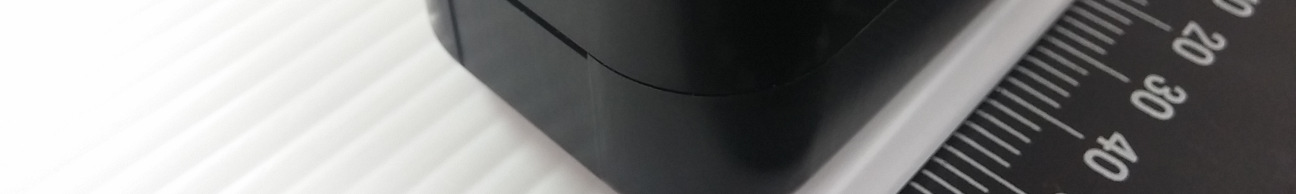

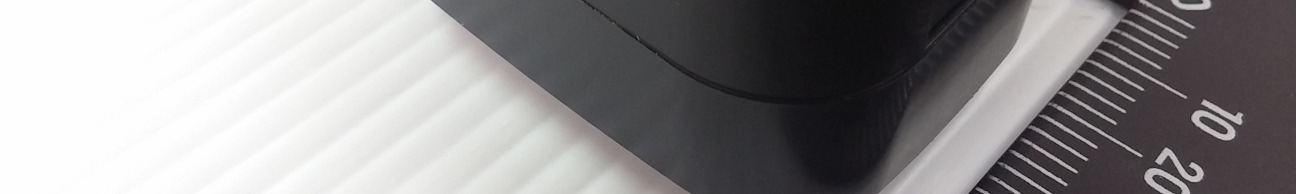

Appendix P Photo Documentation Page 1 of 2 10052384 001 Product: Bluetooth Speaker Type Identification: VFRU-19-05BT Appendix P Photo Documentation Page 2 of 2 10052384 001 Product: Bluetooth Speaker Type Identification: VFRU-19-05BT

Produkte Products Prüfbericht - Nr.: Test Report No. 10052384 001 Seite 45 von 50 Page 45 of 50 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 The maximum peak output power of the transmitter is 5.1357 mW. The separation between hand and antenna is more than 5mm. Hence the EUT is exclueded from SAR evaluation. Please also refer to FCC KDB publication 447498 D01 v05: Mobile Portable RF Exposure

Produkte Products Prüfbericht - Nr.: Test Report No. 10052384 001 Seite 2 von 50 Page 2 of 50 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10052384 001 Seite 3 von 50 Page 3 of 50 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST LABORATORY ................................................................................................ 6 2.2 TEST FACILITY ........................................................................................................ 6 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 7 2.4 TRACEABILITY ........................................................................................................ 8 2.5 CALIBRATION ......................................................................................................... 8 2.6 MEASUREMENT UNCERTAINTY ................................................................................. 8 3. GENERAL PRODUCT INFORMATION ........................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 9 3.3 INDEPENDENT OPERATION MODES ......................................................................... 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 11 3.5 SUBMITTED DOCUMENTS ....................................................................................... 11 4. TEST SET-UP AND OPERATION MODES ................................................................... 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 12 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 12 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 12 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 13 4.5 TEST SETUP DIAGRAM .......................................................................................... 13 5. TEST RESULTS ..................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 15 5.1.1 Antenna Requirement ................................................................................................................ 15 5.1.2 Peak Output Power .................................................................................................................... 16 5.1.3 20dB Bandwidth ......................................................................................................................... 20 5.1.4 99% Bandwidth .......................................................................................................................... 24 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 28 5.1.6 Spurious Emission ..................................................................................................................... 36 5.1.7 Frequency Separation ................................................................................................................ 37 5.1.8 Number of hopping frequency .................................................................................................... 39 5.1.9 Time of Occupancy .................................................................................................................... 41 5.2 MAINS EMISSIONS................................................................................................. 44 5.2.1 Mains Conducted Emissions ...................................................................................................... 44 Produkte Products Prüfbericht - Nr.: Test Report No. 10052384 001 Seite 4 von 50 Page 4 of 50 6. SAFETY HUMAN EXPOSURE ................................................................................... 45 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 45 6.1.1 Electromagnetic Fields ............................................................................................................... 45 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 46 8. LIST OF TABLES ................................................................................................... 50 9. LIST OF PHOTOGRAPHS......................................................................................... 50 Produkte Products Prüfbericht - Nr.: Test Report No. 10052384 001 Seite 5 von 50 Page 5 of 50 1. General Remarks 1.1 Complementary Materials The following attachments are integral parts of this test report: Appendix P: Photo Documentation (File Name: 10052384APPENDIX P) Appendix D: Test Resu…

Text truncated - open the document above for the full version.

Test Report No.10052384 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10052384AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 34 Spurious Emissions, Mains, 150kHz - 30MHz ......................................................................................... 36 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (8DPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (8DPSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114038549-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/8/10 19:41:46 Applicant: Delta Test Rating: DC 5V Product: Bluetooth Speaker Temp.( °C °C°C °C)/Hum.(%): 23.4(°C °C°C °C)/49% Model No.: VFRU-19-05BT Test Engineer: George Yang Test Mode: 1DH5-2402 Remark: INT:57 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3550.000 -5.49 52.93 47.44 74.00 -26.56 peak 100 177 2 4804.000 -2.35 68.44 66.09 74.00 -7.91 peak 100 121 3 4804.000 -2.35 54.39 52.04 54.00 -1.96 AVG 100 121 4 7206.000 5.78 49.44 55.22 74.00 -18.78 peak 100 105 5 7206.000 5.78 43.07 48.85 54.00 -5.15 AVG 100 105 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114038549-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/8/10 19:42:49 Applicant: Delta Test Rating: DC 5V Product: Bluetooth Speaker Temp.(°C °C°C °C)/Hum.(%): 23.4(°C °C°C °C)/49% Model No.: VFRU-19-05BT Test Engineer: George Yang Test Mode: 1DH5-2402 Remark: INT:57 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4315.000 -3.83 52.63 48.80 74.00 -25.20 peak 100 327 2 4804.000 -2.35 59.47 57.12 74.00 -16.88 peak 100 186 3 4804.000 -2.35 47.18 44.83 54.00 -9.17 AVG 100 186 4 7206.000 5.78 44.78 50.56 74.00 -23.44 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114038549-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/8/10 19:57:42 Applicant: Delta Test Rating: DC 5V Product: Bluetooth Speaker Temp.(°C °C°C °C)/Hum.(%): 23.4(°C °C°C °C)/49% Model No.: VFRU-19-05BT Test Engineer: George Yang Test Mode: 1DH5-2441 Remark: INT:57 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4882.000 -2.16 59.37 57.21 74.00 -16.79 peak 100 108 2 4882.000 -2.16 53.26 51.10 54.00 -2.90 AVG 100 108 3 6066.000 4.34 46.57 50.91 74.00 -23.09 peak 100 22 4 7323.000 6.13 44.24 50.37 74.00 -23.63 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114038549-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/8/10 19:58:44 Applicant: Delta Test Rating: DC 5V Product: Bluetooth Speaker Temp.(°C °C°C °C)/Hum.(%): 23.4(°C °C°C °C)/49% Model No.: VFRU-19-05BT Test Engineer: George Yang Test Mode: 1DH5-2441 Remark: INT:57 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4882.000 -2.16 52.75 50.59 74.00 -23.41 peak 100 255 2 4882.000 -2.16 46.64 44.48 54.00 -9.52 AVG 100 255 3 6219.000 4.93 46.70 51.63 74.00 -22.37 peak 100 310 4 7323.000 6.13 43.68 49.81 74.00 -24.19 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114038549-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/8/10 20:08:51 Applicant: Delta Test Rating: DC 5V Product: Bluetooth Speaker Temp.(°C °C°C °C)/Hum.(%): 23.4(°C °C°C °C)/49% Model No.: VFRU-19-05BT Test Engineer: George Yang Test Mode: 1DH5-2480 Remark: INT:59 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4960.000 -1.97 60.83 58.86 74.00 -15.14 peak 100 108 2 4960.000 -1.97 53.02 51.05 54.00 -2.95 AVG 100 108 3 6100.000 4.47 45.75 50.22 74.00 -23.78 peak 100 285 4 7440.000 6.47 43.08 49.55 74.00 -24.45 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 15 Service No.: 114038549-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/8…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10052384 001 Seite 46 von 50 Page 46 of 50 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10052384 001 Seite 47 von 50 Page 47 of 50 Photograph 2: Set-up for Spurious Emissions (Back View 1) Photograph 3: Set-up for Spurious Emissions (Back View 2) Produkte Products Prüfbericht - Nr.: Test Report No. 10052384 001 Seite 48 von 50 Page 48 of 50 Photograph 4: Set-up for Conducted testing Photograph 5: Set-up for for Mains Conducted testing Back Produkte Products Prüfbericht - Nr.: Test Report No. 10052384 001 Seite 49 von 50 Page 49 of 50 Photograph 6: Set-up for for Mains Conducted testing Front
