  1. Home/
  2. Askey Computer Corp/
  3. H8N-5250

H8N-5250Wi-Fi Stick

Askey Computer Corp
Wi-Fi Stick - FCC ID H8N-5250 - Askey Computer Corp
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 17, 2013
Application Purpose
Original Equipment
Date of Application
Nov 17, 2013
Equipment Note
Wi-Fi Stick
Frequency Range
5775.00000000 - 5775.00000000
Company
Askey Computer Corp
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WLU5250-D143(RoHS) Quick Installation Guide Revision: 1.0 Askey Computer Corp. 10F. No.119, Chien-Kang Rd., Chung-Ho, Taipei, Taiwan, R.O.C. Tel: 886-2-22287588 Fax: 886-2-32349340 Date: 8, Nov, 2013 Page 1 Confidential Askey Computer Corp 1.Appearance ...............................................................................................2 2 Test environment ............................................................................................................. 3 2.1 Preparation. ................................................................................................................................. 3 2.2 Procedure for setting devices ................................................................................................... 3 3 Image Upgrade.................................................................................................................. 4 3.1 Procedure for flashing Loader and Main Image .................................................................... 4 4 WiFi Test ............................................................................................................................. 4 4.1 Procedure for setting WIFI ......................................................................................................... 4 Page 2 Confidential Askey Computer Corp 1. Appearance : This product is a USB interface WIFI dongle can only be installed in the support VID 293C, PID 5702 the SET-TOP-BOX products Page 3 Confidential Askey Computer Corp 2 .Test environment 2.1 Preparation. 1.1.1 Device - XI3( Set Top Box )  1 EA. - Serial-Box  1 EA. - Serial-Cable  1 EA. - USB Memory stick 1.1.2 File - XI3 Loader Image (File Name: Xi3v1-H_Loader.bin) - XI3 Kernel Image (File Name: pne_vmlinux.bin) - XI3 RootFS Image (File Name: pne_humax.squashfs) 2.2 Procedure for setting devices 1. Connect RS232 cable to PC (Window: Hyper terminal) and Serial-Box 2. Connect cable in Serial Box to board. 3. Run hyper-terninal and it will be printed. (It should be set configuration for serial cable on hyper-terminal.) Page 4 Confidential Askey Computer Corp 3 33 3 Image Upgrade Image Upgrade Image Upgrade Image Upgrade 3 33 3.1 Procedure for flashing Loader and Main Image .1 Procedure for flashing Loader and Main Image .1 Procedure for flashing Loader and Main Image .1 Procedure for flashing Loader and Main Image 1. Copy Xi3v1-H_Loader.bin to USB memory stick. 2. Copy pne_vmlinux.bin to USB memory stick. 3. Copy pne_ humax.squashfs to USB memory stick. 4. Connect the USB memory stick to XI3. 5. Reboot 6. Current loader will find new image and then will be upgrade 4. 4.4. 4.Wifi Test Wifi Test Wifi Test Wifi Test 4 44 4.1 Procedure for setting WIFI .1 Procedure for setting WIFI .1 Procedure for setting WIFI .1 Procedure for setting WIFI 1. Run hyper-terminal to take the logs through serial cable. (It should be set configuration for RS232 cable on hyper-terminal.) 2. Please the below commands. # ifconfig ra0 up « # iwlist ra0 scan # iwconfig ra0 essid "SSID NAME" # ifconfig ra0 xxx.xxx.xxx.xxx Page 5 Confidential Askey Computer Corp Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device is restricted to indoor use when operated in the 5.15 to 5.78 GHz frequency range. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Cover Letter(s)

Date: November 18, 2013 Subject: Ad Hoc Mode Function Declaration FCC ID: H8N-5250 To Whom it may concern, We, ASKEY COMPUTER CORP., declare that the device (FCC ID: H8N-5250 ) 1. does not have Ad Hoc Mode function on channels within the frequency bands: a. 802.11bgn (2412~2462MHz;2422~2452MHz) b. 5G Band 1: 5180~5240MHz;5190~5230MHz;5210MHz c. 5G Band 4: 5745~5825MHz;5755~5795MHz;5775MHz d. 5G Band 2: 5260~5320MHz;5270~5310MHz;5290MHz e. 5G Band 3: 5500~5700MHz;5510~5670MHz;5530MHz 2. is acting as client without DFS detection capability. 3. does not transmit at all on frequencies within the band 5600 - 5650 MHz in US/Canada 4. is not able to operate on non-US/Canada frequencies, country code selection will be disabled for this device. 5. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. (KDB848637) Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : Name and Job Title. : John Chiou / Manager E-mail [email protected] Tel. 886-2-22287588

Cover Letter(s)

Confidentiality Request Letter Date: 2013/11/13 Federal Communications Commission Authorization and Evaluation Division FCC ID:H8N-5250 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : ________________________ Name and Job Title. : John Chiou / Manager E-mail : [email protected] Tel. : 886-2-22287588

Cover Letter(s)

Date: 2013/11/13 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: H8N-5250 Product name: Wi-Fi Stick To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model KXW02AAA to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : ________________________ Name and Job Title. : John Chiou / Manager E-mail : [email protected] Tel. : 886-2-22287588

Cover Letter(s)

Date : November 18, 2013 UNII Declaration Letter We have declared below featured for FCC equipment authorization, Device FCC ID: H8N-5250 (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 Yes , No Yes , No Yes , No Yes , No 2422 - 2452 Yes , No Yes , No Yes , No Yes , No 5745 - 5825 Yes , No Yes , No Yes , No Yes , No 5755 - 5795 Yes , No Yes , No Yes , No Yes , No 5775 Yes , No Yes , No Yes , No Yes , No 5180 – 5240 Yes , No Yes , No Yes , No Yes , No 5190 – 5230 Yes , No Yes , No Yes , No Yes , No 5210 Yes , No Yes , No Yes , No Yes , No 5260 – 5320 Yes , No Yes , No Yes , No Yes , No 5270 – 5310 Yes , No Yes , No Yes , No Yes , No 5290 Yes , No Yes , No Yes ,No Yes , No 5500 – 5700 Yes , No Yes , No Yes , No Yes , No 5510 - 5670 Yes , No Yes , No Yes , No Yes , No 5530 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : Software lock. (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Director

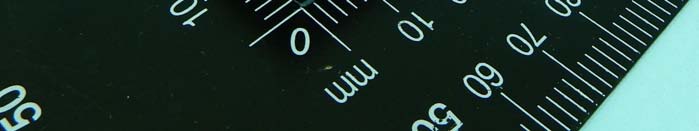

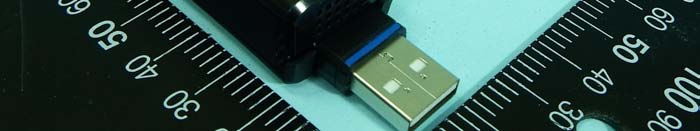

External Photos

FCC Test Report Report No. : EP392636 SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Nov. 13, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP392636 SPORTON International Inc. PAGE NUMBER : B2 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Nov. 13, 2013 FAX : 886-3-327-0973

ID Label/Location Info

Label location

Internal Photos

FCC Test Report Report No. : EP392636 SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Nov. 13, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP392636 SPORTON International Inc. PAGE NUMBER : B4 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Nov. 13, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP392636 SPORTON International Inc. PAGE NUMBER : B5 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Nov. 13, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP392636 SPORTON International Inc. PAGE NUMBER : B6 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Nov. 13, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP392636 SPORTON International Inc. PAGE NUMBER : B7 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Nov. 13, 2013 FAX : 886-3-327-0973

RF Exposure Info

FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 1 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 2 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30uu Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30 u uu FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 3 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 Correlated 20.05 N/A g 1 1 Correlated 19.22 N/A n (HT20) 1 1 Uncorrelated 20.43 N/A n (HT40) 1 1 Uncorrelated 14.05 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Output Power Gain (dBi) EIRP Power PD (S) (mW/cm²) 11b 1 20.05 2.63 22.68 0.03687 11g 1 19.22 2.63 21.85 0.03046 HT20,M0-7 1 20.43 2.63 23.06 0.04025 HT40,M0-7 1 14.05 2.63 16.68 0.00926 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 4 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 22.49 N/A n (HT20) 1 1 Uncorrelated 21.93 N/A n (HT40) 1 1 Uncorrelated 21.63 N/A ac (VHT20) 1 1 Uncorrelated 21.90 N/A ac (VHT40) 1 1 Uncorrelated 21.31 N/A ac (VHT80) 1 1 Uncorrelated 18.81 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Output Power Gain (dBi) EIRP Power PD (S) (mW/cm²) 11a 1 22.49 2.48 24.97 0.06248 HT20,M0-7 1 21.93 2.48 24.41 0.05492 HT40,M0-7 1 21.63 2.48 24.11 0.05125 VHT20,M0-8 1 21.90 2.48 24.38 0.05454 VHT40,M0-9 1 21.31 2.48 23.79 0.04761 VHT80,M0-9 1 18.81 2.48 21.29 0.02678 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 5 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissible Exposure (5.2G~5.6G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 21.66 N/A n (HT20) 1 1 Uncorrelated 21.77 N/A n (HT40) 1 1 Uncorrelated 20.94 N/A ac (VHT20) 1 1 Uncorrelated 21.75 N/A ac (VHT40) 1 1 Uncorrelated 22.03 N/A ac (VHT80) 1 1 Uncorrelated 18.14 N/A Note 1: Co-location, Co-location is generally defined as simultaneously…

Text truncated - open the document above for the full version.

Test Report

FCC Test Report Report No. : FR392636AC SPORTON INTERNATIONAL INC. Page No. : 1 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wi-Fi Stick Brand Name : Xfinity Model No. : KXW02AAA FCC ID : H8N-5250 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant : ASKEY COMPUTER CORP 10F, NO.119, Chienkang Road, Chung-Ho DIST., New Taipei City, Taiwan Manufacturer : ASKEY COMPUTER CORP 10F, NO.119, Chienkang Road, Chung-Ho DIST., New Taipei City, Taiwan Askey TECHNOLOGY (JIANG SU) LTD. No. 1388, Jiao Tong Road, Wujiang Economic- Technological Development Area, Jiangsu Province, P.R. China The product sample received on Sep. 27, 2013 and completely tested on Nov. 10, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR392636AC SPORTON INTERNATIONAL INC. Page No. : 2 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Support Equipment ........................................................................................................................... 7 1.3 Testing Applied Standards ................................................................................................................ 7 1.4 Testing Location Information ............................................................................................................. 7 1.5 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION OF EUT .................................................................................................... 9 2.1 The Worst Case Modulation Configuration ........................................................................................ 9 2.2 The Worst Case Power Setting Parameter ........................................................................................ 9 2.3 The Worst Case Measurement Configuration .................................................................................. 10 2.4 Test Setup Diagram ........................................................................................................................ 11 3 TRANSMITTER TEST RESULT ..................................................................................................... 13 3.1 AC Power-line Conducted Emissions .............................................................................................. 13 3.2 6dB Bandwidth ................................................................................................................................ 16 3.3 RF Output Power ............................................................................................................................ 18 3.4 Power Spectral Density ................................................................................................................... 22 3.5 Transmitter Bandedge Emissions .................................................................................................... 24 3.6 Transmitter Unwanted Emissions .................................................................................................... 27 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 56 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR392636AC SPORTON INTERNATIONAL INC. Page No. : 3 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1913990MHz 54.29 (Margin 9.69dB) - QP 47.37 (Margin 6.61dB) - AV FCC 15.207 Complied 3.2 15.247(a) Bandwidth 6dB Bandwidth Unit [MHz] 20M: 9.09 / 40M: 36.32 •500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]:25.35 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]:-6.16 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.82MHz: 26.81dB Restricted Bands [dBuV/m at 3m]: 2390.00MHz 52.80 (Margin 1.20dB) - PK 68.59 (Margin 5.41dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 365.62MHz 41.40 (Margin 4.60dB) – PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR392636AC SPORTON INTERNATIONAL INC. Page No. : 4 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR392636AC Rev. 01 Initial issue of report Nov. 13, 2013 2483.5-2650 FCC Test Report Report No. : FR392636AC SPORTON INTERNATIONAL INC. Page No. : 5 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1…

Text truncated - open the document above for the full version.

Test Report

FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 1 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 2 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30uu Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30 u uu FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 3 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 Correlated 20.05 N/A g 1 1 Correlated 19.22 N/A n (HT20) 1 1 Uncorrelated 20.43 N/A n (HT40) 1 1 Uncorrelated 14.05 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Output Power Gain (dBi) EIRP Power PD (S) (mW/cm²) 11b 1 20.05 2.63 22.68 0.03687 11g 1 19.22 2.63 21.85 0.03046 HT20,M0-7 1 20.43 2.63 23.06 0.04025 HT40,M0-7 1 14.05 2.63 16.68 0.00926 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 4 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 22.49 N/A n (HT20) 1 1 Uncorrelated 21.93 N/A n (HT40) 1 1 Uncorrelated 21.63 N/A ac (VHT20) 1 1 Uncorrelated 21.90 N/A ac (VHT40) 1 1 Uncorrelated 21.31 N/A ac (VHT80) 1 1 Uncorrelated 18.81 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Output Power Gain (dBi) EIRP Power PD (S) (mW/cm²) 11a 1 22.49 2.48 24.97 0.06248 HT20,M0-7 1 21.93 2.48 24.41 0.05492 HT40,M0-7 1 21.63 2.48 24.11 0.05125 VHT20,M0-8 1 21.90 2.48 24.38 0.05454 VHT40,M0-9 1 21.31 2.48 23.79 0.04761 VHT80,M0-9 1 18.81 2.48 21.29 0.02678 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FA3 92636 SPORTON INTERNATIONAL INC. Page No. : 5 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissi…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jack Po(Manager)
[email protected]886 2 2228-7588Fax: 886 2 3234-9340

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
515C5.78 GHz - 5.78 GHz235.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted. This device is restricted by BIOS LOCK mechanism for operation with dedicated multimedia systems, such as TV or Blue-ray players. This device is approved with the incorporated UNII transmitter certified under the same FCC ID. A separation distance of at least 20 cm between this device and any nearby persons must be assured during normal operating conditions. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. When operating in 802.11 n/ac modes, the operating frequency segment is limited to 2422 to 2452 MHz (HT40), 5755 to 5795 MHz (HT40/VHT40) and 5775 MHz (VHT80) respectively.
