User Guide Verizon Internet Gateway 1. Inside the box 1 2. Your 5G NR Home Router 2 3. Setting Up Your 5G NR Home Router 6 3.1 Positioning your router 7 3.2 Setup requirements 7 4. Login to Your Home Router 8 4.1 Connect by Mobile App 8 Login to the Web User Interface 9 4.2 Connect by computer 10 Login to the Web User Interface 11 5. Web User Interface 12 5.1 Home 13 5.2 Wi-Fi Settings 15 Advanced 16 2.4GHz / 5GHz 17 Guest 20 Statistics 22 WPS 23 5.3 Parental Control 24 5.4 Network 26 Network Map 27 Status 28 Cellular Traffic Query 30 Cellular 31 LAN 32 IPv6 34 Client List 34 5.5 Device Settings 35 Admin Settings 36 Date & Time 37 Backup / Restore 38 Firmware 39 5.6 Diagnostic 40 5.7 Security 41 Firewall 42 IP / MAC Binding 43 Access Control 45 5.8 NAT Forwarding 47 DMZ 48 UPnP 49 ALG 50 Virtual Servers 52 5.9 QoS 54 6. Troubleshooting 55 7. Technical Specification 56 General 56 Connections 56 1. Inside the box Inside the product package you should find the following items: 1) LTE Home router 2) Power adapter 3) Ethernet cable Contact Verizon if any item is missing or damaged. 2. Your 5G NR Home Router Front: The logo, LED indicator LEDs The LEDs indicate the system and connection status, and WPS activity. LED Back: WPS Button Bottom: DC Jack, 2 x LAN Ethernet ports, SIM card slot, Reset button Lan Ports DC Jack Reset button SIM card slot Reset Button Slide the needle tool into the hole and push the reset button for more than 3 seconds to perform a factory reset (resets all settings back to factory defaults) WPS Press the WPS button on the button of the router to activate WPS. WPS is an easy way to add Wi-Fi devices to your network. Refer to Wi-Fi Settings > WPS for more information. WPS 3. Setting Up Your 5G NR Home Router Disconnect any existing router from your network before installation. 1. Plug the router into a power outlet with the included power adapter. 2. Wait for a couple of minutes for the router to power up, and then go to 4. Login to your LTE Home Router to login to your router and configure settings such as Wi-Fi security. 3.1 Positioning your router For the best wireless signal transmission from the router to your network devices: - Place the router in a central area. - Keep the router away from metal obstructions and away from direct sunlight. - Keep the router away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss. 3.2 Setup requirements To configure your wireless network via computer, you need a computer that meets the following system requirements: - Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/1000BaseTX) - IEEE 802.11a/b/g/n/ac/ax wireless capability - An installed TCP/IP service - Web browser such as Internet Explorer, Firefox, Safari, or Google Chrome 4. Login to Your Home Router You can configure your router’s network settings by computer or mobile app, using the Web User Interface (Web UI). First connect to your router, then access the Web UI, as shown below. Your router is pre-set with WPA2 security, but it’s recommended to immediately change the default Wi-Fi password, as well as the Web UI login password. 4.1 Connect by Mobile App 1. Scan available Wi-Fi networks with your mobile device: 2. Select either of the networks named: Verizon_xxxxxx 3. Enter your password, which can be found on your router’s product label. Login to the Web User Interface 1. Open the Verizon router App. 2. Log in using the default username: admin and password: admin 3. Go to Wi-Fi Settings to change your Wi-Fi password and Device Settings > Admin Password to change your Web UI login password, and remember to save your settings. 4. Check 5. Web User Interface in this guide for more information about your router’s settings. 4.2 Connect by computer 1. Scan available Wi-Fi networks with your computer. 2. Select either of the networks named: Verizon_xxxxxx 3. Enter your password, which can be found on your router’s product label 4. If preferred, you can use an Ethernet cable to connect your computer to the router’s LAN port for configuration (instead of Wi-Fi). Simply connect the two devices’ LAN ports by Ethernet cable. Login to the Web User Interface 1. Open a web browser and enter the router’s default address http://192.168.0.1 in the address bar. 2. Log in to the Web UI using the default username: admin and password: admin 3. Go to Wi-Fi Settings to change your Wi-Fi password and Device Settings > Admin Password to change your Web UI login password, and remember to save your settings. 4. Check 5. Web User Interface in this guide for more information about your router’s settings. 5. Web User Interface Your router’s Web User Interface (Web UI) allows you to setup and configure its various functions. Menu Use the left side menu to navigate: Save Remember to save your settings with the save button after making changes. 5.1 Home > Home The Home page shows a snapshot of your network status and key system information. Network Status should display Connected to indicate an LTE connection. If you don’t see this, check the router’s LEDs and refer to Troubleshooting to diagnose the problem. System Information Network Status Displays the MAC address of your router. A MAC Address is a unique fixed identifier for any device on a network. WPS Specify the IP address here. This IP address will be assigned to your router and will replace the default IP address. IP Address Specify a subnet mask. The default value is 255.255.255.0 MAC Address Displays the MAC address of your router. A MAC Address is a unique fixed identifier for any device on a network. Software Version Displays the current software version your router is running. 5.2 Wi-Fi Settings The Wi-Fi Settings screen displays advanced settings for your router’s Wi-Fi. Advanced Wi-Fi Settings > Advanced The advanced page including the Me…

Text truncated - open the document above for the full version.

Askey Computer Corp 10F, No. 119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, Taiwan Tel: 886 2 2228-7588 ; Fax: 886 2 3234-9340 Date: March 25, 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: H8N-ASK-NCQ1338 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ John Chiou [email protected]

Askey Computer Corp 10F, No. 119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, Taiwan Tel: 886 2 2228-7588 ; Fax: 886 2 3234-9340 Date: March 25, 2021 To whom it may concern, Please be notified that I, John Chiou, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the product of as following: FCC ID: H8N-ASK-NCQ1338 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Sincerely yours, John Chiou [email protected]

PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 1 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 1. External Photograph of EUT Brand Name: Verizon Internet Gateway / Model Name: ASK-NCQ1338 PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 2 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 3 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 4 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 5 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 6 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 7 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 2. Photograph of Accessory Brand Name: Verizon Internet Gateway / Model Name: ASK-NCQ1338 Specification of Accessory AC Adapter 1 Brand Name Sunny-Group Model Name SYS1652-3612-W2 AC Adapter 2 Brand Name Flypower Model Name PS24L120K2000UD RJ45 Cable Brand Name SHENZHEN ETERNITY JU ELECTRON Corp. Model Name YX-920 Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 8 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 9 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 AC Adapter 1 PHOTOGRAPHS OF EUT Report No.: EP110616 TEL : 886-3-327-3456 Page Number : 10 of 68 FAX : 886-3-328-4978 Issued Date : Apr. 12, 2021 Report Version : 01 AC Adapter 2

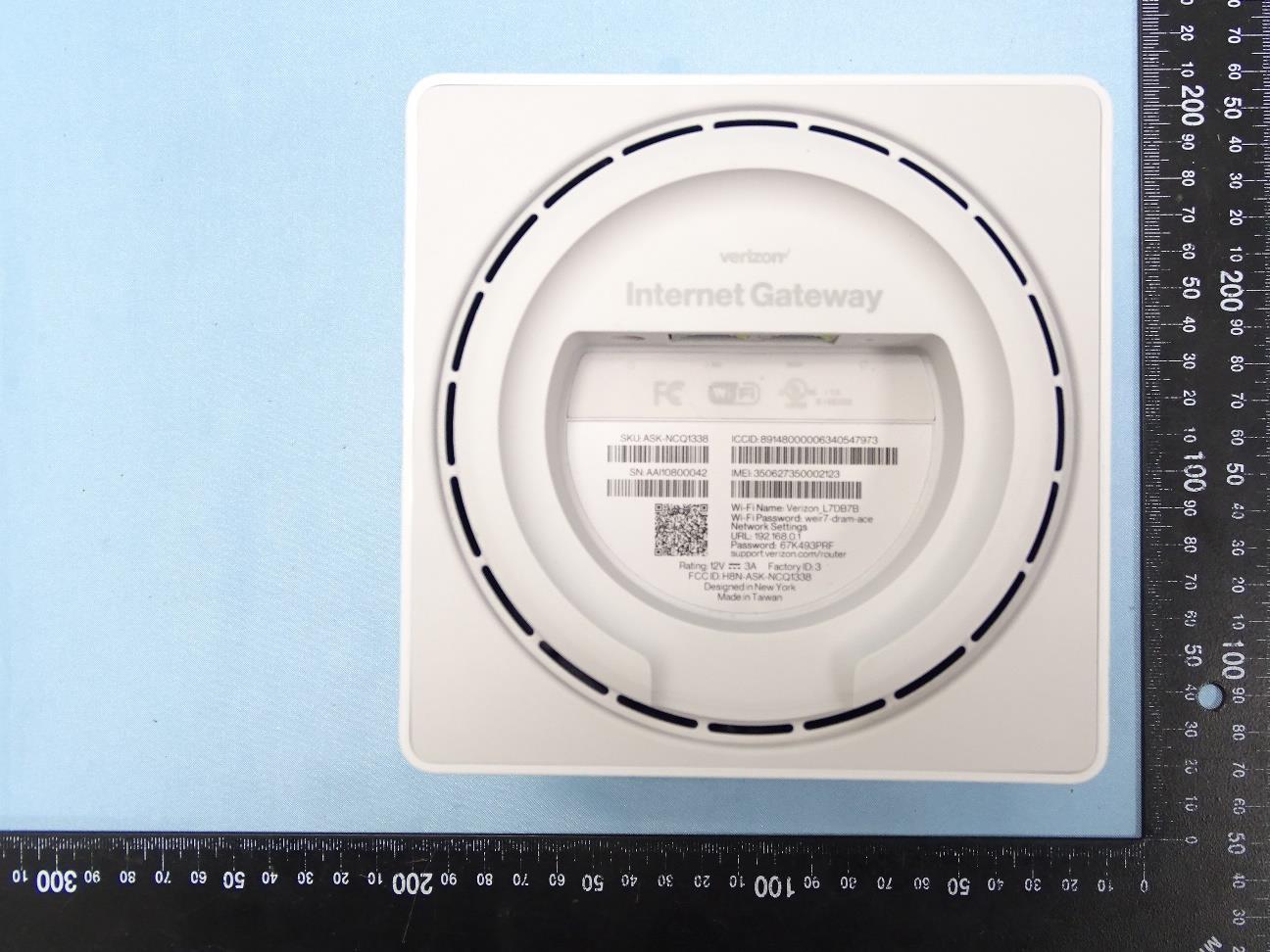

Bottom of the device Label location
