H8N-BTM850WCable Modem

BT-M850W Cable Modem User’s Manual Rev:01 2002/09/19 ii Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. The seller provides this documentation without warranty, term, or condition of any kind. The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners. 2002/09/19 Rev:01 000083081-cme EMTA User Manual iii Safety Notes For Installation n Use only the type of power source indicated on the marking labels. n Use only the power adapter supplied with the product. n Do not overload wall outlet or extension cords as this may increase the risk of electric shock or file. If the power cord is frayed, replace it with a new one. n Proper ventilation is necessary to prevent the product overheating. Do not block or cover the slots and openings on the device, which are intended for ventilation and proper operation. It is recommended to mount the product with a stack. n Do not place the product near any source of heat or expose it to direct sunshine. n Do not expose the product to moisture. Never spill any liquid on the product. n Do not attempt to connect with any computer accessory or electronic product without instructions from qualified service personnel. This may result in risk of electronic shock or file. n Do not place this product on an unstable stand or table. For Using n Power off and unplug this product from the wall outlet when it is not in use or before cleaning. Pay attention to the temperature of the power adapter. The temperature might be high. n After powering off the product, power on the product at least 15 seconds later. n Do not block the ventilating openings of this product. n When the product is expected to be not in use for a period of time, unplug the power cord of the product to prevent it from the damage of storm or sudden increases in rating. For Service Do not attempt to disassemble or open covers of this unit by yourself. Nor should you attempt to service the product yourself, which may void the user’s authority to operate it. Contact qualified service personnel under the following conditions: n If the power cord or plug is damaged or frayed. n If liquid has been spilled into the product. n If the product has been exposed to rain or water. n If the product does not operate normally when the operating instructions are followed. n If the product has been dropped or the cabinet has been damaged. n If the product exhibits a distinct change in performance. Warning n "WARNING - FCC RF exposure requirements: The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. " n This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution n Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. Contents iv Contents Before You Use.....................................................................................................vi Features.....................................................................................................vi System Requirements..................................................................................vi Unpacking..................................................................................................vii Chapter 1: Overview.............................................................................................1 Physical Outlook..........................................................................................1 Front Panel........................................................................................1 Rear Panel.........................................................................................2 Chapter 2: Installation..........................................................................................3 Connecting the Cable Modem to Your Computer.............................................3 Installation Procedure for Ethernet Interface........................................3 Installation Procedure for USB Interface..............................................3 Chapter 3: Software Installation and Configuration.............................................5 USB Driver Installation.................................................................................5 For Windows 98/ME...........................................................................5 For Windows 2000/XP........................................................................7 Uninstall USB Driver....................................................................................9 For Windows 98/ME...........................................................................9 For Windows 2000/XP........................................................................9 Setting TCP/IP on Client PC........................................................................11 For Windows 98/ME.........................................................................11 For Windows 2000/XP......................................................................15 DHCP Server.............................................................................................18 For Windows 98/ME.........................................................................18 For Windows NT/2000/XP.................................................................19 For App…

Text truncated - open the document above for the full version.

AA BB CC DD EE 4 4 3 3 2 2 1 1 (BCM3360) CPU/MAC/PHY SDRAM16MB FLASH8MB EBI INTERFACE WIRELESS 802.11 MODULE POWERSUPPLY 12VDCWallTransformer +1.8V +5.0V USDS Console PortandResetControl BTM850W Cable Modem with Wireless Access Point Block Diagram FrontPanelLED's TUNER (BCM3415/BCM3401) AND DIPLEXER +3.3V 10/100baseT (Port 1) MII EPHY INTERFACE EPHY SWITCH (BCM5325M) 10/100baseT (Port 2)10/100baseT (Port 3)10/100baseT (Port 4) USB Upstream Port HPNA INTERFACE HPNA RJ11 HPNA AFE(BCM4100) BCM93360 V1.0 BTM850W Block Diagram C 18 Thursday, September 12, 2002 TitleSize Document Number Rev Date: Sheet of

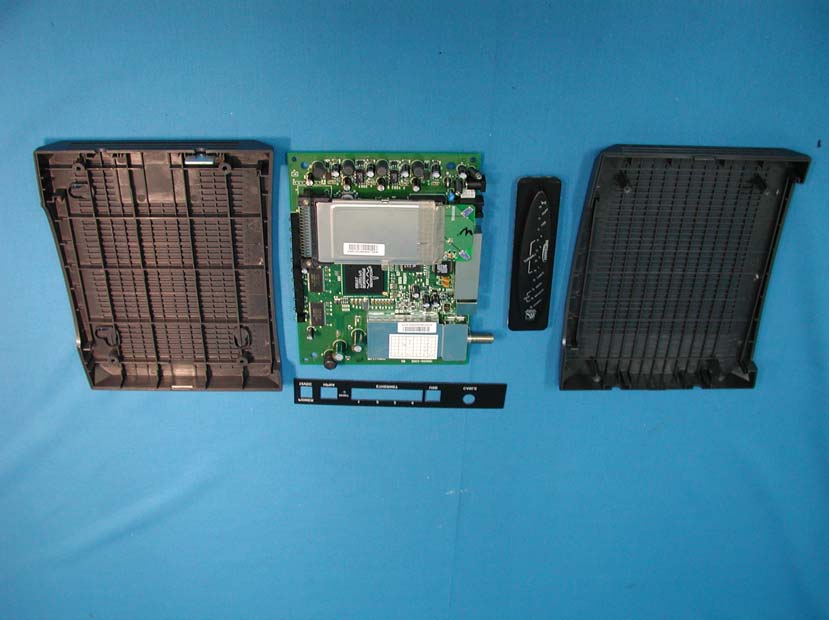

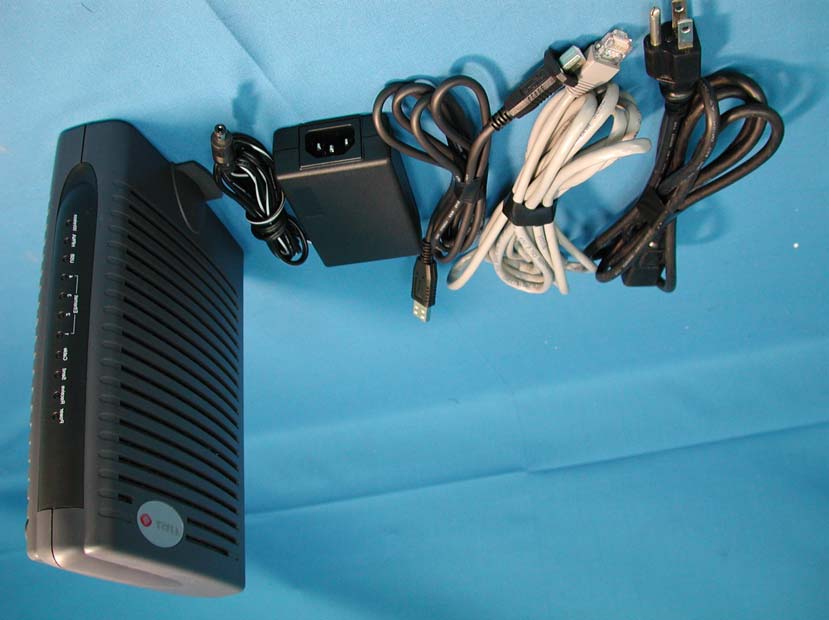

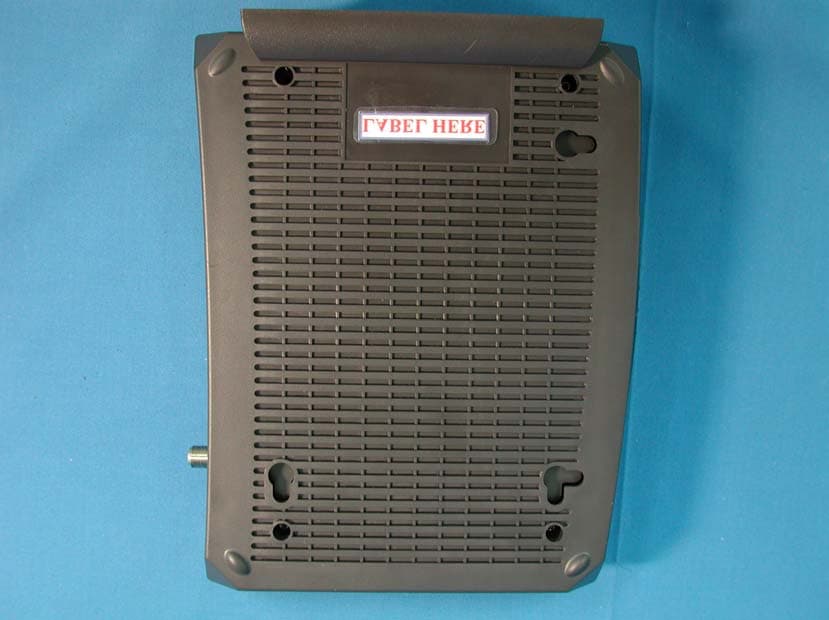

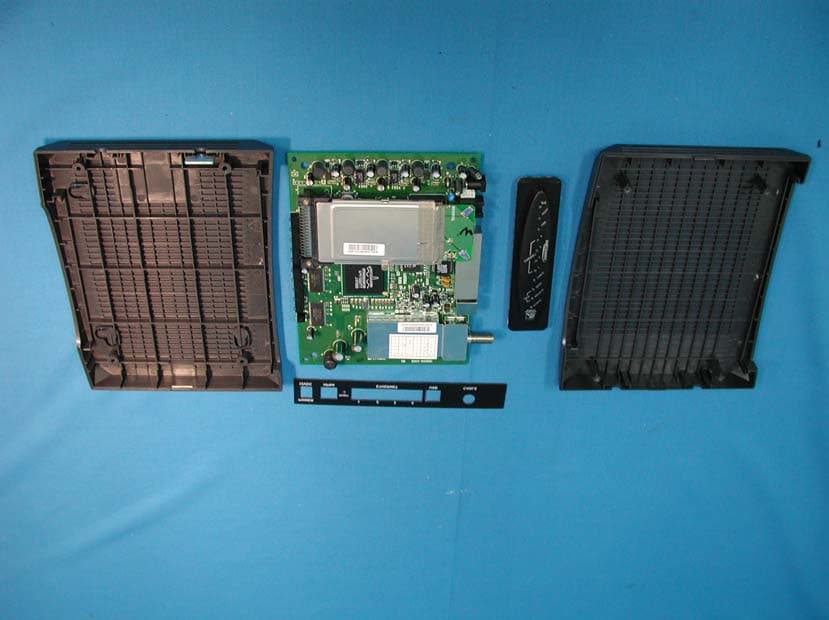

Report No.: 02BH011FI Page : 1 of 12 Version:1.0 Attachment 2 : EUT Detailed Photographs Mode 1 (1) EUT Photo (2) EUT Photo Report No.: 02BH011FI Page : 2 of 12 Version:1.0 Mode 2 (3) EUT Photo (4) EUT Photo Report No.: 02BH011FI Page : 3 of 12 Version:1.0 (5) EUT Photo (6) EUT Photo

ASKEY COMPUTER CORP. FCC ID.: H8N-BTM850W 10F, NO.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C.. Tel: 886 2 2228-7588 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Cable Modem ASKEY Model No.: BT-M850W TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Cable Modem Model No.: BT-M850W F F C C C C I I D D : : H H 8 8 N N - - B B T T M M 8 8 5 5 0 0 W W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 02BH011FI Page : 3 of 12 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 02BH011FI Page : 4 of 12 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 02BH011FI Page : 5 of 12 Version:1.0 (9) EUT Photo Report No.: 02BH011FI Page : 6 of 12 Version:1.0 (10) EUT Photo Report No.: 02BH011FI Page : 7 of 12 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 02BH011FI Page : 8 of 12 Version:1.0 (13) EUT Photo Report No.: 02BH011FI Page : 9 of 12 Version:1.0 (14) EUT Photo Report No.: 02BH011FI Page : 10 of 12 Version:1.0 (15) EUT Photo-Mode 1 (16) EUT Photo-Mode 1 Report No.: 02BH011FI Page : 11 of 12 Version:1.0 (17) EUT Photo-Mode 2 (18) EUT Photo-Mode 2 Report No.: 02BH011FI Page : 12 of 12 Version:1.0 (19) EUT Photo-Mode 2

1.1. Operational Description EUT is a Cable Modem with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is CCK. The device adapts direct sequence spread spectrum modulation. The antenna was solded on PCB provides diversity function to improve the receiving function. This Cable Modem is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Cable Modem transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

55 44 33 22 11 D D C C B B A A +1.8V SUPPLY Straddle these resistors acrossthe GND plane cutout betweenthe RF and DIGITAL ar eas of the board. Locate powerconnector on rearpanel as far from thediplexer aspossible. +3.3V_PCM SUPPLY +5.0V SUPPLY BTM850W 3 Power C 28 Thursday, September 12, 2002 TitleSize Document Number Rev Date: Sheet of +12V R +1.8V +12V +12V +12V +3.3V_TUNER +3.3V +12V R R R R R +5V C2800.1uF R16 0/1206 1 2 R17 0/1206 1 2 R24390K D6 1N4148 1 2 R20390 D7 1N5819 12 C324700pF/50V R25 0.33/2010 + C33 100uF/25V-E/C C29 0.1uF-DNP L6 270uH/DIP C31390pF/50V C6 1uF/25V C10 4700pF/50V R9 3.01K/1% R27 2K/0603/1% R263.32K/0603/1% C340.1uF C28 1500pF/50V R19390 FB5 AMC3216Q500NT/1206 1 2 R22390K U5 AIC1563/DIP8 8765 4321 BSTISVCCFB GND TC SE SC R4390K + C30 220uF/10V-E/C(LOW ESR) R618412/1% 1 2 U2MC34063A/DIP8 8765 4321 BSTISVCCFB GND TC SE SC R6191.27K/1% 12 C31000pF/50V 12 C9390pF/50V L3 470uH/DIP R23 0/1206 1 2 + C15100uF/25V-E/C D3 1N5819 12 R2390 R7 1.43K/1% + C867100uF/25V-E/C D2 1N4148 1 2 + C869100uF/25V-E/C R3390K C8680.1UF 12 R179390 + C286 1000uF/10V-E/C(LOW ESR) L25 270uH/DIP R181 390K R182390K C283 4700pF R184 3.32K/0603/1% R185 2K/0603/1% D141N5819 12 D13 1N4148 1 2 C282390pF U24 AIC1563/DIP8 8765 4321 BSTISVCCFB GND TC SE SC R180390 R183 0.33/2010 FB28 AMC3216Q500NT/1206 1 2 D11N5400/DO201AD 12 FB2 AMC3216Q500NT/1206 1 2 R21 0/1206 1 2 R18 0/1206 1 2 C7 0.1uF-DNP FB605 AMC3216Q500NT/1206 1 2 J1 DC JACK 21 3 U606LM317/TO-252 1 2 3 4 ADJ OUT IN OUT + C1 100uF/25V-E/C C8700.1UF 12 + C281 220uF/10V-E/C(LOW ESR) L2610uH C279 1uF/25V C13 1500pF/50V C5 DNP 12 C27 1uF/25V C285 0.1uF L1 WBC0610R6H-R6/DIP 1 2 C12 1500pF/50V + C284 100uF/25V-E/C + C8 220uF/10V-E/C(LOW ESR) R50.33/2010 R1390 C2 1000pF/50V 12 C160.1uF C40.1uF 12 L2 WBC0610R6H-R6/DIP 1 2 AA BB CC DD EE 4 4 3 3 2 2 1 1 MODEMRESET NOTE: Route XTAL traces away from DAC output pinsand add GND guard trace toseparate DAC outputs fromXTAL pins Place these resistors inorder, in a column onthe component side ofthe board. GPIO READBACK == "0" IF 1KGPIO READBACK == "1" IF DNP FOR U201U201 PIN 1,14,27,3,9,43,49 先個別 經過㆒個電容再接到 +3.3 V_DIG FOR U202U202 PIN 1,14,27,3,9,43,49 先個別 經過㆒個電容再接到 +3.3V _DIG GPIO READBACK == "1" IF DNP BOARD REVISION LEVEL GPIO READBACK == "0" IF 1K 3360_GPIO113360_GPIO103360_GPIO93360_GPIO8 [DNP, DNP, DNP] = Bcm93360_v0.0= Bcm93360s_v0.0= Bcm93360_v1.0= Bcm93360s_v1.0= TBD= TBD= Bcm93360e11_v0.0= TBD [DNP, DNP, 1K][DNP, 1K, DNP][DNP, 1K, 1K][1K, DNP, DNP][1K, DNP, 1K][1K, 1K, DNP][1K, 1K, 1K][1K][DNP] = HPNA DEPOPULATED= HPNA INSTALLED BCM93360 V1.0 BTM850W CPU & MEMORY D 38 Thursday, September 12, 2002 TitleSize Document Number Rev Date: Sheet of MIPSPLL_VDDSYSPLL_VDDXTAL_VDD WR-N OE-N POR_RESET_N OE-N FLASH-CS FLASH-CS WR-N POR_RESET_N A0 SD_DQ0SD_DQ1SD_DQ2SD_DQ3SD_DQ4SD_DQ5SD_DQ6SD_DQ7SD_DQ8SD_DQ9SD_DQ10SD_DQ11SD_DQ12SD_DQ13SD_DQ14SD_DQ15 SD_DQ16SD_DQ17SD_DQ19SD_DQ18SD_DQ20SD_DQ21SD_DQ22SD_DQ23SD_DQ24SD_DQ25SD_DQ26SD_DQ27SD_DQ28SD_DQ29SD_DQ30SD_DQ31 SD_DQ0SD_DQ1SD_DQ2SD_DQ3SD_DQ4SD_DQ5SD_DQ6SD_DQ7SD_DQ8SD_DQ9SD_DQ10SD_DQ11SD_DQ12SD_DQ13SD_DQ14SD_DQ15SD_DQ18SD_DQ21SD_DQ19SD_DQ23SD_DQ20SD_DQ17SD_DQ16SD_DQ22SD_DQ28SD_DQ30SD_DQ24SD_DQ31SD_DQ27SD_DQ29SD_DQ25SD_DQ26 SD_DQ[31:0] SD_A0SD_A1SD_A2SD_A3SD_A4SD_A5SD_A6SD_A7SD_A8SD_A9SD_A10SD_A11SD_A0SD_A1SD_A2SD_A3SD_A4SD_A5SD_A6SD_A7SD_A8SD_A9SD_A10SD_A11 XTALI _28M SD_A0SD_A1SD_A2SD_A3SD_A4SD_A5SD_A6SD_A7SD_A8SD_A9SD_A10SD_A11 SD_A[11:0] 3360_GPIO9 3360_GPIO53360_GPIO73360_GPIO143360_GPIO6 3360_GPIO11 3360_GPIO23360_GPIO153360_GPIO13 3360_GPIO10 3360_GPIO13360_GPIO12 3360_GPIO8 3360_GPIO03360_GPIO4 3360_GPIO7 3360_GPIO3 SCL 3360_GPIO43360_GPIO8 SDA 3360_GPIO53360_GPIO93360_GPIO113360_GPIO143360_GPIO03360_GPIO123360_GPIO23360_GPIO10 3360_GPIO6 3360_GPIO133360_GPIO13360_GPIO15 D2 D3 D7D8 D8 D13 D15 D6D5 D14 D9D7D6 D13D3 D11 D12 D12D4 D11 D10 D4D1D9D15 D0 D[15:0] D5 D0 D1 D14 D2 D10 A12A13A16A17A14A15A18A21A19A20A22A23 A21A18A13A5A12 A1 A22 A9A16A15 A3 A6 A14A20 A7 A17 A3 A1 A9 A2 A18 A9 A2A20 A6 A10A7 A1 A4A12A21A22A5 A15 A[22:1] A7A6 A5A0 A4 A13A14 A19 A8A10 A19A8 A11 A11 A10A8A17A16 A3 A4A2A11 A23 IO_CS4EBI_TS_NEBI_TA_NEBI_R/W_NEBI_RESET_NAttrib_CS5EBI_TSIZE0EBI_TSIZE1EBI_CLK 3360_GPIO53360_GPIO03360_GPIO23360_GPIO83360_GPIO13360_GPIO143360_GPIO93360_GPIO123360_GPIO133360_GPIO103360_GPIO113360_GPIO15 D[15:0] A[23:0] 3360_GPIO4 EBI_CS3_N +3.3V +3.3V +3.3V +1.8V+1.8V+1.8V +1.8V +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V+3.3V +3.3V +3.3V C761000pF/50V 12 C681000pF/50V 12 FB8 AMB1608R601NT 1 2 C73 0.1UF 12 C75 0.1UF 12 C74 0.1UF 12 C691000pF/50V 12 C774.7uF/16V/CCA 12 C540.1UF 12 C480.1UF 12 C400.1UF 12 C630.1UF 12 R4110K 12 C640.1UF 12 C450.1UF 12 C5710uF/10V/CCA 12 FB6 AMB1608R601NT 1 2 C5810uF/10V/CCA 12 C3610uF/10V/CCA 12 C870.1uF C880.1uF C860.1uF C890.1uF C900.1uF C910.1uF C92 0.1uF C3510uF/10V/CCA 12 C420.1UF 12 4M x 16SDRAM54 TSOP U7SDRAM_4Mx16-100_tsop 1 14 16 3 41 2 54 6 18 4 192339 5 15 7 24 810 25 1113 26 4244 29 4547 30 4850 31 5153 3233342221173738 9 43 49 12 46 52 3520 27 28 VDD VDD WE_N VDDQ VSS DQ0 VSS VSSQ RAS_N DQ1 CS_NA0DQMH DQ2 DQML DQ3 A1 DQ4DQ5 A2 DQ6DQ7 A3 DQ8DQ9 A4 DQ10DQ11 A5 DQ12DQ13 A6 DQ14DQ15 A7A8A9A10BA1CAS_NCKECLK VDDQ VDDQ VDDQ VSSQ VSSQ VSSQ A11BA0 VDD VSS C470.1UF 12 C650.1UF 12 C940.1UF 1 2 C430.1UF 12 C564.7uF/16V/CCA 12 FB7 AMB1608R601NT 1 2 C600.1UF 12 C520.1UF 12 C3710uF/10V/CCA 12 C440.1UF 12 C704.7uF/16V/CCA 12 C490.1UF 12 4M x 16SDRAM54 TSOP U9SDRAM_4Mx16-100_tsop 1 14 16 3 41 2 54 6 18 4 192339 5 15 7 24 810 25 1113 26 4244 29 4547 30 4850 31 5153 3233342221173738 9 43 49 12 46 52 3520 27 28 VDD VDD WE_N VDDQ VSS DQ0 VSS VSSQ RAS_N DQ1 CS_NA0DQMH DQ2 DQML DQ3 A1 DQ4DQ5 A2 DQ6DQ7 A3 DQ8DQ9 A4 DQ10DQ11 A5 DQ12DQ13 A6 DQ14DQ15 A7A8A9A10BA1CAS_NCKECLK VDDQ VDDQ VDDQ VSSQ VSSQ VSSQ A11BA0 VDD VSS C551000pF/50V 12 C390.1UF 12 C530.1UF 12 C620.1UF 12 C500.1UF 12 Y128MHz Cload = 20pFTol/Stability = 15/30 ppm 12 R30 10K 1 2 R29 0 1 2 C97 22PF 1 2 C3810uF/10V/CCA 12 0-DNP RC6 1 2 C410.1UF 12 C460.1UF 12 C610.1UF 12 C59 0.1UF 12 …

Text truncated - open the document above for the full version.

Report No. 02BH011FI Page: 1 of 48 Version:1.0 Test Report Product Name : Cable Modem Model No.: BT-M850W FCC ID.: H8N-BTM850W Applicant : ASKEY COMPUTER CORP. Address : 10F, NO.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. Date of Receipt : Sep. 23, 2002 Date of Test : Oct. 15, 2002 Report No. : 02BH011FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 02BH011FI Page: 2 of 48 Version:1.0 Test Report Certification Test Date : Oct. 15, 2002 Report No. : 02BH011FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Cable Modem Applicant : ASKEY COMPUTER CORP. Address : 10F, NO.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. Manufacturer : ASKEY COMPUTER CORP. Model No. : BT-M850W FCC ID. : H8N-BTM850W Rated Voltage : AC 120V/60Hz Trade Name : ASKEY Measurement Standard : FCC Part 15 Subpart C Paragraph 15.247 Measurement Procedure : ANSI C63.4: 1992 Test Result : Complied Documented By : (Ginny Peng ) Tested By : (Ken Hsu ) Approved By : ( Kevin Wang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200347-0 Report No. 02BH011FI Page: 3 of 48 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................9 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................12 2.5. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Result of Peak Power Output...............................................................................................16 4. RF Exposure Evaluation ...........................................................................................................17 4.1. Fries Formula ..............................................................................................................................17 4.2. EUT Operation condition ............................................................................................................17 4.3. Test Result of RF Exposure Evaluation.......................................................................................18 5. Radiated Emission .....................................................................................................................19 5.1. Test Equipment............................................................................................................................19 5.2. Test Setup ....................................................................................................................................19 5.3. Limits ..........................................................................................................................................20 5.4. Test Procedure .............................................................................................................................21 5.5. Test Result of Radiated Emission................................................................................................22 6. Band Edge ..................................................................................................................................31 6.1. Test Equipment............................................................................................................................31 6.2. Test Setup ....................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 02BH011FI Page : 1 of 5 Version:1.0 XAttachment 1: EUT Test Setup Photographs Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) Report No.: 02BH011FI Page : 2 of 5 Version:1.0 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) Report No.: 02BH011FI Page : 3 of 5 Version:1.0 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) Report No.: 02BH011FI Page : 4 of 5 Version:1.0 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2) Report No.: 02BH011FI Page : 5 of 5 Version:1.0 Front View of Radiated Test (Horn)
