H8N-DPR23252.4GHz Wireless Mini PCI Card

54Mbps 802.11g Wireless LAN CardUser’s Manual Information in this document is subject to change without notice. No part of this document may bereproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose,without the express written permission of the seller.The seller provides this documentation without wa rranty, term, or condition of any kind. The seller may make improvements or changes in the product(s) and/or the program(s) described in thisdocumentation at any time.Other product and company names herein may be trademarks of their respective owners. 2002 All rights reserved. Rev: 01January 2003 I ContentsAbout This Manual ............................................................................................................................... ......................... V Chapter 1 Introduction ............................................................................................................................... ................ 1 Wireless LAN Basics ............................................................................................................................... .................... 2 Local Area Network (LAN) ............................................................................................................................... ......................... 2 Ad-Hoc Mode ............................................................................................................................... ............................................. 3 Infrastructure Mode ............................................................................................................................... ................................... 4 Roaming ............................................................................................................................... ..................................................... 5 Chapter 2 Installing the Wireless LAN Card ............................................................................................................ 7 System Requirements ............................................................................................................................... .................. 7 Installing Wireless LAN Driver and Software .............................................................................................................. 8 Chapter 3 Using Broadcom Wireless Configuration Utility ................................................................................. 11 Accessing Broadcom Wirele ss Configuration Utility ................................................................................................. 12 Notice When Assessing Broadcom Utility under Windows XP ............................................................................................... 12 Wireless Networks Tab ............................................................................................................................... .............. 15 Connecting to an Existing Wireless Network .......................................................................................................................... 15 Configuring a New Wireless Network Connection .................................................................................................................. 17 54Mbps 802.11g Wireless LAN CardII Configuring an Existing Wireless Network Connection .......................................................................................................... 20 Specifying a Network Type to Access ............................................................................................................................... ....... 21 Link Status Tab ............................................................................................................................... .......................... 22 Statistics ............................................................................................................................... ..................................... 25 Site Monitor ............................................................................................................................... ................................ 26 Advanced Site Monitor ............................................................................................................................... ............................. 29 Diagnostics Tab ............................................................................................................................... ......................... 32 Information Tab ............................................................................................................................... .......................... 35 Chapter 4 Windows XP Wireless Zero Configuration Utility ............................................................................... 37 Connecting to an Access Point or Wireless LAN Card ........................................................................................................... 37 Viewing Wireless Connection Status ............................................................................................................................... ........ 39 Configuring Your Wireless Properties ............................................................................................................................... ..... 40 Chapter 7 Troubleshooting ............................................................................................................................... ...... 47 Radio Interference ............................................................................................................................... ...................... 47 Card Not Detected ............................................................................................................................... ..................... 48 Cannot Connect to Another Wireless LAN Card .....................…

Text truncated - open the document above for the full version.

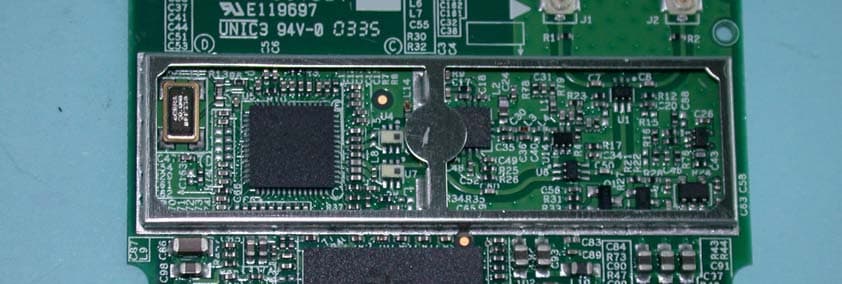

FCC ID: H8N-DPR2325 Report No.: 930202R01C Modular Approval Request Letter Advance Data Technology August 04, 2004 Dear Application Examiner, ASKEY COMPUTER CORP., It’s 2.4GHz Wireless Mini PCI Card, FCC ID: H8N-DPR2325, would like to have your authorization as a limited modular approval specific to the mobile device such as Access Point. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4306. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 1.80V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is LP298518. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H8N-DPR2325 Report No.: 930202R01C 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Cody Chang / Supervisor Advance Data Technology

Page 4 Page 5 Page 6

FCC ID Label Location

Page 4 Page 5 Page 6

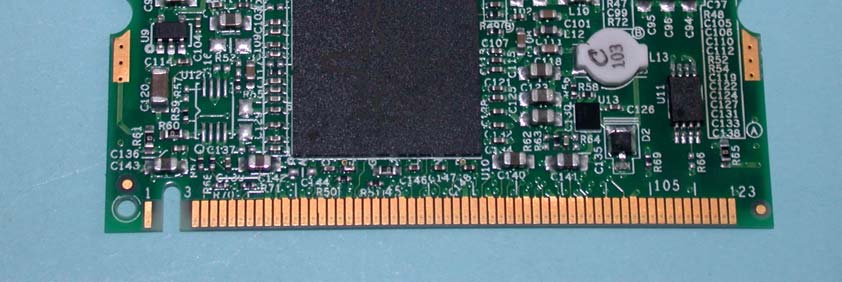

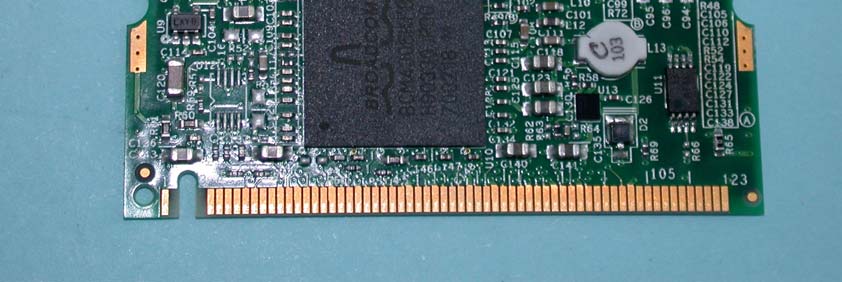

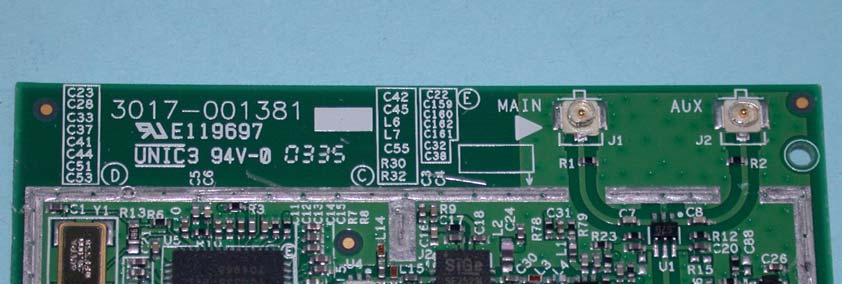

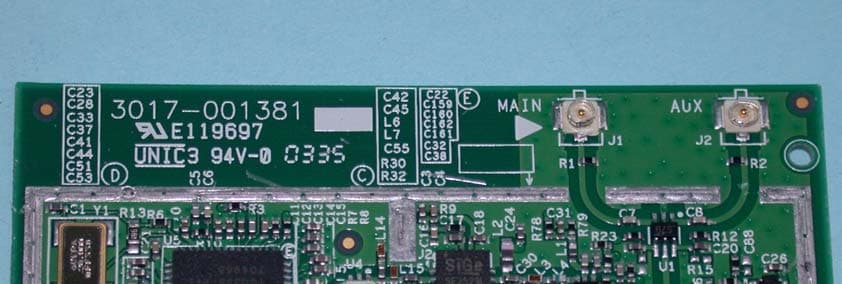

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: H8N-DPR2325 Report No.: RF930202R01C Operational Description This device is a 2.4GHz Wireless Mini PCI Card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment and connected with managing equipment through PCMCIA. The antennas are PCB antenna and Dipole antenna with UFL connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: H8N-DPR2325 Report No.: RF930202R01C1Issued: August 04, 2004 FCC TEST REPORT REPORT NO.: RF930202R01C MODEL NO.: DPR2325 SERIES CABLE MODEM P/N: XXXXXXX RECEIVED: NA TESTED: February 03 ~ May 27, 2004 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 78 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agency. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: H8N-DPR2325 Report No.: RF930202R01C2Issued: August 04, 2004 Table of Contents 1CERTIFICATION ...................................................................................................4 2SUMMARY OF TEST RESULTS ...........................................................................5 3GENERAL INFORMATION....................................................................................6 3.1GENERAL DESCRIPTION OF EUT ......................................................................6 3.2DESCRIPTION OF TEST MODES ........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................7 3.4DESCRIPTION OF SUPPORT UNITS ..................................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST ...................................................8 4TEST TYPES AND RESULTS ...............................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ........................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................9 4.1.2TEST INSTRUMENTS...........................................................................................9 4.1.3TEST PROCEDURES .........................................................................................10 4.1.4DEVIATION FROM TEST STANDARD ...............................................................10 4.1.5TEST SETUP....................................................................................................... 11 4.1.6EUT OPERATING CONDITIONS ........................................................................ 11 4.1.7TEST RESULTS ..................................................................................................12 4.2RADIATED EMISSION MEASUREMENT ...........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.........................................18 4.2.2TEST INSTRUMENTS.........................................................................................19 4.2.3TEST PROCEDURES .........................................................................................20 4.2.4DEVIATION FROM TEST STANDARD ...............................................................20 4.2.5TEST SETUP.......................................................................................................21 4.2.6EUT OPERATING CONDITIONS ........................................................................21 4.2.7.TEST RESULTS ..................................................................................................22 4.2.8.TEST RESULTS (A) ............................................................................................26 4.2.9.TEST RESULTS (B) ............................................................................................32 4.36dB BANDWIDTH MEASUREMENT...................................................................38 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................38 4.3.2TEST INSTRUMENTS.........................................................................................38 4.3.3TEST PROCEDURE............................................................................................39 4.3.4DEVIATION FROM TEST STANDARD ...............................................................39 4.3.5TEST SETUP.......................................................................................................39 FCC ID: H8N-DPR2325 Report No.: RF930202R01C3Issued: August 04, 2004 4.3.6EUT OPERATING CONDITIONS........................................................................39 4.3.7TEST RESULTS (A) ............................................................................................40 4.3.8TEST RESULTS (B) ............................................................................................44 4.4MAXIMUM PEAK OUTPUT POWER ..................................................................48 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................48 4.4.2TEST INSTRUMENTS.........................................................................................48 4.4.3TEST PROCEDURES .........................................................................................49 4.4.4DEVIATION FROM TEST STANDARD ...............................................................49 4.4.5TEST SETUP.......................................................................................................49 4.4.6EUT OPERATING CONDITIONS ........................................................................49 4.4.7TEST RESULTS (A) ............................................................................................50 4.4.8TEST RESULTS (B) ............................................................................................51 4.5POWER SPECTRAL DENSITY MEASUREMENT..............................................52 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...........................52 4.5.2TEST INSTRUMENTS.................................................…

Text truncated - open the document above for the full version.

FCC ID: H8N-DPR2325 Report No.: RF930202R01C51Issued: August 04, 2004 4.4.8 TEST RESULTS (B) EUT 2.4GHz Wireless Mini PCI Card MODEL DPR2325 SERIES CABLE MODEM P/N: XXXXXXX INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18 deg. C, 64% RH, 991 hPa TESTED BY: Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241215.0430PASS 6243715.0830PASS 11246215.0030PASS FCC ID: H8N-DPR2325 Report No.: RF930202R01C52Issued: August 04, 2004 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: H8N-DPR2325 Report No.: RF930202R01C53Issued: August 04, 2004 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6 EUT SPECTRUM ANALYZER FCC ID: H8N-DPR2325 Report No.: RF930202R01C54Issued: August 04, 2004 4.5.7 TEST RESULTS (A) EUT 2.4GHz Wireless Mini PCI Card MODEL DPR2325 SERIES CABLE MODEM P/N: XXXXXXX INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18 deg. C, 64% RH, 991 hPa TESTED BY: Ansen Lei CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-11.008PASS 62437-11.668PASS 112462-11.278PASS FCC ID: H8N-DPR2325 Report No.: RF930202R01C55Issued: August 04, 2004 CH1 FCC ID: H8N-DPR2325 Report No.: RF930202R01C56Issued: August 04, 2004 CH6 FCC ID: H8N-DPR2325 Report No.: RF930202R01C57Issued: August 04, 2004 CH11 FCC ID: H8N-DPR2325 Report No.: RF930202R01C58Issued: August 04, 2004 4.5.8 TEST RESULTS (B) EUT 2.4GHz Wireless Mini PCI Card MODEL DPR2325 SERIES CABLE MODEM P/N: XXXXXXX INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18 deg. C, 64% RH, 991 hPa TESTED BY: Ansen Lei CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-13.348PASS 62437-13.318PASS 112462-14.888PASS FCC ID: H8N-DPR2325 Report No.: RF930202R01C59Issued: August 04, 2004 CH1 FCC ID: H8N-DPR2325 Report No.: RF930202R01C60Issued: August 04, 2004 CH6 FCC ID: H8N-DPR2325 Report No.: RF930202R01C61Issued: August 04, 2004 CH11 FCC ID: H8N-DPR2325 Report No.: RF930202R01C62Issued: August 04, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 1MHz and 1kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6. FCC ID: H8N-DPR2325 Report No.: RF930202R01C63Issued: August 04, 2004 4.6.6 TEST RESULTS (A) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). Mode A NOTE: The band edge emission plot on the following 1 ~ 2 pages show 54.17dB delta between carrier maximum power and local maximum emission in restrict band (2.3866GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 103.74dBuV/m, so the maximum field strength in restrict band is 103.74 – 54.17 = 49.57dBuV/m which is under 54 dBuV/m limit. NOTE: The band edge emission plot on the following 3 ~ 4 pages show 49.58dB delta between carrier maximum power and local maximum emission in restrict band (2.4838GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 102.76dBuV/m, so the maximum field strength in restrict band is 102.76 – 49.58 = 53.18dBuV/m which is under 54 dBuV/m limit. Mode B NOTE: The band edge emission plot on the following 1 ~ 2 pages show 54.17dB delta between carrier maximum power and local maximum emission in restrict band (2.3866GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 103.44dBuV/m, so the maximum field strength in restrict band is 103.44 – 54.17 = 49.27dBuV/m which is under 54 dBuV/m limit. NOTE: The band edge emission plot on the following 3 ~ 4 pages show 49.58dB delta between carrier maximum power and local maximum emission in restrict band (2.4838GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 100.72dBuV/m, so the maximum field strength in restrict band is 100.72 – 49.58 = 51.14dBuV/m which is under 54 dBuV/m limit. FCC ID: H8N-DPR2325 Report No.: RF930202R01C64Issued: August 04, 2004 FCC ID: H8N-DPR2325 Report No.: RF930202R01C65Issued: August 04, 2004 FCC ID: H8N-DPR2325 Report No.: RF930202R01C66Issued: August 04, 2004 FCC ID: H8N-DPR2325 Report No.: RF930202R01C67Issued: August 04, 2004 FCC ID: H8N-DPR2325 Report No.: RF930202R01C68Issued: August 04, 2004 4.6.7 TEST RESULTS (B) The spectrum plots are attached on the following 4 pages. D2 line indicat…

Text truncated - open the document above for the full version.

FCC ID: H8N-DPR2325 Report No.: RF930202R01C74Issued: August 04, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: H8N-DPR2325 Report No.: RF930202R01C75Issued: August 04, 2004 FCC ID: H8N-DPR2325 Report No.: RF930202R01C76Issued: August 04, 2004 RADIATED EMISSION TEST FCC ID: H8N-DPR2325 Report No.: RF930202R01C77Issued: August 04, 2004
