H8N-SDM8821onn. 2K Streaming Stick

Cut line Fold line Copy safe area Outside bleed Glue area This document is intended only for use as a reference for the individual or entity to which it is being presented and may contain information which is privileged and confidential. No reproduction or distribution is permitted without the consent of r-pac International Corporation. WHAT’S IN THE BOX Check to make sure you have everything below. o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for help. This equipment generates and uses radiate radio frequency energy, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to correct the interference by one or more of the following measures: Google Assistant Home Back Volume down Volume up Input Channel up Channel down Mute TV Guide Standby on/o Setting Bookmark Left/Right direction buttons Enter REMOTE CONTROL Let’s Get Started ! Here’s what you’ll need to get set up: SAFETY INFORMATION COMPLIANCECOMPLIANCECOMPLIANCECOMPLIANCE U.S. FCC Statement FCC IDH8N-SDM8821 Rating: DC5V, 1A Operation Temperature: 0~40ºC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Google, Google Play, YouTube, Android TV and other marks are trademarks of Google LLC. Netflix is a trademark of Netflix, Inc. All brands contained herein are trademarks of their respective owners. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. This device complies with part 15 of the FCC Rules (SDoC). To learn more details, please visit: https://www.askey.com.tw/gpl_declaration.html Quick Launch Buttons TV Let’s Get Started ! Here’s what you’ll need to get set up: TV WiFi Router • Presence of live parts inside the device! Do not open. Risk of electric shock! • No parts should be repaired by users. • Place the device on a flat, firm and stable surface. Do not put it on a carpet or rug. • Place the device in a well-ventilated location to prevent accumulation of internal heat. • Protect the device from high temperatures, humidity, water and dust. • Do not place any objects near your device that may damage it (e.g. liquid-filled objects or candles). • Do not mix old and new batteries and Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc.) batteries WARNING! TROUBLESHOOTING Step1: Connection • Plug the TV Stick into an HDMI port on your TV set. Note: If it doesn't fityou can also connect the TV via the HDMI extension cable. • Use the included USB power cable and power adaptor to connect your TV Stick to a wall outlet. Note: If the TV set has a power USB port and can provide sucient continuous power, you can also plug the micro-USB cable directly into the TV set port. Step3: Networking Select your WiFi network & key-in the password. Step4: Setup completed Your TV should now be ready! If a TV introduction (tutorial) screen appears, simply press the right arrow button on your remote control to proceed. FRONT BACK Date: 05 Feb 2021 Stock: 157g C2S Size: 18.9" x 3.15" 3.15" 80.01mm 3.15" 80.01mm 18.9" 3.15" 80.01mm 3.15" 80.01mm 18.9" 480.06mm 4 1.TV Stick x1 2.AAA Batterys 3.USB Cable x1 4.HDMI Extension Cable x1 5.Power Adapter x1 HDMI USB AC Adapter 100024646 We’d love to hear from you. Scan with your Walmart app and let us know what you think. onn. 2K Streaming Stick Quick Start Guide Model: 100024646 No display after power on. Confirm your device and TV are powered and turned on. Confirm your HDMI is plugged in and the TV is set to the correct HDMI input. TV has images but no sound. Make sure your TV is not in mute and volume up; then enter your A/V setting menu and select the appropriate sound channel and language. Failed to connect to the network. Make sure your Wi-Fi is functional and your box has a strong enough signal from your router. Remote Control Failure. Replace your Remote Control batteries with new ones, then re-pair it by holding the pairing key on the side of the device for more than 3 seconds. Please use our accessories to avoid any risk. 480.06mm the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. Shielded cables must be …

Text truncated - open the document above for the full version.

ASKEY COMPUTER CORPORATION [March 3, 2021] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement ( ASKEY COMPUTER CORPORATION ) FCC ID: H8N-SDM8821 To Whom It May Concern: We, ASKEY COMPUTER CORPORATION, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number H8N-SDM8821 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2021.3.3). The Limited Agency Agreement expires on (2021.4.30), unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, ------------------------ John Chiou Director

1(2) ASKEY COMPUTER CORPORATION Attention: Certification reviewer RE: Request for Confidentiality FCC ID: H8N-SDM8821 To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1. Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of [please enter 1 to 180] days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure 2(2) Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ John Chiou [Title]Director [Date]2021/3/3

1(1) Askey Computer Corporation 10F, No. 119, Jiankang Rd., Zhonghe Dist., New Taipei City, Taiwan Attention: Certification reviewer RE: Request for Confidentiality FCC ID: H8N-SDM8821 To Whom It May Concern: Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. We are aware that this product had been granted on March 14th, 2021 and the documents already disclosed on FCC website. However, based on the above rationale, we now require a 180-day short-term confidentiality for the above-mentioned documents. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ Name: John Chiou Position: Director Date: 2021-03-23

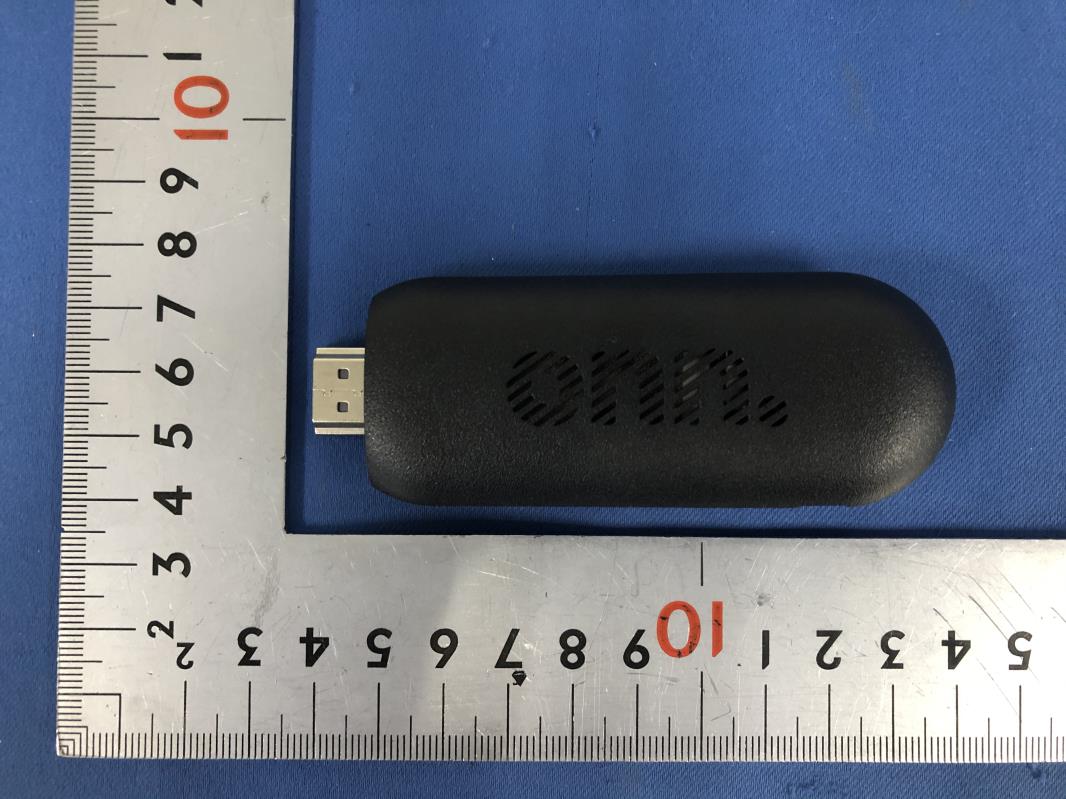

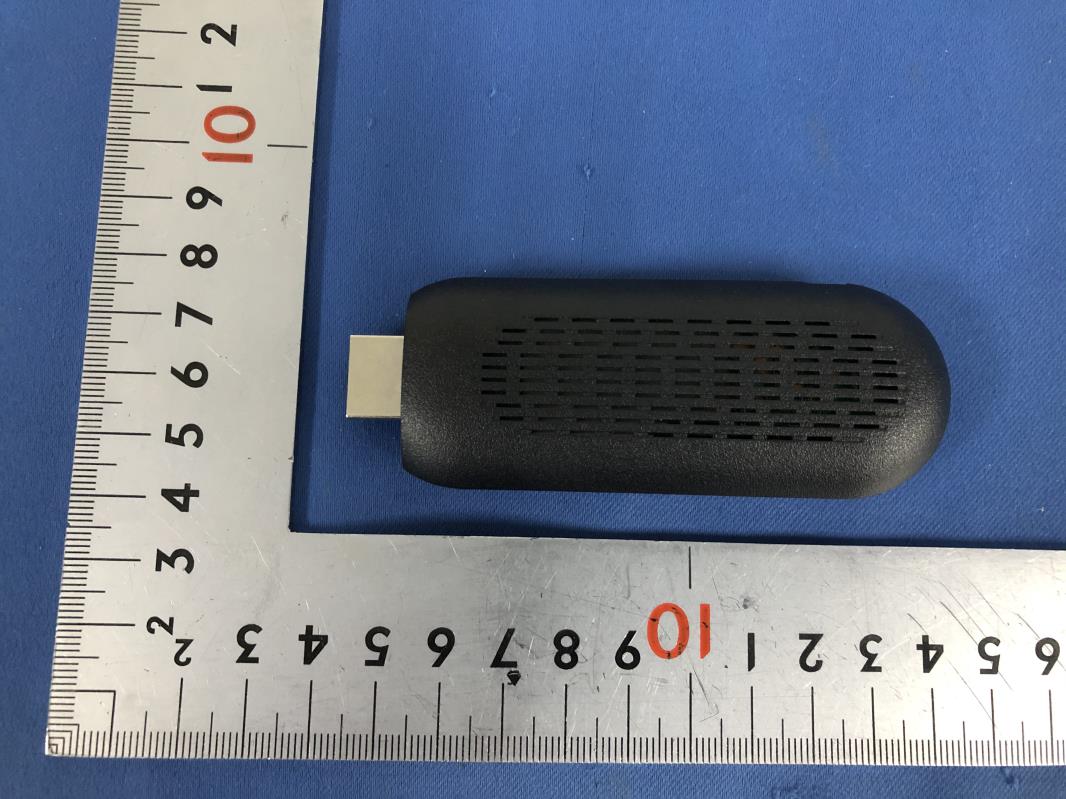

External Photos

LLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLLL36mm 10mm 5019854 SN: SUSA2108000001 SN: SUSA2108000001 Arial Regular,5pt(不能压缩、变形) 8mm 5.5mm 2.86mm 7.2mm 9.5mm 2.142mm 2mm 1.317mm Arial Bold,4pt 16mm16mm Arial Regular,4pt 华曦达科技 DV6073S_Spec_V1 DV6073S Ver 2: 2021.1.26 Ver 1: 2021.1.21 Ver 3: 2021.1.28 Ver 4: 2021.2.9 Ver 5: 2021.2.20 Ver 6: 2021.2.23 100% (1:1) Adobe Illustrator CC Ver 6 见图档 见图档 见图档 440-101-043上盖 440-101-044下盖 (条码左右居中) 条码格式：CODE128格式 上盖,ABS+PC,黑色,表面磨砂. (Wal-Mart Color Standard Rich Black 21067P) 88mm 35mm 15.4mm 98mm 10mm 10mm 下盖,ABS+PC,黑色,表面磨砂. (Wal-Mart Color Standard Rich Black 21067P) 88mm VSN: 100024646 FCC ID: H8N-SDM8821 Made in Vietnam Rating: 5.0V 1.0A onn. 2K Streaming Stick 文字/图标延展到弧面镭雕 SN条码延展到弧面镭雕 SUSA2108000001 (SUSA+年年+周周+000001) 供应商来料空白 立讯工厂镭雕 V1升V2版本:供应商部分镭雕改成供应商来料空白， 立讯工厂全部镭雕。 V2升V3版本:1.增加FCC ID号码H8N-SDM8821; 2.条码由ITF-14格式更新为CODE 128格式。 V3升V4版本:1.增加ETL号码5019854; 2.条码镭雕尺寸更新为40x6.5mm; TOP BOTTOM Right 肖爱兰 条码尺寸：40x6.5mm 5019854 8.5mm 6.5mm V4升V5版本: SN: SUSA2108000001 字体为Arial Regular,字号5pt， 字体不能压缩、变形。 V5升V6版本:"2K Streaming Stick" 前面 加入"onn. "更新为" onn. 2K Streaming Stick". 0.9mm 40mm 17.641mm 1.306mm VSN: 100024646 FCC ID: H8N-SDM8821 Rating: 5.0V 1.0A onn. 2K Streaming Stick Made in Vietnam

Internal Photos BT Antenna WIFI Antenna

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is an onn. 2K Streaming Stick with Bluetooth 4.2 (dual-mode) function operating in 2402-2480MHz, 2.4G WIFI function operating in 2412-2462MHz and 5G WIFI function operating in 5150MHz~5250 MHz, 5250MHz~5350MHz, 5470MHz-5725MHZ, 5725MHz~5850MHz. The EUT is powered by DC 5V from an adapter. For more detail information pls. refer to the user manual. Bluetooth Version: 4.2 Antenna Type: Integral antenna. Antenna Gain: 0.75dBi. Modulation Type: GFSK, π/4DQPSK, 8DPSK. The nominal radiated output power (e.i.r.p) specified: 5.0dBm (+/- 3dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 103.1dBμV/m at 3m in the frequency 2402MHz (EDR mode) The EIRP = [(FS*D) ^2 / 30] mW = 7.78dBm which is within the production variation. The minimum peak radiated emission for the EUT is 101.2dBμV/m at 3m in the frequency 2480MHz (EDR mode) The EIRP = [(FS*D) ^2 / 30] mW = 5.97dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 8dBm = 6.31mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 5.0 BLE mode can be calculated according to OET 65 as follow: = 6.31mW/ 4 πR^2 = 0.0013 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the Bluetooth frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: H8N-SDM8821 INTERTEK TESTING SERVICES 2.4GHz WiFi: Antenna Type: Integral Antenna. Antenna Gain: 3.29dBi. Modulation Type: BPSK, QPSK, 16QAM, 64QAM, CCK, DQPSK, DBPSK and DSSS. The nominal conducted output power specified: 23dBm (Tolerance: +/-3dB). The maximun conducted output power for the EUT is 25.61dBm in the frequency 2412MHz(IEEE 802.11g) which is within the production variation. The minimum conducted output power for the EUT is 22.71dBm in the frequency 2437MHz(IEEE 802.11b) which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 26dBm +3.29dBi = 29.29dBm = 849.18mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 849.18mW/ 4 πR^2 = 0.169 mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the WIFI frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: H8N-SDM8821 INTERTEK TESTING SERVICES 5GHz WiFi: Antenna Type: Integral Antenna. Antenna Gain: 2.68dBi for each antenna Modulation Type: BPSK, QPSK, 16QAM, 64QAM and OFDM. The nominal conducted output power specified: 12dBm (Tolerance: +/-3dB). The maximun conducted output power for the EUT is 14.24dBm in the frequency 5180MHz(IEEE 802.11 a) which is within the production variation. The minimum conducted output power for the EUT is 11.61dBm in the frequency 5700MHz(IEEE 802.11 a) which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 15dBm +2.68dBi = 17.68dBm =56.61mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 56.61mW/ 4 πR^2 = 0.012 mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the WIFI frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: H8N-SDM8821 INTERTEK TESTING SERVICES For Simultaneous transmitting of 2.4GHz WiFi and 5GHz WiFi, According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 0.169/1 + 0.012/1 = 0.181 < 1 For Simultaneous transmitting of 2.4GHz WiFi and Bluetooth, According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 0.169/1 + 0.0013/1 = 0.1703 < 1 For Simultaneous transmitting of 5GHz WiFi and Bluetooth, According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 0.0013/1 + 0.012/1 = 0.0133< 1 For Simultaneous transmitting of 2.4GHz WiFi, Bluetooth and 5GHz WiFi, According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 0.169/1 + 0.0013/1 + 0.012/1 = 0.1823< 1 Since the sum of the MPE ratios for …

Text truncated - open the document above for the full version.

ASKEY COMPUTER COOPERATION TEST REPORT SCOPE OF WORK FCC TESTING–VSN: 100024646 REPORT NUMBER 210115004SZN-001 ISSUE DATE [REVISED DATE] 7 February 2021 [--------------------] PAGES 27 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Test Report Intertek Report No.: 210115004SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 27 FCC ID 249_C ASKEY COMPUTER COOPERATION Application For Certification FCC ID: H8N-SDM8821 onn. 2K Streaming Stick Model: VSN: 100024646 Brand name: onn. 2.4GHz Transceiver Report No.: 210115004SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Damon Wang Team Leader Kidd Yang Technical Supervisor Date: 7 February 2021 Test Report Intertek Report No.: 210115004SZN-001 Version: 01-November-2017 Page: 2 of 27 FCC ID 249_C MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Damon Wang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0743/86-755-8601 6661 Test Report Intertek Report No.: 210115004SZN-001 Version: 01-November-2017 Page: 3 of 27 FCC ID 249_C Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ............................................................................................. 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software .............................................................................................. 6 3.3 Special Accessories ..................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 7 3.5 Measurement Uncertainty .......................................................................................... 7 3.6 Support Equipment List and Description ........................................................................ 7 4.0 Emission Results ........................................................................................................... 8 4.1 Radiated Test Results .................................................................................................. 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .............................................................. 9 4.1.3 Radiated Emissions .................................................................................................. 9 4.1.4 Transmitter Spurious Emissions ............................................................................... 12 4.2 Conducted Emission Configuration Photograph ............................................................ 16 4.2.1 Conducted Emission ............................................................................................... 16 5.0 Equipment Photographs .............................................................................................. 19 6.0 Product Labelling ........................................................................................................ 19 7.0 Technical Specifications ............................................................................................... 19 8.…

Text truncated - open the document above for the full version.

ASKEY COMPUTER COOPERATION TEST REPORT SCOPE OF WORK FCC TESTING–VSN: 100024646 REPORT NUMBER 210115004SZN-002 ISSUE DATE [REVISED DATE] 7 February 2021 [--------------------] PAGES 26 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Test Report Intertek Report No.: 210115004SZN-002 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 26 FCC ID 249_C ASKEY COMPUTER COOPERATION Application For Certification FCC ID: H8N-SDM8821 onn. 2K Streaming Stick Model: VSN: 100024646 Brand Name: onn. 2.4GHz Transceiver Report No.: 210115004SZN-002 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Damon Wang Team Leader Kidd Yang Technical Supervisor Date: 7 February 2021 Test Report Intertek Report No.: 210115004SZN-002 Version: 01-November-2017 Page: 2 of 26 FCC ID 249_C MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Damon Wang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0743/86-755-8601 6661 Test Report Intertek Report No.: 210115004SZN-002 Version: 01-November-2017 Page: 3 of 26 FCC ID 249_C Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants .......................…

Text truncated - open the document above for the full version.
