H8N-TC711002Cable Modem

Page 1 / 7 Wireless N and Voice Cable Gateway Quick Installation Guide 1. INTRODUCTION The Technicolor TC7110.02 is a residential cable gateway which will give you broadband Internet access, telephone capability and wireless networking all in one unit. It connect to cable systems using the DOCSIS TM standard (please check with your cable provider for compliance). The Technicolor TC7110.02 offers a high-speed Ethernet connect port for Internet traveling. It also has 802.11b/g/n access point that gives you wireless connect to the Internet. If you have subscribed to phone services from your cable operator then you will be able to place normal phone calls using your analogue phone or fax machine. The Technicolor TC7110.02 provides one RJ-11 connectors for your phone or home phone system. Advanced technology, this residential cable gateway offers Firewall for additional protection. Package Contents • Technicolor Residential Voice Gateway x1 • Ethernet Cable x1 • Power adapter x1 • Quick Start Guide x1 • CD‐ROM x1 Page 2 / 7 2. HARDWARE CONNECTION Front Panel The following illustration shows the front panel: POWER - Indicates the Power status. DS - Indicates the status of Data reception by the cable modem from the Network (Downstream Traffic). US - Indicates the status of Data transmission by the cable modem to the Network (Upstream Traffic). Online - Displays the status of your cable connection. The light is off when no cable connection is detected and fully lit when the modem has established a connection with the network and data can be transferred. Link - Indicates the state of Ethernet ports. Wireless - Indicates the traffic on the wireless network. WPS - Indicates the status of the WPS (Wi-Fi Protected Setup TM ) functionality. Tel - Indicates the status of the telephone Line. Page 3 / 7 The lights on the front panel LEDs are described in the table below (from left to right): ON = the LED is light, OFF = the LED is gray, FLASH = the LED is blinking. TC7110.02 Power Internet LinkWirelessWPSTel Description DS US Online Boot‐up Operation ON ON ON ON ONX X ONPower on 0.25 sec ON 0.25 second ON FLASH FLASH FLASHX X X X From power ON to system initialization complete ON ON ON ON X X X X Following system initialization complete to (before) DS scanning 1 second DOCSIS Start‐up Operation ON FLASH OFF OFFX X X X During DS scanning and acquiring SYNC ON ON FLASH OFFX X X X From SYNC completed, receiving UCD to ranging completed ON ON ON FLASHX X X X During DHCP, configuration file download, registration, and Baseline Privacy initialization: DHCP status: 1 second ON and 1 second OFF, TFTP status: 0.25 second ON and 0.25 second OFF ON ON ON ONX X X X Operational (NACO=ON) ON FLASH FLASH OFFX X X X Operational (NACO=OFF) MTA initialization ON ON ON ONX X X FLASHMTA DHCP ON ON ON ONX X X OFFMTA SNMP/TFTP ON ON ON ONX X X ONRegister CPE Operation ON X X X OFF ON FLASH X X X No Ethernet Link Ethernet Link TX/RX Ethernet Traffic ON X X X X OFF ON FLASH X X No Wireless Link Wireless Link TX/RX Wireless Traffic MTA Operation ON <CM Normal Operation> ONOn‐Hook ON FLASHOff‐Hook SW Download Operation ON FLASH FLASH ONX X X X A software download and while updating the FLASH memory WPS Operation ON <CM Normal Operation> FLASH X (long press, > 5 seconds) WPS Wireless association during client and AP linking process, WPS LED Orange color light Blinking. ON After link established WPS LED Green color light ON OFF ON (short press,1‐ 3 seconds) Disable Wireless transmission Enable Wireless transmission Page 4 / 7 Rear Panel Connector Description POWER Jack Connector for DC12V TEL RJ11 Phone Connectors ETHERNET Ethernet ports, RJ-45, 10/100BaseT connector RESET To restart the modem CABLE Connector for the cable network Side Panel for WPS WPS button: Wi-Fi Protected Setup TM . This button can be used to: Secure the connection with another device (PC for example) using WPS protocol. A long press on the button allows you to enable the association of the modem with a PC or other equipment. After link establish. A short press on the button, switch on/off the wireless traffic. Label Page 5 / 7 3. CONNECTING THE MODEM TO THE COMPUTER Installation procedure for connecting to the Ethernet interface Follow these steps for proper installation. Plug the coaxial cable to the cable wall outlet and the other end to the modem connector labeled "CABLE". Note: To ensure a fast registration of the modem, the coaxial cable must be connected to the modem before it is powered on. Plug the power supply into the socket of the cable modem and two-pin on the adatper plug into the AC outlet. Note: Only use the power supply that comes with the modem. Using another power supply can cause damage to the product, and will void the warranty. Connect an Ethernet cable (direct connection, see below) to the Ethernet port at the back of the computer, and the other end to the ETHERNET port on the rear panel of the cable modem. The modem will seek the appropriate cable signal on the cable television network and go through the initial registration process on its own. The modem is ready for data transfer after the green LED "ONLINE" is lit continuously. Note: the button "reset" at the back of the modem is used primarily for maintenance. Page 6 / 7 Connecting More Than one Computer to the Wireless Voice Gateway If you need to connect more than two computers or if you need to connect two computers, you’ll need the following additional equipment (if supported by your cable operator): • Crossover-wired, or “null,” category 5 Ethernet cable for the cable modem to be connected to the hub • 10/100/1000 BaseT Hub or Switch • Straight through, or standard, category 5 Ethernet cable (one for each computer to be connected) If you have a hub with an uplink port a straight through cable can be used in combination with that port in lieu of the crossover cable. An uplink port has a small switch on it to change the polarity of the connection. It can accept either a crossover …

Text truncated - open the document above for the full version.

ASKEY Computer Corporation 10F, No. 119, Chienkang Rd., Chung-Ho, Taipei, Taiwan 235 R.O.C Declaration for no non-US channel operation 2014/12/1 We, Askey Computer Corp. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: H8N-TC711002 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Name: / Title: John Chiou / Director Tel: +886-2-2228-7588 Fax: +886-2-3234-9340 E-mail: [email protected]

ASKEY Computer Corporation 10F, No. 119, Chienkang Rd., Chung-Ho, Taipei, Taiwan 235 R.O.C. Date: 2014/12/1 FCC ID: H8N-TC711002 A U T H O R I Z A T I O N L E T T E R To whom it may concern: We, the undersigned, hereby authorize Amanda Wu/ Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu/ Senior Specialist of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------------- Name: / Title: John Chiou / Director Tel: +886-2-2228-7588 Fax: +886-2-3234-9340 E-mail: [email protected]

ASKEY Computer Corporation 10F, No. 119, Chienkang Rd., Chung-Ho, Taipei, Taiwan 235 R.O.C. Date: 2014/12/4 FCC ID: H8N-TC711002 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Name: / Title: John Chiou / Director Tel: +886-2-2228-7588 Fax: +886-2-3234-9340 E-mail: [email protected]

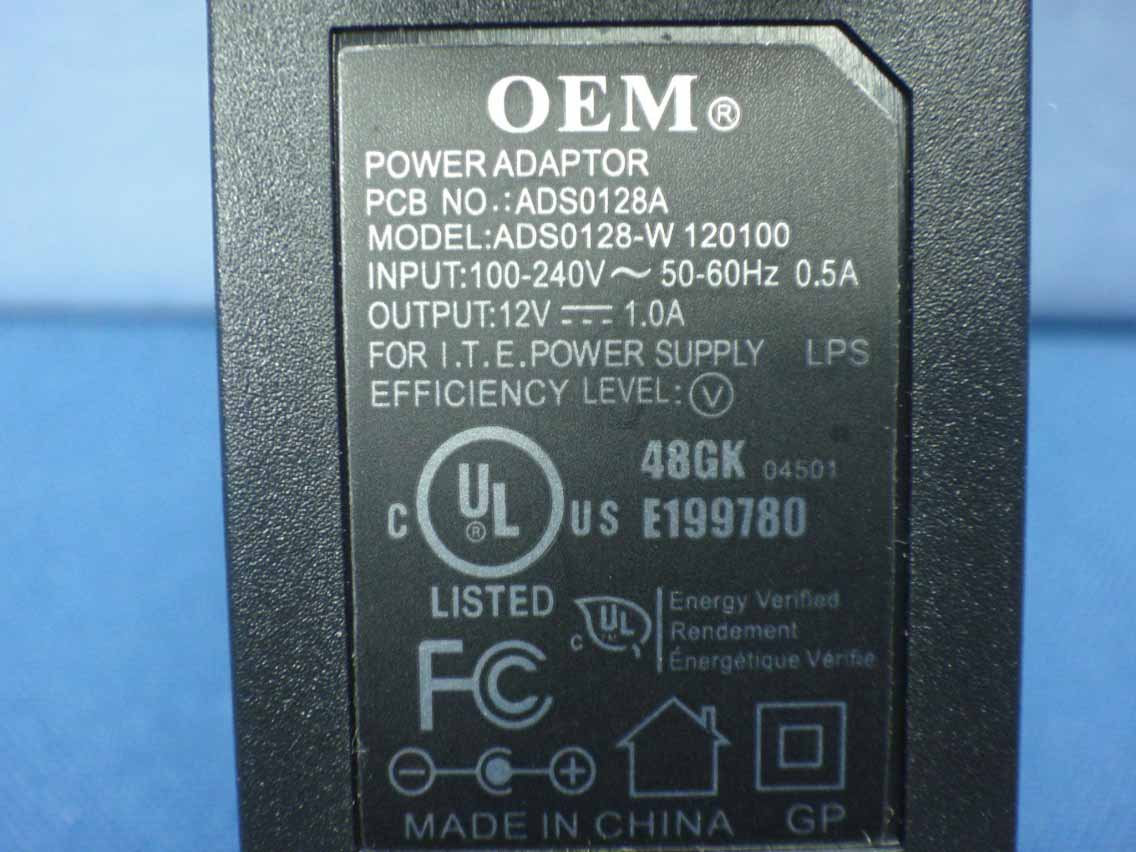

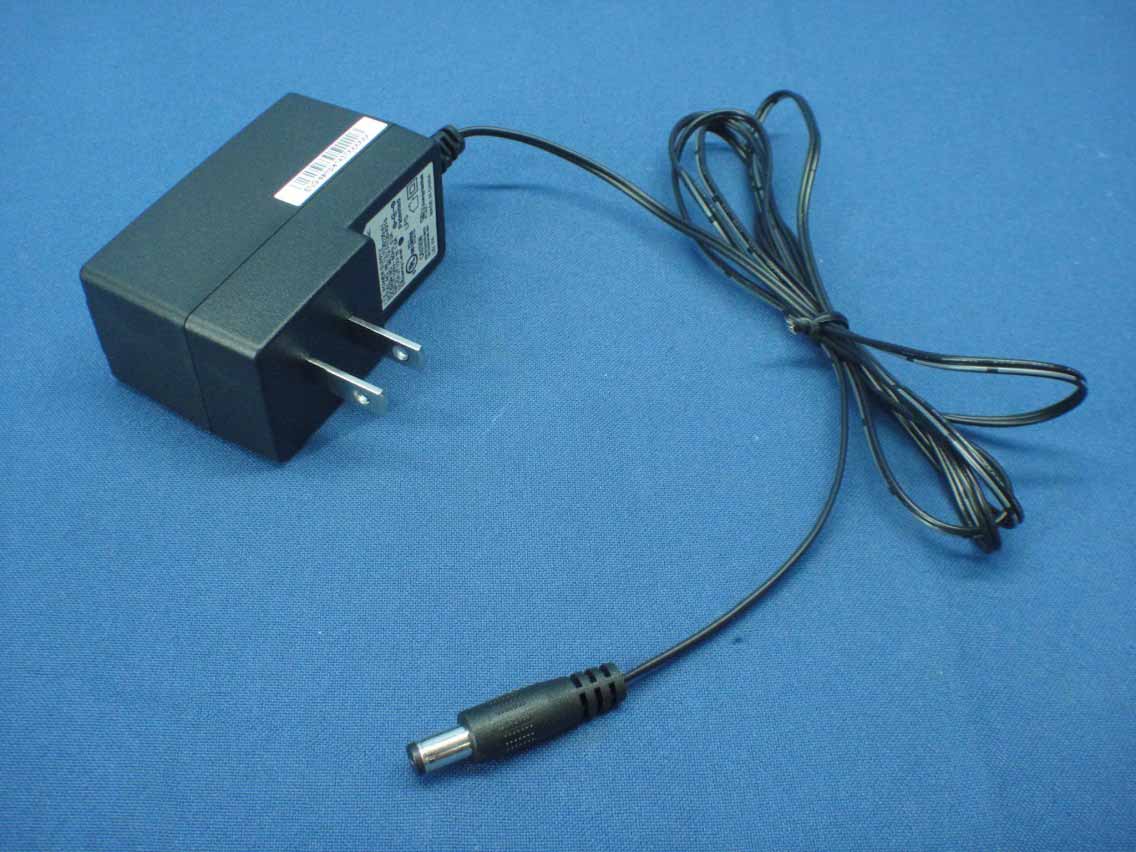

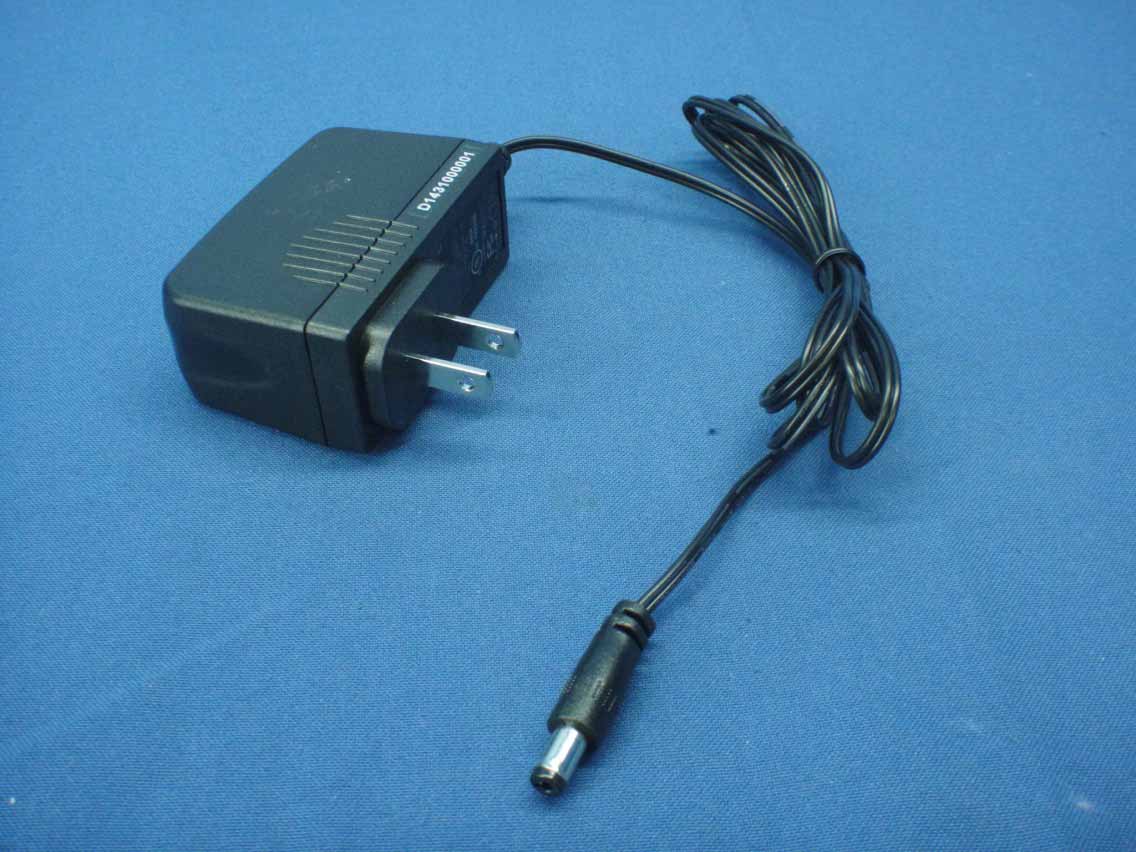

Report No.: 141002E03 1 of 15 CONSTRUCTION PHOTOS OF EUT Report No.: 141002E03 2 of 15 Report No.: 141002E03 12 of 15 Adapter 1: Brand: LEI ; Model No.: ML12-7120100-A1 Report No.: 141002E03 13 of 15 Report No.: 141002E03 14 of 15 Adapter 2: Brand: OEM ; Model No.: ADS0128-W 120100 Report No.: 141002E03 15 of 15

FCC ID： H8N-TC711002 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here

Report No.: 141002E03 3 of 15 Report No.: 141002E03 4 of 15 Report No.: 141002E03 5 of 15 Report No.: 141002E03 6 of 15 Report No.: 141002E03 7 of 15 Report No.: 141002E03 8 of 15 Report No.: 141002E03 9 of 15 Report No.: 141002E03 10 of 15 Report No.: 141002E03 11 of 15

FCC ID: H8N-TC711002 Report No.: RF141002E03 Operational Description This device is a Cable Modem, which operates in 2.4GHz bands; the maximum data rate could be up to 72.2Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 72.2Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by DC 12V from power adapter. The antennas provided to the EUT, please refer to the following table. The other instruction, please have a look at the users manual.

Report No.: SA141002E03 1 of 6 Report Format Version 5.0.1 RF EXPOSURE REPORT REPORT NO.: SA141002E03 MODEL NO.: TC7110.02, TC7110xxxxxx (x = 0~9, A-Z, a-z, “-“, “.”, or blank for marketing) FCC ID: H8N-TC711002 RECEIVED: Oct. 02, 2014 TESTED: Nov. 20, 2014 ISSUED: Nov. 28, 2014 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO.119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, TAIWAN, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA141002E03 2 of 6 Report Format Version 5.0.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN ...................................................................................................... 5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 6 Report No.: SA141002E03 3 of 6 Report Format Version 5.0.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA141002E03 Original release Nov. 28, 2014 Report No.: SA141002E03 5 of 6 Report Format Version 5.0.1 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antenna provided to the EUT, please refer to the following table: Brand Model Gain (dBi) Antenna Type Connecter Type Frequency range (MHz to MHz) Cable Loss (dB) Cable Length (mm) WANSHIH 1415-01G2000 3.95 PCB MHF 2400-2500 NA 80 Report No.: SA141002E03 6 of 6 Report Format Version 5.0.1 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER 802.11b FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 58.614 3.95 20 0.02896 1 802.11g FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 331.894 3.95 20 0.16396 1 802.11n (HT20) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 331.894 3.95 20 0.16396 1 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 5.74dBi --- END --- CONCLUSION: Both of the WLAN and Zigbee can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.05078 / 1 + 0.00154 / 1= 0.052, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: RF141002E03 1 of 58 Report Format Version 5.2.1 FCC TEST REPORT REPORT NO.: RF141002E03 MODEL NO.: TC7110.02, TC7110xxxxxx (x = 0~9, A-Z, a-z, “-“, “.”, or blank for marketing) FCC ID: H8N-TC711002 RECEIVED: Oct. 02, 2014 TESTED: Oct. 09 to Nov. 20, 2014 ISSUED: Nov. 28, 2014 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO.119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, TAIWAN, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF141002E03 2 of 58 Report Format Version 5.2.1 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 14 3.4 DUTY CYCLE OF TEST SIGNAL ........................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 16 4. TEST TYPES AND RESULTS ................................................................................ 17 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 17 4.1.2 TEST INSTRUMENTS ........................................................................................... 17 4.1.3 TEST PROCEDURES ............................................................................................ 18 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 18 4.1.5 TEST SETUP ......................................................................................................... 18 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 19 4.1.7 TEST RESULTS (MODE 1) .................................................................................... 20 4.1.8 TEST RESULTS (MODE 2) .................................................................................... 22 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 24 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 24 4.2.2 TEST INSTRUMENTS ........................................................................................... 25 4.2.3 TEST PROCEDURES ............................................................................................ 27 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 27 4.2.5 TEST SETUP ......................................................................................................... 28 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 28 4.2.7 TEST RESULTS ..................................................................................................... 29 4.3 6DB BANDWIDTH MEASUREMENT ..................................................................... 39 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .................................................. 39 4.3.2 TEST INSTRUMENTS ........................................................................................... 39 4.3.3 TEST PROCEDURE ......................................................................................…

Text truncated - open the document above for the full version.

Report No.: 120702E04 1 of 4 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (MODE 1) Report No.: 120702E04 2 of 4 CONDUCTED EMISSION TEST (MODE 2) Report No.: 120702E04 3 of 4 RADIATED EMISSION TEST (Below 1GHz) Report No.: 120702E04 4 of 4 RADIATED EMISSION TEST (Above 1GHz)
