  3. H8N-WLL6540

H8N-WLL6540802.11 b/g/n 2.4G Band 1T1R AP Module

Askey Computer Corp
802.11 b/g/n 2.4G Band 1T1R AP Module - FCC ID H8N-WLL6540 - Askey Computer Corp
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 03, 2015
Application Purpose
Original Equipment
Date of Application
Nov 01, 2015
Equipment Note
802.11 b/g/n 2.4G Band 1T1R AP Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Askey Computer Corp
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

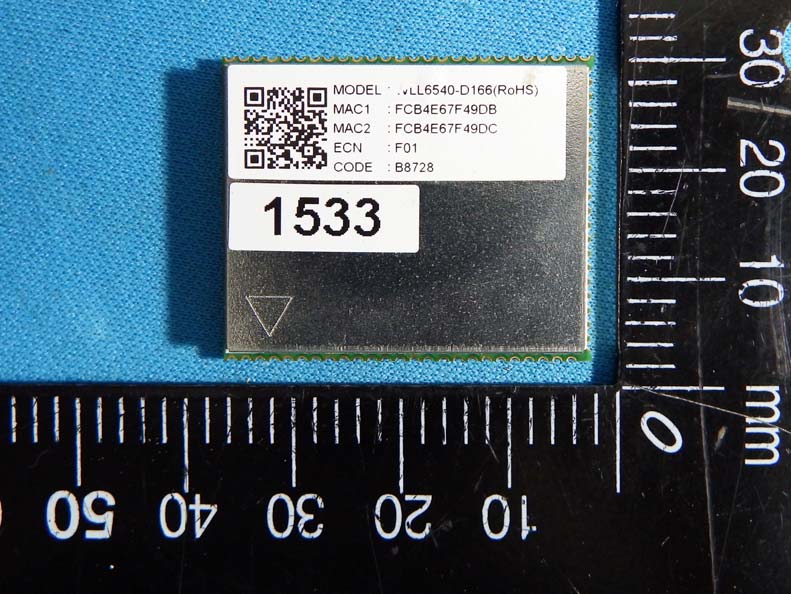

802.11 b/g/n 2.4G Band 1T1R AP Module WLL6540(RoHS) OEM Manual 802.11 b/g/n 2.4G Band 1T1R AP Module WLL6540(RoHS) 1. Product (module) photo 2. Module dimensions 3. Antenna info Part number: 2108517-1 Antenna type: stamped metal antenna Max Peak gain: 2.4 dBi 4. Feature: The WLL6540(RoHS) module integrates a 1T1R 802.11n WI-FI radio, 1-Port fast Ethernet PHY, USB2.0 host, I2S/PCM and 4 GPIO. This module embedded high performance process a CPU can process advanced applications effortlessly, such as routing, security and VoIP; and includes variety of applications, such as a USB port for accessing external storage. ◆Embedded MIPS24KEc(575/580MHz)with 64KB I-Cache and 32 KB D- Cache ◆1T1R 2.4GHz with 150Mbps PHY data rate ◆Legacy 802.11b/g and 802.11n modes,20/40MHz channel bandwidth ◆802.11v ◆1-port 10/100 FE PHY ◆Iot (Internet of Things) ◆Green AP/STA ◆16 Multiple BSSID ◆AES128/256-CBC ◆WEP64/128/, TKIP, AES, WPA, WPA2, WAPI ◆WPS: PBC, PIN ◆ Small size 34mm*28mm 5. How to use this module  Install application on IOT (Internet of Thing) device (eg. smartphone or notebook program)  Power up processor unit (WLL6540(RoHS) power source).  Scan for Wi-Fi network SSID (WLL6540(RoHS) as default SSID), connect to SSID, and input password. (End-user can change SSID/Password from the application program)  Launch application and follow program’s guide to link wireless data  For detail, please reference end-product’s user’s manual 6. Pin assignment: USA - Federal Communications Commission (FCC) FCC Radiation Exposure Statement Interference Statement These devices comply with Part 15 of the FCC Rules. Operation of the devices is subject to the following two conditions: (1) The devices may not cause harmful interference, and (2) The devices must accept any interference that might cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If the equipment is not installed and used in accordance with the instructions, the equipment might cause harmful interference to radio communications. There is no guarantee, however, that such interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by taking one or more of the following measures:  Relocate this device.  Increase the separation between the device and the receiver.  Connect the device into an outlet on a circuit different from that of other electronics.  Consult the dealer or an experienced radio technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: H8N-WLL6540”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. OEM integrators instruction 1. This module is restricted to installation in products for use only in mobile and fixed applications. 2. This module can only be used with a host antenna circuit trace layout design in strict compliance with the OEM instructions provided in this manual 3. The antenna circuit and layout must follow “WLL6540(RoHS) OEM board design guide” to design their own antenna circuit. Canada. Industry Canada (IC) This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouill…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date:2015/10/13 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: H8N-WLL6540 Product name: 802.11 b/g/n 2.4G Band 1T1R AP Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WLL6540(RoHS) to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Tao Yuan City, Taiwan, R.O.C. Name : Kevin Liang Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to adenial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

Cover Letter(s)

Module Approval Request Letter Subject: Module Approval request letter Date: 10/13/2015 FCC ID: H8N-WLL6540 Dear Reviewer, We, Askey Computer Corp, would request 802.11 b/g/n 2.4G Band 1T1R AP Module approved under module approval authorization. The requirements regulated in 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (W9751G6KB-25(RoHS)). 3. The requirement of power supply regulation: The part number of the power regulator is (MT7688AN). 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the user’s manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance have been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant’s company name : Askey Computer Corp Applicant’s company address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Job Title and Dept. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

Cover Letter(s)

October 29, 2015 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Re: Response to TCB Requests for Information for FCC ID: H8N-WLL6540 JOB #: 2231TC15 Dear Sir: Compliance with 15.212 (a)(1)(iv) is achieved by the use of a specific, internal stamped metal PIFA antenna mounted on the host product’s circuit board in accordance with the revised OEM Manual. The modular radio was tested using a test board that made the antenna connection via a coaxial cable and nonstandard connector. The OEM product shall have a direct connection using PCB traces between the module’s antenna pins and the prescribed antenna. Complete guidance for the traces and any coupling components has been included in the OEM Manual. Additional corrections to the OEM Manual include the following: 1.) The FCC ID has been changed to H8N-WLL6540. 2.) A note has been added, “This module is restricted to installation in products for use only in mobile and fixed applications.” 3.) A note has been added, “This module can only be used with a host antenna circuit trace layout design in strict compliance with the OEM instructions provided in this manual.” 4.) The cover page now says, “OEM Manual.” Sincerely, Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

Cover Letter(s)

Confidentiality RequestLetter Date: 2015/10/13 Federal Communications Commission Authorization and Evaluation Division FCC ID:H8N-WLL6540 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Askey Computer Corp Applicant’s company address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : Job Title and Dept. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: October 13, 2015 Subject: FCC Application for FCC ID: H8N-WLL6540 / IC: 1353A-WLL6540 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

External Photos

Report No. : EP591821 SPORTON International Inc. Page Number : B1 of B5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

ID Label/Location Info

802.11 b/g/n 2.4G Band 1T1R AP Module WLL6540(RoHS) 1. Regulatory label location: 2. Regulatory label information (draft) ASKEY Model: WLL6540(RoHS) FCC ID:H8N-WLL6540 IC:1353A-WLL6540 CCXXXXLPXXXXXX Made in China Regulatory label here

Internal Photos

Report No. : EP591821 SPORTON International Inc. Page Number : B1 of B5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP591821 SPORTON International Inc. Page Number : B2 of B5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP591821 SPORTON International Inc. Page Number : B3 of B5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Test Report

FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : 1 of 56 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : 802.11 b/g/n 2.4G Band 1T1R AP Module Brand Name : ASKEY Model No. : WLL6540(RoHS) FCC ID : H8N-WLL6540 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant : Askey Computer Corp. 10F, No. 119, Chienkang Rd., Chung-Ho, Taipei 235 Taiwan Manufacturer : ASKEY TECHNOLOGY (JIANG SU) LTD. No. 1388, Jiao Tong Road, Wujiang Economic-Technological Development Area, Jiangsu Province, P.R. China The product sample received on Sep. 30, 2015 and completely tested on Oct. 13, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : 2 of 56 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 23 3.6 Radiated Unwanted Emissions ............................................................................................................ 27 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 56 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : 3 of 56 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1500000MHz 52.67 (Margin 13.33dB) - QP 29.67 (Margin 26.33dB) - AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 8.61 / 40M: 35.44 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 23.97 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/100kHz]: -5.05 PSD [dBm/3kHz]:8 Complied 3.5 15.247(d) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2395.800 MHz: 28.12 dB Restricted Bands [dBuV/m at 3m]: 2386.296 MHz 70.04 (Margin 3.96 dB) - PK 52.98 (Margin 1.02 dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 39.700 MHz 36.93 (Margin 3.07 dB) – QP Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : 4 of 56 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR591821 Rev. 01 Initial issue of report Oct. 23, 2015 2500-2690 FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : 5 of 56 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos 1. Photographs of Conducted Emissions Test Configuration Mode 2 Front view Rear view FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Side view FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz Front view Rear view FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 1 Front view Rear view FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode 1 Front view Rear view FCC Test Report Report No. : FR591821 SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 EUT take a close-up
