H8N-WLU5040USB WLAN ADAPTER

USB WLAN Adapter WLU5040(ROHS) Quick Setup Guide v0.1 Askey Computer Corp. WLU5040(ROHS) Features z Compatible with IEEE802.11a/b/g/n z Supports USB 2.0 How to use this USB WLAN Adapter Turn on the power of the Host device. (For example, TV or printer or other mobile device) Choose “PREFERENCES” → “Network Setup” → “ Easy Setup” → “WPS Configuration” → select “PBC” → “Push WPS button on your AP” → complete wireless configuration → quit the setup menu → launch internet application Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range. FCC/IC Radiation Exposure Statement: This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. This Class [B] digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada. FCC IMPORTANT NOTE: This module is intended for OEM integrator only and limited to host which can only work with mobile device. (For example, TV or printer or other mobile device). The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID : H8N-WLU5040 " . The FCC part 15.19 statement below has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the IC authorization is no longer considered valid and the IC No. can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate IC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX IC: 1353A-WLU5040”. Europe Statement Important notice This USB WLAN Adapter may be operated in below country: AT BE CH CY CZ DE DK ES FI FR GB GR EE HU IT IE IS LI LT LU LV MT NL NO PL PT SE SI SK BG RO TR 1. If this device is going to be operated in 5.15 ~ 5.35GHz frequency range, then it is restricted in indoor environment only. 2. If this device is going to be operated for 802.11 b/g/n function 2.454 ~ 2.4835 GHz frequency range in France, then it is restricted in indoor environment use only. 3. In Italy, for private use, a general authorization is required if WAS/RLAN’s are used outside own premises, For public use, a general authorization is required. 4. If this device intend use in Norw…

Text truncated - open the document above for the full version.

Date: May 6, 2010 Subject: Ad Hoc Mode Function Declaration FCC ID: H8N-WLU5040 IC: 1353A-WLU5040 To Whom it may concern, We, Askey Computer Corp, declare that the device (FCC ID: H8N-WLU5040 /IC: 1353A-WLU5040 ) 1. Ad-hoc will be supported in 11b and 11g mode. 2. Ad-hoc will work on Ch1-11 (Ad-hoc on ch12, 13 will be disabled) 3. Ad-hoc in 11a/11n mode will be disabled. 4. does not work in non-US/Canada frequencies. 5. In non associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd., Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Manager E-mail [email protected] Tel. + 886 2 2228-7588

Request for Confidentiality Date: 2010/5/6 Federal Communications Commission Authorization and Evaluation Division FCC ID：H8N-WLU5040 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd., Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Manager Email [email protected] Telephone Number : + 886 2 2228-7588

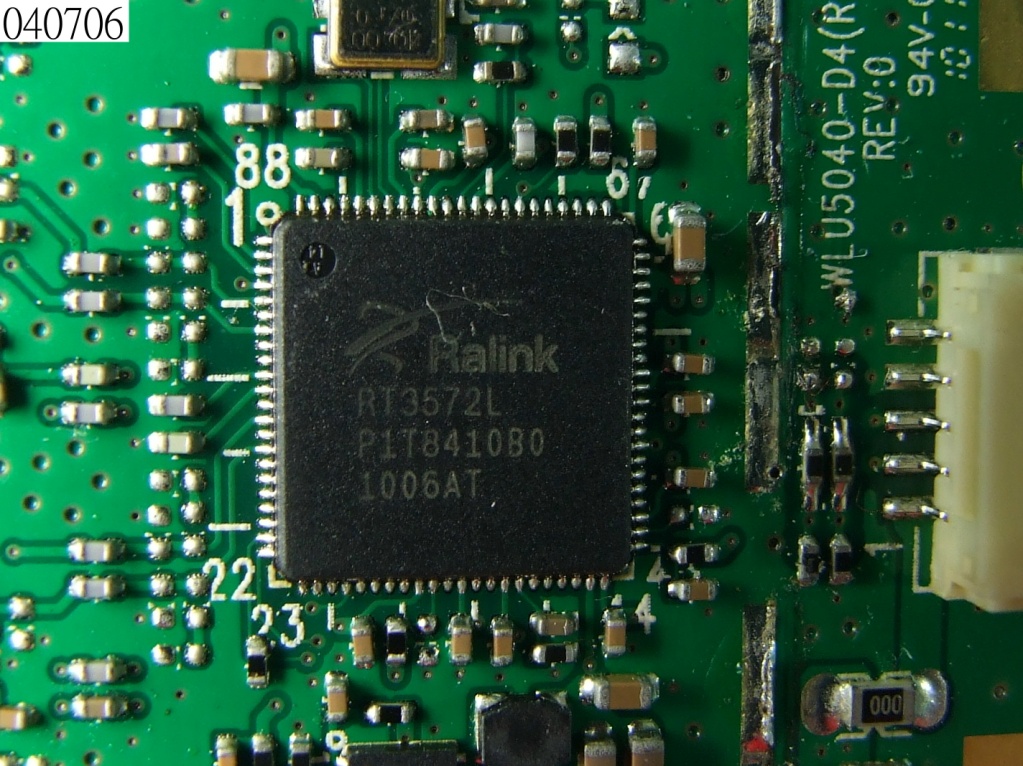

Limited Module Approval Request Letter Subject: Limited Module Approval Date: 5/11/2010 FCC ID: H8N-WLU5040 Dear Reviewer, We, Sporton International Inc., are authorized by Askey Computer Corp to have their state-of-the-art USB WLAN Adapter approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (RT3572-QFN(10X10)) . 3. The requirement of power supply regulation: The part number of the power regulator is (CAT7311). 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer to exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd., Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Manager Email [email protected] Telephone Number : + 886 2 2228-7588

Date: 2010/5/6 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: H8N-WLU5040 Product name: USB WLAN Adapter To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WLU5040(ROHS) to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd., Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Manager E-mail : [email protected] Tel. : + 886 2 2228-7588

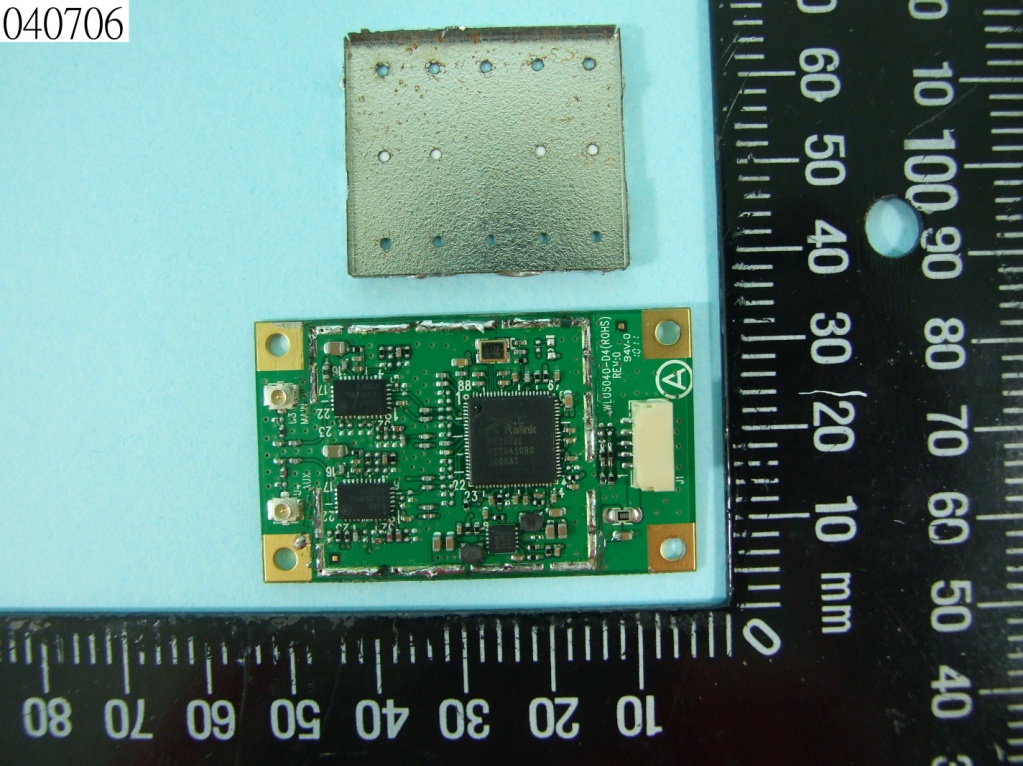

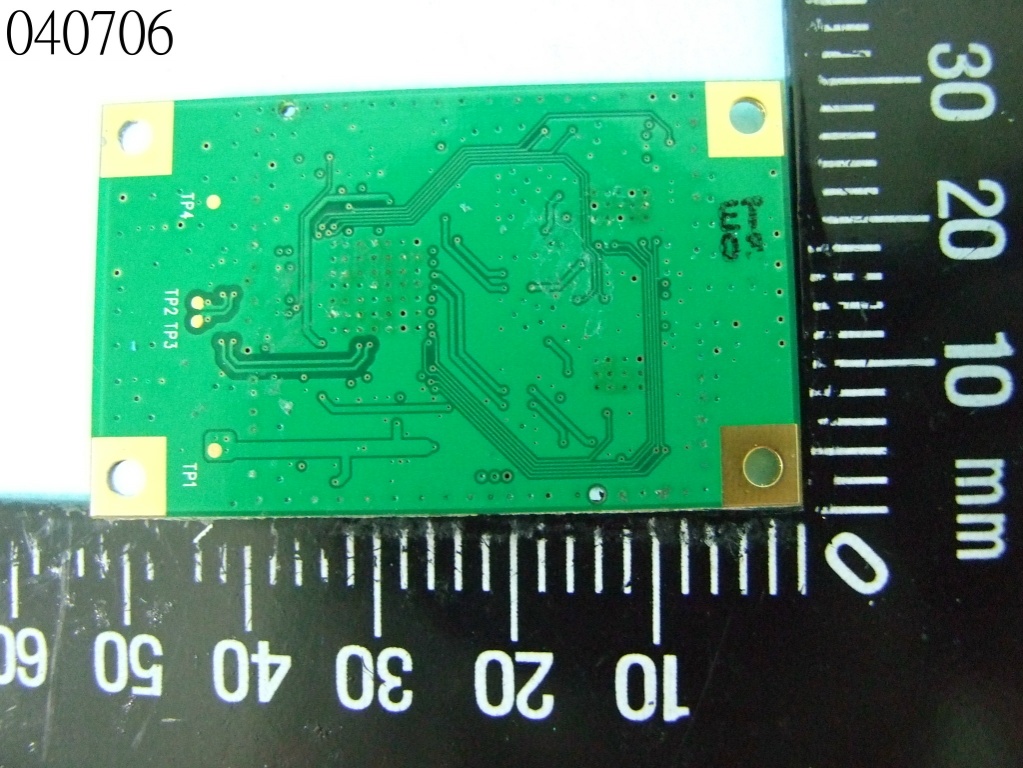

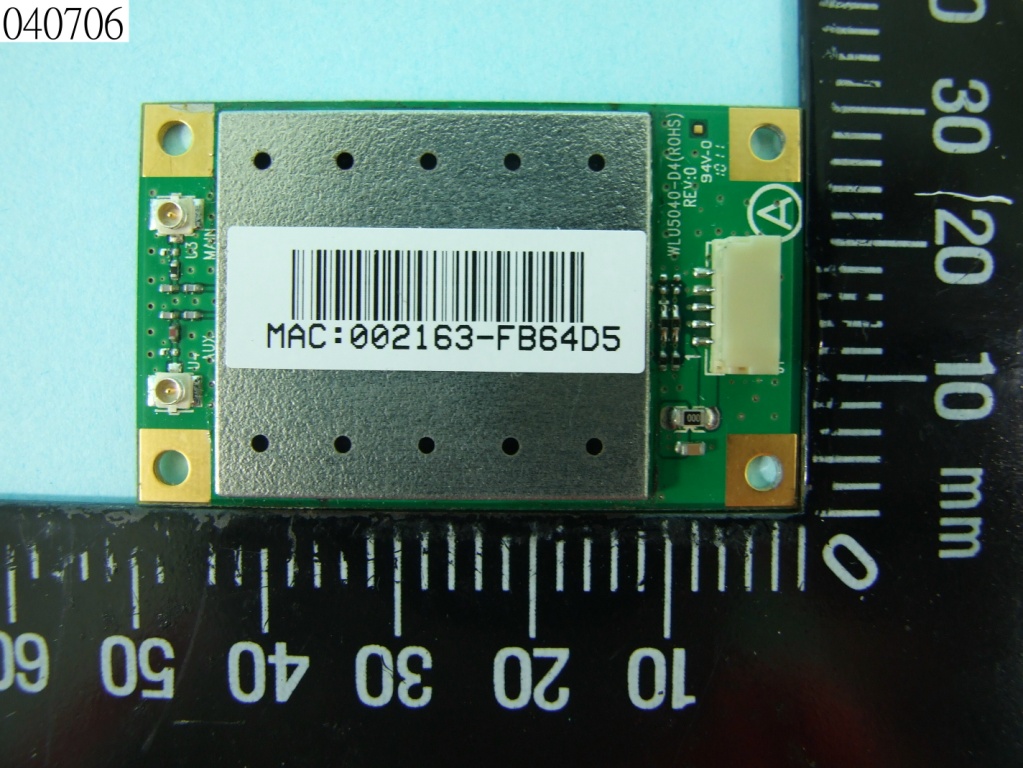

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255

Label location

V1 1510- Paper / Other Notes: 1.供應商:永承 2.被貼物材質: PCB板 3.黏貼位置:PCB板 V1New 2009/05/25 V2 V3 PART NO. DRAFTER PART NAME MODEL NO. MATERIAL 材質 代號 Product Unit 99.05.05 50#白色特多龍 Iris DTFW50J 2.4 DS-OF 4 XXXWWAXXXXXX XXXGZAXXXXXXX XXXWWAXXXXXX DXXXXXXXXX T 0700 USB WLAN Adapter WLU5040(ROHS) FCC ID : H8N-WLU5040 IC : 1353A-WLU5040 COFETEL:XXXXXXXXX-XXXX Made in China 025 CCAE10LPXXXXX FABRIQUE EN CHINE Rating 5V 500mA Rating 5V 500mA 30mm 25mm 1mm 1mm 5mm 3mm 0.5R*4 Label(安規/認證) 5.15GHz-5.35GHz帯は屋内専用

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR040706AB Page No. : A1 of A3 FCC ID : H8N-WLU5040 Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR040706AB Page No. : A2 of A3 FCC ID : H8N-WLU5040 1 Maximum Permissible Exposure 1.1 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2 MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR040706AB Page No. : A3 of A3 FCC ID : H8N-WLU5040 1.3 Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a: 25.28dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 4.58 2.870781 25.28 337.2873 0.1927 Max Conducted Power for IEEE 802.11b/g: 23.27dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 1.41 1.383566 23.27 212.3244 0.0585

FCC TEST REPORT Report No.: FR040706AN Page No. : A1 of A3 FCC ID : H8N-WLU5040 Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR040706AN Page No. : A2 of A3 FCC ID : H8N-WLU5040 1 Maximum Permissible Exposure 1.1 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2 MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR040706AN Page No. : A3 of A3 FCC ID : H8N-WLU5040 1.3 Calculated Result and Limit Antenna Type : PIFA Antenna For Single Chain: Max Conducted Power for IEEE 802.11a: 14.23dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 4.58 2.870781 14.23 26.4850 0.0151 Max Conducted Power for IEEE 802.11n (20MHz): 14.25dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 4.58 2.870781 14.25 26.6073 0.0152 Max Conducted Power for IEEE 802.11n (40MHz): 14.96dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 4.58 2.870781 14.96 31.3329 0.0179 For Two Chain: Max Conducted Power for IEEE 802.11n (20MHz): 19.37dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 4.58 2.870781 19.37 86.4968 0.0494 Max Conducted Power for IEEE 802.11n (40MHz): 17.70dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 4.58 2.870781 17.70 58.8844 0.0336

FCC TEST REPORT Report No.: FZ040706 Report Format Version: a Dynamic Frequency Selection Test Report Equipment : USB WLAN Adapter Model No. : WLU5040(ROHS) Filing Type : New Application FCC ID : H8N-WLU5040 Manufacturer : ASKEY COMPUTER CORPORATION 10F, No. 119, Chienkang Rd., Chung-Ho, Taiwan, R.O.C. ASKEY TECHNOLOGY (JIANG SU) LTD. No. 1388, Jiao Tong Road, Wujiang Economic-Technological Development Area, Jiangsu Province, P.R. China Test Standard (s) : 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range : 5250~5350 MHz / 5470~5725 MHz Received Date : Mar. 10, 2010 Final Test Date : Mar. 11, 2010 Submission Type : Original Equipment Operating Mode : Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407. The test equipment used to perform the test is calibrated and traceable to NML/ROC. ____________________________ Wayne Hsu / Supervisor Reviewed Data: Dec. 31, 2005 FCC TEST REPORT Report No.: FZ040706 Report Format Version: a Page No. : i of ii Issued Date : Apr. 29, 2010 Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 1 2 GENERAL INFORMATION ..................................................................................................................................... 2 2.1 Standard Requirement ............................................................................................................................................................................ 2 2.2 Product Specification Table ..................................................................................................................................................................... 2 2.3 Table for DFS Band Carrier Frequencies ................................................................................................................................................ 3 2.4 Antenna Information on DFS Band ......................................................................................................................................................... 3 3 DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS ................................................................ 4 3.1 Interference Threshold values, Master or Client incorporating In-Service Monitoring ............................................................................ 4 3.2 DFS Response requirement values ........................................................................................................................................................ 4 3.3 Radar Test Waveforms Minimum Step ................................................................................................................................................... 5 3.4 Short Pulse Radar Test Waveforms ........................................................................................................................................................ 5 3.5 Long Pulse Radar Test Waveform .......................................................................................................................................................... 6 3.6 Frequency Hopping Radar Test Waveform ............................................................................................................................................. 9 3.7 Conducted Calibration Setup ................................................................................................................................................................ 11 3.8 Radar Waveform Calibration Procedure ............................................................................................................................................... 11 3.9 Calibration Deviation ............................................................................................................................................................................. 11 3.10 Radar Waveform Calibration Result ...................................................................................................................................................... 12 4 TEST SETUP AND TEST RESULT ...................................................................................................................... 13 4.1 Test Setup Diagram .............................................................................................................................................................................. 13 4.2 In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement ...... 20 5 MEASURING INSTRUMENTS .............................................................................................................................. 28 FCC TEST REPORT Report No.: FZ040706 Report Format Version: a Page No. : ii of ii Issued Date : Apr. 29, 2010 History of This Test Report Original Issue Date: Apr. 29, 2010 Report No.: FZ040706 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description FCC TEST REPORT Report No.: FZ040706 SPORTON International Inc. Page No. : 1 of 28 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 1 SUMMARY OF THE TEST RESULT Applied Standard: FCC OET Order 06-96A (2006) Part Appendix Description of Test Result 4.2 7.8.3 In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Complies Note: Client without radar detection FCC TEST REPORT Report No.: FZ040706 SPORTON International …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 191 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 192 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Final Test Date Apr. 13, 2010 Test Site No. 03CH02-HY Temperature 20 Humidity 50% Test Engineer Billy Configuration 802.11n Ch. 52 (20MHz) Horizontal FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 193 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 194 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Final Test Date Apr. 13, 2010 Test Site No. 03CH02-HY Temperature 20 Humidity 50% Test Engineer Billy Configuration 802.11n Ch. 56 (20MHz) Horizontal FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 195 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 196 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Final Test Date Apr. 13, 2010 Test Site No. 03CH02-HY Temperature 20 Humidity 50% Test Engineer Billy Configuration 802.11n Ch. 64 (20MHz) Horizontal FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 197 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 198 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Final Test Date Apr. 13, 2010 Test Site No. 03CH02-HY Temperature 20 Humidity 50% Test Engineer Billy Configuration 802.11n Ch. 100 (20MHz) Horizontal FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 199 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 200 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Final Test Date Apr. 13, 2010 Test Site No. 03CH02-HY Temperature 20 Humidity 50% Test Engineer Billy Configuration 802.11n Ch. 116 (20MHz) Horizontal FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 201 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 202 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Final Test Date Apr. 13, 2010 Test Site No. 03CH02-HY Temperature 20 Humidity 50% Test Engineer Billy Configuration 802.11n Ch. 140 (20MHz) Horizontal FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 203 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 204 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Final Test Date Apr. 13, 2010 Test Site No. 03CH02-HY Temperature 20 Humidity 50% Test Engineer Billy Configuration 802.11n Ch. 38 (40MHz) Horizontal FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 205 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 206 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Final Test Date Apr. 13, 2010 Test Site No. 03CH02-HY Temperature 20 Humidity 50% Test Engineer Billy Configuration 802.11n Ch. 46 (40MHz) Horizontal FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 207 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 208 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Final Test Date Apr. 13, 2010 Test Site No. 03CH02-HY Temperature 20 Humidity 50% Test Engineer Billy Configuration 802.11n Ch. 54 (40MHz) Horizontal FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 209 of 241 TEL : 886-2-2696-2468 Issued Date : Apr. 29, 2010 FAX : 886-2-2696-2255 FCC ID : H8N-WLU5040 Vertical FCC TEST REPORT Report No.: FR040706AN SPORTON International Inc. Page No. : 210 of 241 TEL : 886-2-…

Text truncated - open the document above for the full version.
