H8N-WLU5053USB WLAN Module

WLAN USB Module WLU5053-D4(ROHS) Quick Setup Guide V1.0 Askey Computer Corp. WLU5053-D4(ROHS) Features  Compatible with IEEE802.11a/b/g/n How to use this WLAN USB module 1. Install the module to the Host device. (TV or printer or other mobile device) 2. Turn on the power of the Host device. (TV or printer or other mobile device) 3. From the PREFERENCES menu, highlight Network Setup and press . 4. Press  or  to highlight Network Type, and then press  or  to select Wireless connection, and press . Note: If WLAN USB module is not connected, Wireless cannot be selected. Wireless Setup Note: • This feature is grayed out when the WLAN USB module is not connected or Network Type is disconnect. • Do not remove the WLAN USB module while changing the settings of the wireless connection or communicating. There are 3 connection method on “Wireless connection” for wireless setup: •Easy Setup (WPS) If AP corresponds to WPS, this can be used. WPS (Wi-Fi Protected Setup™) is standard designed to execute connection of wireless LAN equipment and setup of security easily. WPS will automatically configure all wireless settings. •Assisted Setup (setup by using AP's notification information) Network Name, Authentication, and Encryption are decided based on information from AP. You manually set Security Key. Note: At this function, The Software Keyboard window will appear. •Manual Setup (to input all settings) See below “Manual Setup” for detail. Manual Setup 1. From the PREFERENCES menu, highlight Network Setup, and press . 2. Press  or  to highlight Wireless Setup, and press . 3. Press  or  to highlight Manual setup, and press . 4. Press  or  to highlight Network Name, and press . The Software Keyboard window will appear. 5. Input the Network Name by using the Software Keyboard. To save your setting, press  6. Press  or  to highlight Authentication, and then press  or  to select Open System, Shared Key, WPA-PSK or WPA2-PSK. 7. Press  or  to highlight Encryption, and then press  or  to select None, WEP, TKIP or AES. 8. Press  or  to highlight Security Key, and press . 9. Input the Security Key by using the Software Keyboard. To save your setting, press  10. Press  or  to highlight Done, and press . (Please refer to the user manuals of your Host device and AP for more details.) This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna General Information for 2.4G No. Ant. Cat. Ant. Type Gain (dBi) 1 Integral PIFA 3.19 2 Integral PIFA 1.66 Antenna General Information for 5G No. Ant. Cat. Ant. Type Gain (dBi) 1 Integral PIFA 3.37 2 Integral PIFA 3.01 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The final end product must be labeled in a visible area with the following " Contains TX FCC ID: H8N-WLU5053 ". Industry Canada Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems; This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains transmitter module IC: 1353A-WLU5053”.

Date: December 7, 2012 Subject: Ad Hoc Mode Function Declaration FCC ID: H8N-WLU5053 To Whom it may concern, We, Askey Computer Corp, declare that the device (FCC ID: H8N-WLU5053) 1. is work as client device. 2. Ad-hoc will not be supported on channels within the frequency bands a. 802.11n: (20MHz: 2412~2462MHz; 40MHz: 2422~2452MHz) b. Band 1: (20MHz: 5180~5240MHz; 40MHz: 5190~5230MHz) c. Band 2: (20MHz: 5260~5320MHz; 40MHz: 5270~5310MHz) d. Band 3: (20MHz: 5500~5700MHz; 40MHz: 5510~5670MHz) e. Band 4: (20MHz: 5745~5825MHz; 40MHz: 5755~5795MHz) 3. Ad-hoc will be supported in 802.11bg (2412~2462MHz) mode 4. is not able to operate in non-US frequencies, country code selection will be disable. 5. cannot operate as a client device on frequencies within the band 5600 – 5650MHz in US. 6. In non associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. (KDB848637) Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

Confidentiality Request Letter Date: 2012/12/7 Federal Communications Commission Authorization and Evaluation Division FCC ID：H8N-WLU5053 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Askey Computer Corp. Applicant’s company address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Job Title and Dept. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 2106 Date: December 7, 2012 Subject: FCC Application for FCC ID: H8N-WLU5053 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : Askey Computer Corp. Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

Module Approval Request Letter Subject: Module Approval request letter Date: 12/7/2012 FCC ID: H8N-WLU5053 Dear Reviewer, We, Askey Computer Corp, would request USB WLAN Module approved under module approval authorization. The requirements regulated in 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (BCM43236B). 3. The requirement of power supply regulation: The part number of the power regulator is (SY8060DCC). 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the user’s manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance have been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant’s company name : Askey Computer Corp Applicant’s company address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Job Title and Dept. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

Date: 2012/12/7 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: H8N-WLU5053 Product name: USB WLAN Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WLU5053-D4(ROHS) to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Askey Computer Corp Address : 10F, No. 119, Chienkang Rd, Chung-Ho, Taipei 235 Taiwan Signature : _________________________________ Name and Job Title. : John Chiou / Director E-mail : [email protected] Tel. : 886 2 2228-7588

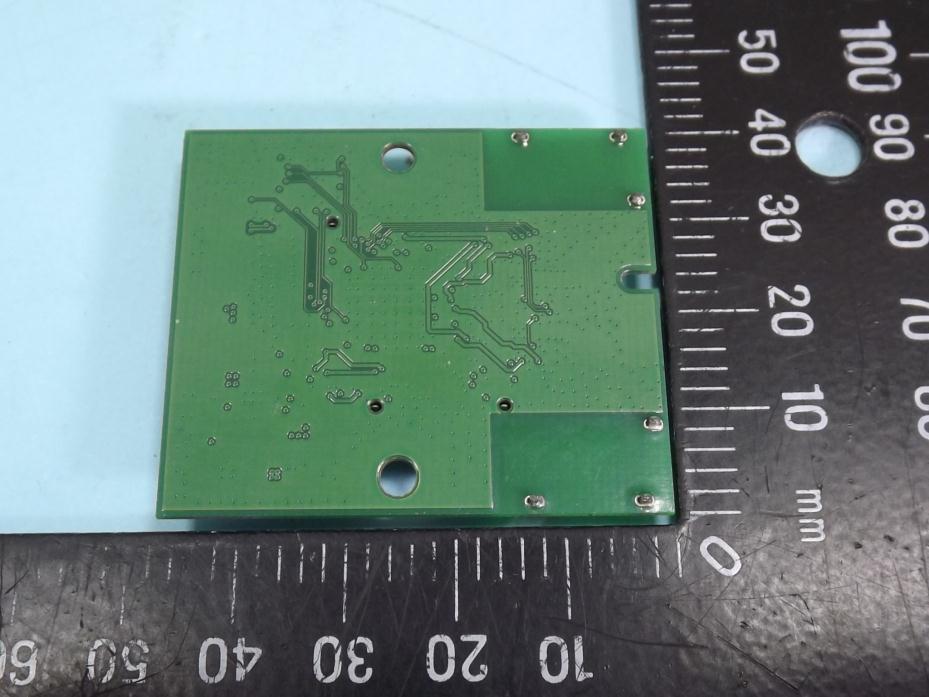

FCC Test Report Report No. : FR292625 SPORTON International Inc. PAGE NUMBER : B1 OF B1 TEL : 886-3-327-3456 ISSUED DATE : Dec. 12, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

Iris Chen V1 1510- Paper / Other WLU5053-D4(RoHS) 50#白色特多龍(亮面) Label(安規/認證) Notes: 1.供應商: 2.被貼物材質: 鐵件 3.Size: 19*23mm(0.5R*4) V1New 2012/11/05 V2 V3 PART NO. DRAFTER PART NAME MODEL NO. MATERIAL 材質 代號 Product Unit 2012.11.05 100% 200% Askey Computer Corp. USB WLAN Module Model:WLU5053-D4(ROHS) FCC ID : H8N-WLU5053 IC : 1353A-WLU5053 Made in China FABRIQUE EN CHINE 19 23 0.5R*4 5mm 1mm 1mm 1mm Rating DC:5V 500mA Askey Computer Corp. USB WLAN Module Model:WLU5053-D4(ROHS) FCC ID : H8N-WLU5053 IC : 1353A-WLU5053 Made in China FABRIQUE EN CHINE Rating DC:5V 500mA Label Location

FCC Test Report Report No. : FR292625 SPORTON International Inc. PAGE NUMBER : B1 OF B2 TEL : 886-3-327-3456 ISSUED DATE : Dec. 12, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR292625 SPORTON International Inc. PAGE NUMBER : B2 OF B2 TEL : 886-3-327-3456 ISSUED DATE : Dec. 12, 2012 FAX : 886-3-327-0973

FCC Test Report Report No. : FR 292625 SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC Test Report Report No. : FR 292625 SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30uu Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30 u uu FCC Test Report Report No. : FR 292625 SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure-(2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location 11B-20M 1 1 N/A 17.41 N/A 11G-20M 1 1 N/A 17.90 N/A n (HT-20) 1 1 Uncorrelated 17.57 N/A n (HT-20) 2 2 Uncorrelated 20.49 N/A n (HT-40) 1 1 Uncorrelated 14.24 N/A n (HT-40) 2 2 Uncorrelated 16.54 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 17.41 - - - 17.41 3.19 20.60 0.01095 11G-20M 1 17.90 - - - 17.90 3.19 21.09 0.01226 11N-HT-20 1 17.57 - - - 17.57 3.19 20.76 0.01136 11N-HT-20 2 17.47 17.49 - - 20.49 2.49 22.98 0.02225 11N-HT-40 1 14.24 - - - 14.24 3.19 17.43 0.00528 11N-HT-40 2 13.36 13.69 - - 16.54 2.49 19.03 0.00896 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC Test Report Report No. : FR 292625 SPORTON INTERNATIONAL INC. Page No. : 4 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure-(5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location 11A5.8G-20M 1 1 Correlated 15.30 N/A 11N5.8G- HT20 1 1 Uncorrelated 15.39 N/A 11N5.8G- HT20 2 2 Uncorrelated 18.07 N/A 11N5.8G- HT40 1 1 Uncorrelated 14.32 N/A 11N5.8G- HT40 2 2 Uncorrelated 17.08 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) 11A5.8G-20M 1 15.30 - - - 15.30 3.37 18.67 0.00674 11N5.8G- HT20 1 15.39 - - - 15.39 3.37 18.76 0.00688 11N5.8G- HT20 2 15.35 14.76 - - 18.07 3.19 21.27 0.01277 11N5.8G- HT40 1 14.32 - - - 14.32 3.37 17.69 0.00538 11N5.8G- HT40 2 14.15 13.99 - - 17.08 3.19 20.27 0.01015 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC Test Report Report No. : FR 292625 SPORTON INTERNATIONAL INC. Page No. : 5 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissible Exposure-(5.2G~5.6G) RF General Information Modulation Mode Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 11A5.2G-20M 5180-5240 36-48 [4] 1 13.76 N/A 11A5.3G-20M 5260-5320 52-…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR292625AC SPORTON INTERNATIONAL INC. Page No. : 1 of 80 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : USB WLAN Module Brand Name : ASKEY Model No. : WLU5053-D4(ROHS) FCC ID : H8N-WLU5053 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant : Askey Computer Corp. 10F, No. 119, Chienkang Rd., Chung-Ho, Taiwan, R.O.C. Manufacturer : Askey Computer Corp. 10F, No. 119, Chienkang Rd., Chung-Ho, Taiwan, R.O.C. ASKEY TECHNOLOGY (JIANG SU) LTD. No. 1388, Jiao Tong Road, Wujiang Economic-Technological Development Area, Jiangsu Province, P.R. China The product sample received on Sep. 27, 2012 and completely tested on Dec. 05, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR292625AC SPORTON INTERNATIONAL INC. Page No. : 2 of 80 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Support Equipment ........................................................................................................................... 7 1.3 Testing Applied Standards ................................................................................................................ 7 1.4 Testing Location Information ............................................................................................................. 7 1.5 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION OF EUT .................................................................................................... 9 2.1 The Worst Case Modulation Configuration ........................................................................................ 9 2.2 Test Channel Frequencies Configuration ........................................................................................... 9 2.3 The Worst Case Power Setting Parameter ........................................................................................ 9 2.4 The Worst Case Measurement Configuration .................................................................................. 10 2.5 Test Setup Diagram ........................................................................................................................ 11 3 TRANSMITTER TEST RESULT ..................................................................................................... 12 3.1 AC Power-line Conducted Emissions .............................................................................................. 12 3.2 6dB Bandwidth ................................................................................................................................ 15 3.3 RF Output Power ............................................................................................................................ 18 3.4 Power Spectral Density ................................................................................................................... 25 3.5 Transmitter Radiated Bandedge Emissions ..................................................................................... 28 3.6 Transmitter Radiated Unwanted Emissions ..................................................................................... 36 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 77 5 CERTIFICATION OF TAF ACCREDITATION ................................................................................. 80 APPENDIX A. TEST PHOTOS .................................................................................................................. A7 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................. B3 FCC Test Report Report No. : FR292625AC SPORTON INTERNATIONAL INC. Page No. : 3 of 80 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 4.550MHz 29.15 (Margin 16.85dB) - AV 35.37 (Margin 20.63dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 17.54 / 40M: 36.28 •500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 28.81 Power [dBm]: 30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz]: -7.08 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.50MHz: 31.49dB Restricted Bands [dBuV/m at 3m]: 2375.87MHz 67.58 (Margin 6.42dB) - PK 53.00 (Margin 1.00dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 4923.93MHz 50.49 (Margin 3.51dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR292625AC SPORTON INTERNATIONAL INC. Page No. : 4 of 80 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Iss…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR292625AI SPORTON INTERNATIONAL INC. Page No. : 1 of 68 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : USB WLAN Module Brand Name : ASKEY Model No. : WLU5053-D4(ROHS) FCC ID : H8N-WLU5053 Standard : 47 CFR FCC Part 15.247 Operating Band : 5725 MHz – 5850 MHz Equipment Class : DTS Applicant : Askey Computer Corp. 10F, No. 119, Chienkang Rd., Chung-Ho, Taiwan, R.O.C. Manufacturer : Askey Computer Corp. 10F, No. 119, Chienkang Rd., Chung-Ho, Taiwan, R.O.C. ASKEY TECHNOLOGY (JIANG SU) LTD. No. 1388, Jiao Tong Road, Wujiang Economic-Technological Development Area, Jiangsu Province, P.R. China The product sample received on Sep. 27, 2012 and completely tested on Nov. 08, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR292625AI SPORTON INTERNATIONAL INC. Page No. : 2 of 68 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Support Equipment ........................................................................................................................... 7 1.3 Testing Applied Standards ................................................................................................................ 7 1.4 Testing Location Information ............................................................................................................. 7 1.5 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION OF EUT .................................................................................................... 9 2.1 The Worst Case Modulation Configuration ........................................................................................ 9 2.2 Test Channel Frequencies Configuration ........................................................................................... 9 2.3 The Worst Case Power Setting Parameter ........................................................................................ 9 2.4 The Worst Case Measurement Configuration .................................................................................. 10 2.5 Test Setup Diagram ........................................................................................................................ 11 3 TRANSMITTER TEST RESULT ..................................................................................................... 12 3.1 AC Power-line Conducted Emissions .............................................................................................. 12 3.2 6dB Bandwidth ................................................................................................................................ 15 3.3 RF Output Power ............................................................................................................................ 18 3.4 Power Spectral Density ................................................................................................................... 25 3.5 Transmitter Radiated Bandedge Emissions ..................................................................................... 28 3.6 Transmitter Radiated Unwanted Emissions ..................................................................................... 35 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 66 5 CERTIFICATION OF TAF ACCREDITATION ................................................................................. 68 APPENDIX A. TEST PHOTOS .................................................................................................................. A7 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................. B3 FCC Test Report Report No. : FR292625AI SPORTON INTERNATIONAL INC. Page No. : 3 of 68 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism …

Text truncated - open the document above for the full version.
