H8N-WLU5150Wireless LAN Adaptor

THE FOLLOWING APPLIES IN THE U.S.A. AND CANADA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from thatto which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. ENGLISH Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only. THE FOLLOWING APPLIES ONLY IN CANADA. This Class B digital apparatus complies with Canadian ICES-003. Product Identification Marking is located on the bottom of the Wireless LAN Adaptor. Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Caution : (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and (iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. (iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Avertissement: Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment : (i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.; (iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas. (iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. NCC 802.11b/802.11g/BT警語： 第十二條→經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者均不得擅自變更頻 率、加大功率或變更原設計之特性及功能。 第十四條→低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立 即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科 學及醫療用電波輻射性電機設備之干擾。 802.11a警語： 在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。 (4.7.5) 無線資訊傳輸設備忍受合法通信之干擾且不得干擾合法通信；如造成干擾，應立即停用，俟無干擾 之虞，始得繼續使用。 (4.7.6) 無線資訊傳設備的製造廠商應確保頻率穩定性，如依製造廠商使用手冊上所述正常操作，發射的信 號應維持於操作頻帶中。(4.7.7) 日本 Be aware of the following limits before using the Wireless LAN Adaptor. ●To use the Wireless LAN Adaptor, an access point needs to be obtained. ●Do not use the Wireless L…

Text truncated - open the document above for the full version.

Askey Computer Corp 10F, No. 119, Chienkang Rd Chung-Ho Taipei Taiwan 235 Declaration for no non-US channel operation We, Askey Computer Corp declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: H8N-WLU5150 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- John Chiou / Director

Askey Computer Corp 10F, No. 119, Chienkang Rd Chung-Ho Taipei Taiwan 235 Date: 2011-11-30 FCC ID: H8N-WLU5150 GENERAL DECLARATION We, Askey Computer Corp., declare that this device couldn’t work when it was used to connect the device to a standard laptop PC, and this equipment can only work with TV/Embeded systems. This device will not be recognized by the Windows/ Linux/other operating of a standard PC, and that no driver are available which would support such a configuration. Product name: Wireless LAN Adaptor Model name: 8017-01620P, 8017-01622P, 8017-01618P, 8017-01619P, WLU5150-D81,WLU5151-D81 Brand name: Panasonic Sincerely yours, ___________________________________ John Chiou / Director Tel:886-2-2228-7588 ext 18726 Fax:886-2-3234-9340

Askey Computer Corp 10F, No. 119, Chienkang Rd Chung-Ho Taipei Taiwan 235 Date: 2011-11-11 FCC ID: H8N-WLU5150 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ___________________________________ John Chiou / Director

Askey Computer Corp 10F, No. 119, Chienkang Rd Chung-Ho Taipei Taiwan 235 Date: 2011-11-11 A U T H O R I Z A T I O N L E T T E R To whom it may concern: We, the undersigned Askey Computer Corp hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15C/15E and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------ John Chiou / Director

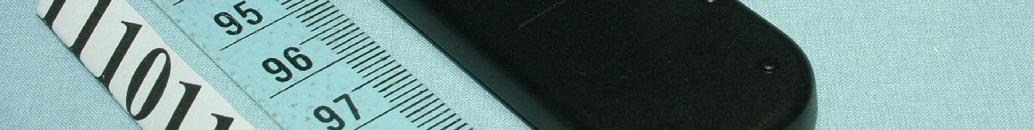

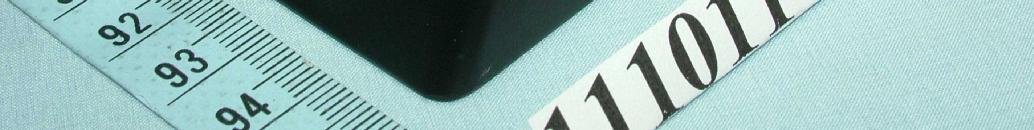

Page 1 CONSTRUCTION PHOTOS OF EUT Page 5 Page 8

Page 2 Page 3 Page 4 Page 6 Page 7 Page 9 Page 10 Page 11

FCC ID: H8N-WLU5150 Report No.: RF111011C17 Operational Description This device is a Wireless LAN Adapter, which operates in both of the 5GHz and 2.4GHz bands; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 5Vdc host equipment. The antenna is PCB antenna without antenna connectors. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA111011C17 Report Format Version 4.0.0 1 RF EXPOSURE REPORT APPLICANT: Askey Computer Corp ADDRESS: 10F, No. 119, Chienkang Rd Chung-Ho Taipei Taiwan 235 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 9 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement. The test results in the report only apply to the tested sample. REPORT NO.: SA111011C17 MODEL NO.: 8017-01620P, WLU5150-D81, 8017-01622P, 8017-01618P, 8017-01619P, WLU5151-D81 FCC ID: H8N-WLU5150 RECEIVED: Oct. 11, 2011 TESTED: Nov. 17, 2011 ISSUED: Nov. 28, 2011 Report No.: SA111011C17 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. ANTENNA GAIN.......................................................................................................6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................7 Report No.: SA111011C17 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA111011C17 Original release Nov. 28, 2011 Report No.: SA111011C17 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: Wireless LAN Adaptor BRAND NAME: Panasonic MODEL NO.: 8017-01620P, WLU5150-D81, 8017-01622P, 8017-01618P, 8017-01619P, WLU5151-D81 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Askey Computer Corp TESTED: Nov. 17, 2011 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: 8017-01622P) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Nov. 28, 2011 ( Claire Kuan, Specialist ) APPROVED BY : , DATE: Nov. 28, 2011 ( May Chen, Deputy Manager ) Report No.: SA111011C17 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA111011C17 Report Format Version 4.0.0 6 5. ANTENNA GAIN The antennas used in this EUT are listed as below table: Set Transmitter Circuit Brand P/N Antenna Type Gain (dBi) Antenna Connector Chain (0) Ant 1(L) Askey 08B1-1PV1000 PCB Please refer table 1 NA 1 Chain (1) Ant 2(R) Askey 08B1-1PW1000 PCB Please refer table 1 NA Set Transmitter Circuit Brand P/N Antenna Type Gain (dBi) Antenna Connector Chain (0) Ant 1(L) Askey 08B1-1PV1000 PCB Please refer table 2 NA 2 Chain (1) Ant 2(R) Askey 08B1-1PW1000 PCB Please refer table 2 NA Antenna set 1 was used for model: 8017-01620P, WLU5150-D81 Antenna set 2 was used for model: 8017-01622P, 8017-01618P, 8017-01619P, WLU5151-D81 Table 1 Frequency (MHz) 2412 2450 2484 5180 5250 5350 5500 5725 5806 Peak Gain (dBi) -0.83 0.40 1.23 2.45 2.21 2.20 3.14 3.73 3.64 Average Gain(dBi) -6.59 -6.26 -5.05 -4.09 -2.31 -2.58 -2.95 -2.82 -2.01 Ant 1(L) Efficiency (%) 21.92 23.69 31.24 38.97 58.79 55.20 50.73 52.27 62.96 Frequency (MHz) 2412 2450 2484 5180 5250 5350 5500 5725 5806 Peak Gain (dBi) -3.76 -2.96 -0.76 0.99 3.21 3.06 3.29 3.49 3.71 Average Gain(dBi) -3.76 -2.96 -0.76 0.99 3.21 3.06 3.29 3.49 3.71 Ant 2(R) Efficiency (%) 16.08 18.41 28.57 39.12 56.11 55.78 58.86 59.90 63.23 Table 2 Frequency (MHz) 2412 2450 2484 5180 5250 5350 5500 5725 5806 Peak Gain (dBi) 0.60 1.72 2.15 3.42 3.55 3.81 4.02 3.89 4.39 Average Gain(dBi) -4.68 -3.45 -2.90 -2.25 -2.17 -1.91 -1.95 -1.65 -1.67 Ant 1(L) Efficiency (%) 34.05 45.24 51.27 59.55 60.71 64.38 63.89 68.43 68.03 Frequency (MHz) 2412 2450 2484 5180 5250 5350 5500 5725 5806 Peak Gain (dBi) -3.40 -2.06 -0.70 2.35 2.47 2.64 3.09 3.16 2.79 Average Gain(dBi) -7.75 -6.15 -5.06 -1.99 -2.02 -2.00 -2.10 -1.95 -1.83 Ant 2(R) Efficiency (%) 16.79 24.27 31.20 63.30 62.83 63.03 61.64 63.83 65.66 u The EUT incorporates CDD function with 802.11a, 802.11b & 802.11g. Report No.: SA111011C17 Report Format Version 4.0.0 7 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): 802.11b: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 54.5 3.9 20 0.027 1.00 Directional gain = 10 log[(10 G1/20 + 10 G2/20 + 10 G3/20 ) 2 / 2] Effective Legacy Gain (dBi) = 3.9 802.11g: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANC…

Text truncated - open the document above for the full version.

Report No.:RF111011C17E 1 Report Format Version 4.0.0 Reference No.: 111117C17 DFS TEST REPORT REPORT NO.: RF111011C17E MODEL NO.: 8017-01620P, WLU5150-D81, 8017-01622P, 8017-01618P, 8017-01619P, WLU5151-D81 FCC ID: H8N-WLU5150 RECEIVED: Oct. 11, 2011 TESTED:Nov. 17, 2011 ISSUED:Nov. 18, 2011 APPLICANT: Askey Computer Corp ADDRESS: 10F, No. 119, Chienkang Rd Chung-Ho Taipei Taiwan 235 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan (R.O.C) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.:RF111011C17E 2 Report Format Version 4.0.0 Reference No.: 111117C17 Table of Contents RELEASE CONTROL RECORD..........................................................................................3 1. LAB DECLARATION.................................................................................................4 2. EUT INFORMATION.................................................................................................5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT .....................................5 2.2 EUT SOFTWARE AND FIRMWARE VERSION .......................................................5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT .....................................5 2.4 EUT MAXIMUM AND MINIMUM CONDUCTED POWER ........................................6 2.5 EUT MAXIMUM AND MINIMUM E.I.R.P. POWER ...................................................7 2.6 STATEMENT OF MAUNFACTURER .......................................................................7 3. U-NII DFS RULE REQUIREMENTS.........................................................................8 3.1 WORKING MODES AND REQUIRED TEST ITEMS ...............................................8 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS ..............................................9 4. TEST & SUPPORT EQUIPMENT LIST .................................................................. 11 4.1 TEST INSTRUMENTS ........................................................................................... 11 4.2 DESCRIPTION OF SUPPORT UNITS ................................................................... 11 5. TEST PROCEDURE...............................................................................................12 5.1 ADT DFS MEASUREMENT SYSTEM:...................................................................12 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL:................................13 5.3 DEVIATION FROM TEST STANDARD ..................................................................14 5.4 CONDUCTED TEST SETUP CONFIGURATION...................................................14 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE .................................................. 14 6. TEST RESULTS .....................................................................................................15 6.1 SUMMARY OF TEST RESULTS ............................................................................15 6.2 DETELED TEST RESULTS....................................................................................16 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE .......................................................................................................... 16 6.2.2 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME.................. 17 6.2.3 NON- OCCUPANCY PERIOD ................................................................................ 19 7. TESTING LABORATORIES INFORMATION..........................................................21 Report No.:RF111011C17E 3 Report Format Version 4.0.0 Reference No.: 111117C17 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Nov. 18, 2011 Report No.:RF111011C17E 4 Report Format Version 4.0.0 Reference No.: 111117C17 1. LAB DECLARATION PRODUCT: Wireless LAN Adaptor MODEL NO.: 8017-01620P, WLU5150-D81, 8017-01622P, 8017-01618P, 8017-01619P, WLU5151-D81 BRAND: Panasonic APPLICANT: Askey Computer Corp TESTED: Nov. 17, 2011 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment (model: 8017-01620P) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Nov. 18, 2011 Pettie Chen / Specialist APPROVED BY : , DATE :Nov. 18, 2011 Gary Chang / Technical Manager Report No.:RF111011C17E 5 Report Format Version 4.0.0 Reference No.: 111117C17 2. EUT INFORMATION 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT TABLE 1: OPERATING FREQUENCY BANDS AND MODE OF EUT OPERATING FREQUENCY RANGE OPERATIONAL MODE 5250~5350MHz 5470~5725MHz Client without radar detection and ad hoc function 9 9 The EUT doesn’t operate in 5600 ~ 5650MHz via software controls. 2.2 EUT SOFTWARE AND FIRMWARE VERSION TABLE 2: THE EUT SOFTWARE/FIRMWARE VERSION NO. PRODUCT MODEL NO. SOFTWARE/FIRMWARE VERSION 1 Wireless LAN Adaptor 8017-01620P, WLU5150-D81, 8017-01622P, 8017-01618P, 8017-01619P, WLU5151-D81 3.2.1.15 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT TABLE 3: ANTENNA LIST ANT NO. ANTENNA TYPE OPERATION FREQUENCY RANGE (MHz) MAX. GAIN (dBi) 1 PCB 5250~5350 3.81 1 PCB 5470~5725 4.02 Report N…

Text truncated - open the document above for the full version.

Report No.: RF111011C17 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF111011C17 MODEL NO.: 8017-01620P, WLU5150-D81, 8017-01622P, 8017-01618P, 8017-01619P, WLU5151-D81 FCC ID: H8N-WLU5150 RECEIVED: Oct. 11, 2011 TESTED: Nov. 08 to 18, 2011 ISSUED: Nov. 28, 2011 APPLICANT: Askey Computer Corp ADDRESS: 10F, No. 119, Chienkang Rd Chung-Ho Taipei Taiwan 235 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 118 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF111011C17 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................5 1. CERTIFICATION....................................................................................................6 2. SUMMARY OF TEST RESULTS............................................................................7 2.1 MEASUREMENT UNCERTAINTY..........................................................................9 3. GENERAL INFORMATION...................................................................................10 3.1 GENERAL DESCRIPTION OF EUT.....................................................................10 3.2 DESCRIPTION OF TEST MODES.......................................................................14 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................15 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................19 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................20 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................20 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band)...............21 4.1 CONDUCTED EMISSION MEASUREMENT........................................................21 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................21 4.1.2 TEST INSTRUMENTS..........................................................................................21 4.1.3 TEST PROCEDURES..........................................................................................22 4.1.4 DEVIATION FROM TEST STANDARD.................................................................22 4.1.5 TEST SETUP.......................................................................................................23 4.1.6 EUT OPERATING CONDITIONS.........................................................................23 4.1.7 TEST RESULTS...................................................................................................24 4.2 RADIATED EMISSION MEASUREMENT.............................................................26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................26 4.2.2 TEST INSTRUMENTS..........................................................................................27 4.2.3 TEST PROCEDURES..........................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD.................................................................28 4.2.5 TEST SETUP.......................................................................................................29 4.2.6 EUT OPERATING CONDITIONS.........................................................................29 4.2.7 TEST RESULTS...................................................................................................30 4.3 6dB BANDWIDTH MEASUREMENT....................................................................60 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................60 4.3.2 TEST INSTRUMENTS..........................................................................................60 4.3.3 TEST PROCEDURE.............................................................................................60 4.3.4 DEVIATION FROM TEST STANDARD.................................................................60 4.3.5 TEST SETUP.......................................................................................................60 4.3.6 EUT OPERATING CONDITIONS.........................................................................60 4.3.7 TEST RESULTS...................................................................................................61 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................65 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................65 4.4.2 INSTRUMENTS....................................................................................................65 4.4.3 TEST PROCEDURES..........................................................................................65 Report No.: RF111011C17 3 Report Format Version 4.0.0 4.4.4 DEVIATION FROM TEST STANDARD.................................................................65 4.4.5 TEST SETUP.......................................................................................................65 4.4.6 EUT OPERATING CONDITIONS.........................................................................65 4.4.7 TEST RESULTS...................................................................................................66 4.…

Text truncated - open the document above for the full version.

Report No.: RF111011C17-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110913E01-1 MODEL NO.: 8017-01620P, WLU5150-D81, 8017-01622P, 8017-01618P, 8017-01619P, WLU5151-D81 FCC ID: H8N-WLU5150 RECEIVED: Oct. 11, 2011 TESTED: Nov. 08 to 18, 2011 ISSUED: Nov. 28, 2011 APPLICANT: Askey Computer Corp ADDRESS: 10F, No. 119, Chienkang Rd Chung-Ho Taipei Taiwan 235 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 116 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF111011C17-1 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION............................................................................................…

Text truncated - open the document above for the full version.
