H8N-WWH0011WAN Module

Askey Computer Corp
WAN Module - FCC ID H8N-WWH0011 - Askey Computer Corp
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Nov 12, 2011
Application Purpose
Original Equipment
Date of Application
Nov 10, 2011
Equipment Note
WAN Module
Frequency Range
1851.25000000 - 1908.75000000
Company
Askey Computer Corp
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WHDHQ10 User Manual Copyright © 2011 ASKEY COMPUTER CORP. All rights reserved. PAGE 1 Table of Contents 1. PREFACE ........................................................................................................................................................ 2 1.1 REVISION HISTORY ....................................................................................................................................................... 2 2. HARDWARE INSTALLATION ......................................................................................................................... 3 3. DRIVER INSTALLATION .............................................................................................................................. 12 3.1 GENERAL INFO: DRIVER SET ....................................................................................................................................... 12 3.2 INSTALLATION PROCEDURE ......................................................................................................................................... 13 4. HOW TO SEND AT COMMANDS ................................................................................................................. 18 5. SETTING UP A PACKET SWITCHED DATA CALL ..................................................................................... 22 5.1 USING MODEM INTERFACE (DIAL-UP) ......................................................................................................................... 22 PAGE 2 1. Preface 1.1 Revision History Revision Date Author Approval Summary 001 2011/11/11 Curtis Tu Neil Lee Initial version PAGE 3 2. HARDWARE INSTALLATION Required equipment Power supply  Universal power supply, suitable for both AC 100 ~ 240 V USB cable  Standard USB-A to USB-B cable Antenna  The antenna kit includes one Antenna & one Antenna connector PAGE 4 USB Link to Power PAGE 5 Setup and Installation • Hardware setup · Insert a SIM card (UMTS Mini Cards only) · Insert the Mini Card · Connect the antenna(s) · Connect the power supply and USB cable · Connect the Dev Kit and host device using a Mini Card Host Extender • Software setup · Install / update Mini Card drivers and Watcher on page 22 Hardware setup Insert a SIM card (UMTS Mini Cards only) To use a UMTS Mini Card (MC8xxx), you need to install: • A live SIM card (with an active account), or • A test SIM card with a call box (for example, an Agilent 8960 or Rohde&Schwarz CMU200) To install the SIM card: 1. Place the Dev Kit face-up(as shown) , the SIM slot is in the bottom side beside PAGE 6 2. Insert the SIM card into the cover with its circuitry face-up—note the location of the notched corner of the card in the following image. 3. Push SIM card and then slide the slot cover under the connector base latches into the ‘CLOSED’ position PAGE 7 Insert the Mini Card After inserting the SIM card, insert the Mini Card: 1. Place the Dev Kit face-up (as shown)—the Mini Card slot is in the top right corner. 2. Hold the Mini Card at the screw holes and slide it into the Dev Kit’s Mini Card slot at a 45∘angle (inserting it horizontally may damage the module’s contacts and wear out the host connector). 3. Push the free end of the Mini Card down until it clicks into the screw column. PAGE 8 4. Use ten screwdrivers screw lock - in Connect the antenna(s) After installing the Mini Card, connect the supplied antenna(s) to the Dev Kit. (some Mini Cards include both a main and an auxiliary (diversity/gps) antenna): 1. Place the Dev Kit face-up. The antenna connectors are on the right side near the top. 2. Link Main antenna connector. 3. Link Diversity antenna connector. PAGE 9 HARDWARE INSTALLATION Hardware description Dev Kit TOP 1) WWH001X Module 2) J2 : Power Plug 3) J8 : Power Jump 4) LED5 : Power LED (Indicates that WWH001X is powered) 5) LED3 : WAN LED (Call State) 6) CN3 : JTAG Connector 7) SW1 : 3G Disable switch Default : 2-3 (3G ON) 8) CN1 : USB B Type Connector 9) SW3 : PCM Codec Reset switch 10) MIC1 : Microphone 11) JP1 : 3.5mm Audio jack 12) JP2 : Speaker Connector 1 3 4 5 2 7 9 1 1 8 1 6 PAGE 10 Dev Kit BOT 1) CN2 : SIM card holder 2) SW9 : PCM Codec Ear mute switch Default : 1-2 (EARMUTE OFF) 3) SW8 : PCM Codec Microphone mute switch Default : 1-2 (MICMUTE OFF) 4) SW7 : Selected 13-bit linear or 8-bit μ-law compounded mode Default : 1-2 (COMP SET 13-bit linear) CN3 : JTAG Connector 1 2 3 4 PAGE 11 1V8 GND GND GND GND GND GND GND GND GND 1V8 TRST_N TDI TMS TCK RTCK TDO X X X PAGE 12 3. DRIVER INSTALLATION 3.1 General info: Driver set On successful installation of all drivers, the device manager will show the following installed devices. Please configure the device manager by selecting ”View”, “Devices by connection”. Expand the tree to show the USB devices. Be aware that the list of devices may differ depending on the module configuration. PAGE 13 3.2 Installation procedure Make sure you have a clean system before proceeding with the installation procedure. At this point you should copy the driver folder to a known location on your hard disk drive. STEP 1. The unit is connected correctly only if the “Found New Hardware” balloon and subsequently the “Welcome to the Found New Hardware Wizard” appear. PAGE 14 STEP 2. In this dialog, select “Install from a list or specific location (Advanced)”. In this case ensure you select the option “Include this location in the search:” in the next screen, and enter the correct path to your drivers. PAGE 15 STEP 3. In this dialog, select “Continue Anyway”. Then Click “Finish” in the next screen “Completing the Found New Hardware Wizard”. PAGE 16 STEP 4. Repeat above steps until other driver installation complete. PAGE 17 PAGE 18 4. HOW TO SEND AT COMMANDS This section briefly describes how to send AT commands using HyperTerminal to communicate with the ASKEY Wan module. HyperTerminal is included in Windows XP but not in Windows Vista or Windows 7. However, it can be downloaded free for personal use fr…

Text truncated - open the document above for the full version.

Cover Letter(s)

Askey Computer Corp 101'. No 119. Chicnkang Rd. Chung-Ho. Tnipe' 235. Taiwan Tde 886 2 2228-7588 : Fax: 886 2 3234-9340 Date: November 9. 2011 Power of Attorney To whom it may conc~orn. Please be llo1ificd that I. John ChiOu, h"ve dcs'gnah,d Jones Tsa; in SP0rlUll lntcnmli(llialinc. as lhe person being r~sponsible for this projcct and 10 sign the foml 731 and otherdocumenlation. Any and all aelS carried oul by Jones Tsai in Sporla" lnlernalionalluc. on the muners of relating 10 all processes required in the FCC approval and any communication ".,."led wilh the nalional authority. shall have the same legal aUlhorily as aelS on OUT own behalf We funher ccoilies lhal neither the applicant nor any party to this application_ as defined in 47 CFR eh. 1.2002 (ll), is subjecl 10 a denial 10 Federal benefits. thJI include FCC benefils. pursuant 10 seclion 5301 of tho Anti-DrugAbuse Aet of 1<)<)8. 21 U.S.C-835{a). This authorization is lirnitctlto thc protlue! of as following: FCC 10: 118N-WWIlOOll If you havc allY acknowledgement anti responsc, plcJSC senti it to Sporlon Illlernational Inc. directly. Should you hwc Jny questions or commcnts Teg;mling this mmtcr. plcJSC hJVC my best allcntion. Sincerely yours, Contact Person: John Chiou Cornllany: Askey Computer Corp n:L: 886 2 2228·7588 FAX: 886 2 3234·')340 ~;_mail: [email protected]

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 November 11, 2011 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. November 11, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: WAN Module Model name: WHDHQ10 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Jones Tsai / Director Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

Cover Letter(s)

nm!it!DlMDIl1H§B~fl6] ASKEYCOMPI/TER CORP. D:aIC: '{o,ember 10. 2011 Federal CommWliaJ.ions Commission Confidenualil)' Request reg;mling application for c:crtificalion MFCC ID: 118N-WWlIOOII PursuanllO Sections 0.457 <md 0.459 oflhe Commission's Rules. we hereby rcquCS'I eonfidcnual 1r.:31menlofinfOfTllalion accompanying Ihis applicalion as ootlincd below: &hcmalics (file: WIIDIIQIO Schcm.pdf) Block Diagmm (iiiI.': WHDHQlO_BlkDia.pdf) Pans Lisl(file: WHDHQIO PartsLsl.pdf) Opcnnion Description (file: WHDHQIO_OpDes,pdf) Tunc up Procedure (file: W~lDIlQIO_TlInPro.pdf) The abo"c malerials cQnlain trade $eGI"Cts and proprietary infonnation nOl customarily released 10 lhe public. The public disclosure of(hesc materials may be Ilannfullo the applicant and provide unjust; fied benefits to its competitors. Sincerely. John Chiou Rev. 111/03

Cover Letter(s)

1/1 Date: November 10, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : H8N-WWH0011 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: WHDHQ10_ExtPho.pdf)  Internal Photos (file: WHDHQ10_IntPho.pdf)  Test Setup Photos (file: WHDHQ10_Tsup.pdf)  User Manual (file: WHDHQ10_UserMan.pdf) The application contains technical information, which Askey Computer Corp. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, John Chiou

Cover Letter(s)

!:2:Jrn~D~D21H§ DIH}i5.I ASKEYCOHPLJTER CORP. Dale: November 9. 2011 Request for Limited Modular Appro'-,,] for WWAN FCC 10: H~N_WWIl()OII hem Requiremenls EUT , The modubr lrnnsmiucr must have its own RF shielding. The module has been inslalkd in hosl device, and doc_~ not have own shielding ense for Limited Modular Approval. please SC'C exhibition c.~tcrn"l photos. 2. "nIt 1110dular lransmiuCT must have buffered modulalion I dalu inputs. The EUT has buffer modulation I d"ll1 inputs. J. The modular In'nsmiucr must have ils Own power supply regulation. The EUT Ims ils own power supply regulation. 4. The modular IransmiU ...,. mus! be tested in a 'land-alone configuration. The module was tested in notebook because this is limited module approval with this notebook. 5. The modular lransmiuCT must be labeled with its own FCC ID number. The moduk FCC lD will be put 00 th~ nol~book label because this is limittd moduk approval with this notebook. 6. ·Ilie modular transmiW:r must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. ·Iliis module will be integrated ",th the nottbook before shipping to the users. The end user has no Clunee to instaH this module. 7. The modular transmitter must comply with any applicable RF exposure requirement. ·llie modular transmincr complies with RF exposun: on the notebook. Effccllve Date: [mmedlately_ pi"" U~ John Chiou

External Photos

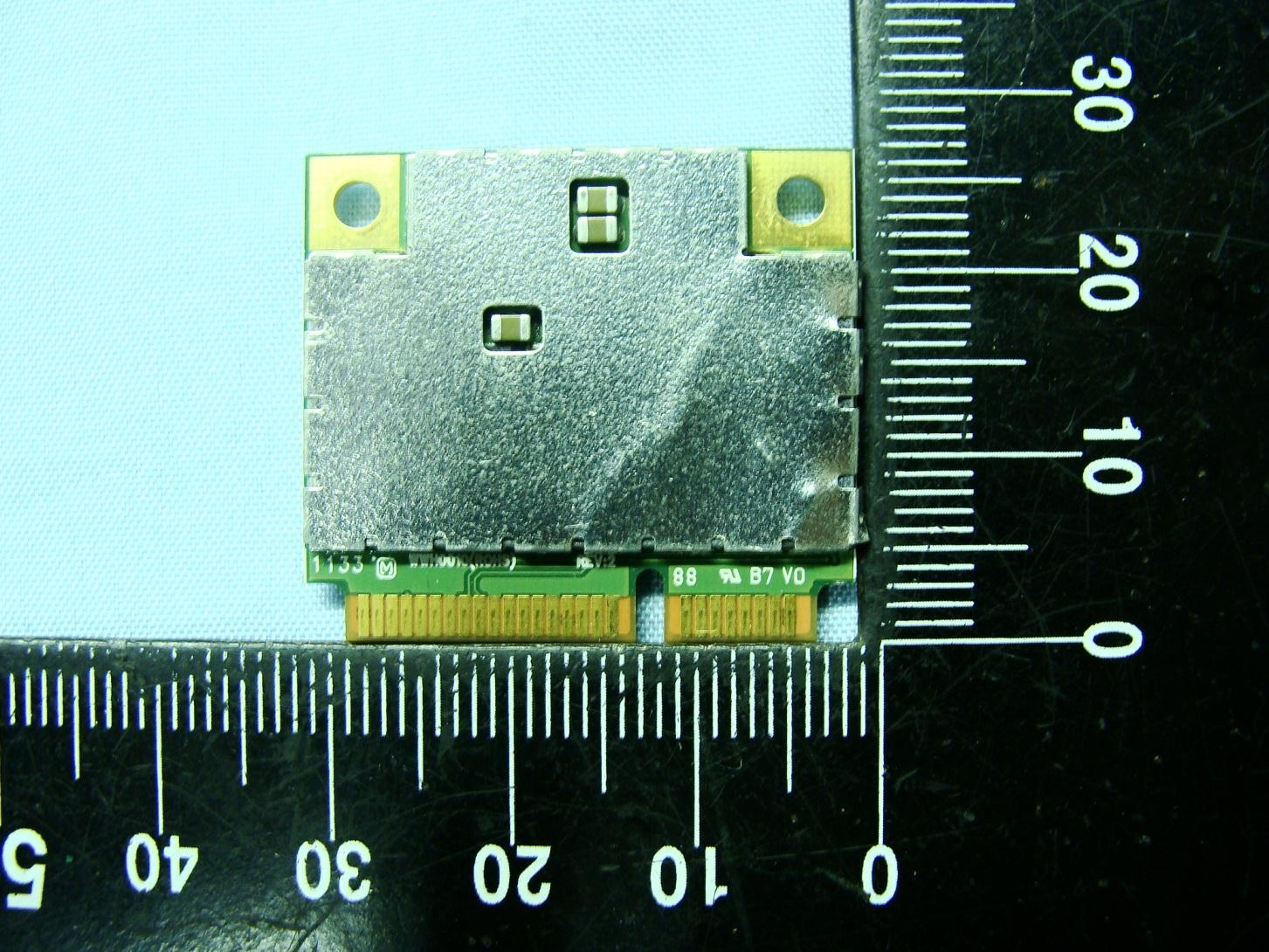

Photographs of EUT Report No.: EP1O0546 Brand Name: ASKEY / Model Name: WHDHQ10 SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 1. External Photograph of EUT Photographs of EUT Report No.: EP1O0546 Brand Name: ASKEY / Model Name: WHDHQ10 SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 720510

ID Label/Location Info

Emma_Feng V3 1510- Paper / Other Notes: 1.供應商: 2.被貼物材質:PCB板子上 3.黑色印刷 V1 NEW 2011/10/28 V2 2011/10/31 V3 2011/11/09 PART NO. DRAFTER PART NAME MODEL NO. MATERIAL 材質 代號 Product Unit 100.11.09 WWH0011 5mm3mm Askey Company Corp. WAN Module MODEL: WHDHQ10 Input rating: 3.3V 1100mA FCC ID: H8N-WWH0011 Made in China 25*3mm 3M7533 25*13mm 3M7533 Label(安規/認證) 50#白色特多龍+3M7533 另外貼一貼1510-0DAX000打印條碼 (25*6mm(0.5R*4),50#白色特多龍(亮面),無印刷) IMEI: 00108300002051 IMEI: 00108300002051 正面反面 25 13 0.5R*4 1 1.2 E188325 Askey Company Corp. WAN Module MODEL: WHDHQ10 IMEI: 00108300002051 Input rating: 3.3V 1100mA FCC ID: H8N-WWH0011 Made in China E188325 2 Factory ID 26 示意

ID Label/Location Info

Module Label Location

Internal Photos

Photographs of EUT Report No.: EP1O0546 Brand Name: ASKEY / Model Name: WHDHQ10 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 2. Internal Photograph of EUT 720510 Photographs of EUT Report No.: EP1O0546 Brand Name: ASKEY / Model Name: WHDHQ10 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 Photographs of EUT Report No.: EP1O0546 Brand Name: ASKEY / Model Name: WHDHQ10 SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 WWAN Main Antenna Photographs of EUT Report No.: EP1O0546 Brand Name: ASKEY / Model Name: WHDHQ10 SPORTON INTERNATIONAL INC. Page Number : 6 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 Photographs of EUT Report No.: EP1O0546 Brand Name: ASKEY / Model Name: WHDHQ10 SPORTON INTERNATIONAL INC. Page Number : 7 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 WWAN & GPS Aux. Antenna Photographs of EUT Report No.: EP1O0546 Brand Name: ASKEY / Model Name: WHDHQ10 SPORTON INTERNATIONAL INC. Page Number : 8 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 720510

RF Exposure Info

SPORTON INTERNATIONAL INC. Page Number : 1 of 9 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 RF Exposure Evaluation Report Report No. : FA1O0546 RF Exposure Evaluation Report APPLICANT : ASKEY COMPUTER CORPORATION EQUIPMENT : WAN Module BRAND NAME : ASKEY MODEL NAME : WHDHQ10 FCC ID : H8N-WWH0011 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 9 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 RF Exposure Evaluation Report Report No. : FA1O0546 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 9 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 RF Exposure Evaluation Report Report No. : FA1O0546 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA1O0546 Rev. 01 Initial issue of report Nov. 08, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 9 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 RF Exposure Evaluation Report Report No. : FA1O0546 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) SPORTON INTERNATIONAL INC. Page Number : 5 of 9 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 RF Exposure Evaluation Report Report No. : FA1O0546 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks.  General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise …

Text truncated - open the document above for the full version.

Test Report

SPORTON INTERNATIONAL INC. Page Number : 1 of 89 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 FCC RF Test Report Report No. : FG1O0546 FCC RF Test Report APPLICANT : ASKEY COMPUTER CORPORATION EQUIPMENT : WAN Module BRAND NAME : ASKEY MODEL NAME : WHDHQ10 FCC ID : H8N-WWH0011 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz WCDMA Band V : 826.4 ~ 846.6 MHz / 871.4 ~ 891.6 MHz WCDMA Band II : 1852.4 ~ 1907.6 MHz / 1932.4 ~ 1987.6 MHz CDMA2000 BC0 : 824.70 ~ 848.31 MHz / 869.70 ~ 893.31 MHz CDMA2000 BC1 : 1851.25 ~ 1908.75 MHz / 1931.25 ~ 1988.75 MHz MAX. ERP/EIRP POWER : GSM850 (GPRS 8) : 1.40 W GSM850 (EDGE 8) : 0.36 W GSM1900 (GPRS 8) : 0.46 W GSM1900 (EDGE 8) : 0.23 W WCDMA Band V (RMC 12.2Kbps) : 0.14 W WCDMA Band II (RMC 12.2Kbps) : 0.16 W CDMA2000 BC0 : 0.15 W CDMA2000 BC1 : 0.20 W SPORTON INTERNATIONAL INC. Page Number : 2 of 89 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 FCC RF Test Report Report No. : FG1O0546 The product was received on Oct. 05, 2011 and completely tested on Oct. 18, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 3 of 89 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 FCC RF Test Report Report No. : FG1O0546 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 4 SUMMARY OF TEST RESULT ......................................................................................................................... 5 1 GENERAL DESCRIPTION .......................................................................................................................... 6 1.1 Applicant ............................................................................................................................................ 6 1.2 Manufacturer ..................................................................................................................................... 6 1.3 Feature of Equipment Under Test ..................................................................................................... 7 1.4 Emission Designator and Maximum ERP/EIRP Power .................................................................... 8 1.5 Testing Site........................................................................................................................................ 8 1.6 Applied Standards ............................................................................................................................. 8 1.7 Ancillary Equipment List .................................................................................................................... 9 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ...................................................................... 10 2.1 Test Mode........................................................................................................................................ 10 2.2 Connection Diagram of Test System .............................................................................................. 12 3 TEST RESULT ........................................................................................................................................... 13 3.1 Conducted Output Power Measurement ......................................................................................... 13 3.2 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 16 3.3 Occupied Bandwidth Measurement ................................................................................................ 22 3.4 Band Edge Measurement ................................................................................................................ 31 3.5 Conducted Emission Measurement ................................................................................................ 40 3.6 Field Strength of Spurious Radiation Measurement ....................................................................... 61 3.7 Frequency Stability Measurement ................................................................................................... 79 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 88 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 89 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 4 of 89 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 FCC RF Test Report Report No. : FG1O0546 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG1O0546 Rev. 01 Initial issue of report Nov. 08, 2011 SPORTON INTERNATIONAL INC. Page Number : 5 of 89 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 FCC RF Test Report Report No. : FG1O0546 SUMMARY OF T…

Text truncated - open the document above for the full version.

Test Setup Photos

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 FCC RF Test Report Report No. : FG1O0546 Appendix B. Setup Photographs <Radiated Emission> LF SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : H8N-WWH0011 FCC RF Test Report Report No. : FG1O0546 HF

Contact Information

Applicant

Jack Po(Manager)
[email protected]886 2 2228-7588Fax: 886 2 3234-9340

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
824E1.85 GHz - 1.91 GHz200.00 mW1M27F9W0.01 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Power output is ERP for part 22 is 1.40W and EIRP for part 24 is 0.46W using the specific antenna as shown within this application. This device is to be used only for mobile and fixed application. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC muti-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators must insure that the end user has no manual instructions to remove or install this module. For mobile and fixed operating configurations the antenna gain, including cable loss, must not exceed the requirements defined in 2.1091 for satisfying RF exposure compliance. The fixed antenna with gain is 2.18dBi for 850MHz cellular band and 2.3dBi for PCS 1900 MHz band
