H8N46116A5G small cell

5G NR Small Cell NR xCell 46116A User Guide ASKEY COMPUTER CORPORATION April 2023 ASKEY COMPUTER CORPORATION NR xCell 46116A User Guide ii Copyright © 2023, All Rights Reserved. Copyright Notice Askey owns the copyright to the information in this document. No part of this document may be reproduced in any form or by any means without the prior written consent of Askey. Disclaimer The information in this document is subject to change without notice. Askey is not responsible for any errors contained herein. For more information, please consult an Askey technical engineer or support team. Please see the "Contact Us" section below. Contact us Askey Computer Corp. Address：10F, NO.119, Jiankang Road, Zhonghe District, New Taipei City 23585 TAIWAN, R.O.C. TEL：+886-2-2228-7588 E-mail: [email protected] Internet Address: https://www.askey.com.tw/ Security Information For the safety of installation engineers and to protect the equipment from damage, please read all safety warnings carefully. If you have any questions about these warnings, please contact the Askey support team before installing or powering up the base station. Declaration of Conformity Hereby, Askey declares that the radio equipment type NR xCell 46116A is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://askeycloud.askey.com/owncloud/index.php/s/ZA8LBnW6WvQenPo ASKEY COMPUTER CORPORATION NR xCell 46116A User Guide iii Copyright © 2023, All Rights Reserved. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FOR MOBILE DEVICE USAGE (>20cm/low power) Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ASKEY COMPUTER CORPORATION NR xCell 46116A User Guide 1 Copyright © 2023, All Rights Reserved. Contents Chapter 1 Introduction ............................................................................. 1 1.1 Brief Introduction ................................................................................. 1 1.2 Specification ......................................................................................... 1 1.3 What’s in The Box ................................................................................. 2 1.4 IO Interfaces ......................................................................................... 3 Chapter 2 Setup ....................................................................................... 5 2.1 Setup Procedure ................................................................................... 5 2.2 Cable Connection .................................................................................. 5 2.3 LED Status ............................................................................................. 6 2.4 Installation ............................................................................................ 8 2.5 Route the Cables................................................................................. 12 Chapter 3 The Askey 5G NR Small Cell Admin Website ............................ 13 3.1 Admin Website Overview ................................................................... 15 3.2 Home .................................................................................................. 19 3.3 Connected Devices ............................................................................. 19 3.4 Settings ............................................................................................... 21 3.5 Configuration ...................................................................................... 33 3.6 About .................................................................................................. 59 Chapter 4 The Askey 5G NR Small Cell Support Utilities ........................... 62 4.1 Small Cell Log Download Mechanism ................................................. 62 4.2 Access the Admin Website by IPv6 Link-Local Address ....................... 63 4.3 The Recommend NR ARFCN Configuration ......................................... 64 ASKEY COMPUTER CORPORATION NR xCell 46116A User Guide 2 Copyright © 2023, All Rights Reserved. List of Figures Figure 1. Askey 5G NR Indoor Small Cell NR xCell…

Text truncated - open the document above for the full version.

Date: 2023-09-05 FCC ID: H8N46116A To the attention of Federal Communications Commission Authorization and Evaluation Division Attestation Statements Attestation Statements Part 2.911(d)(5)(i) Filing Askey Computer Corp certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receivingan equipment authorization pursuant to section 2.903 of the FCC rules. Attestation Statements Part 2.911(d)(5)(ii) Filing Askey Computer Corp certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely yours, ----------------------------------- Jack Po, Manager Askey Computer Corp Tel: 886 2 2228-7588 #18734 Fax: 886 2 3234-9340 E-mail: [email protected]

Date: 2023-09-05 FCC ID: H8N46116A To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Parts List Tune-Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Jack Po, Manager Askey Computer Corp Tel: 886 2 2228-7588 #18734 Fax: 886 2 3234-9340 E-mail: [email protected]

Date: 2023-09-05 FCC ID: H8N46116A AUTHORIZATION LETTER To Whom It May Concern: Askey Computer Corp hereby authorizes Andrea Hsia / Supervisor of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Andrea Hsia / Supervisor of BV CPS Taoyuan on Askey Computer Corp’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- Jack Po, Manager Askey Computer Corp Tel: 886 2 2228-7588 #18734 Fax: 886 2 3234-9340 E-mail: [email protected]

Reference No.: BCUN-WTW-P23030714 Page No. 1 / 14 CONSTRUCTION PHOTOS OF EUT Reference No.: BCUN-WTW-P23030714 Page No. 2 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 3 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 4 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 5 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 6 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 7 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 8 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 9 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 10 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 11 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 12 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 13 / 14 Reference No.: BCUN-WTW-P23030714 Page No. 14 / 14

Box Label Housing Label 392 (L) 145 (W) 384 (H) 378 130 300

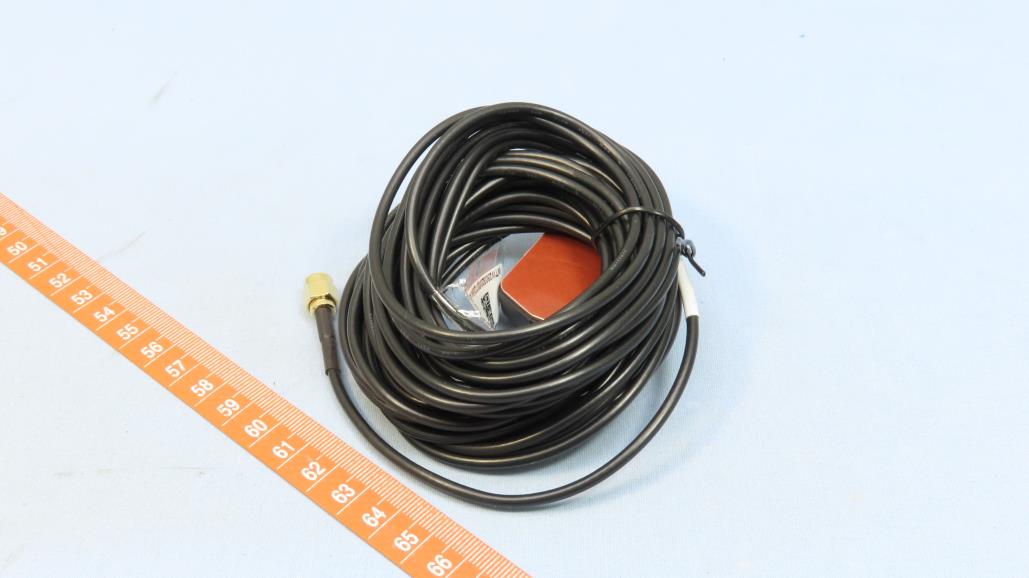

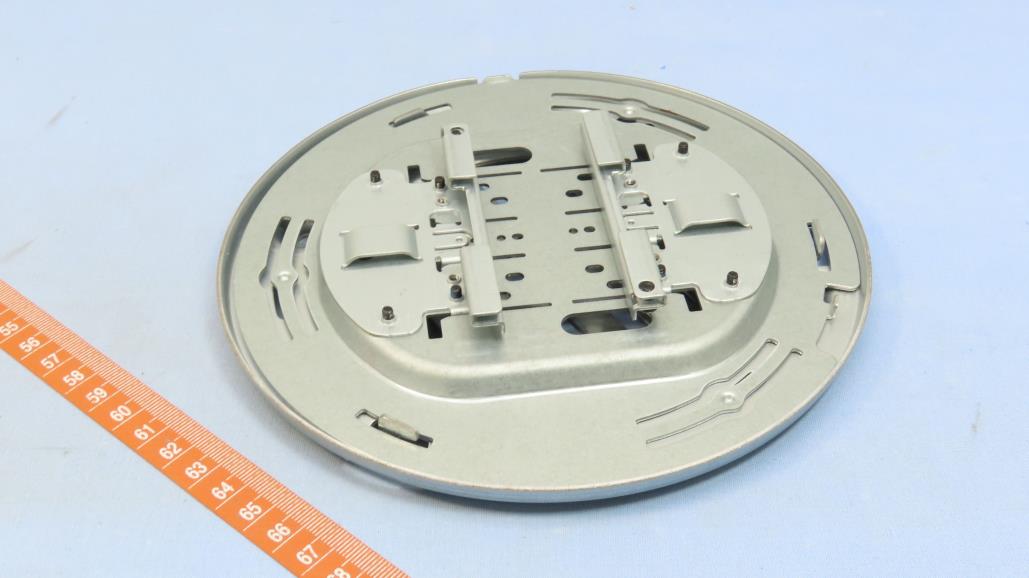

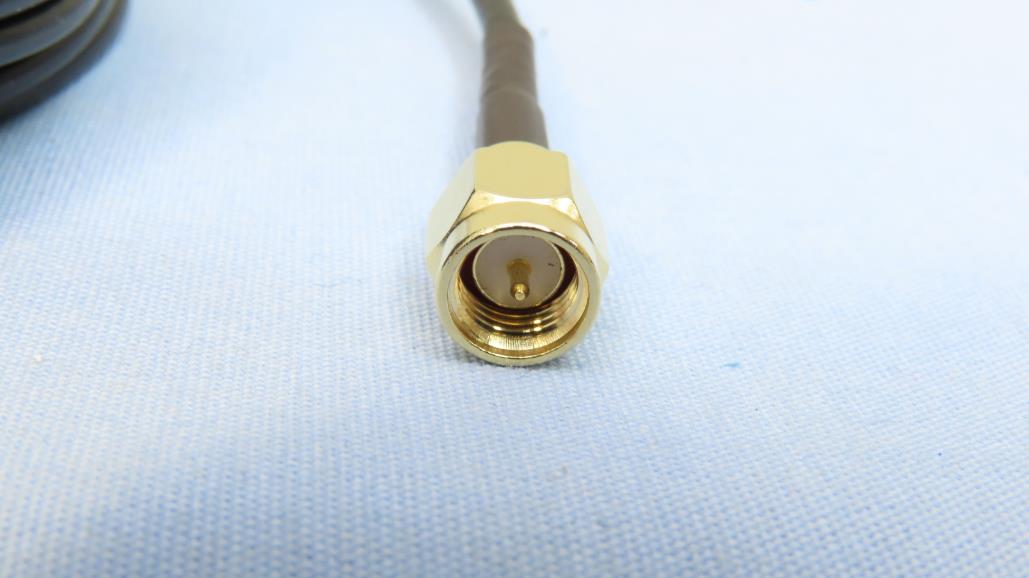

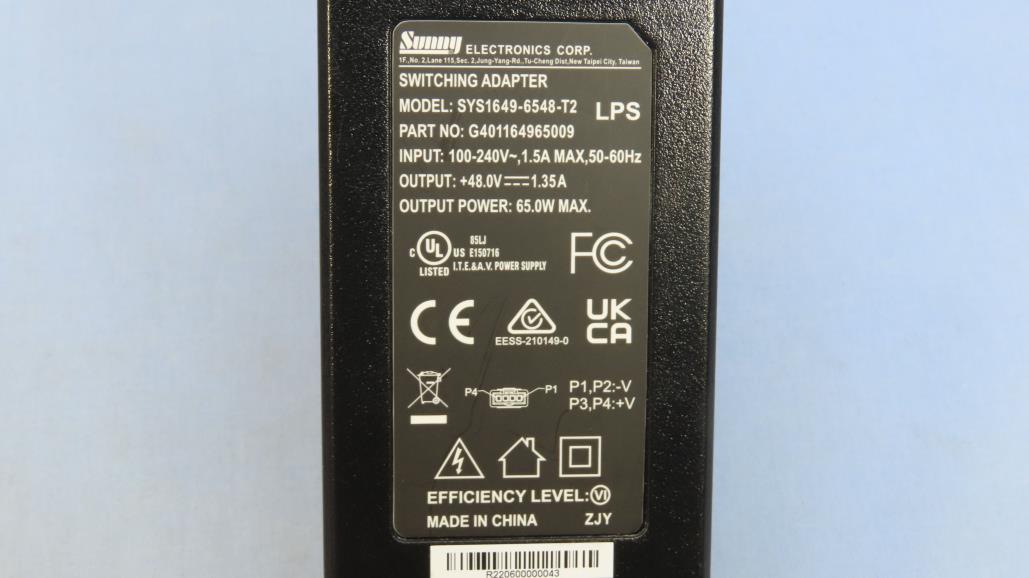

Reference No.: BCUN-WTW-P23030714 Page No. 1 / 18 CONSTRUCTION PHOTOS OF EUT Reference No.: BCUN-WTW-P23030714 Page No. 2 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 3 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 4 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 5 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 6 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 7 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 8 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 9 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 10 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 11 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 12 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 13 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 14 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 15 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 16 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 17 / 18 Reference No.: BCUN-WTW-P23030714 Page No. 18 / 18

Report No.: MFBCUN-WTW-P23030714 Page No. 1/ 6Report Format Version: 6.1.1 FCC RF Exposure Report Report No.:MFBCUN-WTW-P23030714 FCC ID:H8N46116A Model No.:NR xCell 46116A Received Date:2023/4/10 Issued Date:2023/9/6 Applicant:ASKEY COMPUTER CORP. Address:10F, NO. 119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, TAIWAN, R.O.C. Issued By:Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address:No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location:No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Desi gnation Number:788550 / TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBCUN-WTW-P23030714 Page No. 2/ 6Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 General Information .............................................................................................................................. 5 2.1 General Description of EUT ................................................................................................................ 5 3 RF Exposure .......................................................................................................................................... 6 3.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 6 3.2 MPE Calculation Formula ................................................................................................................... 6 3.3 Classification ....................................................................................................................................... 6 4 Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: MFBCUN-WTW-P23030714 Page No. 3/ 6Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued MFBCUN-WTW-P23030714 Original release 2023/9/6 Report No.: MFBCUN-WTW-P23030714 Page No. 4/ 6Report Format Version: 6.1.1 1 Certificate of Conformity Product: 5G small cell Brand: ASKEY Test Model: NR xCell 46116A Sample Status: Engineering sample Applicant: ASKEY COMPUTER CORP. FCC Rule Part: FCC Part 2 (Section 2.1091) Standards: KDB 447498 D01 General RF Exposure Guidance v06 We, Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, declare that the equipment above has been found compliance with the requirement limits of applicable standards. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate under the standards herein specified. Prepared by : , Date:2023/9/6 Pettie Chen / Senior Specialist Approved by : , Date:2023/9/6 Jeremy Lin / Project Engineer Report No.: MFBCUN-WTW-P23030714 Page No. 5/ 6Report Format Version: 6.1.1 2 General Information 2.1 General Description of EUT Product 5G small cell Brand ASKEY Test Model NR xCell 46116A Status of EUT Engineering sample Power Supply Rating 12Vdc or 48Vdc(Adapter) Modulation Type 5G NR QPSK, 64QAM, 256QAM Operating Frequency 5G NR n48 3555MHz ~ 3694.98MHz 5G NR n77 3700MHz ~ 3980MHz Antenna Type Refer to note Note: 1. The EUT contains following accessory devices and PoE. AC Adapter 1 Brand FLYPOWER Model PS65B120Y5000S AC Input 100-240Vac~, 15A, 50/60Hz DC Output 12.0Vdc, 5.0A AC Adapter 2 Brand Sunny Model SYS1649-6548-T2 AC Input 100-240Vac~, 15A, 50/60Hz DC Output 48.0Vdc, 1.35A Bracket Brand LUNG TENG Model MOD-SCE2200-Wall_Ceiling_Ploe-Mount-Sub Power cord Brand WELL SHIN Model 1961-0048 PoE (Support unit) Brand CERiO Model FPOE-DXG 2. The EUT device does not support 16QAM modulation and only supports Full RB mode. 3. The antenna information is listed as below. Antenna Type Antenna Gain(dBi) Connector Type Frequency (MHz) Ant 1Ant 2 Dipole 3300 5.54 4.80 I-PEX 3550 4.79 5.05 3700 4.71 5.79 3800 5.14 6.20 * Detail antenna specification please refer to antenna datasheet an antenna gain measurement report. Report No.: MFBCUN-WTW-P23030714 Page No. 6/ 6Report Format Version: 6.1.1 3 RF Exposure 3.1 Limi…

Text truncated - open the document above for the full version.

Report No.: RFBCUN-WTW-P23030714 Page No. 1 / 92Report Format Version: 7.1.0 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 27 47 CFR FCC Part 2 Report No.: RFBCUN-WTW-P23030714 FCC ID: H8N46116A Product: 5G small cell Brand: ASKEY Model No.: NR xCell 46116A Received Date: 2023/4/10 Test Date: 2023/5/2 ~ 2023/5/12 Issued Date: 2023/6/26 Applicant: ASKEY COMPUTER CORP. Address: 10F, NO. 119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, TAIWAN, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN FCC Registration / Desi gnation Number: 788550 / TW0003 Approved by: , Date:2023/6/26 Jeremy Lin / Project Engineer This test report consists of 92 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared b y : Pettie Chen / Senior Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: RFBCUN-WTW-P23030714 Page No. 2 / 92Report Format Version: 7.1.0 Table of Contents Release Control Record ....................................................................................................................................................... 4 1 Certificate .................................................................................................................................................................... 5 2 Summary of Test Results .......................................................................................................................................... 6 2.1 Measurement Uncertainty ........................................................................................................................................ 6 2.2 Supplementary Information ...................................................................................................................................... 6 3 General Information ................................................................................................................................................... 7 3.1 General Description of EUT ..................................................................................................................................... 7 3.2 Antenna Description of EUT ..................................................................................................................................... 8 3.3 Test Mode Applicability and Tested Channel Detail .................................................................................................. 9 3.4 Test Program Used and Operation Descriptions .................................................................................................... 12 3.5 Connection Diagram of EUT and Peripheral Devices ............................................................................................ 12 3.6 Configuration of Peripheral Devices and Cable Connections ................................................................................ 13 4 Test Instruments ...................................................................................................................................................... 14 4.1 Effective Radiated Power and Equivalent Isotropically Radiated Power ............................................................... 14 4.2 Modulation Characteristics ..................................................................................................................................... 14 4.3 Peak to Average Ratio ............................................................................................................................................ 14 4.4 Bandwidth ............................................................................................................................................................... 14 4.5 Conducted Spurious Emissions ............................................................................................................................. 14 4.6 Radiated Spurious Emissions belo…

Text truncated - open the document above for the full version.

Report No.: RFBCUN-WTW-P23030714 Page No. 55 / 92Report Format Version: 7.1.0 NR n77 (3700-3980 MHz) SCS 30 kHz, Channel Bandwidth: 80 MHz Chain 0 CH 649334 (3740.01 MHz) CH 656000 (3840.00 MHz) CH 662666 (3939.99 MHz) *The 9kHz signal over the limit is from Spectrum. Report No.: RFBCUN-WTW-P23030714 Page No. 56 / 92Report Format Version: 7.1.0 Chain 1 CH 649334 (3740.01 MHz) CH 656000 (3840.00 MHz) CH 662666 (3939.99 MHz) *The 9kHz signal over the limit is from Spectrum. Report No.: RFBCUN-WTW-P23030714 Page No. 57 / 92Report Format Version: 7.1.0 Chain 0 CH 649334 (3740.01 MHz) CH 662666 (3939.99 MHz) Chain 1 CH 649334 (3740.01 MHz) CH 662666 (3939.99 MHz) Report No.: RFBCUN-WTW-P23030714 Page No. 58 / 92Report Format Version: 7.1.0 NR n77 (3700-3980 MHz) SCS 30 kHz, Channel Bandwidth: 90 MHz Chain 0 CH 649668 (3745.02 MHz) CH 656000 (3840.00 MHz) CH 662332 (3934.98 MHz) *The 9kHz signal over the limit is from Spectrum. Report No.: RFBCUN-WTW-P23030714 Page No. 59 / 92Report Format Version: 7.1.0 Chain 1 CH 649668 (3745.02 MHz) CH 656000 (3840.00 MHz) CH 662332 (3934.98 MHz) *The 9kHz signal over the limit is from Spectrum. Report No.: RFBCUN-WTW-P23030714 Page No. 60 / 92Report Format Version: 7.1.0 Chain 0 CH 649668 (3745.02 MHz) CH 662332 (3934.98 MHz) Chain 1 CH 649668 (3745.02 MHz) CH 662332 (3934.98 MHz) Report No.: RFBCUN-WTW-P23030714 Page No. 61 / 92Report Format Version: 7.1.0 NR n77 (3700-3980 MHz) SCS 30 kHz, Channel Bandwidth: 100 MHz Chain 0 CH 650000 (3750.00 MHz) CH 656000 (3840.00 MHz) CH 662000 (3930.00 MHz) *The 9kHz signal over the limit is from Spectrum. Report No.: RFBCUN-WTW-P23030714 Page No. 62 / 92Report Format Version: 7.1.0 Chain 1 CH 650000 (3750.00 MHz) CH 656000 (3840.00 MHz) CH 662000 (3930.00 MHz) *The 9kHz signal over the limit is from Spectrum. Report No.: RFBCUN-WTW-P23030714 Page No. 63 / 92Report Format Version: 7.1.0 Chain 0 CH 650000 (3750.00 MHz) CH 662000 (3930.00 MHz) Chain 1 CH 650000 (3750.00 MHz) CH 662000 (3930.00 MHz) Report No.: RFBCUN-WTW-P23030714 Page No. 64 / 92Report Format Version: 7.1.0 7.6 Radiated Spurious Emissions below 1GHz RF Mode NR n77 Channel Bandwidth: 40MHz Channel CH 648000: 3720.00 MHz Frequency Range 30 MHz ~ 1 GHz Detector Function & Bandwidth 1 MHz/3 MHz (RMS) Input Power 120 Vac, 60 Hz Environmental Conditions 23°C, 76% RH Tested By Adair Peng Test Mode A Antenna Polarity & Test Distance : Horizontal at 3 m No Frequency (MHz) EIRP (dBm) Limit (dBm) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 60.07 -51.72 -13.00 -38.72 2.00 H 84 -41.75 -9.97 2 76.56 -54.59 -13.00 -41.59 2.00 H 130 -41.55 -13.04 3 178.41 -64.14 -13.00 -51.14 2.00 H 275 -53.81 -10.33 4 283.17 -67.59 -13.00 -54.59 1.01 H 206 -59.35 -8.24 5 375.32 -67.45 -13.00 -54.45 1.01 H 209 -60.93 -6.52 6 699.30 -64.00 -13.00 -51.00 2.00 H 330 -63.88 -0.12 Remarks: 1. EIRP(dBm) = Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) + 20log(D) – 104.8 3. Margin value = EIRP – Limit value 4. The other EIRP levels were very low against the limit of frequency range 30 MHz ~ 1 GHz. 5. The EIRP levels were very low against the limit of frequency range 9 kHz ~ 30 MHz: the amplitude of spurious emissions attenuated more than 20 dB below the permissible value to be report. Report No.: RFBCUN-WTW-P23030714 Page No. 65 / 92Report Format Version: 7.1.0 RF Mode NR n77 Channel Bandwidth: 40MHz Channel CH 648000: 3720.00 MHz Frequency Range 30 MHz ~ 1 GHz Detector Function & Bandwidth 1 MHz/3 MHz (RMS) Input Power 120 Vac, 60 Hz Environmental Conditions 23°C, 76% RH Tested By Adair Peng Test Mode A Antenna Polarity & Test Distance : Vertical at 3 m No Frequency (MHz) EIRP (dBm) Limit (dBm) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 45.52 -57.02 -13.00 -44.02 1.50 V 22 -47.46 -9.56 2 81.41 -57.21 -13.00 -44.21 1.00 V 254 -43.05 -14.16 3 113.42 -59.40 -13.00 -46.40 1.00 V 66 -47.25 -12.15 4 207.51 -62.19 -13.00 -49.19 1.50 V 136 -50.20 -11.99 5 348.16 -64.17 -13.00 -51.17 1.50 V 18 -56.92 -7.25 6 776.90 -66.29 -13.00 -53.29 1.00 V 215 -68.13 1.84 Remarks: 1. EIRP(dBm) = Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) + 20log(D) – 104.8 3. Margin value = EIRP – Limit value 4. The other EIRP levels were very low against the limit of frequency range 30 MHz ~ 1 GHz. 5. The EIRP levels were very low against the limit of frequency range 9 kHz ~ 30 MHz: the amplitude of spurious emissions attenuated more than 20 dB below the permissible value to be report. Report No.: RFBCUN-WTW-P23030714 Page No. 66 / 92Report Format Version: 7.1.0 RF Mode NR n77 Channel Bandwidth: 40MHz Channel CH 648000: 3720.00 MHz Frequency Range 30 MHz ~ 1 GHz Detector Function & Bandwidth 1 MHz/3 MHz (RMS) Input Power 120 Vac, 60 Hz Environmental Conditions 23°C, 76% RH Tested By Adair Peng Test Mode B Antenna Polarity & Test Distance : Horizontal at 3 m No Frequency (MHz) EIRP (dBm) Limit (dBm) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 59.10 -55.82 -13.00 -42.82 1.99 H 58 -45.89 -9.93 2 142.52 -55.83 -13.00 -42.83 1.50 H 243 -46.31 -9.52 3 179.38 -58.02 -13.00 -45.02 1.50 H 290 -47.56 -10.46 4 290.93 -64.43 -13.00 -51.43 1.00 H 283 -56.32 -8.11 5 550.89 -67.40 -13.00 -54.40 1.50 H 214 -64.00 -3.40 6 688.63 -68.16 -13.00 -55.16 1.00 H 172 -67.76 -0.40 Remarks: 1. EIRP(dBm) = Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) + 20log(D) – 104.8 3. Margin value = EIRP – Limit value 4. The other EIRP levels were very low against the limit of frequency range 30 MHz ~ 1 GHz. 5. The EIRP levels were very low against the limit of frequency range 9 kHz ~ 30 MHz: the amplitude of spurious emissions attenuated …

Text truncated - open the document above for the full version.

Reference No.: BCUN-WTW-P23030714_TSup Page No. 1 / 4 PHOTOGRAPHS OF THE TEST CONFIGURATION Radiated Emission Test (Above 1GHz) Reference No.: BCUN-WTW-P23030714_TSup Page No. 2 / 4 Radiated Emission Test (Below 1GHz) Test Mode A Reference No.: BCUN-WTW-P23030714_TSup Page No. 3 / 4 Radiated Emission Test (Below 1GHz) Test Mode B Reference No.: BCUN-WTW-P23030714_TSup Page No. 4 / 4 Functional Test
