H8NPMA9010-D68Zune FM Transmitter with AutoSeek

OWNER’S MAN- UAL: FRONT COVER DESIGN TO COME, BASED ON CHOSEN BRAND DESIGN Zune Product Guide Read this guide for important safety and health information and the terms of the Limited Warranty that cover the Zune device that you have purchased. Important Safety Information 1 Zune and Zune Earphones 1 Zune Device 2 All Zune Products 3 Zune and Zune AC Adapter 3 Zune, Zune Wireless Remote, and Zune FM Transmitter with AutoSeek 3 Zune Wireless Remote 4 Zune Earphones and Zune Wireless Remote 4 Table of Contents This document includes important information about several Zune products. Refer to the sections listed below that apply to the features of your device. This symbol identifies safety and health messages in this Product Guide and other product manuals. IMPORTANT SAFET Y INFORMATION Read these instructions. Keep these instructions. Heed all warnings and follow all instructions. Do not use near water. Clean only with dry cloth. Use in accordance with the manufacturer’s instructions. Do not use near any heat sources. Only use attachments/accessories specified by the manufacturer. Unplug this product during lightning storms or when unused for long periods of time. Refer all servicing to qualified personnel. Servicing is required when the product has been damaged in any way, such as the AC adapter is damaged, liquid has been spilled into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped. WARNING To reduce the risk of fire or shock, do not expose this product to rain or moisture. Zune and Zune Earphones Hearing Loss Zune can be loud enough to permanently damage your hearing. To protect your hearing when using Zune: Keep the volume low Set the volume loud enough to hear clearly in quiet surroundings, and no louder. Do not increase the volume after you start listening. Your ears can adapt over time so that high volume sounds normal, but the high volume may still damage your hearing. Do not increase the volume to block out outside noise. The combination of outside noise and sound from your headphones can damage your hearing. Sealed or noise-canceling headphones can reduce outside noise so that you don’t have to turn up the volume. If you can’t understand someone nearby speaking normally, turn down the volume. Sound that drowns out normal speech can damage your hearing. Even with sealed or noise-canceling headphones, you should be able to hear nearby people speak. Minimize your time listening to loud sound The more time you spend exposed to loud sound, the more likely you are to damage your hearing. The louder the sound, the less time it takes to damage hearing. Minimize your time listening to loud sound. At maximum volume, listening to music on Zune with Zune Earphones can permanently damage your hearing in 15 minutes. Even lower volumes can damage hearing if you are exposed for many hours. » » » » Disposal of Waste Electrical and Electronic Equipment 4 Warranty 4 Extended Warranty 8 Digital Rights Management 8 Patent Information 8 Customer Support Options 8 For Customers in the United States 9 1 All Zune Products WARNING! Failure to properly set up, use, and care for this product can increase the risk of serious injury or death, or damage to the device or devices. Read this guide and keep all printed guides for future reference. For replacement guides, go to www.zune.net/support or refer to the Customer Support Options section for contact information. Do Not Attempt Repairs Do not attempt to take apart, open, service, or modify the product or power supply. Doing so could present the risk of electric shock or other hazard. Any evidence of any attempt to open and/or modify the device, including any peeling, puncturing, or removal of any of the labels, will void the Limited Warranty. Refer all servicing to qualified personnel. Servicing is required when the product has been damaged in any way, such as the AC adapter has been damaged, liquid has been spilled into the product, the product has been exposed to rain or other types of moisture, the product does not operate normally, or the product has been dropped. Heed all warnings and follow all instructions. Do Not Use Near Water Do not use this product near water. To reduce the risk of fire or shock, do not expose this product to rain or other types of moisture. Cable and Cord Safety Arrange all cables and cords so that people and pets are not likely to trip over or accidentally pull on them as they move around or walk through the area. Do not allow children to play with cables and cords. Usage and Cleaning Use in accordance with these instructions. Do not use near any heat sources. Only use attachments/accessories specified by Microsoft. Clean only with dry cloth. Zune and Zune AC Adapter AC Powered Devices These precautions apply to all products that plug into a standard wall power outlet. Failure to take the following precautions can result in serious injury or death from electric shock or fire or in damage to the device. To select an appropriate power source for your device: Use only the power supply unit that came with your device or that you received from an authorized repair center. Do not use non-standard power sources, such as generators or inverters, even if the voltage and frequency appear acceptable. Only use AC power provided by a standard wall outlet. Zune, Zune Wireless Remote, and Zune FM Transmitter with AutoSeek Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any other antenna or transmitter. » » All of the sound that you are exposed to during a day adds up. If you are exposed to other loud sound, it takes less time listening to Zune at high volumes to cause hearing damage. To safely use Zune with no time limit, keep the volume low enough that you can carry on a conversation with people nearby. Replacement headphones may be louder Other headphones may…

Text truncated - open the document above for the full version.

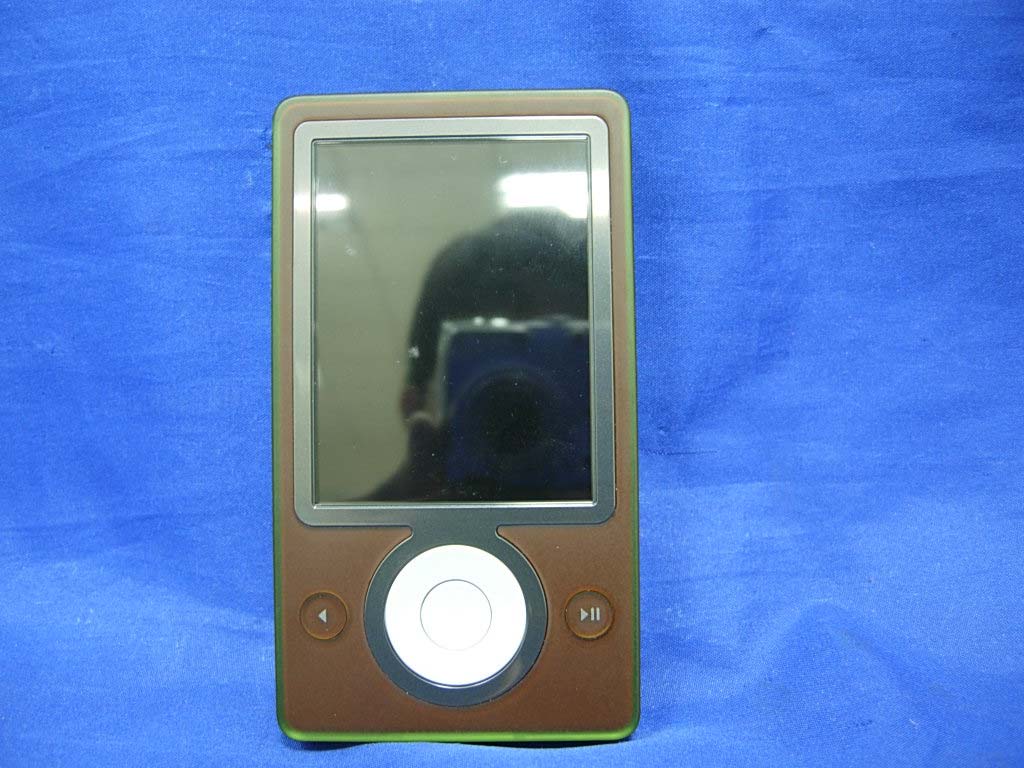

Report No.: 069L046-RF-US-P02V01 Page : 1 of12 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 2 of12 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 3 of12 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 4 of12 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 5 of12 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 6 of12 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 7 of12 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 8 of12 Version:1.0 (15) EUT Photo (16) EUT Photo

ASKEY COMPUTER CORP. FCC ID.: H8NPMA9010-D68 10F,NO.119,CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C . Tel : 886-2-2228-7588#1322 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 069L046-RF-US-P02V01 Page : 9 of12 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 10 of12 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 11 of12 Version:1.0 (21) EUT Photo (22) EUT Photo Report No.: 069L046-RF-US-P02V01 Page : 12 of12 Version:1.0 (23) EUT Photo

1.2. Operation Description The EUT is Zune FM Transmitter with AutoSeek. The operation frequency is from 88.1MHz to 107.9MHz with FM modulation. 199 manually selectable channels were built in the EUT. The channels are separated by 100kHz. The signals are modulated by FM. RF signals are transmitted from the planar antenna. AC 120V/60Hz shall be provided for EUT operation.

Report No. 069L049-RF-US-P02V01 Page: 1 of 34 Version:1.0 Test Report Product Name : Zune FM Transmitter with AutoSeek Model No. : 1100 FCC ID : H8NPMA9010-D68 Applicant : ASKEY COMPUTER CORP. Address : 10F,NO.119,CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C Date of Receipt : Sep. 05, 2006 Date of Test : Sep. 26, 2006 Report No. : 069L049-RF-US-P02V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 069L049-RF-US-P02V01 Page: 2 of 34 Version:1.0 Test Report Certification Test Date : Sep. 26, 2006 Report No. : 069L049-RF-US-P02V01 Product Name : Zune FM Transmitter with AutoSeek Applicant : ASKEY COMPUTER CORP. Address : 10F,NO.119,CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C Manufacturer : ASKEY COMPUTER CORP. Model No. : 1100 FCC ID. : H8NPMA9010-D68 Rated Voltage : AC 120V/60Hz Trade Name : Microsoft Measurement Standard : FCC CFR Title 47 Part 15 Subpart C: 2005 Measurement Procedure : ANSI C63.4: 2003 Test Result : Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Michelle Lin ) Tested By : ( Tom Hsieh ) Approved By : (George Chen ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 069L049-RF-US-P02V01 Page: 3 of 34 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operation Description ...................................................................................................................6 1.3. Tested System Details....................................................................................................................6 1.4. Configuration of Tested System ....................................................................................................6 1.5. EUT Exercise Software .................................................................................................................6 1.6. Test Facility ...................................................................................................................................7 2. Conducted Emission ..............................................................................................................................8 2.1. Test Equipment..............................................................................................................................8 2.2. Test Setup ......................................................................................................................................8 2.3. Limits ............................................................................................................................................8 2.4. Test Procedure ...............................................................................................................................9 2.5. Uncertainty ....................................................................................................................................9 2.6. Test Result of Conducted Emission.............................................................................................10 3. Radiated Emission ...............................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................17 3.4. Test Procedure .............................................................................................................................18 3.5. Uncertainty ..................................................................................................................................18 3.6. Test Result of Radiated Emission................................................................................................19 4. Occupied Bandwidth ...........................................................................................................................24 4.1. Test Equipment............................................................................................................................24 4.2. Test Setup ....................................................................................................................................24 4.3. Limits ..........................................................................................................................................24 4.4. Uncertainty ..................................................................................................................................24 4.5. Test Result of Occupied Bandwidth ............................................................................................25 5. Band Edge ............................................................................................................................................26 5.1. Test Equipment............................................................................................................................26 5.2. Test Setup ...............................................................…

Text truncated - open the document above for the full version.

Report No.: 069L046-RF-US-P02V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 069L046-RF-US-P02V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 069L046-RF-US-P02V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
