H8NRT410W802.11 a/b/g Wireless Module

RT410W series S S t t a a t t i i o o n n O O p p e e r r a a t t i i o o n n M M a a n n u u a a l l All other product names and trademarks in this document are trademarks of their respective companies. 2003/08/25 No part of this publication may be reproduced in any form by any means without the prior written permission. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. 2003/08/25 Rev:01 Safety Notes For Installation n Use only the type of power source indicated on the marking labels. n Use only the power adapter supplied with the product. n Do not overload wall outlet or extension cords as this may increase the risk of electric shock or file. If the power cord is frayed, replace it with a new one. n Proper ventilation is necessary to prevent the product overheating. Do not block or cover the slots and openings on the device, which are intended for ventilation and proper operation. It is recommended to mount the product with a stack. n Do not place the product near any source of heat or expose it to direct sunshine. n Do not expose the product to moisture. Never spill any liquid on the product. n Do not attempt to connect with any computer accessory or electronic product without instructions from qualified service personnel. This may result in risk of electronic shock or file. n Do not place this product on an unstable stand or table. For Using n Power off and unplug this product from the wall outlet when it is not in use or before cleaning. Pay attention to the temperature of the power adapter. The temperature might be high. n After powering off the product, power on the product at least 15 seconds later. n Do not block the ventilating openings of this product. n When the product is expected to be not in use for a period of time, unplug the power cord of the product to prevent it from the damage of storm or sudden increases in rating. For Service Do not attempt to disassemble or open covers of this unit by yourself. Nor should you attempt to service the product yourself, which may void the user’s authority to operate it. Contact qualified service personnel under the following conditions: n If the power cord or plug is damaged or frayed. n If liquid has been spilled into the product. n If the product has been exposed to rain or water. n If the product does not operate normally when the operating instructions are followed. n If the product has been dropped or the cabinet has been damaged. n If the product exhibits a distinct change in performance. Warning n This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. n This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution n Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ASKEY declare that RT410W-D92(LF) is limited in CH1~CH11 by specified firmware are controlled in USA. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The antenna should be integral if the end device is intended to be operated in 5.15 ~ 5.25GHz frequency range. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer conside…

Text truncated - open the document above for the full version.

FCC ID: H8NRT410W Report No.: 921121H011 Modular Approval Request Letter Advance Data Technology Dec. 04, 2003 Dear Application Examiner, ASKEY COMPUTER CORP.’s 802.11 a/b/g Wireless Module, FCC ID: H8NRT410W, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2312. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.5V DC powered. The POE interface provides 12VDC, so there are regulators in front of these chips, the part number of this regulator is LT1767EMS8. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand alone configuration” The EUT was tested in a stand-alone configuration. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H8NRT410W Report No.: 921121H012 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

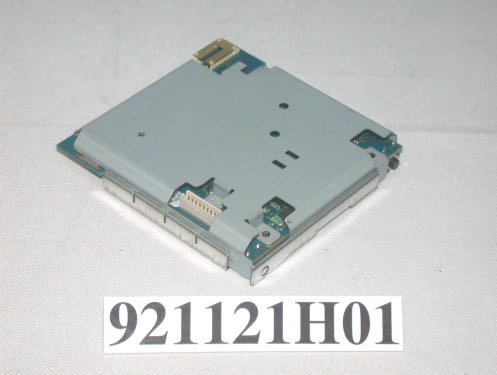

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: H8NRT410W LABEL LOCATION Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID: H8NRT410W ADT No. 921121H01 Technical Description The transmitter of the EUT is powered by POE. The antenna is shape Antenna without connector. This device is a 802.11 a/b/g Wireless Module operates in both the 5GHz and 2.4GHz bands. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: H8NRT410W ADT No.: 921121H011 RF EXPOSURE REPORT REPORT NO.: RF921121H01 MODEL NO.: RT410W-D92(LF) ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F,NO.119, CHIENKANG RD.,CHUNG-HO, TAIPEI TAIWAN R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: H8NRT410W ADT No.: 921121H012 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: H8NRT410W ADT No.: 921121H013 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: H8NRT410W ADT No.: 921121H014 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 0Bi or 1 (numeric). for 5.15-5.35GHz and -4dBi or 0.398(numeric) for 2.4GHz. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: (For Part 802.11b) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241270.1460.00561.0 6243768.2340.00541.0 11246267.2980.00531.0 (For Part 802.11g) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241269.5020.00551.0 6243767.6080.00541.0 11246264.8630.00511.0 Turbo 6243764.5650.00511.0 FCC ID: H8NRT410W ADT No.: 921121H015 For 802.11a Normal mode (5GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518041.9760.00841.0 4524042.6580.00851.0 5526054.0750.01061.0 8532055.0810.01101.0 For 802.11a Turbo mode (5GHz Band): Dynamic Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1520046.6660.00931.0 2524045.4990.00911.0 3528060.9540.01211.0 For 802.11a Turbo mode (5GHz Band): Static Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521041.3050.00821.0 2525042.0730.00841.0 3529063.3870.01261.0

FCC ID: H8NRT410W Report No.: RF921121H011Issued: Dec. 19, 2003 FCC TEST REPORT REPORT NO.: RF921121H01 MODEL NO.: RT410W-D92(LF) RECEIVED: Nov. 21, 2003 TESTED: Nov. 21 to Dec. 18, 2003 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F,NO.119, CHIENKANG RD.,CHUNG- HO,TAIPEI TAIWAN R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 154 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: H8NRT410W Report No.: RF921121H012Issued: Dec. 19, 2003 Table of Contents 1.CERTIFICATION............................................................................................................5 2.SUMMARY OF TEST RESULTS.....................................................................................6 3.GENERAL INFORMATION.............................................................................................8 3.1GENERAL DESCRIPTION OF EUT................................................................................8 3.2DESCRIPTION OF TEST MODES................................................................................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................12 3.4DESCRIPTION OF SUPPORT UNITS...........................................................................13 4.TEST TYPES AND RESULTS (FOR PART 802.11B/G)...................................................14 4.1CONDUCTED EMISSION MEASUREMENT..................................................................14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................14 4.1.2TEST INSTRUMENTS..................................................................................................14 4.1.3TEST PROCEDURES..................................................................................................15 4.1.4DEVIATION FROM TEST STANDARD..........................................................................15 4.1.5TEST SETUP...............................................................................................................16 4.1.6EUT OPERATING CONDITIONS..................................................................................16 4.1.7TEST RESULTS...........................................................................................................17 4.2RADIATED EMISSION MEASUREMENT......................................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................................19 4.2.2TEST INSTRUMENTS..................................................................................................20 4.2.3TEST PROCEDURES..................................................................................................21 4.2.4DEVIATION FROM TEST STANDARD..........................................................................21 4.2.5TEST SETUP...............................................................................................................22 4.2.6EUT OPERATING CONDITIONS..................................................................................22 4.2.7TEST RESULTS...........................................................................................................23 4.36DB BANDWIDTH MEASUREMENT.............................................................................31 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT...........................................................31 4.3.2TEST INSTRUMENTS..................................................................................................31 4.3.3TEST PROCEDURE....................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD..........................................................................32 4.3.5TEST SETUP...............................................................................................................32 4.3.6EUT OPERATING CONDITIONS..................................................................................32 4.3.7TEST RESULTS - DSSS..............................................................................................33 4.3.8TEST RESULTS - OFDM..............................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER.............................................................................42 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.................................42 4.4.2INSTRUMENTS...........................................................................................................42 4.4.3TEST PROCEDURES..................................................................................................43 4.4.4TEST SETUP...............................................................................................................43 4.4.5EUT OPERATING CONDITIONS..................................................................................43 4.4.6TEST RESULTS - DSSS..............................................................................................44 4.4.7TEST RESULTS - OFDM..............................................................................................44 FCC ID: H8NRT410W Report No.: RF921121H013Issued: Dec. 19, 2003 4.5POWER SPECTRAL DENSITY MEASUREMENT..........................................................45 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.........................................45 4.5.2TEST INSTRUMENTS..............................................................................…

Text truncated - open the document above for the full version.

FCC ID: H8NRT410W Report No.: RF921121H0151Issued: Dec. 19, 2003 4.5.8 TEST RESULTS - OFDM EUT 802.11 a/b/g Wireless Module MODEL RT410W-D92(LF) INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 21deg. C, 58RH, 976 hPa TESTED BY Eric Lee CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-6.148PASS 62437-5.518PASS 112462-5.198PASS Turbo 62437-5.808PASS FCC ID: H8NRT410W Report No.: RF921121H0152Issued: Dec. 19, 2003 CH1 FCC ID: H8NRT410W Report No.: RF921121H0153Issued: Dec. 19, 2003 CH6 FCC ID: H8NRT410W Report No.: RF921121H0154Issued: Dec. 19, 2003 CH11 FCC ID: H8NRT410W Report No.: RF921121H0155Issued: Dec. 19, 2003 Turbo CH6 FCC ID: H8NRT410W Report No.: RF921121H0156Issued: Dec. 19, 2003 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: H8NRT410W Report No.: RF921121H0157Issued: Dec. 19, 2003 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS - DSSS The spectrum plots are attached on the following 2 pages. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 54.09dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 98.9dBuV/m, so the maximum field strength in restrict band is 98.9-54.09=44.81dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 58.33 dB delta between carrier maximum power and local maximum emission in restrict band (2.4837GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 99.1dBuV/m, so the maximum field strength in restrict band is 99.1-57.32=41.78dBuV/m which is under 54 dBuV/m limit. FCC ID: H8NRT410W Report No.: RF921121H0158Issued: Dec. 19, 2003 FCC ID: H8NRT410W Report No.: RF921121H0159Issued: Dec. 19, 2003 FCC ID: H8NRT410W Report No.: RF921121H0160Issued: Dec. 19, 2003 4.6.7 TEST RESULTS - OFDM The spectrum plots are attached on the following 2 pages. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 51.42dB delta between carrier maximum power and local maximum emission in restrict band (2.390GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 93.7dBuV/m, so the maximum field strength in restrict band is 93.7-51.42=42.28dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 50.45 dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 93.7dBuV/m, so the maximum field strength in restrict band is 93.7-50.45=43.25 dBuV/m which is under 54 dBuV/m limit. FCC ID: H8NRT410W Report No.: RF921121H0161Issued: Dec. 19, 2003 FCC ID: H8NRT410W Report No.: RF921121H0162Issued: Dec. 19, 2003 FCC ID: H8NRT410W Report No.: RF921121H0163Issued: Dec. 19, 2003 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna used in this product is shape Antenna without connector. The maximum Gain of the antenna is -4dBi. FCC ID: H8NRT410W Report No.: RF921121H0164Issued: Dec. 19, 2003 5. TEST TYPES AND RESULTS (FOR PART 802.11a) 5.1 CONDUCTED EMISSION MEASUREMENT 5.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT FREQUENCY OF EMISSION (MHz)CONDUCTED LIMIT (dBμV) Quasi-peakAverage 0.15-0.5 0.5-5 5-30 66 to 56 56 60 56 to 46 46 50 NOTE:1.The lower limit shall apply at the transition frequencies. 2.The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50 MHz. 3.All emanations from a class A/B digital device or system, including any network of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. 5.1.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO. CALIBRATED UNTIL ROHDE & SCHWARZ Test Receiver ESCS 30847124/029Nov. 17, 2004 ROHDE & SCHWARZ LISN (for EUT) ESHS-Z5848773/004Nov. 13, 2004 KYORITSU LISN (for peripheral)KNW-4078/1395/12Jul. 23, 2004 RF Cable (JETBAO)RG233/UCable_CA_01Jul. 03, 2004 Terminator(for KYORITSU)503Apr. 11, 2004 SoftwareCond-V2eNANA NOTE:1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. The test was performed in ADT Shielded Room No. A. 3. The VCCI Co…

Text truncated - open the document above for the full version.

FCC ID: H8NRT410W Report No.: RF921121H01101Issued: Dec. 19, 2003 CHANNEL 2 FCC ID: H8NRT410W Report No.: RF921121H01102Issued: Dec. 19, 2003 CHANNEL 3 FCC ID: H8NRT410W Report No.: RF921121H01103Issued: Dec. 19, 2003 For Test result (B) -Static EUT 802.11 a/b/g Wireless Module MODELRT410W-D92(LF) MODETurbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 21eg. C, 58RH, 976 hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/FAIL 1521016.1617.0057.28PASS 2525016.2417.0055.04PASS 3529018.0224.0062.72PASS NOTE: The 26dBc Occupied Bandwidth plot, please refer to the following pages. FCC ID: H8NRT410W Report No.: RF921121H01104Issued: Dec. 19, 2003 CHANNEL 1 FCC ID: H8NRT410W Report No.: RF921121H01105Issued: Dec. 19, 2003 CHANNEL 2 FCC ID: H8NRT410W Report No.: RF921121H01106Issued: Dec. 19, 2003 CHANNEL 3 FCC ID: H8NRT410W Report No.: RF921121H01107Issued: Dec. 19, 2003 CHANNEL 1 FCC ID: H8NRT410W Report No.: RF921121H01108Issued: Dec. 19, 2003 CHANNEL 2 FCC ID: H8NRT410W Report No.: RF921121H01109Issued: Dec. 19, 2003 CHANNEL 3 FCC ID: H8NRT410W Report No.: RF921121H01110Issued: Dec. 19, 2003 5.4 PEAK POWER EXCURSION MEASUREMENT 5.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 5.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP30100019Dec. 19, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: H8NRT410W Report No.: RF921121H01111Issued: Dec. 19, 2003 5.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set the spectrum bandwidth span to view the entire spectrum. 3. Using peak detector and Max-hold function for Trace 1 (RB=1MHz, VB=3MHz) and 2 (RB=1MHz, VB=30KHz). 4. The largest difference between Trace 1 and Trace 2 in any 1MHz band on any frequency was recorded. 5.4.4 DEVIATION FROM TEST STANDARD No deviation 5.4.5 TEST SETUP 5.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUTSPECTRUM FCC ID: H8NRT410W Report No.: RF921121H01112Issued: Dec. 19, 2003 5.4.7 TEST RESULTS EUT 802.11 a/b/g Wireless Module MODEL RT410W-D92(LF) MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 21eg. C, 58RH, 976 hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 151808.3113PASS 452407.0013PASS 552608.6313PASS 853208.6113PASS FCC ID: H8NRT410W Report No.: RF921121H01113Issued: Dec. 19, 2003 CHANNEL 1 FCC ID: H8NRT410W Report No.: RF921121H01114Issued: Dec. 19, 2003 CHANNEL 4 FCC ID: H8NRT410W Report No.: RF921121H01115Issued: Dec. 19, 2003 CHANNEL 5 FCC ID: H8NRT410W Report No.: RF921121H01116Issued: Dec. 19, 2003 CHANNEL 8 FCC ID: H8NRT410W Report No.: RF921121H01117Issued: Dec. 19, 2003 For Test result (A) -Dynamic EUT 802.11 a/b/g Wireless Module MODELRT410W-D92(LF) MODETurbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 21eg. C, 58RH, 976 hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152007.2113PASS 252406.9713PASS 352808.0513PASS FCC ID: H8NRT410W Report No.: RF921121H01118Issued: Dec. 19, 2003 CHANNEL 1 FCC ID: H8NRT410W Report No.: RF921121H01119Issued: Dec. 19, 2003 CHANNEL 2 FCC ID: H8NRT410W Report No.: RF921121H01120Issued: Dec. 19, 2003 CHANNEL 3 …

Text truncated - open the document above for the full version.
