H8NRT480WWireless Router

Wireless Broadband Router User Manual  2003 All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. Disclaimer Information in this document is subject to change without notice. The material contained herein is supplied without representation or warranty of any kind. The seller therefore assumes no responsibility and shall have no liability of any kind arising from the supply or use of this document or the material contained herein. Trademarks Microsoft and Windows are registered trademarks of Microsoft Corporation. Ethernet is a registered trademark of Xeros Corporation. 54g is a registered trademark of Broadcom corporation. All other trademarks mentioned in this document are the property of their respective owners. March 14, 2003 Rev01 F/W:2.02.10 i Safety Instructions For Installation • Use only the type of power source indicated on the marking labels. • Use only the power adapter supplied with the product. • Do not overload wall outlet or extension cords as this may increase the risk of electric shock or file. If the power cord is frayed, replace it with a new one. • Proper ventilation is necessary to prevent the product overheating. Do not block or cover the slots and openings on the device, which are intended for ventilation and proper operation. It is recommended to mount the product with a stack. • Do not place the product near any source of heat or expose it to direct sunshine. • Do not expose the product to moisture. Never spill any liquid on the product. • Do not attempt to connect with any computer accessory or electronic product without instructions from qualified service personnel. This may result in risk of electronic shock or file. • Do not place this product on an unstable stand or table. For Using • Power off and unplug this product from the wall outlet when it is not in use or before cleaning. Pay attention to the temperature of the power adapter. The temperature might be high. • After powering off the product, power on the product at least 15 seconds later. • Do not block the ventilating openings of this product. • When the product is expected to be not in use for a period of time, unplug the power cord of the product to prevent it from the damage of storm or sudden increases in rating. ii For Service Do not attempt to disassemble or open covers of this unit yourself. Nor should you attempt to service the product yourself, which may void the user’s authority to operate it. Contact qualified service personnel under the following conditions: • If the power cord or plug is damaged or frayed. • If liquid has been spilled into the product. • If the product has been exposed to rain or water. • If the product does not operate normally when the operating instructions are followed. • If the product has been dropped or the cabinet has been damaged. • If the product exhibits a distinct change in performance. iii FCC Information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC condition This device complies with part 15 of the FCC Rules. Operation is subject to the Following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator & your body. iv About This User Manual For brevity, throughout this manual the “Wireless Broadband Router” is referred to as “the router” or “the device” and following terms or abbreviations are used interchangeably: • Access Point-AP • Wireless LAN-WLAN • Ethernet network-LAN-network This User Manual contains information on how to install and configure your Wireless Broadband Router to get your network started accessing the Internet. From now on, we will guide you through the correct configuration steps to get your device up and run. v Contents 1 Introduction ..................................................1 1.1 Overview........................................................................1 1.2 Features ........................................................................2 1.3 Package Contents .........................................................3 1.4 System Requirements ...................................................3 2 Hardware Description & Installation .............5 2.1 Physical Outlook ............................................................5 Front Panel..................................................................5 Rear Panel and Connectors ........................................6 2.2 Hardware Connection ....................................................7 Choosing a Place for the Router ..................…

Text truncated - open the document above for the full version.

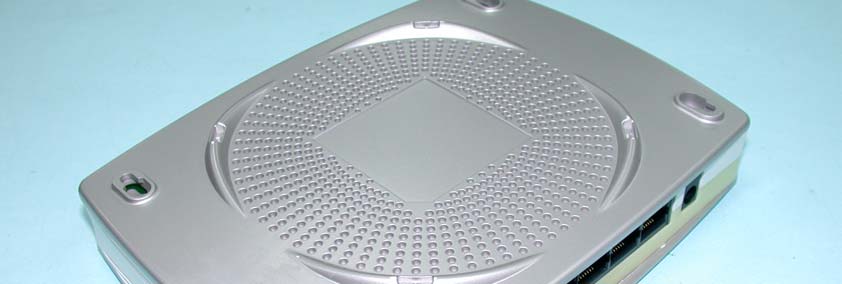

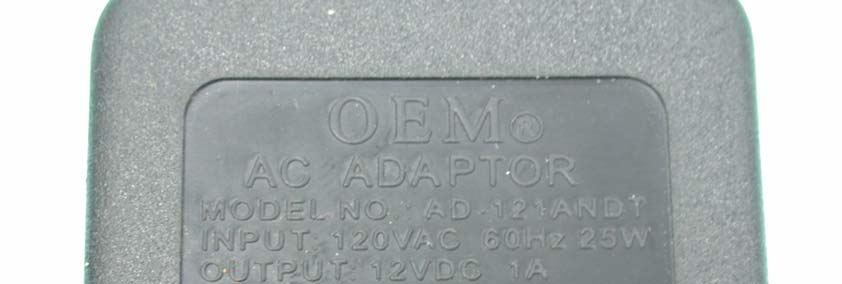

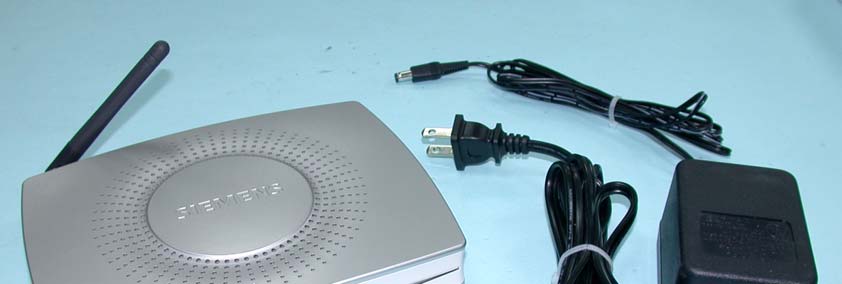

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: H8NRT480W Report No. RF930324L05 Operational Description This device operates in the 2.4GHz frequency band. The maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by power adapter. The antenna type is Internal Dipole antenna without any antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: H8NRT480W Report No: SA930324L05 1 RF EXPOSURE REPORT REPORT NO.: SA930324L05 MODEL NO.: Gigaset SE505(S30853-S1006-R317-2) ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: H8NRT480W Report No: SA930324L05 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: H8NRT480W Report No: SA930324L05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: H8NRT480W Report No: SA930324L05 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.585(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : For CCK technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241227.1640.0091.0 6243727.2270.0091.0 11246225.4100.0081.0 For OFDM technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241257.0160.0181.0 6243755.2080.0171.0 11246255.3350.0171.0

FCC ID: H8NRT480W Report No.: RF930324L051Issued: March 13, 2004 FCC TEST REPORT REPORT NO.: RF930324L05 MODEL NO.: Gigaset SE505(S30853-S1006-R317-2) RECEIVED: March 24, 2004 TESTED: March 31 ~ April 6, 2004 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F,NO.119, CHIENKANG RD., CHUNG-HO,TAIPEI, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: H8NRT480W Report No.: RF930324L052Issued: March 13, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................10 4.1.2 TEST INSTRUMENTS ............................................................................................10 4.1.3 TEST PROCEDURES............................................................................................. 11 4.1.4TEST SETUP...........................................................................................................12 4.1.5 EUT OPERATING CONDITIONS............................................................................12 4.1.6TEST RESULTS ......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................19 4.2.2TEST INSTRUMENTS.............................................................................................20 4.2.3TEST PROCEDURES .............................................................................................21 4.2.4TEST SETUP...........................................................................................................22 4.2.5EUT OPERATING CONDITIONS ............................................................................22 4.2.6TEST RESULTS ......................................................................................................23 4.2.7TEST RESULTS (FOR CCK)...................................................................................25 4.2.8TEST RESULTS (FOR OFDM)................................................................................31 4.36dB BANDWIDTH MEASUREMENT .......................................................... 37 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................37 4.3.2TEST INSTRUMENTS.............................................................................................37 4.3.3TEST PROCEDURE................................................................................................38 4.3.4TEST SETUP...........................................................................................................38 4.3.5EUT OPERATING CONDITIONS ............................................................................38 4.3.6TEST RESULTS (FOR CCK)...................................................................................39 4.3.7TEST RESULTS (FOR OFDM)................................................................................43 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 47 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................47 4.4.2TEST INSTRUMENTS.............................................................................................47 4.4.3TEST PROCEDURES .............................................................................................48 4.4.4DEVIATION FROM TEST STANDARD ...................................................................48 4.4.5TEST SETUP...........................................................................................................48 FCC ID: H8NRT480W Report No.: RF930324L053Issued: March 13, 2004 4.4.6EUT OPERATING CONDITIONS ............................................................................48 4.4.7TEST RESULTS (FOR CCK)...................................................................................49 4.4.8TEST RESULTS (FOR OFDM)................................................................................49 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 50 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...............................50 4.5.2TEST INSTRUMENTS.............................................................................................50 4.5.3TEST PROCEDURE................................................................................................51 4.5.4TEST SETUP...........................................................................................................51 4.5.5EUT OPERATING CONDITIONS .....................................................…

Text truncated - open the document above for the full version.

FCC ID: H8NRT480W Report No.: RF930324L0572Issued: March 13, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: H8NRT480W Report No.: RF930324L0573Issued: March 13, 2004 RADIATED EMISSION TEST
