H8NTCG220Cable Modem

Residential VoIP Cable Modem Quick Start Guide Chapter 1: Introduction TCG220‐Tdp is a Full Band Capture Front End Cable Voice and Wireless Gateway which has an 802.11 b/g/n access point that gives you wireless connection to the Internet with 2 Giga Ethernet ports which further expand the Local Area Network (LAN) capabilities. If you have subscribed to phone services from your cable operator then you will be able to place normal phone calls using your analogue phone and/or fax machine. TCG220‐Tdp provides one RJ‐11 connector for your phone or home phone system. TCG220‐Tdp will give you broadband Internet access, telephone connection and wireless networking all in one unit. Besides that, this residential cable gateway offers Firewall for additional protection and security and VPN (virtual private network). Package Contents Package Contents x1 TCG220‐Tdp WiFi EMTA x1 Ethernet Cable x1 Power Adaptor x1 QIG x1 Warranty card x1 1 Chapter 2: Overview Front Panel The following illustration shows the front panel of the EMTA: Power Indicates the Power status. DS Indicates the status of Data reception by the cable modem from the Network (Downstream Traffic) US Indicates the status of Data transmission by the cable modem to the Network (Upstream Traffic) Online Displays the status of your cable connection. The light is off when no cable connection is detected and fully lit when the modem has established a connection with the network and data can be transferred Ethernet Indicates the state of Ethernet ports WIFI Indicates the traffic on the wireless network WPS Indicates the status of the WPS functionality TEL Indicates the status of the telephone Phone 2 There will be 9 LEDs on PKE1320SW‐D112(US‐Tdp‐RoHS) / TCG220‐TdP, but DS and US are bi‐color LED. Looking at LED from top to bottom: Power, DS(bi‐color), US(bi‐color), Online, Ethernet 1,2, WiFi , WPS, TEL. Power DS (green color) DS1 (blue color) US (green color) US1 (blue color) OnlineEth1Eth2Wifi WPSTEL Power Up ON X X X X XXXXXXIndicate Power On or OFF Firmware fail Flash X X X X X X X X X X If during this process,the FW isn't in the CPE or there is a FW error and the CPE isn't going to be able to boot, one of the led will blinking. Connect LAN1 ON X X X X X ON X X X X When CPE device (PC) isconnect to LAN1 LAN1 traffic ON X X X X X FlashX X X X When there is traffic, Eth1 LED will flash. Connect LAN2 ON X X X X X X ON X X X When CPE device (PC) is connect to LAN2 LAN2 traffic ON X X X X X X FlashX X X When there is traffic, Eth2 LED will flash. CM boot cycle ON Flash OFF Flash OFF Flash X X X X OFF From Power on to system initial complete DOCSIS operation ON Flash OFF OFF OFF OFFXXXXOFF During DS scanning and acquiring SYNC ON ON OFF OFF OFF OFFXXXXOFF Complete synchronization of primary DS ON ON ON OFF OFF OFF X X X X OFF Register as DS bonding mode(2ch or more) ON ON ON Flash OFF OFF X X X X OFF After primary DS locked, process of ranging ON ON ON ON OFF OFFXXXXOFF Ranging complete ON ON ON ON ON OFF X X X X OFF Register as US bonding mode(2ch or more) ON ON ON ON ON Flash X X X X OFF After US ranging complete, process of communication between DOCSIS provision server ON ON ON ON ON ONXXXXOFF CM online(Operational) MTA operation ON ON X ON X ONXXXXFlash MTA provision ON ON X ON X ONXXXXON MTA online(Operation) Flash upgrade ON Flash X Flash X X X X X X X During SW upgrade Factory reset Flash Flash X Flash X Flash X X X X X When performing factory reset, the device shall feedback to the user by a 2Hz blinking for during the perform of the factory reset WiFi enable X X X X X X X X ON X X When WiFi is enabled, the WiFi LED will ON. WiFi disable X X X X X X X X OFF X X When WiFi is disabled, the WiFi LED will OFF. WiFi traffic X X X X X X X X FlashX X When there is traffic, the WiFi LED will Flash. WPS Running X X X X X X X X X FlashX When there is a long press (>5seconds), the WPS process will initiate and the WPS LED will start to Flash. WPS idle X X X X X X X X X OFFX 3 Rear Panel Connector Description Slot Description 12VDC 12V DC‐IN Power connector CABLE F‐Connector RESET Reset/Reboot this Cable modem ETHERNET 1 2 Ethernet 10/100/1000 BaseT RJ‐45 connector TEL Telephony RJ‐11 connector 4 Side Panel for WPS WPS – Indicates the status of the WPS (Wi‐Fi Protected Setup TM ) functionality. There is one WPS button on the Top Side Panel of TCG220‐Tdp and is designed to have multiple function. This button can be used to: Securely and Simply Get WiFi Client Connected: WPS button can be used to pairing WiFi client which also supports WPS function. A long press (press more than 5 seconds) on the WPS button will enable TCG220‐Tdp scan for any available WPS device. Note: You must ensure that the WiFi client device supports WPS function in order to use this WPS function on TCG220‐Td P. 5 3. Connecting the Residential VoIP cable modem to Your Computer Installation Procedure for Ethernet Interface Follow the steps below for proper installation: 1. Connect one end of the coaxial cable to the CABLE connection on the wall, and the other end to the CABLE jack on the TCG220‐Tdp. Note: To speed up the registration process of cable modem, the coaxial cable should be connected to the modem before the modem turned ON 2. Connect the plug from the power supply into the POWER jack on the TCG220‐Tdp, and plug the power supply into an AC outlet. Note: Use only the power supply that accompanied this unit. Using other adapters may damage the unit. 3. Connect one end of the Ethernet cable to the Ethernet port of your computer, and the other end to the ETHERNET port on the TCG220‐Tdp. 4. The TCG220‐Tdp will look for the proper cable modem signal in the Cable Television network and process the initial registration. The voice gateway is ready for data transfer after the LED “Cable Link” is lit solid green. Note: The REBOOT button at the rear panel is for maintenance purposes only. You don’t need to use it. Fig. How to set up your connection 6 CAUTION for UL North American Cabl…

Text truncated - open the document above for the full version.

ASKEY COMPUTER CORP. 10F, NO.119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, TAIWAN, R.O.C. Declaration for no non-US channel operation 2015/10/23 We, ASKEY COMPUTER CORP. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: H8NTCG220 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- John Chiou Director ASKEY COMPUTER CORP. TEL: + 886 (2) 2228-7588 #18726 E-mail : [email protected]

ASKEY COMPUTER CORP. 10F, NO.119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, TAIWAN, R.O.C. Date:2015/10/23 FCC ID: H8NTCG220 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- John Chiou Director ASKEY COMPUTER CORP. TEL: + 886 (2) 2228-7588 #18726 E-mail : [email protected]

ASKEY COMPUTER CORP. 10F, NO.119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, TAIWAN, R.O.C. Date:2015/10/23 FCC ID: H8NTCG220 A U T H O R I Z A T I O N L E T T E R To whom it may concern: We, the undersigned, hereby authorize Amanda Wu/Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu/Senior Specialist of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- John Chiou Director ASKEY COMPUTER CORP. TEL: + 886 (2) 2228-7588 #18726 E-mail : [email protected]

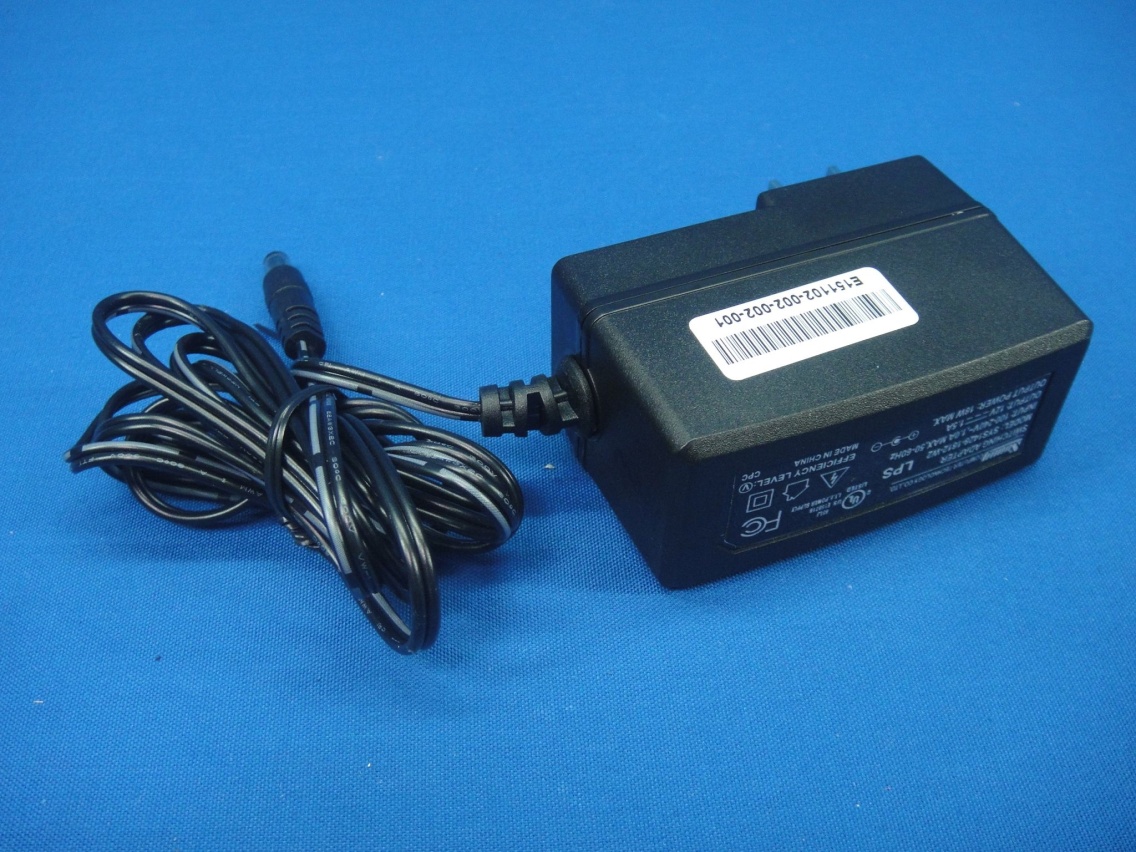

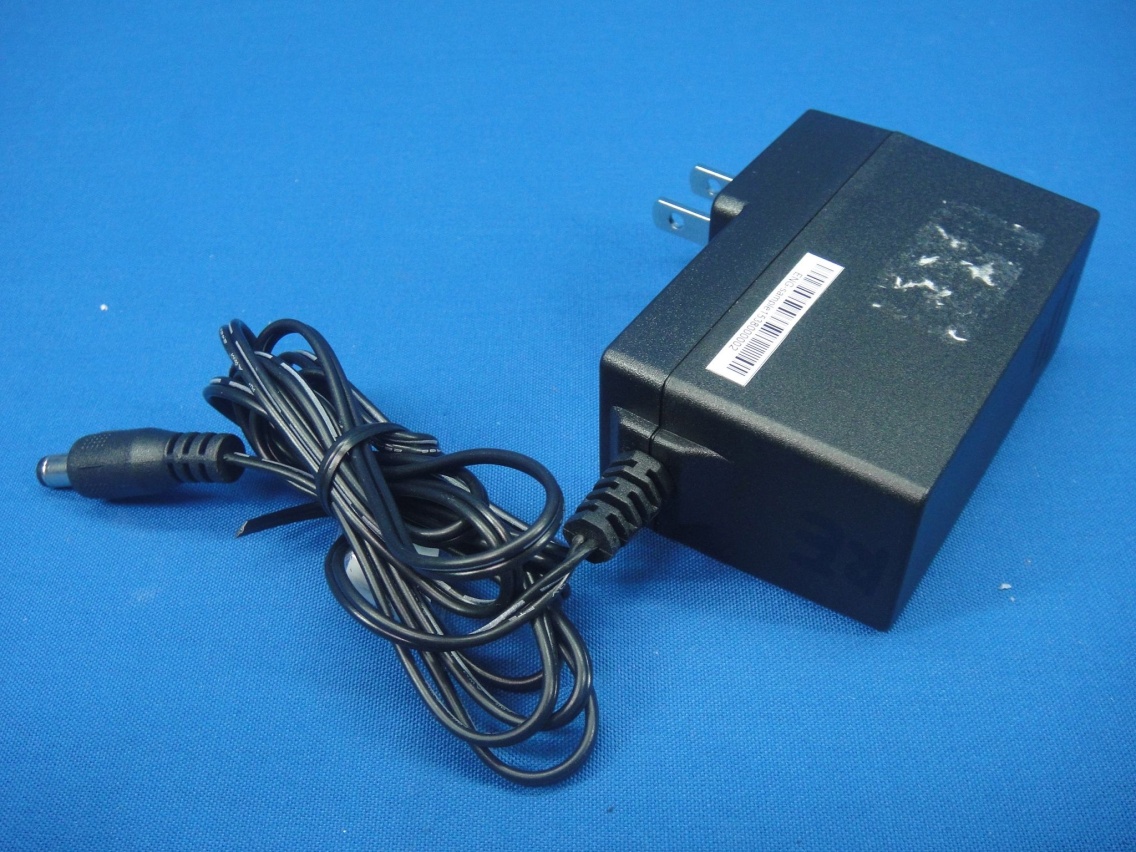

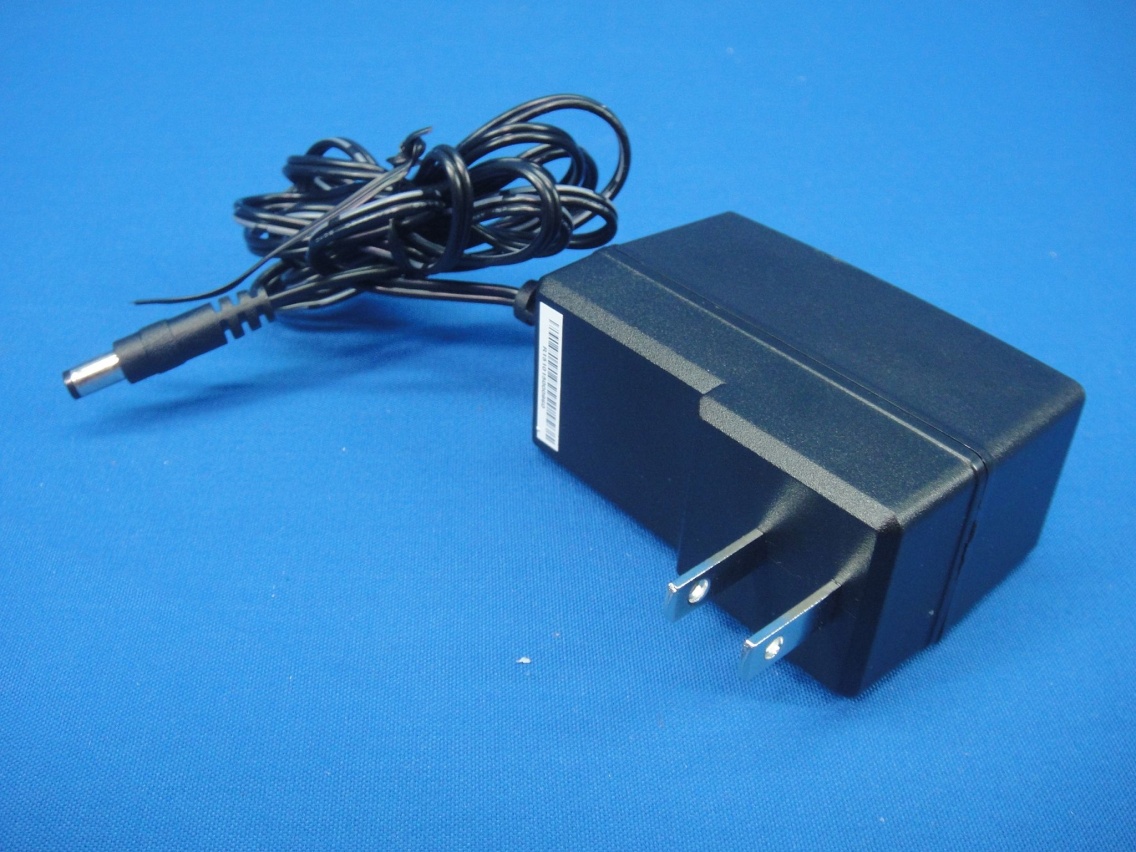

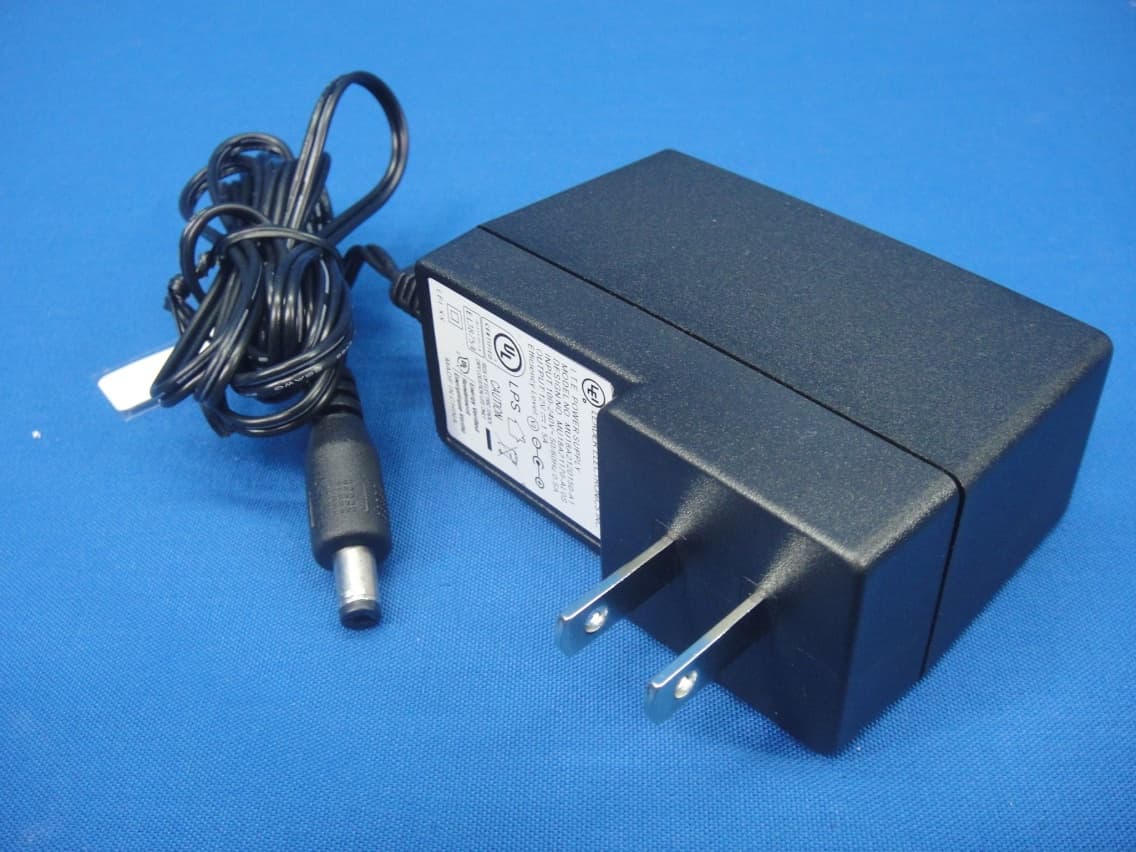

Report No.: 151021E09 Page No. 1 / 16 CONSTRUCTION PHOTOS OF EUT Report No.: 151021E09 Page No. 2 / 16 Report No.: 151021E09 Page No. 13 / 16 Brand: Sunny- Model No.: SYS1428-1812-W2 Report No.: 151021E09 Page No. 14 / 16 Report No.: 151021E09 Page No. 15 / 16 Brand: LEI - Model No.: MU18A2120150-A1 Report No.: 151021E09 Page No. 16 / 16

FCC ID： H8NTCG220 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here

Report No.: 151021E09 Page No. 3 / 16 Report No.: 151021E09 Page No. 4 / 16 Report No.: 151021E09 Page No. 5 / 16 Report No.: 151021E09 Page No. 6 / 16 Report No.: 151021E09 Page No. 7 / 16 Report No.: 151021E09 Page No. 8 / 16 Report No.: 151021E09 Page No. 9 / 16 Report No.: 151021E09 Page No. 10 / 16 Report No.: 151021E09 Page No. 11 / 16 Report No.: 151021E09 Page No. 12 / 16

Report No.: SA151021E09 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA151021E09 FCC ID: H8NTCG220 Test Model: TCG220-TdP Series Model: TCG220XXXX (X can be 0-9, A-Z, a-z, ““-”“, ““.”or blank for marketing) Received Date: Oct. 21, 2015 Test Date: Nov. 03, 2015 Issued Date: Nov. 12, 2015 Applicant: ASKEY COMPUTER CORP. Address: 10F, NO.119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, TAIWAN, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA151021E09 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits For Maximum Permissible Exposure (MPE) ............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 5 2.5 Calculation Result of Maximum Conducted Power ............................................................................. 6 Report No.: SA151021E09 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA151021E09 Original release. Nov. 12, 2015 Report No.: SA151021E09 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 Antenna Gain The antennas provided to the EUT, please refer to the following table: Antenna No PCB Chain No. Brand Model Antenna Type Antenna Connector Gain (dBi) Cable Length (mm) Frequency (GHz to GHz) 1 Chain 0 MASTER WAVE 98P4QMIPF000 PCB i-pex(MHF)3.68 60 2.4~2.4835 2 Chain 1 MASTER WAVE 98P4RMIPF000 PCB i-pex(MHF)3.36 54 2.4~2.4835 Report No.: SA151021E09 Page No. 6 / 6 Report Format Version: 6.1.1 2.5 Calculation Result of Maximum Conducted Power Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 714.681 6.53 20 0.63950 1 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 6.53dBi --- END ---

Report No.: RF151021E09 Page No. 1 / 57 Report Format Version: 6.1.1 FCC Test Report Report No.: RF151021E09 FCC ID: H8NTCG220 Test Model: TCG220-TdP Series Model: TCG220XXXX (X can be 0-9, A-Z, a-z, ““-”“, ““.”or blank for marketing) Received Date: Oct. 21, 2015 Test Date: Oct. 22 to Nov. 03, 2015 Issued Date: Nov. 12, 2015 Applicant: ASKEY COMPUTER CORP. Address: 10F, NO.119, JIANKANG RD., ZHONGHE DIST., NEW TAIPEI CITY 23585, TAIWAN, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF151021E09 Page No. 2 / 57 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 9 3.2.1 Test Mode Applicability and Tested Channel Detail ........................................................................... 10 3.3 Duty Cycle of Test Signal .................................................................................................................. 12 3.4 Description of Support Units ............................................................................................................. 13 3.4.1 Configuration of System under Test .................................................................................................. 13 3.5 General Description of Applied Standards ........................................................................................ 14 4 Test Types and Results ...................................................................................................................... 15 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 15 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 15 4.1.2 Test Instruments ................................................................................................................................ 16 4.1.3 Test Procedures ................................................................................................................................. 18 4.1.4 Deviation from Test Standard ............................................................................................................ 18 4.1.5 Test Setup .......................................................................................................................................... 19 4.1.6 EUT Operating Conditions ................................................................................................................. 19 4.1.7 Test Results ....................................................................................................................................... 20 4.2 Conducted Emission Measurement .................................................................................................. 33 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 33 4.2.2 Test Ins…

Text truncated - open the document above for the full version.

Report No.: 140717E01A-1 1 of 4 Reference No.: 140805E09 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode 1) Report No.: 140717E01A-1 2 of 4 Reference No.: 140805E09 CONDUCTED EMISSION TEST (Mode 2) Report No.: 140717E01A-1 3 of 4 Reference No.: 140805E09 RADIATED EMISSION TEST (Below 1GHz) Report No.: 140717E01A-1 4 of 4 Reference No.: 140805E09 RADIATED EMISSION TEST (Above 1GHz)
