H8NWLC0010PCMCIA Card

11Mbps Wireless LAN CardUser’s Manual  2002 All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express writtenpermission of the seller.DisclaimerInformation in this document is subject to change without notice. The material containedherein is supplied without representation or wa rranty of any kind. The seller therefore assumes no responsibility and shall have no liability of an y kind arising from the supply or use of this document or the material contained herein.TrademarksMicrosoft and Windows are registered trademarks of Microsoft Corporation. All othertrademarks mentioned in this document ar e the property of their respective owners. Rev: 01April 2003 I ContentsAbout This Manual ............................................................................................................................... ........................ IV Chapter 1 Introduction ............................................................................................................................... ................ 1 Wireless LAN Basics ............................................................................................................................... .................... 2 Local Area Network (LAN) ............................................................................................................................... ......................... 2 Ad-Hoc Mode ............................................................................................................................... ............................................. 3 Infrastructure Mode ............................................................................................................................... ................................... 4 Roaming ............................................................................................................................... ..................................................... 5 Chapter 2 Installing the Wireless LAN Card ............................................................................................................ 7 System Requirements ............................................................................................................................... .................. 8 Installing Wireless LAN Driver and Software .............................................................................................................. 9 Part 1: Installing Driver ............................................................................................................................... ............................ 9 Part 2: Installing Software ............................................................................................................................... ....................... 12 Chapter 3 Using Wireless LAN Utility .................................................................................................................... 15 Accessing Vendor’s Wireless LAN Utility .................................................................................................................. 16 Notice When Assessing Wireless LAN Utility under Windows XP .......................................................................................... 18 Configuration ............................................................................................................................... .............................. 20 11Mbps Wireless LAN Card User's ManualII Available Wireless Networks ............................................................................................................................... .................... 20 Available Profiles ............................................................................................................................... ..................................... 22 WEP Settings ............................................................................................................................... ............................................ 23 Advanced Configuration ............................................................................................................................... ............. 26 Status ............................................................................................................................... ......................................... 27 Statistics ............................................................................................................................... ..................................... 28 About ............................................................................................................................... .......................................... 30 Chapter 5 Windows XP Wireless Zero Configuration Utility ............................................................................... 31 Connecting to an Access Point or Wireless LAN Card ............................................................................................. 31 Viewing Wireless Connection Status ........................................................................................................................ 34 Configuring Your Wireless Properties ....................................................................................................................... 35 Chapter 6 Uninstalling the Wireless LAN Card ..................................................................................................... 41 Uninstalling the Wirele ss LAN Card Software ........................................................................................................... 41 Removing the Wireless LAN Card (For CardBus Adapter) ....................................................................................... 44 Chapter 7 Troubleshooting ....................................................................…

Text truncated - open the document above for the full version.

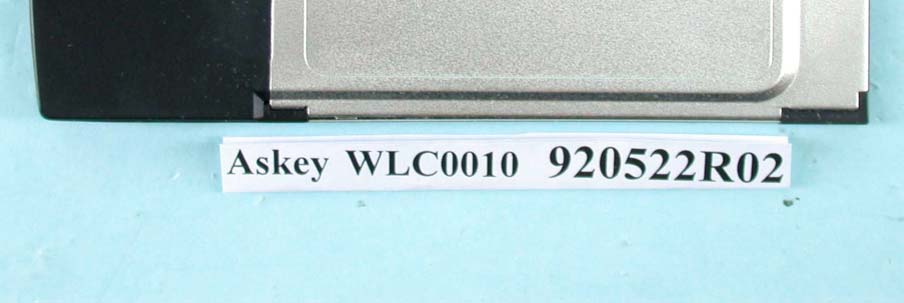

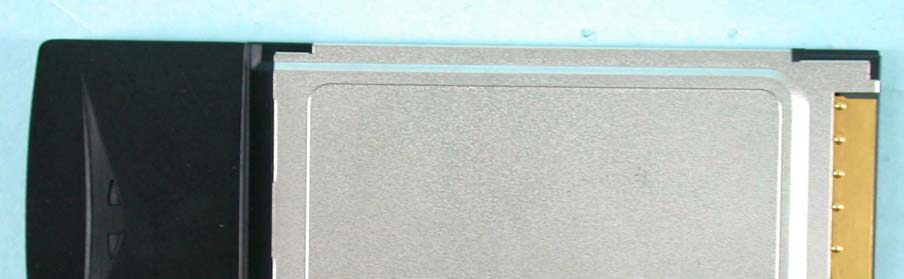

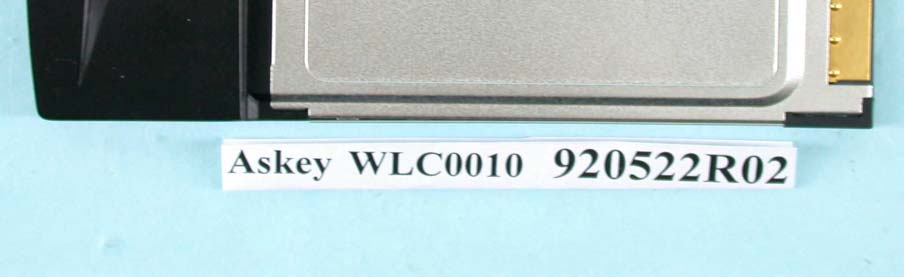

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 6 Page 7

LABEL LOCATION FOR FCC ID

Page 3 Page 4 Page 5

FCC ID: H8NWLC0010 ADT No.920522R02 Operational Description The transmitter of the EUT is powered by host equipment. The antenna used in this product is Printed antenna without antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: H8NWLC0010 Report No.: SA920522R02 1 Issued: June 2 th 2003 SAR TEST REPORT REPORT NO.: SA920522R02 MODEL NO.: WLC0010 RECEIVED: June 2 2003 TESTED: June 2 2003 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F,NO.119, CHIENKANG RD.,CHUNG-HO,TAIPEI TAIWAN R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 31 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: H8NWLC0010 Report No.: SA920522R02 2 Issued: June 2 th 2003 Table of Contents 1. CERTIFICATION ..................................................................................................................... 3 2. GENERAL INFORMATION ..................................................................................................... 4 2.1 GENERAL DESCRIPTION OF EUT........................................................................................ 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................................... 5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM................................................................ 5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION AND PROBE SCAN 9 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS............................................... 13 4. DESCRIPTION OF SUPPORT UNITS .................................................................................. 14 5. TEST RESULTS.................................................................................................................... 15 5.1 TEST PROCEDURES........................................................................................................... 15 5.2 MEASURED SAR RESULT................................................................................................... 16 5.3 SAR LIMITS .......................................................................................................................... 18 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................. 18 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY .................................................................... 20 6. SYSTEM VALIDATION.......................................................................................................... 21 6.1 TEST EQUIPMENT............................................................................................................... 21 6.2 TEST PROCEDURE .............................................................................................................21 6.3 VALIDATION RESULT...........................................................................................................23 6.4 SYSTEM VALIDATION UNCERTAINTIES ............................................................................ 24 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES ..................................................... 25 7.1 PROBE CALIBRATION UNCERTAINTY ............................................................................... 25 7.2 ISOTROPY UNCERTAINTY.................................................................................................. 25 7.3 BOUNDARY EFFECT UNCERTAINTY ................................................................................. 26 7.4 PROBE LINEARITY UNCERTAINTY .................................................................................... 26 7.5 READOUT ELECTRONICS UNCERTAINTY ........................................................................ 26 7.6 RESPONSE TIME UNCERTAINTY....................................................................................... 27 7.7 INTEGRATION TIME UNCERTAINTY................................................................................... 28 7.8 PROBE POSITIONER MECHANICAL TOLERANCE ............................................................ 28 7.9 PROBE POSITIONING ......................................................................................................... 29 7.10 PHANTOM UNCERTAINTY .................................................................................................. 29 7.11 DASY4 UNCERTAINTY BUDGET......................................................................................... 30 8. INFORMATION ON THE TESTING LABORATORIES .......................................................... 31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: H8NWLC0010 Report No.: SA920522R02 3 Issued: June 2 th 2003 1. CERTIFICATION PRODUCT : Wireless PCMCIA Card MODEL NO. : WLC0010 BRAND NAME : Askey APPLICANT : ASKEY COMPUTER CORP. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation , hereby certify that one sample of the designation has been tested in our facility on 02 th June 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: H8NWLC0010 Report No.: SA920522R02 4 Issued: June 2 th 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless PCMCIA Card MODEL NO. WLC0010 POWER SUPPLY 3.3VDC powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK RADIO TECHNOLOGY DSSS TRANSFER RATE 1/2/5.5/11Mbps FREQUENC…

Text truncated - open the document above for the full version.

APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHz SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FILED PROBE ET3DV6 SN:1687 June 5, 2002 Isotropy Error (Φ), θ = 0 ̊ ET3DV6 SN:1687 June 5, 2002 Frequency Response of E-Field (TEM – Cell:ifi110, Waveguide R22) Dynamic Range f (SAR brain ) (Waveguide R22) 1.E+7 1.E+6 1.E+5 1.E+4 1.E+3 1.E+2 1.E+1 1.E+0 mW/cm 3 not compensated compensated μ μμ μV 0.0001 0.001 0.01 0.1 1 10 100 ET3DV6 SN:1687September 28, 2002 Conversion Factor Assessment

FCC ID: H8NWLC0010 Report No.: RF920522R021Issued: June 11, 2003 FCC TEST REPORT REPORT NO.: RF920522R02 MODEL NO.: WLC0010 RECEIVED: May 22, 2003 TESTED: May 27 ~ May 31, 2003 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO. 119, CHIENKANG RD., CHUNG-HO, TAIPEI TAIWAN R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: H8NWLC0010 Report No.: RF920522R022Issued: June 11, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4TEST SETUP .............................................................................................. 28 4.3.5EUT OPERATING CONDITIONS................................................................ 28 4.3.6TEST RESULTS.......................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 33 4.4.2TEST INSTRUMENTS ................................................................................ 33 4.4.3TEST PROCEDURES................................................................................. 34 4.4.4TEST SETUP .............................................................................................. 34 4.4.5EUT OPERATING CONDITIONS................................................................ 34 FCC ID: H8NWLC0010 Report No.: RF920522R023Issued: June 11, 2003 4.4.6TEST RESULTS.......................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 36 4.5.2TEST INSTRUMENTS ................................................................................ 36 4.5.3TEST PROCEDURE ................................................................................... 37 4.5.4TEST SETUP .............................................................................................. 37 4.5.5EUT OPERATING CONDITIONS................................................................ 37 4.5.6TEST RESULTS.......................................................................................... 38 4.6BAND EDGES MEASUREMENT ................................................................ 42 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 42 4.6.2TEST INSTRUMENTS ................................................................................ 42 4.6.3TEST PROCEDURE ................................................................................... 42 4.6.4EUT OPERATING CONDITION .................................................................. 42 4.6.5TEST RESULTS.......................................................................................... 43 4.7ANTENNA REQUIREMENT........................................................................ 46 4.7.1STANDARD APPLICABLE ..............................................................…

Text truncated - open the document above for the full version.

FCC ID: H8NWLC0010 Report No.: RF920522R021Issued: June 24, 2003 ANNEX. The Measurement of Outband Spurious Emissions 1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100kHz bandwidth from band edge. The band edges was measured and recorded. 4 DEVIATION FROM TEST STANDARD No deviation FCC ID: H8NWLC0010 Report No.: RF920522R022Issued: June 24, 2003 5 EUT OPERATING CONDITION The computer system ran a test program to enable EUT under transmission/receiving condition continuously at specific channel frequency. 6 TEST RESULT The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). If the field strength of emissions appearing within these frequency bands shall not exceed the limits shown in section 15.209. FCC ID: H8NWLC0010 Report No.: RF920522R023Issued: June 24, 2003 Channel 1 FCC ID: H8NWLC0010 Report No.: RF920522R024Issued: June 24, 2003 FCC ID: H8NWLC0010 Report No.: RF920522R025Issued: June 24, 2003 Channel 11 FCC ID: H8NWLC0010 Report No.: RF920522R026Issued: June 24, 2003

FCC ID: H8NWLC0010 Report No.: RF920522R0247Issued: June 11, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: H8NWLC0010 Report No.: RF920522R0248Issued: June 11, 2003 RADIATED EMISSION TEST
