H8NWLC3010Wireless LAN PCMCIA Card

54Mbps 802.11g Wireless LAN CardUser’s Manual Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, with out the express written permission of the seller. The seller provides this documentation without warranty, term, or condition of any kind. The seller may make improvements or ch anges in the product(s) and/or the program(s) described in this documentation at any time.Other product and company names herein may be trademarks of their respective owners. 2002 All rights reserved. Rev: 01January 2003 I ContentsAbout This Manual ............................................................................................................................... ........................ IV Chapter 1 Introduction ............................................................................................................................... ................ 1 Wireless LAN Basics ............................................................................................................................... .................... 2 Local Area Network (LAN) ............................................................................................................................... ......................... 2 Ad-Hoc Mode ............................................................................................................................... ............................................. 2 Infrastructure Mode ............................................................................................................................... ................................... 3 Roaming ............................................................................................................................... ..................................................... 4 Chapter 2 Installing the Wireless LAN Card ............................................................................................................ 5 System Requirements ............................................................................................................................... .................. 5 Installing Wireless LAN Driver and Software .............................................................................................................. 6 Chapter 3 Using Broadcom Wi reless Configuration Utility ................................................................................... 9 Accessing Broadcom Wirele ss Configuration Utility ................................................................................................. 10 Notice When Assessing Broadcom Utility under Windows XP ............................................................................................... 10 Wireless Networks Tab ............................................................................................................................... .............. 12 Connecting to an Existing Wireless Network .......................................................................................................................... 12 Configuring a New Wireless Network Connection .................................................................................................................. 13 Configuring an Existing Wireless Network Connection .......................................................................................................... 15 Specifying a Network Type to Access ............................................................................................................................... ....... 16 Link Status Tab ............................................................................................................................... .......................... 16 Statistics ............................................................................................................................... ..................................... 19 Site Monitor ............................................................................................................................... ................................ 20 Advanced Site Monitor ............................................................................................................................... ............................. 22 Diagnostics Tab ............................................................................................................................... ......................... 24 Information Tab ............................................................................................................................... .......................... 26 Chapter 4 Windows XP Wireless Zero Configuration Utility ............................................................................... 27 Connecting to an Access Point or Wireless LAN Card ........................................................................................................... 27 Viewing Wireless Connection Status ............................................................................................................................... ........ 29 Configuring Your Wireless Properties ............................................................................................................................... ..... 29 Chapter 7 Troubleshooting ............................................................................................................................... ...... 35 Radio Interference ............................................................................................................................... ...................... 35 54Mbps 802.11g Wireless LAN CardII Card Not Detected ............................................................................................................................... ..................... 36 Cannot Connect to Another Wireless LAN Card ..............…

Text truncated - open the document above for the full version.

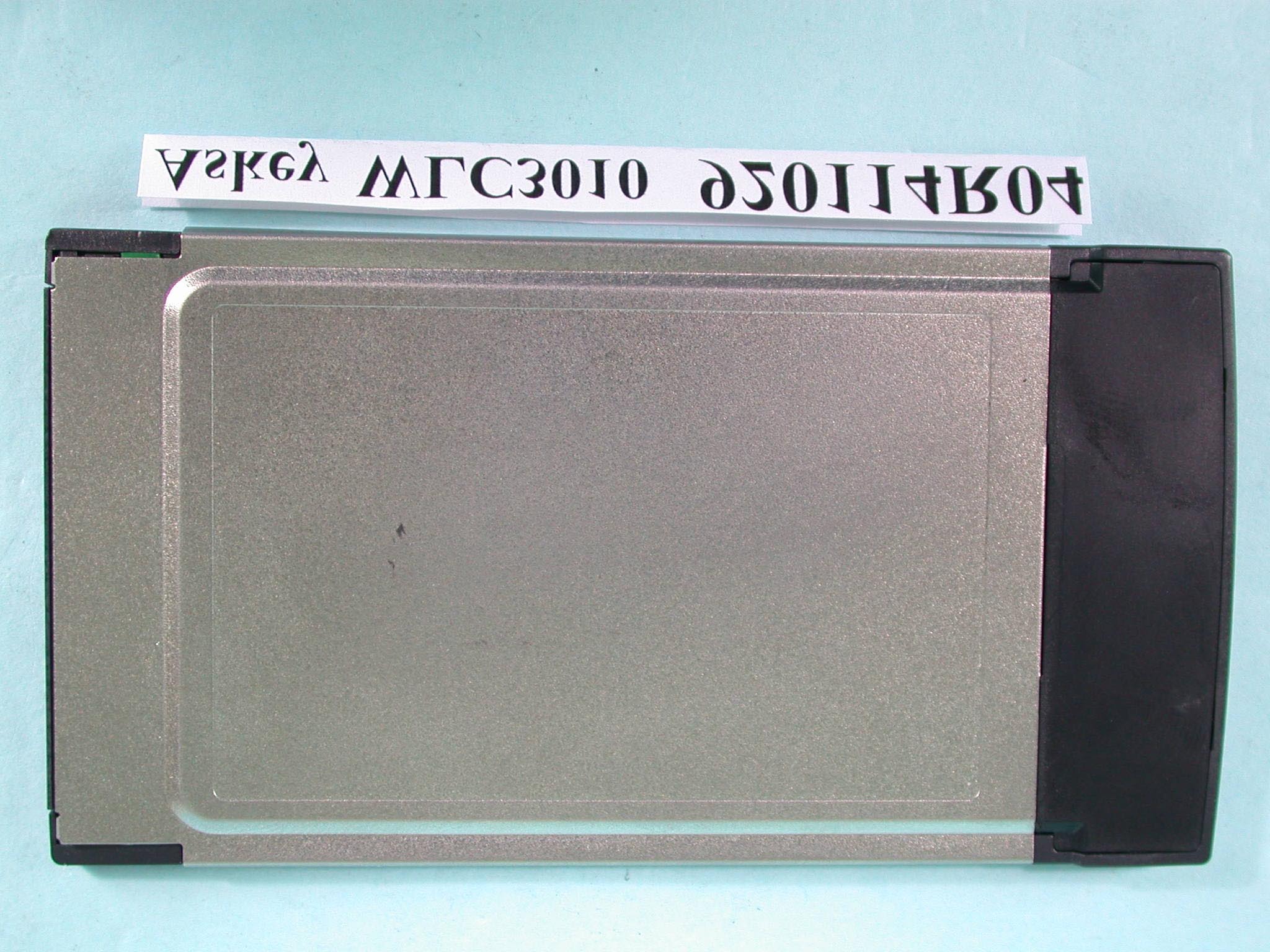

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

FCC ID FOR LABEL LOCATION

Page 3 Page 4 Page 5

FCC ID: H8NWLH3010 ADT No.920114R04 Operational Description This device is a Wireless LAN PCMCIA Card, which operates in the 2.4Ghz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCMCIA interface. The antenna is Chip antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: H8NWLC3010 Report No.: SA920114R04 1 Issued: Feb. 24 th 2003 SAR TEST REPORT REPORT NO.: SA920114R04 MODEL NO.: WLC3010 RECEIVED: Feb. 19, 2003 TESTED: Feb. 20, 2003 APPLICANT: ASKEY COMPUTER CORP. ADDRESS:10F, No.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 15 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: H8NWLC3010 Report No.: SA920114R04 2 Issued: Feb. 24 th 2003 Table of Contents 1.CERTIFICATION .................................................................................................................3 2.GENERAL INFORMATION ................................................................................................. 4 2.1GENERAL DESCRIPTION OF EUT ................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................... 4 2.3GENERAL INOFRMATION OF THE SAR SYSTEM .......................................................... 5 2.4GENERAL DESCRIPTION OF THE PROBE SCAN RULE................................................ 7 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ........................................... 8 4.DESCRIPTION OF SUPPORT UNITS ............................................................................... 9 5.TEST RESULTS................................................................................................................ 10 5.1TEST PROCEDURES....................................................................................................... 10 5.2MEASURED SAR RESULT .............................................................................................. 10 5.3SAR LIMITS ...................................................................................................................... 11 5.4EUT CONDUCTED POWER VARIATION ........................................................................ 11 5.5TISSUE ............................................................................................................................. 12 5.6TEST EQUIPMENT FOR TISSUE PROPERTY ............................................................... 12 6.SYSTEM VALIDATION...................................................................................................... 13 7.MEASUREMENT UNCERTAINTIES ................................................................................ 14 8.INFORMATION ON THE TESTING LABORATORIES ..................................................... 15 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: H8NWLC3010 Report No.: SA920114R04 3 Issued: Feb. 24 th 2003 1. CERTIFICATION PRODUCT : Wireless LAN PCMCIA Card MODEL NO. : WLC3010 BRAND NAME : Askey APPLICANT : ASKEY COMPUTER CORP. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 20 th Feb. 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: H8NWLC3010 Report No.: SA920114R04 4 Issued: Feb. 24 th 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless LAN PCMCIA Card MODEL NO.WLC3010 POWER SUPPLY3.3VDC powered by host equipment CLASSIFICATIONPortable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 1/2/5.5/11/54Mbps FREQUENCY RANGE2412MHz ~ 2462MHz NUMBER OF CHANNEL11 CONDUCTED OUTPUT POWER 33.34mW ANTENNA TYPEChip Antenna PEAK SAR0.327W/kg DATA CABLENA I/O PORTSPCMCIA ASSOCIATED DEVICESNA 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC 47 CFR Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) RSS-102 All tests have been performed and recorded as per the above standards. FCC ID: H8NWLC3010 Report No.: SA920114R04 5 Issued: Feb. 24 th 2003 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM DASY3 (software 3.1d) consists of high precision robtics system, probe alignment sensor, phantom, robot controller, controlled PC and near-field probe. The robot includes six axis that can move to the precision position of the DASY3 software defined. The DASY3 software can define the area which is detected by the probe. The robot is connected to controlled box. Controlled PC is connected to the controlled robot box. The DAE includes amplifier, signal multiplexing, AD converter, offset measurement, surface detection. It is connected to the Electro-optical coupler (ECO). The ECO performs the conversion form the optical into digital electric signal of the DAE and transfers data to the PC. ET3DV6 ISOTROPIC E-FIELD PROBE Construction Symmetrical design with triangular core. Built-in optical fiber for surface detection system. Built-in shielding against static charges. PEEK enclosure material (resistant to organic solvents, e.g., glycolether). Calibration Basic Broad Band Calibration in air: 10-2500 MHz Conversion Factors (CF) for HSL 900 and HSL 1800 CF-Calibration for other liquids an…

Text truncated - open the document above for the full version.

FCC ID: H8NWLC3010 Report No.: RF920114R04 1 Issued: Feb. 19, 2003 FCC TEST REPORT REPORT NO.: RF920114R04 MODEL NO.: WLC3010 RECEIVED: Jan. 14, 2003 TESTED: Jan. 20 ~ Feb. 06, 2003 APPLICANT:ASKEY COMPUTER CORP. ADDRESS:10F, NO. 119, CHIENKANG RD., CHUNG-HO, TAIPEI TAIWAN R.O.C ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: H8NWLC3010 Report No.: RF920114R04 2 Issued: Feb. 19, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS.................................................................11 4.1.7TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 20 4.2.5TEST SETUP .............................................................................................. 21 4.2.6EUT OPERATING CONDITIONS................................................................ 21 4.2.7TEST RESULTS.......................................................................................... 22 4.2.8TEST RESULTS (For CCK) ........................................................................ 23 4.2.9TEST RESULTS (For OFDM) ..................................................................... 26 4.36dB BANDWIDTH MEASUREMENT .......................................................... 29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 29 4.3.2TEST INSTRUMENTS ................................................................................ 29 4.3.3TEST PROCEDURE ................................................................................... 30 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 30 4.3.5TEST SETUP .............................................................................................. 30 4.3.6EUT OPERATING CONDITIONS................................................................ 30 4.3.7TEST RESULTS (For CCK) ........................................................................ 31 4.3.8TEST RESULTS (For OFDM) ..................................................................... 35 FCC ID: H8NWLC3010 Report No.: RF920114R04 3 Issued: Feb. 19, 2003 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 39 4.4.2TEST INSTRUMENTS ................................................................................ 39 4.4.3TEST PROCEDURES................................................................................. 40 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 40 4.4.5TEST SETUP .............................................................................................. 40 4.4.6EUT OPERATING CONDITIONS................................................................ 40 4.4.7TEST RESULTS (For CCK) ........................................................................ 41 4.4.8TEST RESULTS (For OFDM) ..................................................................... 42 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 43 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 43 4.5.2TEST INSTRUMENTS ................................................................................ 43 4.5.3TEST PROCEDURE ................................................................................... 44 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 44 4.5.5TEST SETUP .............................................................................................. 44 4.5.6EUT OPERATING CONDITIONS................................................................ 44 4.5.7TEST RESULTS (For CCK) .........…

Text truncated - open the document above for the full version.

FCC ID: H8NWLC3010 Report No.: RF920114R0434Issued: Feb. 19, 2003 CH11 FCC ID: H8NWLC3010 Report No.: RF920114R0435Issued: Feb. 19, 2003 4.3.8 TEST RESULTS (For OFDM) EUT Wireless LAN PCMCIA Card MODEL WLC3010 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23deg. C, 65%RH, 1005 hPa TESTED BY: Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241216.4330.5PASS 6243716.4330.5PASS 11246216.5130.5PASS FCC ID: H8NWLC3010 Report No.: RF920114R0436Issued: Feb. 19, 2003 CH1 FCC ID: H8NWLC3010 Report No.: RF920114R0437Issued: Feb. 19, 2003 CH6 FCC ID: H8NWLC3010 Report No.: RF920114R0438Issued: Feb. 19, 2003 CH11 FCC ID: H8NWLC3010 Report No.: RF920114R0439Issued: Feb. 19, 2003 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until POWER METERE4416AGB41291118July. 30, 2003 PEAK POWER SENSORE9327AUS40440722July. 30, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: H8NWLC3010 Report No.: RF920114R0440Issued: Feb. 19, 2003 4.4.3 TEST PROCEDURES The transmitter output was connected to the power meter. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6. EUTPOWER METER FCC ID: H8NWLC3010 Report No.: RF920114R0441Issued: Feb. 19, 2003 4.4.7 TEST RESULTS (For CCK) EUT Wireless LAN PCMCIA Card MODEL WLC3010 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 19deg. C, 60%RH, 1005 hPa TESTED BY: Steven Lu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241215.2330PASS 6243714.8230PASS 11246215.1130PASS FCC ID: H8NWLC3010 Report No.: RF920114R0442Issued: Feb. 19, 2003 4.4.8 TEST RESULTS (For OFDM) EUT Wireless LAN PCMCIA Card MODEL WLC3010 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 19deg. C, 60%RH, 1005 hPa TESTED BY: Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241214.9730PASS 6243714.8930PASS 11246214.7530PASS FCC ID: H8NWLC3010 Report No.: RF920114R0443Issued: Feb. 19, 2003 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: H8NWLC3010 Report No.: RF920114R0444Issued: Feb. 19, 2003 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6. EUT SPECTRUM ANALYZER FCC ID: H8NWLC3010 Report No.: RF920114R0445Issued: Feb. 19, 2003 4.5.7 TEST RESULTS (For CCK) EUT Wireless LAN PCMCIA Card MODEL WLC3010 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 19deg. C, 54%RH, 1005 hPa TESTED BY: Steven Lu CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-11.968PASS 62437-12.388PASS 112462-13.088PASS FCC ID: H8NWLC3010 Report No.: RF920114R0446Issued: Feb. 19, 2003 CH1 FCC ID: H8NWLC3010 Report No.: RF920114R0447Issued: Feb. 19, 2003 CH6 FCC ID: H8NWLC3010 Report No.: RF920114R0448Issued: Feb. 19, 2003 CH11 FCC ID: H8NWLC3010 Report No.: RF920114R0449Issued: Feb. 19, 2003 4.5.8 TEST RESULTS (For OFDM) EUT Wireless LAN PCMCIA Card MODEL WLC3010 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23deg. C, 65%RH, 1005 hPa TESTED BY: Ansen Lei CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-13.208PASS 62437-12.538PASS 112462-13.038PASS FCC ID: H8NWLC3010 Report No.: RF920114R0450Issued: Feb. 19, 2003 CH1 FCC ID: H8NWLC3010 Report No.: RF920114R0451Issued: Feb. 19, 2003 CH6 FCC ID: H8NWLC3010 Report No.: RF920114R0452Issued: Feb. 19, 2003 CH11 FCC ID: H8NWLC3010 Report No.: RF920114R0453Issued: Feb. 19, 2003 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: H8NWLC3010 Report No.: RF920114R0454Issued: Feb. 19, 2003 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6. 4.6.6 TEST RESULTS (For CCK) The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot on the following first pages shows 49.26dB delta between carrier maximum power and local maximum emission in restrict band (2.3892GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 102.6dBuV/m, so the maximum field str…

Text truncated - open the document above for the full version.

FCC ID: H8NWLC3010 Report No.: RF920114R0461Issued: Feb. 19, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: H8NWLC3010 Report No.: RF920114R0462Issued: Feb. 19, 2003 RADIATED EMISSION TEST
