H8NWLC3070Wireless LAN Cardbus Card

1 Contents Contents Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Notes on secure operation . . . . . . . . . . . . . . . . . . . . 3 The Gigaset PC Card 108 . . . . . . . . . . . . . . . . . . . . . . 4 Wireless LAN Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Local Area Network (LAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ad-hoc network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Infrastructure network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Security in wireless networksEncryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 WEP encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 WPA encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Range of wireless communication via a WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Installing the Gigaset PC Card 108 . . . . . . . . . . . . . . 7 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Notes on location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Status displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Running installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Connecting the Gigaset PC Card 108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Installing driver software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Checking installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Reading the connection quality from the icon . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Configuring Gigaset PC Card 108 . . . . . . . . . . . . . . 15 The Gigaset WLAN Adapter Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Opening the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Deactivating Autostart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Operating the Gigaset WLAN Adapter Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Closing the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Configuration – General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Configuration – Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Configuration – Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 IP settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Site Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 About . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 2 Contents Uninstalling Gigaset PC Card 108 . . . . . . . . . . . . . . 35 Uninstalling the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Completing Uninstall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Updating device drivers . . . . . . . . . . . . . . . . . . . . . 36 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Service (Customer Care) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51 Guarantee Certificate United Kingdom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Guarantee Certificate Ireland . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 3 Safety precautions Safety precautions uThe tic can affect medical equipment. Therefore, you should pay attention to the technical conditions of the corresponding environment. uMake sure you include the operating instructions and the CD-ROM, when you pass on your Gigaset PC Card 108 to somebody else. uUnder no circumstances try to use a damaged device. If in doubt, please contact our service department, see Chapter "Ser…

Text truncated - open the document above for the full version.

Page 6 Confidential Askey Computer Corp 6 Chapter 3 Hardware Block Diagram and Description 3.1 Block Diagram

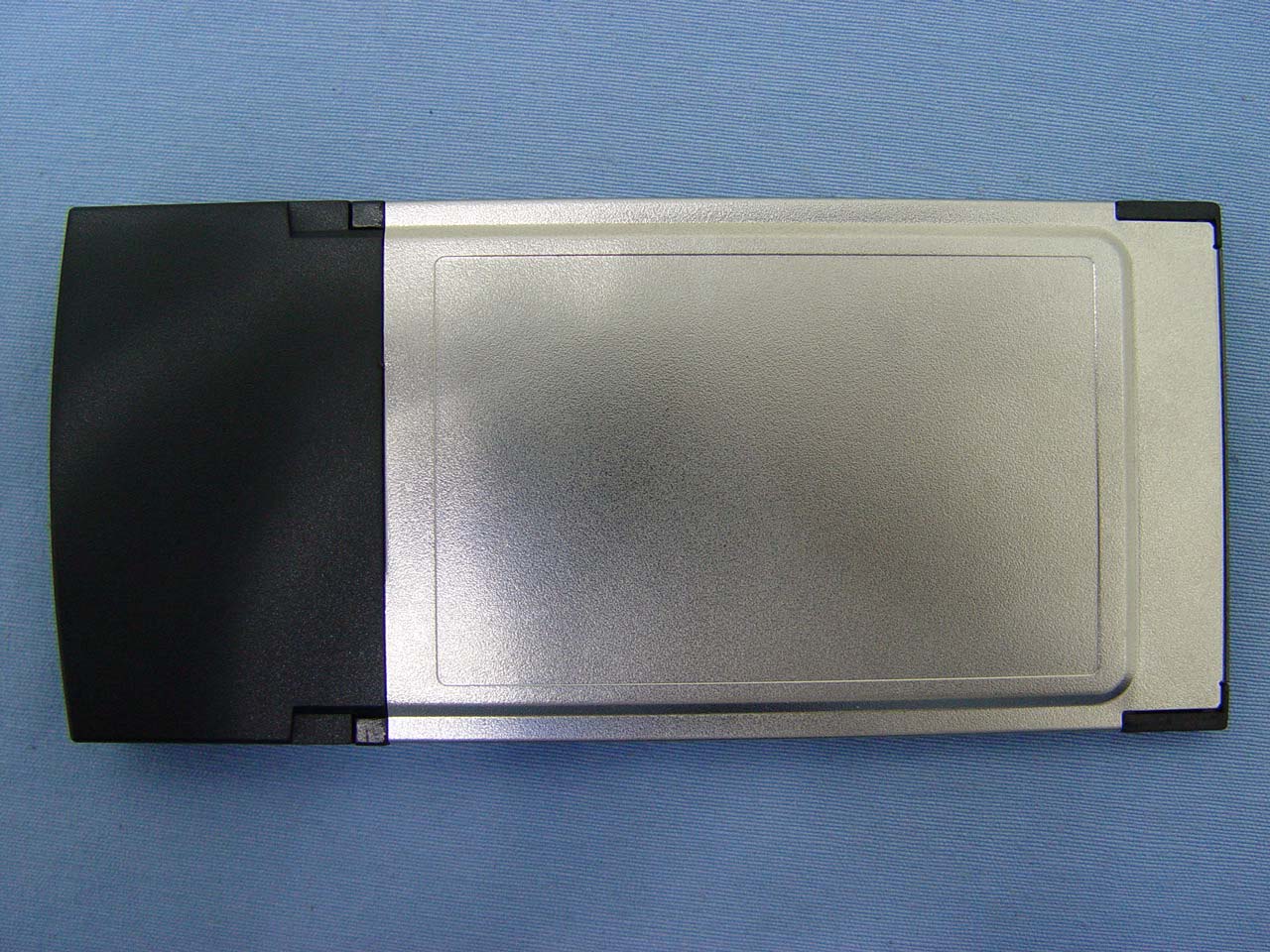

Compliance Certification Services Inc. Report No: 60410004 Date of Issue: May 8, 2006 Page 1 Total Page: 4 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

FCC ID : H8NWLC3070 IC : 1353A-WLC3070 Model Number: Gigaset PC card 108

Compliance Certification Services Inc. Report No: 60410004 Date of Issue: May 8, 2006 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60410004 Date of Issue: May 8, 2006 Page 3 Rev.00 Compliance Certification Services Inc. Report No: 60410004 Date of Issue: May 8, 2006 Page 4 Rev.00

Compliance Certification Services Inc. Report No: 60410004-SF FCC ID: H8NWLC3070 Date of Issue: May 05, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 26 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Wireless Lan Cardbus Card Trade Name: SIEMENS Model: Gigaset PC Card 108 Issued to ASKEY COMPUTER CORP. 10F, No.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No: 60410004-SF Date of Issue: May 05, 2006 Page 2 Rev.00 TABLE OF CONTENTS 1. EUT DESCRIPTION ............................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................... 5 3. DOSIMETRIC ASSESSMENT SYSTEM .............................................................................. 5 3.1 MEASUREMENT SYSTEM DIAGRAM .................................................................... 6 3.2 SYSTEM COMPONENTS............................................................................................ 7 4. EVALUATION PROCEDURES ............................................................................................. 9 5. MEASUREMENT UNCERTAINTY .................................................................................... 13 6. EXPOSURE LIMIT ............................................................................................................... 14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .... 15 8. MEASUREMENT RESULTS ............................................................................................... 16 8.1 SYSTEM PERFORMANCE CHECK......................................................................... 16 8.2 TEST LIQUID CONFIRMATION.............................................................................. 17 8.3 EUT TUNE-UP PROCEDURES................................................................................. 18 8.4 SAR MEASUREMENTS RESULTS.......................................................................... 19 9. EUT PHOTOS....................................................................................................................... 20 10. EQUIPMENT LIST & CALIBRATION STATUS ............................................................... 24 11. FACILITIES .......................................................................................................................... 25 12. REFERENCES....................................................................................................................... 25 13. ATTACHMENTS .................................................................................................................. 26 Compliance Certification Services Inc. Report No: 60410004-SF Date of Issue: May 05, 2006 Page 4 Rev.00 1. EUT DESCRIPTION Product Wireless Lan Cardbus Card Trade Name SIEMENS Model Number Gigaset PC Card 108 Model Discrepancy N/A Frequency Range 802.11b: 2400 ~ 2483.5 MHz 802.11g: 2400 ~ 2483.5 MHz 802.11g TURBO: 2400 ~ 2483.5 MHz Transmit Power(AV) 802.11b: 16.59 dBm 802.11g: 16.21 dBm 802.11g TURBO: 15.19 dBm Max. SAR (1g): 802.11b: 0.212 W/kg 802.11g: 0.205 W/kg 802.11g TURBO: 0.158 W/kg Modulation Technique 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) 802.11g TURBO: Orthogonal Frequency Division Multiplexin g (OFDM) Antenna Specification Ant. Type: Printed antenna HOST Dell: Model: D610 ; S/N: CN-0D4571-48643-53L-3558 Compliance Certification Services Inc. Report No: 60410004-SF Date of Issue: May 05, 2006 Page 5 Rev.00 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe EX3DV4-SN: 3554 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according…

Text truncated - open the document above for the full version.

Date/Time: 5/4/2006 8:45:06 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-784 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:784 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25. 0 deg C;Liquid Temperature:24.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 12.3 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 98.3 V/m; Power Drift = 0.011 dB Peak SAR (extrapolated) = 28.9 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.21 mW/g Maximum value of SAR (measured) = 19.4 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.5 mW/g Page1 Page2 Date/Time: 5/4/2006 3:30:20 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Touch mode antenna A DUT: Gigaset PC card 108; Type: Wireless Lan Cardbus Card; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.97 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.0 deg C;Liquid Temperature:24.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Middle CH Rate=1M bit/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.250 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.33 V/m; Power Drift = -0.143 dB Peak SAR (extrapolated) = 0.405 W/kg SAR(1 g) = 0.212 mW/g; SAR(10 g) = 0.117 mW/g Maximum value of SAR (measured) = 0.279 mW/g Middle CH Rate=1M bit/Z Scan (1x1x101): Measurement grid: dx=20mm, dy=20mm, dz=1mm Maximum value of SAR (measured) = 0.403 mW/g Page1 Page2 Date/Time: 5/4/2006 3:50:56 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Touch mode antenna B DUT: Gigaset PC card 108; Type: Wireless Lan Cardbus Card; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.97 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.0 deg C;Liquid Temperature:24.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Middle CH Rate=1M bit/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.234 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.61 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 0.355 W/kg SAR(1 g) = 0.191 mW/g; SAR(10 g) = 0.104 mW/g Maximum value of SAR (measured) = 0.248 mW/g Page1 Date/Time: 5/4/2006 4:11:57 PM Test Laboratory: Compliance Certification Services Inc. 802.11g Touch mode antenna A DUT: Gigaset PC card 108; Type: Wireless Lan Cardbus Card; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.97 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.0 deg C;Liquid Temperature:24.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Middle CH Rate=54M bit/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.249 mW/g Middle CH Rate=54M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.50 V/m; Power Drift = -0.047 dB Peak SAR (extrapolated) = 0.385 W/kg SAR(1 g) = 0.205 mW/g; SAR(10 g) = 0.114 mW/g Maximum value of SAR (measured) = 0.266 mW/g Middle CH Rate=54M bit/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.262 mW/g Page1 Page2 Date/Time: 5/4/2006 4:28:48 PM Test Laboratory: Compliance Certification Services Inc. 802.11g TURBO Touch mode antenna A DUT: Gigaset PC card 108; Type: Wireless Lan Cardbus Card; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.97 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.0 deg C;Liquid Temperature:24.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Co…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60410004-RP1 FCC ID: H8NWLC3070 Date of Issue: May 8, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 68 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Lan Cardbus Card Model: Gigaset PC Card 108 Trade Name: SIEMENS Issued to ASKEY COMPUTER CORP. 10F, No.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60410004-RP1 FCC ID: H8NWLC3070 Date of Issue: May 8, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................17 7.3 AVERAGE POWER............................................................................................................................22 7.4 BAND EDGES MEASUREMENT ................................................................................................27 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................40 7.6 SPURIOUS EMISSIONS ................................................................................................................46 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................62 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................65 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................66 Compliance Certification Services Inc. Report No.: 60410004-RP1 FCC ID: H8NWLC3070 Date of Issue: May 8, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless Lan Cardbus Card Trade Name SIEMENS Model Number Gigaset PC Card 108 Model Discrepancy N/A Power Supply Powered from host device. Frequency Range IEEE 802.11b/g Base mode: 2.412~2.462 GHz IEEE 802.11g Turbo mode: 2.437 GHz Transmit Power IEEE 802.11b mode: 19.08 dBm IEEE 802.11g Base mode: 18.91 dBm IEEE 802.11g Turbo mode: 18.95 dBm Modulation Technique IEEE 802.11b mode: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g Base mode: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) IEEE 802.11g Turbo mode: OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b mode: 11, 5.5, 2, 1 Mbps IEEE 802.11g Base mode: 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11g Turbo mode: 108, 96, 72Mbps Number of Channels IEEE 802.11b/g Base mode: 11 Channels IEEE 802.11g Turbo mode: 1 Channel Antenna Specification Left: Printed Antenna / Gain: 1.66 dBi Right: Printed Antenna / Gain: 0.83 dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: H8NWLC3070 filing to comply with Section 15…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60410004-RP1 FCC ID: H8NWLC3070 Date of Issue: May 8, 2006 Page 66 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60410004-RP1 FCC ID: H8NWLC3070 Date of Issue: May 8, 2006 Page 67 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60410004-RP1 FCC ID: H8NWLC3070 Date of Issue: May 8, 2006 Page 68 Rev. 00 Powerline Conducted Emissions Setup Photos
