H8NWLC3110Laptop Adapter

54Mbps 802.11g Wireless LAN Card WL C 3 110 /WL C3111 User’s Manual Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. The seller provides this documentation without warranty, term, or condition of any kind. The seller may make improvements or ch anges in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners.  2002 All rights reserved. Rev: 01 January 2003 I Contents About This Manual.............................................................................................................. ......................................... IV Chapter 1 In troduct ion........................................................................................................ ....................................... 1 Wireless LAN Basics ............................................................................................................ ....................................... 2 Local Area Ne twork (LAN)....................................................................................................... .................................................2 Ad-Hoc Mode .................................................................................................................... ........................................................2 Infrastructu re Mode ............................................................................................................ ......................................................3 Roaming ........................................................................................................................ ............................................................4 Chapter 2 Installing the Wireless LAN Card.................................................................................... ........................ 5 System Requirements ............................................................................................................ ..................................... 5 Installing Wireless LA N Driver and Software .................................................................................... .......................... 6 Chapter 3 Using Broadcom Wi reless Configur ation Utility ....................................................................... ............ 9 Accessing Broadcom Wireless Configurat ion Utility .............................................................................. ................... 10 Notice When Assessing Broadc om Utility unde r Windows XP........................................................................ ........................10 Wireless Netw orks Tab .......................................................................................................... ................................... 12 Connecting to an Exis ting Wireless Network ..................................................................................... .....................................12 Configuring a New Wirele ss Network Co nnection.................................................................................. ................................13 Configuring an Existing Wire less Network Connection ............................................................................ ..............................15 Specifying a Network Type to Access ............................................................................................ ..........................................16 Link Status Tab ................................................................................................................ ......................................... 16 Statistics ..................................................................................................................... ............................................... 19 Site Monitor ................................................................................................................... ............................................ 20 Advanced Site Monitor .......................................................................................................... ..................................................22 Diagnostics Tab................................................................................................................ ......................................... 24 Informati on Tab ................................................................................................................ ......................................... 26 Chapter 4 Windows XP Wirel ess Zero Configur ation Utility ...................................................................... ......... 27 Connecting to an Access Poin t or Wireless LAN Card ............................................................................. ..............................27 Viewing Wireless C onnection Status ............................................................................................. ..........................................29 Configuring Your Wi reless Prop erties ........................................................................................... .........................................29 Chapter 7 Tr oubleshoo ting ..................................................................................................... ................................ 35 Radio Inte rference............................................................................................................. ........................................ 35 54Mbps 802.11g Wireless LAN Card II Card Not Detected.............................................................................................................. ....................................... 36 Cannot Connect to …

Text truncated - open the document above for the full version.

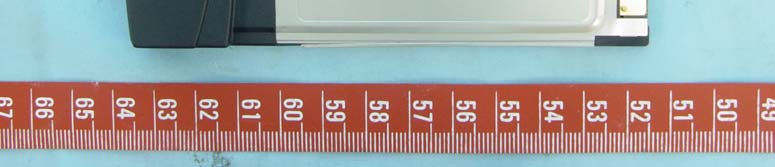

Page 1 CONSTRUCTION PHOTOS OF EUT (Model no: WLC3110) Page 2 (Model no: WLC3111) Page 3

FCC ID: H8NWLC3110 IC ID:1353A-WLC3110 Model name: WLC3110 / WLC3111 / F5D7010 F5D7011 Brand name: Askey / Belkin

FCC ID Label Location (FCC ID: H8NWLC3110)

Page 4 (Model no: WLC3110) Page 5 Page 6 (Model no: WLC3111) Page 7 Page 8

FCC ID: H8NWLC3110 Report No.RF940503L15 Technical Description The transmitter of the EUT (Laptop Adapter) is powered by host equipment. The antennas type used in this product are printed antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Laptop Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 125Mbps which OFDM technique will be applied. For more detailed instruction, please take a look at the user’s manual.

D3: DAE SN: 510

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

A - 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Bottom of EUT Position (Notebook: EVO N800C) The Bottom of the EUT to the flat phantom distance 9 mm A - 2 EUT Photo A - 4 Liquid Level Photo MSL 2450MHz D=150mm A - 5 Date/Time: 2005/5/20 10:01:01 Test Laboratory: Advance Data Technology WLC3110 Mode 1 11b DUT: Laptop Adapter ; Type: WLC3110 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.99 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 9 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.074 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.94 V/m Peak SAR (extrapolated) = 0.150 W/kg SAR(1 g) = 0.076 mW/g; SAR(10 g) = 0.038 mW/g Maximum value of SAR (measured) = 0.083 mW/g A - 6 Date/Time: 2005/5/20 10:23:30 Test Laboratory: Advance Data Technology WLC3110 Mode 1 11b DUT: Laptop Adapter ; Type: WLC3110 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2.02 mho/m; ε r = 54; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 9 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Middle Channel 6/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.084 mW/g Middle Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.10 V/m Peak SAR (extrapolated) = 0.196 W/kg SAR(1 g) = 0.089 mW/g; SAR(10 g) = 0.043 mW/g Maximum value of SAR (measured) = 0.104 mW/g A - 7 Date/Time: 2005/5/20 10:45:23 Test Laboratory: Advance Data Technology WLC3110 Mode 1 11b DUT: Laptop Adapter ; Type: WLC3110 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.05 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 9 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 High Channel 11/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.113 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.23 V/m Peak SAR (extrapolated) = 0.231 W/kg SAR(1 g) = 0.114 mW/g; SAR(10 g) = 0.056 mW/g Maximum value of SAR (measured) = 0.124 mW/g A - 8 A - 9 Date/Time: 2005/5/20 11:25:06 Test Laboratory: Advance Data Technology WLC3110 Mode 2 11g DUT: Laptop Adapter ; Type: WLC3110 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.99 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 9 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.075 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.96 V/m Peak SAR (extrapolated) = 0.153 W/kg SAR(1 g) = 0.077 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.085 mW/g A - 10 Date/Time: 2005/5/20 11:47:37 Test Laboratory: Advance Data Technology WLC3110 Mode 2 11g DUT: Laptop Adapter ; Type: WLC3110 ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2.02 mho/m; ε r = 54; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 9 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; C…

Text truncated - open the document above for the full version.

FCC ID: H8NWLC3110 Report No.: SA940503L151Report Format Version 2.0.1 SAR TEST REPORT REPORT NO.: SA940503L15 MODEL NO.: WLC3110 (refer to page 4 for other models) RECEIVED: May 03, 2005 TESTED: May 20 2005 ISSUED: May 26, 2005 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, No.119, Chien Kang Rd., Chung-Ho, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 30 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: H8NWLC3110 Report No.: SA940503L152Report Format Version 2.0.1 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM .............................................. ....5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................8 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................12 4.DESCRIPTION OF SUPPORT UNITS ......................................................................13 5.TEST RESULTS ........................................................................................................14 5.1 TEST PROCEDURES ...............................................................................................14 5.2 MEASURED SAR RESULT .......................................................................................15 5.3 SAR LIMITS...............................................................................................................17 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................17 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................19 6.SYSTEM VALIDATION ..............................................................................................20 6.1 TEST EQUIPMENT ...................................................................................................20 6.2 TEST PROCEDURE .................................................................................................20 6.3 VALIDATION RESULT...............................................................................................22 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................23 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................24 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................24 7.2 ISOTROPY UNCERTAINTY......................................................................................24 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................25 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................25 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................25 7.6 RESPONSE TIME UNCERTAINTY...........................................................................26 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................27 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................27 7.9 PROBE POSITIONING .............................................................................................28 7.10 PHANTOM UNCERTAINTY ......................................................................................28 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................29 8.INFORMATION ON THE TESTING LABORATORIES ..............................................30 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: H8NWLC3110 Report No.: SA940503L153Report Format Version 2.0.1 1. CERTIFICATION PRODUCT : Laptop Adapter MODEL NO. : WLC3110 (refer to page 4 for other models) BRAND NAME : Askey APPLICANT : ASKEY COMPUTER CORP. TESTED : May 20, 2005 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:May 26, 2005 ( Windy Chou ) TECHNICAL ACCEPTANCE :, DATE:May 26, 2005 Responsible for RF ( Ansen Lei ) APPROVED BY :, DATE:May 26, 2005 ( Cody Chang, Deputy Manager ) FCC ID: H8NWLC3110 Report No.: SA940503L154Report Format Version 2.0.1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Laptop Adapter MODEL NO. WLC3110 POWER SUPPLY 3.3Vdc from host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE CCK, QPSK, BPSK for DSSS, 64QAM, 16QAM, QPSK, BPSK for OFDM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b: 11/5.5/2/1Mbp…

Text truncated - open the document above for the full version.

FCC ID: H8NWLC3110 Report No.: RF940503L151Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940503L15 MODEL NO.: WLC3110 (refer to page 6 for other Models) RECEIVED: May 03, 2005 TESTED: May 06 ~ May 17, 2005 ISSUED: May 19, 2005 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, No.119, Chien Kang Rd., Chung-Ho, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 88 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: H8NWLC3110 Report No.: RF940503L152Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION...................................................................................................... 4 2.SUMMARY OF TEST RESULTS ............................................................................. 5 2.1MEASUREMENT UNCERTAINTY ...........................................................................5 3.GENERAL INFORMATION ...................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: .......................... 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................10 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................10 4.TEST TYPES AND RESULTS ................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT ......................................................... 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 11 4.1.2 TEST INSTRUMENTS............................................................................................ 11 4.1.3 TEST PROCEDURES ............................................................................................ 12 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 12 4.1.5 TEST SETUP ......................................................................................................... 13 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 13 4.1.7 TEST RESULTS ..................................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ..............................................................26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 26 4.2.2 TEST INSTRUMENTS............................................................................................ 27 4.2.3 TEST PROCEDURES ............................................................................................ 28 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 28 4.2.5 TEST SETUP ......................................................................................................... 29 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 29 4.2.7 TEST RESULTS ..................................................................................................... 30 4.36dB BANDWIDTH MEASUREMENT .....................................................................45 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 45 4.3.2 TEST INSTRUMENTS............................................................................................ 45 4.3.3 TEST PROCEDURE............................................................................................... 46 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 46 4.3.5 TEST SETUP ......................................................................................................... 46 FCC ID: H8NWLC3110 Report No.: RF940503L153Report Format Version 2.0.2 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 46 4.3.7 TEST RESULTS ..................................................................................................... 47 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................55 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................... 55 4.4.2 INSTRUMENTS...................................................................................................... 55 4.4.3 TEST PROCEDURES ............................................................................................ 56 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 56 4.4.5 TEST SETUP ......................................................................................................... 56 4.4.6 EUT OPERATING CONDITIONS ........................................................................... 56 4.4.7 TEST RESULTS ..................................................................................................... 57 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................59 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............…

Text truncated - open the document above for the full version.

FCC ID: H8NWLC3110 Report No.: RF940503L1584Report Format Version 2.0.2 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode A) FCC ID: H8NWLC3110 Report No.: RF940503L1585Report Format Version 2.0.2 (Mode B) FCC ID: H8NWLC3110 Report No.: RF940503L1586Report Format Version 2.0.2 RADIATED EMISSION TEST (Mode A) FCC ID: H8NWLC3110 Report No.: RF940503L1587Report Format Version 2.0.2 (Mode B)
