H8NWLL3010Wireless LAN Mini PCI Card

Askey Computer Corp
Wireless LAN Mini PCI Card - FCC ID H8NWLL3010 - Askey Computer Corp
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 16, 2003
Application Purpose
Original Equipment
Date of Application
Feb 16, 2003
Equipment Note
Wireless LAN Mini PCI Card
Frequency Range
2412.00000000 - 2462.00000000
Company
Askey Computer Corp
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Schematics

↗
↗
↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

54Mbps 802.11g Wireless LAN Card User’s Manual Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. The seller provides this documentation without warranty, term, or condition of any kind. The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners.  2002 All rights reserved. Rev: 01 January 2003 I Contents About This Manual....................................................................................................................................................... IV Chapter 1 Introduction............................................................................................................................................... 1 Wireless LAN Basics................................................................................................................................................... 2 Local Area Network (LAN)....................................................................................................................................................... 2 Ad-Hoc Mode............................................................................................................................................................................ 2 Infrastructure Mode.................................................................................................................................................................. 2 Roaming.................................................................................................................................................................................... 4 Chapter 2 Installing the Wireless LAN Card............................................................................................................ 5 System Requirements................................................................................................................................................. 5 Installing Wireless LAN Driver and Software.............................................................................................................. 6 Chapter 3 Using Broadcom Wireless Configuration Utility................................................................................... 9 Accessing Broadcom Wireless Configuration Utility................................................................................................. 10 Notice When Assessing Broadcom Utility under Windows XP............................................................................................... 10 Wireless Networks Tab............................................................................................................................................. 12 Connecting to an Existing Wireless Network.......................................................................................................................... 12 Configuring a New Wireless Network Connection................................................................................................................. 12 Configuring an Existing Wireless Network Connection......................................................................................................... 14 Specifying a Network Type to Access..................................................................................................................................... 15 Link Status Tab......................................................................................................................................................... 15 Statistics.................................................................................................................................................................... 17 Site Monitor............................................................................................................................................................... 18 Advanced Site Monitor........................................................................................................................................................... 19 Diagnostics Tab......................................................................................................................................................... 20 Information Tab......................................................................................................................................................... 21 Chapter 4 Windows XP Wireless Zero Configuration Utility................................................................................ 23 Connecting to an Access Point or Wireless LAN Card........................................................................................................... 23 Viewing Wireless Connection Status...................................................................................................................................... 24 Configuring Your Wireless Properties................................................................................................................................... 24 Chapter 7 Troubleshooting..................................................................................................................................... 29 Radio Interference..................................................................................................................................................... 29 Card Not Detected..................................................................................................................................................... 30 Cannot Connect to Another Wireless LAN Card....................................................................................................... 3…

Text truncated - open the document above for the full version.

Cover Letter(s)

FCC ID: H8NWLL3010 ADT No.920120R02 Modular Approval Request Letter Advance Data Technology Feb. 13, 2003 Dear Application Examiner, ASKEY COMPUTER CORP.’s Wireless LAN Mini PCI Card, FCC ID: H8NWLL3010, would like to have your authorization as a limited modular approval specific to mobile device such as Broadband Product / wireless ADSL / wireless Router / wireless cable modem and the notebook with antenna mounted around the LCD panel. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4306. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 1.8V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is LM2612. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H8NWLL3010 ADT No.920120R02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards,

Cover Letter(s)

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless LAN Mini PCI Card (Receiver Part) MODEL NO.: WLL3010 TRADE NAME: Askey IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920120R02 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION: ManufacturerUSA Local Representative Company name: ASKEY COMPUTER CORP. To Be Determined. Address: 10F,NO.119, CHIENKANG RD., CHUNG- HO, TAIPEI TAIWAN R.O.C. Contact Person: John Chiou Title: Manager Tel/Fax: Tel: +886-2-2228-7588 Fax: +886-2-3234-9340

External Photos

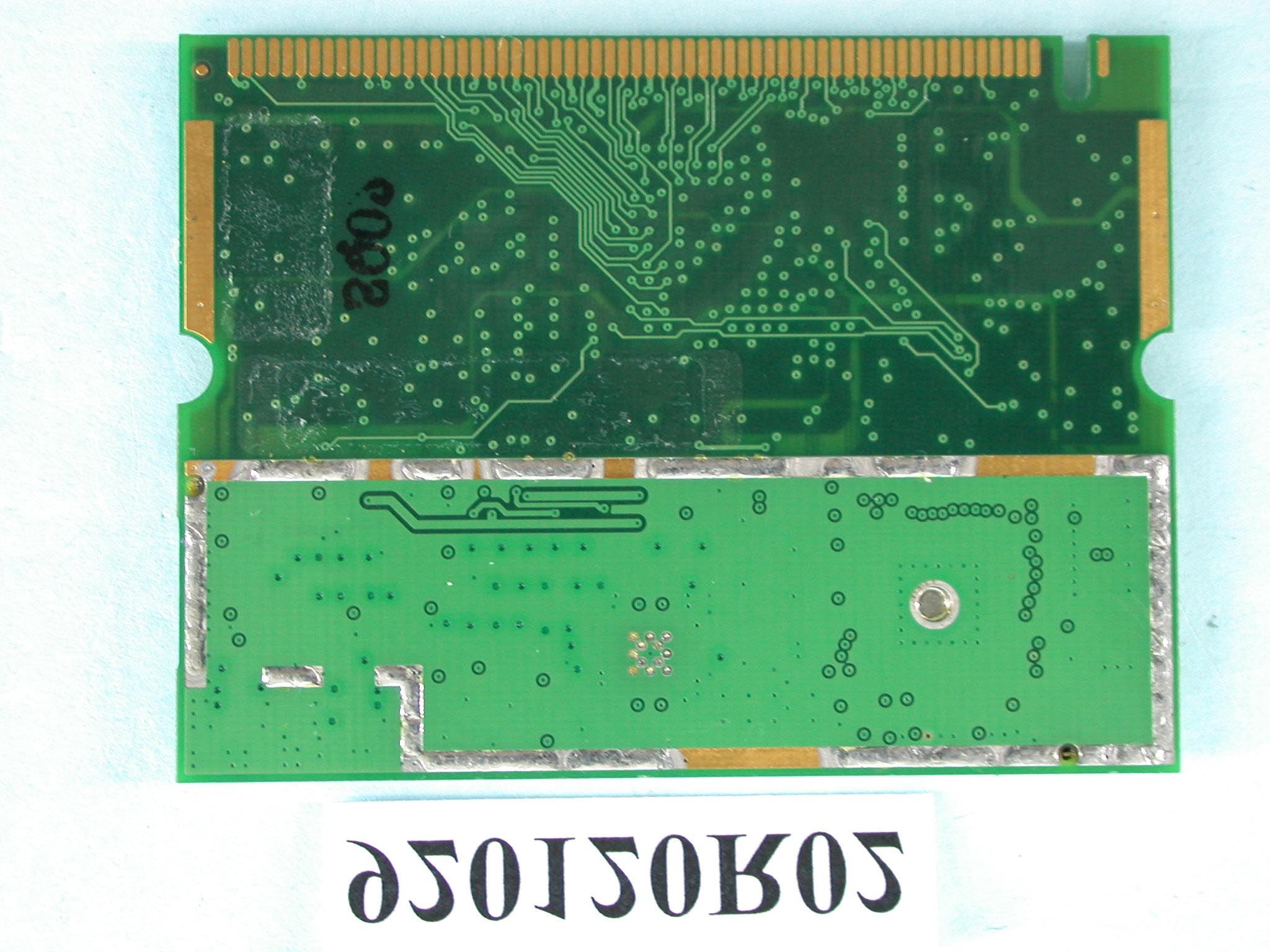

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 4 Page 5

ID Label/Location Info

Label Location For FCC ID

Internal Photos

Page 6

Operational Description

FCC ID: H8NWLL3010 ADT No.920120R02 Technical Description This device is a Wireless LAN Mini PCI Card, which operates in the 2.4Ghz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The transmitter of the EUT is powered by host equipment via a mini PCI interface. The antenna are Dipole / Patch antenna with UFL connector. For more detailed instruction, please take a look at the user’s manual.

RF Exposure Info

FCC ID: H8NWLL3010 ADT No.: 920120R02 RF Exposure TEST REPORT REPORT NO.: RF920120R02 MODEL NO.: WLL3010 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO. 119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: H8NWLL3010 ADT No.: 920120R02 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: H8NWLL3010 ADT No.: 920120R02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: H8NWLL3010 ADT No.: 920120R02 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3dBi. 6.2 Output Power Into Antenna & RF Exposure Distance : For 802.11b CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241227.932.11 6243730.832.21 11246231.332.23 For 802.11g CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241226.492.05 6243727.352.08 11246230.832.21 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

Schematics

5 5 4 4 3 3 2 2 1 1 DD CC BB AA page 1: MiniPCI Interface page 2: RF Front End page 3: Radio/Baseband page 4: Power/Clocks/Misc. BCM4306 COMMINIPCI3 <PLUG> WLL3010-D500 MiniPCI Interface B 14, 30, 2002 Title SizeDocument NumberRev Date:Sheetof pci_ad25 pci_ad31 pci_ad11 pci_perrl pci_idsel pci_intl pci_ad4 pci_ad28 pci_ad20 pci_ad4 pci3_3 pci_ad21 pci_serrl pci_ad10 pci_ad2 pci_stopl pci_ad19 pci3_3 pci_ad8 pci_ad13 pci_trdyl pci_ad17 pci_ad12 pci_gntl pci_pmel pci_clk pci_idsel pci_clkrunl vaux pci3_3 pci_gntl pci_rstl pci_ad15 pci_ad30 pci_serrl pci_ad2 pci_devsell pci_ad9 pci_reql pci_ad19 pci_ad21 pci_ad22 pci_ad11 pci_ad31 led_wlan__activity pci_ad17 pci3_3 pci_par pci_cbe2l pci3_3 pci_intl pci_ad30 pci_ad23 pci_ad15 pci_irdyl pci_ad5 pci_ad28 pci_perrl pci_ad10 pci_framel pci_irdyl pci3_3 pci_ad16 pci_ad23 pci_ad9 pci_ad27 pci_ad24 pci_ad29 pci_par pci_pmel pci_ad1 pci_ad1 pci_ad0 pci_framel pci_cbe2l pci_ad20 pci_cbe1l pci_ad14 pci_cbe3l pci_ad18 pci_ad7 pci_devsell pci_stopl pci_ad3 pci3_3 pci_ad26 pci_trdyl pci_cbe0l pci_ad3 pci_clkrunl mpciact_l led_wlan24__radiostate pci_ad5 pci_ad25 pci_ad8 pci_ad13 pci_ad26 pci_ad12 pci_cbe1l pci_ad6 pci_ad24 pci_ad7 pci_cbe3l pci_cbe01 vaux pci_clk pci_ad18 pci_ad29 pci3_3 pci_ad27 pci_rstl pci_ad14 pci_ad6 pci_ad16 pci_ad0 pci_reql hw_radioxmit_disable_l pci_ad22 pci_irdyl pci_ad7 pci_cbe3l pci_serrl pci_cbe1l pci_reql vaux pci_reql pci_ad9 vaux pci_ad24 pci_ad22 pci_clk pci_intl pci_ad15 pci_cbe0l pci_serrl pci_ad17 pci_ad4 pci_ad17 pci_ad5 pci_cbe0l pci_ad4 pci_clkrunl pci_ad23 pci_ad16 pci_ad10 pci_trdyl pci_ad29 pci_ad1 pci_ad0 led_wlan24_radiostate pci_ad11 pci_intl pci_cbe2l pci_ad27 pci_ad28 pci_ad11 pci_devsell pci_idsel pci_gntl pci_ad6 led_wlan_activity pci_ad14 pci_ad25 pci_clkrunl pci_cbe2l pci_ad19 pci_ad21 pci_ad23 pci_ad20 mpciact_l pci_devsell pci_perrl pci_ad6 pci_ad16 pci_ad14 pci_ad2 pci_ad8 pci_ad30 pci_rstl pci_ad31 pci_ad3 pci_stopl pci_ad3 pci_ad15 pci_ad9 pci_ad8 pci_ad19 pci_cbe1l pci_idsel pci_trdyl pci_qntl pci_framel pci_ad10 pci_ad28 pci_ad26 pci_ad25 pci_ad24 pci_rstl pci_ad5 pci_perrl pci_ad13 pci_par pci_cbe3l pci_ad20 pci_ad27 pci_stopl pci_ad22 pci_ad18 pci_irdyl pci_ad21 pci_par pci_clk pci_ad12 pci_ad31 pci_pmel pci_ad7 pci_framel pci_ad0 pci_ad30 pci_ad2 pci_ad29 pci_ad12 pci_ad1 pci_ad13 pci_ad18 pci_ad26 pci_pmel coex1_bt_active coex2_wlan_active rf_dis_filt_l VCC3_3 PCI3_3 C122 0.01uF R45 10K R38ZERO R36 ZERO J4 23 18 97 17 22 93 98 21 27 25 69 29 33 35 49 39 41 19 45 47 50 51 53 28 57 59 62 61 31 72 55 71 40 67 63 73 75 74 79 81 77 85 87 70 91 95 82 99 103 104 105 106 107 1 3 5 7 9 11 13 15 117 119 121 123 110 111 113 115 116 20 36 43 100 112 24 26 30 102 34 38 88 42 44 114 46 48 89 52 54 32 58 60 64 66 37 68 65 56 76 78 80 83 84 86 90 92 101 94 96 108 109 2 4 6 8 10 12 14 16 118 120 122 124 gnd plus5v plus5v intb_l reserved reserved reserved reserved gnd clk gnd req_1 ad31 ad29 gnd ad27 ad25 plus33v cbe3_l ad23 gnd ad21 ad19 plus33v ad17 cbe2_l gnd irdy_l plus33v devsel_l gnd perr_l plus33v serr_l plus33v cbe1_l ad14 gnd ad12 ad10 gnd ad8 ad7 plus33v ad5 ad3 gnd ad1 acsync m66en ac_sdata_ina ac_sdata_out ac_bit_clk tip 8pmj_3 8pmj_6 8pmj_7 8pmj_8 led1_grnp led1_grnn chsgnd sys_audio_out_gnd audio_gnd reserved plus5va ac_reset_l mod_audio_mon audio_gnd sys_audio_out sys_audio_in inta_l reserved reserved reserved reserved 3p3vaux rst_l gnt_l gnd pme_l ad30 plus33v ad28 ad26 gnd ad24 idsel plus33v ad22 ad20 gnd ad18 ad16 frame_l trdy_l gnd stop_l clkrun_l par ad15 ad13 ad11 gnd ad9 cbe0_l ad6 ad4 gnd ad2 ad0 ac_codecid0_l ac_codecid1_l ring 8pmj_1 8pmj_2 8pmj_4 8pmj_5 led2_yelp led2_yeln reserved sys_audio_in_gnd audio_gnd mpciact_l 3p3vaux R46 1K C124 10uF R100ZERO R37 ZERO U11A BCM4306 J2 J4 K1 J3 L1 K2 K4 K3 N1 L3 M2 L4 P1 M4 M3 N2 N5 P5 T4 R5 T5 N6 P6 R6 P7 R7 N7 T7 P8 T8 N8 N9 L2 R1 R4 T6 T1 P2 R2 P3 P4 R3 T2 T3 H2 G4 N3 G2 G3 P9 M1 H3 J1 PCI_AD31 PCI_AD30 PCI_AD29 PCI_AD28 PCI_AD27 PCI_AD26 PCI_AD25 PCI_AD24 PCI_AD23 PCI_AD22 PCI_AD21 PCI_AD20 PCI_AD19 PCI_AD18 PCI_AD17 PCI_AD16 PCI_AD15 PCI_AD14 PCI_AD13 PCI_AD12 PCI_AD11 PCI_AD10 PCI_AD9 PCI_AD8 PCI_AD7 PCI_AD6 PCI_AD5 PCI_AD4 PCI_AD3 PCI_AD2 PCI_AD1 PCI_AD0 PCI_CBE3_L PCI_CBE2_L PCI_CBE1_L PCI_CBE0_L PCI_FRAME_L PCI_IRDY_L PCI_TRDY_L PCI_DEVSEL_L PCI_STOP_L PCI_PERR_L PCI_SERR_L PCI_PAR PCI_INT_L PCI_RST_L PCI_CLK PCI_PME_L CSTSCHG PCI_CLKRUN_L PCI_IDSEL PCI_REQ_L PCI_GNT_L R471K

Schematics

5 5 4 4 3 3 2 2 1 1 DD CC BB AA NO_LOAD NO_LOAD NO_LOADNO_LOADNO_LOAD ASKEY COMPUTER CORP. NO_LOAD NO_LOAD NO_LOADNO _LOAD NO_LOAD NO _LOAD NO _LOAD NO _LOAD NO _LOAD NO_LOAD NO_LOAD 0 Power / Clocks / Misc NO_LOAD NO_LOAD NO_LOAD NO_LOAD NO_LOAD NO_LOAD WLL3010-D50B 44, 30, 2002 Title SizeDocument NumberRev Date:Sheetof vaux led_wlan24_radiostate led_wlan_activity vaux rf_dis_filt_l clk_2050 mpciact_l coex1_bt_active coex2_wlan_active xtal_pu_2050 led_wlan_activity led_wlan24_radiostate gpio5 gpio6 rf_dis_filt_l gpio9 vcc1_8 pci3_3 vcc3_3 vcc3_3vcc1_8avddphyvddpll vcc3_3 vcc3_3 vcc3_3 vddpll avddphy CGND C84 0.01UF C040 2 C10 2 0.01UF C0 402 R49 10K R0402 C13 9 0.1UF C040 2 C10 1 10UF C080 5 R354.7K R0402 U14 LM2612 CSP10.5-0.9 1 23 4 5 6 7 89 10 fb vid1vid0 sync_mode en pgnd sw pvin vdd sgnd C83 1UF C0 603 C99 0.01UF C0402 C6 2 0.01 UF C0402 U13 cmpwr025 SSOP8.65 1 2 3 45 6 7 8 vcc1 vcc1 vcc2 vcc2gnd vout vout hys U12 nm93c46 SSOP8.65W 1 2 3 45 6 7 8 cs sk di dognd org nc vcc3 C10 5 0.01UF C040 2 R43zero C95 0.1UF C040 2 R54 ZERO R4410K R0402 U11C BCM4306 T14 P12 T13 N12 R12 T12 R11 P11 F1 E3 F4 F2 G1 F3 R13 E9E10F5F6H5J5K5L5M5M6E4E5E6E7E8G5L11L12M10M11H4N4R8K14L13H1E16 R15 L15 D11 N11 N10 R10 T11 P10 F8F9F10G6G7G8G9G10H6H7H8H9H10J6J7J8J9J10K7K8K9K10L7L8L9L10E15 T10 R9 T9 C12 A14 C13 B13 C8 A13 G13 H11J11K11K12D12E11F11G11L14 E12E13F12F13G12H12J12K13F7K6L6M7M9M12 M8 GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 BOOTROM_SCL BOOTROM_SDA SPROM_CS SPROM_CLK SPROM_DOUT SPROM_DIN EXT_POR_L VDDCOREVDDCOREVDDCOREVDDCORE VDDBUSVDDBUSVDDBUSVDDBUSVDDBUSVDDBUS VDDIOVDDIOVDDIOVDDIOVDDIOVDDIOVDDIOVDDIOVDDIOVDDIO VESDVESDVESDAVDDAVDD NC PLLDVDD TEST_SE PCMCIA_SEL JTAG_TRST_L GPIO8 GPIO9 GPIO10 GPIO11 GPIO12 GNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDPLLGND GPIO13 GPIO14 GPIO15 TDO TDI TCK TMS RF_DISABLE_L PLL_POWERDOWN FREF APHY_AGNDAPHY_AGNDAPHY_AGNDAPHY_AGNDGPHY_AGNDGPHY_AGNDGPHY_AGNDGPHY_AGNDAGND AVDD_GPHYAVDD_GPHYAVDD_GPHYAVDD_GPHYAVDD_APHYAVDD_APHYAVDD_APHYAVDD_APHY VDDCOREVDDCOREVDDCOREVDDCOREVDDCOREVDDCORE GND C1 17 0.01 UF C0402 C8 5 10U F C0805 R391K R0402 C1 07 0.01 UF C0402 C145 12PF C0402 C11 4 0.01UF C040 2 C112 10UF C0805 C88 0.1UF C040 2 C1 38 0.01 UF C0 402 C10 0 1UF C060 3 C11 6 0.1UF C0 402 R58 22.1K C72 2.2UF C060 3 C12 7 0.1UF C040 2 C13 3 0.1UF C040 2 C13 6 0.1UF C040 2 L5BEAD I0603 C91 10UF C0805 C12 6 0.1UF C040 2 C11 5 0.1UF C040 2 C89 0.01UF C040 2 C109 330P C98 0.01UF C040 2 C94 0.1UF C0402 R321K R0402 C9 3 1U F C0603 C125 10UF C0805 C13 0 0.01UF C040 2 C96 0.1UF C040 2 C12 9 0.01UF C040 2 C65 0.01UF C0 402 L10BEAD I0603 C63 0.01UF C0 402 R59 ZERO R41zero R0603 R33 1.2K R0402 C118 0.01UF C0402 C90 1UF C060 3 C119 0.01UF C0402 C121 10UF C1206 C10 4 0.1UF C040 2 C10 8 0.1UF C040 2 C1 35 0.01 UF C0 402 C8 7 0.01 UF C0402 C106 10UF C0805 R48 10K R0402 R40zero C11 0 0.1UF C040 2 C1 23 10U F C0805 D1 DS15AR-1.2 1 2 C13 4 0.01UF C0402 C1 37 0.01 UF C0 402 C7 9 0.01 UF C0402 C75 0.1UF C040 2 R57 39.2K C12 8 0.1UF C040 2 R42zero C8 1 0.01 UF C0402 C9 2 0.01 UF C0402 C1 11 0.01 UF C0402 C6 7 0.01 UF C0402 R34 4.7K R0402 C1 20 0.01 UF C0402 C113 10UF C0805 C66 0.1UF C040 2 C64 0.1UF C040 2 C13 1 0.01UF C040 2 C76 10UF C080 5 C73 0.1UF C040 2 L910uH I6.5X5.3-2.0 R53 ZERO C13 2 0.1UF C040 2 C68 0.1UF C0402

Schematics

5 5 4 4 3 3 2 2 1 1 DD CC BB AA NO_LOAD ASKEY COMPUTER CORP. BCM4306 U6 NO_LOAD NO_LOAD NO_LOADNO_LOADNO_LOADNO_LOADNO_LOAD NO_LOAD NO_LOAD WLL3010-D50 Radio Interface B 34, 30, 2002 Title SizeDocument NumberRev Date:Sheetof GPHY_AGC<0> GPHY_AGC<1> GPHY_AGC<2> GPHY_AGC<3> GPHY_AGC<4 GPHY_AGC<5 GPHY_TX_IP GPHY_TX_IN GPHY_TX_QN GPHY_SRI_DO GPHY_SRI_DI GPHY_RX_QP GPHY_RX_QN GPHY_RX_IN GPHY_SYNTH GPHY_CMO UT GPHY_RX_PU GPHY_TX_PU GPHY_TX_QP GPHY_SRI_C GPHY_SRI_E GPHY_BPWR GPHY_RX_IP GPHY_FLTR_RX_CTRL FLTR_RX_CTRL_LPF FLTR_CTRL_2050 FLTR_CTRL_LPF__2050 FLTR_CTRL_2050 FLTR_RX_CTRL_LPF GPHY_FLTR_RX_CTRL FLTR_CTRL_LPF_2050 G_RX_IN G_TX_OUT WRSSI_2050 NRSSI_2050 GPHY_WRSSI GPHY_NRSSI VCC2050IO GPHY_SRI_DO GPHY_BPWR GPHY_SRI_E GPHY_SRI_C GPHY_SRI_DI XTAL_PU_2050 NRSSI_2050 WRSSI_2050 CLK_2050 VCC2050IO GPHY_CMOUT VCC2050IO GPHY_ANT_SELN GPHY_ANT_SELP GPHY_NRSSI GPHY_WRSSI GPHY_TSSI TR_SW_RX_PU TR_SW_TX_PU GPHY_TX_PU GPIO6 GPIO5 VCC3_3 VCC3_3 VCC_RADIOVCC_RADIO VCC_RADIO VCC_RADIO VCC2050IO AVDDPHY C40 0.01U C0402 C25 22P C0402 C2 150P C0402 C54 22P C0402 R17 499 R0402 U4 HHM-1520 FIL6.65-1.0 1 2 3 4 5 6 SE GND DIFF2 DIFF1 GND NC C47 22P C0402 C20 22P C0402 L22.0nH I0402 C22 22P C0402 C144 22U C1206 R22 1.2K R0402 R25 499 R0402 C31 0.1U C0402 R61ZERO C11 1000P C0402 L1 3.3nH I0402 C43 22P C0402 C16 0.1U C0402 R14 4.7K R0402 C10 150P C0402 R64 20K R54.7K R0402 C57 22P C0402 C55 22P C0402 C39 22P C0402 C2610PF C0402 C61 120P C0402 U6 bcm2051_a0 56LCC.5-1.0 44 45 51 50 49 48 47 46 11 12 14 13 36 35 34 37 33 43 1 2 54 53 55 56 39 40 5771531021182629302238233132521624251719 4 5 27 28 9 8 206 41 42 FLTR_RX_CTRL FLTR_RX_CTRL_LPF AGX_RX_CTR10 AGX_RX_CTR11 AGX_RX_CTR12 AGX_RX_CTR13 AGX_RX_CTR14 AGX_RX_CTR15 TX_ANA_IN_IP TX_ANA_IN_IN TX_ANA_IN_QP TX_ANA_IN_QN SRL_D SR1_C SR1_E SR1_DO SYS_CLK BPWR NRSSIA WRSSIA RX_ANA_OUT_QP RX_ANA_OUT_QN RX_ANA_OUT_IP RX_ANA_OUT_IN TX_PU RX_PU GND_PAD VDDPA1 VDDTX VDDRX VDDPA2 VDDVCO VDDLO VDDCP VDDXTAL VDDDPL_RDF VDDPL VDD4W VDDDPLVDDPFD VDDIOCM_IN CLK_SEL CP_FB CP_OUT BGRET VCTRL RF_INP RF_INN XTAL_OUT XTAL_IN PA_OUTP PA_OUTN BIASCVAR NC XTAL_PU SYNTH_PU R21ZERO R0402 C15 0.01U C0402 BCM4306 BGA256_1MM U11B BCM4306 B7 B10 C10 D10 A11 B11 A15 B15 D16 D15 B8 A7 D8 A8 B14 C7 A5 B16 A16 C16 C14 C15 A10 A9 B12 D9 A12 D13 B9 C9 A6 C11 D14 E14 FLTR_RX_CTRL_LPF AGC_RX_CTL_0 AGC_RX_CTL_1 AGC_RX_CTL_2 AGC_RX_CTL_3 AGC_RX_CTL_4 GPHY_RXP_Q GPHY_RXN_Q GPHY_TXP_Q GPHY_TXN_Q SRI_DO SRI_C SRI_E SRI_DI GPHY_CMOUT BPWR PA_RAMP GPHY_RXP_I GPHY_RXN_I GPHY_TEMPRSSI GPHY_NRSSI GPHY_WRSSI TX_PU RX_PU ANT_SELP SYNTH_PU ANT_SELN GPHY_TSSI TR_SW_RX_PU TR_SW_TX_PU FLTR_RX_CTRL AGC_RX_CTL_5 GPHY_TXP_I GPHY_TXN_I C60 0.1U C0402 C82 0.01U C0402 R3110K R0402 R63ZERO C3236PF C0402 C34 0.1U C0402 C103 22U C1206 C59 22P C0402 R65 15K R1ZERO R0402 R410K R0402 C136PF C0402 U10 LP298518 SOT25-1.2 3 4 5 1 2 on_off bypass vout vin gnd C46 120P C0402 C51 22P C0402 C58 22P C0402 C6 0.01U C0402 C80 4.7U C0805 C3 2700P C0402 R52 41.2K C52 22P C0402 C17 0.1U C0402 R8 10M R0603 C2310PF C0402 R2221 R0402 C38 22P C0402 L32.0nH I0402 R66 20K C50 22P C0402 L4 2.4nH I0402 R60ZERO C56 22P C0402 C8 0.1U C0402 C30 22P C0402 C7 0.01U C0402 C90.1UF C0402 C53 22P C0402 C143 0.1U R32.87K R0402 Y1 12MHZ XS4H1-1.0 1 2 3 4 C97 0.1U C0402 R26 1.2K R0402 C19 0.01U C0402 R30ZERO R0402 R67 15K U7 HHM-1520 FIL6.65-1.0 1 2 3 4 5 6 SE GND DIFF2 DIFF1 GND NC C86 0.01U C0402 R62ZERO L11BEAD I0402 C14 1000P C0402

Schematics

5 5 4 4 3 3 2 2 1 1 DD CC BB AA ASKEY COMPUTER CORP. ANTENNA RF AUX ANTENNA RF MAIN NO_LOAD NO_LOAD NO_LOAD WLL3010-D50 Rf Front End B 24, 30, 2002 Title SizeDocument NumberRev Date:Sheetof qphy_ant_selp qphy_ant_seln tr_sw_tx_pu tr_sw_rx_pug_rx_in pci3_3 g_pa_out g_tx_out 3 vcc2_8 vccgpa_ctlpci3_3 pci3_3 gphu_tss1 vcc_radio ant1 qphy_tx_pu ant2 g_rx_in tr_sw_tx_pu tr_sw_rx_pu gphy_ant_selp gphy_ant_seln gphy_tx_pu gphy_tssi g_tx_out GPIO9 vccgpa_ctl pci3_3 pci3_3 pci3_3 vcc_radio VCCPA VCC2_8 C37 0.01UF C0402 C486.8PF C0402 C74 0.1UF C0402 J1UFL_ANTENNA ANTS-1.3 1 23 rf mechmech C46P C0402 L8 BEAD I0805 R24ZERO R0402 R1133 R0402 C27 6PF C0402 C21 6PF C0402 R2382.5K R0402 C29 0.1UF C0402 R28 10K R0402 R13 10K R0402 U3 LFB212G45 1 2 3 4 GND OUT GND IN R55 1M C78 10UF C0805 U1 AS-179 SOT26A-1.0 1 2 3 4 5 6 RF1 GND RF2 VC1 RFC VC2 U2 MMPA742S FIL10-1.5 2 83 7 1161 1045 9 rf_in gndgnd rf_out padgndgnd vm vpc vcc pd R1510K R0402 R27 2.15K R0402 C13 33PF C0402 R733 R0402 R18100K R0402 L7BEAD I0603 C42 0.1UF C0402 R29 0 R0402 C70 47PF C0402 C35 10UF C0805 C366PF C0402 R204.7K R0402 L6FB I0603 R10 10K R0402 C18 33PF C0402 R56 1MR633 R0402 C45 10UF C0805 C12 33PF C0402 - + U9 LMV321/SOT SOT25A-1.1 1 4 5 2 3 C44 0.01UF C0402 C69 0.1UF C0402 R6810K R9 10K R0402 Q1 2N3904 SOT23 Q2 fdp338p SOT23 R1233 R0402 J2UFL_ANTENNA ANTS-1.3 1 23 rf mechmech U5 AS-179 SOT26A-1.0 1 2 3 4 5 6 RF1 GND RF2 VC1 RFC VC2 C49 10UF C0805 C41 0.1UF C0402 C28 6.2PF C0402 C5 6PF C0402 R164.7K R0402 C77 10UF C0805 C33 33PF C0402 U8 LP298528 SOT25-1.2 3 4 5 1 2 on_off bypass vout vin gnd R19 1.54K R0402 C246PF C0402

Test Report

FCC ID: H8NWLL3010 Report No.: RF920120R02 1 Issued: Feb. 12, 2003 FCC TEST REPORT REPORT NO.: RF920120R02 MODEL NO.: WLL3010 RECEIVED: Jan. 20, 2003 TESTED: Jan. 25 ~ Jan. 29, 2003 APPLICANT:ASKEY COMPUTER CORP. ADDRESS: 10F, NO. 119, CHIENKANG RD., CHUNG-HO, TAIPEI TAIWAN R.O.C ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 80 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: H8NWLL3010 Report No.: RF920120R02 2 Issued: Feb. 12, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 5 2SUMMARY OF TEST RESULTS................................................................... 6 3GENERAL INFORMATION ........................................................................... 7 3.1GENERAL DESCRIPTION OF EUT ............................................................. 7 3.2DESCRIPTION OF TEST MODES ............................................................... 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 8 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 9 4TEST TYPES AND RESULTS .................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4DEVIATION FROM TEST STANDARD ........................................................11 4.1.5TEST SETUP .............................................................................................. 12 4.1.6EUT OPERATING CONDITIONS................................................................ 12 4.1.7TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jack Po(Manager)
[email protected]886 2 2228-7588Fax: 886 2 3234-9340

Technical Contact

Advance Data Technology CorporationEllis Wu
[email protected]+886 3 327 0910

13-1, Lane 19, WenShan 3rd St · Taoyuan · Taiwan

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen
[email protected]886-2-2605-2180-3Fax: 886-2-2605-2943

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz31.00 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power Output Listed is Conducted. Limited Modular Approval (LMA) restricted to OEM installation in broadband products such as wireless ADSL, wireless routers, wireless cable modems, and notebook computers with antenna mounted around the LCD panel which can maintain the required seperation distance, or devices with similar construction features. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and OEM integrators must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Maximum antenna gain listed in this filing: +3dBi
