FCC ID: H8NWLL3014 ADT No.930705L02 Modular Approval Request Letter Advance Data Technology 30 August, 2004 Dear Application Examiner, Thomson Telecom Belgium, It’s 2.4GHz Wireless LAN MiniPCI Card, FCC ID: H8NWLL3014 WLL3014, would like to have your authorization as a limited modular approval specific to the mobile device such as Access Point. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4306. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 1.80Vdc powered. The mini-pci interface provides 3.3Vdc, so there are regulators in front of these chips, the part number of this regulator is LP298518. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H8NWLL3014 ADT No.930705L02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Cody Chang Deputy Manager Advance Data Technology

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 27, 2004 RE: ASKEY COMPUTER CORP. FCC ID: H8NWLL3014 After a review of the submitted information, I have a few comments on the above referenced Application. Administrative Issues: 1) The block diagram should show the frequencies of all oscillators in the TX device (CFR 2.1033(a)(5)). Please update the block diagram to include this information. 2) Page 35 appears to only show peak data for Vertical 9848 MHz. Page 46 appears to only show peak data for Horizontal 9648 MHz and Vertical 9648 MHz. Page 47 appears to only show peak data for Horizontal 9748 MHz. Page 48 appears to only show peak data for Vertical 9848 MHz. Since these measurements exceed the average limits, the correct limit of -20 dB from the fundamental should be applied to these frequencies (not 74 dBuV/m) that DO NOT fall in restricted bands. Please correct. 3) Page 47 appears to only show peak data for Horizontal 7311 MHz and Vertical 7311 MHz. Average measurements are necessary since these fall in restricted bands. Compliance must be shown for these points to both the peak and average limits. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Tim, The report and block diagram have been revised. The documents all uploaded to website today. Please check and I really need your help to get the grant today. Thanks for your assistance! Best Regards Wendy Liao Wendy Liao (¹ù·N ̄¾)/ ADT Corp.

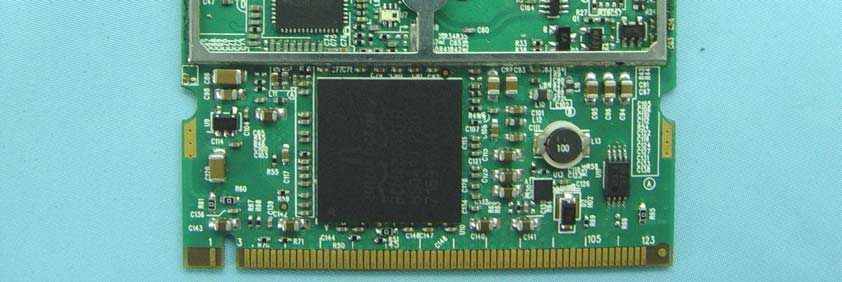

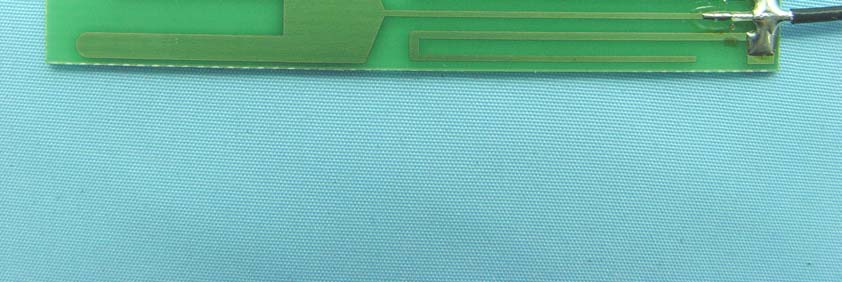

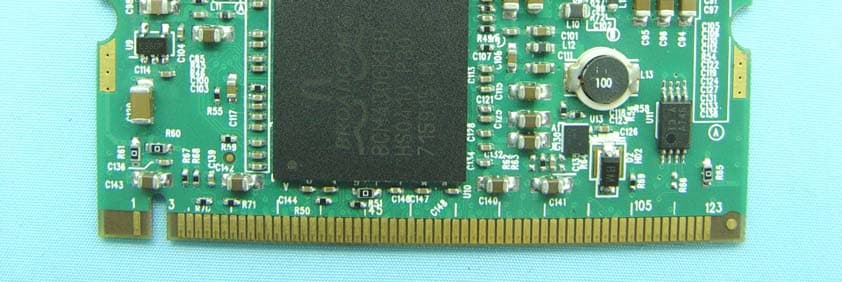

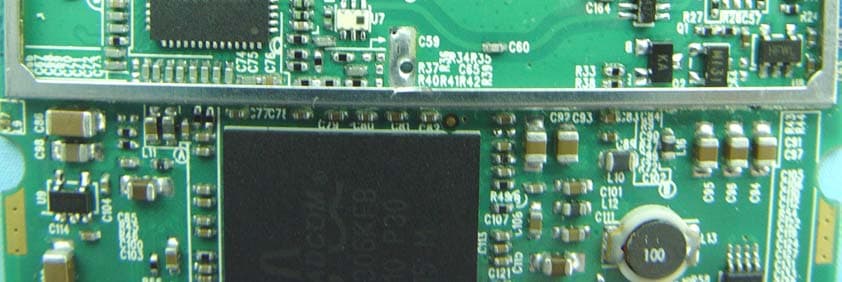

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Antenna 1 Page 4 Page 5 Page 6 Page 7 Page 8 Antenna 2 Page 9 Page 10 Page 11 Page 12 Antenna 3 Page 13 Page 14 Page 15 Page 16 Page 17 Antenna 4 (Long cable) Page 18 Page 19 Antenna 4 (Short Cable) Page 20 Page 21 Page 22 Antenna 5 Page 23 Page 24 Page 25 Page 26

FCC ID Label Location

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Antenna 1 Page 4 Page 5 Page 6 Page 7 Page 8 Antenna 2 Page 9 Page 10 Page 11 Page 12 Antenna 3 Page 13 Page 14 Page 15 Page 16 Page 17 Antenna 4 (Long cable) Page 18 Page 19 Antenna 4 (Short Cable) Page 20 Page 21 Page 22 Antenna 5 Page 23 Page 24 Page 25 Page 26

FCC ID: H8NWLL3014 Report No.: 930705L02 Operational Description This device is a 2.4GHz Wireless LAN Mini PCI Card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment and connected with managing equipment through Mini PCI interface. The antennas are Dipole antenna with UFL connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: H8NWLL3014 Report No: SA930705L02 1 RF EXPOSURE REPORT REPORT NO.: SA930705L02 MODEL NO.: WLL3014 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F,NO.119, CHIENKANG RD.,CHUNG-HO,TAIPEI, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: H8NWLL3014 Report No: SA930705L02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: H8NWLL3014 Report No: SA930705L02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: H8NWLL3014 Report No: SA930705L02 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3.5dBi or 2.239 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b (CCK technique): Antenna Item 1 (Antenna Gain 2dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.0630.0101.0 6243731.6230.0101.0 11246231.8420.0101.0 Antenna Item 2 (Antenna Gain 3dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.0630.0131.0 6243731.6230.0131.0 11246231.8420.0131.0 Antenna Item 3 (Antenna Gain 3dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.0630.0131.0 6243731.6230.0131.0 11246231.8420.0131.0 Antenna Item 4 (Antenna Gain 3.5dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.0630.0141.0 6243731.6230.0141.0 11246231.8420.0141.0 Antenna Item 5 (Antenna Gain 2dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.0630.0101.0 6243731.6230.0101.0 11246231.8420.0101.0 FCC ID: H8NWLL3014 Report No: SA930705L02 5 For Part 802.11gb (OFDM technique): Antenna Item 1 (Antenna Gain 2dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9150.0101.0 6243731.6960.0101.0 11246231.9890.0101.0 Antenna Item 2 (Antenna Gain 3dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9150.0131.0 6243731.6960.0131.0 11246231.9890.0131.0 Antenna Item 3 (Antenna Gain 3dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9150.0131.0 6243731.6960.0131.0 11246231.9890.0131.0 Antenna Item 4 (Antenna Gain 3.5dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9150.0141.0 6243731.6960.0141.0 11246231.9890.0141.0 Antenna Item 5 (Antenna Gain 2dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9150.0101.0 6243731.6960.0101.0 11246231.9890.0101.0

FCC ID: H8NWLL3014 Report No.: RF930705L021Issued: Aug. 20, 2004 FCC TEST REPORT REPORT NO.: RF930705L02 MODEL NO.: WLL3014 RECEIVED: Jul. 05, 2004 TESTED: Jul. 06 ~ Aug. 19, 2004 APPLICANT: Askey Computer Corp. ADDRESS: 10F, No. 119, Chienkang Rd., Chung-Ho, Taipei Taiwan R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 97 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: H8NWLL3014 Report No.: RF930705L022Issued: Aug. 20, 2004 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1MEASUREMENT UNCERTAINTY.............................................................................6 3GENERAL INFORMATION........................................................................................7 3.1GENERAL DESCRIPTION OF EUT ..........................................................................7 3.2DESCRIPTION OF TEST MODES ............................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................8 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................9 3.5CONFIGURATION OF SYSTEM UNDER TEST.......................................................9 4TEST TYPES AND RESULTS .................................................................................10 4.1CONDUCTED EMISSION MEASUREMENT ..........................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................10 4.1.2TEST INSTRUMENTS.............................................................................................10 4.1.3TEST PROCEDURES ............................................................................................. 11 4.1.4DEVIATION FROM TEST STANDARD ................................................................... 11 4.1.5TEST SETUP...........................................................................................................12 4.1.6EUT OPERATING CONDITIONS ............................................................................12 4.1.7TEST RESULTS ......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT ...............................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................19 4.2.2TEST INSTRUMENTS.............................................................................................20 4.2.3TEST PROCEDURES .............................................................................................21 4.2.4DEVIATION FROM TEST STANDARD ...................................................................21 4.2.5TEST SETUP...........................................................................................................22 4.2.6EUT OPERATING CONDITIONS ............................................................................22 4.2.7TEST RESULTS (A) ................................................................................................23 4.2.8TEST RESULTS (B) ................................................................................................36 4.36dB BANDWIDTH MEASUREMENT.......................................................................49 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................49 4.3.2TEST INSTRUMENTS.............................................................................................49 4.3.3TEST PROCEDURE................................................................................................50 4.3.4DEVIATION FROM TEST STANDARD ...................................................................50 4.3.5TEST SETUP...........................................................................................................50 4.3.6EUT OPERATING CONDITIONS ............................................................................50 4.3.7TEST RESULTS (A) ................................................................................................51 4.3.8TEST RESULTS (B) ................................................................................................55 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................59 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................59 4.4.2TEST INSTRUMENTS.............................................................................................59 FCC ID: H8NWLL3014 Report No.: RF930705L023Issued: Aug. 20, 2004 4.4.3TEST PROCEDURES .............................................................................................60 4.4.4DEVIATION FROM TEST STANDARD ...................................................................60 4.4.5TEST SETUP...........................................................................................................60 4.4.6EUT OPERATING CONDITIONS ............................................................................60 4.4.7TEST RESULTS (A) ................................................................................................61 4.4.8TEST RESULTS (B) ................................................................................................62 4.5POWER SPECTRAL DENSITY MEASUREMENT..................................................63 4.5.1LIM…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL3014 Report No.: RF930705L0287Issued: Aug. 20, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST ( Mode 1) FCC ID: H8NWLL3014 Report No.: RF930705L0288Issued: Aug. 20, 2004 Mode 2 FCC ID: H8NWLL3014 Report No.: RF930705L0289Issued: Aug. 20, 2004 FCC ID: H8NWLL3014 Report No.: RF930705L0290Issued: Aug. 20, 2004 Mode 3 FCC ID: H8NWLL3014 Report No.: RF930705L0291Issued: Aug. 20, 2004 FCC ID: H8NWLL3014 Report No.: RF930705L0292Issued: Aug. 20, 2004 RADIATED EMISSION TEST (Mode 1) FCC ID: H8NWLL3014 Report No.: RF930705L0293Issued: Aug. 20, 2004 Mode 2 FCC ID: H8NWLL3014 Report No.: RF930705L0294Issued: Aug. 20, 2004 FCC ID: H8NWLL3014 Report No.: RF930705L0295Issued: Aug. 20, 2004 Mode 3 FCC ID: H8NWLL3014 Report No.: RF930705L0296Issued: Aug. 20, 2004
