H8NWLL3050802.11b/g Mini-PCI Card Module

802.11g WLAN CardUser’s Manual  2003 All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electr onic or mechanical, for any purp ose, without the express written permission of the seller.DisclaimerInformation in this document is subject to change without notice. The material containedherein is supplied without representation or wa rranty of any kind. The seller therefore assumes no responsibility and shall have no liability of an y kind arising from the supply or use of this document or the material contained herein.TrademarksMicrosoft and Windows are registered trademarks of Microsoft Corporation. GUI andEthernet is a registered trademark of Xeros Corporation. Atheros and the Atheros logo areregistered trademarks of Atheros Communications, Inc. Cisco, Cisco Systems, and the CiscoSystems logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. All other trademarks mentioned in this document are the propertyof their respective owners.Date: April 2003Part No. A230XPRev01 I ContentsChapter 1 Introduction ............................................................................................................................... ................. 7 Wireless LAN Basics ............................................................................................................................... .................... 8 Local Area Network (LAN) ............................................................................................................................... ........ 8 Wireless Network Topologies ............................................................................................................................... ... 9 802.11g ............................................................................................................................... ................................... 12 Chapter 2 Installing the Driver and Utility Software .............................................................................................. 13 System Requirements ............................................................................................................................... ................ 14 Installing the driver and software .............................................................................................................................. 1 4 Chapter 3 Utility Configuration ............................................................................................................................... .21 Accessing the Atheros Configuration Utility .............................................................................................................. 21 Note to Windows XP Users ............................................................................................................................... .... 22 Network Basic Configuration ............................................................................................................................... ...... 23 General Tab ............................................................................................................................... ............................ 24 Security Tab ............................................................................................................................... ........................... 25 Advanced Tab ............................................................................................................................... ........................ 30 Connecting to an Existing Network ........................................................................................................................... 33 802.11g Mini PCI WLAN Card User’s ManualII Modifying a Configuration Profile .............................................................................................................................. 3 5 Removing a Configuration Profile ............................................................................................................................. 35 Chapter 4 Checking Status or Statistics ................................................................................................................. 37 Status Monitor Tray Icon ............................................................................................................................... ............ 37 Current Status Tab ............................................................................................................................... ..................... 39 Advanced Status ............................................................................................................................... .................... 42 Diagnostics Tab ............................................................................................................................... ......................... 43 Advanced Statistics ............................................................................................................................... ................ 44 Driver Information ............................................................................................................................... ................... 46 Chapter 5 ACU Toolbar ............................................................................................................................... .............. 49 Action Menu ............................................................................................................................... ............................... 49 Options Menu ............................................................................................................................... ............................. 51 Help Menu ............................................................................................................................... .................................. 5…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL3050 ADT No.920624R01 Modular Approval Request Letter Advance Data Technology July 29, 2003 Dear Application Examiner, Askey Computer Corp’s Mini-PCI CARD, FCC ID: H8NWLL3050, would like to have your authorization as a limited modular approval specific to the mobile device such as access point. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5212. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.5V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is LTC3406ES5. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H8NWLL3050 ADT No.920624R01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Dr. Alan Lane J. VP Advance Data Technology

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 29, 2003 RE: Askey Computer Corporation FCC ID: H8NWLL3050 I have a few comments on this Application. 1.) The Block Diagram does not meet the minimum requirements of 2.1033(b)(5). Please submit revised exhibit. 2.) The Manual contains none of the compliance information required by the FCC. No Grant can or will be issued until these issues are resolved. Please provide updated manual addressing the following issues: a. 15.21 information to user b. Hardware installation instructions for OEM integrators c. Caution against providing installation instructions to consumer d. Prohibitions on co-location 3.) Is a plot missing on Page 34 of the Test Report? 4.) Is a plot missing on Page 58 of the Test Report? William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

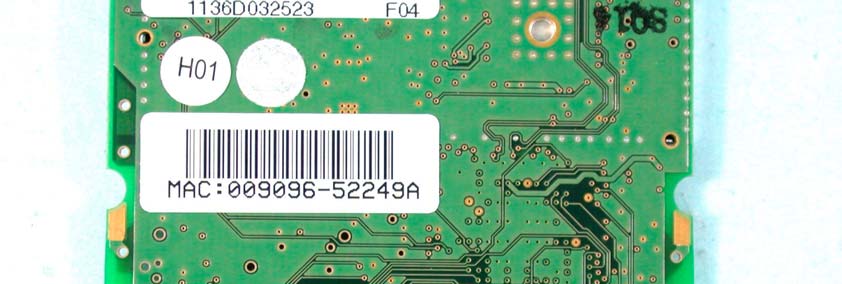

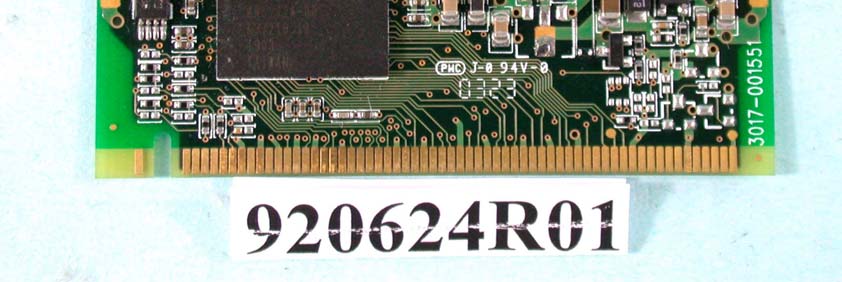

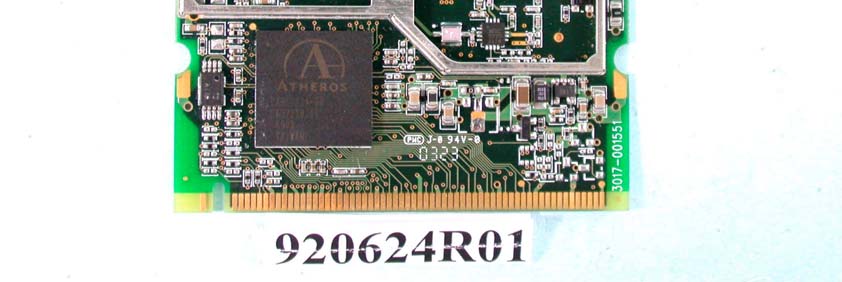

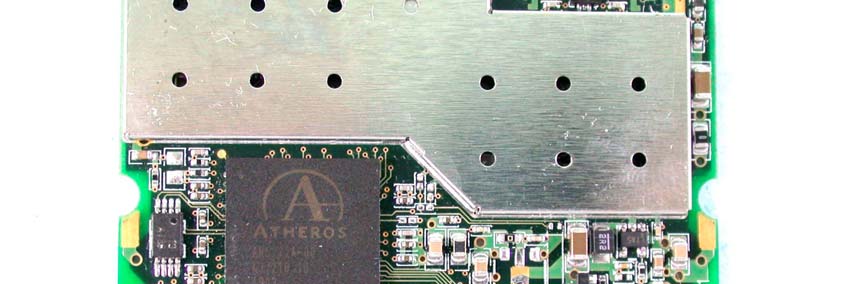

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

FCC ID Label Location

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: H8NWLL3050 ADT No.920624R01 Operational Description This device is a Mini- PCI CARD which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. This project is seeking the authorization of limited module approval specific to the mobile device such as access point. The transmitter of the EUT is powered by host equipment via a mini-PCI interface. The antenna type used in this product is Printed dipole antenna with UFL antenna connector. The other instruction, please have a look at the users manual.

FCC ID: H8NWLL3050 ADT No.: 920624R01 RF EXPOSURE REPORT REPORT NO.: RF920624R01 MODEL NO.: WLL3050 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Askey Computer Corp. ADDRESS: 10F, No.119, ChienKang Rd., Chung-Ho, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: H8NWLL3050 ADT No.: 920624R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: H8NWLL3050 ADT No.: 920624R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: H8NWLL3050 ADT No.: 920624R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3dBi or 1.995 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For CCK technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241249.8880.0201.0 6243749.5450.0201.0 11246249.7730.0201.0 For OFDM technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241248.8650.0191.0 6243749.2030.0191.0 11246248.9770.0191.0 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: H8NWLL3050 Report No.: RF920624R011Issued: July 08, 2003 FCC TEST REPORT REPORT NO.: RF920624R01 MODEL NO.: WLL3050 RECEIVED: June 24, 2003 TESTED: June 26 ~ 30, 2003 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO.119, CHIENKANG RD., CHUNG-HO, TAIPEI TAIWAN R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: H8NWLL3050 Report No.: RF920624R012Issued: July 08, 2003 Table of Contents 1CERTIFICATION........................................................................4 2SUMMARY OF TEST RESULTS ...............................................5 3GENERAL INFORMATION ........................................................6 3.1GENERAL DESCRIPTION OF EUT........................................................... 6 3.2DESCRIPTION OF TEST MODES............................................................. 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................ 7 3.4DESCRIPTION OF SUPPORT UNITS ....................................................... 8 4TEST TYPES AND RESULTS ...................................................9 4.1CONDUCTED EMISSION MEASUREMENT ............................................. 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................... 9 4.1.2TEST INSTRUMENTS ............................................................................... 9 4.1.3TEST PROCEDURES.............................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD .................................................... 10 4.1.5TEST SETUP ........................................................................................... 11 4.1.6EUT OPERATING CONDITIONS............................................................. 11 4.1.7TEST RESULTS....................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................ 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................. 18 4.2.2TEST INSTRUMENTS ............................................................................. 19 4.2.3TEST PROCEDURES.............................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD .................................................... 20 4.2.5TEST SETUP ........................................................................................... 21 4.2.6EUT OPERATING CONDITIONS............................................................. 21 4.2.7TEST RESULTS....................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT ....................................................... 29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................... 29 4.3.2TEST INSTRUMENTS ............................................................................. 29 4.3.3TEST PROCEDURE ................................................................................ 30 4.3.4DEVIATION FROM TEST STANDARD .................................................... 30 4.3.5TEST SETUP ........................................................................................... 30 4.3.6EUT OPERATING CONDITIONS............................................................. 30 4.3.7TEST RESULTS....................................................................................... 31 4.4MAXIMUM PEAK OUTPUT POWER ....................................................... 40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........ 40 4.4.2TEST INSTRUMENTS ............................................................................. 40 4.4.3TEST PROCEDURES.............................................................................. 41 FCC ID: H8NWLL3050 Report No.: RF920624R013Issued: July 08, 2003 4.4.4DEVIATION FROM TEST STANDARD .................................................... 41 4.4.5TEST SETUP ........................................................................................... 41 4.4.6EUT OPERATING CONDITIONS............................................................. 41 4.4.7TEST RESULTS....................................................................................... 42 4.5POWER SPECTRAL DENSITY MEASUREMENT................................... 43 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................ 43 4.5.2TEST INSTRUMENTS ............................................................................. 43 4.5.3TEST PROCEDURE ................................................................................ 44 4.5.4DEVIATION FROM TEST STANDARD .................................................... 44 4.5.5TEST SETUP ........................................................................................... 44 4.5.6EUT OPERATING CONDITIONS............................................................. 44 4.5.7TEST RESULTS....................................................................................... 45 4.6BAND EDGES MEASUREMENT ............................................................. 53 4.6.1LIMITS OF BAND EDGES MEASUREMENT.......................................... 53 4.6.2TEST INSTRUMENTS ............................................................................. 53 4.6.3TEST PROCEDURE ................................................................................ 53 4.6.4DEVIATION FROM TEST STANDARD .................................................... 53 4.6.5EUT OPERATING CONDITION .......................................…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL3050 Report No.: RF920624R0160Issued: July 08, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: H8NWLL3050 Report No.: RF920624R0161Issued: July 08, 2003 FCC ID: H8NWLL3050 Report No.: RF920624R0162Issued: July 08, 2003 RADIATED EMISSION TEST FCC ID: H8NWLL3050 Report No.: RF920624R0163Issued: July 08, 2003
