H8NWLL31202.4 GHz Wireless Mini PCI Card

54Mbps 802.11g Wireless LAN Card User’s Manual Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. The seller provides this documentation without warranty, term, or condition of any kind. The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners.  2002 All rights reserved. Rev: 01 January 2003 I Contents About This Manual.............................................................................................................................................................................................V Chapter 1 Introduction....................................................................................................................................................................................1 Wireless LAN Basics........................................................................................................................................................................................2 Local Area Network (LAN)..........................................................................................................................................................................2 Ad-Hoc Mode.................................................................................................................................................................................................3 Infrastructure Mode......................................................................................................................................................................................4 Roaming..........................................................................................................................................................................................................5 Chapter 2 Installing the Wireless LAN Card............................................................................................................................................7 System Requirements........................................................................................................................................................................................7 Installing Wireless LAN Driver and Software..............................................................................................................................................8 Chapter 3 Using Broadcom Wireless Configuration Utility..............................................................................................................11 Accessing Broadcom Wireless Configuration Utility................................................................................................................................12 Notice When Assessing Broadcom Utility under Windows XP...........................................................................................................12 Wireless Networks Tab...................................................................................................................................................................................15 Connecting to an Existing Wireless Network........................................................................................................................................15 Configuring a New Wireless Network Connection...............................................................................................................................17 54Mbps 802.11g Wireless LAN Card II Configuring an Existing Wireless Network Connection......................................................................................................................20 Specifying a Network Type to Access......................................................................................................................................................21 Link Status Tab.................................................................................................................................................................................................22 Statistics.............................................................................................................................................................................................................25 Site Monitor......................................................................................................................................................................................................26 Advanced Site Monitor..............................................................................................................................................................................29 Diagnostics Tab................................................................................................................................................................................................32 Information Tab................................................................................................................................................................................................35 Chapter 4 Windows XP Wireless Zero Configuration Utility...........................................................................................................37 Connecting to an Access Point or Wireless LAN Card........................................................................................................................37 Viewing Wireless Connection Status.......................................................................................................................................................39 Configuring Your Wireless Properties........................................…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL3120 ADT No. 940315L01 Modular Approval Request Letter Advance Data Technology 31 Mar. 2005 Dear Application Examiner, ASKEY COMPUTER CORP., It’s 2.4GHz wireless Mini PCI card, FCC ID: H8NWLL3120 would like to have your authorization as a modular approval specific to the mobile device such as Laptop. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4318E. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 1.80Vdc powered. The mini-pci interface provides 3.3Vdc, so there are regulators in front of these chips, the part number of this regulator is SOT223. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H8NWLL3120 ADT No. 940315L01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Cody Chang Deputy Manager Advance Data Technology

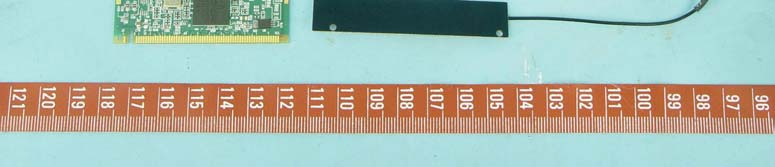

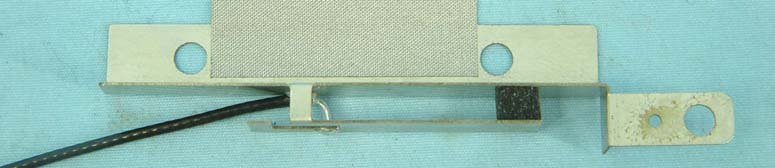

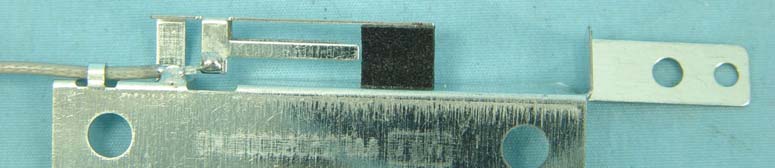

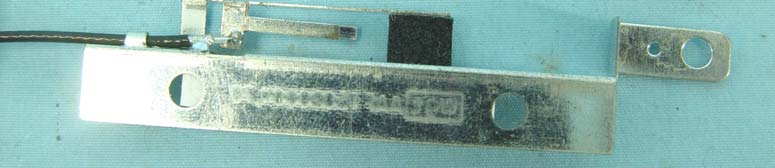

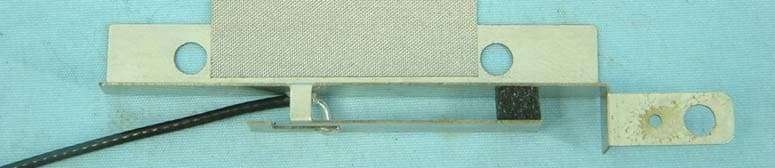

Page 3 (Antenna 1) Page 4 (Antenna 2) Page 5 Page 6 Page 7 Page 8 (Antenna 3) Page 9 Page 10 Page 11 (Antenna 4) Page 12 Page 13 Page 14 Page 15 (Antenna 5) Page 16 Page 17 Page 18 (Antenna 6) Page 19 Page 20 Page 21 Page 22 (Antenna 7) Page 23 Page 24 Page 25

FCC ID Label Location (FCC ID: H8NWLL3120)

0560 FCC ID : H8NWLL3120 IC : 1353A-WLL3041 Model Number: WLL3120

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: H8NWLL3120 Report No.RF940315L01 Technical Description The transmitter of the EUT (2.4GHz wireless Mini PCI card) is powered by host equipment. The antennas type used in this product are PIFA antenna and Dipole antenna with MHF antenna connector and Printed Dipole antenna with I-PEX antenna connector.. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a 2.4GHz wireless Mini PCI card, which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps or 125Mbps which OFDM technique will be applied. For more detailed instruction, please take a look at the user’s manual.

FCC ID: H8NWLL3120 Report No: SA940315L01 1 RF EXPOSURE REPORT REPORT NO.: SA940315L01 MODEL NO.: WLL3120 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: H8NWLL3120 Report No: SA940315L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: H8NWLL3120 Report No: SA940315L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: H8NWLL3120 Report No: SA940315L01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3dBi or 1.995(numeric) 6.2 Output Power Into Antenna & RF Exposure Distance: 802.11b DSSS modulation Antenna gain: 3dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241244.8750.0181.0 6243745.9340.0181.0 11246245.0820.0181.0 802.11g OFDM modulation Antenna gain: 3dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.4100.0101.0 6243725.5860.0101.0 11246225.2350.0101.0 802.11g Turbo OFDM modulation Antenna gain: 3dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243763.9730.0251.0

FCC ID: H8NWLL3120 Report No.: RF940315L011Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940315L01 MODEL NO.: WLL3120 RECEIVED: Mar. 15, 2005 TESTED: Mar. 18 ~ 21, 2005 ISSUED: Mar. 24 2005 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO.119, CHIENKANG RD., CHUNG-HO, TAIPEI, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 87 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: H8NWLL3120 Report No.: RF940315L012Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION ......................................................................................................4 2.SUMMARY OF TEST RESULTS ..............................................................................5 2.1MEASUREMENT UNCERTAINTY ...........................................................................5 3.GENERAL INFORMATION.......................................................................................6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................... 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................10 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................10 4.TEST TYPES AND RESULTS ................................................................................ 11 4.1CONDUCTED EMISSION MEASUREMENT ......................................................... 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 11 4.1.2 TEST INSTRUMENTS............................................................................................ 11 4.1.3 TEST PROCEDURES ............................................................................................ 12 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 12 4.1.5 TEST SETUP ......................................................................................................... 13 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 13 4.1.7 TEST RESULTS ..................................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ..............................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 20 4.2.2 TEST INSTRUMENTS............................................................................................ 21 4.2.3 TEST PROCEDURES ............................................................................................ 22 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 22 4.2.5 TEST SETUP ......................................................................................................... 23 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 23 4.2.7 TEST RESULTS ..................................................................................................... 24 4.36dB BANDWIDTH MEASUREMENT .....................................................................40 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 40 4.3.2 TEST INSTRUMENTS............................................................................................ 40 4.3.3 TEST PROCEDURE............................................................................................... 41 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 41 4.3.5 TEST SETUP ......................................................................................................... 41 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 41 4.3.7 TEST RESULTS ..................................................................................................... 42 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................50 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................... 50 FCC ID: H8NWLL3120 Report No.: RF940315L013Report Format Version 2.0.2 4.4.2 INSTRUMENTS...................................................................................................... 50 4.4.1 TEST PROCEDURES ............................................................................................ 51 4.4.2 DEVIATION FROM TEST STANDARD .................................................................. 51 4.4.3 TEST SETUP ......................................................................................................... 51 4.4.4 EUT OPERATING CONDITIONS ........................................................................... 51 4.4.3 TEST RESULTS ..................................................................................................... 52 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................54 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............................. 54 4.5.2 TEST INSTR…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL3120 Report No.: RF940315L0181Report Format Version 2.0.2 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: H8NWLL3120 Report No.: RF940315L0182Report Format Version 2.0.2 FCC ID: H8NWLL3120 Report No.: RF940315L0183Report Format Version 2.0.2 RADIATED EMISSION TEST (Test Mode 1) FCC ID: H8NWLL3120 Report No.: RF940315L0184Report Format Version 2.0.2 FCC ID: H8NWLL3120 Report No.: RF940315L0185Report Format Version 2.0.2 RADIATED EMISSION TEST (Test Mode 2) FCC ID: H8NWLL3120 Report No.: RF940315L0186Report Format Version 2.0.2
