H8NWLL4030Dual Band Mini-PCI Card

802.11a/b/g WLAN CardUser’s Manual  2003 All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. DisclaimerInformation in this document is subject to change without noti ce. The material contained herein is supplied without representat ion or warranty of any kind. The seller therefore assumes no responsibility and shall have no liability of any kind arising from the supply or use of this document or the material contained herein. TrademarksMicrosoft and Windows are registered trademar ks of Microsoft Corporation. GUI and Ethern et is a registered trademark of Xeros C orporation. Atheros and the Atheros logo are registered trademarks of Atheros Communi cations, Inc. Cisco, Cisco Syst ems, and the Cisco Systems log o are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. All other trademarks mentioned in this document are the property of their respective owners.Date: April 2003Part No. A230XPRev01 I ContentsChapter 1 Introduction ............................................................................................................................... ................. 1 Wireless LAN Basics ............................................................................................................................... .................... 2 Local Area Network (LAN) ............................................................................................................................... ........ 2 Wireless Network Topologies ............................................................................................................................... ... 3 802.11a, 802.11b and 802.11g ............................................................................................................................... 4 Chapter 2 Installing the Driver and Utility Software ................................................................................................ 5 System Requirements ............................................................................................................................... .................. 6 Installing the driver and software ............................................................................................................................... .6 Chapter 3 Utility Configuration ............................................................................................................................... .11 Accessing the Atheros Configuration Utility .............................................................................................................. 11 Note to Windows XP Users ............................................................................................................................... .... 11 Network Basic Configuration ............................................................................................................................... ...... 12 General Tab ............................................................................................................................... ............................ 12 Security Tab ............................................................................................................................... ........................... 13 Advanced Tab ............................................................................................................................... ........................ 15 Connecting to an Existing Network ........................................................................................................................... 17 Modifying a Configuration Profile .............................................................................................................................. 1 9 Removing a Configuration Profile ............................................................................................................................. 19 Chapter 4 Checking Status or Statistics ................................................................................................................. 21 Status Monitor Tray Icon ............................................................................................................................... ............ 21 Current Status Tab ............................................................................................................................... ..................... 22 Advanced Status ............................................................................................................................... .................... 24 Diagnostics Tab ............................................................................................................................... ......................... 24 Advanced Statistics ............................................................................................................................... ................ 25 Driver Information ............................................................................................................................... ................... 26 Chapter 5 ACU Toolbar ............................................................................................................................... .............. 29 Action Menu ............................................................................................................................... ............................... 29 Options Menu ............................................................................................................................... ............................. 29 Help Menu ............................................................................................................................... .................................. 30 802.11a/b/g Combo Mini PCI WLAN Card Use…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL4030 ADT No.920624R02 Modular Approval Request Letter Advance Data Technology July 22, 2003 Dear Application Examiner, Global Sun Technology, Inc.’s Mini- PCI CARD, FCC ID: H8NWLL4030, would like to have your authorization as a limited modular approval specific to the mobile device such as laptop PC with antenna. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5212. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.5V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AME8805DEFT. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H8NWLL4030 ADT No.920624R02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Dr. Alan Lane J. VP Advance Data Technology

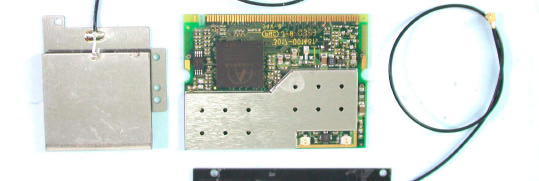

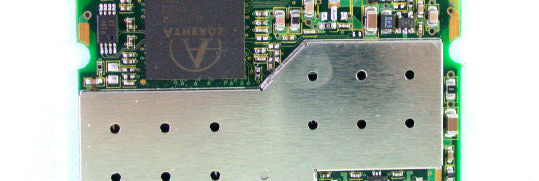

Page 1 PHOTOS OF EUT

Label Location

Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: H8NWLL4030 ADT No.920624R02 Operational Description The transmitter of the EUT (Mini- PCI CARD) is powered by host equipment and pluged in Mini PCI slot. The two antennas are Dipole and Patch antenna with UFL connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Mini- PCI CARD which operates in both of the 5GHz and 2.4GHz bands and can not do transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: H8NWLL4030 ADT No.: 920624R02 FCC TEST REPORT REPORT NO.: RF920624R02 MODEL NO.: WLL4030 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Askey Computer Corp. ADDRESS: 10F, No.119, ChienKang Rd., Chung-Ho, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: H8NWLL4030 ADT No.: 920624R02 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz and 5GHz frequency bands are regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The modular is installed in the laptop PC with antennas mounted around LCD panel, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: H8NWLL4030 ADT No.: 920624R02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: H8NWLL4030 ADT No.: 920624R02 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 3dBi or 2.0 (numeric) for 2.4GHz and 2.8dBi or 1.91(numeric) for 5GHz. 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412 43.853 0.0171 62437 43.351 0.0171 112462 43.652 0.0171 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412 43.853 0.0171 62437 43.652 0.0171 112462 43.652 0.0171 For 802.11a (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518033.651 0.0131 4524034.593 0.0131 5526046.131 0.0171 8532045.394 0.0171 9574769.502 0.0261 12580566.374 0.0251 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: H8NWLL4030 Report No.: RF920624R021Issued: Jul.11, 2003 FCC TEST REPORT REPORT NO.: RF920624R02 MODEL NO.: WLL4030 RECEIVED: Jul. 11, 2003 TESTED: Jun. 28 ~ Jul. 8, 2003 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F,NO.119, CHIENKANG RD.,CHUNG- HO,TAIPEI TAIWAN R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 127 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: H8NWLL4030 Report No.: RF920624R022Issued: Jul.11, 2003 Table of Contents 1.CERTIFICATION..........................................................................................................6 2.SUMMARY OF TEST RESULTS...............................................................................7 3.GENERAL INFORMATION........................................................................................9 3.1GENERAL DESCRIPTION OF EUT.........................................................................9 3.2DESCRIPTION OF TEST MODES.........................................................................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS....................................11 3.4DESCRIPTION OF SUPPORT UNITS...................................................................12 4.TEST TYPES AND RESULTS (FOR PART 802.11b & draft 802.11g)..............13 4.1CONDUCTED EMISSION MEASUREMENT........................................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................13 4.1.3 TEST PROCEDURES..............................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD.................................................................15 4.1.5 TEST SETUP.............................................................................................................16 4.1.6 EUT OPERATING CONDITIONS...........................................................................16 4.1.7 TEST RESULTS........................................................................................................17 4.2RADIATED EMISSION MEASUREMENT.............................................................23 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.........................................23 4.2.2TEST INSTRUMENTS..............................................................................................24 4.2.3TEST PROCEDURES..............................................................................................25 4.2.4DEVIATION FROM TEST STANDARD..................................................................25 4.2.5TEST SETUP.............................................................................................................26 4.2.6EUT OPERATING CONDITIONS...........................................................................26 4.2.7TEST RESULTS.........................................................................................................27 4.36dB BANDWIDTH MEASUREMENT.....................................................................34 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.................................................34 4.3.2TEST INSTRUMENTS..............................................................................................34 4.3.3TEST PROCEDURE.................................................................................................35 4.3.4DEVIATION FROM TEST STANDARD..................................................................35 4.3.5TEST SETUP.............................................................................................................35 4.3.6EUT OPERATING CONDITIONS...........................................................................35 4.3.7TEST RESULTS (CCK)............................................................................................36 4.3.8TEST RESULTS (OFDM).........................................................................................40 4.4MAXIMUM PEAK OUTPUT POWER.....................................................................44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT................44 4.4.2TEST INSTRUMENTS..............................................................................................44 FCC ID: H8NWLL4030 Report No.: RF920624R023Issued: Jul.11, 2003 4.4.3TEST PROCEDURES..............................................................................................45 4.4.4DEVIATION FROM TEST STANDARD..................................................................45 4.4.5TEST SETUP.............................................................................................................45 4.4.6EUT OPERATING CONDITIONS...........................................................................45 4.4.7TEST RESULTS (CCK)............................................................................................46 4.4.8TEST RESULTS (OFDM).........................................................................................46 4.5POWER SPECTRAL DENSITY MEASUREMENT..............................................47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..........................47 4.5.2TEST INSTRUMENTS..............................................................................................47 4.5.3TEST PROCEDURE.................................................................................................48 4.5.4DEVIATION FROM TEST STANDARD..................................................................48 4.5.5TEST SETUP......................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL4030 Report No.: RF920624R0243Issued: Jul.11, 2003 CH11 FCC ID: H8NWLL4030 Report No.: RF920624R0244Issued: Jul.11, 2003 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049Jul. 24, 2003 R&S SIGNAL GENERATORSMP04100011May 28, 2004 TEKTRONIX OSCILLOSCOPETDS 220B048470Mar. 05, 2004 NARDA DETECTOR4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: H8NWLL4030 Report No.: RF920624R0245Issued: Jul.11, 2003 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2. Replaced the EUT by the signal generator . The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 OSCILLOSCOPE DETECTOR EUT or S.G FCC ID: H8NWLL4030 Report No.: RF920624R0246Issued: Jul.11, 2003 4.4.7 TEST RESULTS (CCK) EUT Mini- PCI CARD MODEL WLL4030 INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 27deg. C, 57%RH, 991hPa TEST MODE CCK TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241216.4230PASS 6243716.3730PASS 11246216.4030PASS 4.4.8 TEST RESULTS (OFDM) EUT Mini- PCI CARD MODEL WLL4030 INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 27deg. C, 57%RH, 991hPa TEST MODE OFDM TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241216.4230PASS 6243716.4030PASS 11246216.4030PASS FCC ID: H8NWLL4030 Report No.: RF920624R0247Issued: Jul.11, 2003 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: H8NWLL4030 Report No.: RF920624R0248Issued: Jul.11, 2003 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time = span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITION Same as Item 4.3.6 SPECTRUM ANALYZER EUT FCC ID: H8NWLL4030 Report No.: RF920624R0249Issued: Jul.11, 2003 4.5.7 TEST RESULTS (CCK) EUT Mini- PCI CARD MODEL WLL4030 INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 247deg. C, 57%RH, 991hPa TEST MODE CCK TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-8.758PASS 62437-8.768PASS 112462-8.308PASS FCC ID: H8NWLL4030 Report No.: RF920624R0250Issued: Jul.11, 2003 CH1 FCC ID: H8NWLL4030 Report No.: RF920624R0251Issued: Jul.11, 2003 CH6 FCC ID: H8NWLL4030 Report No.: RF920624R0252Issued: Jul.11, 2003 CH11 FCC ID: H8NWLL4030 Report No.: RF920624R0253Issued: Jul.11, 2003 4.5.8 TEST RESULTS (OFDM) EUT Mini- PCI CARD MODEL WLL400 INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 27deg. C, 57%RH, 991hPa TEST MODE OFDM TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-13.098PASS 62437-12.758PASS 112462-12.208PASS FCC ID: H8NWLL4030 Report No.: RF920624R0254Issued: Jul.11, 2003 CH1 FCC ID: H8NWLL4030 Report No.: RF920624R0255Issued: Jul.11, 2003 CH6 FCC ID: H8NWLL4030 Report No.: RF920624R0256Issued: Jul.11, 2003 CH11 FCC ID: H8NWLL4030 Report No.: RF920624R0257Issued: Jul.11, 2003 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 1MHz and 300Hz with suitable frequency span including 100kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 FCC ID: H8NWLL4030 Report No.: RF920624R0258Issued: Jul.11, 2003 4.6.6 TEST RESULTS The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE1: The band edge emission plot of CCK technique on the following page shows 53.87dB delta between carrier maximum power and local maximum emission in restrict band (2.386400GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 (Page 28) is 101.6dBuV/m, so the maximum field strength in restrict band is 101.6-53.87=47.73dBuV/m which is under 54dBuV/m limit. NOTE2: The band edge emission plot of CCK on the following page shows 54.99dB delta between carrier maximum power and local maximum emission in restrict band (2.486500GHz ). The emission of carrier strength list in the test result of channel 11 at the ite…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL4030 Report No.: RF920624R0286Issued: Jul.11, 2003 CH5 FCC ID: H8NWLL4030 Report No.: RF920624R0287Issued: Jul.11, 2003 CH8 FCC ID: H8NWLL4030 Report No.: RF920624R0288Issued: Jul.11, 2003 CH9 FCC ID: H8NWLL4030 Report No.: RF920624R0289Issued: Jul.11, 2003 CH12 FCC ID: H8NWLL4030 Report No.: RF920624R0290Issued: Jul.11, 2003 CHANNEL 1 FCC ID: H8NWLL4030 Report No.: RF920624R0291Issued: Jul.11, 2003 CHANNEL 4 FCC ID: H8NWLL4030 Report No.: RF920624R0292Issued: Jul.11, 2003 CHANNEL 5 FCC ID: H8NWLL4030 Report No.: RF920624R0293Issued: Jul.11, 2003 CHANNEL 8 FCC ID: H8NWLL4030 Report No.: RF920624R0294Issued: Jul.11, 2003 CHANNEL 9 FCC ID: H8NWLL4030 Report No.: RF920624R0295Issued: Jul.11, 2003 CHANNEL 12 FCC ID: H8NWLL4030 Report No.: RF920624R0296Issued: Jul.11, 2003 5.4 PEAK POWER EXCURSION MEASUREMENT 5.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 5.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: H8NWLL4030 Report No.: RF920624R0297Issued: Jul.11, 2003 5.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set the spectrum bandwidth span to view the entire spectrum. 3. Using peak detector and Max-hold function for Trace 1 (RB=1MHz, VB=3MHz) and 2 (RB=1MHz, VB=300kHz). 4. The largest difference between Trace 1 and Trace 2 in any 1MHz band on any frequency was recorded. 5.4.4 DEVIATION FROM TEST STANDARD No deviation 5.4.5 TEST SETUP 5.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUTPower Meter FCC ID: H8NWLL4030 Report No.: RF920624R0298Issued: Jul.11, 2003 5.4.7 TEST RESULTS EUT Mini- PCI CARD MODEL WLL4030 ENVIRONMENTAL CONDITIONS 26deg. C, 68%RH, 991hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 151805.8813PASS 452405.7413PASS 552606.3213PASS 853206.2113PASS 957456.0113PASS 1258057.0313PASS FCC ID: H8NWLL4030 Report No.: RF920624R0299Issued: Jul.11, 2003 CHANNEL 1 FCC ID: H8NWLL4030 Report No.: RF920624R02100Issued: Jul.11, 2003 CHANNEL 4 FCC ID: H8NWLL4030 Report No.: RF920624R02101Issued: Jul.11, 2003 CHANNEL 5 FCC ID: H8NWLL4030 Report No.: RF920624R02102Issued: Jul.11, 2003 CHANNEL 8 FCC ID: H8NWLL4030 Report No.: RF920624R02103Issued: Jul.11, 2003 CHANNEL 9 FCC ID: H8NWLL4030 Report No.: RF920624R02104Issued: Jul.11, 2003 CHANNEL 12 FCC ID: H8NWLL4030 Report No.: RF920624R02105Issued: Jul.11, 2003 5.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT 5.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT Frequency BandLimit 5.15 – 5.25GHz4dBm 5.25 – 5.35GHz11dBm 5.725 – 5.825GHz17dBm 5.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: H8NWLL4030 Report No.: RF920624R02106Issued: Jul.11, 2003 5.5.3 TEST PROCEDURES 1. The transmitter output was connected to the spectrum analyzer. 2. Set RBW=1MHz, VBW=3MHz. The PPSD is the highest level found across the emission in any 1MHz band. 5.5.4 DEVIATION FROM TEST STANDARD No deviation 5.5.5 TEST SETUP 5.5.6 EUT OPE…

Text truncated - open the document above for the full version.
