H8NWLL4070Wireless Mini PCI Card

802.11a/b/g Combo Mini PCI WLAN Card User’s Manual  2003 All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. Disclaimer Information in this document is subject to change without notice. The material contained herein is supplied without representation or warranty of any kind. The seller therefore assumes no responsibility and shall have no liability of any kind arising from the supply or use of this document or the material contained herein. Trademarks Microsoft and Windows are registered trademarks of Microsoft Corporation. GUI and Ethernet is a registered trademark of Xeros Corporation. Atheros and the Atheros logo are registered trademarks of Atheros Communications, Inc. Cisco, Cisco Systems, and the Cisco Systems logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. All other trademarks mentioned in this document are the property of their respective owners. Date: April 2003 Part No. A230XPRev01 I Contents Chapter 1 Introduction.....................................................................................................................................1 Wireless LAN Basics........................................................................................................................................2 Local Area Network (LAN).............................................................................................................................2 Wireless Network Topologies........................................................................................................................3 802.11a, 802.11b and 802.11g......................................................................................................................6 Chapter 2 Installing the Driver and Utility Software.........................................................................................8 System Requirements......................................................................................................................................9 Installing the driver and software.......................................................................................................................9 Chapter 3 Utility Configuration.......................................................................................................................15 Accessing the Atheros Configuration Utility......................................................................................................15 Note to Windows XP Users.........................................................................................................................16 Network Basic Configuration...........................................................................................................................17 General Tab...............................................................................................................................................17 Security Tab...............................................................................................................................................19 Advanced Tab............................................................................................................................................24 Connecting to an Existing Network..................................................................................................................27 802.11a/b/g Combo Mini PCI WLAN Card User’s Manual II Modifying a Configuration Profile.....................................................................................................................29 Removing a Configuration Profile....................................................................................................................29 Chapter 4 Checking Status or Statistics........................................................................................................31 Status Monitor Tray Icon.................................................................................................................................31 Current Status Tab.........................................................................................................................................33 Advanced Status........................................................................................................................................36 Diagnostics Tab.............................................................................................................................................37 Advanced Statistics.....................................................................................................................................38 Driver Information.......................................................................................................................................40 Chapter 5 ACU Toolbar..................................................................................................................................43 Action Menu...................................................................................................................................................43 Options Menu................................................................................................................................................44 Help Menu.....................................................................................................................................................45 Chapter 6 Uninstalling the Wireless LAN Card...............................................................................................47 Chapter 7 Troubleshooting............................................................................................................................50 Appendix A Setting Up TCP/IP.........................…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL4070 ADT No. 940203L01 Modular Approval Request Letter Advance Data Technology 15 Mar. 2005 Dear Application Examiner, ASKEY COMPUTER CORP., It’s Wireless Mini PCI Card, FCC ID: H8NWLL4070 would like to have your authorization as a modular approval specific to the mobile device such as Laptop. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5414A. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 1.80Vdc powered. The mini-pci interface provides 3.3Vdc, so there are regulators in front of these chips, the part number of this regulator is AR5414A. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating FCC ID: H8NWLL4070 ADT No. 940203L01 requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Cody Chang Deputy Manager Advance Data Technology

-----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Wednesday, March 16, 2005 11:45 PM To: steve.cheng Cc: [email protected] Subject: 回信: RE: Solve the comment *(FCC ID H8NWLL4070 & IC ID 1353A-WLL4070, 940203L01) Dear Steve Please see our reply as below: Question #1: User manual P59, the warning language seems conflict with the rule. Please revise the warning language. Page 59 If the end product integrating this module is going to be operated in 5.15 ~ 5.25GHz frequency range, the warning statement in the user manual of the end product should include the restriction of operating this device in indoor could void the user’s authority to operate the equipment. Answer: We correct the waring statement on p59 of the user's manual. Question #2: Page165 of Test Rpt -247 (3) _H8NWLL4070.pdf, calculation of the pass margin for the attached bandedge plots is missing. Please supply. Answer: The test report is correct, since there is no restrict band nearby 5.7G band. Please check and thanks for your assistance! Best Regards Wendy Liao Wendy Liao (廖意紋)/ ADT Corp. TEL: 03-318-3232 EXT 1625 FAX: 03-318-5050 Email: [email protected] 地址:桃園縣龜山鄉文化村華亞二路１９號

FCC ID Label Location (FCC ID: H8NWLL4070)

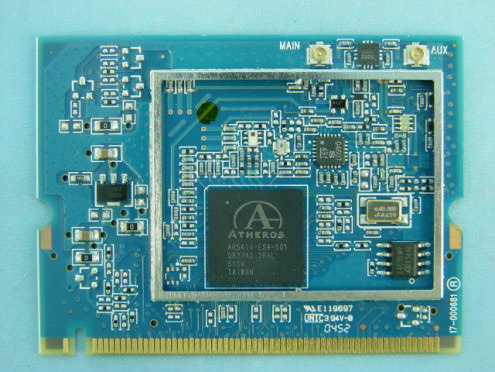

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: H8NWLL4070 Report No.RF940203L01 Technical Description The transmitter of the EUT (Wireless Mini PCI Card) is powered by host equipment. The antennas type used in this product are Inverted F and Monopole antenna with UFL antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Wireless Mini PCI Card, which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique will be applied. This device is a Wireless Mini PCI Card, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: H8NWLL4070 Report No: SA940203L01 1 RF EXPOSURE REPORT REPORT NO.: SA940203L01 MODEL NO.: WLL4070 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO.119, CHIENKANG RD., CHUNG-HO, TAIPEI TAIWAN R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: H8NWLL4070 Report No: SA940203L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: H8NWLL4070 Report No: SA940203L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: H8NWLL4070 Report No: SA940203L01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.85dBi (numeric) (for 2.4GHz) 4.91dBi (numeric)(for 5GHz). 6.2 Output Power Into Antenna & RF Exposure Distance: 802.11b DSSS modulation Antenna gain: 2.85dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.3500.0191.0 6243750.6990.0191.0 11246250.5820.0191.0 802.11g OFDM modulation Antenna gain: 2.85dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241245.7090.0181.0 6243751.2860.0201.0 11246244.8750.0171.0 802.11g Turbo OFDM modulation Antenna gain: 2.85dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243739.9940.0151.0 FCC ID: H8NWLL4070 Report No: SA940203L01 5 802.11a OFDM modulation Antenna gain: 4.91dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518035.7270.0221.0 4524035.9750.0221.0 5526036.0580.0221.0 8532035.8100.0221.0 9574535.6450.0221.0 11578535.8920.0221.0 13582035.7270.0221.0 802.11a Turbo OFDM modulation Antenna gain: 4.91dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521032.0630.0201.0 2525032.1370.0201.0 3529032.4340.0201.0 4576031.9890.0201.0 5580032.1370.0201.0

FCC ID: H8NWLL4070 Report No.: RF940203L011Report Format Version 2.0.2 FCC TEST REPORT (15.247) REPORT NO.: RF940203L01 MODEL NO.: WLL4070 RECEIVED: Feb. 03, 2005 TESTED: Feb. 15 ~ Mar. 02, 2005 ISSUED: Mar. 07, 2005 APPLICANT: ASKEY COMPUTER CORP. ADDRESS: 10F, NO.119, CHIENKANG RD., CHUNG- HO, TAIPEI TAIWAN R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 193 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: H8NWLL4070 Report No.: RF940203L012Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION........................................................................................................5 2.SUMMARY OF TEST RESULTS...............................................................................6 2.1 MEASUREMENT UNCERTAINTY............................................................................7 3.GENERAL INFORMATION........................................................................................8 3.1GENERAL DESCRIPTION OF EUT..........................................................................8 3.2DESCRIPTION OF TEST MODES..........................................................................10 3.2.1CONFIGURATION OF SYSTEM UNDER TEST......................................................11 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:........................12 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................14 3.4DESCRIPTION OF SUPPORT UNITS....................................................................15 4.TEST TYPES AND RESULTS (802.11b & g 2412~2462MHz BAND)....................16 4.1CONDUCTED EMISSION MEASUREMENT..........................................................16 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................16 4.1.2TEST INSTRUMENTS.............................................................................................16 4.1.3TEST PROCEDURES.............................................................................................17 4.1.4DEVIATION FROM TEST STANDARD...................................................................17 4.1.5TEST SETUP...........................................................................................................18 4.1.6EUT OPERATING CONDITIONS............................................................................18 4.1.7TEST RESULTS.......................................................................................................19 4.2RADIATED EMISSION MEASUREMENT...............................................................25 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................25 4.2.2TEST INSTRUMENTS.............................................................................................26 4.2.3TEST PROCEDURES.............................................................................................27 4.2.4DEVIATION FROM TEST STANDARD...................................................................27 4.2.5TEST SETUP...........................................................................................................28 4.2.6EUT OPERATING CONDITIONS............................................................................28 4.2.7TEST RESULTS.......................................................................................................29 4.36dB BANDWIDTH MEASUREMENT.......................................................................69 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT....................................................69 4.3.2TEST INSTRUMENTS.............................................................................................69 4.3.3TEST PROCEDURE................................................................................................70 4.3.4DEVIATION FROM TEST STANDARD...................................................................70 4.3.5TEST SETUP...........................................................................................................70 4.3.6EUT OPERATING CONDITIONS............................................................................70 4.3.7TEST RESULTS.......................................................................................................71 4.4MAXIMUM PEAK OUTPUT POWER......................................................................79 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................79 4.4.2INSTRUMENTS........................................................................................................79 FCC ID: H8NWLL4070 Report No.: RF940203L013Report Format Version 2.0.2 4.4.3TEST PROCEDURES.............................................................................................80 4.4.4DEVIATION FROM TEST STANDARD...................................................................80 4.4.5TEST SETUP...........................................................................................................80 4.4.6EUT OPERATING CONDITIONS............................................................................80 4.4.7TEST RESULTS.......................................................................................................81 4.5POWER SPECTRAL DENSITY MEASUREMENT..................................................83 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................83 4.5.2TEST INSTRUMENTS.........................................................…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL4070 Report No.: RF940203L0193Report Format Version 2.0.2 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW=VBW=100kHz ; Average RBW=1MHz, VBW=10Hz) are attached on the following pages. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 FCC ID: H8NWLL4070 Report No.: RF940203L0194Report Format Version 2.0.2 4.6.6 TEST RESULTS The spectrum plots are attached on the following 18 images. D2 line indicates the highest level, and D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(d). 802.11b DSSS modulation NOTE 1: The band edge emission plot on page 97 shows 52.86dBc between carrier maximum power and local maximum emission in restrict band (2.3886GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 112.63dBuV/m (Peak), so the maximum field strength in restrict band is 112.63- 52.86=59.77dBuV/m which is under 74dBuV/m limit.. The band edge emission plot of on page 97 shows 61.88dBc between carrier maximum power and local maximum emission in restrict band (2.3710GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 104.83dBuV/m (Average), so the maximum field strength in restrict band is 104.83- 61.88=42.95dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on page 98 shows 54.70dBc between carrier maximum power and local maximum emission in restrict band (2.4866GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 112.52dBuV/m (Peak), so the maximum field strength in restrict band is 112.52- 54.70=57.82dBuV/m which is under 74dBuV/m limit. The band edge emission plot on page 99 shows 62.15dBc between carrier maximum power and local maximum emission in restrict band (2.5000GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 105.13dBuV/m (Average), so the maximum field strength in restrict band is 105.13- 62.15=42.98dBuV/m which is under 54dBuV/m limit. FCC ID: H8NWLL4070 Report No.: RF940203L0195Report Format Version 2.0.2 802.11g OFDM modulation NOTE 1: The band edge emission plot on page 100 shows 46.58dBc between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 109.84dBuV/m (Peak), so the maximum field strength in restrict band is 109.84- 46.58=63.26dBuV/m which is under 74dBuV/m limit. The band edge emission plot of on page 100 shows 50.13dBc between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 99.93dBuV/m (Average), so the maximum field strength in restrict band is 99.93- 50.13=49.80dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on page 101 shows 46.02dBc between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 109.97dBuV/m (Peak), so the maximum field strength in restrict band is 109.97- 46.02=63.95dBuV/m which is under 74dBuV/m limit. The band edge emission plot on page 102 shows 49.91dBc between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 99.49dBuV/m (Average), so the maximum field strength in restrict band is 99.49- 49.91=49.58dBuV/m which is under 54dBuV/m limit. FCC ID: H8NWLL4070 Report No.: RF940203L0196Report Format Version 2.0.2 802.11g Turbo OFDM modulation NOTE 1: The band edge emission plot on page 103 shows 48.65dBc between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 6 at the item 4.2.7 is 107.46dBuV/m (Peak), so the maximum field strength in restrict band is 107.46- 48.65=58.81dBuV/m which is under 74dBuV/m limit. The band edge emission plot of on page 103 shows 47.07dBc between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 6 at the item 4.2.7 is 98.45dBuV/m (Average), so the maximum field strength in restrict band is 98.45- 47.07=51.38dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on page 104 shows 48.83dBc between carrier maximum power and local maximum emission in restrict band (2.4838GHz). The emission of carrier strength list in the test result of channel 6 at the item 4.2.7 is 107.46dBuV/m (Peak), so the maximum field strength in restrict band is 107.46- 48.83=58.63dBuV/m which is under 74dBuV/m limit. The band edge emission plot on page 105 shows 48.02dBc between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 6 at the item 4.2.7 is 98.45dBuV/m (Average), so the maximum field strength in restrict band is 98.45- 48.02=50.43dBuV/m which is under 54dBuV/m limit. FCC ID: H8NWLL4070 Report No.: RF940203L0197Report Format Version 2.0.2 802.11b DSSS modulation FCC ID: H8NW…

Text truncated - open the document above for the full version.

FCC ID: H8NWLL4070 Report No.: RF940203L01107Report Format Version 2.0.2 5. TEST TYPES AND RESULTS (802.11a 5725~5850MHz Band) 5.1CONDUCTED EMISSION MEASUREMENT 5.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT FREQUENCY OF EMISSION (MHz)CONDUCTED LIMIT (dBμV) Quasi-peakAverage 0.15-0.5 0.5-5 5-30 66 to 56 56 60 56 to 46 46 50 NOTE:1. The lower limit shall apply at the transition frequencies. 1.The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50 MHz. 2.All emanations from a class A/B digital device or system, including any network of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. 5.1.2TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO. CALIBRATED UNTIL Test Receiver ROHDE & SCHWARZ ESCS30100288Nov. 06, 2005 RF signal cable Woken 5D-FBCable-HyC02-01Jan. 09, 2006 LISN ROHDE & SCHWARZ ESH2-Z5100100Jan. 20, 2006 LISN ROHDE & SCHWARZ ESH3-Z5100311Jan. 20, 2006 Software ADT ADT_Cond_V 3NANA NOTE:1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 2. The test was performed in HwaYa Shielded Room 3. 3. The VCCI Site Registration No. is C-2047. FCC ID: H8NWLL4070 Report No.: RF940203L01108Report Format Version 2.0.2 5.1.3TEST PROCEDURES a. The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected to the power mains through a line impedance stabilization network (LISN). Other support units were connected to the power mains through another LISN. The two LISNs provide 50 ohm/ 50uH of coupling impedance for the measuring instrument. b. Both lines of the power mains connected to the EUT were checked for maximum conducted interference. c. The frequency range from 150kHz to 30MHz w…

Text truncated - open the document above for the full version.
