HAP91389Hummer

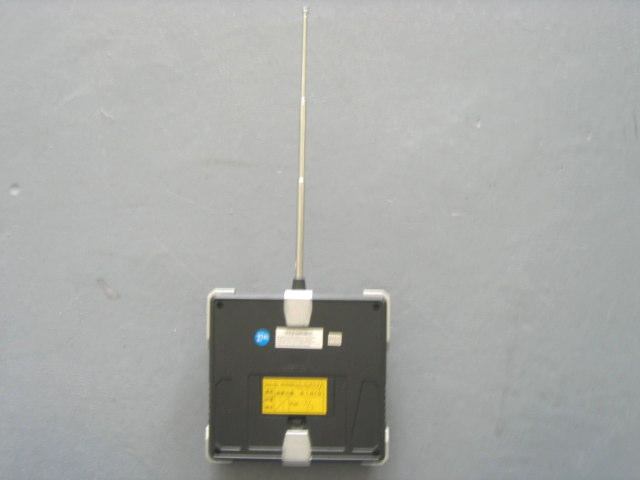

Photographs – Label Sample Description: Hummer 1:12 – 27MHz RF REMOTE CONTROLLER (27.145MHZ) FCC ID : HAP91389 Photo #1: Location and Format of label

P. 2 -- 1 Product Name : Hummer I mp3 : Hummer I mp3 : Hummer I mp3 : Hummer I mp3 Date 2006 200620062006年 年年年8 888月 月月月11 111111日 日日日 Part Number Part Name Qty Remark 2011271451 X1 CRYSTAL 27.145MHZ +/-30PPM 20PF HC49/U 1 2109913890 PCB TX IC PCB FR4 0.8MM G/P DS 1 2022201A00 IC1 DICE IC:SPRC201A 1 2031000020 J1.J2 电阻 0 OHM 1/4W 2 2031152020 R7 C.F.R 1.5K OHM 1/4W +-5% 1 2031101020 R4 C.F.R 100 OHM 1/4W +-5% 1 2031204020 R1 C.F.R 200K OHM 1/4W +-5% 1 2031221020 R6 C.F.R 220 OHM 1/4W +-5% 1 2031154020 R3 C.F.R 150K OHM 1/4W +-5% 1 2031471020 R8 C.F.R 470 OHM 1/4W +-5% 1 2031682020 R5 C.F.R 6.8K OHM 1/4W +-5% 1 2042181050 C9 C.CAP 180P +-10% 50V 1 2042151050 C4 C.CAP 150P +-10% 50V 1 2041104040 C13,C10 C.CAP 0.1UF +80 -20% 25V 2 2041103050 C6.C5 C.CAP 0.01UF +-10% 50V 2 2042470050 C8.C7.C2 C.CAP 47P NPO +-10% 50V 3 C1 2042560050 C3 C.CAP 56P NPO +-10% 50V 1 Ietm No. :7021T45021 :7021T45021:7021T45021:7021T45021 Description Electronic part of transmit ENG007-A P. 2 -- 2 Product Name : Hummer I mp3 : Hummer I mp3 : Hummer I mp3 : Hummer I mp3 Date 2006 200620062006年 年年年8 888月 月月月11 111111日 日日日 Part Number Part Name Qty Remark Ietm No. :7021T45021 :7021T45021:7021T45021:7021T45021 Description Electronic part of transmit 2051094520 Q1,Q2 TRANSISTOR 2SC945P "C" NPN 2 2062047050 D1 ZENER 4.7V +/-5% 0.5W "UNIZON 1 2071220111 L1 CHOKE COIL CEC-2R2K (2.2UH) 1 2071330100 L2.L4 CHOKE COIL CEC-3R3K (3.3UH) 2 2072000400 L3 可调线圈 CEC-TH2090-702924 7MM 27MC 10T 1 2102913891 PCB PAPER 91389TD 94HB 1.6MM SS 1 691389B5001 1 4051001022 SW1 SWITCH B.SW SS-12F44-G6 1P2T 1 2063121030 LED RED LED 3MM 1 4023000017 插座 (6 POLES) 1125-06 1 LED 支掌柱 ENG007-A

Report No.: SZEMO060801831RFF Page: 1 of 10 FCC ID: HAP91389 Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Telephone: +86 (0) 20 8215 5555 Fax: +86 (0) 20 8207 5059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : SZEMO060801831RF(SGS SZ NO.: SZTYR060802259/EL) Applicant: ECHO TOYS LIMITED FCC ID: HAP91389 Fundamental Frequency : 27.145MHz Equipment Under Test (EUT): EUT Name: Hummer Model No.: Labelled Age Grading: Not supplied by client. 6+ Standards: FCC PART 15, SUBPART C : 2006 Section 15.227 Date of Receipt: 14 August 2006 Date of Test: 17 to 23 August 2006 Date of Issue: 24 August 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: HAP91389 Report No.: SZEMO060801831RFF Page: 2 of 10 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2006 Section 15.227 PASS* Occupied Bandwidth FCC PART 15 :2006 Section 15.215 PASS Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. * The EUT passed the RE test after retest. FCC ID: HAP91389 Report No.: SZEMO060801831RFF Page: 3 of 10 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY..............................................................................................................................................2 3 CONTENTS........................................................................................................................................................3 4 GENERAL INFORMATION.............................................................................................................................4 4.1 CLIENT INFORMATION.................................................................................................................................4 4.2 DETAILS OF E.U.T......................................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS.............................................................................................................4 4.4 TEST LOCATION..........................................................................................................................................4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER............................................................................4 4.6 TEST FACILITY.............................................................................................................................................5 5 TEST RESULTS................................................................................................................................................6 5.1 TEST INSTRUMENTS....................................................................................................................................6 5.2 E.U.T. OPERATION.....................................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA...............................................................................................6 5.3.1 Radiated Emissions.............................................................................................................................6 5.3.2 Occupied Bandwidth......................................................................................................................9-10 FCC ID: HAP91389 Report No.: SZEMO060801831RFF Page: 4 of 10 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant Name: ECHO TOYS LIMITED Applicant Address: TIN PO ROAD, TIN PO INDUSTRIAL DISTRICT, DONGGUAN CITY, GUANGDONG, CHINA 4.2 Details of E.U.T. EUT Name: Hummer Item No.: Not supplied by client. Power Supply: 9.0V DC (1*9.0V ‘6F22’ Size Battery) for Tx. Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as an independent unit: 27MHz radio transmitter. 4.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory, No.198 Kezhu Road, Science Town Economic & Technology Development District Guangzhou, China 510663 Tel: +86 20 8215 5555 Fax: +86 20 8207 5059 4.5 Other Information Requested by the Custom…
