HBOHS30003.1 Channel Soundbar with Built-in Subwoofer

3.1 Channel Soundbar with Built in Subwoofer Model: AX3000 EN Before using the soundbar, please read this manual thoroughly and retain it for future reference. Hi-Concerto, AI Voice and Room Fitting Tuning only work with selected Hisense TV Models USER MANUAL Contents 1.Important Safety Instructions ......................................................................................................... 3 2.What’s in the Box .............................................................................................................................. 5 3.Product Diagram .............................................................................................................................. 6 3.1Main Unit ................................................................................................................................................................................................6 3.2Remote Control .....................................................................................................................................................................................7 4.Preparations ..................................................................................................................................... 7 4.1Prepare the Remote Control .............................................................................................................................................................7 4.2Replace the Remote Control Battery .............................................................................................................................................7 4.3Placement and Mounting ..................................................................................................................................................................8 4.4Wall Mounting (if using option-B)...................................................................................................................................................8 5.Connections ...................................................................................................................................... 9 5.1Use the HDMI ARC Socket..................................................................................................................................................................9 5.2Use the OPTICAL Socket.................................................................................................................................................................. 10 5.3Use the COAXIAL Socket ................................................................................................................................................................. 10 5.4Use the AUX Socket........................................................................................................................................................................... 10 5.5Connect Power ................................................................................................................................................................................... 10 6.Basic Operation .............................................................................................................................. 10 6.1Standby/ON ......................................................................................................................................................................................... 10 6.2Auto-Standby / Auto-Wake ............................................................................................................................................................ 11 6.3Select Modes ....................................................................................................................................................................................... 11 6.4Adjust the Volume ............................................................................................................................................................................. 11 6.5Turn the Surround Sound ON/OFF .............................................................................................................................................. 11 6.7Adjust the Bass/Treble ..................................................................................................................................................................... 11 6.8Adjust the Brightness ....................................................................................................................................................................... 11 6.9Voice prompts ON/OFF.................................................................................................................................................................... 11 5.10 Factory reset........................................................................................................................................................................................... 11 7.AUX/ OPTICAL/COAXIAL/HDMI ARC Operation ........................................................................... 12 8.USB Operation ................................................................................................................................ 12 9.Bluetooth Operation ...................................................................................................................... 12 10. Troubleshooting ............................................................................................................................. 13 3 EN the third prong is provided for your safety. outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. by the manufacturer. 12 Use only with the cart, stand, by the manufacturer, or sold with the apparatus. When a cart or rac…

Text truncated - open the document above for the full version.

SHENZHENFENDATECHNOLOGYCO.,LTD. * theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 7/17/2026 TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTN.:ReviewingEngineer FCCID:HBOHS3000 FRNofapplicant:0021744982 Persection2.911(d)(7)oftheFCCrules,SHENZHENFENDATECHNOLOGYCO.,LTD.(“the applicant”)certifiesthattheequipmentforwhichauthorizationissoughtisdesignatedtothe followingU.S.agent*forserviceofprocess: CompanyName:HisenseUSAMultimediaR&DCenterInc. FCCRegistrationNumber(FRN):0033725060 PhysicalU.S.CompanyAddress:7310McGinnisFerryRD,Suwanee,GA30024,UnitedStates ContactPerson:ShuangGuan AgentEmailAddress:[email protected] Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:AgentSigned(ifdifferentfromApplicant): Signed:Signed: Printedname:frankChenzhonghuaPrintedname:ShuangGuan Title:engineerTitle:Director CompanyName: SHENZHENFENDATECHNOLOGYCO.,LTD. CompanyName: HisenseUSAMultimediaR&DCenter Inc. Date:7/17/2026Date:7/17/2026

SHENZHENFENDATECHNOLOGYCO.,LTD. CoveredEquipmentCertificationAttestationLetter 8/14/2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:HBOHS3000 SHENZHENFENDATECHNOLOGYCO.,LTD.(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules.This includescertifyingthattheequipmentforwhichauthorizationissoughtdoesnotinclude cybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab,Inc.orany ofitssuccessorsandassignees,includingequipmentwithintegratedKasperskyLab,Inc. (oranyofitssuccessorsandassignees)cybersecurityoranti-virussoftwarepursuantto DA-24-886andKDB986446D01CoveredEquipmentGuidancesectionB(2a). Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. SHENZHENFENDATECHNOLOGYCO.,LTD.(“theapplicant”)certifiesthat,asofthe dateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListas anentityproducing“covered”equipment. Signed: Printedname:frankChenzhonghua Title:engineer CompanyName:SHENZHENFENDATECHNOLOGYCO.,LTD. Date:8/14/2026

SHENZHENFENDATECHNOLOGYCO.,LTD. FamilyCertificationAttestationLetter 8/14/2026 NemkoCanadaInc 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:HBOHS3000 Models:AX3000,AX3000S,AX3000N,HS3000,HS3000N,Q3000,E3000,Q700,E800, Q3100,E3100,Q3000DE,E3000DE,AX3000DE,Q700DE,E800DE WeherebyrequestFamilyCertificationfortheabove-mentionedModelsbasedonthem beingelectrically,andphysicallyidenticalapartfrommodelname/number. Signed: Printedname:frankChenzhonghua Title:engineer Date:8/14/2026

SHENZHENFENDATECHNOLOGYCO.,LTD. August17,2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Canada K1V1H2 REQUESTFORCONFIDENTIALITY-FCC FCCID:HBOHS3000 PursuanttoSections0.457(d)and0.459oftheCommission’sRulesandFCCGuidancedocument 726920,weherebyrequestpermanentconfidentialtreatmentofexhibitsidentifiedassuchinthe tablebelowandrequesttheyarepermanentlywithheldfrompublicreviewbasedonthedocuments containingtradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic.The publicdisclosureofthisinformationmightbeharmfultotheapplicantandprovideunjustifiedbenefits toitscompetitors. Wealsorequestshort-termconfidentialityoncertainexhibitsuntiltheintendeddateofmarketingas outlinedbelow.Werequesttheexhibitsbewithheldfrompublicviewforaperiodofinsertnumberof days(cannotexceed180days)days.Weattestmarketingoftheproductwillonlycommenceafter theperiodofshort-termconfidentialityexpires,orifmarketingistocommencebeforetherequested numberofdayslistedabove,thegranteewillinformNemkotoreleasetheShort-TermConfidentiality informationwithheldontheFCCequipmentauthorizationwebsite. ExhibitTypeofConfidentialityRequested BlockDiagrams☒Permanent ☐ ShortTerm ExternalPhotos------------------ ☐ShortTerm InternalPhotos ☐Permanent*☐ShortTerm OperationDescription☒Permanent ☐ShortTerm PartsList&Placement/BOM ☐Permanent ☐ShortTerm Tune-UpProcedure ☐Permanent☐ShortTerm SchematicDiagrams ☒Permanent ☐ ShortTerm TestSetupPhotos------------------ ☐ShortTerm User’sManual ☐ Permanent* ☐ ShortTerm Theasteriskeditems(*)requirefurtherinformationtobeprovidedinthisjustificationletterbeforepermanentconfidentiality willbeextendedtotheseexhibits.PleaserefertoFCCKDB726920D01foundat: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731andreviewsectionII,3)regarding specificinformationthatmustaccompanytheserequests. Note:anydocumentsheldundertheShort-Termconfidentialitywillautomaticallybecomepublic aftertherequestedtimeifanappropriateextensionrequesthasnotbeenreceived.Anyexhibits (i.e.,schematicdiagrams)thatmayhavealreadybeenrequestedtohave“Permanent” confidentialityasshownaboveneednotberepeatedunderShort-Termconfidentialityrequest. Sincerely, Signed: Printedname:frankChenzhonghua Title:engineer CompanyName:SHENZHENFENDATECHNOLOGYCO.,LTD.

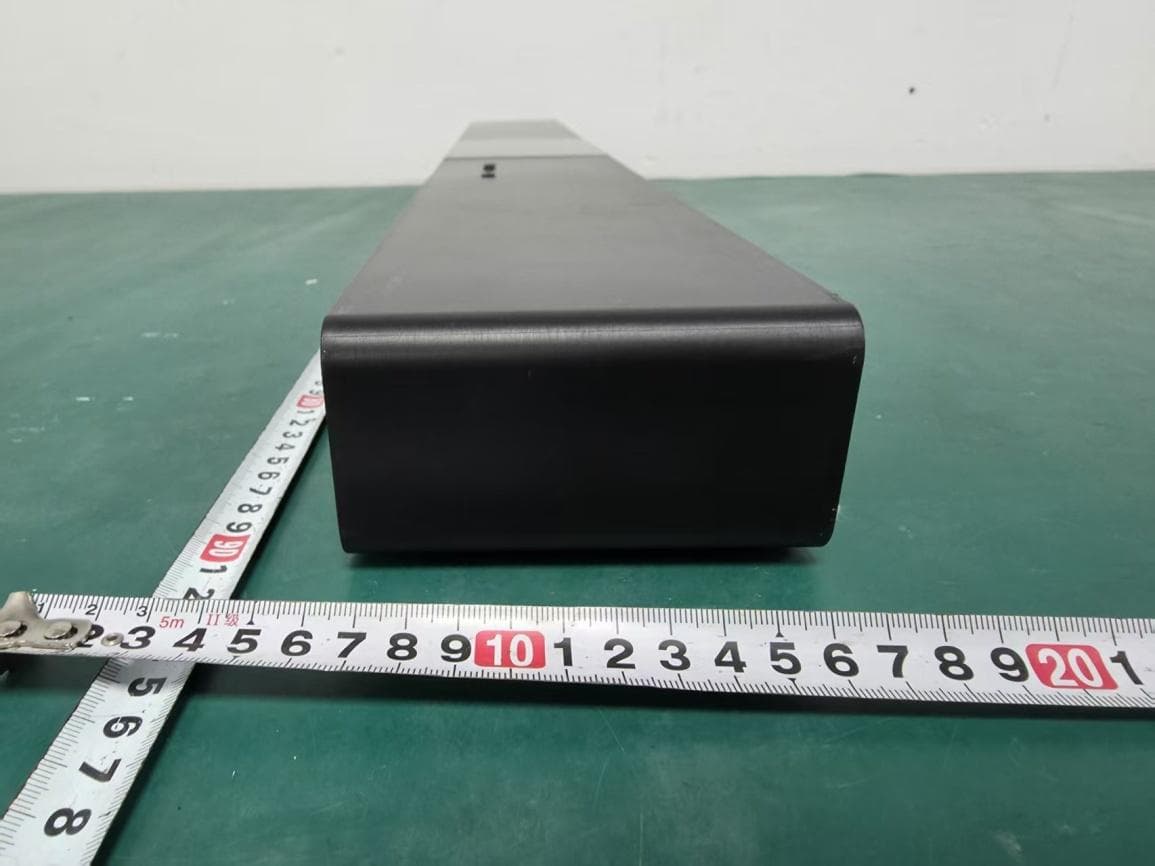

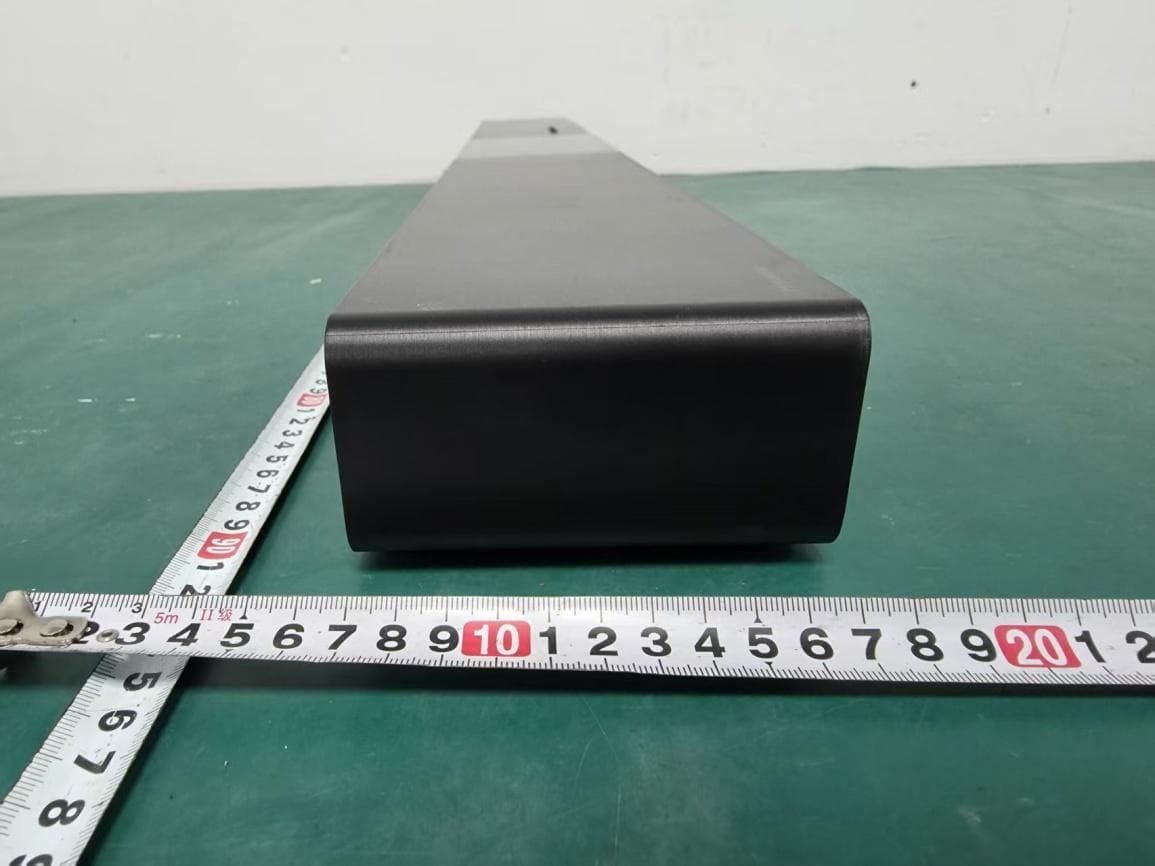

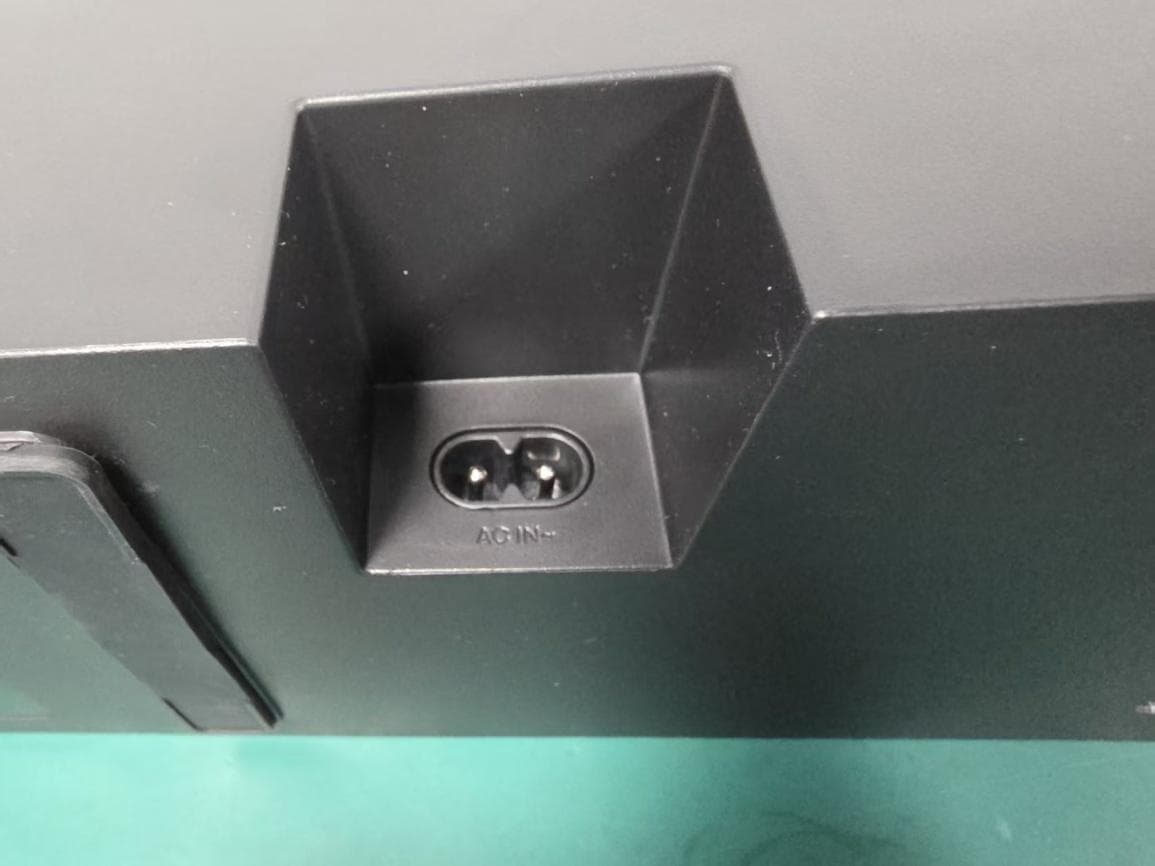

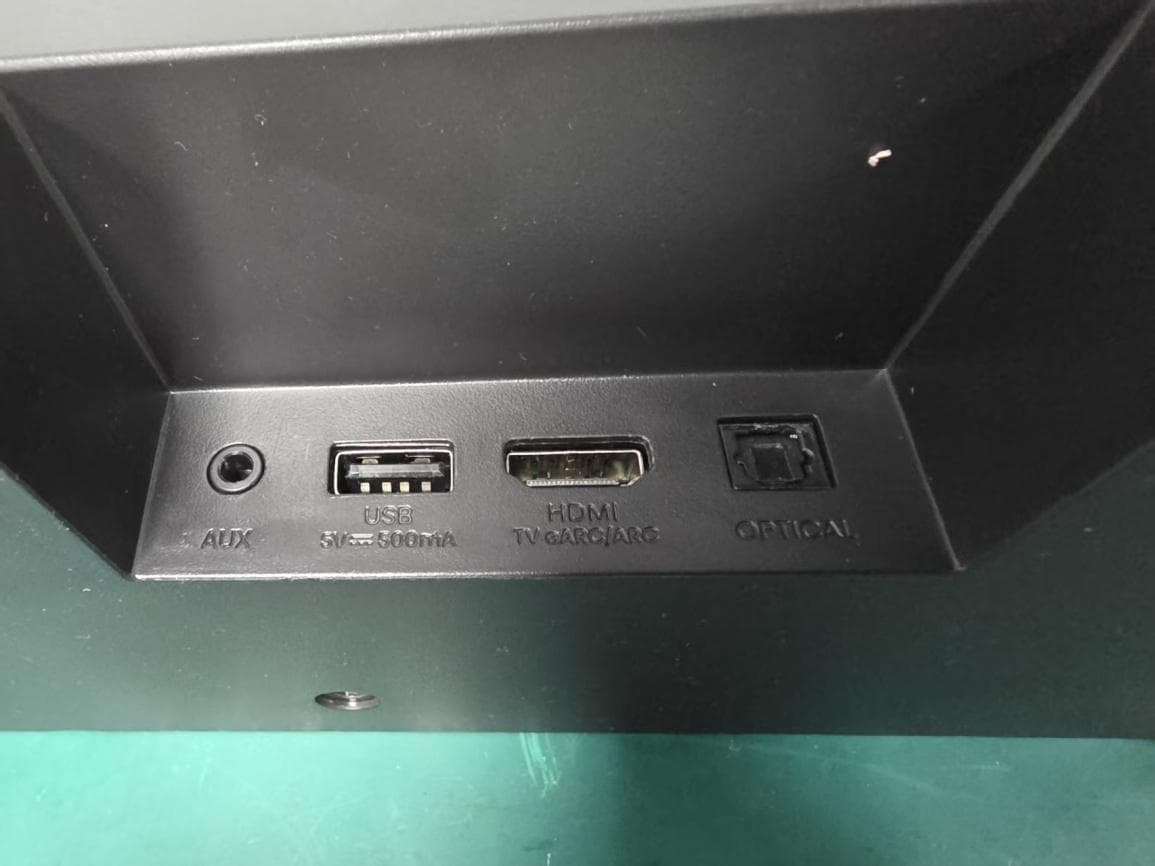

External Photos M/N: AX3000 External Photos M/N: AX3000 External Photos M/N: AX3000 External Photos M/N: AX3000 External Photos M/N: AX3000

版本：A/6 贴纸类说明： 1、公差（mm）：0<a≦50（+0.3/-0.2）， 50<a≦150（+1/-0.5），>150（+1.5/-1）。 有特殊要求的，按标示公差执行。 注：如需匹配产品槽位粘贴(有示意)，只能走负公差。 2、 要求图文清晰可辨，内容完整，折叠正确， 无重影，墨屎、无重影，墨屎、杂点、脏点、异物、 粉点、套印不准。 3、粘性要求：普通粘力800~1200g；加粘1400g。 可移普通200g，可移加粘400g。 4、空白贴纸卷筒来料：卷筒内直径40mm，每张 贴纸间距2~3mm, 入打印机方向（含离型纸）最 长边不能大于110mm。两边离型纸留边为5mm （如超出110mm，可相应减少到110mm 以内， 一个料号的离型纸留边保持统一即可）。 5、粘贴前，背贴物表面保持清洁干燥，无灰尘， 油印、水分等污渍；粘贴时，对准位置平整粘贴； 粘贴后，均匀压实，不允许气泡、褶皱以及翘边等 不良现象。 料号 产品型号 部件名称 日期 环保要求 RoHs2.0、Reach 包装指令94/62/EC 大豆油墨印刷 无氯漂白工艺 粘合剂为非石油基 TPCH（美国） HS3000 2026.07.14 功率贴纸(美版) XXX 初版发行 变更原因 审核 批准 李继华 其他 规格与工艺要求 设计版本 A 0 包装工程师 平面工程师 金沛 伏文海 刘梅红 公差与说明 油墨中禁止使用 矿物油（法国） 参考 无 有：XXXX 尺寸（mm） 材质 粘性要求 表面处理 122x35mm 80g铜版纸+3M胶 条码要求 背贴物 无条码 有条码（清晰易扫描） 木箱皮纹 普通 颜色黑底白字 专色△E≤2。 加粘 可移普通 可移加粘 其他（参数） 无光胶哑膜防刮花哑膜其它 塑胶 胶袋 纸类 玻璃屏 金属 硅胶(特殊配胶) 玻璃屏其它 (注，贴机身的贴纸避免起翘，优先安排上一版贴纸的供应商 ) 贴纸位置示意图 122.00 35.00 4.50 118.8 31.8 紫色线框为贴纸外形 Model / Modèle / Modelo: AX3000 8mm 8.0mm 8.0mm 7.0mm 5mm 3.1 Channel Soundbar with Built-in Subwoofer Barre de son 3.1 canaux avec caisson de basses intégré Barra de sonido de 3.1 canales con subwoofer incorporado FCC ID: HBOHS3000 IC10550A-HS3000 CAN ICES-003(B) / NMB-003(B) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. AC 100-240V~ 50/60Hz 40W USB: 5V 500mA For DTS patents, see https://xperi.com/dts-patents/ Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Condential unpublished works. Copyright © 2012-2024 Dolby Laboratories. All rights reserved. Made in China / Hecho en China / Fabriqué en Chine

Internal Photos M/N: AX3000 Internal Photos M/N: AX3000 Internal Photos M/N: AX3000 Internal Photos M/N: AX3000 Internal Photos M/N: AX3000 Internal Photos M/N: AX3000 BT Antenna

Page 1 of 4 Report No. ESTE-R2607085 FCC 47 CFR MPE REPORT SHENZHEN FENDA TECHNOLOGY CO., LTD. 3.1 Channel Soundbar with Built-in Subwoofer Model Number: AX3000 Additional Model: AX3000S, AX3000N, HS3000, HS3000N, Q3000, E3000, Q700, E800, Q3100, E3100, Q3000DE, E3000DE, AX3000DE, Q700DE, E800DE FCC ID: HBOHS3000 Applicant: SHENZHEN FENDA TECHNOLOGY CO., LTD. Address: Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2607085 Date of Test: Jun. 11, 2026 to Jul. 03, 2026 Date of Report: Jul. 07, 2026 Page 2 of 4 Report No. ESTE-R2607085 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 & KDB 447498 D04 V01 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Page 3 of 4 Report No. ESTE-R2607085 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 4 of 4 Report No. ESTE-R2607085 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 4.88 3.076 2441 5.08 3.221 2480 4.85 3.055 π/4-DQPSK 2402 5.55 3.589 2441 5.57 3.606 2480 5.29 3.381 8-DPSK 2402 5.99 3.972 2441 6.06 4.036 2480 5.83 3.828 BLE 1M 2402 4.81 3.027 2440 4.84 3.048 2480 4.59 2.877 BLE 2M 2402 4.79 3.013 2440 4.90 3.090 2480 4.62 2.897 3. Calculated Result and Limit Mode Peak output power (dBm) Target power (dBm) MAX Target power (dBm) Antenna gain Power Density (S) (mW /cm 2 ) Limited of Power Density (S) (mW /cm 2 ) Test Result (dBi) (Linear) 2.4G Band GFSK 5.08 5±1 6 1.6 1.445 0.00114 1 Complies π/4-DQPSK 5.57 5±1 6 1.6 1.445 0.00114 1 Complies 8-DPSK 6.06 6±1 7 1.6 1.445 0.00144 1 Complies BLE 1M 4.84 4±1 5 1.6 1.445 0.00091 1 Complies BLE 2M 4.90 4±1 5 1.6 1.445 0.00091 1 Complies End of Test Report

BTANTSPEC Type：PCBOnBoardANT Length：14.4mm Width：4.7mm Technology：FR4&CoverResistanceWeldingOil TestCompany：SHENZHENFENDATECHNOLOGYCO.,LTD. ManufacturerofAntenna：SHENZHENFENDATECHNOLOGYCO.,LTD. Addressofantennamanufacturer：FendaHi‐TechPark,ZhoushiRoad, ShiyanTown,BaoanDistrict,ShenzhenCity，Guangdong，China SWR&ReturnLoss Efficiency&Gain Antenna Freq(MHz) Efficiency(％) Gian(dBi) 240034.481.57 241035.311.55 242036.471.54 243035.491.50 244036.681.60 245037.491.50 246036.951.50 247036.801.55 248036.631.53 249035.241.52 250034.491.54 AntennaRadiationPattern

Page 1 of 53 Report No. ESTE-R2607083 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of SHENZHEN FENDA TECHNOLOGY CO., LTD. 3.1 Channel Soundbar with Built-in Subwoofer Model Number: AX3000 Additional Model: AX3000S, AX3000N, HS3000, HS3000N, Q3000, E3000, Q700, E800, Q3100, E3100, Q3000DE, E3000DE, AX3000DE, Q700DE, E800DE FCC ID: HBOHS3000 Applicant: SHENZHEN FENDA TECHNOLOGY CO., LTD. Address: Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2607083 Date of Test: Jun. 11, 2026 to Jul. 03, 2026 Date of Report: Jul. 07, 2026 Page 2 of 53 Report No. ESTE-R2607083 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................... 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. 20 DB BANDWIDTH ......................................................................................................................... 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL ................................................................................................... 16 6.1. Limit ...................................................................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 49 Report No. ESTE-R2607083 Appendix A: 20dB Emission Bandwidth Test Result Test Mode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.044 2401.457 2402.501 --- --- DH5 Ant1 2441 0.939 2440.535 2441.474 --- --- DH5 Ant1 2480 0.945 2479.535 2480.480 --- --- 2DH5 Ant1 2402 1.329 2401.328 2402.657 --- --- 2DH5 Ant1 2441 1.320 2440.328 2441.648 --- --- 2DH5 Ant1 2480 1.275 2479.364 2480.639 --- --- 3DH5 Ant1 2402 1.251 2401.358 2402.609 --- --- 3DH5 Ant1 2441 1.257 2440.352 2441.609 --- --- 3DH5 Ant1 2480 1.284 2479.346 2480.630 --- --- Page 2 of 49 Report No. ESTE-R2607083 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Page 3 of 49 Report No. ESTE-R2607083 2DH5-Ant1-2402 2DH5-Ant1-2441 Page 4 of 49 Report No. ESTE-R2607083 2DH5-Ant1-2480 3DH5-Ant1-2402 Page 5 of 49 Report No. ESTE-R2607083 3DH5-Ant1-2441 3DH5-Ant1-2480 Page 6 of 49 Report No. ESTE-R2607083 Page 7 of 49 Report No. ESTE-R2607083 Appendix B: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Gain [dBi] EIRP [dBm] EIRP Limit [dBm] Verdict DH5 Ant1 2402 4.88 ≤20.97 1.60 6.48 ≤20.97 PASS DH5 Ant1 2441 5.08 ≤20.97 1.60 6.68 ≤20.97 PASS DH5 Ant1 2480 4.85 ≤20.97 1.60 6.45 ≤20.97 PASS 2DH5 Ant1 2402 5.55 ≤20.97 1.60 7.15 ≤20.97 PASS 2DH5 Ant1 2441 5.57 ≤20.97 1.60 7.17 ≤20.97 PASS 2DH5 Ant1 2480 5.29 ≤20.97 1.60 6.89 ≤20.97 PASS 3DH5 Ant1 2402 5.99 ≤20.97 1.60 7.59 ≤20.97 PASS 3DH5 Ant1 2441 6.06 ≤20.97 1.60 7.66 ≤20.97 PASS 3DH5 Ant1 2480 5.83 ≤20.97 1.60 7.43 ≤20.97 PASS Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Page 8 of 49 Report No. ESTE-R2607083 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Page 9 of 49 Report No. ESTE-R2607083 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 10 of 49 Report No. ESTE-R2607083 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS Page 11 of 49 Report No. ESTE-R2607083 3DH5-Ant1-2480-PASS Page 12 of 49 Report No. ESTE-R2607083 Appendix C: Carrier frequency separation Test Result Test Mode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.792 ≥0.696 PASS DH5 Ant1 2441 1.086 ≥0.696 PASS DH5 Ant1 2480 0.816 ≥0.696 PASS 2DH5 Ant1 2402 1.140 ≥0.886 PASS 2DH5 Ant1 2441 1.173 ≥0.886 PASS 2DH5 Ant1 2480 1.338 ≥0.886 PASS 3DH5 Ant1 2402 1.185 ≥0.856 PASS 3DH5 Ant1 2441 1.281 ≥0.856 PASS 3DH5 Ant1 2480 1.176 ≥0.856 PASS Page 13 of 49 Report No. ESTE-R2607083 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 14 of 49 Report No. ESTE-R2607083 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Page 15 of 49 Report No. ESTE-R2607083 2DH5-Ant1-2480-PASS 3DH5-Ant1-2402-PASS Page 16 of 49 Report No. ESTE-R2607083 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 17 of 49 Report No. ESTE-R2607083 Page 18 of 49 Report No. ESTE-R2607083 Appendix D: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.367 319 0.117 ≤0.4 PASS DH3 Ant1 Hop 1.600 159 0.254 ≤0.4 PASS DH5 Ant1 Hop 2.850 107 0.305 ≤0.4 PASS 2DH1 Ant1 Hop 0.377 319 0.120 ≤0.4 PASS 2DH3 Ant1 Hop 1.610 159 0.256 ≤0.4 PASS 2DH5 Ant1 Hop 2.850 107 0.305 ≤0.4 PASS 3DH1 Ant1 Hop 0.375 319 0.120 ≤0.4 PASS 3DH3 Ant1 Hop 1.610 159 0.256 ≤0.4 PASS 3DH5 Ant1 Hop 2.870 107 0.307 ≤0.4 PASS Page 19 of 49 Report No. ESTE-R2607083 Test Graphs DH1-Ant1-Hop-PASS DH3-Ant1-Hop-PASS Page 20 of 49 Report No. ESTE-R2607083 DH5-Ant1-Hop-PASS Page 21 of 49 Report No. ESTE-R2607083 2DH1-Ant1-Hop-PASS Page 22 of 49 Report No. ESTE-R2607083 2DH3-Ant1-Hop-PASS Page 23 of 49 Report No. ESTE-R2607083 2DH5-Ant1-Hop-PASS Page 24 of 49 Report No. ESTE-R2607083 3DH1-Ant1-Hop-PASS Page 25 of 49 Report No. ESTE-R2607083 3DH3-Ant1-Hop-PASS Page 26 of 49 Report No. ESTE-R2607083 3DH5-Ant1-Hop-PASS Page 27 of 49 Report No. ESTE-R2607083 Page 28 of 49 Report No. ESTE-R2607083 Appendix E: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 29 of 49 Report No. ESTE-R2607083 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Page 30 of 49 Report No. ESTE-R2607083 Page 31 of 49 Report No. ESTE-R2607083 Appendix F: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 3.96 -47.40 ≤-16.04 PASS DH5 Ant1 High 2480 4.32 -47.73 ≤-15.68 PASS DH5 Ant1 Low Hop_2402 4.38 -49.16 ≤-15.62 PASS DH5 Ant1 High Hop_2480 4.23 -48.77 ≤-15.78 PASS 2DH5 Ant1 Low 2402 3.75 -48.62 ≤-16.25 PASS 2DH5 Ant1 High 2480 4.00 -49.29 ≤-16.00 PASS 2DH5 Ant1 Low Hop_2402 4.35 -49.14 ≤-15.65 PASS 2DH5 Ant1 High Hop_2480 3.17 -49.48 ≤-16.83 PASS 3DH5 Ant1 Low 2402 4.50 -48.59 ≤-15.50 PASS 3DH5 Ant1 High 2480 3.66 -48.98 ≤-16.34 PASS 3DH5 Ant1 Low Hop_2402 4.71 -49.27 ≤-15.29 PASS 3DH5 Ant1 High Hop_2480 4.40 -48.78 ≤-15.60 PASS Page 32 of 49 Report No. ESTE-R2607083 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 33 of 49 Report No. ESTE-R2607083 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Page 34 of 49 Report No. ESTE-R2607083 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS Page 35 of 49 Report No. ESTE-R2607083 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Page 36 of 49 Report No. ESTE-R2607083 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS Page 37 of 49 Report No. ESTE-R2607083 3DH5-Ant1-Hop_2480-PASS Page 38 of 49 Report No. ESTE-R2607083 Appendix G: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 3.96 -42.46 ≤-16.04 PASS DH5 Ant1 2441 30~26500 4.61 -42.23 ≤-15.39 PASS DH5 Ant1 2480 30~26500 4.32 -41.93 ≤-15.68 PASS 2DH5 Ant1 2402 30~26500 3.75 -42.54 ≤-16.25 PASS 2DH5 Ant1 2441 30~26500 4.02 -42.10 ≤-15.98 PASS 2DH5 Ant1 2480 30~26500 4.00 -41.82 ≤-16.00 PASS 3DH5 Ant1 2402 30~26500 4.50 -42.52 ≤-15.50 PASS 3DH5 Ant1 2441 30~26500 4.37 -41.67 ≤-15.6…

Text truncated - open the document above for the full version.

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz) Radio Spectrum Testing
