HBOHT-388DSW2.1 Computer Multimedia Speaker

HT-388D 说明书 王金松 21年F&D HT-388D声霸音箱 2023.11.13 郭美娇 8 Short press Source to select Optical mode. 1. Connect TV with optical port on the rear of the speaker through optical cable. 2. Please make sure to set "PCM mode" as digital output on your devices,such as Blue-ray DVD, TV and Video player, etc. Below as example. 3. Adjust volume while playing music. AUX mode 1.Short press to switch audio source to AUX mode. Connect the speaker with audio source through signal cable (output interface of devices as TV, PC, Mobile phones, etc). 2.Adjust volume while playing music. Optical mode SettingDisplay Sound analog audio output Video Digial audio output PCM Sound mode AC-3 DTS Tips: Please make sure that TV supports an optical function. 910 Specifications 11 Specifications Troubleshooting SolutionPossible CauseProblem F&D system does not turn on Sound reproduction too soft F&D System does not respond to remote control. Power cable not connected to the power outlet and/or F&D System Volume of F&D System set too low The battery is empty Source device not producing any signal. Check connection increase the volume using the “Volume” button. increase the volume of the source device Replace battery, observe correct polarity at insertion Digital output on the source device not activated (please refer to device instructions). Check the connection of the source device to the F&D System and change the cable if necessary. put your Bluetooth device close to the speaker distance is far from device in Bluetooth mode Bluetooth device not connected successfully Cable not correctly connected/faulty cable. No sound reproduction please restart the speaker and try again No sound output under optical mode optical cable not connect well or damaged not bend optical cable over 50 degree Output power (RMS): 120W(80W+20W*2) Speaker Unit: Subwoofer: 8”*1pcs Soundbar: (52*92mm)*2pcs Tweeter: 1”*2pcs Frequency response: 20Hz-20KHz S/N Ratio: ≥70dB Separation: ≥45dB Bluetooth version: V5.3 Power: 100-240V~50/60Hz 0.5A Soundbar: W996xD118xH68mm Subwoofer: W185xD380xH372mm 1. Do not install this equipment in a confined or building-in space such as a book case or similar unit, and remain a well ventilation conditions. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc. 2. WARNINGTo reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. 3. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable. Safety Instruction for CB and CE-LVD Wall Bracket Installation Instructions Subwoofer & soundbar pairing operation The subwoofer cannot be connected After pressing the pairing button on the back of the subwoofer, the subwoofer cannot automatically connect to the Soundbar Power off the subwoofer and power it on again ; Turn off the Sound Blaster and turn it on; (choose one of the two) Please note: 1. the device most recently connected to the F&D System connects automatically when Bluetooth is activated and the input for Bluetooth playback has been selected. in this case the message will appear. 2. Start the playback of a medium on your mobile end device and the sound will automatically be generated by the F&D System. USB mode 1.Plug in USB driver 2.Card reader supporting max 32GB as well as MP3/WMA dual formats decoding 3.Play music (refer to remote control function) Operation guidance Playback via Bluetooth Steps need to be followed 1. Press Source key to select Bluetooth mode 2. will appears on the display 3. You now have 30 seconds to register your mobile end device 4. Start the search on your mobile end device 5. If the mobile device requires an access code, please enter 0000 6. Once confirmed, the connection will be done automatically and will appear in the display Basic Requirement 1. Bluetooth must be activated on the mobile end device which you want to connect with “Fenda HT-388D” 2. The mobile end device must support Bluetooth A2DP 3. The mobile end device must be within range of the Fenda HT-388D(max.15m) 7 Note: When the first time to turn on the speaker, Soundbar must connect with the subwoofer successfully (the indicator light of the subwoofer is steady light), and then use other medium to connect to Bluetooth. 料号12.005.0004.XXXXX 变更原因变更提出人 项目名称 日期 包装工程师 设计版本 尺寸(mm) 材质 页码P数 颜色 表面处理 工艺 条码要求 装订方式 产品型号 部件名称 平面工程师 无条码 其它线装风琴折胶装骑马钉包心折 有条码（清晰易扫描） 说明书类说明： 1、公差（mm）：0<a≦50（+0.3/-0.2）， 50<a≦150（+1/-0.5），>150 （+1.5/-1。有特殊要求的，按标示公 差执行。 2、要求图文清晰可辨，内容完整，折叠正确， 无重影，墨屎、杂点、脏点、异物、粉点、 套印不准。 3、尺寸按展开尺寸及成型外尺寸测量计算。 A1业务 更新FCC-ID用户手册插页 16p 单黑印刷 展开尺寸：600x154，成型尺寸：75x154 105g铜板纸 版本：A/4 HT-388D 说明书 无 有： 是否有可参考 刀模 颜色 RoHS2.0、Reach 包装指令94/62/EC 大豆油墨印刷 无氯漂白工艺 粘合剂为非石油基 环保要求 油墨中禁止使用 矿物油（法国） TPCH（美国） 防刮花哑膜哑膜光油光胶UV油水性光油 水性哑油哑油 其它局部UV无 烫金 烫银 击凸 击凹 压网 无 装订方式：左右风琴折(开口朝左)。 封底 封底封面 56 Remote controlWall Bracket Installation Instructions 1. Mark two bolt locations on the wall with 690mm interval at a level. 2. Drill two holes on the marked locations. 3. Insert two bolts and plastic parts into the rubber stopper for hanging the bracket. 690 FD-SPK031 Reset SourceBASSTreble TV Surround Music / TV 690mm 2 Product wiring diagram Power Cable AUX/DVD Cable Optical Cable 1. HDMI(ARC) 2. USB PLAY 3. AUX 4. OPTICAL 5. COAXIAL 6. POWER 1 3 4 5 6 USB PlAY HDMI(ARC) OPTICAL COAXIAL AUX MODEL NO. :HT -388D 100-240V~50/60Hz 0.5A USB PlAY HDMI(ARC) OPTICAL COAXIAL AUX MODE L NO. :H T-388D 100-240V~50/60Hz 0.5A Caution 1 * Do not place the system in the high-temp and humid environment, prevent it from raining or rough handling and strong shock. * In order to avoid electric shock and other accidents, do not open the back panel cover for repair without professional guidance. * In case fragments or other liquids accidentally sprinkled inside the cabinet, please switch off the pow…

Text truncated - open the document above for the full version.

[SHENZHEN FENDA TECHNOLOGY CO., LTD.] [Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District] [Shenzhen City, Guangdong] [China]] Date: Oct. 24, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: HBOHT-388DSW US Agent -Attestation Statement/ Part 2.911(d)(7) [SHENZHEN FENDA TECHNOLOGY CO., LTD.] certifies, that as of [Oct. 24, 2023], we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: HBOHT-388DSW. [SHENZHEN FENDA TECHNOLOGY CO., LTD.], accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [SHENZHEN FENDA TECHNOLOGY CO., LTD.] for FCC ID: HBOHT-388DSW. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: [SHENZHEN FENDA TECHNOLOGY CO., LTD.] FRN: 0021744982 Company Representative: [frank Chenzhonghua] Tel: +86-0755-27486668 Designated Agent: FCC US Agent, LLC Designated Agent Representative: Tim Payne Digitally signed by Tim Email: [email protected] Signature: Signature: Tim Payne DN: cn=Tim Payne, o=FCC US Agent, LLC, ou=FCC US Agent, LLC, email=support@fccusage nt.com, c=US Date: 2023.10.31 22:19:18 -05'00' Payne

SHENZHEN FENDA TECHNOLOGY CO., LTD. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: December 1, 2023 FCC ID: HBOHT-388DSW Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing SHENZHEN FENDA TECHNOLOGY CO., LTD. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing SHENZHEN FENDA TECHNOLOGY CO., LTD. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: SHENZHEN FENDA TECHNOLOGY CO., LTD. Address: Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, China Contact Person: frank Chenzhonghua Tel.: +86-0755-27486663 Email: [email protected] Sincerely, Signature:

HT‐388DSOUNDBARBTANTSPEC Type：PCB On Board ANT Length：14.4mm Width：4.9mm Technology：FR4& Cover Resistance Welding Oil Manufacturer of Antenna：SHENZHEN FENDA TECHNOLOGY CO., LTD. Address of antenna manufacturer：Fenda Hi‐Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City，Guangdong，China SWR & Return Loss Efficiency & Gain Frequency (MHz) Efficiency (%) Gain (dBi) 2400 MHz 37.461.26 2410 MHz 36.921.33 2420 MHz 36.481.31 2430 MHz 36.951.31 2440 MHz 37.321.42 2450 MHz 38.871.50 2460 MHz 38.261.47 2470 MHz 37.751.46 2480 MHz 37.541.42 2490 MHz 36.691.43 2500 MHz 36.511.41 HT‐388DSUBWOOFERBTANTSPEC Type：PCB On Board ANT Length：14.4mm Width：5.8mm Technology：FR4& Cover Resistance Welding Oil Manufacturer of Antenna：SHENZHEN FENDA TECHNOLOGY CO., LTD. Address of antenna manufacturer：Fenda Hi‐Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City，Guangdong，China SWR & Return Loss Efficiency & Gain Frequency (MHz) Efficiency (%) Gain (dBi) 2400 MHz 37.531.26 2410 MHz 36.821.33 2420 MHz 37.471.35 2430 MHz 37.451.37 2440 MHz 36.921.42 2450 MHz 38.871.50 2460 MHz 38.261.47 2470 MHz 37.751.43 2480 MHz 37.541.39 2490 MHz 36.691.43 2500 MHz 36.511.35

SHENZHEN FENDA TECHNOLOGY CO., LTD. Date：Nov.30, 2023 Product Model Number: 2.1 Computer Multimedia Speaker FCC ID：HBOHT-388DSW To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that SHENZHEN FENDA TECHNOLOGY CO., LTD. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by SHENZHEN FENDA TECHNOLOGY CO., LTD. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: engineer Email: [email protected] Telephone: +86-0755-27486663 On behalf of: SHENZHEN FENDA TECHNOLOGY CO., LTD.

SHENZHEN FENDA TECHNOLOGY CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: December 1, 2023 Subject; Request for Confidentiality FCC ID: HBOHT-388DSW To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: frank Chenzhonghua Title: engineer

SHENZHEN FENDA TECHNOLOGY CO., LTD. Fenda Hi-Tech Park, Zhoushi Road, Shiyan Street, Baoan District, Shenzhen, China Tel: +86-0755-27486663 Series Models Description FCC ID: HBOHT-388DSW Date: Dec.01, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The device (Product Name: 2.1 Computer Multimedia Speaker) Models Name: HT-388D ,HT-380D, HT-390, HT-380, Fenda HT-380D, Fenda HT-390D, HT-390D have same electrical, PCB and BOM, only the colour and model’s names are different for marketing requirements. Sincerely, frank Chenzhonghua / engineer

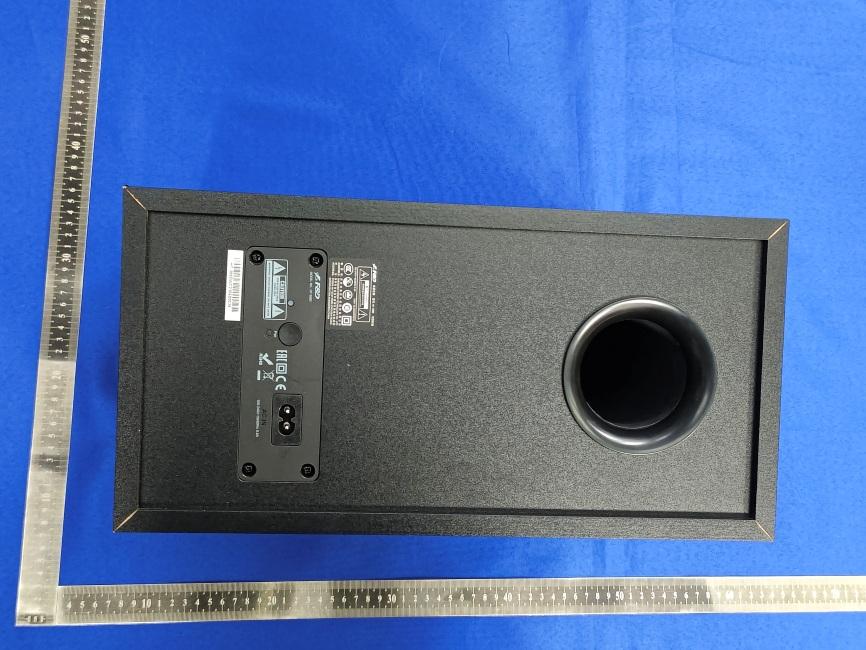

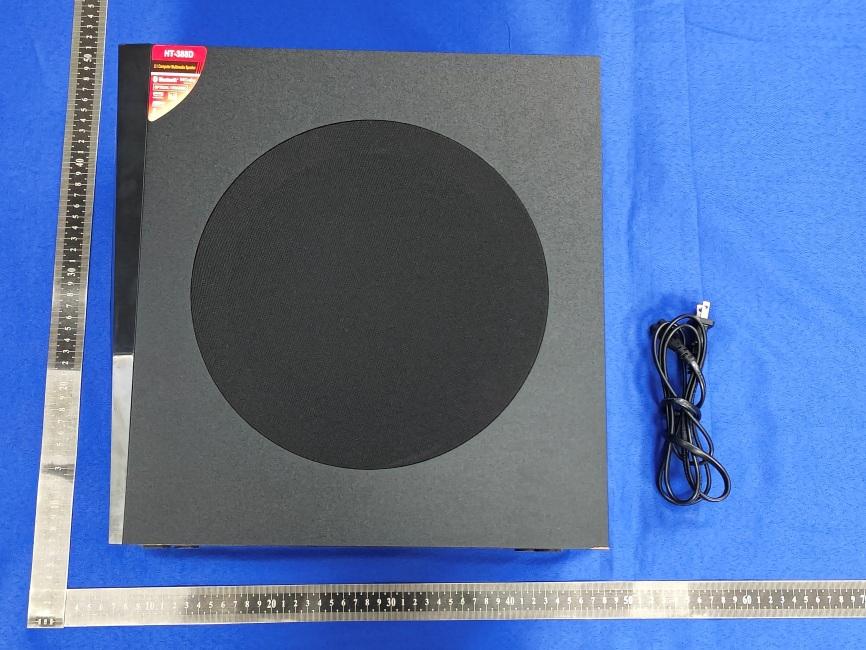

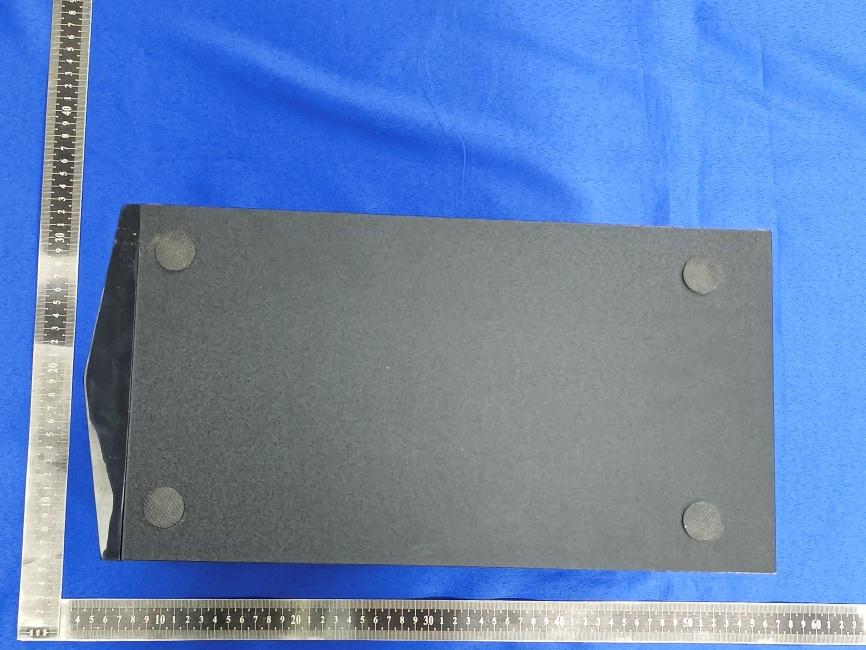

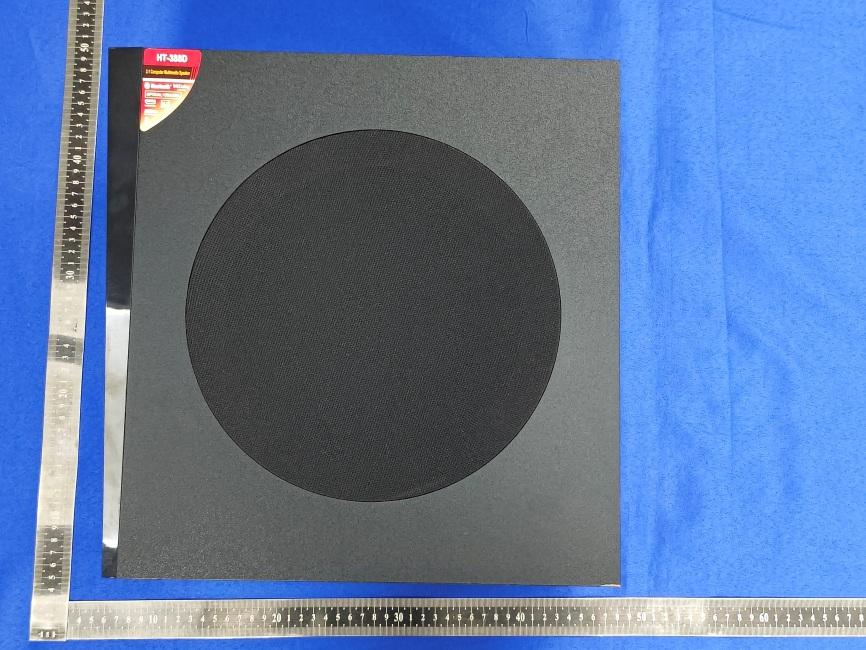

FCC ID: HBOHT-388DSW Page 1 of 4 Report No.: CTL2311175011-WF External Photos of EUT FCC ID: HBOHT-388DSW Page 2 of 4 Report No.: CTL2311175011-WF FCC ID: HBOHT-388DSW Page 3 of 4 Report No.: CTL2311175011-WF FCC ID: HBOHT-388DSW Page 4 of 4 Report No.: CTL2311175011-WF

FCC ID: HBOHT-388DSW Page 1 of 1 Report No.: CTL2311175011-WF FCC ID Label Information Label location: 2.1 Computer Multimedia Speaker Model: HT-388D FCC ID : HBOHT-388DSW Note: Label material is transparent PET, glue material is self-adhesive material; 25 square transparent dragon, water glue, plus light film. Not easy to drop.

FCC ID: HBOHT-388DSW Page 1 of 3 Report No.: CTL2311175011-WF Internal Photos of EUT Antenna FCC ID: HBOHT-388DSW Page 2 of 3 Report No.: CTL2311175011-WF FCC ID: HBOHT-388DSW Page 3 of 3 Report No.: CTL2311175011-WF

SHENZHEN FENDA TECHNOLOGY CO., LTD. FCC ID: HBOHT-388DSW Page 1 of 5 Report No.: CTL2311175011-WF FCC RF Exposure Evaluation 1. Product Information FCC ID HBOHT-388DSW Product Name 2.1 Computer Multimedia Speaker Test Model HT-388D Power Supply AC120V / 60Hz, Modulation Type GFSK, π/4DQPSK, 8DPSK Antenna Type PCB Antenna Antenna Gain 1.5dBi Frequency Range 2402MHz~2480MHz Exposure Category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method and Limit Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 4. Limit 3.1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 614 1842/f 1.63 4.89/f (100) * (900/f 2 )* 6 6 SHENZHEN FENDA TECHNOLOGY CO., LTD. FCC ID: HBOHT-388DSW Page 2 of 5 Report No.: CTL2311175011-WF 30 – 300 300 – 1500 1500 – 100,000 61.4 / / 0.163 / / 1.0 f/300 5 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information 100043851 can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Note SHENZHEN FENDA TECHNOLOGY CO., LTD. FCC ID: HBOHT-388DSW Page 3 of 5 Report No.: CTL2311175011-WF PCB Antenna 2402 MHz – 2480 MHz 1.5dBi Bluetooth Antenna 6.Conducted Power Results [BT] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 4.06 39 2441 4.23 78 2480 3.72 π/4DQPSK 0 2402 4.78 39 2441 4.97 78 2480 4.41 8DPSK 0 2402 5.28 39 2441 5.46 78 2480 4.94 BLE Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 1M 0 2402 -4.81 19 2440 -4.57 39 2480 -5.11 2M 0 2402 -4.86 19 2440 -4.59 39 2480 -5.13 SHENZHEN FENDA TECHNOLOGY CO., LTD. FCC ID: HBOHT-388DSW Page 4 of 5 Report No.: CTL2311175011-WF 7.Manufacturing Tolerance <BT > GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4 4 4 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK(Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5 5 4 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK(Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5 5 5 Tolerance ±(dB) 1.0 1.0 1.0 <BLE> BLE1M Channel Channel 0 Channel 19 Channel 39 Target (dBm) -5 -5 -5 Tolerance ±(dB) 1.0 1.0 1.0 BLE2M Channel Channel 0 Channel 19 Channel 39 Target (dBm) -5 -5 -5 Tolerance ±(dB) 1.0 1.0 1.0 8. Evaluation Results 8.…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2311175011-WF02 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Wuqiang Wu (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : 2.1 Computer Multimedia Speaker Model/Type reference ................ : HT-388D List Model(s) ............................... : HT-380D, HT-390, HT-380, Fenda HT-380D, Fenda HT-390D, HT-390D Trade Mark .................................. : FCC ID ......................................... : HBOHT-388DSW Applicant’s name ....................... : SHENZHEN FENDA TECHNOLOGY CO., LTD. Address of applicant ................. : Fenda Hi-Tech Park, Zhoushi Road, Shiyan Street, Baoan District, Shenzhen, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Zone A, 1st Floor, Warehouse 2, Baisha Logistics Company, No. 3011 Shahe West Road, Nanshan District, Shenzhen Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Nov.03,2023 Date of Test Date ........................ : Nov.03,2023- Nov.17,2023 Date of Issue .............................. : Nov.20,2023 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 34 Report No.: CTL2311175011-WF02 TEST REPORT Test Report No. : CTL2311175011-WF02 Nov.20,2023 Date of issue Equipment under Test : 2.1 Computer Multimedia Speaker Sample No : CTL2311175011 Model /Type : HT-388D Listed Models : HT-380D, HT-390, HT-380, Fenda HT-380D, Fenda HT-390D, HT-390D Applicant : SHENZHEN FENDA TECHNOLOGY CO., LTD. Address : Fenda Hi-Tech Park, Zhoushi Road, Shiyan Street, Baoan District, Shenzhen, China Manufacturer : SHENZHEN FENDA TECHNOLOGY CO., LTD. Address : Fenda Hi-Tech Park, Zhoushi Road, Shiyan Street, Baoan District, Shenzhen, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 34 Report No.: CTL2311175011-WF02 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2023-11-20 CTL2311175011-WF02 Tracy Qi V1.0 Page 4 of 34 Report No.: CTL2311175011-WF02 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM CONDUCTED OUTPUT POWER.....................................…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] . Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.064 / Pass 2440 1 1.065 / Pass 2480 1 1.065 / Pass 2M SISO 2402 1 2.067 / Pass 2440 1 2.068 / Pass 2480 1 2.066 / Pass V1.0 Page 2 of 27 Report No.: CTL2311175011-WF02 1.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 3 of 27 Report No.: CTL2311175011-WF02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 4 of 27 Report No.: CTL2311175011-WF02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 5 of 27 Report No.: CTL2311175011-WF02 1.2 6dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.723 >=0.5 Pass 2440 1 0.724 >=0.5 Pass 2480 1 0.723 >=0.5 Pass 2M SISO 2402 1 1.183 >=0.5 Pass 2440 1 1.250 >=0.5 Pass 2480 1 1.186 >=0.5 Pass V1.0 Page 6 of 27 Report No.: CTL2311175011-WF02 1.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 7 of 27 Report No.: CTL2311175011-WF02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 8 of 27 Report No.: CTL2311175011-WF02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 9 of 27 Report No.: CTL2311175011-WF02 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -4.81 <=30 Pass 2440 -4.57 <=30 Pass 2480 -5.11 <=30 Pass 2M SISO 2402 -4.86 <=30 Pass 2440 -4.59 <=30 Pass 2480 -5.13 <=30 Pass Note1: Antenna Gain: Ant1: 1.50dBi; V1.0 Page 10 of 27 Report No.: CTL2311175011-WF02 2.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 11 of 27 Report No.: CTL2311175011-WF02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 12 of 27 Report No.: CTL2311175011-WF02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 13 of 27 Report No.: CTL2311175011-WF02 3. Maximum Power Spectral Density 3.1 PSD 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -20.21 <=8 Pass 2440 -20.10 <=8 Pass 2480 -20.69 <=8 Pass 2M SISO 2402 -24.11 <=8 Pass 2440 -23.73 <=8 Pass 2480 -24.49 <=8 Pass Note1: Antenna Gain: Ant1: 1.50dBi; V1.0 Page 14 of 27 Report No.: CTL2311175011-WF02 3.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 15 of 27 Report No.: CTL2311175011-WF02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 16 of 27 Report No.: CTL2311175011-WF02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 17 of 27 Report No.: CTL2311175011-WF02 4. Unwanted Emissions In Non-restricted Frequency Bands 4.1 Ref 4.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -5.89 2440 1 -5.65 2480 1 -6.23 2M SISO 2402 1 -6.63 2440 1 -6.36 2480 1 -6.89 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. V1.0 Page 18 of 27 Report No.: CTL2311175011-WF02 4.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 19 of 27 Report No.: CTL2311175011-WF02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 20 of 27 Report No.: CTL2311175011-WF02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 21 of 27 Report No.: CTL2311175011-WF02 4.2 CSE 4.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -5.65 -25.65 Pass 2440 1 -5.65 -25.65 Pass 2480 1 -5.65 -25.65 Pass 2M SISO 2402 1 -6.36 -26.36 Pass 2440 1 -6.36 -26.36 Pass 2480 1 -6.36 -26.36 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C6…

Text truncated - open the document above for the full version.
