HBOUB4506CH 2.4GHZ FHSS RADIO CONTROL SYSTEM

Thank you for choosing the Headset. Please read this manual carefully before using and keep it for future reference. Sports stereo headset version 4.0 Charging means: power adapter output (DC5V 150mAh) Battery: high-capability rechargeable lithium polymer battery RF power: class 2 Profiles: Headset, Handsfree, A2DP, AVRCP, APT-X Talk time: up to 8 hours Playing time: up to 8 hours Standby time: up to 180 hours Keep the unit away from high temperature and high humidity. Do not disassemble, modify or attempt to repair the unit. 1× UB450 Sports Stereo Headset 1× USB charger Cable 4× Ear rubber 2× Ear hook (Remark:UB450 is with middle size rubbers and ear hooks.) 12345 Important Safety Instructions UB450 User Manual Sports Stereo Headset Accessories List Product Description Please keep or use this product at normal temperature; Do not expose this product in rain or moisture; Do not throw this product to aviod any damage; Do not disassemble, repair or reform this product; Do not clean this product with any chemical solvents; Please use USB power of DC5V for output when needed; Do not throw away or put it in high temperature(higher than 60) fire to avoid any danger. This product can accept audio file from any devices like mobile phones, notebooks. When being connected to DONGLE on PC, it can play any audio files on the computer. You can use it for voice chat to achieve wireless QQ.MSN.SKYPE. Cautions Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARRANTY TERMS & CONDITIONS ******************************************** The warranty will be effective only if the warranty card is completed and returned to the company within 14 days from the date of purchase.We guarantee the provision of free services of the product within the warranty period, from its date of purchase from our Authorised Dealer. The period and conditions of our warranty service are as follow: 1. The warranty covers services by our Authorised Dealer. This warranty card together with the receipt must be presented when servicing is required. This warranty card is irreplaceable in the event of loss. 2. Repair services will be provided for defects arising from normal usage for the following period, commencing from the date of purchase from our Authorised Dealer. (Parts would be replaced when necessary) A. Parts:.................................... 1 year B. Technical service free............... 1 year 3. Under the following circumstances, service and parts will be chargeable even within the warranty period: A. Failure to present the warranty card and receipt when servicing is required. Full particulars not clearly shown or alterations made against the actual information. For e.g.: Alteration of the date of purchase, serial numbers-altered or removed. B. This unit being tampered with, altered in any way by any unauthorised technicians or which has been subjected to misuse, negligence or accident. This guarantee does not cover damage occuring in transit by or from the cumtomer. C. The defect is caused by the attack of household pests, fire, lighting, natural disasters, pollution,abnormal voltage or the usage of generator. NFC L FCC ID:HBOUB450 Bluetooth ® Bluetooth ® Bluetooth ® Bluetooth ® Bluetooth ® Bluetooth ® Bluetooth ® Bluetooth ® WARNING • If water or other foreign objects enter the inside of the device, fire or electric shock may result. • Do not attempt to modify this product. Doing so could result in personal injury and/or product failure. CAUTION • Never disassemble or modify the device, as failures may result. • Do not subject to extreme force and do not pull on the cable or failures may result. • Keep the product dry and avoid exposure to extreme temperatures and humidity. hotncold Bluetooth Stereo Headset SHENZHEN FENDA TECHNOLOGY CO., LTD. FCC RF warning statement: the device has been evaluated to meet general RF exposure requirement , The device can be used in portable exposure condition without restriction. DISTRIBUTOR’S COPY WARRANTY REGISTRATION CERTIFICATE **************************************************** Mr./Mrs/Ms First Name: Last Name: Address Contact No.: Product Name: Model No.: Serial No.: Date Purchased: Invoice No.: Retail Outlet Where Purchased: (Please print the name & address) 76891011 Power On: Long press “MFB” for 2 seconds until the blue indicator light flashes. Power off : With the headset on, long press “MFB” for 3 seconds, the red indicator light flashes 2 seconds and goes off. Answering a call : Press the answer key on your phone or short press “MFB”…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 SHENZHEN FENDA TECHNOLOGY CO., LTD. 2015-11-17 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____ SHENZHEN FENDA TECHNOLOGY CO., LTD.__ _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： Bluetooth Stereo Headset Trade Name： hotncold Model Name： UB450 Serial Model： N/A FCC ID： HBOUB450 Sincerely, Signature Client’s name / title : frank Chenzhonghua / Engineer Contact information / address : Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City,Guangdong,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 5.0 SHENZHEN FENDA TECHNOLOGY CO., LTD. 2015-11-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: HBOUB450 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Client’s name / title : frank Chenzhonghua / Engineer Contact information / address : Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City,Guangdong,China

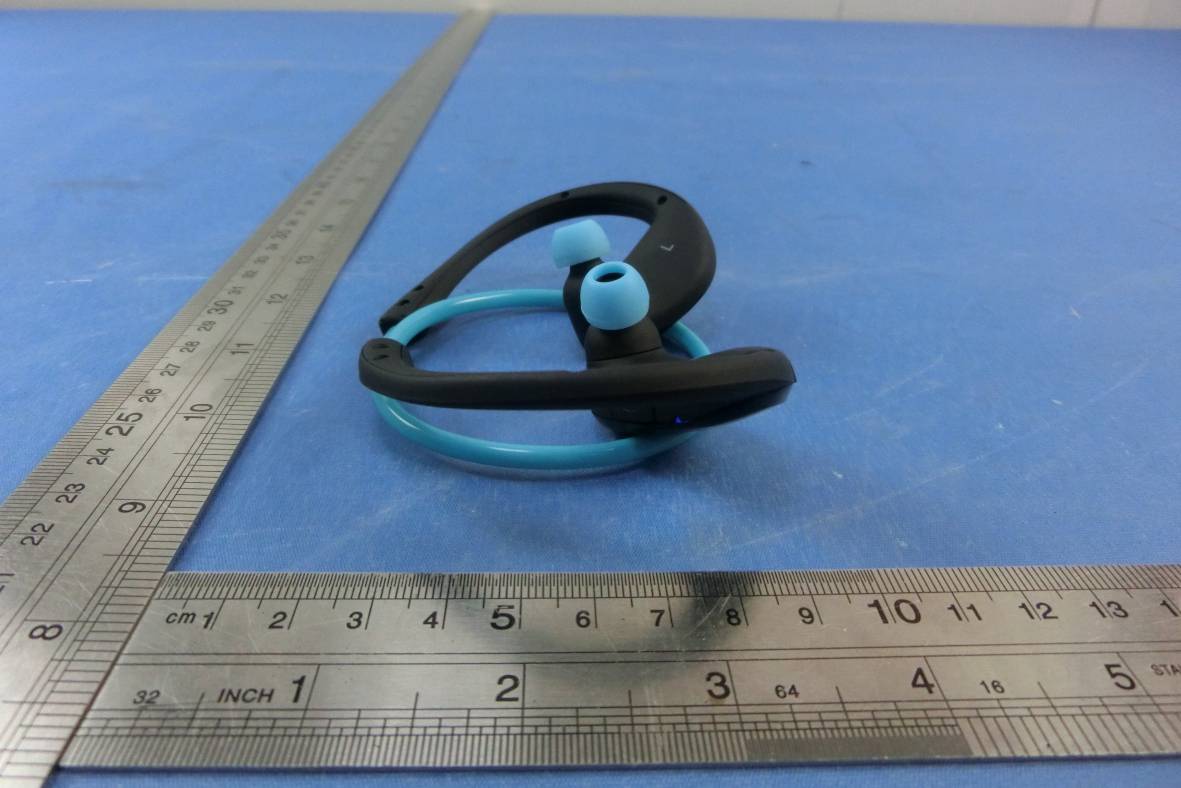

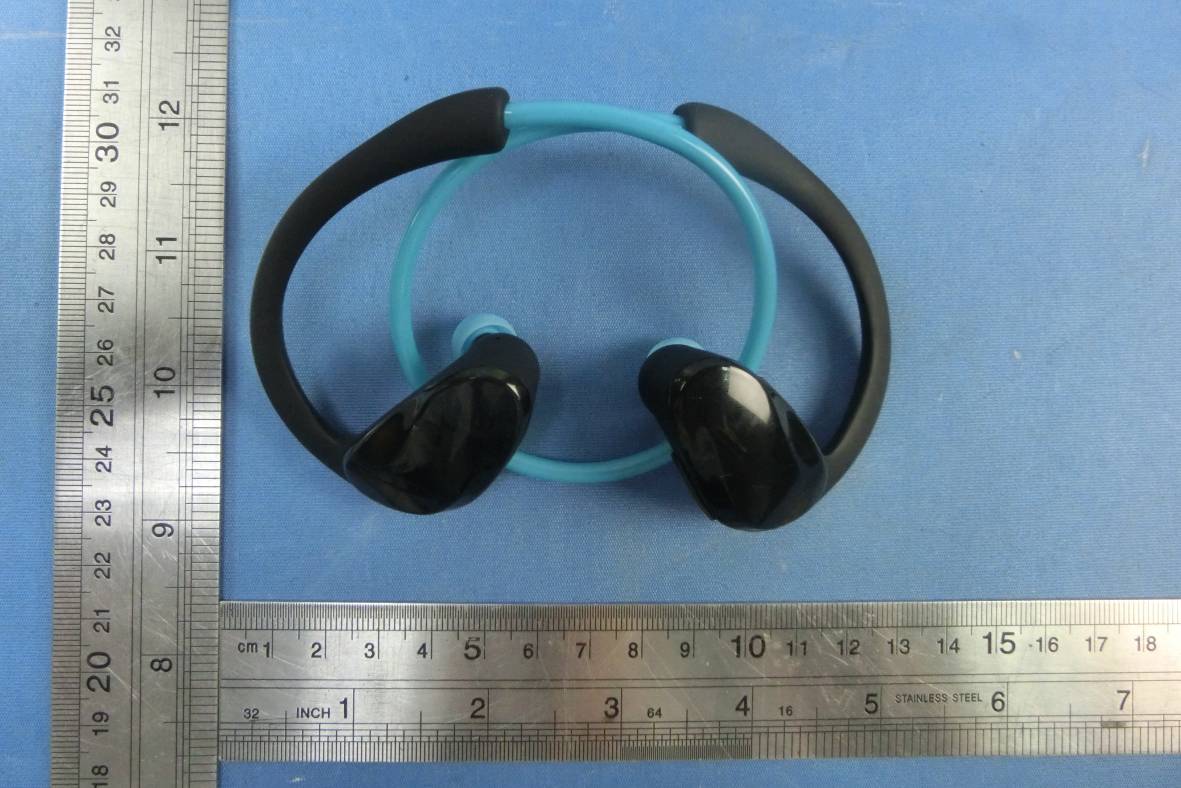

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 BT ANT Photo 3 Photo 4

FCC ID: HBOUB450 RF EXPOSURE EVALUATION METHOD FCC ID:HBOUB450 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT 3.0 1Mbps Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 -0.33 0.927 CH39 2441 1.02 1.265 CH78 2480 1.43 1.390 2Mbps CH00 2402 -1.21 0.757 CH39 2441 0.28 1.067 CH78 2480 0.86 1.219 3Mbps CH00 2402 -1.21 0.757 CH39 2441 0.29 1.069 CH78 2480 0.86 1.219 BLE Te s t Channe Frequency Maximum Conducted Output Power(PK) LIMIT (MHz) (dBm) mW CH00 2402 2.03 1.596 CH19 2440 2.33 1.710 CH39 2480 2.58 1.811 Remark: The best case gain of the antenna is 1.0dBi. FCC ID: HBOUB450 1.0 dBi logarithmic terms convert to numeric result is nearly 1.26 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] BT 3.0 Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit 1Mbps CH00 -0.5~1.5 1.5 1.413 5 2.402 0.438 3 CH39 -0.5~1.5 1.5 1.413 5 2.441 0.441 3 CH78 -0.5~1.5 1.5 1.413 5 2.480 0.445 3 2Mbps CH00 -3~-1 -1 0.794 5 2.402 0.246 3 CH39 -1~1 1 1.259 5 2.441 0.393 3 CH78 -1~1 1 1.259 5 2.480 0.397 3 3Mbps CH00 -1.5~0.5 0.5 1.122 5 2.402 0.348 3 CH39 -1.5~0.5 0.5 1.122 5 2.441 0.351 3 CH78 -1.5~0.5 0.5 1.122 5 2.480 0.353 3 BLE Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit CH00 1~3 3 1.995 5 2.402 0.618 3 CH39 1~3 3 1.995 5 2.441 0.623 3 CH78 1~3 3 1.995 5 2.480 0.628 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

FCC RADIO TEST REPORT-BT FCC ID:HBOUB450 Product： Bluetooth Stereo Headset Trade Name： hotncold Model Name： UB450 Serial Model： N/A Report No.： NTEK-2015DC1027001F2 Prepared for SHENZHEN FENDA TECHNOLOGY CO., LTD. Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City,Guangdong,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 73 Report No.:NTEK-2015DC1027001F2 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN FENDA TECHNOLOGY CO., LTD. Address ................................. : Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City,Guangdong,China Manufacture's Name ............ : SHENZHEN FENDA TECHNOLOGY CO., LTD. Address ................................. : Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City,Guangdong,China Product description Product name ........................... : Bluetooth Stereo Headset Model and/or type reference : UB450 Serial Model： N/A Standards ............................. : FCC Part15.247: 01 Oct. 2015 Test procedure .............................. ANSI C63.10-2013 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 27 Oct. 2015 ~30 Oct. 2015 Date of Issue ........................................... : 30 Oct. 2015 Test Result ............................................... : Pass Testing Engineer : (Susan Su) Technical Manager : (Brown Lu) Authorized Signatory : (Sam Chen) Page 3 of 73 Report No.:NTEK-2015DC1027001F2 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 23 3.2.1 RADIATED EMISSION LIMITS 23 3.2.2 TEST PROCEDURE 24 3.2.3 DEVIATION FROM TEST STANDARD 24 3.2.4 TEST SETUP 25 3.2.5 EUT OPERATING CONDITIONS 26 3.2.6 TEST RESULTS (BELOW 30 MHZ) 27 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 28 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 30 4 . NUMBER OF HOPPING CHANNEL 31 4.1 APPLIED PROCEDURES / LIMIT 31 4.1.1 TEST PROCEDURE 31 4.1.2 DEVIATION FROM STANDARD 31 4.1.3 TEST SETUP 31 4.1.4 EUT OPERATION CONDITIONS 31 4.1.5 TEST RESULTS 32 5 . AVERAGE TIME OF OCCUPANCY 33 5.1 APPLIED PROCEDURES / LIMIT 33 Page 4 of 73 Report No.:NTEK-2015DC1027001F2 Table of Contents Page 5.1.1 TEST PROCEDURE 33 5.1.2 DEVIATION FROM STANDARD 33 5.1.3 TEST SETUP 34 5.1.4 EUT OPERATION CONDITIONS 34 5.1.5 TEST RESULTS 35 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 41 6.1 APPLIED PROCEDURES / LIMIT 41 6.1.1 TEST PROCEDURE 41 6.1.2 DEVIATION FROM STANDARD 41 6.1.3 TEST SETUP 41 6.1.4 EUT OPERATION CONDITIONS 41 6.1.5 TEST RESULTS 42 7 . BANDWIDTH TEST 48 7.1 APPLIED PROCEDURES / LIMIT 48 7.1.1 TEST PROCEDURE 48 7.1.2 DEVIATION FROM STANDARD 48 7.1.3 TEST SETUP 48 7.1.4 EUT OPERATION CONDITIONS 48 7.1.5 TEST RESULTS 49 8 . PEAK OUTPUT POWER TEST 55 8.1 APPLIED PROCEDURES / LIMIT 55 8.1.1 TEST PROCEDURE 55 8.1.2 DEVIATION FROM STANDARD 55 8.1.3 TEST SETUP 55 8.1.4 EUT OPERATION CONDITIONS 55 8.1.5 TEST RESULTS 56 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 62 9.1 DEVIATION FROM STANDARD 62 9.2 TEST SETUP 62 9.3 EUT OPERATION CONDITIONS 62 9.4 TEST RESULTS 63 10 . ANTENNA REQUIREMENT 71 10.1 STANDARD REQUIREMENT 71 10.2 EUT ANTENNA 71 11 . EUT TEST PHOTO 72 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 73 Report No.:NTEK-2015DC1027001F2 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 73 Report No.:NTEK-2015DC1027001F2 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 73 Report No.:NTEK-2015DC1027001F2 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth Stereo Headset Trade Name hotncold Model…

Text truncated - open the document above for the full version.

Page 72 of 73 Report No.:NTEK-2015DC1027001F2 11. EUT TEST PHOTO Radiated Measurement Photos Page 73 of 73 Report No.:NTEK-2015DC1027001F2 CONDUCTED EMISSION Photos
