HBOV400Rugged Speaker

Rugged Speaker Quick Start Guide We’d love to hear from you. Scan with your Walmart app and let us know what you think. What’s in the Box? Get to Know Your Rugged Speaker Power Bluetooth® Connection Quick Start Guide TM 12 3 4 1. Bluetooth Speaker 2. Strap 3. Quick Sart Guide 4. Charging Cable Check to make sure you have everything below. Aux Connection Answer calls The Party Sync Mode also applied to another onn speaker. Party Sync Mode But Wait ... There's More! The Fine PrintThe Fine Print to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 3.The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. 4. Rating Lable is located at the bottom of the product. 1. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equip- ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference USER MANUAL INSERTS FOR FCC ID Long press to power on / off the speaker 80mm 80mm 80mm ON/OFF 2 s > 1 s < 3 s > Activate the Bluetooth function on your device and search Bluetooth devices, then select “onn. Rugged LG GRY” to start connecting. onn. Rugged LG GRY Use a 3.5mm cable (not included) to connect the speaker to another audio source. Press Play on the device and adjust the volume on the unit to obtain the desired volume. (not included) 3 s > Short press to answer the call Long press to reject the call Power on one speaker and hold Bluetooth button 3 seconds to enter into pairing mode, this device will be the master. The second device will connect automatically to the master when turned on. After the two speakers are paired together, use your mobile device to pair with the master speaker utilizing the Bluetooth pairing method. TWS Need help? We're here for you every day 7 a.m. – 9 p.m. CST. 1-888-516-2630 Give us a call! 1. Power switch 2. Volume down/Previous track 3. Light theme 4. Play/Pause/Mute 5. Bluetooth 6. Volume up/Next track 7. Aux in 8. Output charging port 9. Input charging port Top Back 7 8 9 2 1 46 35 AAAGRY100006896 6 81 1 31 30995 0 7

SHENZHEN FENDA TECHNOLOGY CO., LTD Agent Authorization Company: SHENZHEN FENDA TECHNOLOGY CO., LTD Address: Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China. Product Name: Rugged Speaker Model Number(s): AAAGRY100006896 Product Description: Rugged Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2019/12/24 Name: frank Chenzhonghua Title: engineer Company: SHENZHEN FENDA TECHNOLOGY CO., LTD

< SHENZHEN FENDA TECHNOLOGY CO., LTD > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2019/12/24 Subject; Request for Confidentiality FCC ID: HBOV400 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: frank Chenzhonghua Title: engineer Email: [email protected]

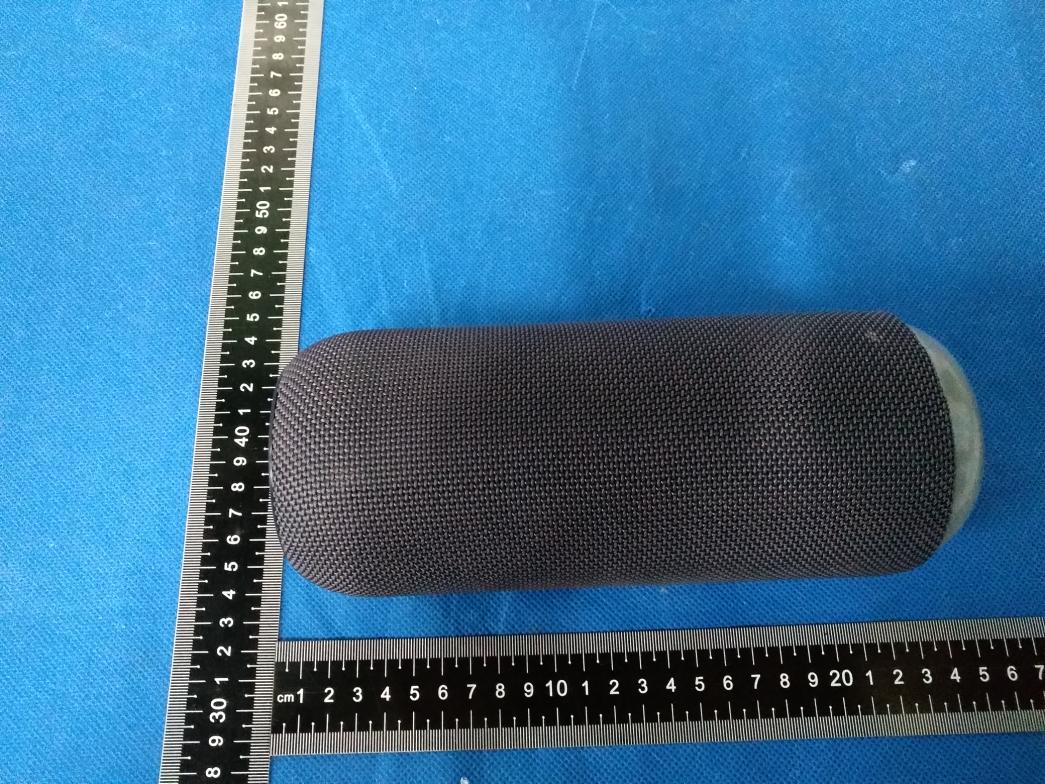

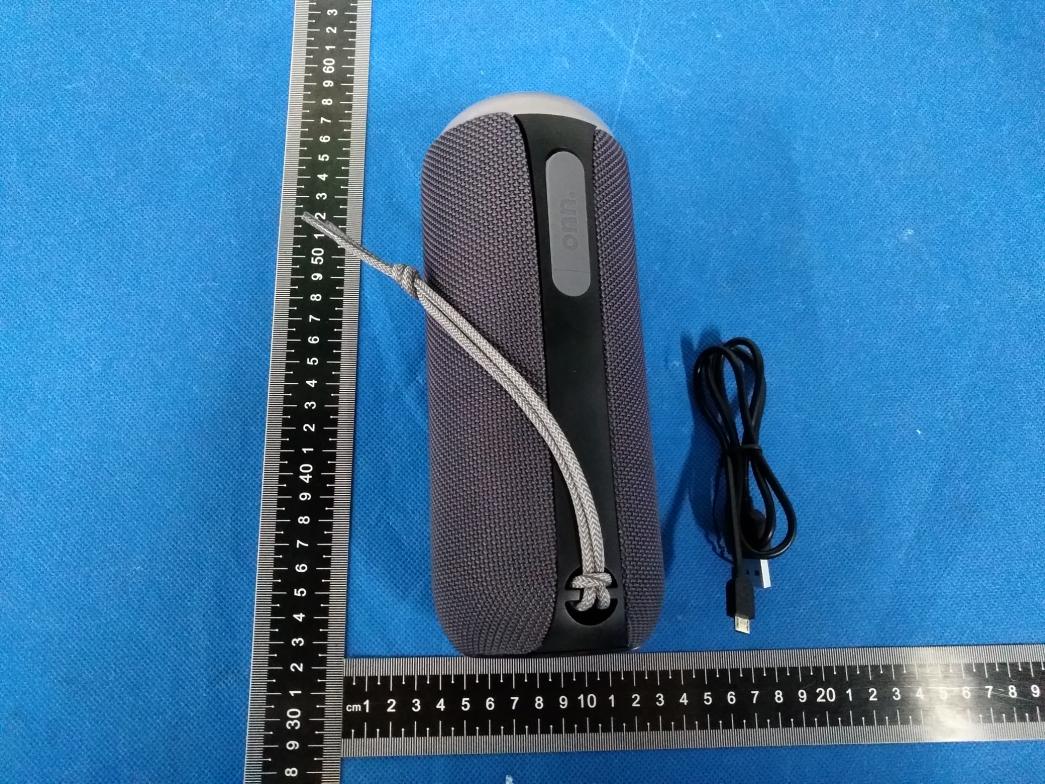

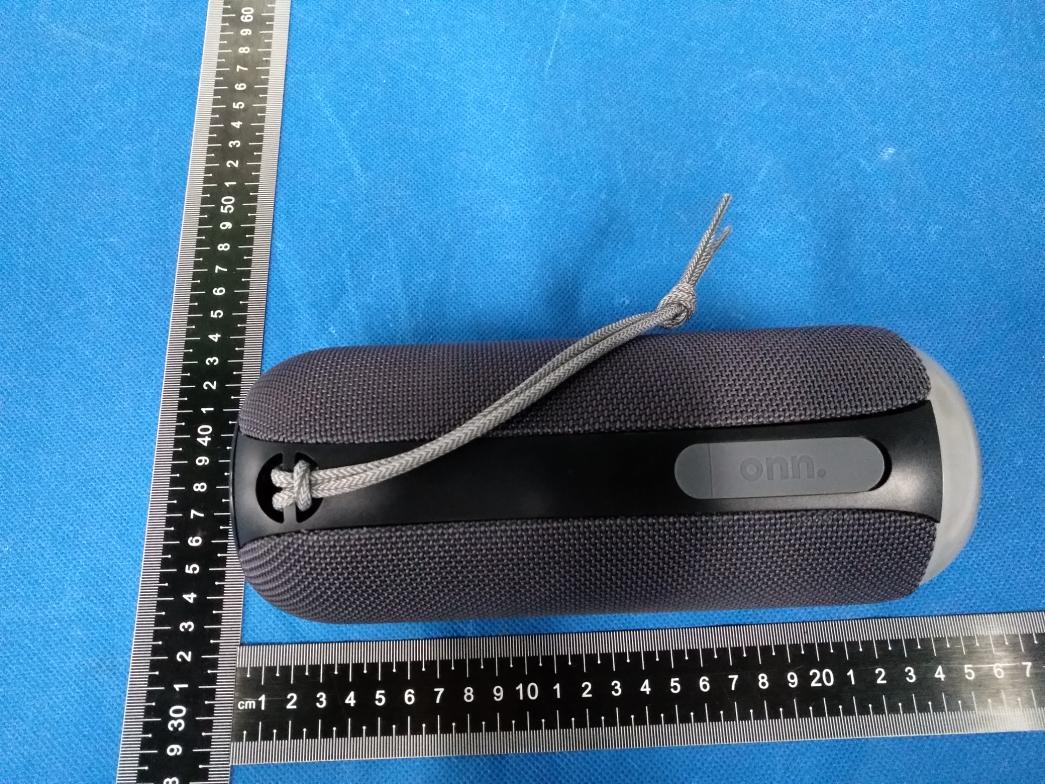

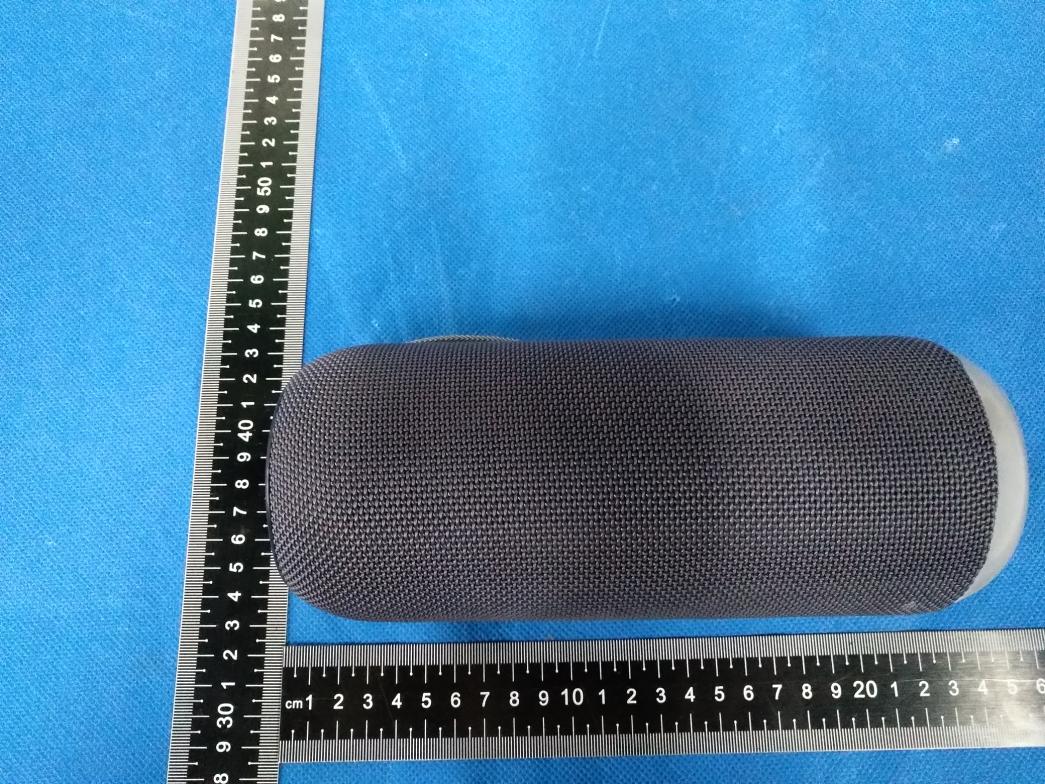

S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 1 Photo 2 S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 3 Photo 4 S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 5 Photo 6 S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 7 Photo 8

文字模具凹刻（除2003A镭雕外） O p s . e l e r a u t i Ro n C i C s F s e u hb t j f e c o t 5 t 1 o t t r h a e P f o h t l i l o w w s i n e i l g p t w m o o c c o e c n i d v i e t i d o n s i s h : T a n y p t e i n c c t e a r t f e s r u e n m c e e c i r e v c e e d i v s i e hd t , ) i n 2 ( c l u d d n i n a g , e i n c t n e e r r f e e f r r e e n t c n i e l t u h f a m t r m a h a y e s c u a a u c s t e o u n n y d a e s m i r e e c d i v o e p d e s r i a h t t o i ) 1 n ( . H B O ：V D 4 I 0 C 0 C I N F P 6 U 9 T 8 : 6 5 0 V 0 0 0 2 1 A Y R M G a A d e A i A n : L C E h Di n O a M 2003A O p s . e l e r a u t i Ro n C i C s F s e u hb t j f e c o t 5 t 1 o t t r h a e P f o h t l i l o w w s i n e i l g p t w m o o c c o e c n i d v i e t i d o n s i s h : T a n y p t e i n c c t e a r t f e s r u e n m c e e c i r e v c e e d i v s i e hd t , ) i n 2 ( c l u d d n i n a g , e i n c t n e e r r f e e f r r e e n t c n i e l t u h f a m t r m a h a y e s c u a a u c s t e o u n n y d a e s m i r e e c d i v o e p d e s r i a h t t o i ) 1 n ( . H B O ：V D 4 I 0 C 0 C I N F P 6 U 9 T 8 : 6 5 0 V 0 0 0 2 1 A Y R M G a A d e A i A n : L C E h Di n O a M 2003A

S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 1 Photo 2 S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 3 Photo 4 S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 5 Photo 6 S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 7 Photo 8 BT ANT S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 9 Photo 10 S19112900302 Model: AAAGRY100006896 N20191017V1 Photo 11

FCC ID: HBOV400 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: •f(GHZ) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BR+EDR: Antenna Type: PCB Antenna Antenna Gain: 0.5 dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.402-0.32 0.9290±11.01.259<50.39023 3.00YES 2.441-0.17 0.9620±11.01.259<50.39338 3.00YES 2.4800.02 1.0050±11.01.259<50.39651 3.00YES 2.4021.97 1.5742±13.01.995<50.61847 3.00YES 2.4412.36 1.7222±13.01.995<50.62347 3.00YES 2.4802.78 1.8972±13.01.995<50.62843 3.00YES 2.4022.59 1.8163±14.02.512<50.77860 3.00YES 2.4413.07 2.0283±14.02.512<50.78490 3.00YES 2.4803.39 2.1833±14.02.512<50.79114 3.00YES GFSK π/4- DQPSK 8DPSK Conclusion: For the max result : 0.79114≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2019- 12-28 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S19112900302001 Version.1.2 Page 1 of 52 RADIO TEST REPORT FCC ID: HBOV400 Product: Rugged Speaker Trade Mark: Model No.: AAAGRY100006896 Family Model: N/A Report No.: S19112900302001 Issue Date: 11 Dec. 2019 Prepared for SHENZHEN FENDA TECHNOLOGY CO., LTD. Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S19112900302001 Version.1.2 Page 2 of 52 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGUR AT I O N OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 27 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 31 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 35 7.7 PEAK OUTPUT POWER .............................................................................................................................. 39 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 43 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 47 7.10 ANTENNA APPLICATION .......................................................................................................................... 51 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS .............................................. 52 Report No.: S19112900302001 Version.1.2 Page 3 of 52 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : SHENZHEN FENDA TECHNOLOGY CO., LTD. Address ....................................... : Fenda Hi-Te c h P ark, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China Manufacturer's Name .................. : SHENZHEN FENDA TECHNOLOGY CO., LTD. Address ....................................... : Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China Product description Product name .............................. : Rugged Speaker Model and/or type reference ..... : AAAGRY100006896 Family Model ............................... : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate only to the tested sample identified in this report. Date of Test : 30 Nov. 2019 ~ Dec 11, 2019 Testing Engineer : (Mary Hu) Technical Manager : (Jason Chen) Authorized Signatory : (Sam Chen) Report No.: S19112900302001 Version.1.2 Page 4 of 52 2 SUMMARY OF TEST RESULTS FCC Part15 (15.247), Subpart C Standard Section Test Item Verdict Remark 15.207 Conducted Emission PASS 15.209 (a) 15.205 (a) Radiated Spurious Emission PASS 15.247(a)(1) Hoppi…

Text truncated - open the document above for the full version.

FCC ID: HBOV400 Radiated Measurement Photos FCC ID: HBOV400 Conducted Measurement Photos
