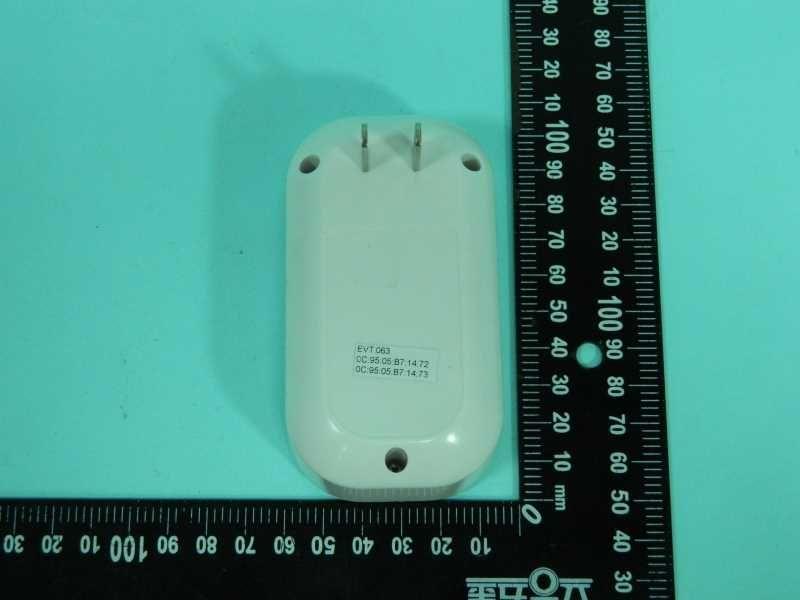

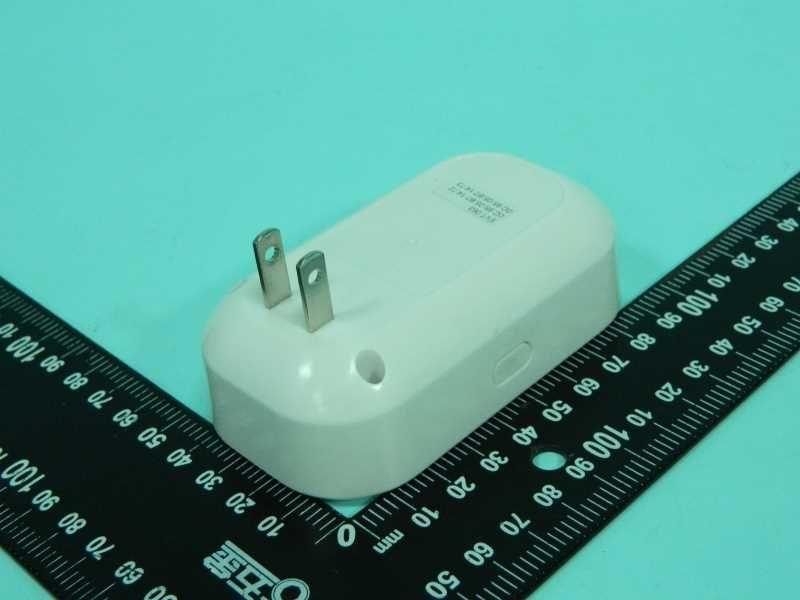

HBWCHM1Wireless Chime

Wireless Chime User Manual Thank you for purchasing our products. Please review this manual thoroughly before operating your device. All pictures in this manual are for illustration purposes only. Actual product may vary. Model: MYQW11AXXW 2 WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. WARNING: Risk of electric shock. This device is intended for indoor use only. Plug directly into a standard 120 V AC outlet. Do not use with extension cords, power strips, or in locations where it may be exposed to water or excessive moisture. Contents 1 Overview 3 2 Setup Instructions 4 3 Using Your Chime 5 4 LED Indicator Guide 5 5 Troubleshooting 5 6 Product Specifications 6 7 Additional Resources 7 Warnings & Safety 3 1 Overview myQ Chime The myQ® Chime is designed to enhance home convenience by offering wireless connectivity with compatible myQ devices, allowing users to receive audible and visual notifications without the need for traditional doorbell wiring. It features multiple adjustable volume levels, including a snooze option, to suit different environments and preferences. The chime supports a variety of tone options and provides visual LED alerts for added accessibility. Its plug-and-play setup makes installation effortless, and the device can be easily configured through the myQ app. Additionally, multiple chimes can be used throughout the home, ensuring that alerts are heard in any room where coverage is needed. Device Overview Part Description LED Indicator Shows connection, power, and status Reset Button Initiates setup or reset process Speaker Plays chime sounds Mount Type Plug into wall outlet LED Indicator Reset Button Speaker 4 2 Power the device on. 4 Customize the settings. 2 Setup Instructions 1 Scan the QR code on the back of your device to begin pairing the device with the myQ app. If scanning the QR code does not work, open the myQ app and navigate to Menu > Device Management > Add New Device > Accessory > Chime Plug the Chime into a wall outlet. The LED will blink blue, indicating it is ready to pair. Follow the on-screen instructions to complete the setup and pairing with desired devices. Select your preferred tone, volume, and LED behavior. 3 Finish set up. 5 3 Using Your Chime Once paired and configured: ♦ The chime will emit a tone and/or flash its LED light based on the configuration in your myQ app. ♦ You can add multiple chimes to cover different rooms or zones in your home. ♦ The chime can be silenced temporarily using the Snooze setting in the app. 4 LED Indicator Guide What You See What It Means Solid White Device is booting Blinking Blue Ready to pair Solid Blue Bluetooth connected Alternating Blue/Green Connecting to Wi-Fi Blinking Green Connecting to myQ app Solid Green Successfully connected to myQ app Blinking Magenta Firmware update in progress Pulsing Blue Chime active/tone playing when enabled Solid Red Factory reset No Light Powered off or LED disabled in myQ app 5 Troubleshooting If your myQ Chime does not work as expected, follow the troubleshooting steps below. Reset Wi-Fi If your myQ Chime cannot connect to the Wi-Fi, you may need to update your Wi-Fi settings. To reset the Wi-Fi password on your myQ Chime, press and hold the button on the side until you see a solid blue LED light, then release the button to enter Setup mode. The myQ app will then ask for your Wi-Fi credentials. Factory Reset A factory reset can be useful if you are planning to give your myQ Chime to someone else. Factory reset will wipe all the settings from memory and return it to a completely blank state. To factory reset your myQ Chime, press and hold the reset button until you see a solid red LED light, then release the button to factory reset your device. The device will return to its factory settings. Refer to the setup steps to setup your device. Issue Solution No sound • Make sure the volume is not muted in the myQ app. • Make sure Snooze has not been enabled. 6 Issue Solution LED is not on • Make sure the Chime is plugged all the way into the wall outlet. • Make sure LED status light is enabled in the app. When the product is in Enabled mode the Status LED will always be on, play the doorbell LED, etc. When the product is in Disabled mode the Status LED will only turn on to show connection status, then turn off after a few seconds. It will not play the doorbell LED. Chime does not con- nect to Wi-Fi • The connection may have timed out; try connecting again. • The Wi-Fi signal may be weak in the Chime’s location; move the device closer to your Wi-Fi router and try connecting again. Constant alternating blue/green LED • The Chime has lost the Wi-Fi signal; unplug the device, wait 10 seconds, then plug it back in. You may need to re-pair it with your Wi-Fi. 6 Product Specifications ♦ Power: AC Input 100-240V~, 50/60Hz, 1A ♦ Connectivity: 2.4 GHz Wi-Fi only ♦ Operating Temperature: 32°F – 113°F (0°C – 45°C) ♦ Indoor/Outdoor Rating: Indoor use only ♦ Mounting: Wall outlet 7 WARNING: This product can expose you to chemicals to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. 7 Additional Resources Software Agreement Use of this product and the software embedded within the product are subject to the copyright notices, terms, and conditions accessible in the myQ App. Open the App Menu and select Help, and then License and Terms of Use for more information. Need Help? Go to: support.chamberlaingroup.com. One Year Limited Warranty The Chamberlain Group LLC (“Seller”) warrants to the first consumer purchaser of this product that it is free from defect in materials and/or workmanship for a period of 1 year from the date of purchase. Because Seller cannot control the quality of products sold by unauthorized sellers, this limited warranty applies only to Product…

Text truncated - open the document above for the full version.

Date: 2025-08-29 System Check_Head_2450MHz DUT: D2450V2 - SN929 Communication System: CW; Frequency: 2450.000 MHz; Duty Cycle: 1:1 Medium: HSL_2450_250829 Medium parameters used: f= 2450.000 MHz; σ= 1.82 S/m; ε r = 40.1 Ambient Temperature: 23.5°C; Liquid Temperature: 22.5°C DASY8 Configuration: - Probe: EX3DV4 - SN7785; ConvF(6.25, 6.58, 6.44); Calibrated: 2024-11-28 - Sensor-Surface: 1.4 mm - Electronics: DAE4 Sn376; Calibrated: 2025-05-06 - Phantom: Twin-SAM V8.0 (30deg probe tilt); Serial: 2126; Section: Flat - Measurement Software: 16.4.0.5005 - UID: CW, 0-- Pin=17.0dBm/Area Scan (40.0 mm x 80.0 mm): Measurement Grid: 10.0 mm x 10.0 mm SAR (1g) = 2.35 W/kg; SAR (10g) = 1.12 W/kg; Pin=17.0dBm/Zoom Scan (30.0 mm x 30.0 mm x 31.2 mm): Measurement Grid: 5.0 mm x 5.0 mm x 1.5 mm Power Drift = 0.01 dB SAR (1g) = 2.34 W/kg; SAR (8g) = 1.22 W/kg; SAR (10g) = 1.11 W/kg Smallest distance from peaks to all points 3 dB below = 9.0 mm Ratio of SAR at M2 to SAR at M1 = 82.8 % Appendix AReport No.: FA580726 Page1/1

Test Photos Appendix G Sporton International Inc. Page No. : G1 of G4 1. Photographs of Conducted Emissions Test Configuration Front view Side view Report No. : FR580726AL Test Photos Appendix G Sporton International Inc. Page No. : G2 of G4 Under table view Report No. : FR580726AL Test Photos Appendix G Sporton International Inc. Page No. : G3 of G4 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Report No. : FR580726AL Test Photos Appendix G Sporton International Inc. Page No. : G4 of G4 For radiated emissions above 1GHz Front view Rear view ─────THE END───── Report No. : FR580726AL

Test Photos Appendix G Sporton International Inc. Page No. : G1 of G4 1. Photographs of Conducted Emissions Test Configuration Front view Side view Report No. : FR580726AC Test Photos Appendix G Sporton International Inc. Page No. : G2 of G4 Under table view Report No. : FR580726AC Test Photos Appendix G Sporton International Inc. Page No. : G3 of G4 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Report No. : FR580726AC Test Photos Appendix G Sporton International Inc. Page No. : G4 of G4 For radiated emissions above 1GHz Front view Rear view ─────THE END───── Report No. : FR580726AC

Page : D1 of D1 FCC SAR TEST REPORT Report No. :FA580726 Appendix D. SAR Test Setup Photos Head Exposure Condition Front at 10mm Hand Condition Right Edge at 0 mm Left Edge at 0 mm Top Edge at 0 mm Bottom Edge at 0 mm

FCC Radio Test Report Report No. : FR580726AL TEL : 886-3-3273456 Page Number : 1 of 24 FAX : 886-3-3270973 Issued Date : Sep. 23, 2025 Report Template No.: HE1-C10 Ver4.4 Report Version : 01 FCC ID: HBWCHM1 FCC Radio Test Report FCC ID : HBWCHM1 Equipment : Wireless Chime Brand Name : myQ Model Name : MYQW11AXXW Applicant : The Chamberlain Group LLC 300 Windsor Drive, Oak Brook, IL. 60523 Manufacturer : The Chamberlain Group LLC 300 Windsor Drive, Oak Brook, IL. 60523 Standard : 47 CFR FCC Part 15.247 The product was received on Aug. 08, 2025, and testing was started from Aug. 21, 2025 and completed on Aug. 27, 2025. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. : FR580726AL TEL : 886-3-3273456 Page Number : 2 of 24 FAX : 886-3-3270973 Issued Date : Sep. 23, 2025 Report Template No.: HE1-C10 Ver4.4 Report Version : 01 FCC ID: HBWCHM1 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 Test Channel Mode ................................................................................................................................ 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 9 2.3 Support Equipment ............................................................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 DTS Bandwidth..................................................................................................................................... 14 3.3 Maximum Conducted Output Power .................................................................................................... 15 3.4 Power Spectral Density ........................................................................................................................ 17 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 18 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 19 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 23 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF DTS BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX F. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX G. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Radio Test Report Report No. : FR580726AL TEL : 886-3-3273456 Page Number : 3 of 24 FAX : 886-3-3270973 Issued Date : Sep. 23, 2025 Report Template No.: HE1-C10 Ver4.4 Report Version : 01 FCC ID: HBWCHM1 History of this test report Report No. Version Description Issued Date FR580726AL 01 Initial issue of report Sep. 23, 2025 FCC Radio Test Report Report No. : FR580726AL TEL : 886-3-3273456 Page Number : 4 of 24 FAX : 886-3-3270973 Issued Date : Sep. 23, 2025 Report Template No.: HE1-C10 Ver4.4 Report Version : 01 FCC ID: HBWCHM1 Summary of Test Result Report Clause Ref.Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements…

Text truncated - open the document above for the full version.

FCC Radio Test Report Report No. :FR580726AC TEL : 886-3-3273456 Page Number : 1 of 24 FAX : 886-3-3270973 Issued Date : Sep. 23, 2025 Report Template No.: HE1-C8 Ver4.5 Report Version : 01 FCC ID: HBWCHM1 FCC Radio Test Report FCC ID : HBWCHM1 Equipment : Wireless Chime Brand Name : myQ Model Name : MYQW11AXXW Applicant : The Chamberlain Group LLC 300 Windsor Drive, Oak Brook, IL. 60523 Manufacturer : The Chamberlain Group LLC 300 Windsor Drive, Oak Brook, IL. 60523 Standard : 47 CFR FCC Part 15.247 The product was received on Aug. 08, 2025, and testing was started from Aug. 20, 2025 and completed on Aug. 27, 2025. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. :FR580726AC TEL : 886-3-3273456 Page Number : 2 of 24 FAX : 886-3-3270973 Issued Date : Sep. 23, 2025 Report Template No.: HE1-C8 Ver4.5 Report Version : 01 FCC ID: HBWCHM1 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 Test Channel Mode ................................................................................................................................ 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 9 2.3 Support Equipment ............................................................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 DTS Bandwidth..................................................................................................................................... 14 3.3 Maximum Conducted Output Power .................................................................................................... 15 3.4 Power Spectral Density ........................................................................................................................ 17 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 18 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 19 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 23 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF DTS BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX F. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX G. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Radio Test Report Report No. :FR580726AC TEL : 886-3-3273456 Page Number : 3 of 24 FAX : 886-3-3270973 Issued Date : Sep. 23, 2025 Report Template No.: HE1-C8 Ver4.5 Report Version : 01 FCC ID: HBWCHM1 History of this test report Report No. Version Description Issued Date FR580726AC 01 Initial issue of report Sep. 23, 2025 FCC Radio Test Report Report No. :FR580726AC TEL : 886-3-3273456 Page Number : 4 of 24 FAX : 886-3-3270973 Issued Date : Sep. 23, 2025 Report Template No.: HE1-C8 Ver4.5 Report Version : 01 FCC ID: HBWCHM1 Summary of Test Result Report Clause Ref. Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and explanations: None Revie…

Text truncated - open the document above for the full version.

FPC Antenna 2.4 ~2.5GHz Working Frequency P/N: RFFPA301808IMAB301 Customer： Primax Electronics Ltd. Customer ‘s Part No.： 690800024600 Production： 禾邦电子（苏州）有限公司 INPAQ TECHNOLOGY(SUZHOU) CO., LTD Address： 中國江苏省无锡市锡山区安泰一路81号 No.81, Antai 1st Road, Xishan District, Wuxi, Jiangsu, China Part Number：RFFPA301808IMAB301 History List REV. EDITOR PAGE ITEMS OF CHANGE DATE VALID DATE ECN NO. P0 CXLIU ALL Temporary Release 2025/07/22 According to the date of PLM Release N/A INPAQ TECHNOLOGY CO., LTD 2025/07/22 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：林育帆 APPROVED BY：陳振榮 TITLE：RFFPA301808IMAB301 DOCUMENT SPEC REV. NO. P0 PAGE 1 OF 11 品名：RFFPA301808IMAB301 1. Explanation of part number： RF FPA 3018 08 I M A B 3 01 Type Code Product Code FPCB Dimension (Unit: mm) Cable Length (unit: cm) Connector Brand Type of Connector Application Project status Wire Diameter Project RF Device FPA: FPCB Antenna Per 2 digits of length, width e.g.: 3018 Length 30mm, Width 18mm 2 digits for cable length e.g.: 08 Cable Length:8cm A: N C:MCX D:IPEX III E: IPEX IV F: IPEX A13 H: Hirose I: IPEX M: MMCX S: SMA T: TNC U:MURATA N: None A: Reverse Female B: Reverse Male F: Female M: Male N: None 0: 0GHz 3: 3GHz 5: 5 GHz 6: 6GHz A: 2.4GHz ISM band B: GSM 900/1800 dual band G: GPS band L: 2.4/5.2/5.8 GHz tri-band N: NFC T:LTE band W: WCDMA band B: MP T:During Test X: Pile Run 0:None 1:∅0.81 3:∅1.13 6:RG316 7:∅1.37 8:RG178 01~99 series number 2. Electrical Specification： Item Specification Working Frequency Range 2.4 ~ 2.5GHz (Note-1) Return Loss -10dB(Max) VSWR 2 max. Peak Gain 1.35 dBi Polarization Linear Radiation Pattern Omni-directional Impedance 50 Operation Temperature －20°C ～ ＋65°C INPAQ TECHNOLOGY CO., LTD 2025/07/22 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：林育帆 APPROVED BY：陳振榮 TITLE：RFFPA301808IMAB301 DOCUMENT SPEC REV. NO. P0 PAGE 2 OF 11 3. Antenna Drawing： INPAQ TECHNOLOGY CO., LTD 2025/07/22 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：林育帆 APPROVED BY：陳振榮 TITLE：RFFPA301808IMAB301 DOCUMENT SPEC REV. NO. P0 PAGE 3 OF 11 4. Performance Report： Test Report ■Experimental Setup INPAQ TECHNOLOGY CO., LTD 2025/07/22 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：林育帆 APPROVED BY：陳振榮 TITLE：RFFPA301808IMAB301 DOCUMENT SPEC REV. NO. P0 PAGE 4 OF 11 ■Antenna Solution Detail INPAQ TECHNOLOGY CO., LTD 2025/07/22 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：林育帆 APPROVED BY：陳振榮 TITLE：RFFPA301808IMAB301 DOCUMENT SPEC REV. NO. P0 PAGE 5 OF 11 ■ELECTRICAL CHARACTERISTICS INPAQ TECHNOLOGY CO., LTD 2025/07/22 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：林育帆 APPROVED BY：陳振榮 TITLE：RFFPA301808IMAB301 DOCUMENT SPEC REV. NO. P0 PAGE 6 OF 11 ■Antenna Efficiency & Peak Gain INPAQ TECHNOLOGY CO., LTD 2025/07/22 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：林育帆 APPROVED BY：陳振榮 TITLE：RFFPA301808IMAB301 DOCUMENT SPEC REV. NO. P0 PAGE 7 OF 11 ■3 views of antenna INPAQ TECHNOLOGY CO., LTD 2025/07/22 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：林育帆 APPROVED BY：陳振榮 TITLE：RFFPA301808IMAB301 DOCUMENT SPEC REV. NO. P0 PAGE 8 OF 11 ■RADIATION PATTERN X-Z Plane Phi=0.00deg Gain . dB INPAQ TECHNOLOGY CO., LTD 2025/07/22 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page 1 of 20 FAX : 886-3-328-4978 Issued Date : Sep. 23, 2025 Template version: 240125 FCC SAR TEST REPORT Report No. : FA580726 FCC SAR TEST REPORT FCC ID : HBWCHM1 Equipment : Wireless Chime Brand Name : myQ Model Name : MYQW11AXXW Applicant : The Chamberlain Group LLC 300 Windsor Drive, Oak Brook, IL. 60523 Manufacturer : The Chamberlain Group LLC 300 Windsor Drive, Oak Brook, IL. 60523 Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Aug. 25, 2025 and testing was started from Aug. 29, 2025 and completed on Aug. 29, 2025. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full. Sporton International Inc. Wensan Laboratory No.58, Aly. 75, Ln. 564, Wenhua 3rd, Rd., Guishan Dist., Taoyuan City 333010, Taiwan Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 20 FAX : 886-3-328-4978 Issued Date : Sep. 23, 2025 Template version: 240125 FCC SAR TEST REPORT Report No. : FA580726 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 4 3.1 General Information ............................................................................................................................................... 4 4. RF Exposure Limits....................................................................................................................................................... 5 4.1 Uncontrolled Environment ...................................................................................................................................... 5 4.2 Controlled Environment .......................................................................................................................................... 5 5. Specific Absorption Rate (SAR) ................................................................................................................................... 6 5.1 Introduction ............................................................................................................................................................ 6 5.2 SAR Definition ........................................................................................................................................................ 6 6. System Description and Setup .................................................................................................................................... 7 6.1 Test Site Location ................................................................................................................................................... 7 6.2 E-Field Probe .........................…

Text truncated - open the document above for the full version.
