HDLUSA-60750-KE-EMulit-Carrier Power Amplifier for GSM, EDGE, UMTS

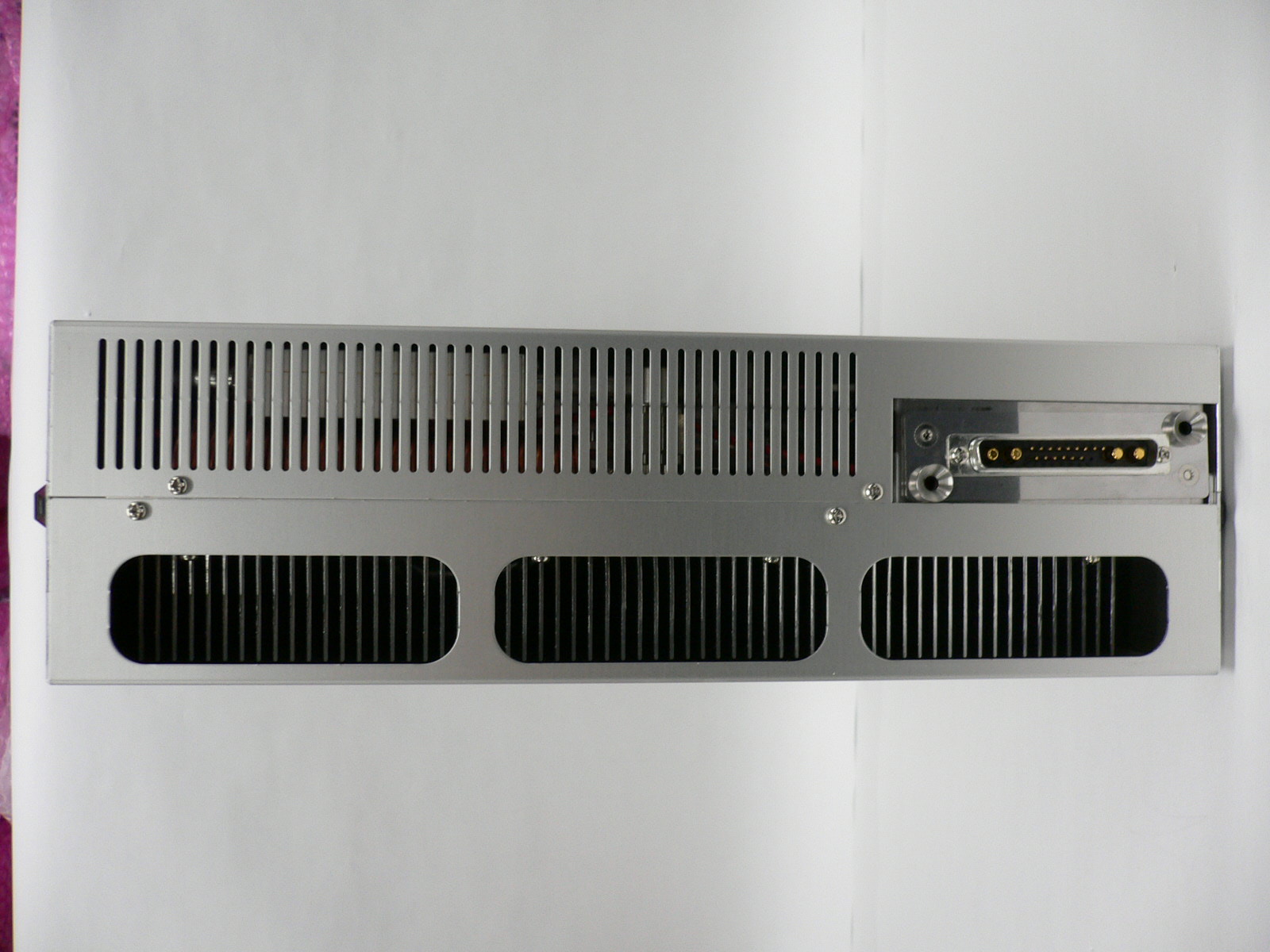

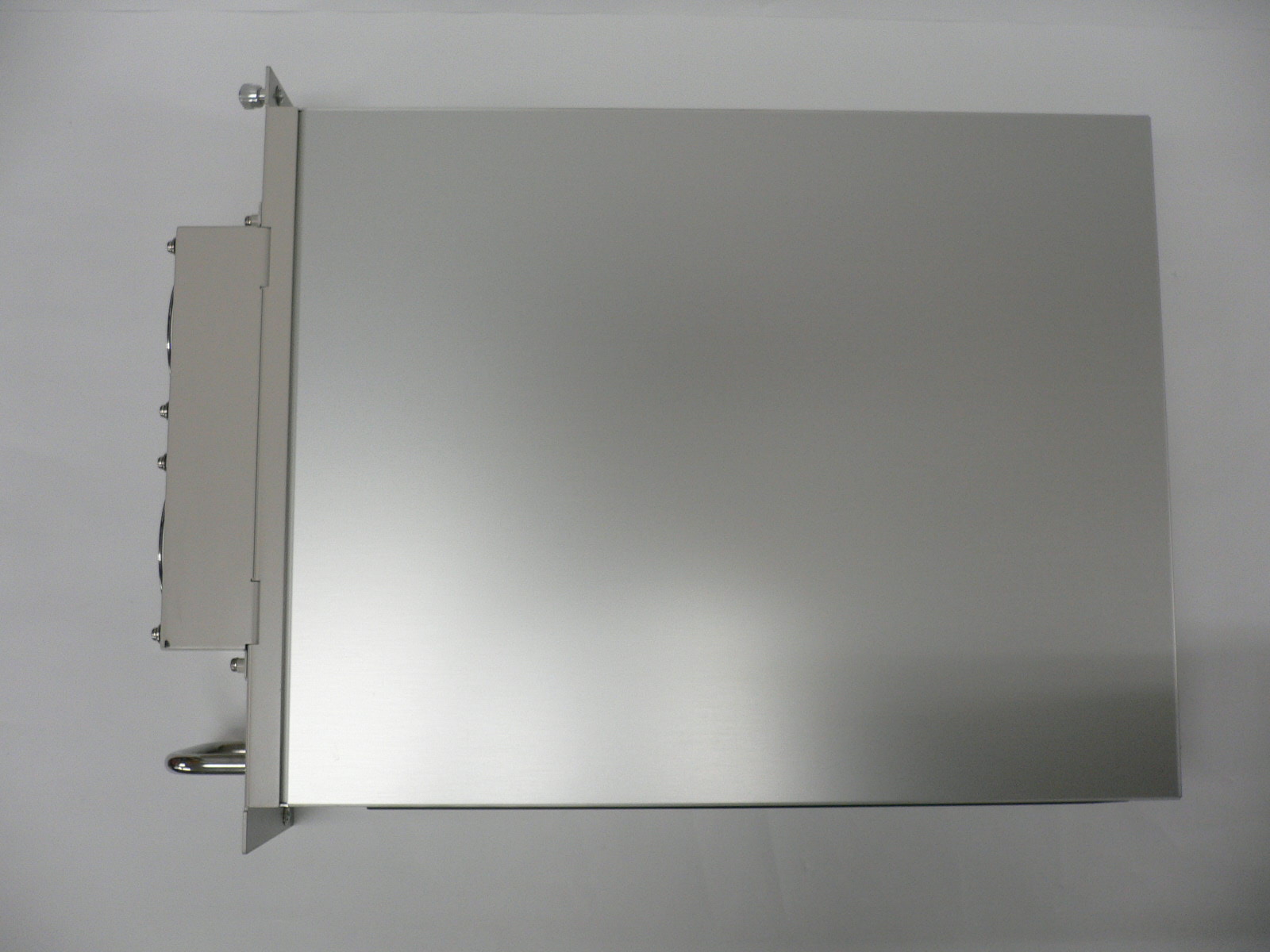

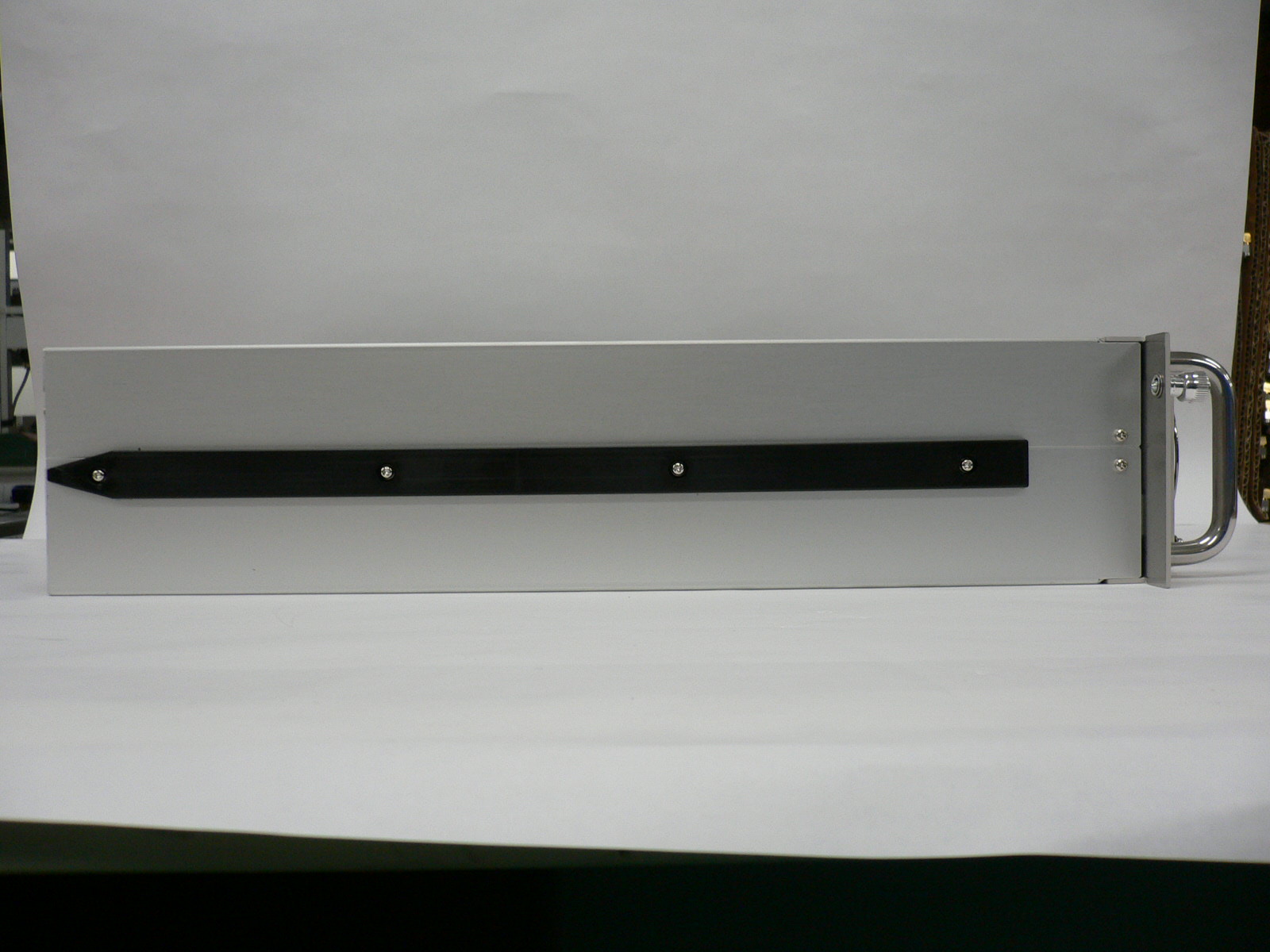

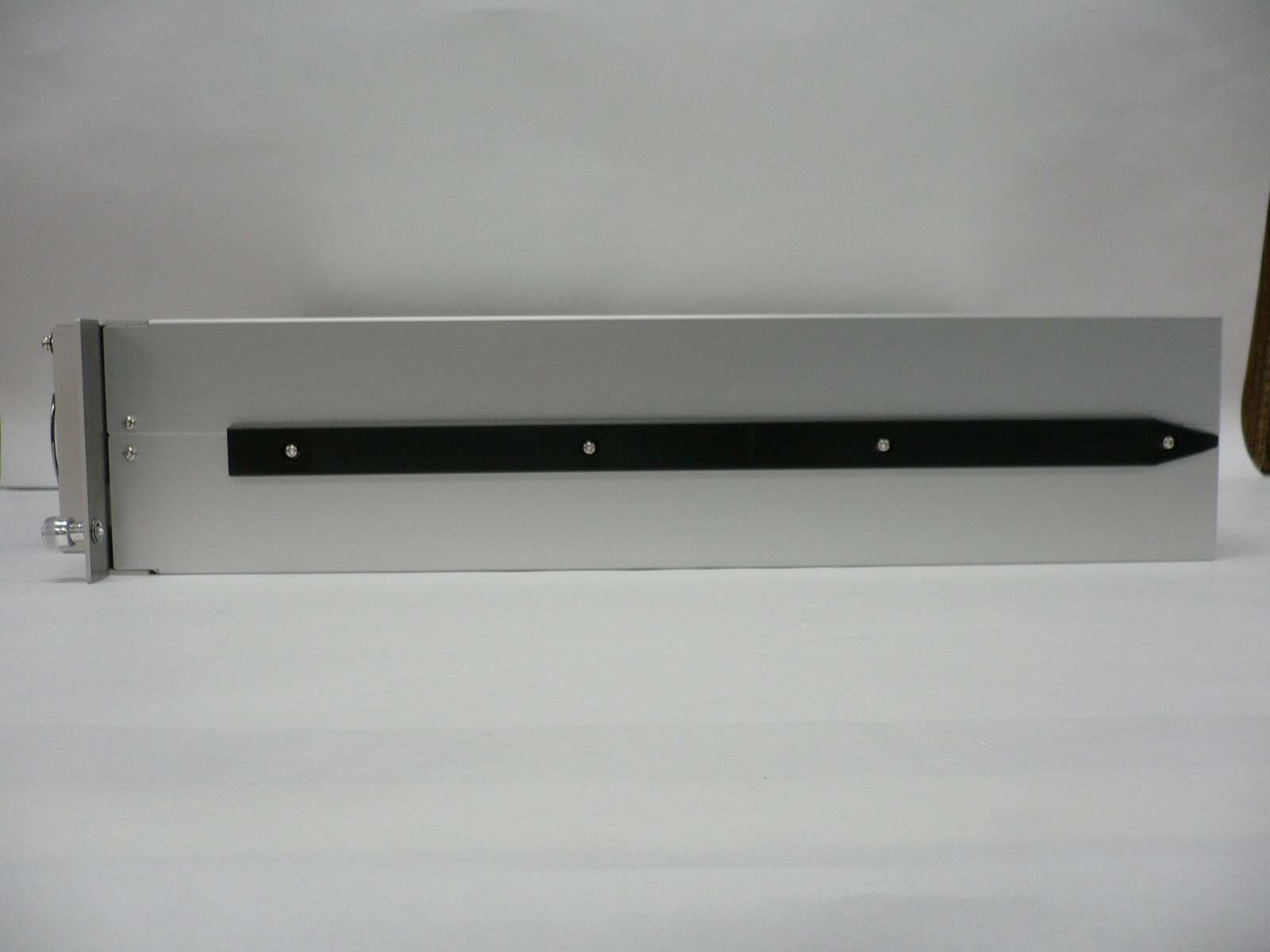

Applicant: Hitachi FCC ID: HDLUSA-60750--KE-E Figure 1: Front view Applicant: Hitachi FCC ID: HDLUSA-60750--KE-E Figure 2: Right side view Applicant: Hitachi FCC ID: HDLUSA-60750--KE-E Figure 3: Rear view Applicant: Hitachi FCC ID: HDLUSA-60750--KE-E Figure 4: Bottom view Applicant: Hitachi FCC ID: HDLUSA-60750--KE-E Figure 5: Top view Applicant: Hitachi FCC ID: HDLUSA-60750--KE-E Figure 6: Left side view

FCC ID LABEL AREA

Client: Product Designation: HMC081901C (FCCID: HDLUSA-60750-KE-E) Report Number: 3093217ATL-007 All services undertaken are subject to the following general policy: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the s ale or advertis ement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST, or any agency of the US Government. Tested by: Tests performed by:Report reviewed by: Standard: Shawn K. McGuinness EMC Project Engineer David J. Schramm EMC Department Manager Hitachi Telecom, USA 3617 Parkway Lane, Suite 100 Norcross, GA 30092 Contact: Nick Yasui Phone: 770.446.8820 Fax: 770.797.2555 TEST REPORT December 5, 2006 Intertek Testing Services NA Inc. 1950 Evergreen Blvd., Suite 100 Duluth, GA 30096 FCC Part 22; and FCC Part 24; FCC Part 15, Subpart B Page 1 of 73EMC Report for Hitachi Telecom, USA on the HMC081901C (FCCID: HDLUSA-60750-KE-E) 12/05/2006Report Number: 3093217ATL-007Issued: Intertek 2.0 Test Summary 1.0 Introduction and Conclusion Test DateTest Full NameResultSection 03/21/2006System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup)4.0 03/21/2006Description of test facility (Test Site Location)5.0 03/15/2006RF Output Power (FCC Part 2.1046)PASS6.0 03/15/2006Occupied Bandwidth (FCC Part 2.1049)PASS7.0 03/15/2006Spurious emissions at antenna terminals (FCC Part 2.1051)PASS8.0 FCC Part 22 Radiated Power (ERP) and FCC Part 24 Radiated Power (EIRP) (Radiated Power) was waived due to test not required for amplifiers. NA 11/17/2006Spurious emissions at antenna terminals - Band Edge (FCC Part 2.1051)PASS9.0 03/17/2006Field strength of spurious radiation (FCC Part 2.1053)PASS10.0 Frequency Stability (FCC Part 2.1055) was waived due to test is not required for amplifiers.NA 03/17/2006Radiated emissions (E-field) (FCC Part 15.109)PASS11.0 Revision History (Revision History)12.0 Conducted emissions on AC power lines (Conducted Emissions) was waived due to EUT is DC PoweredNA The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatum text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Page 2 of 73EMC Report for Hitachi Telecom, USA on the HMC081901C (FCCID: HDLUSA-60750-KE-E) 12/05/2006Report Number: 3093217ATL-007Issued: Intertek 3.0 Description of Equipment Under Test Equipment Under Test Description Manufacturer Model Number Serial Number 850MHz MCPA Hitachi HMC081901C A0002 DUP/Comb Tray Hitachi EJ08D1 05510009 Chassis Hitachi HRAC23SG1C SG0001 EUT receive date: February 14, 2006 EUT receive condition: Good Description of EUT provided by Client: The EUT is an 850 MHz 190W MCPA (Multi-Carrier Power Amplifier) for GSM, EDGE and W-CDMA base-station applications. The amplifier is installed in a 19 inch rack which receives power from a +27 Vdc power source. Description of EUT exercising: During testing where a single carrier was used, the input level was adjusted to obtain 190 Watts out on a single channel. During testing where more than one channel is used, the power of each carrier must be reduced so the total power output is no greater than 190 Watts. CW, GSM and W-CDMA signal were used during the testing and are indicated in each section of this report as appropriate. Page 3 of 73EMC Report for Hitachi Telecom, USA on the HMC081901C (FCCID: HDLUSA-60750-KE-E) 12/05/2006Report Number: 3093217ATL-007Issued: Intertek System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup) 4.0 Method: Record the details of EUTcabling, document the support equipment, and show the interconnections in a block diagram. DUPLEXER MCPA Combiner Tray DC Power Supply 1 DC Power Supply 2 A RF In BC Test and Measurement Equipment R F O u t D Signal Generator Step Attenuator DUPLEXER MCPA Combiner Tray DC Power Supply 1 DC Power Supply 2 A RF In BC Test and Measurement Equipment R F O u t D Signal Generator Step Attenuator Block Diagram Photo: Page 4 of 73EMC Report for Hitachi Telecom, USA on the HMC081901C (FCCID: HDLUSA-60750-KE-E) 12/05/2006Report Number: 3093217ATL-007Issued: Intertek System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup) 4.0 A B C D Description EUT Cabling Connection Length Shielding FerritesIDFromTo DC PS PairEUT Chassis Signal GeneratorStep Attenuator DC Power Line In15m Coax 11.0myesno nono Coax 21.4myesno Coax 32.0myesno Step AttenuatorEUT Amp RF IN EUT Amp RF OutTest/Meas. Equipment Support Equipment DescriptionManufacturerModel NumberSerial Number Signal GeneratorAgilentE4438CMY4020908 Step AttenuatorAgilent1171…
