HLZ-EM820WNOTEBOOK COMPUTER

4. Insert the SIM card as shown by the icon . 5. Install the battery pack then turn your system on. Inserting a SIM card To insert a SIM card: 1. Turn your system off and disconnect the AC adapter. 2. Unlock the battery security lock(2-1) and battery release latch(2-2). 3. Remove the battery from the bay. Note: Illustrations are for reference only. Actual product specifications may vary. Please read and observe the manufacturer's precautions and safety information provided with your SIM card. This computer will only accept a valid SIM card. 2-1 2-2 3 English Enabling your wireless devices The Launch Manager allows you to enable and disable the various wireless connectivity devices on your computer. Press <Fn> + <F3> to bring up the Launch Manager window panel. Click On to enable wireless/3G/Bluetooth connection. Click Off to disable. Fn F3 How to use the 3G Connection Manager software The 3G Connection Manager allows you to connect to a 3G network and includes tools that allow you to manage your usage, send and receive SMS messages from your computer and choose your network preferences. Note: Please ensure the 3G function is enabled on your system. Accessing the 3G Connection Manager software Double-click the 3G Connection Manager icon on the desktop, or click on 3G in the Windows Notification Area . English Insérer une carte SIM Pour insérer une carte SIM : 1. Éteignez votre systène et deconnectez l’adaptateur secteur. 2. Déverrouillez le verrou de sécurité de la batterie (2-1) et le loquet de libération de la batterie (2-2). 3. Retirez la batterie de la baie. 2-1 2-2 3 4. Insérez la carte SIM comme indiqué par l’icône . 5. Installez la batterie puis allumez votre système. Remarque : Les illustrations sont mises uniquement a titre de reference. Les caracteristiques reelles des produits peuvent changer. Veuillez lire et respecter les précautions et les informations de sécurité du fabricant fournies avec votre carte SIM. Cet ordinateur n’acceptera qu’une carte SIM valide. Français Activer vos appareils sans fil Launch Manager permet d’activer et désactiver les différents périphériques de connectivité sans fil sur votre ordinateur. Appuyez <Fn> + <F3> pour faire apparaître la fenêtre de Launch Manager. Cliquez sur Activé pour activer la connexion sans fil/3G/Bluetooth. Cliquez sur Désactivé pour désactiver. Fn F3 Comment utiliser le logiciel 3G Connection Manager 3G Connection Manager permet de vous connecter à un réseau 3G et comprend des outils qui permettent de gérer votre utilisation, d’envoyer et de recevoir des SMS depuis votre ordinateur et de choisir vos préférences réseau. Accéder au logiciel 3G Connection Manager Double-cliquez sur l’icône 3G Connection Manager sur le bureau, ou cliquez sur 3G dans la Zone de notification de Windows . Remarque : Veuillez vous assurer que la fonction 3G est activée sur votre système. Français Einsetzen einer SIM-Karte So setzen Sie eine SIM-Karte ein: 1. Schalten Sie das System aus und trennen Sie den Wechselstromadapter vom Gerät. 2. Öffnen Sie das Sicherheitsschloss (2-1) und lösen Sie die Verriegelung des Akkus (2-2). 3. Nehmen Sie den Akku aus dem Fach. 2-1 2-2 3 4. Setzen Sie die SIM-Karte entsprechend des Symbols ein . 5. Setzen Sie den Akku wieder ein und schalten Sie das System ein. Hinweis: Abbildung nur Referenz und kann zum Produkt variieren. Das tatsächliche Produkt kann sich von dem in den Abbildungen gezeigten unterscheiden. Lesen und beachten Sie bitte die Vorsichtsmaßnahmen und Sicherheitshinweise des Herstellers, die der SIM-Karte beigelegt sind. Für diesen Computer kann nur eine gültige SIM-Karte verwendet werden. Deutsch Aktivierung von Drahtlos-Geräten Mit dem Startmanager können Sie verschiedene Drahtlosverbindungs- Geräte auf dem Computeer aktivieren und deaktivieren. Drücken Sie auf <Fn> + <F3>, um das Startmanager-Fenster aufzurufen. Klicken auf Ein, um die Drahtlos/3G/Bluetooth Verbindung zu aktivieren. Klicken Sie zum Deaktivieren auf Aus. Fn F3 Verwendung der 3G-Verbindungsmanager- Software Mit dem 3G Connection Manager können Sie eine Verbindung zu einem 3G-Netz herstellen. Das Programm besitzt auch Funktionen zur Verwaltung Ihrer Verwendungweise, zum Senden und Empfangen von SMS-Nachrichten auf Ihrem Computer und zum Auswählen Ihrer Netzvoreinstellungen. Zugriff auf die 3G Connection Manager-Software Doppelklicken Sie auf das Symbol des 3G Connection Managers auf dem Desktop oder klicken Sie auf 3G im Infobereich von Windows . Hinweis: Stellen Sie sicher, dass die 3G-Funktion auf dem System aktiviert ist. Deutsch Inserimento della carta SIM Per inserire una carta SIM: 1. Spegnere il sistema e staccare la spina di rete. 2. Sbloccare il blocco di sicurezza della batteria (2-1) e il dispositivo di aggancio della batteria (2-2). 3. Rimuovere la batteria dall'alloggiamento. 2-1 2-2 3 4. Inserire la carta SIM come indicato dall'icona . 5. Installare il pacco batteria, quindi accendere il sistema. Nota: Le illustrazioni sono di solo riferimento. I prodotti potrebbero variare da quanto riportato. Leggere e osservare le precauzioni del costruttore e le informazioni sulla sicurezza fornite con la carta SIM. Questo computer accetta solo una carta SIM valida. Italiano Attivazione dei dispositivi wireless Launch Manager consente di attivare e disattivare i vari dispositivi di connessione wireless sul computer. Premere <Fn> + <F3> per richiamare il pannello di controllo di Launch Manager. Fare clic su On per attivare la connessione wireless/3G/Bluetooth. Fare clic su Off per disattivare. Fn F3 Come utilizzare il software 3G Connection Manager 3G Connection Manager consente di eseguire il collegamento a una rete 3G e include strumenti che consentono di gestire l’uso, inviare e ricevere messaggi SMS dal computer e scegliere le preferenze di rete. Accesso al software 3G Connection Manager Fare doppio clic sull'icona 3G Connection Manager sul desktop, o fare clic su 3G nell'Area di notifica di Windows . Nota: Verificare che la funzione …

Text truncated - open the document above for the full version.

Aspire One Series Generic User Guide Model number: _____________________________________ Serial number: _____________________________________ Date of purchase: __________________________________ Place of purchase: _________________________________ © 2011 All Rights Reserved Aspire One Series Generic User Guide Original Issue: 06/2011 iii English Information for your safety and comfort Safety instructions Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. CAUTION for plug as disconnecting device Observe the following guidelines when connecting and disconnecting power to the power supply unit: Install the power supply unit before connecting the power cord to the AC power outlet. Unplug the power cord before removing the power supply unit from the computer. If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies. CAUTION for Accessibility Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet. CAUTION for bundled dummy cards (only for certain models) Your computer shipped with plastic dummies installed in the card slots. Dummies protect unused slots from dust, metal objects or other particles. Save the dummies for use when no cards are in the slots. CAUTION for Listening To protect your hearing, follow these instructions. •Increase the volume gradually until you can hear clearly and comfortably. •Do not increase the volume level after your ears have adjusted. •Do not listen to music at high volumes for extended periods. •Do not increase the volume to block out noisy surroundings. •Decrease the volume if you can't hear people speaking near you. iv English Warnings •Do not use this product near water. •Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged. •Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided. •Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product. •To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface. •Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices, HDD, optical drive, and even exposure risk from lithium battery pack. •The bottom surface, areas around ventilation openings and AC adapter may get hot. To avoid injury, ensure they do not come in contact with your skin or body. Note: Reduce the risk of heat-induced injury or fire by adhering to the following: 1) Do not place the computer or AC adapter on a soft surface, such as a bed. 2) Do not rest the computer or AC adapter on your lap for extended periods. 3) Use the computer on a flat, hard surface, such as a desk. 4) Ensure that the ventilation is not obstructed. •Your device and its enhancements may contain small parts. Keep them out of the reach of children. Using electrical power •This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company. •Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord. •If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating. •Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit v English rating. If power strips are used, the load should not exceed 80% of the power strip's input rating. •This product's AC adapter is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details. Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury. Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product. •The system can be powered using a wide range of voltages: 100 to 120 or 220 to 240 V AC. The power cord included with the system meets the requirements for use in the country/region where the system was purchased. Power cords for use in other countries/regions must meet the requirements for that country/ region. For more information on power cord requirements, contact an authorized reseller or service provider. Product servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified serv…

Text truncated - open the document above for the full version.

Aspire One Series Quick Guide Model number: __________________________________ Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ © 2011 All Rights Reserved. Aspire One Series Quick Guide Original Issue: 06/2011 3 First things first We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs. Yo u r g u i d e s To help you use your Acer notebook, we have designed a set of guides: First off, the se tup poster helps you get started with setting up your computer. The A spire One Generic User Guide contains useful information applying to all models in the Aspire product series. It covers basic topics such as using the keyboard and audio, etc. Please understand that due to its nature, the Generic User Guide will occasionally refer to functions or features which are only contained in certain models of the series, but not necessarily in the model you purchased. Such instances are marked in the text with language such as "only for certain models". The Qui ck Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the Aspire One Generic User Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it: 1Click on Start > All Programs > AcerSystem. 2Click on A cerSystem User Guide. Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu. 4 English Your Acer notebook tour After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook. To p v i e w #IconItemDescription 1Integrated webcam Web camera for video communication ( configuration may vary by model). 1 3 2 4 5 6 7 8 9 5 English 1. The front panel indicators are visible even when the computer cover is closed. Hotkeys The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output. To activate hotkeys, press and hold the <Fn> ke y before pressing the other key in the hotkey combination. 2Display screen Also called Liquid-Crystal Display (LCD), di splays computer output (configuration may vary by model). 3 Power buttonTurns the computer on and off. 4KeyboardFor entering data into your computer . 5Touchpad Touch-sensitive pointing device which functions like a computer mouse. 6 Status indicators 1 Light-Emitting Diodes (LED) that light up to show the status of the computer's functions and components. 7 Click buttons (left and r ight) The left and right buttons function like the left and right mouse buttons. 8Palmrest Comfortable support area for your hands when you use the computer . 9MicrophoneInternal microphone for sound recording. HotkeyIconFunctionDescription <Fn> + <F3> Communication Enables/disables the computer’s c ommunication devices. (Communication devices may vary by configuration.) <Fn> + <F4> SleepPuts the computer in Sleep mode. <Fn> + <F5> Display toggle Switches display output between the di splay screen, external monitor  (if connected) and both. <Fn> + <F6> Screen blank Turns the display screen backlight off to s ave power. Press any key to return. <Fn> + <F7> Touchpad toggle Turns the internal touchpad on and off. #IconItemDescription 6 English Using the communication key* Here you can enable and disable the various wireless connectivity devices on your computer. Press <Fn> + <F3> to br ing up the Launch Manager window panel. A red toggle indicates the device is off. Click On to enable Wi-Fi/Bluetooth connection. C lick Off to disable connection. * Communication devices may vary by model. <Fn> + <F8> Speaker toggleTurns the speakers on and off. <Fn> + <F11> Num Lock When Num Lock is on, the embedded keypad is in numer ic mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad. <Fn> + <F11> only for certain models. <Fn> + <F12> Scroll Lock When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications. <Fn> + < > Brightness upIncreases the screen brightness. <Fn> + < > Brightness down Decreases the screen brightness. <Fn> + < > Volume up Increases the sound volume (only for ce rtain models). <Fn> + < > Volume down Decreases the sound volume (only for certain models). HotkeyIconFunctionDescription 7 English Closed front view 1 #IconItemDescription 1 Power indicatorIndicates the computer's power status. Battery indicator Indicates the computer's battery status. 1. Charging: The l ight shows amber when the battery is charging.  2. Fully charged: The light shows blue when in AC mode. Communication indicator Indicates the status of 3G / Wi- Fi communication Blue light onOrange light onNot lit 3G on / Wi-Fi on 3G on / Wi-Fi off 3G off / Wi-Fi on 3G off / Wi-Fi off Rear view 1 #ItemDescription 1Battery bayHouses the computer’s battery pack. Note: Your computer may be equipped with a different battery to the one in the picture. 8 English Left view 21354 #IconItemDescription 1 DC-in jackConnects to an AC adapter. 2 Ethernet (RJ-45) port Connects to an Ethernet 10/100 based network . 3 External display (VGA) port Connects to a display device (e.…

Text truncated - open the document above for the full version.

88 - Regulatory information REGULATORY INFORMATION PREVENTION OF HEARING LOSS -Caution: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. - A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille de l’utilisateur. CAUTION when listening: To protect your hearing, follow these instructions. - Increase the volume gradually until you can hear clearly and comfortably. - Do not increase the volume level after your ears have adjusted. - Do not listen to music at high volumes for extended periods. - Do not increase the volume to block out noisy surroundings. - Decrease the volume if you can’t hear people speaking near you. R ADIO DEVICE REGULATORY NOTICE -Note: Regulatory information below is for models with wireless LAN and/or Bluetooth only. Compliance accessories The accessories associated with this equipment are: shielded video cable when an external monitor is connected. These accessories are required to be used in order to ensure compliance with FCC rules. C ALIFORNIA PROPOSITION 65 WARNING This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other reproductive harm. For additional information regarding this product warning, go to www.gateway.com/prop65 . Regulatory information - 89 MERCURY WARNING THE LAMP IN THIS DISPLAY CONTAINS MERCURY. DISPOSE ACCORDING TO LOCAL, STATE, AND FEDERAL LAW. 日本 (JAPAN) 本装置は、第二種情報装置（住宅地域またはその隣接した地域において使用されるべき 情報装置）デ住宅地域での電波障害防止を目的とした情報装置等電波障害自主規制協議 会（VCCI）基準に適合しております。 しかし、本装置をラジオ、テレビジョン受信機に、近接してご使用になると、受信障害 の 原 因となることがあります。本 書の説 明にしたがって 正しい 取り 扱 いをしてください。 W IRELESS ADAPTER REGULATORY INFORMATION USA — FCC and FAA The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified equipment. The wireless adapter meets the Human Exposure limits found in OET Bulletin 65, supplement C, 2001, and ANSI/IEEE C95.1, 1992. Proper operation of this radio according to the instructions found in this manual will result in exposure substantially below the FCC’s recommended limits. - The following safety precautions should be observed: Do not touch or move antenna while the unit is transmitting or receiving. - Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. - Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause damage to the radio. Use in specific environments: - The use of wireless adapters in hazardous locations is limited by the constraints posed by the safety directors of such environments. 90 - Regulatory information - The use of wireless adapters on airplanes is governed by the Federal Aviation Administration (FAA). - The use of wireless adapters in hospitals is restricted to the limits set forth by each hospital. Antenna Use In order to comply with FCC RF exposure limits, low gain integrated antennas should be located at a minimum distance of 20 cm (8 inches) or more from the body of all persons or at a minimum distance as specified by the FCC module grant conditions. FCC grants can be viewed from the FCC Equipment Authorization website at https://fjallfoss.fcc.gov/ oetcf/eas/reports/GenericSearch.cfm by entering the FCC ID printed on the module label. Explosive Device Proximity Warning Warning: Do not operate a portable transmitter (including this wireless adapter) near unshielded blasting caps or in an explosive environment unless the transmitter has been modified to be qualified for such use Antenna Warnings -Warning: To comply with the FCC and ANSI C95.1 RF exposure limits, it is recommended that for the wireless adapter installed in a desktop or portable computer, the antenna for this wireless adapter to be installed so as to provide a separation distance of at least 20 cm (8 inches) from all persons or at the minimum distance as specified by the module grant conditions. FCC grants can be viewed from the FCC Equipment Authorization website at https://fjallfoss.fcc.gov/oetcf/eas/ reports/GenericSearch.cfm by entering the FCC ID printed on the module label. -Warning: The wireless adapter is not designed for use with high-gain directional antennas. Use On Aircraft Caution -Caution: Regulations of the FCC and FAA prohibit airborne operation of radio- frequency wireless devices (wireless adapters) because their signals could interfere with critical interfere with critical aircraft instruments. Regulatory information - 91 Local Restrictions on 802.11a, 802.11b, 802.11g and 802.11n Radio Usage -Caution: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11g and 802.11n wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11g and 802.11n products are designed for use only in specific countries, and are not allowed to be operated in countries other than those of designated use. As a user of these products, you are responsible for ensuring that the products are used only in the countries for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country of use. Any deviation from the permissible power and frequency settings for the country of use is an infringement of national law and may be punished as such. Wireless Interoperability The wireless adapter is designed to be interoperable with other wireless LAN products that are based on direct sequence spread spectrum (DSSS) radio technology and to comply with the following standards: - IEEE Std. 802.11b compliant Standard on Wireless LAN - IEEE Std. 802.11g compliant Standard on Wireless LAN - IEEE Std. 802.11a compliant Standard on Wireless LAN (applies to devices supporting 802.11a) - IEEE Std. 802.11n draft 2.0 compliant on Wireless LAN - Wireless Fidelity certification, as defined by th…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Date:2011/8/22 To who may concern, I, the undersigned, responsible for the designated person in FCC grant communicator / IC company code contactor, hereby authorized RU Jan to sign the FCC / IC application form for certification process. Thank you, Sincerely Yours, Contact Person: Harriot S.L. Lee Company Name: Acer Incorporated E-Mail: [email protected]

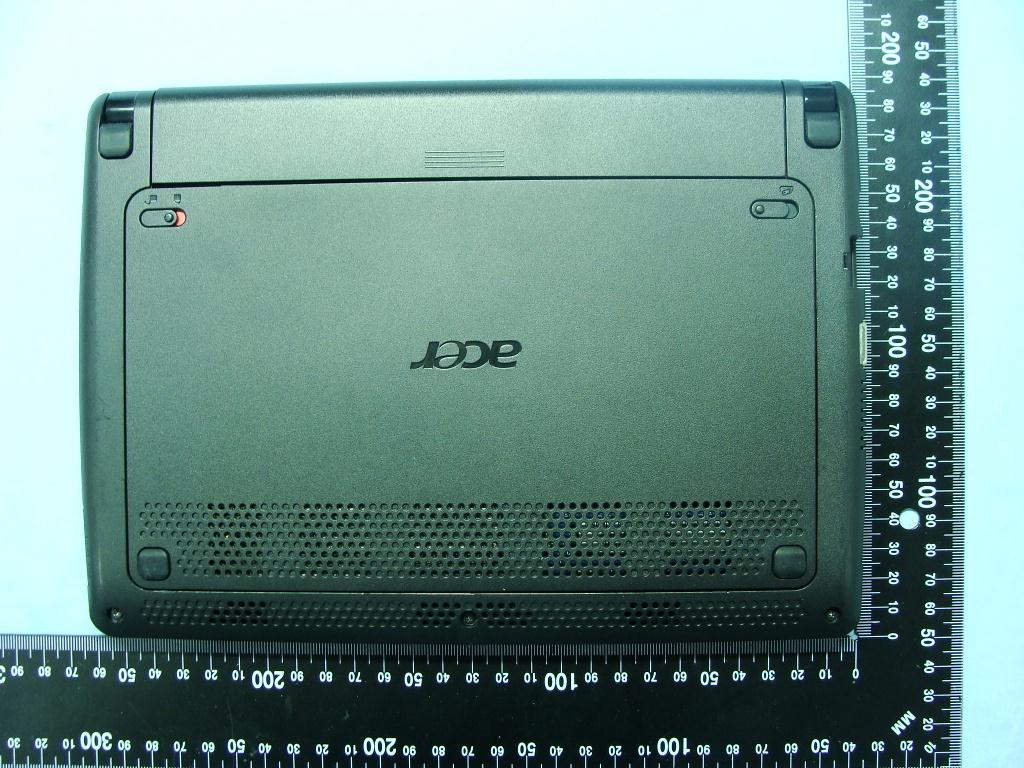

Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 1 of 19 TEL : 886-3-327-3456 Report Issued Date : Feb. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-EM820W 1. External Photograph of EUT Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 2 of 19 TEL : 886-3-327-3456 Report Issued Date : Feb. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-EM820W Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 3 of 19 TEL : 886-3-327-3456 Report Issued Date : Feb. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-EM820W 720510 Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 4 of 19 TEL : 886-3-327-3456 Report Issued Date : Feb. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-EM820W List of Accessory: Specification of Accessory AC Adapter Brand Name DELTA Model Name ADP-40TH A Battery Brand Name SANYO Model Name AL10A31(3ICR17/65) WWAN Module Brand Name Huawei Model Name EM820W WLAN Module Brand Name Broadcom Model Name BCM94313HMG2L Bluetooth Module Brand Name Broadcom Model Name BCM92070MD_REF Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 5 of 19 TEL : 886-3-327-3456 Report Issued Date : Feb. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-EM820W 720510 Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 6 of 19 TEL : 886-3-327-3456 Report Issued Date : Feb. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-EM820W Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 7 of 19 TEL : 886-3-327-3456 Report Issued Date : Feb. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-EM820W Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 8 of 19 TEL : 886-3-327-3456 Report Issued Date : Feb. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-EM820W

Label Location Bottom of EUT

UA.TR.002

Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 9 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 27, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLZ-EM820W 3. Internal Photograph of EUT Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 10 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 27, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLZ-EM820W WWAN Module Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 11 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 27, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLZ-EM820W 720510 Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 12 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 27, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLZ-EM820W WWAN Main Antenna <Tx / Rx> Photographs of EUT Report No.: EP1D2933 Brand Name: Acer Model Name: ZE7 Marketing Name: AOD270, Aspire one D270, AOHAPPY, Aspire one Happy SPORTON INTERNATIONAL INC. Page Number : 13 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 27, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLZ-EM820W WWAN Aux. Antenna <Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 35 TEL : 886-3-327-3456 Report Issued Date : Feb. 27, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLZ-EM820W FCC SAR Test Report Report No. : FA1D2933 FCC SAR Test Report APPLICANT : Acer Inc. EQUIPMENT : Notebook Computer BRAND NAME : Acer MODEL NAME : ZE7 MARKETING NAME : AOD270, Aspire one D270, AOHAPPY, Aspire one Happy FCC ID : HLZ-EM820W STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was integrated the WWAN Module (Brand Name: Huawei / Model Name: EM820W, FCC ID: QISEM820W) during the test. The product was received on Jan. 12, 2012 and completely tested on Jan. 12, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been ev…

Text truncated - open the document above for the full version.
