HLZ-Z09ANotebook Computer

Aspire Series Generic User Guide Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose. Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated. Model number: __________________________________ Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ © 2012 All Rights Reserved. Aspire Series Generic User Guide This revision: 04/2012 iii English Information for your safety and comfort Safety instructions Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Warnings Accessing the power cord Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet. Disconnecting the power source Observe the following guidelines when connecting and disconnecting power to the power supply unit: Install the power supply unit before connecting the power cord to the AC power outlet. Unplug the power cord before removing the power supply unit from the computer. If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies. Using electrical power •This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company. •Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord. •If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating. iv English •Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating. •This product's AC adapter is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details. Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury. Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product. •The system can be powered using a wide range of voltages; 100 to 120 or 220 to 240 V AC. The power cord included with the system meets the requirements for use in the country/region where the system was purchased. Power cords for use in other countries/regions must meet the requirements for that country/ region. For more information on power cord requirements, contact an authorized reseller or service provider. Protecting your hearing Warning: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. To protect your hearing, follow these instructions. •Increase the volume gradually until you can hear clearly and comfortably. •Do not increase the volume level after your ears have adjusted. •Do not listen to music at high volumes for extended periods. •Do not increase the volume to block out noisy surroundings. •Decrease the volume if you can't hear people speaking near you. v English Your computer shipped with plastic dummies installed in the card slots. Dummies protect unused slots from dust, metal objects or other particles. Save the dummies for use when no cards are in the slots. General •Do not use this product near water. •Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged. •Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided. •Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product. •To avoid damage of internal components and t…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Date:2011/8/22 To who may concern, I, the undersigned, responsible for the designated person in FCC grant communicator / IC company code contactor, hereby authorized RU Jan to sign the FCC / IC application form for certification process. Thank you, Sincerely Yours, Contact Person: Harriot S.L. Lee Company Name: Acer Incorporated E-Mail: [email protected]

Date: May 24, 2012 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: HLZ-Z09A To Whom It May Concern: We are requesting system approval for Acer MA40_HX laptop (FCC ID: HLZ-Z09A), which uses the Atheros module (FCC ID: PPD-AR5B22) and has FCC single modular approval on 02/03/2012. We do not modify the module at all and are submitting the original modular test report to cover all antenna port measurements. Test reports to cover the evaluation of the system for radiated spurious emissions and RF exposure (SAR) are being submitted to cover these aspects of the technical requirements. Sincerely yours, RU Jan

Rev. 1/1/03 Date: May 25, 2012 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: HLZ-Z09A Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: Z09_Schem_Confidential.pdf) Block Diagram (file: Z09_BlkDia_Confidential.pdf) Parts List (file: Z09_PartsLst_Confidential.pdf) Operation Description (file: Z09_OpDes_Confidential.pdf) Theory of Operation Addendum - Regulatory algorithms v03 Released 2011-4-18 WLAN Schematics WLAN Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ RU Jan

Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 1 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 2 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 3 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 4 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A List of Accessory: Specification of Accessory AC Adapter Brand Name DELTA Model Name ADP-90CD DB Battery Brand Name SANYO Model Name AP12A3i WLAN Module Brand Name Atheros Model Name AR5B22 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 5 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A 720510 Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 6 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A AC Adapter Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 7 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A Battery

Bottom of EUT Label Location

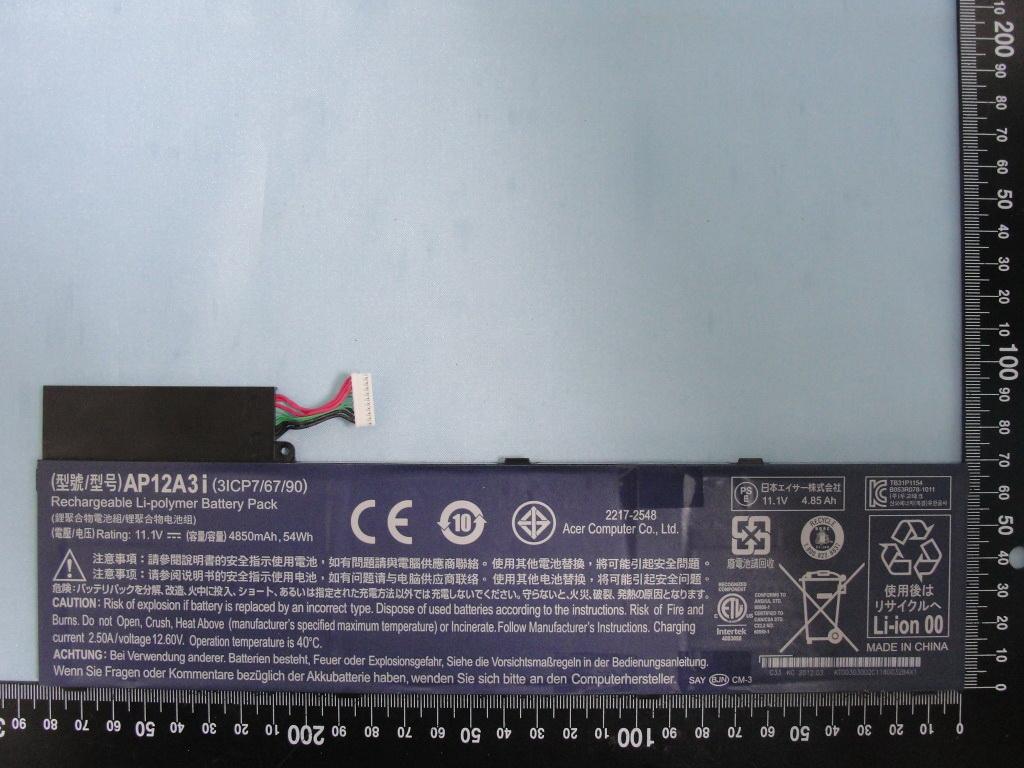

Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 8 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 9 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 10 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 11 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A WLAN Module Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 12 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 13 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A WLAN & Bluetooth Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 14 of 14 TEL : 886-3-327-3456 Report Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A WLAN & Bluetooth Aux. Antenna <Tx/Rx>

Photographs of EUT Report No.: EP241954 Brand Name: Acer / Model Name: Z09 / Marketing Name: Aspire M5 series SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : May 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLZ-Z09A IC : 1754F-Z09A Antenna location Length Width WLAN & Bluetooth Main Antenna <TX / RX> 2.2cm 1.1cm WLAN & Bluetooth Aux. Antenna <TX / RX> 2.2cm 1.1cm 15.3 cm WLAN&Bluetooth Antenna Main Antenna <TX/RX> 0.2 cm 3.8 cm 24.2 cm WLAN&Bluetooth Antenna Aux. Antenna <TX/RX> 24.2 cm 10.5 cm 0.2 cm

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/3 System Check_Body_2450MHz_120503 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120503 Medium parameters used: f = 2450 MHz; σ = 1.96 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/9/12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.3 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.3 V/m; Power Drift = 0.067 dB Peak SAR (extrapolated) = 30.3 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.16 mW/g Maximum value of SAR (measured) = 15.6 mW/g 0 dB = 15.6mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/4/25 System Check_Body_5200MHz_120425 DUT: Dipole 5GHz Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_120425 Medium parameters used: f = 5200 MHz; σ = 5.37 mho/m; ε r = 48.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(4.22, 4.22, 4.22); Calibrated: 2011/6/20 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/7 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 32.9 mW/g Pin=250mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 89.1 V/m; Power Drift = -0.042 dB Peak SAR (extrapolated) = 60.3 W/kg SAR(1 g) = 18.1 mW/g; SAR(10 g) = 5.13 mW/g Maximum value of SAR (measured) = 29.8 mW/g 0 dB = 29.8mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/7 System Check_Body_5200MHz_120507 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_120507 Medium parameters used: f = 5200 MHz; σ = 5.33 mho/m; ε r = 47.5; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(4.48, 4.48, 4.48); Calibrated: 2011/11/16 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 44.1 mW/g Pin=250mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 82.36 V/m; Power Drift = 0.036 dB Peak SAR (extrapolated) = 82.72 W/kg SAR(1 g) = 18.7 mW/g; SAR(10 g) = 5.3 mW/g Maximum value of SAR (measured) = 33.4 mW/g 0 dB = 33.4mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/7 System Check_Body_5500MHz_120507 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5500 MHz;Duty Cycle: 1:1 Medium: MSL_5G_120507 Medium parameters used: f = 5500 MHz; σ = 5.72 mho/m; ε r = 47; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(3.76, 3.76, 3.76); Calibrated: 2011/6/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 34.2 mW/g Pin=250mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 82.9 V/m; Power Drift = 0.013 dB Peak SAR (extrapolated) = 74.9 W/kg SAR(1 g) = 19.7 mW/g; SAR(10 g) = 5.45 mW/g Maximum value of SAR (measured) = 33.2 mW/g 0 dB = 33.2mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/10 System Check_Body_5500MHz_120510 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5500 MHz;Duty Cycle: 1:1 Medium: MSL_5G_120510 Medium parameters used: f = 5500 MHz; σ = 5.487 mho/m; ε r = 46.967; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(3.76, 3.76, 3.76); Calibrated: 2011/6/20; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/7 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 32.7 mW/g Pin=250mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 82.782 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 71.746 mW/g SAR(1 g) = 18.8 mW/g; SAR(10 g) = 5.21 mW/g Maximum value of SAR (measured) = 31.7 mW/g 0 dB = 31.7 mW/g = 30.02 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/7 System Check_Body_5800MHz_120507 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5G_120507 Medium parameters used: f = 5800 MHz; σ = 6.23 mho/m; ε r = 46.4; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(4.02, 4.02, 4.02); Calibrated: 2011/11/16 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Pin=250mW/Area Scan (91x91x1): Measurement gri…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/3 #01 802.11b_Bottom_0cm_Ch6_Ant 1 DUT: 241954 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120503 Medium parameters used: f = 2437 MHz; σ = 1.94 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/9/12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Ch6/Area Scan (141x191x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.868 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 3.02 W/kg SAR(1 g) = 1.25 mW/g; SAR(10 g) = 0.482 mW/g Maximum value of SAR (measured) = 1.29 mW/g 0 dB = 1.29mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/3 #02 802.11b_Bottom_0cm_Ch1_Ant 1 DUT: 241954 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120503 Medium parameters used: f = 2412 MHz; σ = 1.91 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/9/12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Ch1/Area Scan (41x191x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.08 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.565 V/m; Power Drift = 0.884 dB Peak SAR (extrapolated) = 1.82 W/kg SAR(1 g) = 0.760 mW/g; SAR(10 g) = 0.293 mW/g Maximum value of SAR (measured) = 0.756 mW/g 0 dB = 0.756mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/3 #03 802.11b_Bottom_0cm_Ch11_Ant 1 DUT: 241954 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120503 Medium parameters used: f = 2462 MHz; σ = 1.98 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/9/12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Ch11/Area Scan (41x191x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.914 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.35 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.01 W/kg SAR(1 g) = 1.24 mW/g; SAR(10 g) = 0.468 mW/g Maximum value of SAR (measured) = 1.17 mW/g 0 dB = 1.17mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/3 #04 802.11g_Bottom_0cm_Ch6_Ant 1 DUT: 241954 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120503 Medium parameters used: f = 2437 MHz; σ = 1.94 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/9/12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Ch6/Area Scan (41x191x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.940 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.9 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.2 W/kg SAR(1 g) = 1.41 mW/g; SAR(10 g) = 0.568 mW/g Maximum value of SAR (measured) = 1.5 mW/g 0 dB = 1.5mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/3 #04 802.11g_Bottom_0cm_Ch6_Ant 1_2D DUT: 241954 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120503 Medium parameters used: f = 2437 MHz; σ = 1.94 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/9/12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Ch6/Area Scan (41x191x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.940 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.9 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.2 W/kg SAR(1 g) = 1.41 mW/g; SAR(10 g) = 0.568 mW/g Maximum value of SAR (measured) = 1.5 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/3 #31 802.11g_Bottom_0cm_Ch1_Ant 1 DUT: 241954 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120503 Medium parameters used: f = 2412 MHz; σ = 1.91 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/9/12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Software: DASY5 Version; SEMCAD X Version 13.4 Build 45 Ch1/Area Scan (41x191x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.371 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 37 TEL : 886-3-327-3456 Report Issued Date : May 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLZ-Z09A FCC SAR Test Report Report No. : FA241954 FCC SAR Test Report APPLICANT : Acer Incorporated EQUIPMENT : Notebook Computer BRAND NAME : Acer MODEL NAME : Z09 MARKETING NAME : Aspire M5 series FCC ID : HLZ-Z09A STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was integrated the WLAN Module (Brand Name: Qualcomm Atheros / Model Name: AR5B22, FCC ID: PPD-AR5B22) during the test. The product was received on Apr. 25, 2012 and completely tested on May 10, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 37 TEL : 886-3-327-3456 Report Issued Date : May 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLZ-Z09A FCC SAR Test Report Report No. : FA241954 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 6 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (DUT) .......................................................................................................... 6 3.2 Product Photos....................................................................................................................................................... 7 3.3 Applied Standards .................................................................................................................................................. 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot ..........................…

Text truncated - open the document above for the full version.
