HLZA22001Tablet PC

Iconia Tab P10 P10-11 Product and safety information Informations sur le produit et la sécurité Información del producto y de seguridad Informações de segurança e do produto Product overview 4 2 3 1 6 7 8 4 9 5 1. Reset hole6. MicroSD card slotPackage contents 2. Volume control key7. Front camera 3. Power button8. Audio jack 4. Speakers9. USB Type C port 5. Microphone *Components may vary. •Tablet computer •AC adapter •USB cable •Product and safety information •Warranty card Home screen 2 5 4 3 1 Note: Your tablet may have a different wallpaper to the one shown. 1. Notification bar Swipe down to see status information and controls. 2. Search 3. Folders and apps 4. Favorites bar 5. Navigation (Back, Home, Recent) Tap and hold the Home icon to activate Google Assistant feature. Swipe up on the Home screen to see more apps. Getting started Using your computer for the first time 1. Plug in before turning on for the first time. 2. Press and hold the power button until you see the Acer logo. 3. Then follow the onscreen instructions to complete setup. Connecting to the Internet via Wi-Fi To connect to a Wi-Fi network tap Settings, then under Network & internet tap Wi-Fi and ensure it is On. Tap the name of your wireless network; if necessary enter a security password to access the network. Connecting a Bluetooth device To connect to a Bluetooth device tap Settings, then under Connected devices tap Pair new device. Your device automatically scans for available Bluetooth devices; tap an available device to connect. Note: A2DP stereo headsets are supported for playback only. Please check for updates to the tablet's software that may add support for additional Bluetooth devices. Restoring to factory settings To format your tablet tap Settings, then tap System > Reset options > Erase all data (factory reset). Then follow the onscreen instructions until it completes. Your User’s Manual and Safety Guide The User’s Manual and the Safety Guide can be downloaded from the Acer support website by going to: http://go.acer.com/support Note: The information of the Safety Guide may vary by product or region. Updating the operating system To check for updates tap Settings, then tap System > System update > Check for update. This manual contains proprietary information that is protected by copyright laws. The information contained in this manual is subject to change without notice. Some features described in this manual may not be supported depending on the Operating System version. Images provided herein are for reference only and may contain information or features that do not apply to your computer. Acer Group shall not be liable for technical or editorial errors or omissions contained in this manual. Safety and comfort Safety Instructions Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Warnings Accessing the power plug Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power plug from the electrical outlet. Make sure the power plug is fixed at right position with the adaptor before plugging to the socket on the wall. Input rating: Refer to the rating label on the bottom of the computer and ensure that your power adapter complies with the specified rating. Under no circumstances should the user attempt to disassemble the power supply. The power supply has no user-replaceable parts. Inside the power supply are hazardous voltages that can cause serious personal injury. A defective power supply must be returned to your dealer. Adapter: The equipment power supply cord shall be connected to a socket-outlet with earthing connection. Battery precaution - High or low extreme temperatures that a battery can be subjected to during use, storage or transportation; and - Low air pressure at high altitude; - Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); - Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery that can result in an explosion; - Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; - A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Using electrical power - If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating. - Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating. General - Do not use this product near water. - Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged. - Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided. - Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage poi…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City, Taiwan 221 Tel: 886-2-6606-3131 ; Fax: 886-2-2696-3535 Date: December 8, 2022 FCC Laboratory 7435 Oakland Mills Rd Columbia MD 21046 Subject: Request for Confidentiality FCC ID: HLZA22001 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Block diagram  Schematics  Tune-up Procedure  Parts List  Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ RU Jan [email protected]

Acer Incorporated 8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City, Taiwan 221 Tel: 886-2-6606-3131 ; Fax: 886-2-2696-3535 Date: December 8, 2022 To whom it may concern, Please be notified that I, RU Jan, have designated Sporton International Inc. as the agent being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is limited to the product of as following: FCC ID: HLZA22001 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Sincerely yours, RU Jan [email protected]

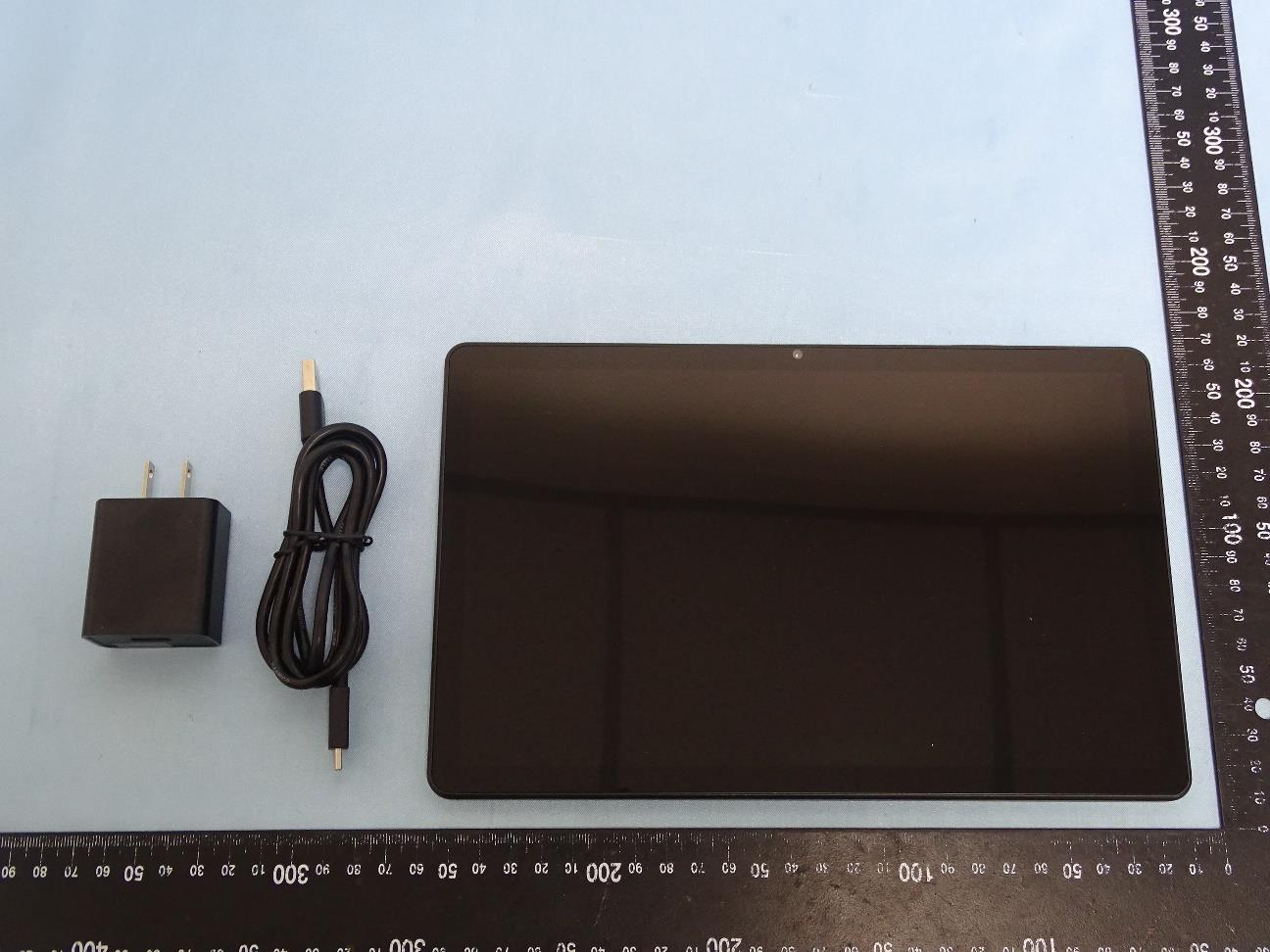

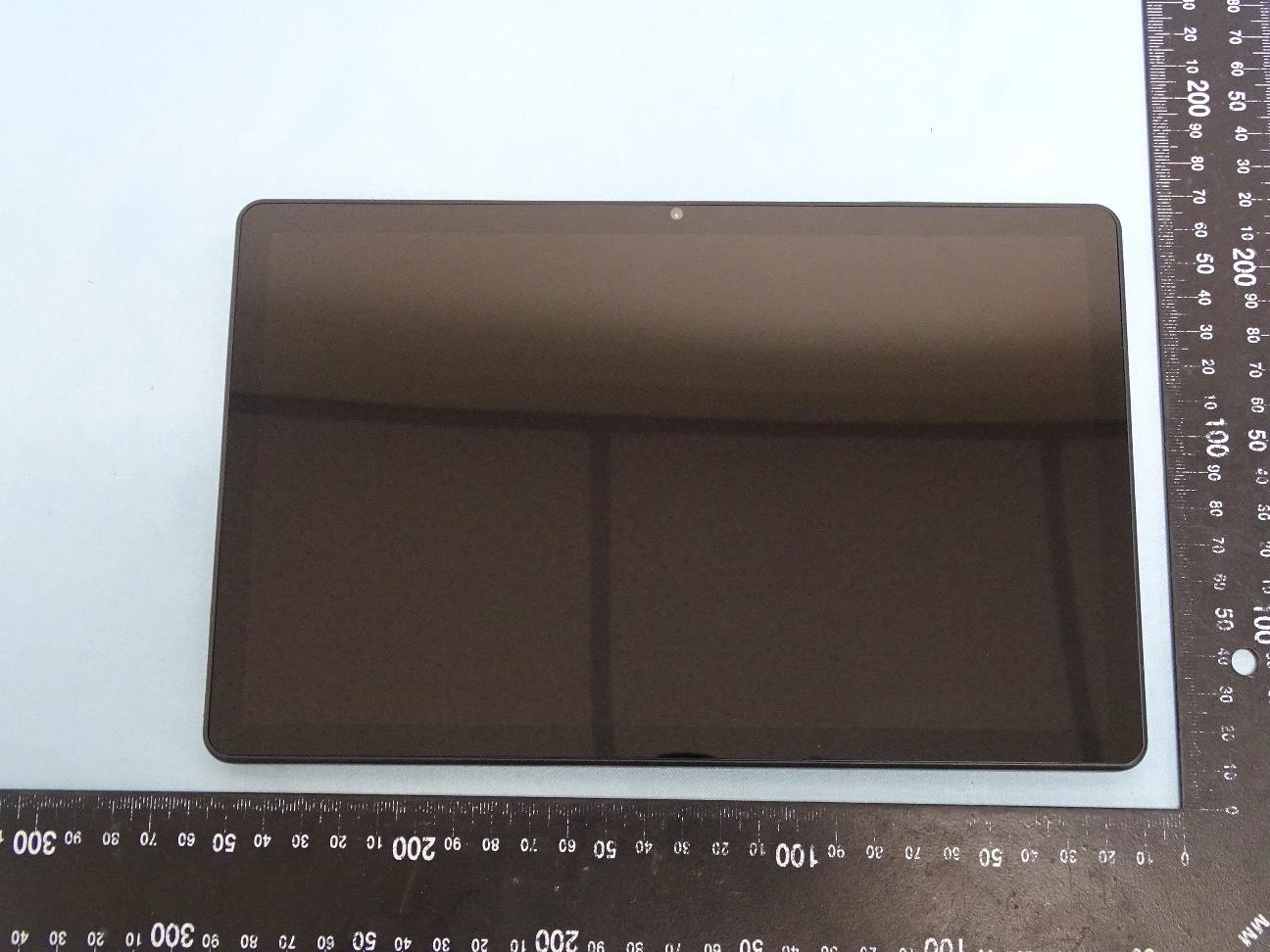

PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 1 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 1.External Photograph of EUT Brand Name: acer / Model Name: A22001 / Marketing Name: Iconia Tab P10, P10-11 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 2 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 3 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 4 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 5 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 6 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 7 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 2. Photograph of Accessory Brand Name: acer / Model Name: A22001 / Marketing Name: Iconia Tab P10, P10-11 Specification of Accessory AC Adapter Brand Name BSY SWITCHING POWER SUPPLY Model Name BSY01J3050200U U Battery Brand Name SHENZHEN UTILITY ENERGY CO., LTD. Model Name U2973180PV USB Cable Brand Name Hanrico An Fu Electronics co.,Ltd Model Name WM1065S Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 8 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 9 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 AC Adapter PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 10 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 Battery PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 11 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 12 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 15, 2022 Report Version : 01

Back of the device Label location

安规贴纸 V 2 6mm 80mm Input: 5A 5150-5250Mhz for indoor use only ACER Iconia Tab P10P10-11Model:A22001 Tablet ComputerWiFi Made in China FCC ID: HLZA22001 IC: 1754F-A22001 CAN ICES-003(B)/NMB-003(B)

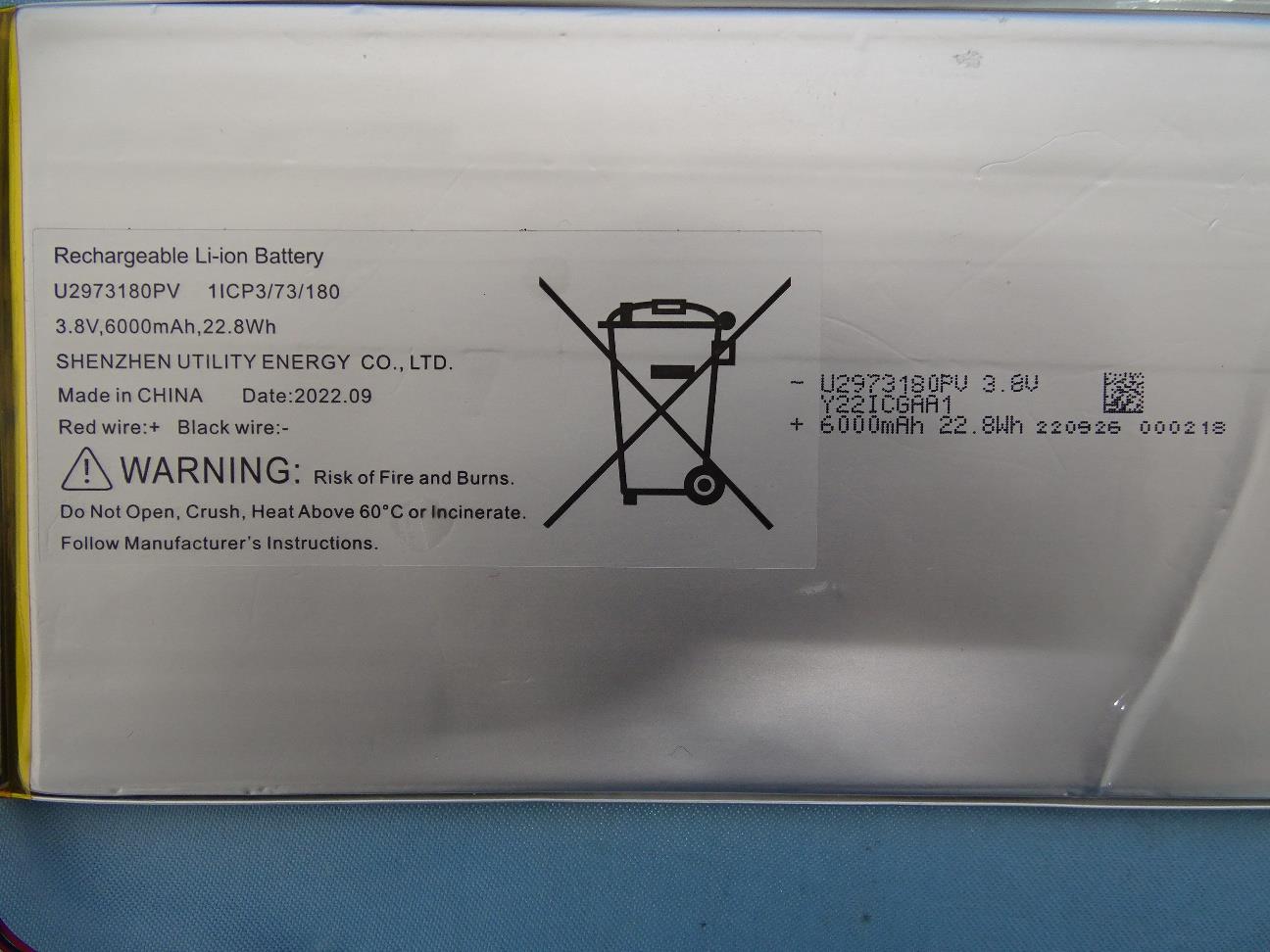

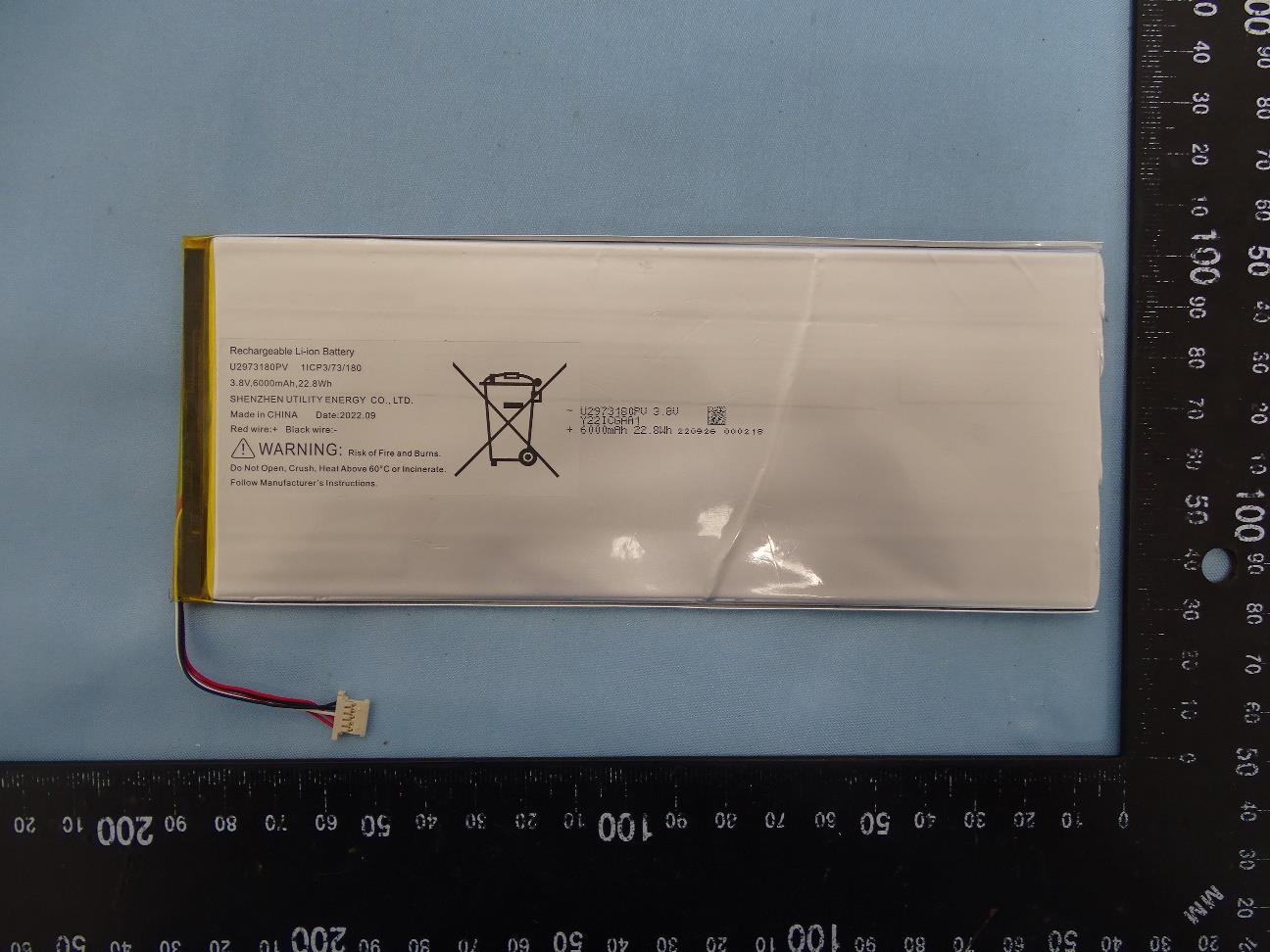

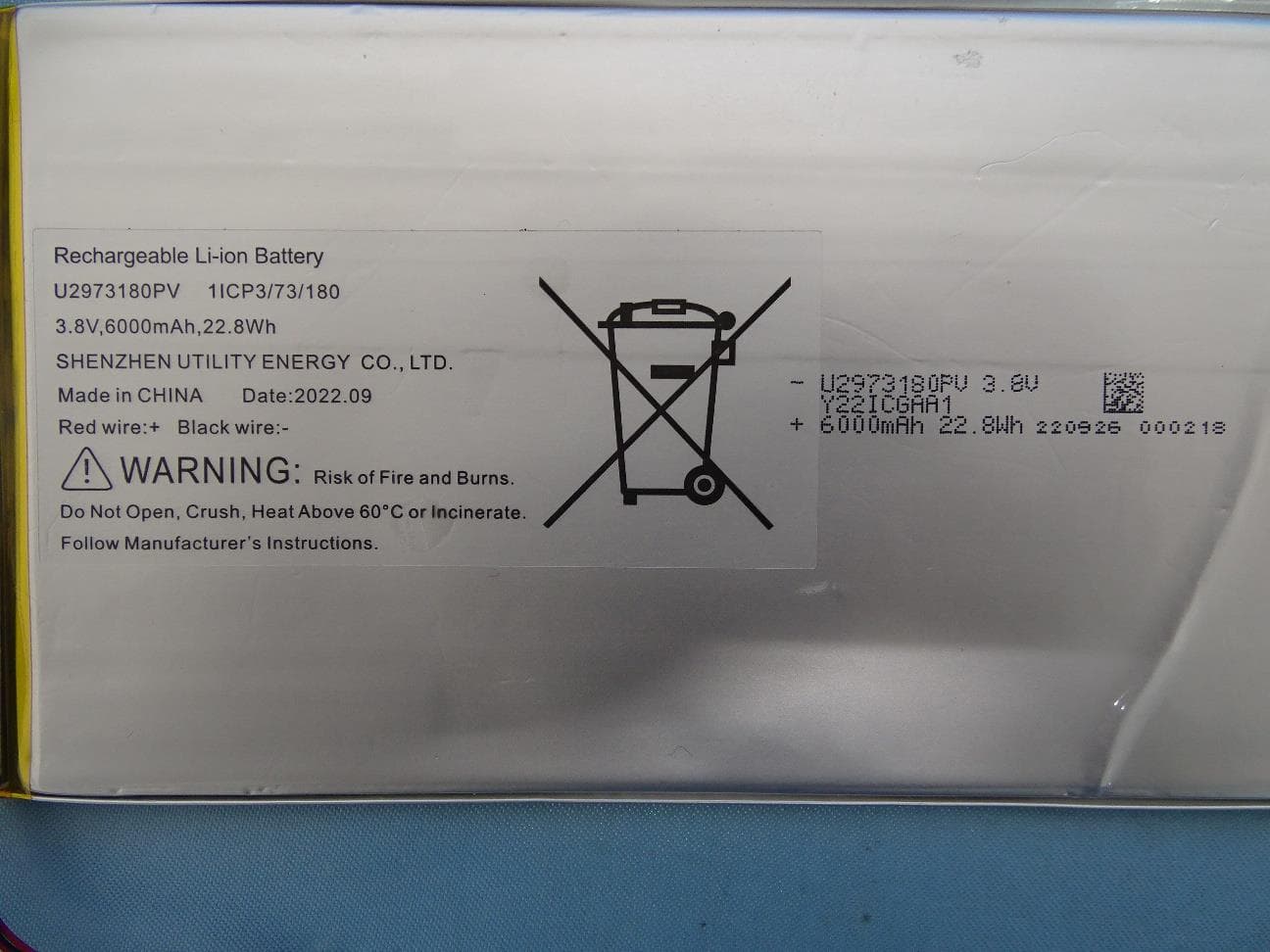

PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 13 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 3.Internal Photograph of EUT Brand Name: acer / Model Name: A22001 / Marketing Name: Iconia Tab P10, P10-11 720510 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 14 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 15 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 16 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 17 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 18 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 19 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 20 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 21 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 22 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 23 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 24 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 25 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 26 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 27 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 28 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 29 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 30 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 31 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 32 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 33 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 34 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 35 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 36 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 37 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 38 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 39 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 40 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 41 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 42 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 43 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP2O2509 TEL : 886-3-327-3456 Page Number : 44 of 44 FAX : 886-3-328-4978 Issue Date : Dec. 14, 2022 Report Version : 01 ─────THE END──── WLAN, Bluetooth and GPS Antenna

TEL : 886-3-327-3456 Page 1 of 27 FAX : 886-3-328-4978 Issued Date : Dec. 12, 2022 Template version: 211220 FCC SAR TEST REPORT Report No. : FA2O2509 FCC SAR TEST REPORT FCC ID : HLZA22001 Equipment : Tablet PC Brand Name : acer Model Name : A22001 Marketing Name : Iconia Tab P10, P10-11 Applicant : Acer Incorporated 8F., No. 88, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22181, Taiwan (R.O.C) Manufacturer : Hunan Greatwall Computer System Co.,Ltd Hunan GreatWall Industrial Park, Xiangyun Middle Road, Tianyuan District, Zhuzhou, Hunan Province, China. Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Nov. 10, 2022 and testing was started from Nov. 24, 2022 and completed on Nov. 24, 2022. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full. Sporton International Inc. EMC & Wireless Communications Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 27 FAX : 886-3-328-4978 Issued Date : Dec. 12, 2022 Template version: 211220 FCC SAR TEST REPORT Report No. : FA2O2509 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 4. RF Exposure Limits....................................................................................................................................................... 6 4.1 Uncontrolled Environment ...................................................................................................................................... 6 4.2 Controlled Environment .......................................................................................................................................... 6 5. Specific Absorption Rate (SAR) ................................................................................................................................... 7 5.1 Introduction ............................................................................................................................................................ 7 5.2 SAR Definition ........................................................................................................................................................ 7 6. System Description and Setup .................................................................................................................................... 8 6.1 Test Site Location ................................................................................................................................................... 8 6.2 E-Field Probe ......................................................................................................................................................... 9 6.3 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 6.4 Phantom ................................................................................................................................................................10 6.5 Device Holder........................................................................................................................................................ 11 7. Measurement Procedures ...........................................................................................................................................12 7.1 Spatial Peak SAR Evaluation ................................................................................................................................12 7.2 Power Reference Measurement............................................................................................................................13 7.3 Area Scan .............................................................................................................................................................13 7.4 Zoom Scan ............................................................................................................................................................14 7.5 Volume Scan Procedures ......................................................................................................................................14 7.6 Power Drift Monitoring ...........................................................................................................................................14 8. Test Equipment List .....................................................................................................................................................15 9. System Verification ......................................................................................................................................................16 9.1 Tissue Verification .................................................................................................................................................16 9.2 System Performance Check Results .....................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2022/11/24 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_221124 Medium parameters used : f = 2450 MHz; σ = 1.807 S/m; ε r = 40.036; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN3925; ConvF(8.2, 8.2, 8.2) @ 2450 MHz; Calibrated: 2022/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2022/5/30 - Phantom: ELI v4.0_Mid; Type: QDOVA001AA; Serial: TP:1026 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 4.27 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.28 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 5.38 W/kg SAR(1 g) = 2.56 W/kg; SAR(10 g) = 1.2 W/kg Maximum value of SAR (measured) = 4.27 W/kg 0 dB = 4.27 W/kg = 6.30 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2022/11/24 System Check_Head_2450MHz DUT : D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_221124 Medium parameters used : f = 2450 MHz; σ = 1.807 S/m; ε r = 40.036; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN7439; ConvF(7.68, 7.68, 7.68) @ 2450 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2022/7/20 - Phantom: ELI v4.0_Mid; Type: QDOVA001AA; Serial: TP:1026 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 4.03 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 48.16 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 4.87 W/kg SAR(1 g) = 2.53 W/kg; SAR(10 g) = 1.2 W/kg 0 dB = 4.02 W/kg = 6.04 dBW/kg Maximum value of SAR (measured) = 4.02 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2022/11/24 System Check_Head_5250MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5G_221124 Medium parameters used : f = 5250 MHz; σ = 4.697 S/m; ε r = 36.603; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN7439; ConvF(5.21, 5.21, 5.21) @ 5250 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2022/7/20 - Phantom: ELI v4.0_Mid; Type: QDOVA001AA; Serial: TP:1026 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 10.3 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 50.84 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 16.3 W/kg SAR(1 g) = 3.97 W/kg; SAR(10 g) = 1.13 W/kg Maximum value of SAR (measured) = 10.2 W/kg 0 dB = 10.2 W/kg = 10.09 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2022/11/24 System Check_Head_5600MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: HSL_5G_221124 Medium parameters used: f = 5600 MHz; σ = 5.041 S/m; ε r = 36.073; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN7439; ConvF(4.59, 4.59, 4.59) @ 5600 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2022/7/20 - Phantom: ELI v4.0_Mid; Type: QDOVA001AA; Serial: TP:1026 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 11.4 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 51.11 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 18.7 W/kg SAR(1 g) = 4.16 W/kg; SAR(10 g) = 1.15 W/kg Maximum value of SAR (measured) = 11.2 W/kg 0 dB = 11.2 W/kg = 10.49 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2022/11/24 System Check_Head_5750MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5750 MHz;Duty Cycle: 1:1.105 Medium: HSL_5G_221124 Medium parameters used: f = 5750 MHz; σ = 5.216 S/m; ε r = 35.882; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN7439; ConvF(4.8, 4.8, 4.8) @ 5750 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2022/7/20 - Phantom: ELI v4.0_Mid; Type: QDOVA001AA; Serial: TP:1026 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 9.89 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 47.68 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 17.1 W/kg SAR(1 g) = 3.7 W/kg; SAR(10 g) = 1.04 W/kg Maximum value of SAR (measured) = 9.96 W/kg 0 dB = 9.96 W/kg = 9.98 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2022/11/24 #01_WLAN2.4GHz_802.11b 1Mbps_Bottom Face_0mm_Ch6 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1.003 Medium: HSL_2450_221124 Medium parameters used : f = 2437 MHz; σ = 1.796 S/m; ε r = 40.104; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN3925; ConvF(8.2, 8.2, 8.2) @ 2437 MHz; Calibrated: 2022/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2022/5/30 - Phantom: ELI v4.0_Mid; Type: QDOVA001AA; Serial: TP:1026 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (61x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 2.61 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.5810 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.76 W/kg SAR(1 g) = 1.11 W/kg; SAR(10 g) = 0.371 W/kg Maximum value of SAR (measured) = 2.52 W/kg 0 dB = 2.52 W/kg = 4.01 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2022/11/24 #02_WLAN5GHz_802.11ac-VHT80 MCS0_Bottom Face_0mm_Ch58 Communication System: 802.11ac ; Frequency: 5290 MHz;Duty Cycle: 1:1.105 Medium: HSL_5G_221124 Medium parameters used : f = 5290 MHz; σ = 4.744 S/m; ε r = 36.496; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN7439; ConvF(5.21, 5.21, 5.21) @ 5290 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2022/7/20 - Phantom: ELI v4.0_Mid; Type: QDOVA001AA; Serial: TP:1026 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (81x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.14 W/kg Zoom Scan (…

Text truncated - open the document above for the full version.
