HLZA5001Tablet Computer

Product overview 12 5 3 6 4 7 8 10 9 1. Microphone 2. Micro USB port 3. Audio jack 4. microSD card slot 5. Front camera 6. Power button 7. Volume button 8. Touchscreen 9. Rear camera 10. Speakers * Components may vary. Home screen 1 2 3 5 6 5 4 Note: Your tablet may have a different wallpaper to the one shown. 1. Notification bar 2. Search 3. Widgets 4. Application menu (also known as "Apps") 5. App shortcuts 6. Navigation (Back, Home, Recent) Getting started Using your tablet 1. Connect the power adapter Charge your tablet for at least four hours. Note: It is normal for the device surface to become warm during charging or long periods of use. 2. Press the power button Hold until you see the Acer logo. Connecting to the Internet via Wi-Fi To connect to a Wi-Fi network, tap the Application menu , then tap Settings . Under Wireless & networks, tap Wi-Fi and ensure it is set to On. Tap a wireless network; if necessary enter a security password to access the network. How to register To register your Acer product, visit our website at registration.acer.com. After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place. Your tablet's User's Manual To download the User's Manual, go to www.acer.com and click Support > DRIVERS AND MANUALS. Select the appropriate items from Group > Series > Products. In the Documents tab, click Download next to the User’s Manual. Connecting a Bluetooth device To connect to a bluetooth device, tap the Application menu , then tap Settings . Under Wireless & networks, tap Bluetooth and ensure it is set to On. Your device automatically scans for available Bluetooth devices; tap an available device to connect. Note: A2DP stereo headsets are supported for playback only. Please check for updates to the tablet's software that may add support for additional Bluetooth devices. Restoring to factory settings Tap the Application menu , then tap Settings . Tap Backup & reset > Factory data reset; tap RESET TABLET and then ERASE EVERYTHING to format your tablet. Updating your tablet’s operating system To check for updates, tap the Application menu , then tap Settings . Tap About tablet > System updates > CHECK NOW. Acer Iconia Suite Acer has created a suite of tools that make your mobile digital experience easier and more fun. From the Home screen, tap the Iconia Suite icon to display apps: EZ Note, EZ Snap, EZ WakeUp, and EZ Gadget. Tap an app to open it. EZ Note Quickly create notes and use bookmarks and "journals" to organize them. Notes can contain handwriting, text from the onscreen keyboard, or imported images. Also, record audio or take pictures on-the-fly. EZ Snap Simply pinch the screen with three fingers to capture a screenshot. Then, quickly share the image in a variety of ways. EZ WakeUp Use simple gestures to easily wake up your tablet from sleep mode and launch a pre-defined app of your choice. EZ Gadget A floating window with multiple tools that stay in their own movable and resizeable window on top of all other apps. Safety and comfort SAFETY INSTRUCTIONS Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. WARNINGS Accessing the power plug Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power plug from the electrical outlet. Mark sure the power plug is fixed at right position with the adaptor before plugging to the socket on the wall. Input rating: Refer to the rating label on the bottom of the computer and ensure that your power adapter complies with the specified rating. Under no circumstances should the user attempt to disassemble the power supply. The power supply has no user-replaceable parts. Inside the power supply are hazardous voltages that can cause serious personal injury. A defective power supply must be returned to your dealer. Using electrical power - If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating. - Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating. General - Do not use this product near water. - Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged. - Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided. - Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or shortout parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product. - To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface. - Your device and its enhancements may contain small parts. Keep them out of the reach of small children. Product servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangero…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Date:2011/8/22 To who may concern, I, the undersigned, responsible for the designated person in FCC grant communicator / IC company code contactor, hereby authorized RU Jan to sign the FCC / IC application form for certification process. Thank you, Sincerely Yours, Contact Person: Harriot S.L. Lee Company Name: Acer Incorporated E-Mail: [email protected]

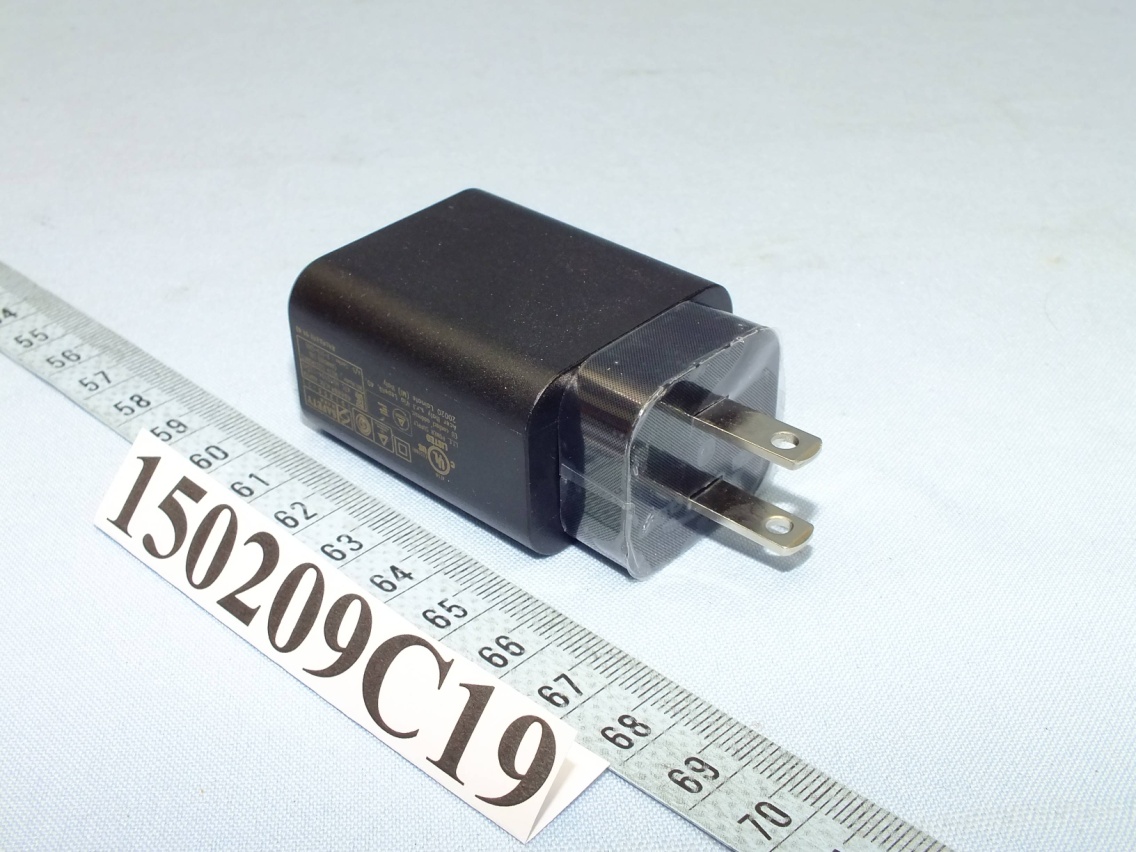

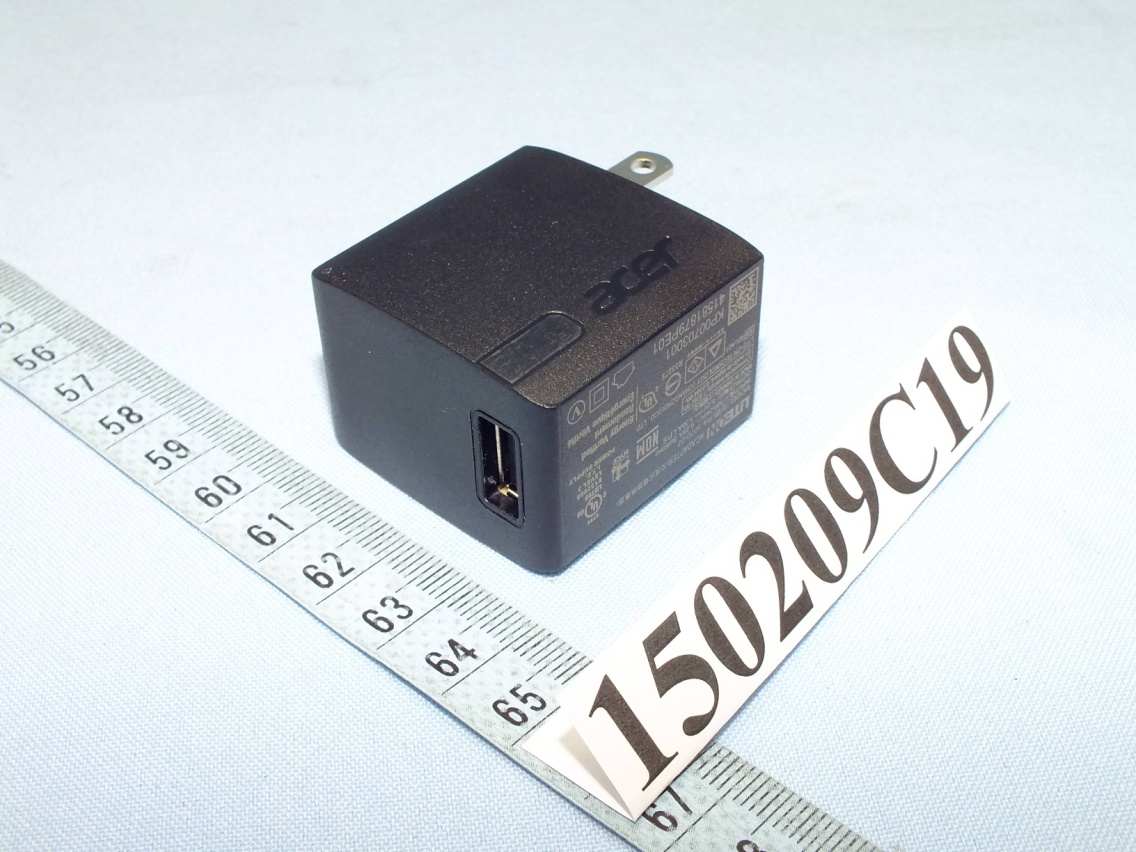

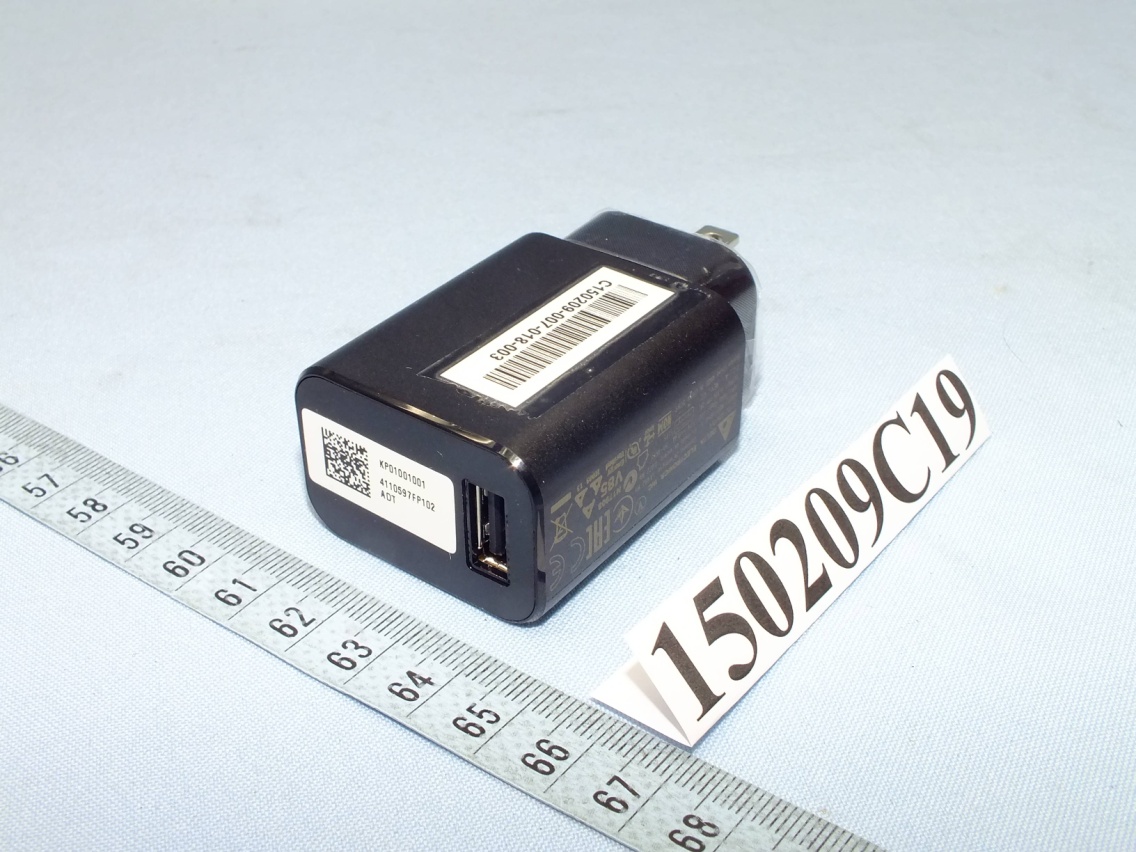

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

P18 NK8 BACK LABEL Z/ƚĂůLJƐ͘ƌ͘ůsŝĂ>ĞƉĞƟƚ͕κϬ͕ϮϬϬϮϬ>ĂŝŶĂƚĞ;D/ͿůƚĂůLJDĂĚĞŝŶŚŝŶĂ &/͗,>ρϬϬϭ/͗ϭϳρκ&ͲρϬϬϭE/^Ͳϯ;ͿͬEDͲϯ;Ϳ ZϭͲΘϮϬDŽĚĞů͗ρϬϬϭdĂďůĞƚŽŵƉƵƚĞƌ KŶĞΘ /ŶƉƵƚ͗ρ͘ϮsĚĐϭ͘ϯρŽƌρ͘ϯρsĚĐϮ 23mm 28mm 25.5mm 28mm 25.5mm 20mm 14.5mm 39.5mm 61,' MFG Date:2014.XX blank label for special printing 2mm 35*5mm 35*10mm 75*6mm

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

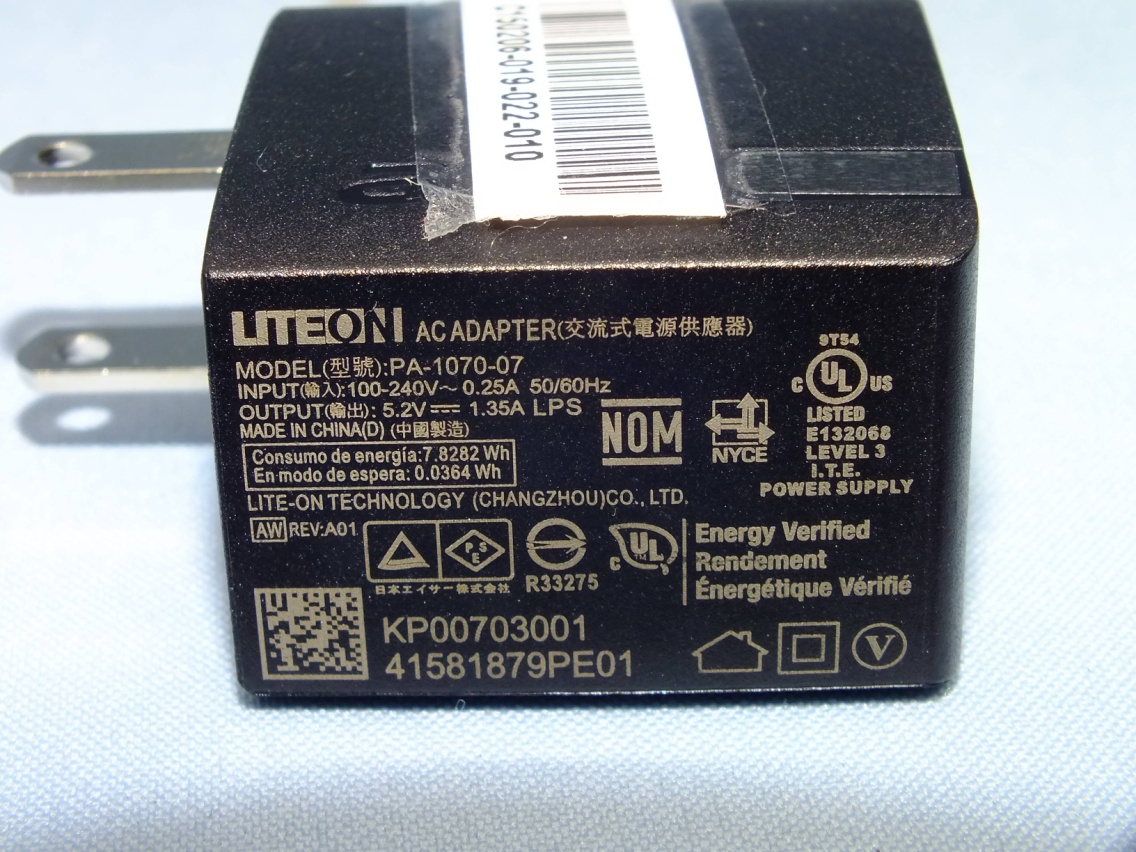

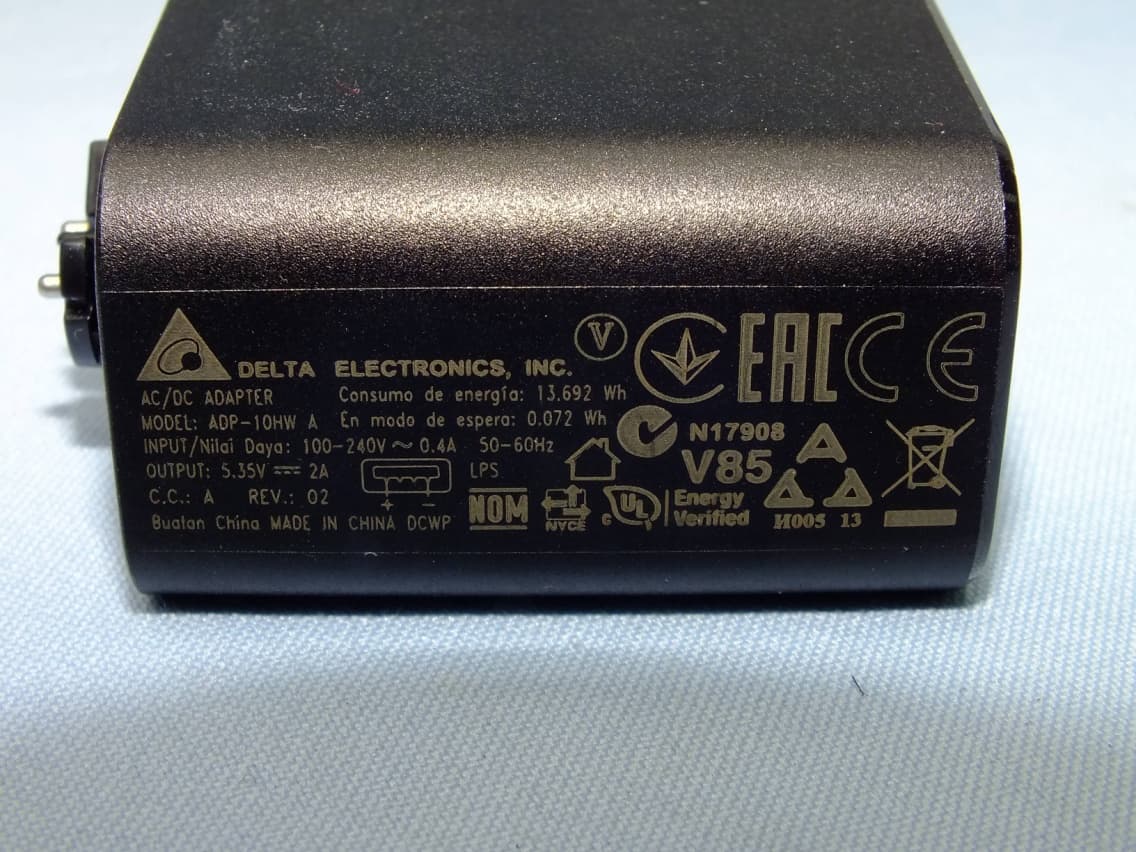

FCC ID: HLZA5001 Report No.: RF150209C19 Operational Description This device is a Tablet Computer, which operates in 2.4GHz bands for WLAN and Bluetooth; the maximum data rate could be up to 72.2Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 72.2Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.8Vdc from battery, 5Vdc from host equipment or 5.35Vdc, 5.2Vdc form adapter. The antenna is PIFA antenna with IPEX MHF 4L antenna connectors. The other instruction, please have a look at the users manual.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 24 Report No. : SA150209C19 Issued Date : Mar. 10, 2015 FCC SAR Test Report Report No. : SA150209C19 Applicant : Acer Incorporated Address : 8F., No.88, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan Product : Tablet Computer (BT+Wi-Fi) FCC ID : HLZA5001 Brand : Acer Model No. : A5001 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 KDB 248227 D01 v01r02 / KDB 447498 D01 v05r02 / KDB 616217 D04 v01r01 Sample Received Date : Feb. 09, 2015 Date of Testing : Feb. 17, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Evonne Liu / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 24 Report No. : SA150209C19 Issued Date : Mar. 10, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.5 SAR Averaged Methods .…

Text truncated - open the document above for the full version.

Report No.: RF150209C19-2 Page No. 1 / 45 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150209C19-2 FCC ID: HLZA5001 Test Model: A5001 Received Date: Feb. 09, 2015 Test Date: Feb. 11 ~ Feb. 14, 2015 Issued Date: Feb. 25, 2015 Applicant: Acer Incorporated Address: 8F., No. 88, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150209C19-2 Page No. 2 / 45 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 9 3.3 Description of Support Units .............................................................................................................. 11 3.3.1 Configuration of System under Test ................................................................................................... 11 3.4 General Description of Applied Standards ......................................................................................... 11 4 Test Types and Results ...................................................................................................................... 12 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 12 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 12 4.1.2 Test Instruments ................................................................................................................................ 13 4.1.3 Test Procedures ................................................................................................................................. 14 4.1.4 Deviation from Test Standard ............................................................................................................ 14 4.1.5 Test Set Up ........................................................................................................................................ 15 4.1.6 EUT Operating Conditions ................................................................................................................. 15 4.1.7 Test Results ....................................................................................................................................... 16 4.2 Conducted Emission Measurement .................................................................................................. 24 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 24 4.2.2 Test Instruments ................................................................................................................................ 24 4.2.3 Test Procedures ................................................................................................................................. 25 4.2.4 Deviation from Test Standard ............................................................................................................ 25 4.2.5 Test Setup .............................................…

Text truncated - open the document above for the full version.

Report No.: RF150209C19-1 Page No. 1 / 35 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150209C19-1 FCC ID: HLZA5001 Test Model: A5001 Received Date: Feb. 09, 2015 Test Date: Feb. 11 ~ Feb. 14, 2015 Issued Date: Feb. 25, 2015 Applicant: Acer Incorporated Address: 8F., No. 88, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150209C19-1 Page No. 2 / 35 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 9 3.3 Description of Support Units .............................................................................................................. 11 3.3.1 Configuration of System under Test ................................................................................................... 11 3.4 General Description of Applied Standards ......................................................................................... 11 4 Test Types and Results ...................................................................................................................... 12 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 12 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 12 4.1.2 Test Instruments ................................................................................................................................ 13 4.1.3 Test Procedures ................................................................................................................................. 14 4.1.4 Deviation from Test Standard ............................................................................................................ 14 4.1.5 Test Set Up ........................................................................................................................................ 15 4.1.6 EUT Operating Conditions ................................................................................................................. 15 4.1.7 Test Results ....................................................................................................................................... 16 4.2 Conducted Emission Measurement .................................................................................................. 21 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 21 4.2.2 Test Instruments ................................................................................................................................ 21 4.2.3 Test Procedures ................................................................................................................................. 22 4.2.4 Deviation from Test Standard ............................................................................................................ 22 4.2.5 Test Setup .............................................…

Text truncated - open the document above for the full version.

Report No.: RF150209C19 Page No. 1 / 47 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150209C19 FCC ID: HLZA5001 Test Model: A5001 Received Date: Feb. 09, 2015 Test Date: Feb. 11 ~ Feb. 14, 2015 Issued Date: Feb. 25, 2015 Applicant: Acer Incorporated Address: 8F., No. 88, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150209C19 Page No. 2 / 47 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 9 3.3 Duty Cycle of Test Signal ................................................................................................................... 11 3.4 Description of Support Units ............................................................................................................. 12 3.4.1 Configuration of System under Test .................................................................................................. 12 3.5 General Description of Applied Standards ........................................................................................ 12 4 Test Types and Results ...................................................................................................................... 13 4.1 Radiated Emission and Bandedge Measurement ...........................................................…

Text truncated - open the document above for the full version.
