HLZA5008Tablet Computer

acer.com Product and safety information Informations sur le produit et la sécurité Información del producto y de seguridad Informações de segurança e do produto Iconia One 10 B3-A20 *NC.LBV11.002* NC.LBV11.002 Product overview 1 2 3 4567 8 10 10 9 1. Audio jack 2. Micro USB port 3. Microphone 4. Power button 5. Volume button 6. Reset pinhole 7. Micro SD card slot (beneath cover) 8. Front camera 9. Touchscreen 10. Speakers 11. Rear camera 11 Home screen 4 1 2 3 6 3 5 Note: Your tablet may have a different wallpaper to the one shown. 1. Search 2. Widgets 3. App shortcuts 4. Notification bar 5. Application menu (also known as "Apps") 6. Navigation (Back, Home, Recent) Getting started Using your tablet 1. Connect the power adapter Charge your tablet for at least four hours. Note: It is normal for the device surface to become warm during charging or long periods of use. 2. Press the power button Hold until you see the Acer logo. Connecting to the Internet via Wi-Fi To connect to a Wi-Fi network, tap the Application menu , then tap Settings . Under Wireless & networks, tap Wi-Fi and ensure it is set to On. Tap a wireless network; if necessary enter a security password to access the network. How to register To register your Acer product, visit our website at registration.acer.com. After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place. Your tablet's User's Manual To download the User's Manual, go to www.acer.com and click Support > DRIVERS AND MANUALS. Select the appropriate items from Group > Series > Products. In the Documents tab, click Download next to the User’s Manual. Connecting a Bluetooth device To connect to a bluetooth device, tap the Application menu , then tap Settings . Under Wireless & networks, tap Bluetooth and ensure it is set to On. Your device automatically scans for available Bluetooth devices; tap an available device to connect. Note: A2DP stereo headsets are supported for playback only. Please check for updates to the tablet's software that may add support for additional Bluetooth devices. Restoring to factory settings Tap the Application menu , then tap Settings . Tap Backup & reset > Factory data reset; tap RESET TABLET and then ERASE EVERYTHING to format your tablet. Updating your tablet’s operating system To check for updates, tap the Application menu , then tap Settings . Tap About tablet > System updates > CHECK NOW. Safety and comfort SAFETY INSTRUCTIONS Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. WARNINGS Accessing the power plug Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power plug from the electrical outlet. Mark sure the power plug is fixed at right position with the adaptor before plugging to the socket on the wall. Input rating: Refer to the rating label on the bottom of the computer and ensure that your power adapter complies with the specified rating. Under no circumstances should the user attempt to disassemble the power supply. The power supply has no user-replaceable parts. Inside the power supply are hazardous voltages that can cause serious personal injury. A defective power supply must be returned to your dealer. Using electrical power - If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating. - Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating. General - Do not use this product near water. - Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged. - Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided. - Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or shortout parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product. - To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface. - Your device and its enhancements may contain small parts. Keep them out of the reach of small children. Product servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel. Unplug this product from the wall outlet and refer servicing to qualified service personnel when: - The power cord or plug is damaged, cut or frayed. - Liquid was spilled into the product. - The product was exposed to rain or water. - The product has been dropped or the case has been damaged. - The product exhibits a distinct change in performance, indicating a need for service. - The product does not operate normally after following the operating instructions. Note: Adjust only those controls that are covered by the…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih New Taipei City 22181, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Date:2011/8/22 To who may concern, I, the undersigned, responsible for the designated person in FCC grant communicator / IC company code contactor, hereby authorized RU Jan to sign the FCC / IC application form for certification process. Thank you, Sincerely Yours, Contact Person: Harriot S.L. Lee Company Name: Acer Incorporated E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 DATE: 2015-09-09 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name HLZA5008 A5008 For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name: RU Jan Company: Acer Incorporated Address:8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221Taiwan Phone: 886-2-8691-3289 Fax: 886-2-8691-3120 Email: [email protected]

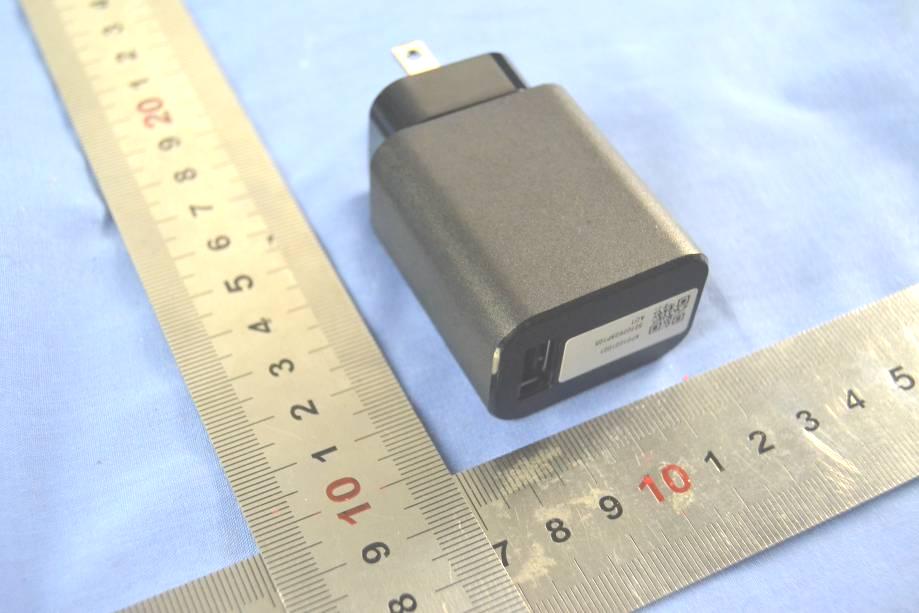

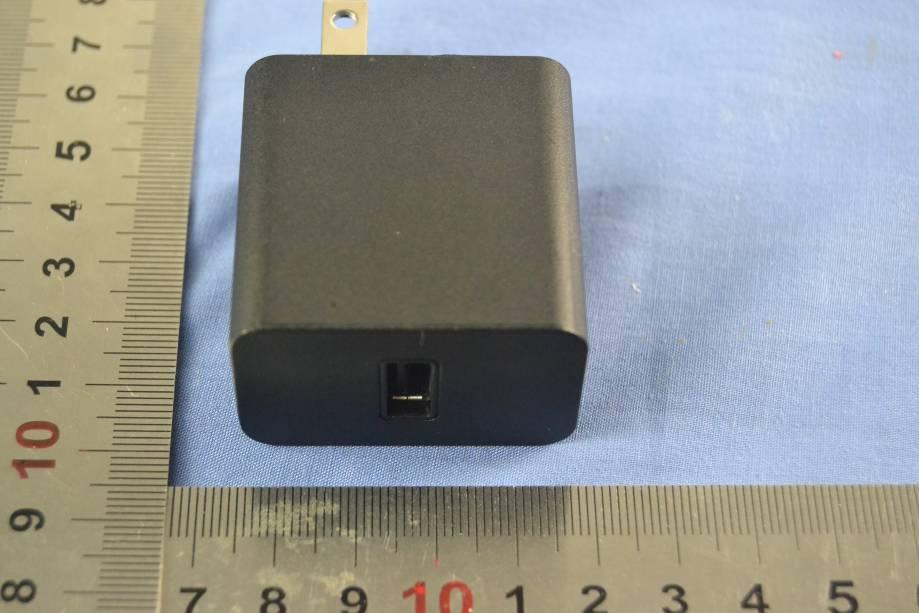

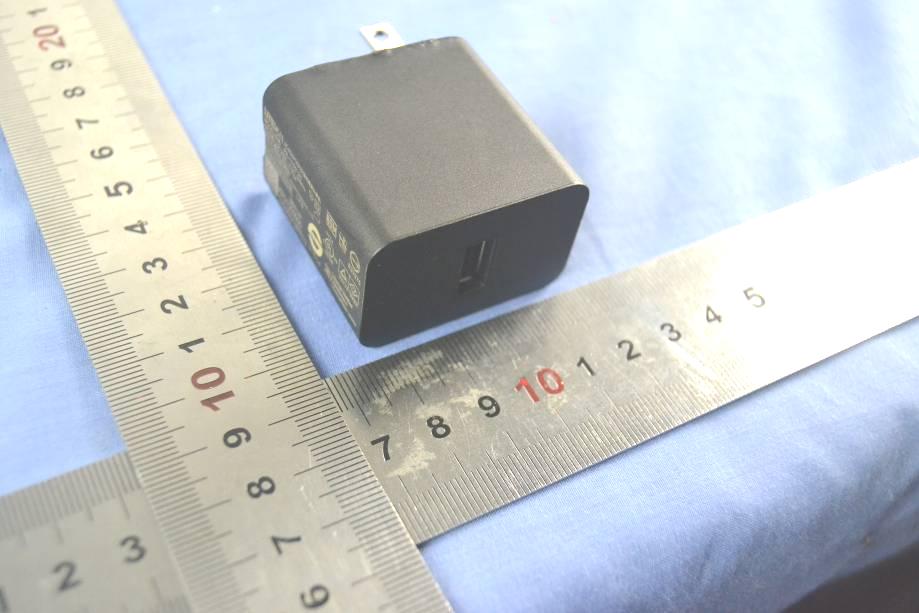

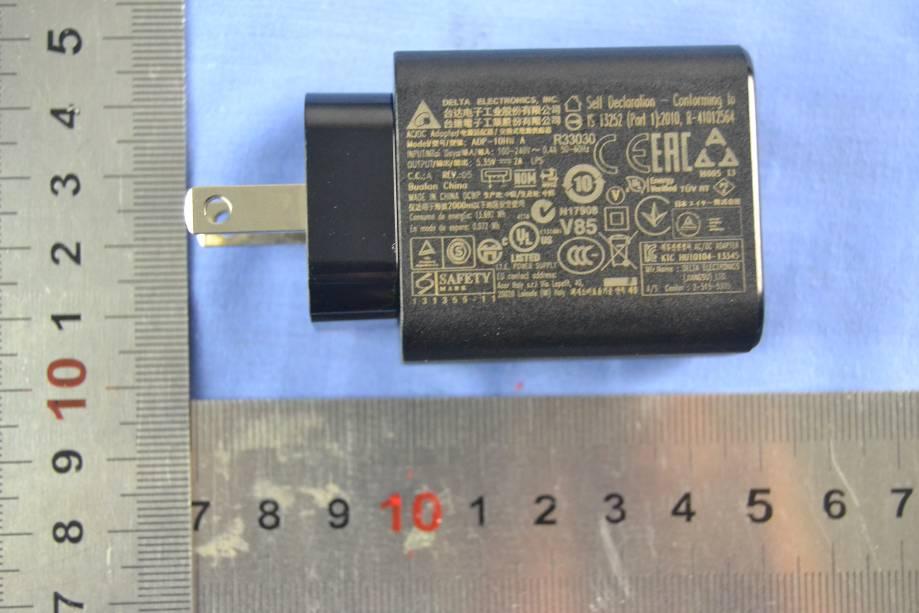

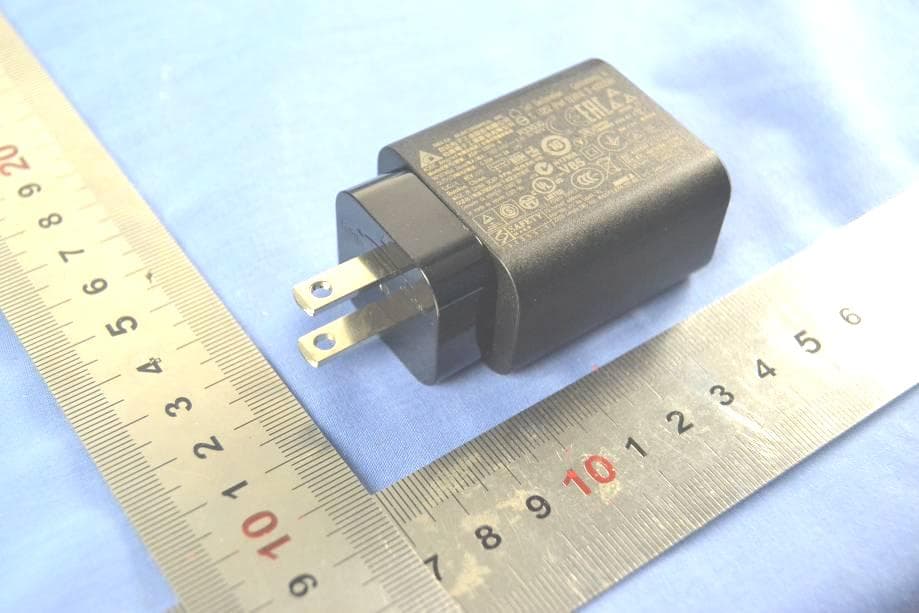

Report No: C150824Z01 Page 1 / 10 External Photos of EUT Report No: C150824Z01 Page 2 / 10 Report No: C150824Z01 Page 3 / 10 Report No: C150824Z01 Page 4 / 10 Report No: C150824Z01 Page 5 / 10 Adapter 1: Delta / ADP-10HW A Report No: C150824Z01 Page 6 / 10 Report No: C150824Z01 Page 7 / 10 Adapter 2: LITEON / PA-1100-25 Report No: C150824Z01 Page 8 / 10 Report No: C150824Z01 Page 9 / 10 Report No: C150824Z01 Page 10 / 10

35*10mm 75mm 92.2mm92.2mm 20.6mm WW WIFI only ACER lconia One 10 B3-A20 Model:A5008 FCC ID:HLZA5008 IC:1754F-A5008 CAN ICES-3(B)/NMB-3(B) Input: 5.35Vdc 2A 5150-5250Mhz for indoor use only ACER Italy s.r.l Via Lepetit, 40,20020 Lainate(MI) ltaly Tablet Computer Made in China 6mm 35*10mm 75mm 6mm 92.2mm 92.2mm 20.6mm NTC Type Approved 11mm+-0.2 11.5mm+-0.2 No.:xxx-xxxxxxxx Philippines WIFI only ACER lconia One 10 B3-A20 Model:A5008 FCC ID:HLZA5008 IC:1754F-A5008 CAN ICES-3(B)/NMB-3(B) Input: 5.35Vdc 2A 5150-5250Mhz for indoor use only ACER Italy s.r.l Via Lepetit, 40,20020 Lainate(MI) ltaly Tablet Computer Made in China 12mm+-0.2 12mm+-0.2 35*10mm 75mm 6mm 92.2mm 92.2mm 20.6mm ACER lconia One 10 B3-A20 Model:A5008 FCC ID:HLZA5008 IC:1754F-A5008 CAN ICES-3(B)/NMB-3(B) Input: 5.35Vdc 2A 5150-5250Mhz for indoor use only ACER Italy s.r.l Via Lepetit, 40,20020 Lainate(MI) ltaly Tablet Computer Made in China Malaysia WIFI only Consumo de Energia En Operacion: X.XX Wh En modo de espera: X.XXWh IFETEL NO: RCPACAXXX-XXXX 30+-0.2mm 35*10mm 75mm 6mm 92.2mm 92.2mm 20.6mm ACER lconia One 10 B3-A20 Model:A5008 FCC ID:HLZA5008 IC:1754F-A5008 CAN ICES-3(B)/NMB-3(B) Input: 5.35Vdc 2A 5150-5250Mhz for indoor use only ACER Italy s.r.l Via Lepetit, 40,20020 Lainate(MI) ltaly Tablet Computer Made in China Mexico WIFI only 35*10mm 67mm 6mm 96.2mm96.2mm 20.6mm Taiwan WIFI only ACER locnia One 10 B3-A20 型號:A5008 輸入:5.35Vdc 2A 宏碁股份有限公司 平板電腦 中國製造 警語:使用過恐傷害視力 xxxxxxxxxxxxxxxxxx 35*10mm 75mm 6mm 92.2mm 92.2mm 20.6mm China WIFI only 型号:A5008 平板电脑(便携计算机) 中国制造ACER lconia One 10 B3-A20 宏碁股份有限公司 CMIIT ID:2014XXXXXX 输入:5.35Vdc 2A

Report No: C150824Z01 Page 1 / 9 Internal Photos of EUT BT & WIFI Antenna Report No: C150824Z01 Page 2 / 9 Report No: C150824Z01 Page 3 / 9 Report No: C150824Z01 Page 4 / 9 BT & WIFI Module Report No: C150824Z01 Page 5 / 9 LCD Panel :KD101N37-40NA-A10 Report No: C150824Z01 Page 6 / 9 Report No: C150824Z01 Page 7 / 9 LCD Panel : M101AI01-TII40-A04 Report No: C150824Z01 Page 8 / 9 Report No: C150824Z01 Page 9 / 9

Compliance Certification Services Inc. Date of Issue: September 15, 2015 Report No .:C150901S01-SF Page 1 of 32 WiFi 802.11b -Body Front Middle CH6............................................................................................. 2 WiFi 802.11b -Body Rear Low CH1................................................................................................... 3 WiFi 802.11b -Body Rear Middle CH6.............................................................................................. 4 WiFi 802.11b -Body Rear High CH11............................................................................................... 5 WiFi 802.11b -Body Edge 1 Middle CH6.......................................................................................... 6 WiFi 802.11b -Body Edge 4 Middle CH6.......................................................................................... 7 WIFI 802.11a-Body Front CH44......................................................................................................... 8 WIFI 802.11a-Body Rear CH40........................................................................................................... 9 WIFI 802.11a-Body Rear CH44......................................................................................................... 10 WIFI 802.11a-Body Edge 1 CH44......................................................................................................11 WIFI 802.11a-Body Edge 4 CH44..................................................................................................... 12 WIFI 802.11a-Body Front CH52....................................................................................................... 13 WIFI 802.11a-Body Rear CH52......................................................................................................... 14 WIFI 802.11a-Body Rear CH56......................................................................................................... 15 WIFI 802.11a-Body Edge 1 CH52..................................................................................................... 16 WIFI 802.11a-Body Edge 4 CH52..................................................................................................... 17 WIFI 802.11n40-Body Front CH102................................................................................................. 18 WIFI 802.11n40-Body Rear CH102.................................................................................................. 19 WIFI 802.11n40-Body Rear CH134.................................................................................................. 20 WIFI 802.11n40-Body Edge 1 CH102.............................................................................................. 21 WIFI 802.11n40-Body Edge 4 CH102.............................................................................................. 22 WIFI 802.11n40-Body Front CH151................................................................................................. 23 WIFI 802.11n40-Body Rear CH151.................................................................................................. 24 WIFI 802.11n40-Body Rear CH159.................................................................................................. 25 WIFI 802.11n40-Body Edge 1 CH151.............................................................................................. 26 WIFI 802.11n40-Body Edge 4 CH151.............................................................................................. 27 WiFi 802.11b -Body Rear CH11 repeat.......................................................................................... 28 WIFI 802.11a-Body Rear CH44 repeat............................................................................................ 29 WIFI 802.11a-Body Rear CH56 repeat............................................................................................ 30 WIFI 802.11n40-Body Rear CH134 repeat..................................................................................... 31 WIFI 802.11n40-Body Rear CH159 repeat..................................................................................... 32 Compliance Certification Services Inc. Date of Issue: September 15, 2015 Report No .:C150901S01-SF Page 2 of 32 Test Laboratory: Compliance Certification Services Inc. Date: 9/12/2015 WiFi 802.11b -Body Front Middle CH6 DUT: Tablet Computer; Type: A5008; Serial: N/A Communication System: UID 0, IEEE 802.11b (0); Communication System Band: ISM 2.4GHz Band; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.937 S/m; ε r = 51.701; ρ = 1000 kg/m 3 Room Ambient Temperature: 22°C; Liquid Temperature: 21.5°C Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3798; ConvF(7.08, 7.08, 7.08); Calibrated: 7/24/2015; • Sensor-Surface: 2mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 7/22/2015 • Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:xxxx • DASY52 52.8.8(1222); • SEMCAD X Version 14.6.10 (7331) WiFi/Body Front Middle CH6/Area Scan (9x10x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.719 W/kg WiFi/Body Front Middle CH6/Zoom Scan (7x7x5)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.9130 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.560 W/kg; SAR(10 g) = 0.237 W/kg Maximum value of SAR (measured) = 0.953 W/kg 0 dB = 0.953 W/kg = -0.21 dBW/kg Compliance Certification Services Inc. Date of Issue: September 15, 2015 Report No .:C150901S01-SF Page 3 of 32 Test Laboratory: Compliance Certification Services Inc. Date: 9/12/2015 WiFi 802.11b -Body Rear Low CH1 DUT: Tablet Computer; Type: A5008; Serial: N/A Communication System: UID 0, IEEE 802.11b (0); Communication System Band: ISM 2.4GHz Band; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.9…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Date of Issue: September 15, 2015 Report No .:C150901S01-SF Page 1 of 99 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1992; ANSI/IEEE Std. C95.3-2002 In accordance with the requirements of Report and Order: ET Docket 93-62；FCC 47 CFR Part 2 ( 2.1093) ; RSS102 issue 5； IEC62209-2：2010 ;IEEE 1528 :2013 SAR TEST REPORT For Product Name: Tablet Computer Brand Name : acer Model No.: A5008 Series Model: N/A Test Report Number: C150901S01-SF Issued for Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221Taiwan Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Date of Issue: September 15, 2015 Report No .:C150901S01-SF Page 2 of 99 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Revision REPORT NO. Date Page Revised Contents Original C150901S01-SF September 15, 2015 N/A N/A Compliance Certification Services Inc. Date of Issue: September 15, 2015 Report No .:C150901S01-SF Page 3 of 99 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION)...........................................................4 2. EUT DESCRIPTION....................................................................................................................5 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................6 4. TEST METHODOLOGY..............................................................................................................6 5. TEST CONFIGURATION............................................................................................................6 6. DOSIMETRIC ASSESSMENT SETUP........................................................................................7 6.1 MEASUREMENT SYSTEM DIAGRAM ...........................................................................................................8 6.2 SYSTEM COMPONENTS...............................................................................................................................9 7. EVALUATION PROCEDURES.................................................................................................12 8. MEASUREMENT UNCERTAINTY............................................................................................16 9. EXPOSURE LIMIT....................................................................................................................18 10. EUT ARRANGEMENT..............................................................................................................19 10.1 BODY WORN TEST....................................................................................................................................19 11. MEASUREMENT RESULTS.....................................................................................................20 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................20 11.2 LIQUID MEASUREMENT RESULTS ..........................................................................................................21 11.3 SYSTEM PERFORMANCE CHECK...........................................................................................................22 11.4 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................24 11.5 SAR TEST CONFIGURATIONS..................................................................................................................29 11.6 BODY TEST EXCLUSION THRESHOLDS .................................................................................................30 11.7 EUT SETUP PHOTOS ................................................................................................................................31 11.8 BODY SAR TEST CONFIGURATION.........................................................................................................31 11.9 REPEATED SAR MEASUREMENT ............................................................................................................33 11.10 SAR HANDSETS MULTI XMITER ASSESSMENT................................................................................34 12. EUT PHOTO .............................................................................................................................35 13. EQUIPMENT LIST & CALIBRATION STATUS........................................................................39 14. FACILITIES...............................................................................................................................40 15. REFERENCES..........................................................................................................................40 Appendix A: Plots of Performance Check.....................................................................................41 Appendix B: DASY Calibration Certificate ....................................................................................48 Appendix C: Plots of SAR Test Result .........................................................................…

Text truncated - open the document above for the full version.

Report No.: C150824Z01-RP1-3 FCC ID: HLZA5008 Page 1 / 44 FCC 47 CFR PART 15 SUBPART C for Tablet Computer Model: A5008 Brand: acer Test Report Number: C150824Z01-RP1-3 Issued for Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan Issued by: Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services (Shenzhen) Inc. This document may be altered or revised by Compliance Certification Services (Shenzhen) Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST, CNAS or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services (Shenzhen) Inc. No.10-1, Mingkeda Logistics Park, No.18 Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: September 7, 2015 检 测 CNAS L4818 Report No.: C150824Z01-RP1-3 FCC ID: HLZA5008 Page 2 / 44 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Data Revisions Effect Page Revised By 00 September 7, 2015 Initial Issue ALL Sabrina Wang Report No.: C150824Z01-RP1-3 FCC ID: HLZA5008 Page 3 / 44 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION .............................................................................................. 4 2 TEST RESULT SUMMARY ........................................................................................ 5 3 EUT DESCRIPTION ................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST .................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS ...................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY ....................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS ...................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT ........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 15 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 28 7.4. ANTENNA GAIN ................................................................................................................ 31 7.5. PEAK OUTPUT POWER ................................................................................................... 32 7.6. BAND EDGES MEASUREMENT ....................................................................................... 35 7.7. PEAK POWER SPECTRAL DENSITY MEASUREMENT .................................................. 41 Report No.: C150824Z01-RP1-3 FCC ID: HLZA5008 Page 4 / 44 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Tablet Computer Model A5008 Brand acer Tested August 24~September 7, 2015 Applicant Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan Manufacturer Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a)  Spurious Emissions  Conducted Measurement  Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of RF Dept. Compliance Certification Services (Shenzhen) Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Services (Shenzhen) Inc. Report No.: C150824Z01-RP1-3 FCC ID: HLZA5008 Page 5 / 44 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type Result Remark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. 15.247(d) Band Edges Measurement Pass Meet the requirement of limit. 15.247(e) Peak Power Spectral Density Pass Meet the requirement of limit. 15.247(d) 15.209(a)  Spurious Emissions  Conducted Measurement  Radiated Emissions Pass…

Text truncated - open the document above for the full version.

Report No.: C150824Z01-RP1-1 FCC ID: HLZA5008 Page 1 / 89 This report shall not b e reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C for Tablet Computer Model: A5008 Brand: acer Test Report Number: C150824Z01-RP1-1 Issued Date: September 10, 2015 Issued for Acer Incorporated 8F, 88, Sec 1, Hsin Tai Wu Rd Hsichih, Taipei Hsien, 221 Taiwan Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, C hina TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the wri tten approval of Compliance Certification Services (Shenzhen) Inc. This document may be altered or revised by Compliance Certification Services (Shenzhen) Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. 检 测 CNAS L4818 Report No.: C150824Z01-RP1-1 FCC ID: HLZA5008 Page 2 / 89 This report shall not b e reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 10, 2015 Initial Issue ALL Sabrina Wang Report No.: C150824Z01-RP1-1 FCC ID: HLZA5008 Page 3 / 89 This report shall not b e reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ............................................................................................................. 4 2 TEST RESULT SUMMARY ...................................................................................................... 4 3 EUT DESCRIPTION .........................................................................…

Text truncated - open the document above for the full version.
