HLZBL503GNotebook PC with Built In GSM/GPRS

TravelMate 4200 Series User's Guide Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose. Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated. Model number: __________________________________ Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ Copyright © 2005. Acer Incorporated. All Rights Reserved. TravelMate 4200 Series User's Guide Original Issue: Dec 2005 TravelMate 4200 Series Notebook PC Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies. iii Disposal instructions Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. USA For electronic products containing an LCD/CRT monitor or display: Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org . For lamp-specific disposal information, check www.lamprecycle.org . iv First things first We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs. Your guides To help you use your Acer notebook, we have designed a set of guides: Basic care and tips for using your computer Turning your computer on and off To turn on the computer, simply press and release the power button below the LCD screen beside the easy-launch buttons. See "Front view" on page 11 for the location of the power button. First off, the Just for Starters... poster helps you get started with setting up your computer. The printed User's Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the AcerSystem User's Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it: 1 Click on Start, All Programs, AcerSystem. 2 Click on AcerSystem User's Guide. Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem User's Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu. v To turn the power off, do any of the following: •Use the Windows shutdown command Click on Start, Turn Off Computer, then click on Turn Off. •Use the power button You can also shut down the computer by closing the display cover, or by pressing the sleep hotkey <Fn> + <F4>. Note: If you cannot power off the computer normally, press and hold the power button for more than four seconds to shut down the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up. Taking care of your computer Your computer will serve you well if you take care of it. •Do not expose the computer to direct sunlight. Do not place it near sources of heat, such as a radiator. •Do not expose the computer to temperatures below 0 ºC (32 ºF) or above 50 ºC (122 ºF). •Do not subject the computer to magnetic fields. •Do not expose the computer to rain or moisture. •Do not spill water or any liquid on the computer. •Do not subject the computer to heavy shock or vibration. •Do not expose the computer to dust or dirt. •Never place objects on top of the computer. •Do not slam the computer display when you close it. •Never place the computer on uneven surfaces. Taking care of your AC adapter Here are some ways to take care of your AC adapter: •Do not connect the adapter to any other device. •Do not step on the power cord or place heavy objects on top of it. Carefully route the power cord and any cables away from foot traffic. •When unplugging the power cord, do not pull on the cord itself but pull on the plug. •The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating. vi Taking care of your battery pack Here are some ways to take care of your battery pack: •Use only batteries of the same kind as replacements. Turn the power off before removing or replacing batteries. •Do not tamper with batteries. Keep them away from children. •Dispose of used batteries according to local regulations. Recycle if possible. Cleaning and servicing When cleaning the computer, follow these steps: 1Turn off the computer and remove the battery pack.…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih Taipei Hsien 221, Taiwan, R.O.C. Tel : 886-2-2696-1234 Fax : 886-2-2696-3535 www.acer.com Date: Apr. 18, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID：HLZBL50 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List 5. Tune-up Procedure (for phone) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Apr. 18, 2006 ---------------------------- ------------------ Easy Lai Date Regulation Center/ Acer Inc.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 2, 2006 RE: Acer, Inc. FCC ID: HLZBL503G I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The Label exhibit is missing for this device. Please supply a label as appropriate. 2.) There are no Schematics supplied for this project. Please supply Schematics especially for the Licensed transmitter section. 3.) The Parts List supplied does not include any description or listing of any transmitters other than unlicensed Bluetooth or 802.11a/b/g. Please supply an appropriate Parts List for this device. 4.) An RF Exposure estimation (MPE) is required for this device. Please provide. In addition, due consideration must be given if either the WLAN or Bluetooth transmitter is capable of usage simultaneously with the Licensed transmitter for this RF category “Mobile” configuration. 5.) It is recommended that an Agent Authorization letter from Acer to Sporton also be provided. Please provide at your first opportunity. 6.) FYI: The labeling issue may be critical for this filing. There are three potential transmitters which may or may not have their own full or limited Modular Approvals inside a notebook computer which may or may not need it’s own ID. Kindly take particular care of labeling for this computer. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1 William Graff From: Daniel Lee (???) [[email protected]] Sent: Friday, May 05, 2006 3:10 PM To: William Graff Cc: Ivonne Wu (???) Subject: RE: www.AmericanTCB.com ATCB003430 | HLZBL503G | | | HLZBL503G_ATCB003430 Dear Bill, The responses are as below: 1. GPRS will be applied with the entire notebook. 2. ~ 4 : Still push Option thru Acer. 5. We use the peak EIRP in part 24 report directly. That is we use the measured EIRP value, not calculated EIRP value. 6. Will upload POA Thanks a lot. BR Daniel -----Original Message----- From: William Graff [mailto:[email protected]] Sent: Thursday, May 04, 2006 4:20 PM To: Fred Yang (楊沛峰); Daniel Lee (李春和); Vanny Wang (王慧萍); Isabel Chiu (邱嘉凌); Ivonne Wu (吳宜芳); Roy Wu (吳瑞源); Jim Tsai (蔡志成) Cc: [email protected]; [email protected] Subject: www.AmericanTCB.com ATCB003430 | HLZBL503G | | | HLZBL503G_ATCB003430 Regarding www.AmericanTCB.com application: ATCB ID: ATCB003430 FCC ID: HLZBL503G IC ID: NB ID: Account name: sporton Daniel, Just a quick update for this project: 1.) The labels for WLAN and BT have been supplied - thanks. As it stands (1.) the FCC ID: HLZBL503G should apply to the entire notebook computer with built-in GPRS card, yes? Or (2.) is the "bare bones" computer covered by a separate DofC authorization, and we are simply doing an LMA on the GPRS card/notebook PC combination only. If (2.) then a Limited Modular Approval letter (LMA) would need to be presented. 2.) Still no schematics. 3.) Still no revised parts list (see my note of May 2). 4.) Still no tune up procedure. 5.) MPE estimation makes no mention of antenna gain, and no calculations are shown. 6.) Still no agent authorization letter. Bill ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ William H. Graff, NARTE Certified ~ President and Director of Engineering ~ AmericanTCB, Inc. ~ 6731 Whittier Ave, ~ McLean, VA 22101 ~ mailto:[email protected] 2 ~ Direct Phone: (703) 880-6337 ~ Direct Mobile: (480) 459-6706 ~ Corporate Phone: (703) 847-4700 ~ Corporate FAX: (703) 847-6888 ~ Taiwan Mobile: +886 920399260 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Message has been scanned by Sporton AntiVirus System with no virus detected.

1 William Graff From: Daniel Lee (???) [[email protected]] Sent: Monday, June 19, 2006 3:30 PM To: William Graff Cc: [email protected]; [email protected]; Ivonne Wu (???); Roy Wu (???); Jim Tsai (???) Subject: RE: www.AmericanTCB.com ATCB003430 | HLZBL503G | | | HLZBL503G_ATCB003430 Dear Bill, Please find the responses as below: 1. Tune-Up procedure has been updated and uploaded. 2. Updated label is uploaded. 3. Acer will take care of the PC II for WLAN and BT transmitters. 4. Updated Users manual is uploaded. Thanks a lot and advise when we can expect to receive FCC grant. BR Daniel -----Original Message----- From: William Graff [mailto:[email protected]] Sent: Tuesday, June 13, 2006 2:56 PM To: Fred Yang (楊沛峰); Daniel Lee (李春和); Vanny Wang (王慧萍); Isabel Chiu (邱嘉凌); Ivonne Wu (吳宜芳); Roy Wu (吳瑞源); Jim Tsai (蔡志成) Cc: [email protected]; [email protected] Subject: www.AmericanTCB.com ATCB003430 | HLZBL503G | | | HLZBL503G_ATCB003430 Regarding www.AmericanTCB.com application: ATCB ID: ATCB003430 FCC ID: HLZBL503G IC ID: NB ID: Account name: sporton Please see attached. Bill Message has been scanned by Sporton AntiVirus System with no virus detected.

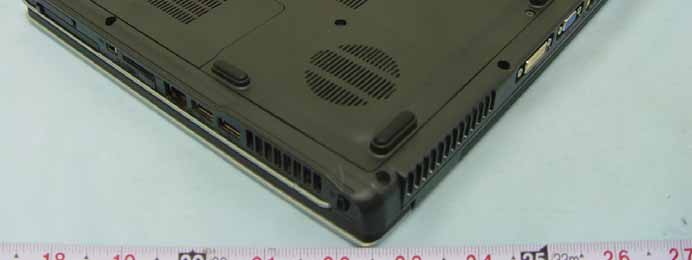

FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : A1 OF A4 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 APPENDIX A. External Photographs of EUT APPENDIX A. External Photographs of EUT APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : A2 OF A4 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : A3 OF A4 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 28.8 cm GSM Antenna FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : A4 OF A4 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 13, 2006 RE: Acer, Inc FCC ID: HLZBL503G I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) This device requires a Tune Up procedure. My apologies for this omission on my previous review of this filing. Kindly be sure that RF power target values are included. 2.) The label for this device does not contain the information the required two-part compliance statement 15.19(a)(3). I acknowledge that the statement exists within the Manual, however FCC interpretations require that all devices larger than the palm of the hand require this statement on the EUT itself. Please advise. 3.) There are two other separately certified devices which are also affected by this Application. They are FCC IDs: PD9WM3945ABG and QDS-BRCM1018. Kindly confirm if a Class II PC has been performed on these other filings considering the EMI spurious emissions interaction with HLZBL503G. 4.) Your April 28 email states that SAR was performed for client reference only and should not be considered for this RF category “Mobile” device. This is acceptable. However, this also implies that the SAR references within the Manual are unsubstantiated. Kindly review the last page of the Manual and remove all unsubstantiated claims for RF Exposure. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B1 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B2 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B3 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B4 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B5 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B6 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B7 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B8 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 GSM Antenna FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B9 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B10 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 GSM Antenna FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B11 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B12 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B13 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B14 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B15 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC TEST REPORT REPORT NO. : FG632818 SPORTON International Inc. Page Number : B16 OF B16 TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih Taipei Hsien 221, Taiwan, R.O.C. Tel : 886-2-2696-1234 Fax : 886-2-2696-3535 www.acer.com Date: May 3,2006 Subject: Non Co-transmit Declaration FCC ID: HLZBL503G We, Acer, hereby claims that the embedded GPRS will not either co-transmit with the embedded WLAN or the embedded BT. We implement it by software control. As the GPRS is working and the end users want to turn on WLAN or BT, the system will send a warning message to ask for turning off GPRS first. Before GPRS is turned off, WLAN or BT cannot be turned on. On the contrary, as the WLAN or BT is working and GPRS signal is received, the system will turn off WLAN or BT automatically. Sincerely, __________________ May 3, 2006____ Easy Lai Date Regulation Center/ Acer In

Document No.: 632818 RF Exposure Test Report Date: May 02, 2006 FCC ID: HLZBL503G Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Acer BL50 Equipment : Notebook PC Trade Name : Acer Model No. : BL50 FCC ID : HLZBL503G Filing Type : Certification Applicant : Acer Inc. 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih Taipei Hsien 221, Taiwan, R.O.C. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 632818 RF Exposure Test Report Date: May 02, 2006 FCC ID: HLZBL503G Sporton International Inc. Maximum Permissible Exposure Test Report for BL50 1.0 Introduction The report has been prepared on behalf of Acer BL50 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Acer BL50 belongs to mobile device and it can be approved by MPE calculation. The MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as Document No.: 632818 RF Exposure Test Report Date: May 02, 2006 FCC ID: HLZBL503G Sporton International Inc. follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Acer BL50 is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation According to 1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . As this device belongs to mobile device, the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: S=EIRP/4R 2 Where: S = Power Density EIRP = Effective Isotropic Radiated Power Document No.: 632818 RF Exposure Test Report Date: May 02, 2006 FCC ID: HLZBL503G Sporton International Inc. R = Distance from Transmitting Antenna For this device, the calculation is as follows: Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². GPRS Transimitter: Maximum EIRP (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) 1930 0.38 1.00 EDGE Transimitter: Maximum EIRP (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) 1760 0.35 1.00 Based on the above calculation at 20cm, the Acer is below the Power Density limit of 1mW/cm 2 .

SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 02 FCC TEST REPORT Report No. : FG632818 FCC TEST REPORT for 47 CFR Part 24E Equipment : Notebook PC Trade Name : Acer Model No. : BL50 FCC ID : HLZBL503G Tx Frequency Range : PCS 1900: 1850.2~1909.8MHz Max. EIRP Power : GSM Mode : 1.93 W EDGE Mode : 1.76 W Emission Designator : 300 KGXW Applicant : Acer Inc. 8F, 88, Sec.1, Hsin Tai Wu Rd. Hsichih Taipei Hsien 221 Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsed by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Apr. 15, 2006 at Sporton International Inc. LAB. ‚ Report No.: FG632818, Report Version: Rev. 02 Dr. Daniel Lee EMC/SAR Director SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Report Issued Date : Apr. 27, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID : HLZBL503G FCC TEST REPORT Report No. : FG632818 Table of Contents History of this test report....................................................................................................................................ii 1. General Information ........................................................................................................................................1 1.1. Applicant ........................................................................................................................................................................................1 1.2. Manufacturer ..................................................................................................................................................................................1 1.3. Basic Description of Equipment under Test ...................................................................................................................................1 1.2 Feature of Equipment under Test ..................................................................................................................................................2 1.3 Report Date ....................................................................................................................................................................................2 2 Test Configuration of Equipment under Test ...............................................................................................3 2.1 Test Manner ...................................................................................................................................................................................3 2.2 Test Mode ......................................................................................................................................................................................3 2.3 Connection Diagram of Test System .............................................................................................................................................3 2.4 Ancillary Equipment List.................................................................................................................................................................3 3. General Information of Test Site ....................................................................................................................4 3.1 Test Voltage ...................................................................................................................................................................................4 3.2 Test in Compliance with .................................................................................................................................................................4 3.3 Frequency Range Investigated ......................................................................................................................................................4 3.4 Test Distance .................................................................................................................................................................................4 4. Test Data and Test Result...............................................................................................................................4 4.1 List of Measurements and Examinations .......................................................................................................................................4 4.2 RF Output Power ...…
