HLZDME310SCSmart Handheld

Acer Liquid Mini E310 User Guide © 2010 All Rights Reserved Acer Liquid Mini E310 User Guide First issue: 12/2010 Acer Liquid Mini E310 Smartphone Model number: __________________________________ Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ 3 Table of Contents End User License Agreement Features and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Product registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Setting Up Unpacking your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Getting to know your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installing or removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installing a SIM or microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Using your Smartphone Turning on for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Locking your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Using the touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 The onscreen keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 The home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Managing contacts Managing your contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Making Calls Before making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 The voice call screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Voice call options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Messaging Creating a new message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Replying to a message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 MMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Going online Browsing the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Setting up your Google email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Composing an email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Setting up Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Online applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Acer SocialJogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 4 Using the Camera Camera icons and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Taking a photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Shooting a video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Viewing photos and videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Advanced Settings Putting your smartphone in Airplane mode . . . . . . . . . . . . . . . . . . . . . . . . . 40 Activating or deactivating connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Adjusting connection settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Phone settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Connecting to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Multimedia playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Updating your phone’s operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Reset to factory defaults (clean boot) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Accessories and Tips Using the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Using a Bluetooth headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Inserting a microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Appendix FAQ and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Other sources of help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Warnings and precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Disposal and recycling information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Taking care of your smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Regulatory information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 5 End User License Agreement IMPORTANT-READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("AGREEMENT") IS A LEGAL AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR A SINGLE ENTITY), AND ACER INC. INCLUDING ITS SUBSIDIARIES ("ACER") FOR THE SOFT…

Text truncated - open the document above for the full version.

Acer Incorporated 8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih Taipei Hsien 221, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 Fax : 886-2-8691-3120 www.acer.com Nov, 16, 2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compal Communications, Inc. Address: No. 385, Yangguang Street, Neihu, Taipei 11491, Taiwan Mr. Tesla Du Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: acer / E210, E310 Product Name: Smart Handheld Signature____________________ Name/Title: Easy Lai Company Name: Acer Incorporated. Address: 8F., No.88,Sec.1, Hsin Tai Wu Rd., Hsichih Town, Taipei Hsien, Taiwan, R.O.C. TEL: +886-2-2696-3131 ext.3089 FAX: +886-2-8691-3120 Email: [email protected]

Compliance Certification Services Inc. 2010/12/30 Dear Sir, We followed the PBA instructions. The tracking number is 427911. The projects (Internal project code: C4: FCC ID: HLZDME310SC & K5: FCC ID: HLZDME210SC) which is built-in the same "Wi-Fi hot spot” function with original one (internal project code: K4: HLZDME140SC) are to be followed the same KDB. Thank you. Signature Name/Title: Rex Lai / Section Manager Company Name: Compliance Certification Services Inc. Address: No. 11, Wu-Gong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) TEL: 886-2-2299-9720 Email: [email protected]

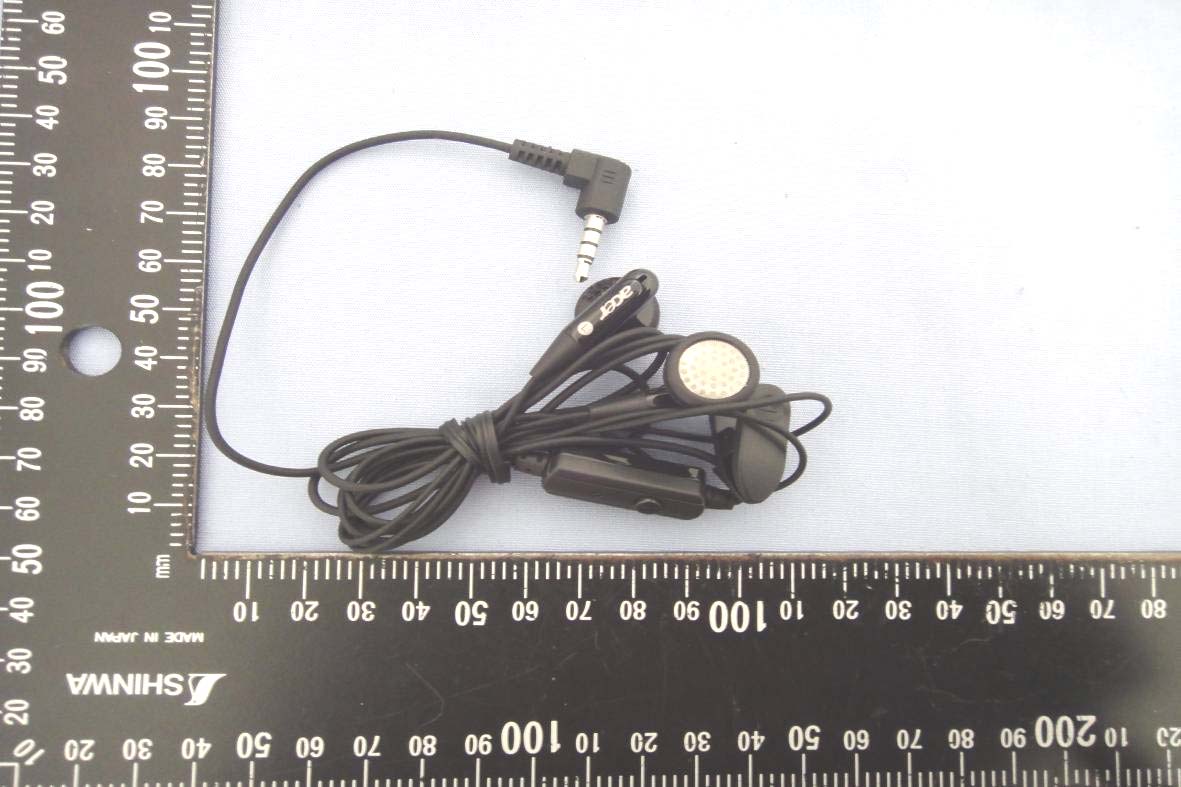

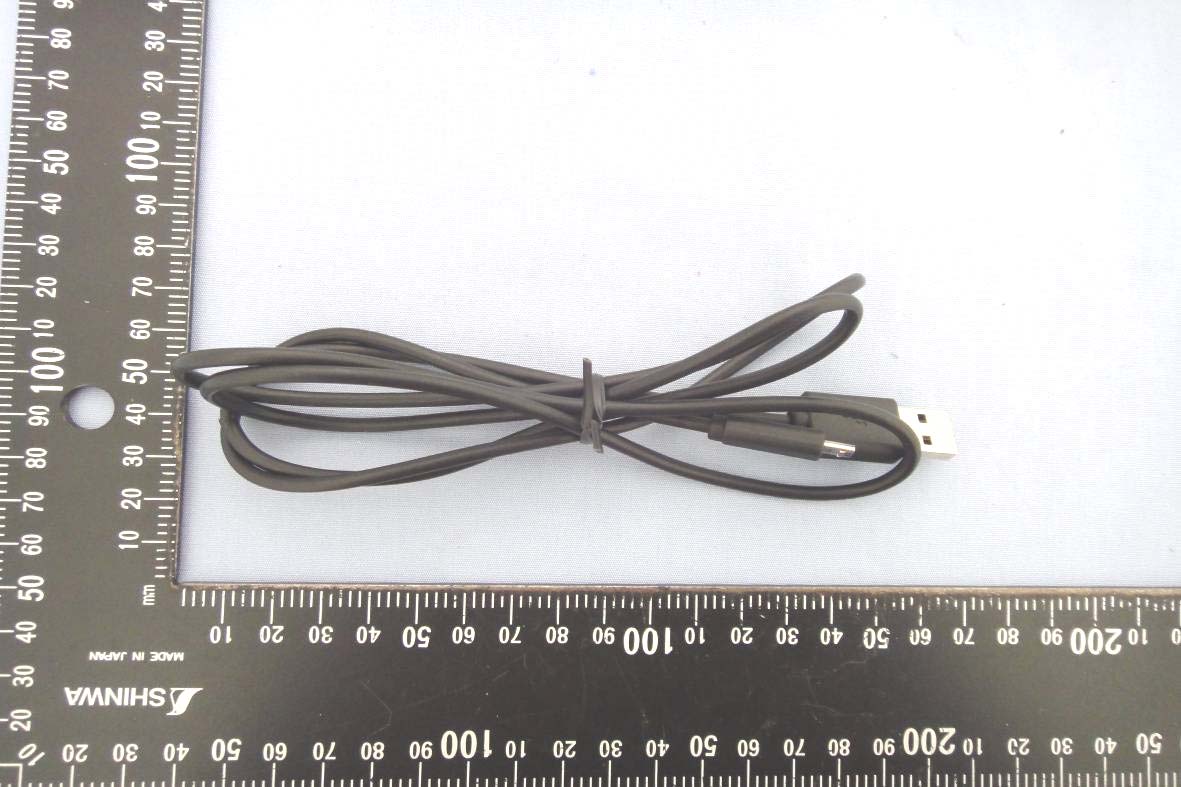

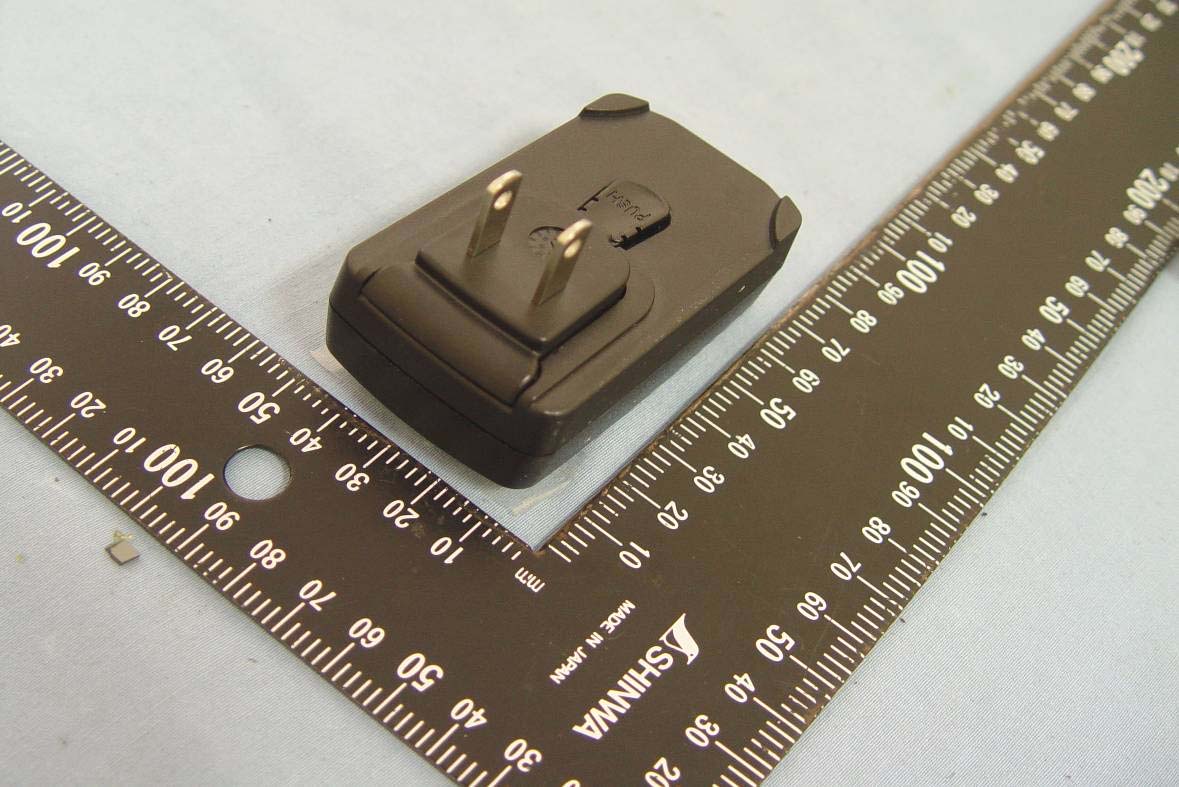

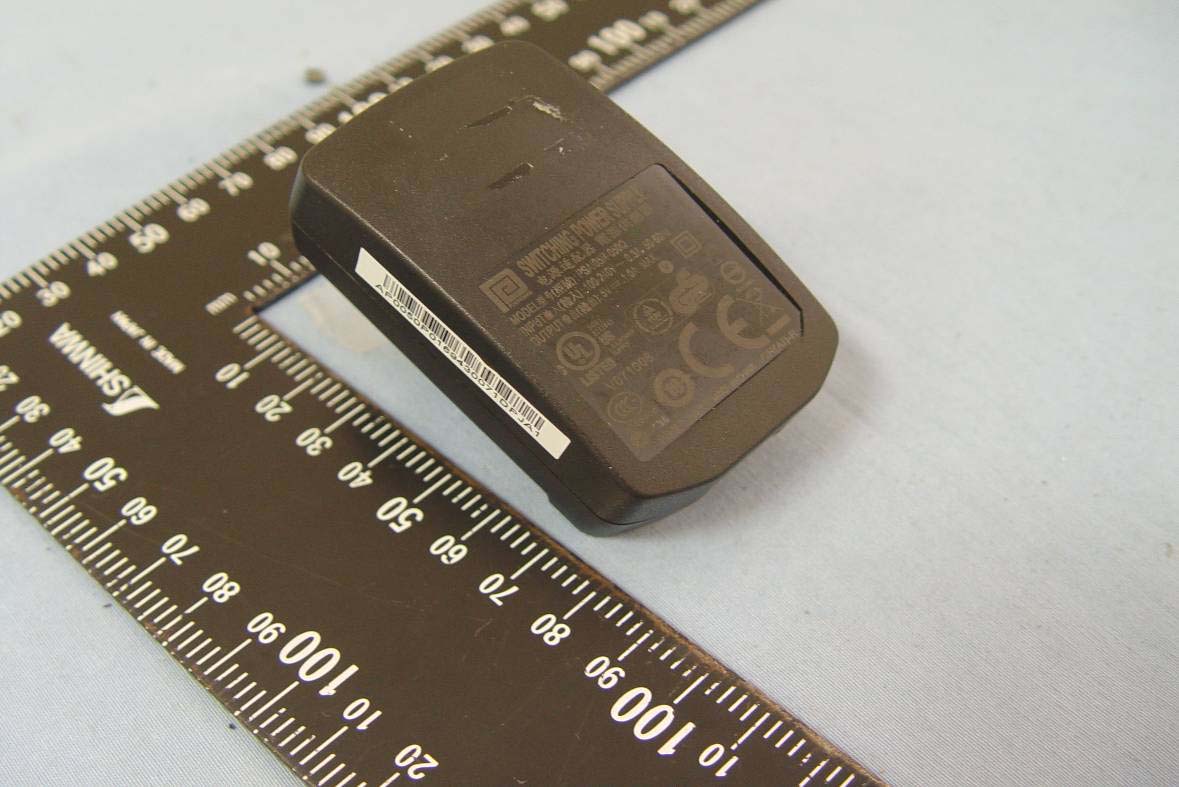

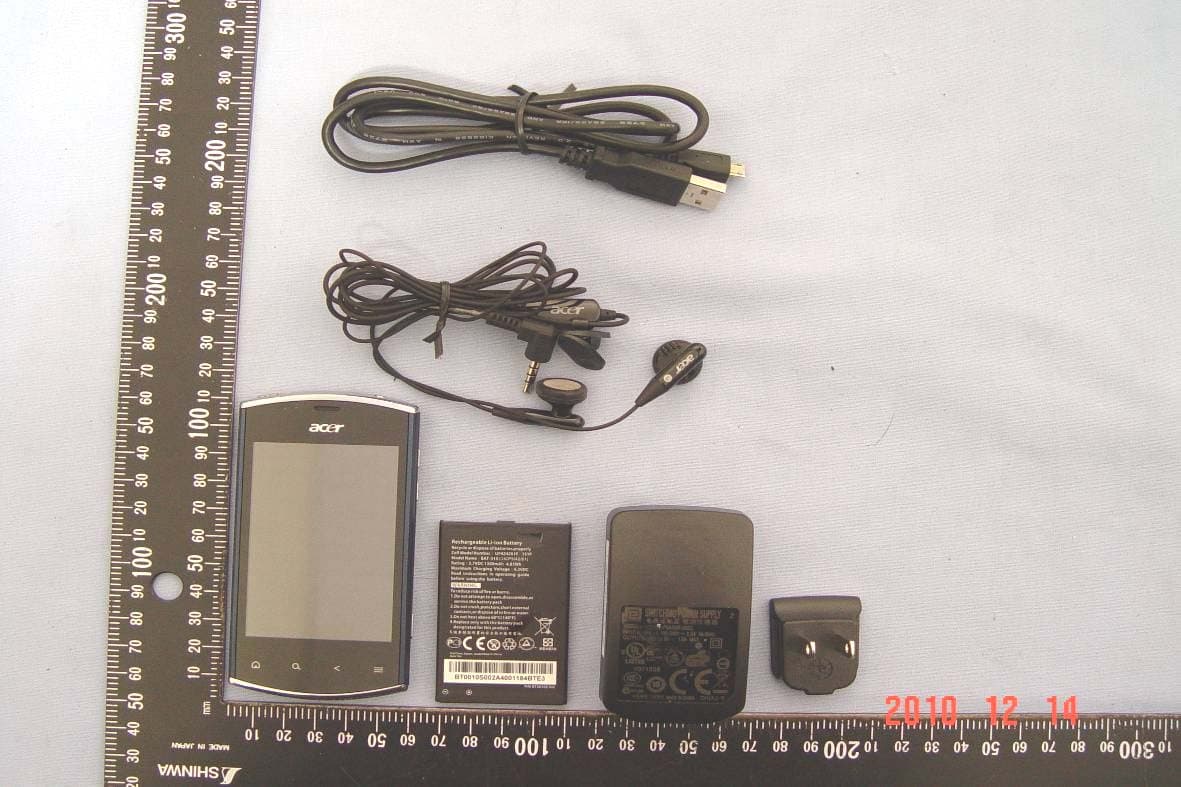

Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 A1 - 1 Total Page: 22 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 A1 - 2 Total Page: 22 Rev. 00 Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 A1 - 3 Total Page: 22 Rev. 00 Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 A1 - 4 Total Page: 22 Rev. 00 Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 A1 - 5 Total Page: 22 Rev. 00 Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 A1 - 6 Total Page: 22 Rev. 00 Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 A1 - 7 Rev. 00

材質：PI material with UL94V0 印刷：底色銀+單色印刷 (黑 ) Coating: 可打印霧膜 公差：+/-0.2mm Made by Vendor Printed by CCI (XX Material) Printed by Vendor (RD Material) C4 Device Label_FCC IDC Candy 2010/12/27 19.27 5.86 22.56 7.66 46.58 23.72 3.72 19.27 Series No. :XXXXXXXXXXXXXXXXXXXXXX IMEI:XXXXXXXXXXXXXXY SNID : YWWddddddMMMade in China Model No. : E310 INPUT : 5V DC 1A Part No. : XP.XXXXX.XXX MFG Date : Oct , 2010 5.15 mm 7.31 mm 1.04 mm Standard Label Safety logo Label FCC ID: HLZDME310SC IC : 1754F-DME310SC 6.239 8.697

Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 第 17 頁 Rev. 00 Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 第 18 頁 Rev. 00 BCM4329XKUBG Bluetooth / WLAN Module Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 第 19 頁 Rev. 00 GPS Module Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 第 20 頁 Rev. 00 Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 第 21 頁 Rev. 00 Battery Compliance Certification Services Inc. Report No.: T101115002 Date of Issue: December 15, 2010 第 22 頁 Rev. 00

Date/Time: 2010/12/01 08:40:11 AM Test Laboratory: Compliance Certification Services Inc. GSM 850 Right Head E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.907 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Right Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.44, 8.44, 8.44); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn877; Calibrated: 2010/2/17 lPhantom: SAM with CRP; Type: SAM; Serial: 1506 lMeasurement SW: DASY5, V5.0 Build 125; Postprocessing SW: SEMCAD, V1.8 Build 186 GSM850 Right Cheek CH251/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.530 mW/g GSM850 Right Cheek CH251/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 7.73 V/m; Power Drift = 0.089 dB Peak SAR (extrapolated) = 0.691 W/kg SAR(1 g) = 0.508 mW/g; SAR(10 g) = 0.356 mW/g Maximum value of SAR (measured) = 0.646 mW/g Date/Time: 2010/12/01 09:17:55 AM Test Laboratory: Compliance Certification Services Inc. GSM 850 Right Head E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.907 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Right Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.44, 8.44, 8.44); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn877; Calibrated: 2010/2/17 lPhantom: SAM with CRP; Type: SAM; Serial: 1506 lMeasurement SW: DASY5, V5.0 Build 125; Postprocessing SW: SEMCAD, V1.8 Build 186 GSM850 Right Tilted CH251/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.342 mW/g GSM850 Right Tilted CH251/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 13.3 V/m; Power Drift = 0.037 dB Peak SAR (extrapolated) = 0.442 W/kg SAR(1 g) = 0.334 mW/g; SAR(10 g) = 0.234 mW/g Maximum value of SAR (measured) = 0.397 mW/g Date/Time: 2010/12/01 09:49:56 AM Test Laboratory: Compliance Certification Services Inc. GSM 850 Left Head E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.907 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Left Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.44, 8.44, 8.44); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn877; Calibrated: 2010/2/17 lPhantom: SAM with CRP; Type: SAM; Serial: 1506 lMeasurement SW: DASY5, V5.0 Build 125; Postprocessing SW: SEMCAD, V1.8 Build 186 GSM850 Left Cheek CH251/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.652 mW/g GSM850 Left Cheek CH251/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 9.05 V/m; Power Drift = 0.029 dB Peak SAR (extrapolated) = 0.772 W/kg SAR(1 g) = 0.564 mW/g; SAR(10 g) = 0.385 mW/g Maximum value of SAR (measured) = 0.716 mW/g Date/Time: 2010/12/01 10:23:15 AM Test Laboratory: Compliance Certification Services Inc. GSM 850 Left Head E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.907 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Left Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.44, 8.44, 8.44); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn877; Calibrated: 2010/2/17 lPhantom: SAM with CRP; Type: SAM; Serial: 1506 lMeasurement SW: DASY5, V5.0 Build 125; Postprocessing SW: SEMCAD, V1.8 Build 186 GSM850 Left Tilted CH251/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.273 mW/g GSM850 Left Tilted CH251/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 12.0 V/m; Power Drift = 0.020 dB Peak SAR (extrapolated) = 0.345 W/kg SAR(1 g) = 0.267 mW/g; SAR(10 g) = 0.202 mW/g Maximum value of SAR (measured) = 0.326 mW/g GSM850 Left Tilted CH251/Zoom Scan (7x7x9)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 12.0 V/m; Power Drift = 0.020 dB Peak SAR (extrapolated) = 0.335 W/kg SAR(1 g) = 0.123 mW/g; SAR(10 g) = 0.068 mW/g Maximum value of SAR (measured) = 0.197 mW/g Date/Time: 2010/12/03 09:02:57 AM Test Laboratory: Compliance Certification Services Inc. GSM 1900 -Right Head E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 1880 MHz; σ = 1.41 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Right Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.05, 7.05, 7.05); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn877; Calibrated: 2010/2/17 lPhantom: SAM with CRP; Type: SAM; Serial: 1506 lMeasurement SW: DASY5, V5.0 Build 125; Postprocessing SW: SEMCAD, V1.8 Build 186 GSM1900 Right Cheek CH661/Area Scan (6x10x1): Measurement grid: dx=15mm, d…

Text truncated - open the document above for the full version.

Date/Time: 2010/12/01 20:25:05 PM Test Laboratory: Compliance Certification Services Inc. HADPA Band V Body E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: HSDPA Band V; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.94 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.55, 8.55, 8.55); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn877; Calibrated: 2010/2/17 lPhantom: SAM with CRP; Type: SAM; Serial: 1506 lMeasurement SW: DASY5, V5.0 Build 125; Postprocessing SW: SEMCAD, V1.8 Build 186 HSDPA Band V Body Face Down CH4182/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.558 mW/g HSDPA Band V Body Face Down CH4182/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 10.8 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 0.657 W/kg SAR(1 g) = 0.483 mW/g; SAR(10 g) = 0.338 mW/g Maximum value of SAR (measured) = 0.567 mW/g HSDPA Band V Body Face Down CH4182/Zoom Scan (7x7x9)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 10.8 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 0.659 W/kg SAR(1 g) = 0.494 mW/g; SAR(10 g) = 0.359 mW/g Date/Time: 2010/12/01 21:02:29 PM Test Laboratory: Compliance Certification Services Inc. HAUPA Band V Body E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: HSUPA Band V; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.94 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.55, 8.55, 8.55); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn877; Calibrated: 2010/2/17 lPhantom: SAM with CRP; Type: SAM; Serial: 1506 lMeasurement SW: DASY5, V5.0 Build 125; Postprocessing SW: SEMCAD, V1.8 Build 186 HSUPA Band V Body Face Up CH4182/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.192 mW/g HSUPA Band V Body Face Up CH4182/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 6.21 V/m; Power Drift = 0.026 dB Peak SAR (extrapolated) = 0.227 W/kg SAR(1 g) = 0.169 mW/g; SAR(10 g) = 0.121 mW/g Maximum value of SAR (measured) = 0.196 mW/g Date/Time: 2010/12/01 21:50:10 PM Test Laboratory: Compliance Certification Services Inc. HAUPA Band V Body E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: HSUPA Band V; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.94 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.55, 8.55, 8.55); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn877; Calibrated: 2010/2/17 lPhantom: SAM with CRP; Type: SAM; Serial: 1506 lMeasurement SW: DASY5, V5.0 Build 125; Postprocessing SW: SEMCAD, V1.8 Build 186 HSUPA Band V Body Face Down CH4182/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.466 mW/g HSUPA Band V Body Face Down CH4182/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 8.68 V/m; Power Drift = 0.023 dB Peak SAR (extrapolated) = 0.574 W/kg SAR(1 g) = 0.415 mW/g; SAR(10 g) = 0.295 mW/g Maximum value of SAR (measured) = 0.479 mW/g Date/Time: 2010/12/04 15:40:30 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Body E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.9 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn558; Calibrated: 2010/7/14 lPhantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 lMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 802.11b Body Face Up CH6/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.009 mW/g 802.11b Body Face Up CH6/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 1.95 V/m; Power Drift = 0.173 dB Peak SAR (extrapolated) = 0.032 W/kg SAR(1 g) = 0.008 mW/g; SAR(10 g) = 0.0036 mW/g Maximum value of SAR (measured) = 0.011 mW/g 802.11b Body Face Up CH6/Zoom Scan (7x7x9)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 1.95 V/m; Power Drift = 0.173 dB Peak SAR (extrapolated) = 0.023 W/kg SAR(1 g) = 0.0078 mW/g; SAR(10 g) = 0.00419 mW/g Date/Time: 2010/12/04 16:07:11 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Body E310 DUT: C4; Type: Smart Handheld; Serial: 460952688 Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.9 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.6 deg C;Liquid Temperature:23.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); lSensor-Surface: 2.5mm (Mechanical Surface Detecti…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: T101122003-SF FCC ID: HLZDME310SC Date of Issue: December 10, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 57 Rev. 00 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Smart Handheld Model: E310 Trade Name: acer Issued to Acer Incorporated 8F., No.88, Sec. 1, Hsin Tai Wu Rd., Hsichih Town, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien, 248 Taiwan. http://www. ccsrf.com [email protected] Compliance Certification Services Inc. Report No: T101122003-SF FCC ID: HLZDME310SC Date of Issue: December 10, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) .........................................................3 2. EUT DESCRIPTION ..........................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ..........................6 4. DOSIMETRIC ASSESSMENT SETUP ............................................................................................6 4.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................7 4.2 SYSTEM COMPONENTS............................................................................................................8 5. EVALUATION PROCEDURES......................................................................................................11 6. MEASUREMENT UNCERTAINTY ..............................................................................................15 7. EXPOSURE LIMIT ..........................................................................................................................17 8. EUT ARRANGEMENT....................................................................................................................18 8.1 ANTHROPOMORPHIC HEAD PHANTOM .............................................................................18 8.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION ............................................................19 8.3 DEFINITION OF THE “TILTED” POSITION...........................................................................20 9. MEASUREMENT RESULTS ..........................................................................................................21 9.1 TEST LIQUIDS CONFIRMATION............................................................................................21 9.2 SYSTEM PERFORMANCE CHECK .........................................................................................25 9.3 EUT TUNE-UP PROCEDURES .................................................................................................29 9.4 SAR MEASUREMENT RESULTS ............................................................................................37 10. EUT PHOTO .................................................................................................................................47 11. EQUIPMENT LIST & CALIBRATION STATUS.....................................................................55 12. FACILITIES..................................................................................................................................56 13. REFERENCES ..............................................................................................................................56 14. ATTACHMENTS..........................................................................................................................57 Compliance Certification Services Inc. Report No: T101122003-SF FCC ID: HLZDME310SC Date of Issue: December 10, 2010 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: Acer Incorporated 8F., No.88, Sec. 1, Hsin Tai Wu Rd., Hsichih Town, Taipei Hsien, Taiwan, R.O.C. Equipment Under Test: Smart Handheld Trade Name: acer Model Number: E310 Date of Test: December 01 ~ 22, 2010 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C(Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Tested by: Rex Lai Anson Lu Section Manager Test Engineer Compliance Certification Services Inc. Compliance Certification Services Inc Compliance Certification Services Inc. Report No: T101122003-SF FCC ID: HLZDME310SC Date of Issue: December 10, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Smart Handheld Model Number E310 Trade Name acer Model Discrepancy N/A Frequency Range GSM / GPRS / EGPRS: 850: 824.2 ~ 848.8 MHz GSM / GPRS / EGPRS: 1900: 1850.2 ~ 1909.8 MHz WCDMA / HSDPA band V: 826.4 ~ 846.6 MHz WCDMA / HSDPA band II: 1852.4 ~ 1907.6 MHz 802.11b / g: 2412 ~ 2462 MHz Bluetooth: 2402 ~ 2483.5 MHz 850 Band: GSM 850: 32.57 dBm GPRS 850: 25.54 dBm EDGE850: 24.14 dBm WCDMA band V: 23.61 dBm HSDPA band V: 23.60 dBm HSUPA band V: 23.45 dBm 1900 Band: GSM 1900: 29.45 dBm GPRS 1900: 22.55 dBm EDGE1900: 22.44 dBm WCDMA band II: 23.32 dBm HSDPA band II: 23.53 dBm HSUPA band II: 23.25 dBm Transmit Power(Average) 2.4GHz: 802.11b: 15.45 dBm 802.11g: 12.51 dBm WiFi Hotspot: 15.75 dBm Bluetooth: …

Text truncated - open the document above for the full version.

: Compliance Certification Services Inc. Report No: T101122003-ST FCC ID: HLZDME310SC Date of Issue: December 28, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 34 Rev. 00 ANSI C63.19-2007 Hearing Aid Compatibility (HAC) T-Coil Test Report For Smart Handheld Model: E310 Trade Name: acer Issued to Acer Incorporated 8F., No.88, Sec. 1, Hsin Tai Wu Rd., Hsichih Town, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., Xinbei City 24891, Taiwan http://www.ccsrf.com [email protected] : Compliance Certification Services Inc. Report No: T101122003-ST FCC ID: HLZDME310SC Date of Issue: December 28, 2010 Page 2 Rev. 00 Table of Contents 1. Statement of Compliance ...........................................................................................................................................3 2. General Information ....................................................................................................................................................4 2.1 Description of Device Under Test (DUT)........................................................................................................... 4 2.2 Applied Standards .............................................................................................................................................5 2.3 Test Conditions ..................................................................................................................................................5 2.3.1 Ambient Condition ...................................................................................................................................5 2.3.2 Test Configuration....................................................................................................................................5 3. Hearing Aid Compliance (HAC)..................................................................................................................................6 3.1 Introduction...............................................................................................…
